Overview
Quick index
General information/Charging
Seat and restraint systems
Features and controls
Driving safety
Comfort controls
For emergencies
Vehicle care and maintenance
Customer assistance/Reporting Safety Defects
Specifications
Alphabetical index
BK0254400US.book 1 ページ ２０１７年８月１０日 木曜日 午後１時５０分

Instruments and controls
1-1
1
Overview
N00100202821
Instruments and controls

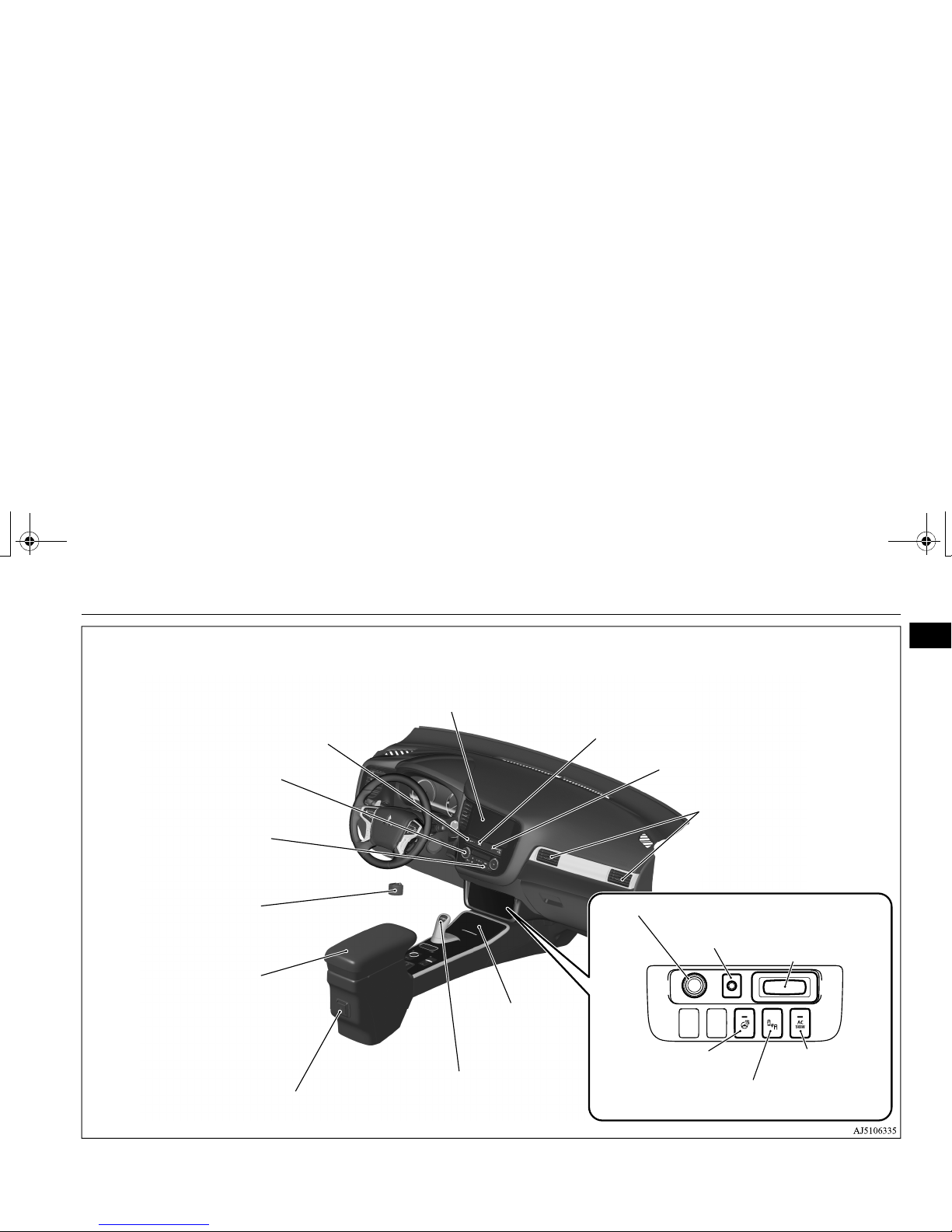

Combination headlights and dimmer switch P.5-177
Automatic High Beam (AHB) switch (if so equipped) P. 5-180
Turn signal lever P.5-185
Front fog light switch P.5-186
Steering wheel remote control switches
[Refer to the separate owner’s manual.]
Active stability control (ASC) OFF
switch P.5-77
Supplemental restraint system (SRS) -
airbag (for driver’s seat) P.4-33, 4-39
Horn switch P.5-193
Instrument cluster
P.5-128
Windshield wiper and washer
switch P.5-187
Rear window wiper and
washer switch P.5-190
Cruise control switches
P.5-79, 5-83
Steering wheel height and reach adjustment lever
P.5-45
Power switch P.5-9
Multi-information display
switch P.5-132
Headlight leveling switch
(if so equipped) P.5-184
Driver’s side power liftgate switch
(if so equipped) P.5-29
Fuses P.9-23
Lane Departure Warning
(LDW) switch (if so equipped)
P.5-111
Forward Collision Mitigation system
(FCM) ON/OFF switch
(if so equipped) P.5-98
Supplemental restraint system (SRS) - front knee airbag
(for driver’s seat) P.4-33, 4-40
Fuel tank filler door opener switch P.3-46
Regenerative braking level
selector (paddle type)
P.5-56
Camera switch (if so equipped) P.5-123
BK0254400US.book 1 ページ ２０１７年８月１０日 木曜日 午後１時５０分

Instruments and controls
Overview 1-2
1
Audio [Refer to the separate owner’s manual.]
Multi Around Monitor (if so equipped) P.5-120
Hazard warning flasher switch P.5-186
Electric rear window defogger switch
P.5-192
Wiper deicer switch (if so equipped)
P.5-191

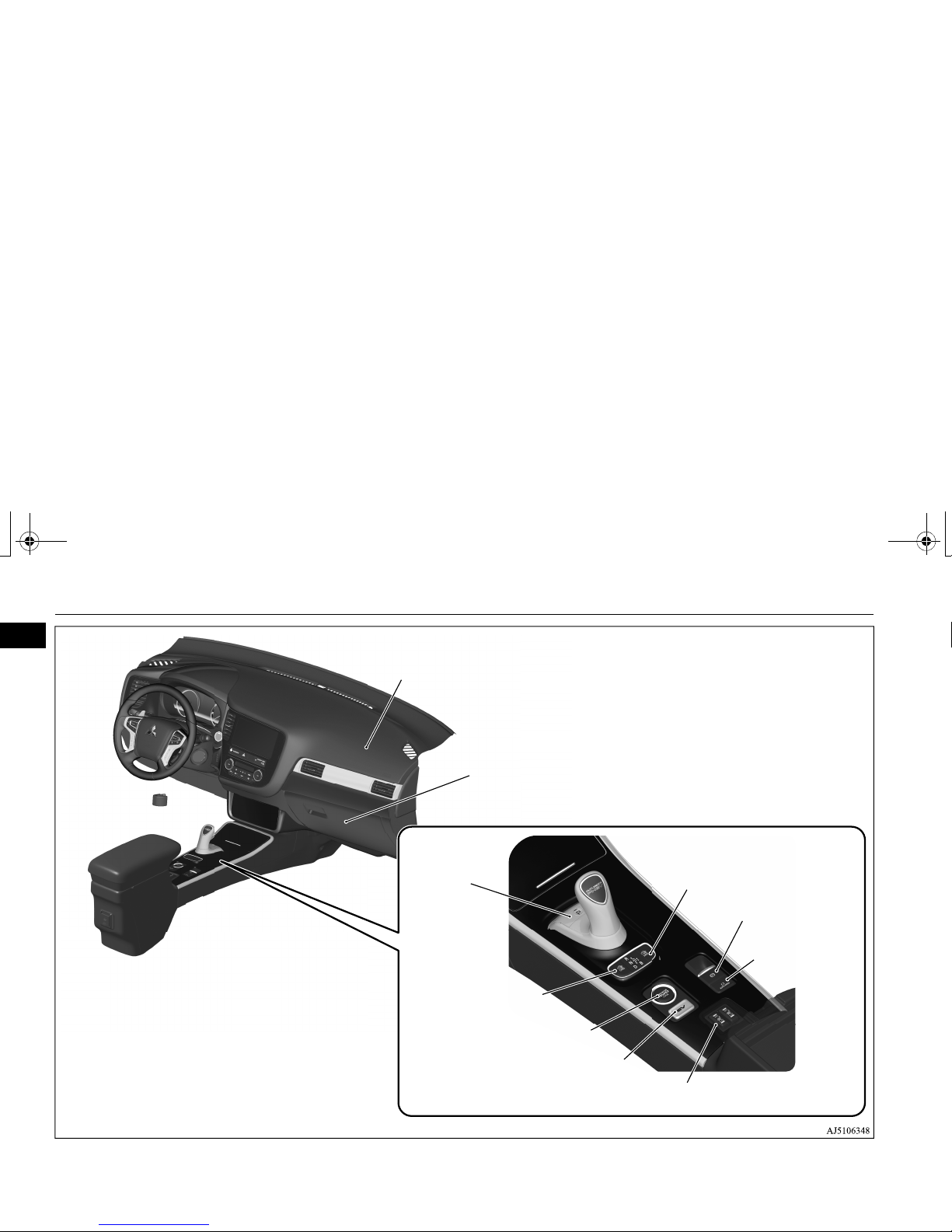

Selector lever P.5-53
Air conditioner P.7-4
Hood release lever P.9-4
Floor console box P.5-210
Arm rest
12 V power outlet P.5-196
USB input terminal P.5-194
Cup holder
P.5-211
12 V power outlet P.5-196
Power liftgate main switch (if so equipped)
P.5-28 Key slot P.5-15
Passenger’s vents
P.7-2
Passenger’s airbag off indicator P.4-38
Front passenger seat belt warning light
P.4-22
Heated steering wheel switch
(if so equipped) P.5-193
120 V AC power
supply switch
(if so equipped)
P.5-197
Blind Spot Warning (BSW) switch
(if so equipped) P.5-103
120 V AC power supply (if so equipped) P.5-197
BK0254400US.book 2 ページ ２０１７年８月１０日 木曜日 午後１時５０分

Instruments and controls
1-3 Overview
1
Supplemental restraint system (SRS) - airbag
(for front passenger’s seat) P.4-33, 4-39
Glove compartment P.5-209
Card holder P.5-209
Electrical parking
switch P.5-52 Battery save mode switch P.5-65
4WD lock switch
P.5-59
Heated seat switch (if so equipped)
P.4-8
Battery charge mode
switch P.5-66
Electric parking brake
switch P.5-42
Brake auto hold switch
P.5-69
EV switch P.5-62
BK0254400US.book 3 ページ ２０１７年８月１０日 木曜日 午後１時５０分

Interior
Overview 1-4
1
N00100302516
Interior

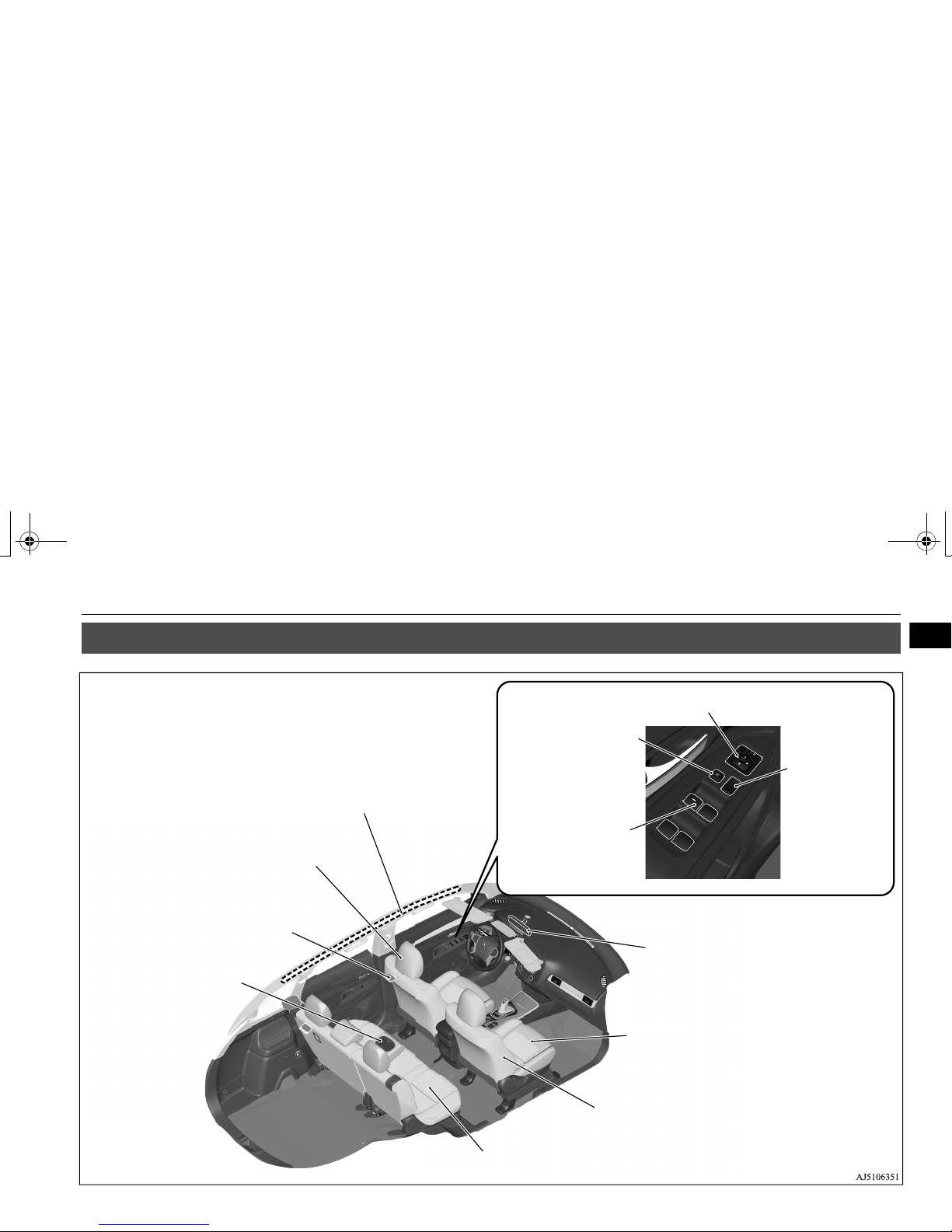

Supplemental restraint system (SRS) - side airbag
(for front seats) P.4-33, 4-44
Electric remote-controlled outside rearview mirrors switch P.5-50
Lock switch P.5-39
Power door lock
switch P.5-24
Power window switch
P.5-38
Rear seats P.4-9
Dome light (rear) P.5-207
Inside rearview mirror P.5-46
HomeLink®Wireless Control System
(if so equipped) P.5-201
Front seat P.4-4
Supplemental restraint system (SRS) - curtain airbags
P.4-33, 4-45
Head restraints P.4-10
Arm rest P.4-9
Cup holder P.5-212
BK0254400US.book 4 ページ ２０１７年８月１０日 木曜日 午後１時５０分

Interior
1-5 Overview
1
Bottle holder P.5-212
Sunroof switch
(if so equipped) P.5-40
Cargo area cover (if so equipped)
P.5-213

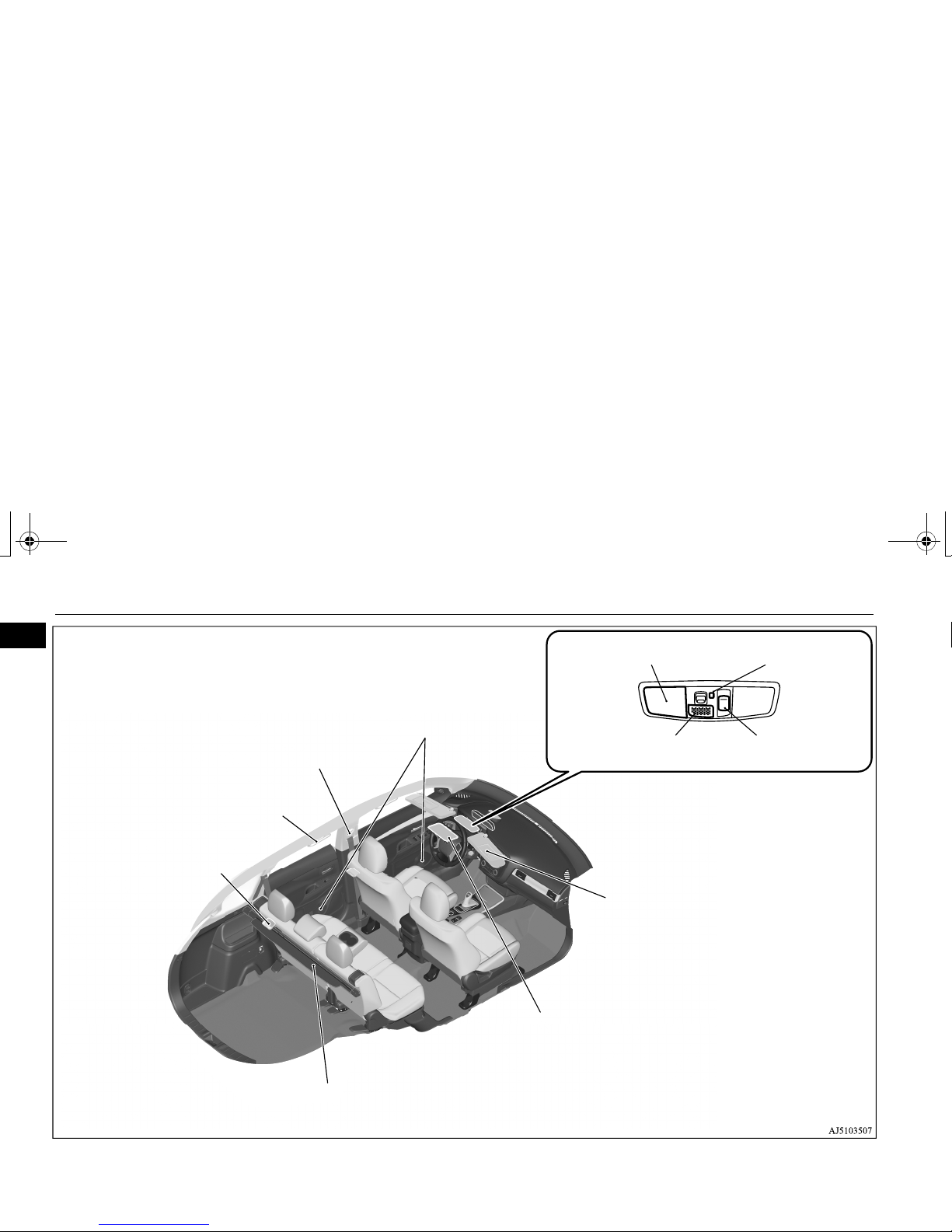

Dome light (front)/Reading lights
P.5-207
Downlight
P.5-177
Hands-free microphone
Adjustable seat belt shoulder anchor P.4-22
Seat belts P.4-16
Cargo room light
P.5-208, 9-31
Sunglasses holder (if so equipped)
P.5-211
Sun visors P.5-195
Vanity mirror P.5-195
Card holder P.5-195
Assist grips P.5-214
Coat hook P.5-214
BK0254400US.book 5 ページ ２０１７年８月１０日 木曜日 午後１時５０分

Luggage area
Overview 1-6
1
N00100501540
Luggage area
Tools P.8-6
Luggage hooks P.5-215
Luggage floor box P.5-210
Tether anchorages for child restraint system P.4-28
Jack P. 8-6
Tire repair kit P.8-7
12 V starter battery P.9-12
EV charging cable P.3-28
12 V power outlet (if so equipped) P.5-196
120 V AC power supply (if so equipped) P.5-197
BK0254400US.book 6 ページ ２０１７年８月１０日 木曜日 午後１時５０分

Outside (Front)
1-7 Overview
1
N00100602795
Outside (Front)
Sunroof (if so equipped) P.5-40
Windshield wipers P.5-187
Engine hood P.9-4
Front fog lights P.5-186, 9-29, 9-34
Outside rearview mirrors P.5-49
Side turn-signal lights
P.5-185, 9-29, 9-34
Side-view camera (if so equipped)
P.5-120
Fuel tank filler P.3-46
Power window P.5-38
Front turn-signal lights
P.5-185, 9-29, 9-33
Front turn signal lights
P.5-185, 9-29, 9-33
Headlights, low beam
P.5-177, 9-29, 9-32
Parking lights P.5-177, 9-29, 9-33
Daytime running lights (if so equipped)
P.5-177, 9-29, 9-33
Headlights, low beam
P.5-177, 9-29, 9-31
Parking lights P.5-177, 9-29, 9-33
Daytime running lights (if so equipped)
P.5-177, 9-29, 9-33
Headlights, high beam
P.5-179, 9-29, 9-32
Headlights, high beam
P.5-179, 9-29, 9-32
Halogen headlights type LED headlights type
Front side-marker lights
P.5-177, 9-29, 9-33
Front side-marker lights
P.5-177, 9-29, 9-33
Front-view camera (if so equipped) P.5-120
Sensor (if so equipped) [for Forward Collision Mitigation System
(FCM), Lane Departure Warning (LDW) and Automatic High Beam
(AHB)] P. 5-94, 5-109, 5-180
Rain sensor P. 5-187
BK0254400US.book 7 ページ ２０１７年８月１０日 木曜日 午後１時５０分

Outside (Rear)
Overview 1-8
1
N00100602809
Outside (Rear)
F.A.S.T.-key (Free-hand Advanced Security Transmitter)
P.5 -4
Locking and unlocking P.5-22 Tires P.9-12
Tire pressure monitoring system
(TPMS) P.5-113
Tire inflation pressures P.9-16
Changing tires P.8-12
Tire rotation P.9-18
Tire chains P.9-19
Size of tires and wheels P.11-8
Stop lights P.5-177, 9-29, 9-35
Rear turn signal lights
P.5-185, 9-29, 9-35
Back-up lights
P.9-29, 9-36
License plate lights
P.5-177, 9-29, 9-37
Rear-view camera
P.5-117, 5-120
Rear window wiper
P.5-190
High-mounted stop light P.9-29
Antenna
Liftgate (if so equipped) P.5-26
Power liftgate (if so equipped)
P.5-27
Rear side-marker lights
P.5-177, 9-29
Tail lights P.5-177, 9-29, 9-35
Charging lid
P.3-20
BK0254400US.book 8 ページ ２０１７年８月１０日 木曜日 午後１時５０分

BK0254400US.book 9 ページ ２０１７年８月１０日 木曜日 午後１時５０分

2-1
2
If this warning light comes on or flashes while you’re driving...
Quick index
N00200702335
If this warning light comes on or flashes while you’re driving...
NOTE
For information regarding warning displays in the multi-information display, refer to “Multi-information display” on page 5-129.
These warning lights will come on for a few seconds for a bulb check when the operation mode of the power switch is put in ON.

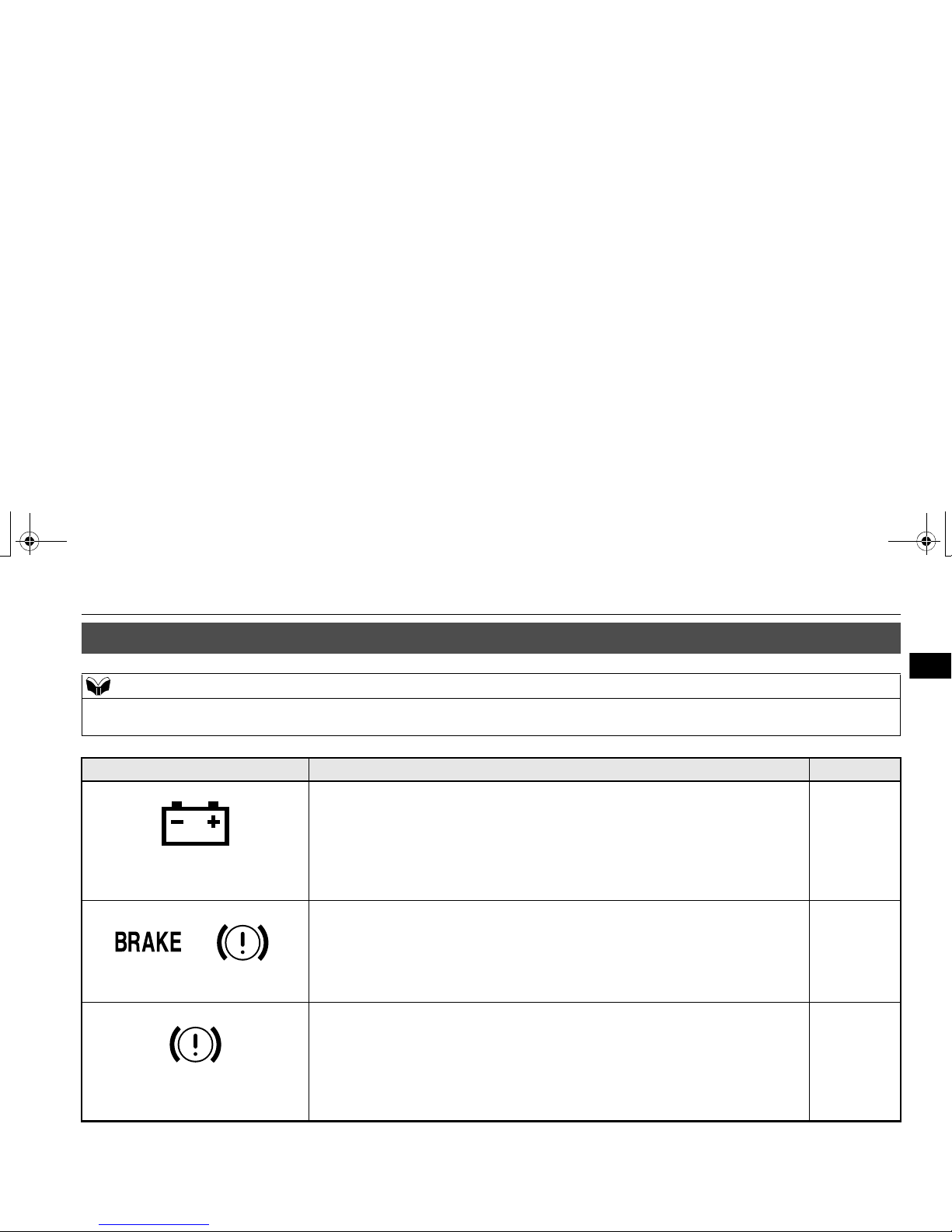

Warning lights Do this Ref. Page
12 V starter battery charging system
warning light
Park your vehicle in a safe place and stop the Plug-in Hybrid EV System.
Contact a certified Mitsubishi EV dealer. P. 5-175
or
Brake warning light (red)
If this light comes on while driving, check to see that the parking brake is released.
If this light stays on after releasing the Electric parking brake, immediately stop and
check the brake fluid level.
If the brake fluid level is correct, there may be a system malfunction. Avoid hard
braking and high speed and contact a certified Mitsubishi EV dealer.
P. 5-174
Electric parking brake warning light
(yellow)
When the warning light remains on or does not come on, there is the possibility that
the parking brake cannot be operated or released. Immediately contact the nearest
certified Mitsubishi EV dealer.
If the warning light comes on during driving, immediately stop the vehicle in a safe
place, and contact a certified Mitsubishi EV dealer.
P. 5-175
BK0254400US.book 1 ページ ２０１７年８月１０日 木曜日 午後１時５０分

If this warning light comes on or flashes while you’re driving...
2-2 Quick index
2
Plug-in Hybrid EV System warning
light
If the warning light comes on, there may be a malfunction in the Plug-in Hybrid EV
System.
If the “EV SYSTEM SERVICE REQUIRED” warning display may appear on the
multi-information display, have your vehicle inspected by a certified Mitsubishi EV
dealer.
If the “EV SYSTEM SERVICE REQUIRED STOP SAFELY” warning display
may appear on the multi-information display, park your vehicle in a safe place and
contact a certified Mitsubishi EV dealer.
P. 5-176
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)
If the indicator comes on, there may be a malfunction in the emission or engine con-
trol system.
Although your vehicle will usually be drivable and not need towing, have the emis-
sion or engine control system checked at a certified Mitsubishi EV dealer as soon as
possible. If the vehicle is not drivable, contact emergency roadside assistance at 1-
888-648-7820 (for vehicles sold in U.S.A.) or 1-888-576-4878 (for vehicles sold in
Canada), a certified Mitsubishi EV dealer, or local towing company for assistance.
P. 5-175
Anti-lock braking system warning
light
When this light comes on, the anti-lock braking system is not functioning and only
the ordinary braking system is functioning.
Park your vehicle in a safe place and stop the Plug-in Hybrid EV System.
Test the system as described on page 5-74.
If the light does not go out after the test, or if it comes on again, we recommend that
you have the system checked at a certified Mitsubishi EV dealer as soon as possi-
ble.
P. 5-74
SRS warning light
Immediately have the airbag and the pre-tensioner seat belt system checked at a cer-
tified Mitsubishi EV dealer. P. 4-39

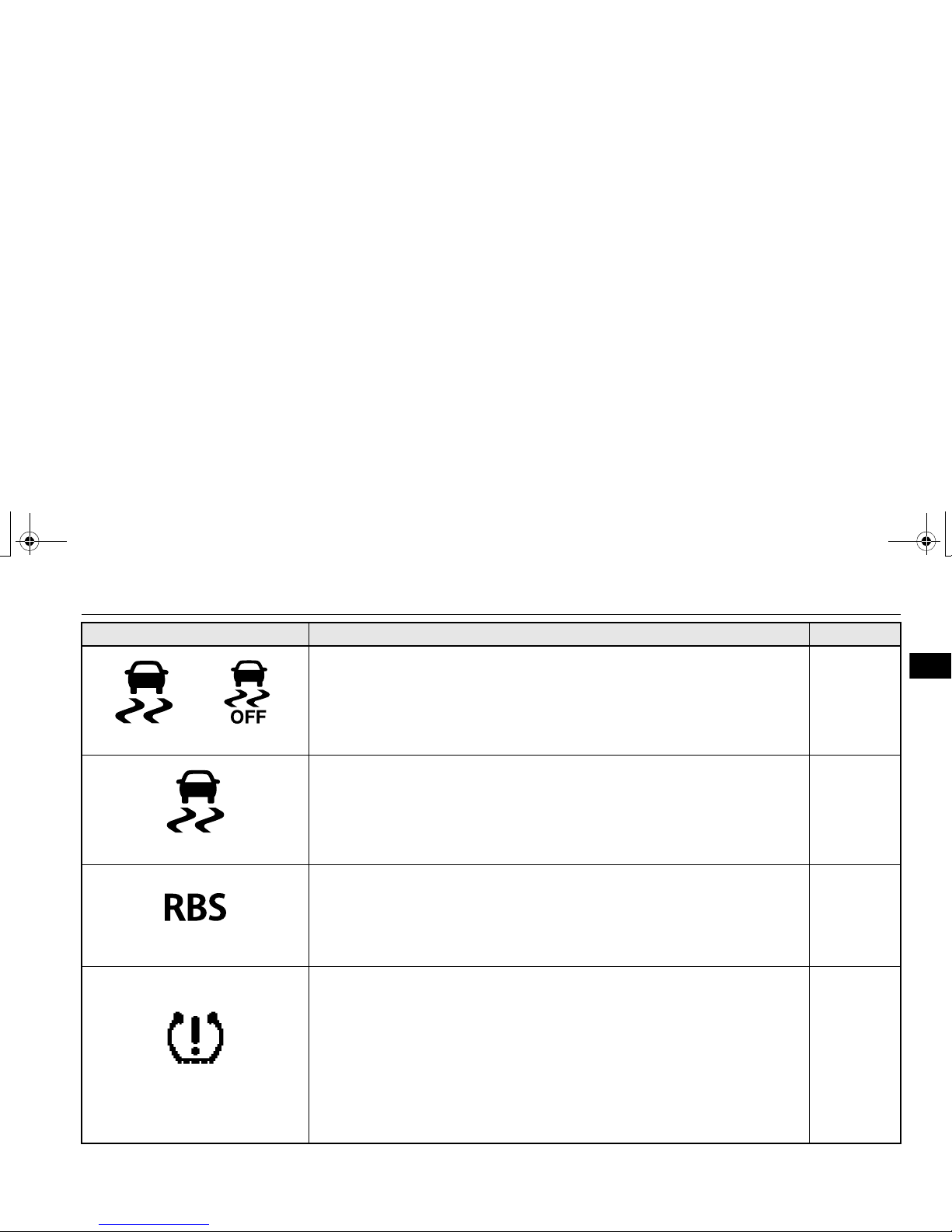

Warning lights Do this Ref. Page
BK0254400US.book 2 ページ ２０１７年８月１０日 木曜日 午後１時５０分

If this warning light comes on or flashes while you’re driving...
Quick index 2-3
2
and
ASC indicator and ASC OFF indicator
Park your vehicle in a safe place and stop the Plug-in Hybrid EV System.
Restart the Plug-in Hybrid EV System and check whether the indicator goes out.
If the indicator does not go out, or if it comes on again, have your vehicle inspected
by a certified Mitsubishi EV dealer as soon as possible.
When this indicator comes on, the active stability control is not functioning and
normal operation of the vehicle will not be affected.
P. 5-78
ASC indicator
Park your vehicle in a safe place and stop the Plug-in Hybrid EV System.
Restart the Plug-in Hybrid EV System and check whether the indicator goes out.
If the indicator does not go out, or if it comes on again, have your vehicle inspected
by a certified Mitsubishi EV dealer as soon as possible.
When this indicator comes on, the hill start assist is not functioning.
Start off carefully on a steep uphill slope.
P. 5-72
Regenerative brake warning light
If the warning light comes on, there may be a malfunction in the regenerative brake
system.
Have the vehicle inspected at a certified Mitsubishi EV dealer.
P. 5-176
Tire pressure monitoring system warn-
ing light
If the warning light comes on, you should stop and adjust the tires to the proper
inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 9-16.)
Once adjustments have been made, the warning light will go off after a few minutes
of driving.
If the warning light blinks for approximately 1 minute and then remains continu-
ously illuminated, the system is not operating properly. If the system returns to nor-
mal, the warning light will go off. If the warning light does not go off, have the
vehicle inspected at a certified Mitsubishi EV dealer.
P. 5-113
Warning lights Do this Ref. Page
BK0254400US.book 3 ページ ２０１７年８月１０日 木曜日 午後１時５０分

If this problem occurs...
2-4 Quick index
2
N00200902047

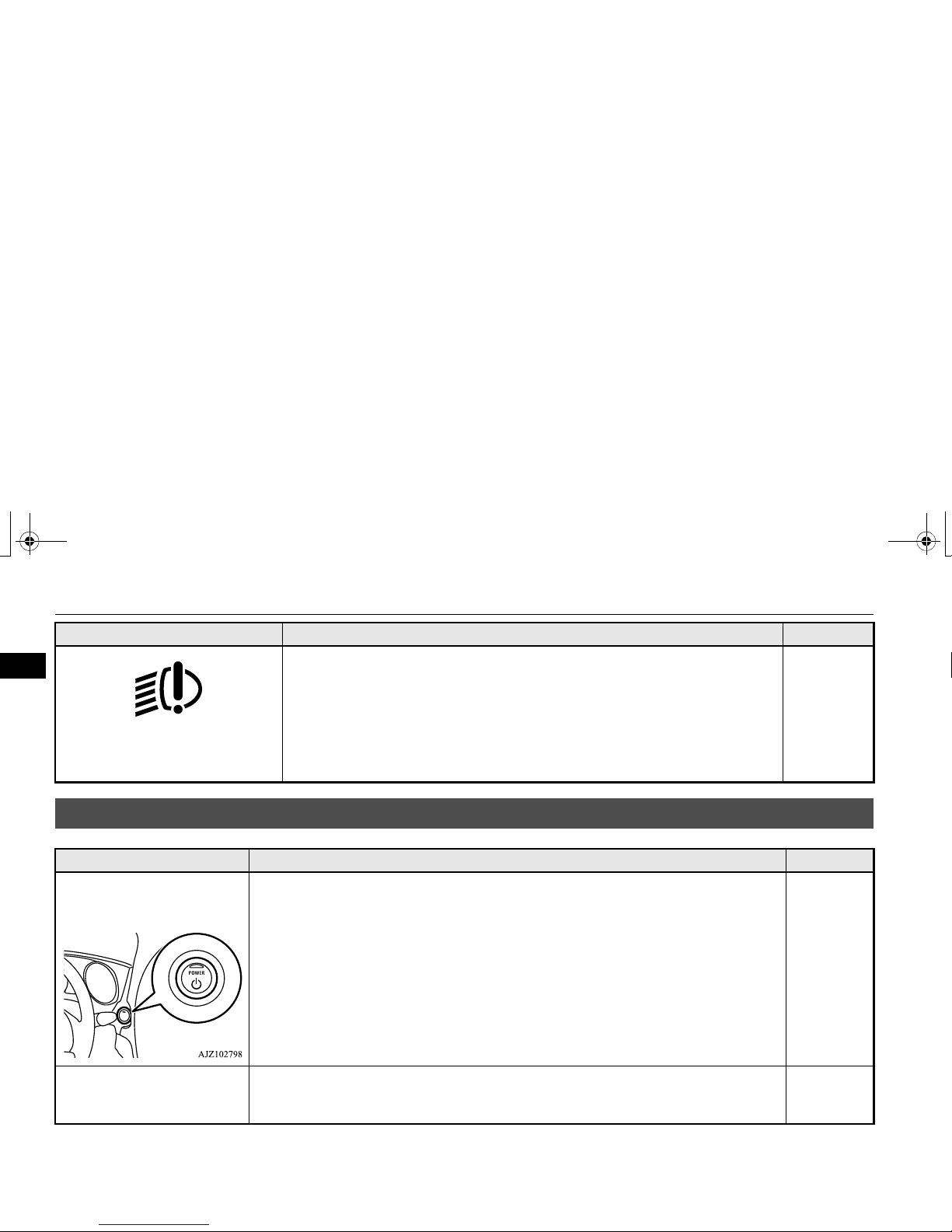

LED headlight warning light
(Vehicles equipped with LED head-
light)
If the warning light comes on, there may be a malfunction in the LED headlight
unit.
Have the vehicle inspected at a certified Mitsubishi EV dealer.
P. 5-179
If this problem occurs...
Problem Do this Ref. Page
The Plug-in Hybrid EV System
does not start when the power
switch is pressed.
Make sure the F.A.S.T.-key is in the vehicle.
Make sure the select position is in the “P” (PARK) position, and then press the power switch
while depressing the brake pedal.
P. 5-14
The F.A.S.T.-key does not oper-
ate.
Insert the F.A.S.T.-key into the key slot of the instrument panel, and then start the Plug-in
Hybrid EV System or change the operation mode. Use the emergency key to lock and unlock
the driver’s door.
P. 5-15
Warning lights Do this Ref. Page
BK0254400US.book 4 ページ ２０１７年８月１０日 木曜日 午後１時５０分

If this problem occurs...
Quick index 2-5
2
Cannot shift the select position
from the “P” (PARK) position.
Make sure the ready indicator illuminates, and move the selector lever while pressing the
brake pedal.
If the ready indicator does not illuminate, you can shift the select position to the “N” (NEU-
TRAL) position only.
P. 5-53

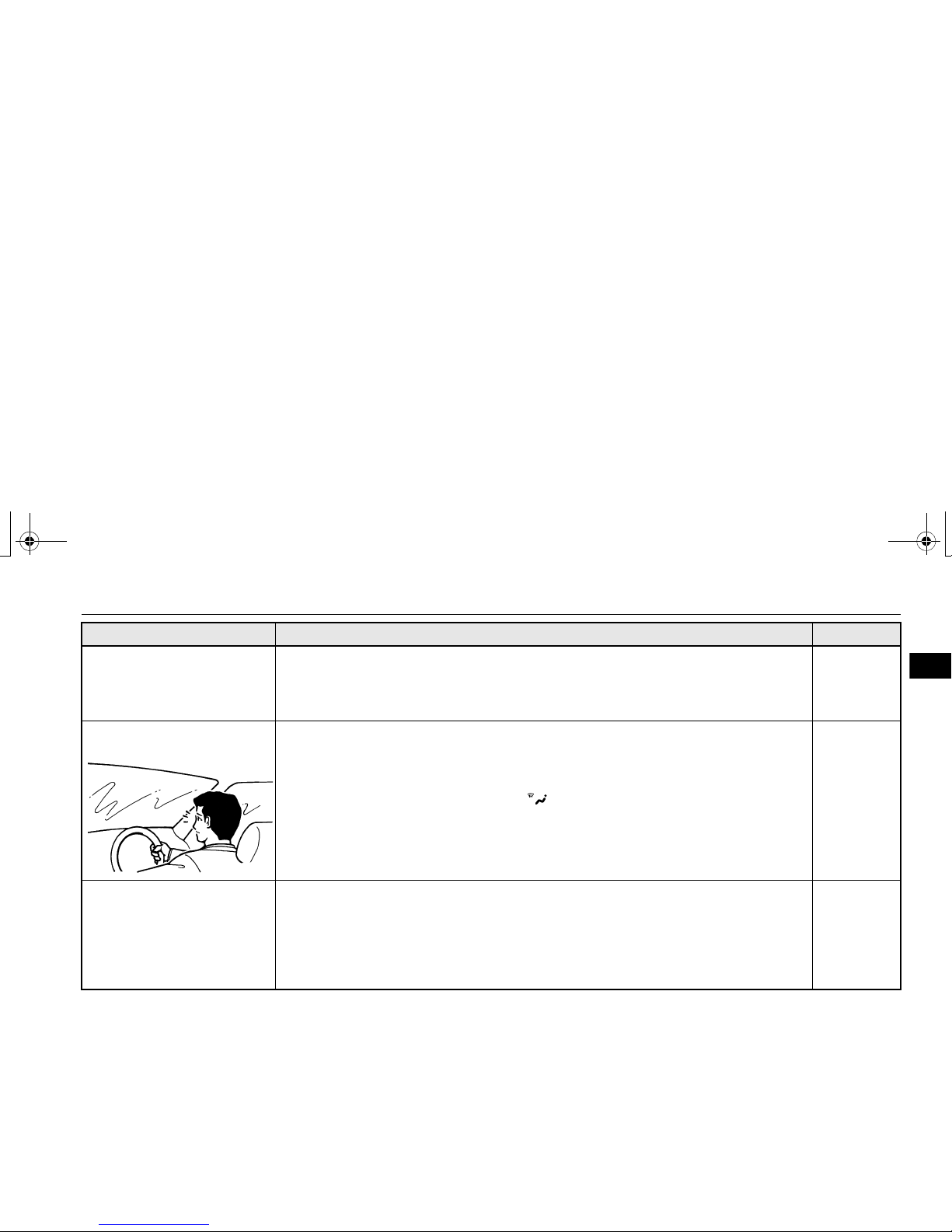

The windows are fogged up.
Press the defogger switch to change to the “ ” position. P. 7-8
The Plug-in Hybrid EV system
does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.
Have the 12 V Starter battery checked. Recharge or replace the 12 V Starter battery at a certi-
fied Mitsubishi EV dealer.
P. 8-2,
9-12
Problem Do this Ref. Page
BK0254400US.book 5 ページ ２０１７年８月１０日 木曜日 午後１時５０分

If this problem occurs...
2-6 Quick index
2
Problem Do this Ref. Page

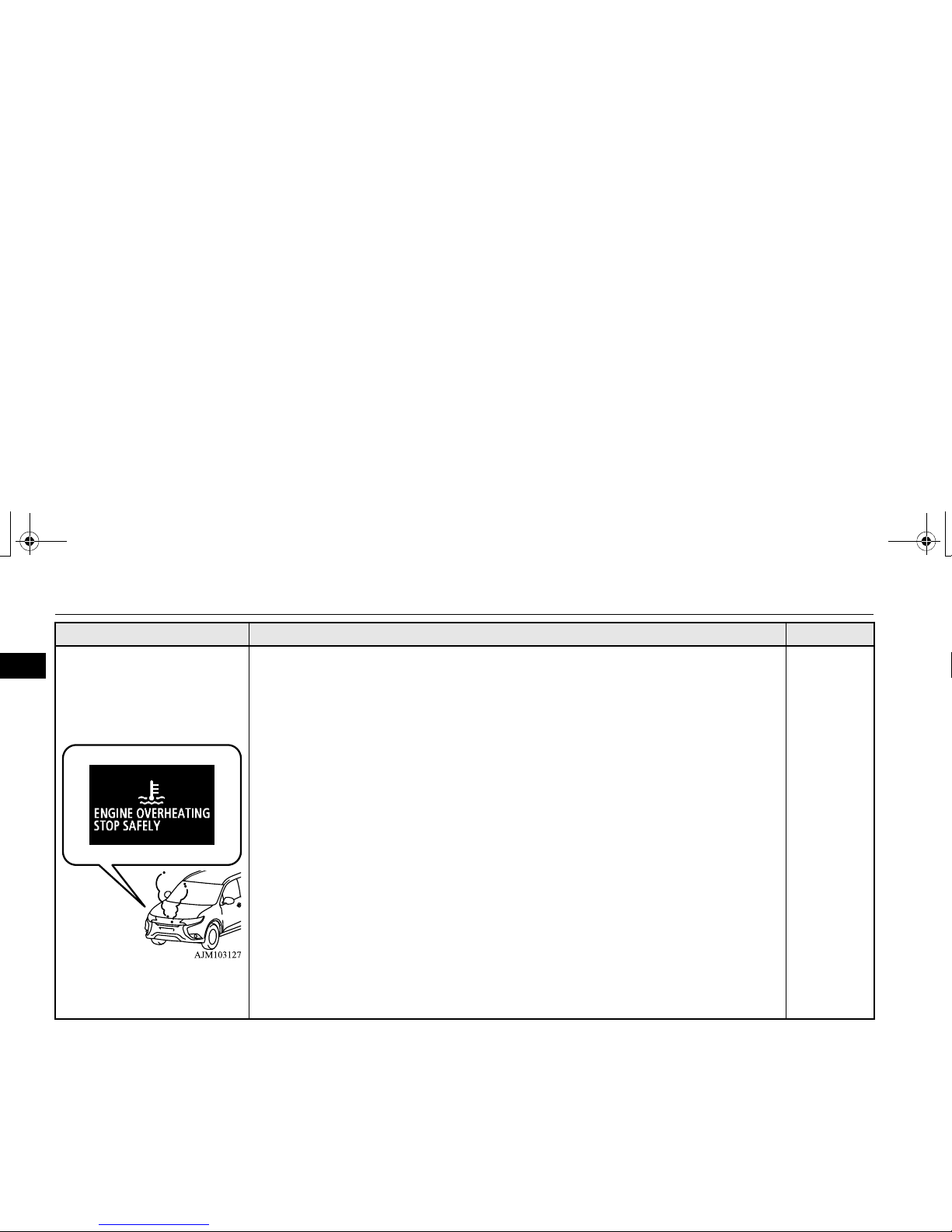

The information screen in the
multi-information display will
be interrupted and the engine
coolant temperature warning
display will appear.
Steam comes out of the engine
compartment.
The engine is overheated.
Carefully stop the vehicle in a safe place. P. 8-4
BK0254400US.book 6 ページ ２０１７年８月１０日 木曜日 午後１時５０分

If this problem occurs...
Quick index 2-7
2
Problem Do this Ref. Page

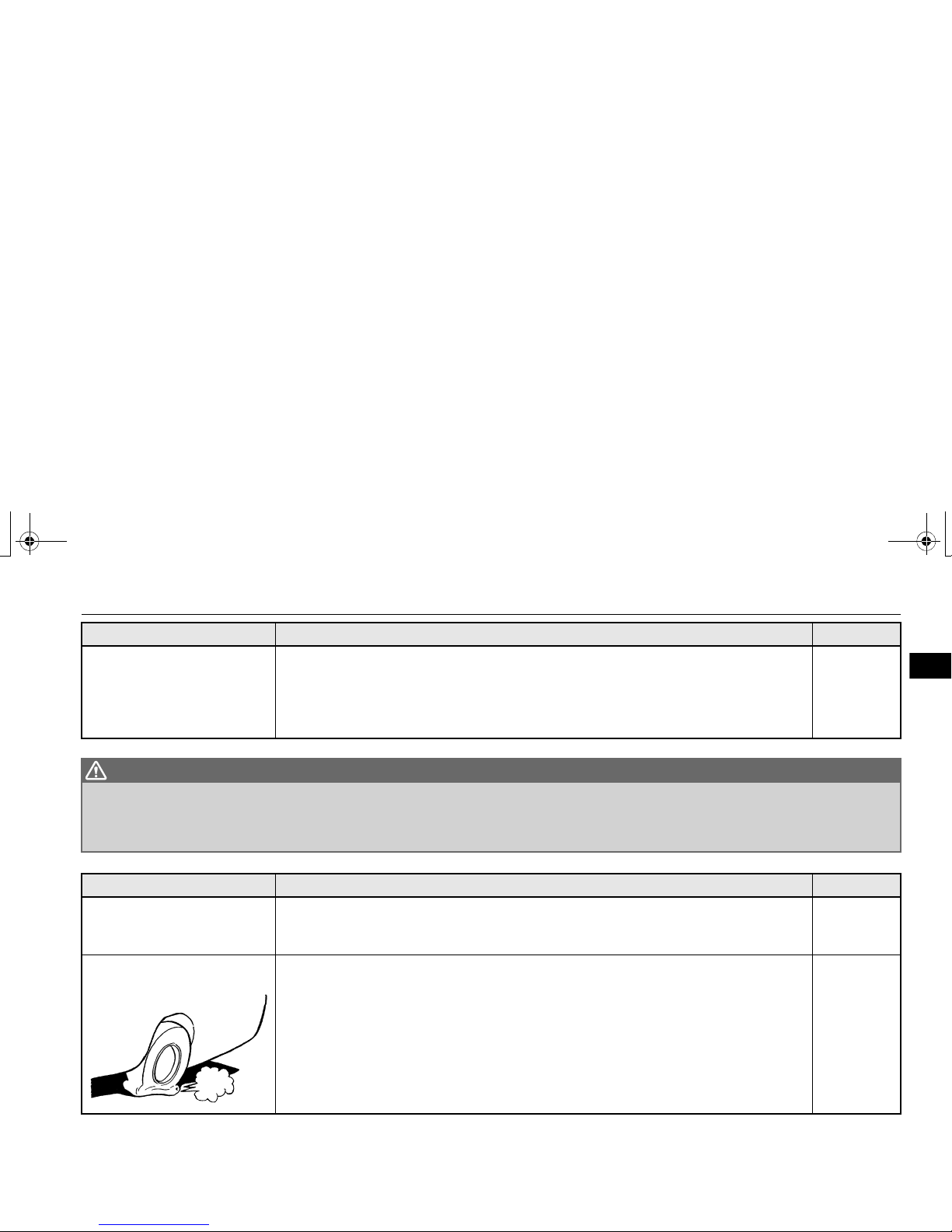

If your vehicle becomes stuck in
sand, mud or snow
1. Press the 4WD lock switch to set the “4WD LOCK” mode, temporarily turning off Active
stability control (ASC) with the ASC OFF switch and slowly press down on the accelera-
tor pedal to get your vehicle moving again.
2. If there is nothing to stop your tires from slipping, rock your vehicle out of the stuck posi-
tion.
P. 8-17
WARNING
When attempting to rock your vehicle out of a stuck position, be sure that no one is near the vehicle. The rocking motion may cause the vehicle to
suddenly lurch forward or backward, possibly injuring bystanders.
Avoid spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating and transaxle failure.
If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.
Problem Do this Ref. Page
The brakes are not functioning
properly after driving through
water.
Dry out the brakes by driving slowly while lightly pressing the brake pedal. P. 6-5
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level.
2. Repair the flat tire with tire repair kit. P. 8-7
BK0254400US.book 7 ページ ２０１７年８月１０日 木曜日 午後１時５０分

BK0254400US.book 8 ページ ２０１７年８月１０日 木曜日 午後１時５０分

3
General information/Charging
Plug-in Hybrid EV System ..............................................................3-2
Main drive lithium-ion battery .........................................................3-6
EV cruising range ............................................................................3-7
Operating sound under charging or Remote Climate Control .......3-10
For persons with electro-medical apparatus such as
implantable cardiac pacemaker or implantable cardiovascular
defibrillator ................................................................................3-10
Cautions and actions to deal with intense heat ..............................3-12
Cautions and actions to deal with intense cold ..............................3-13
Charging ........................................................................................3-17
Precautions during Charging the
Main Drive Lithium-ion Battery ................................................3-19
Normal charging
(charging method with rated AC 120 V outlet) .........................3-20
EV charging cable ..........................................................................3-28
Normal charging
(using 240 V Electric Vehicle Supply Equipment) ....................3-31
Quick charging
(charging method with quick charger) (if so equipped)..............3-32
Charging troubleshooting guide ....................................................3-36
High-Voltage components ..............................................................3-40
MITSUBISHI Remote Control (if so equipped) ............................3-42
Fuel selection .................................................................................3-45
Filling the fuel tank ........................................................................3-46
Modifications to and racing of your vehicle ..................................3-50
Genuine Mitsubishi Motors parts ..................................................3-52
California Perchlorate Materials Requirements .............................3-52
BK0254400US.book 1 ページ ２０１７年８月１０日 木曜日 午後１時５０分
