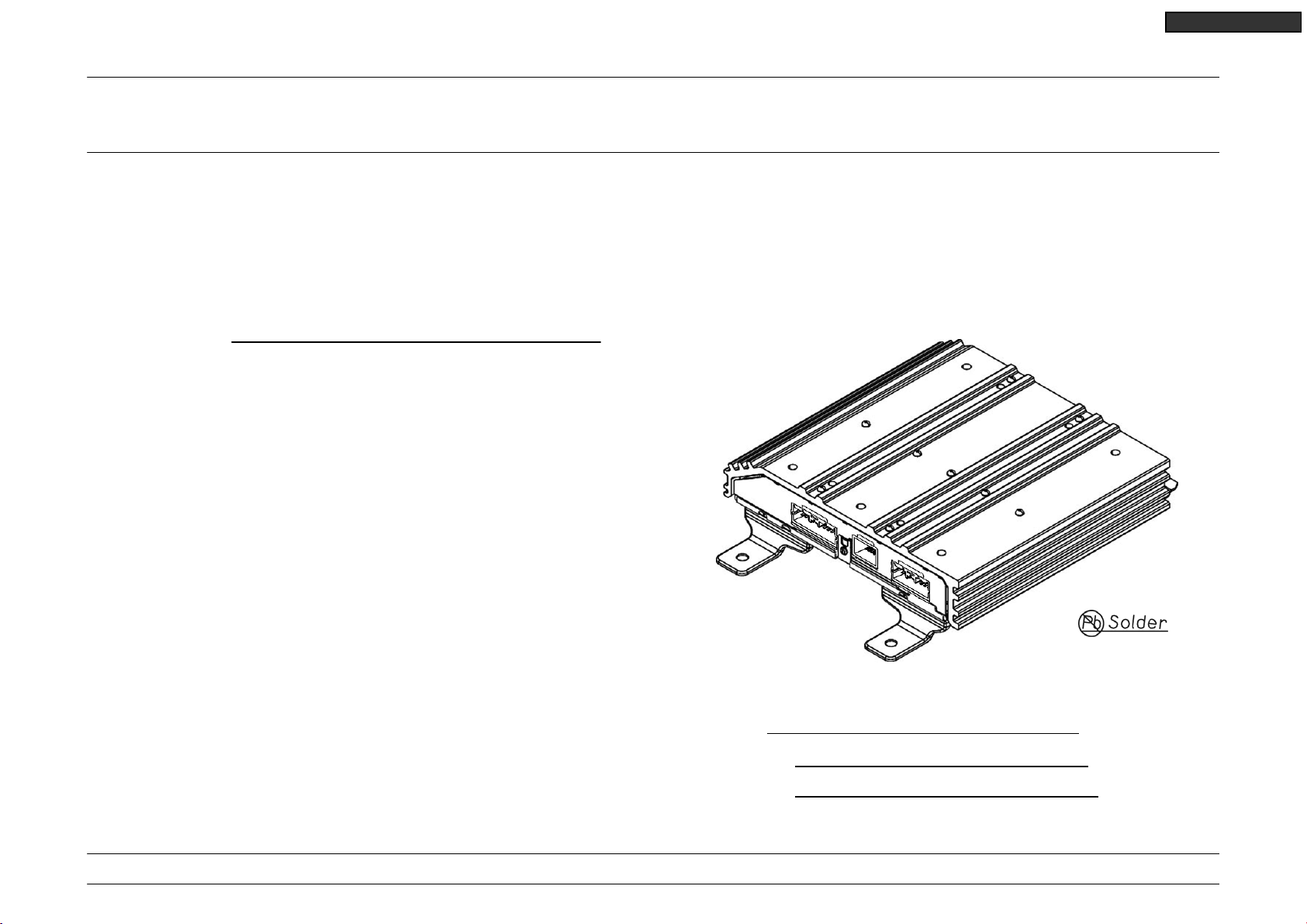

Mitsubishi CV-0MW3R45 User manual

SERVICE MANUAL
MITSUBISHI ELECTRIC CORP. SANDA WORKS
Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
SE041912063E Ver.ppt11E CV-0MW3R45,-2
● FEATURES and SPECIFICATIONS....................................2
● CONNECTORS ..................................................................3
● SYSTEM CONFIGURATION ..............................................4
● BLOCK DIAGRAM ..............................................................5
● DISASSEMBLING PROCEDURES .................................6,7
● PARTS LIST........................................................................8
● ELECTRICAL PARTS LIST.......................................... 9~18

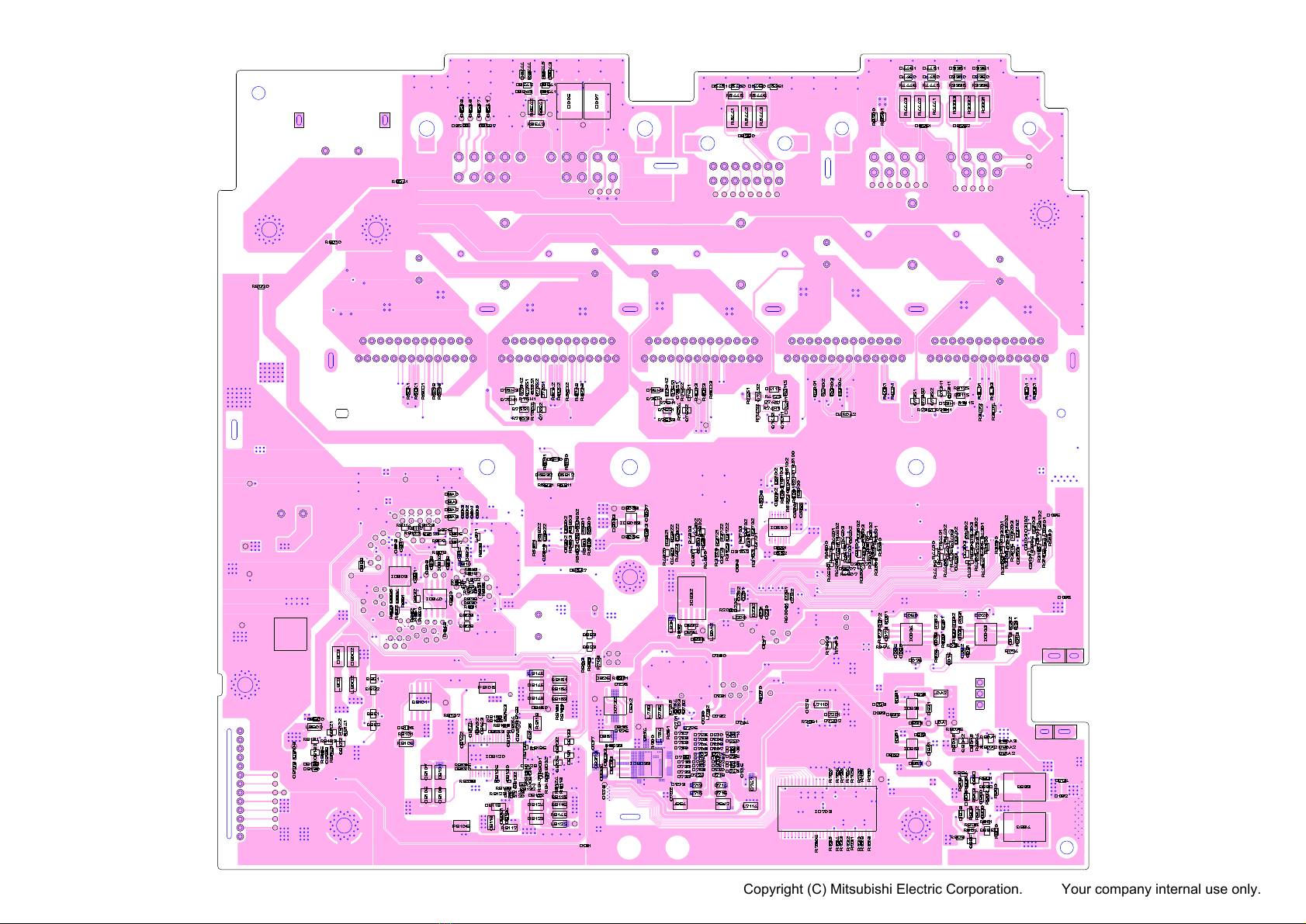

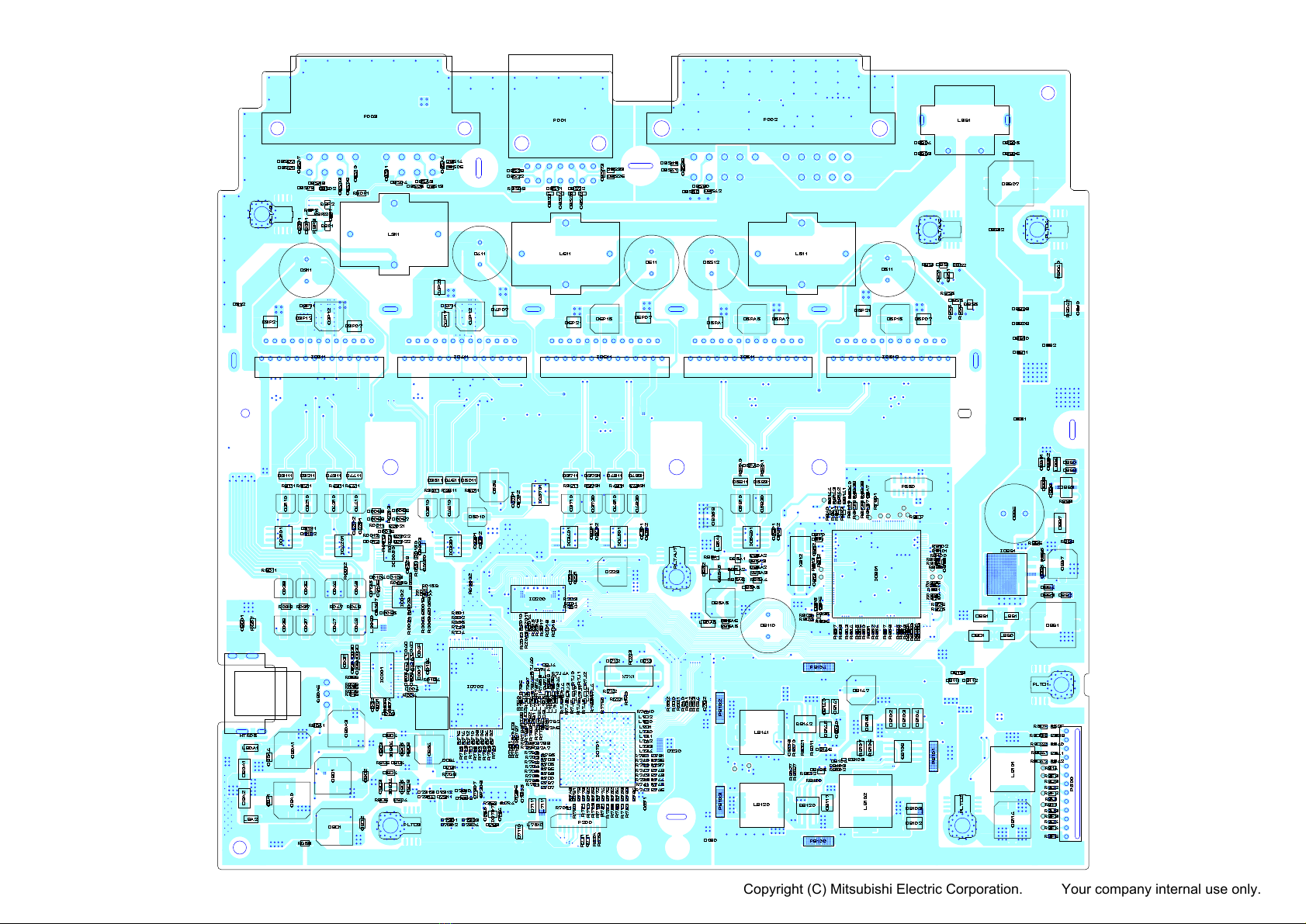

● PARTS LAYOUT ON PRINTED CIRCUIT BOARD ......19,20
● SCHEMATIC DIAGRAM
PCB-MAIN ............................................................ 21~28
● VOLTAGE .................................................................. 29~31
● WAVEFORM .............................................................. 32~34
MITSUBISHI MOTORS
POWER AMPLIFIER
CONTENTS
2013 Jan.
Model : CV-0MW3R45,-2
MELCO Code : 34R040, 34C020
PART No. : 8701A409, 8701A474

2Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW3R45,-2
FEATURES and SPECIFICATIONS
FEATURES
< Audio Output Part >
●High power 650W output power amplifier.
Woofer mono 150W x 2ch (1Ω) ....... Double voice coil Woofer drive
Front-Lo stereo 75W x 2ch (2Ω) ....... Front-Door Speaker drive
Front-TWEETER stereo 50W x 2ch (4Ω) ....... Front-Door-Mirror Speaker drive
Rear stereo 50W x 2ch (4Ω) ....... Rear-Door Speaker drive
75W x 2ch (2Ω) ....... Rear-Door Speaker drive
< Audio Input Part >
●Differential input circuit.
●AUDIO 2ch
●NAVI/TEL voice 1ch
< Volume/Sound Field Control Function >
●Fix-EQ
●Volume
●Auto-Loudness
●Fader/Balance
●Bass/Treble/Middle
●Woofer output limiter
●Guide voice control
●Vehicle speed ganged volume control.
●PremiDIA WIDE
●PremiDIA HD
●DTS Neural Surround
●Dolby Volume
●Beep sound output
●Test tone
< Others >
●Diagnosis function
SPECIFICATIONS
●Distortion : 0.5% max at 0.5W
●S/N : 55dB min at 0.5W
●Channel Separation : 50dB min at 0.5W
●Residual Output : 0.5mVrms max at Vol. min.
●Offset Voltage : 100mV max
●Backup Current : 1mA max
●Dimensions (W x D x H) : 264mm x 220mm x 60mm
●Weight : 2.0kg

3Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW3R45,-2
Power supply, Speaker
and H/U Communication
18P Connector
Speaker and Audio Input
14P Connector

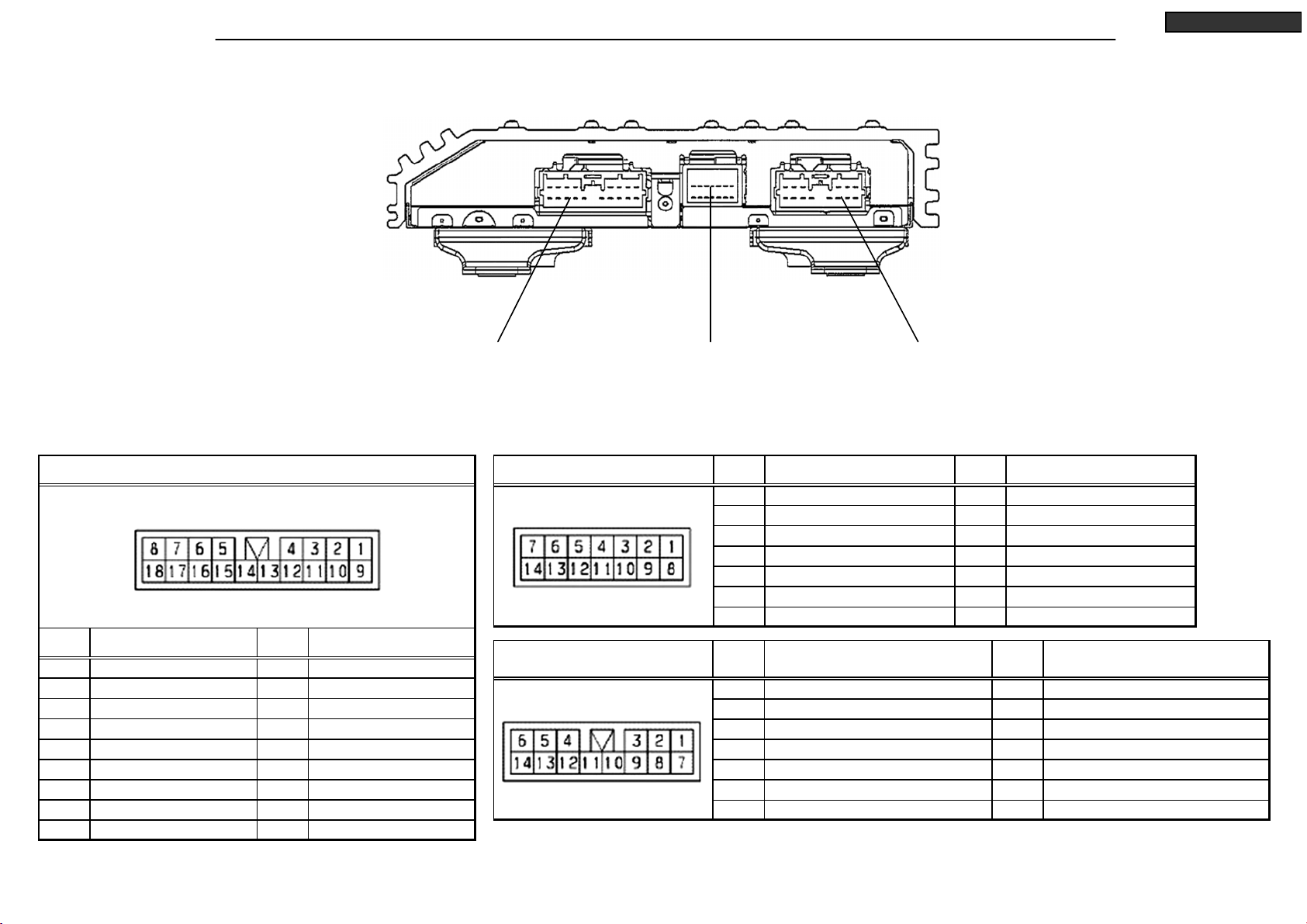

CONNECTORS
Audio Input
14P Connector
PinNo. Signal Name PinNo. Signal Name
1 FRONT LEFT OUT (+) 10 FRONT RIGHT OUT (-)
2 FRONT RIGHT OUT (+) 11 BATTERY (+)
3 - 12 BATTERY (+)
4 BATTERY (+) 13 IE-BUS (+)
5 GND 14 IE-BUS (-)
6 - 15GND
7 WOOFER OUT1 (+) 16 GND
8 WOOFER OUT2 (+) 17 WOOFER OUT1 (-)
9 FRONT LEFT OUT (-) 18 WOOFER OUT2 (-)
Power supply, Speaker and H/U Communication 18P Connector
Audio Input 14P Connector PinNo. Signal Name PinNo. Signal Name
1 - 8 -
2 REAR RIGHT IN (+) 9 REAR RIGHT IN (-)
3 - 10 SHIELD GND LEFT/RIGHT
4 - 11 -
5 - 12 -
6 - 13 -
7 - 14 -
Speaker and Audio Input
14P Connector PinNo. Signal Name PinNo. Signal Name
1 SPEAKER REAR LEFT (+) 8 SPEAKER TWEETER LEFT (-)
2 SPEAKER TWEETER LEFT (+) 9 FRONT LEFT IN (-)
3 FRONT LEFT IN (+) 10 FRONT RIGHT IN (-)
4 POWER ON 11 FRONT RIGHT IN (+)
5 SPEAKER TWEETER RIGHT (+) 12 SHIELD GND LEFT/RIGHT
6 SPEAKER REAR RIGHT (+) 13 SPEAKER TWEETER RIGHT (-)
7 SPEAKER REAR LEFT (-) 14 SPEAKER REAR RIGHT (-)

4Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW3R45,-2
SYSTEM CONFIGURATION

5Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW3R45,-2

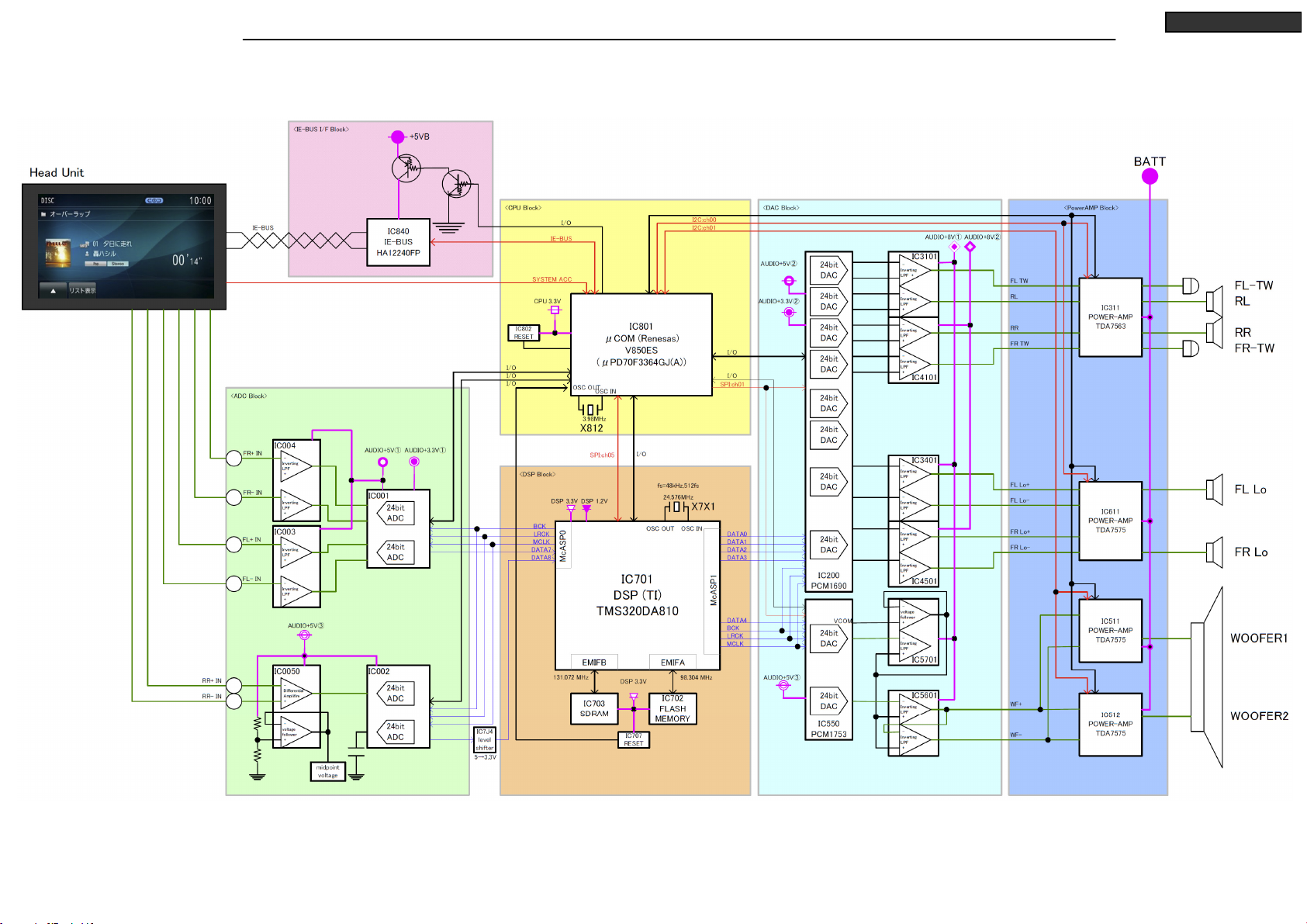

BLOCK DIAGRAM

6Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW3R45,-2

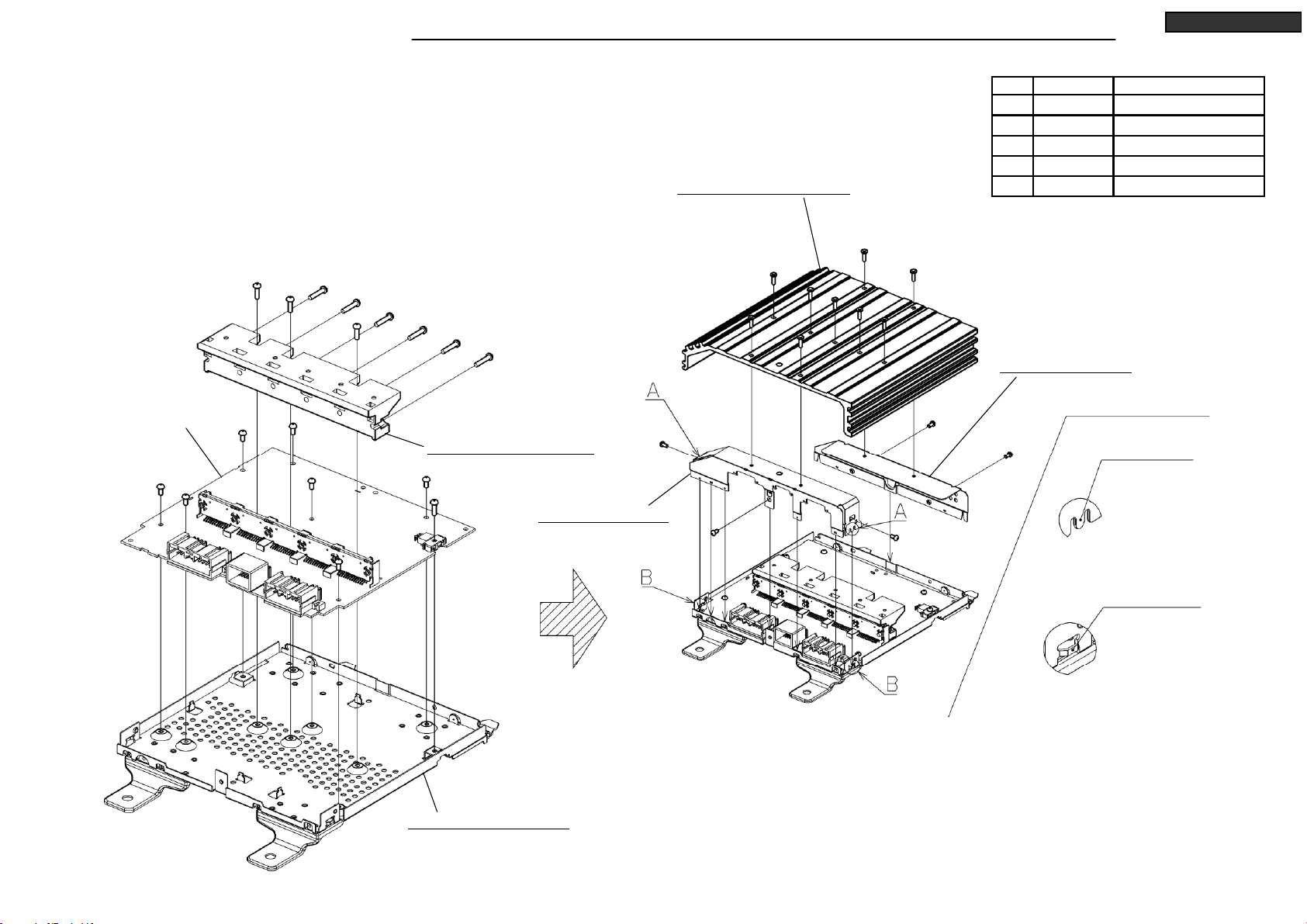

DISASSEMBLING PROCEDURES
M006 : LABEL
*It is assembling procedure. Disassembling procedure is in reverse.
M007(1) : NAME-CARD(CV-0MW3R45)
M008(2) : NAME-CARD(CV-0MW3R45-2)
(1) CV-0MW3R45
(2) CV-0MW3R45-2
Model
*Stick M006 and M007/M008 along the mark.

7Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW3R45,-2
DISASSEMBLING PROCEDURES
Ⓓ(a) x 5
●Disassembling procedures
In reverse of assembling procedures.
●Assembling procedures
1. Assemble PCB-MAIN to M005, and screw with Ⓐand Ⓑ.
2. Assemble M004, and screw with Ⓑand Ⓒ.
Screw in order from Ⓒ, Ⓑ.
3. Assemble M001 and M002, and screw with Ⓐ.
4. Assemble M003, and screw with Ⓓ.
0.8 +0.2/-0.13X10Ⓑ
0.8 +0.2/-0.13X16Ⓒ
1.0 +0.2/-0.13X10SⒹ(a)
0.8 +0.2/-0.13X6Ⓐ
Ⓓ(b)
No.
0.8 +0.2/-0.13X10S
Tighten torque(N・m)Screw
Ⓒx 6
Ⓑx 3
Ⓑ
Ⓐx 7
Ⓐx 2
Ⓐ
ⒶⒶ
Ⓓ(b) x 2
Ⓓ(b) x 2
M001 : CHASSIS-R
M003 : HEAT-SINK-MAIN
PCB-MAIN
M005 : ASSY-CHASSIS
M004 : HEAT-SINK-SUB
M002 : CHASSIS-F
Hook of M002
Hole of M005
A part (2 places)
(Side part)
B part (2 places)
*Confirm the hook of M002 are latched to hole of M005,
insert M002 to M005. (2 places)
(Be careful not to deform.)

8Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW3R45,-2
PARTS LIST
Ref. No. Parts No. Parts Name Page
M001 560J32612 CHASSIS-R P.7
M002 560J42110 CHASSIS-F P.7
M003 635J12811 HEAT-SINK-MAIN P.7
M004 635K06610 HEAT-SINK-SUB P.7
M005 891J06812 ASSY-CHASSIS P.7
M006 851L73910 LABEL P.6
M007 943M388O8 NAME-CARD(CV-0MW3R45) P.6
M008 943M388O9 NAME-CARD(CV-0MW3R45-2) P.6
A 653P11046 SCREW-S-PAN 3X6 -
B 653P11048 SCREW-S-PAN 3X10 -
C 653P11052 SCREW-S-PAN 3X16 -
D 653P13048 SCREW-S-BIND 3X10S -

Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
C001 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C291 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110
C0012 141L185O1 C-CERAMIC-CHI
P
GRM1882C1H471JA01D CH 50V 471J1608 N931L51110 C292 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110
C0016 141L188O1 C-CERAMIC-CHI
P
GRM1882C1H152JA01D CH 50V 152J1608 N931L51110 C3101 141L188O1 C-CERAMIC-CHI
P
GRM1882C1H152JA01D CH 50V 152J1608 N931L51110
C002 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 C3102 141L184O9 C-CERAMIC-CHI
P
CM105CH391J50A
T
CH 50V 391J1608 N931L51110
C0022 141L185O1 C-CERAMIC-CHI
P
GRM1882C1H471JA01D CH 50V 471J1608 N931L51110 C3103 141L184O9 C-CERAMIC-CHI
P
CM105CH391J50A
T
CH 50V 391J1608 N931L51110
C003 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110 C3107 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N931L51110
C004 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N931L51110 C311 181P75090 C-ELECTROLYTI
C
RW2-16V332MI6P2#-T4 16V332M 12.5X2
5
N931L51010
C005 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C3110 181P82123 C-ELECTROLYTIC-CHI
P
RVC-16V100MD61P1U-R2 16V100M 4X5.
8
N931L51110
C006 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 C3111 141P22621 C-CERAMIC-CHI
P
LLL31MR71H104MA01
L
X7R50V104M1632 N931L51110
C0066 141L067O3 C-CERAMIC-CHI
P
GRM21BR11E105KA99
L
R 25V 105K 212
5
N931L51110 C311S 141L067O3 C-CERAMIC-CHI
P
GRM21BR11E105KA99
L
R 25V 105K 212
5
N931L51110
C0067 141L067O3 C-CERAMIC-CHI
P
GRM21BR11E105KA99
L
R 25V 105K 212
5
N931L51110 C31P1 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N931L51110
C0068 141L067O3 C-CERAMIC-CHI
P
GRM21BR11E105KA99
L
R 25V 105K 212
5
N931L51110 C31P2 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110
C0069 141L067O3 C-CERAMIC-CHI
P
GRM21BR11E105KA99
L
R 25V 105K 212
5
N931L51110 C3201 141L188O1 C-CERAMIC-CHI
P
GRM1882C1H152JA01D CH 50V 152J1608 N931L51110
C007 141P22077 C-CERAMIC-CHI
P
C3216JB0J226K
T
B 6.3V 226K321
6
N931L51110 C3202 141L184O9 C-CERAMIC-CHI
P
CM105CH391J50A
T
CH 50V 391J1608 N931L51110
C0093 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N931L51110 C3203 141L184O9 C-CERAMIC-CHI
P
CM105CH391J50A
T
CH 50V 391J1608 N931L51110
C0095 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N931L51110 C3210 181P82123 C-ELECTROLYTIC-CHI
P
RVC-16V100MD61P1U-R2 16V100M 4X5.
8
N931L51110
C0097 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N931L51110 C3211 141P22621 C-CERAMIC-CHI
P
LLL31MR71H104MA01
L
X7R50V104M1632 N931L51110
C0103 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N931L51110 C34P1 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N931L51110
C0104 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N931L51110 C34P2 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110
C013 141L074O7 C-CERAMIC-CHI
P
GRM2162C1H331JZ01D CH 50V 331J2125 N931L51110 C3607 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N931L51110
C0135 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N931L51110 C3701 141L188O1 C-CERAMIC-CHI
P
GRM1882C1H152JA01D CH 50V 152J1608 N931L51110
C0136 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110 C3702 141L184O7 C-CERAMIC-CHI
P
GRM1882C1H331JA01D CH 50V 331J1608 N931L51110
C0150 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N931L51110 C3707 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N931L51110
C016 172P27070 C-STACKED-META
L
ECHU1C103GX5 16V 103G 2125 N931L51110 C3710 181P82123 C-ELECTROLYTIC-CHI
P
RVC-16V100MD61P1U-R2 16V100M 4X5.
8
N931L51110
C0194 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N931L51110 C3711 141P22610 C-CERAMIC-CHI
P
LLL31MR71E474MA01
L
X7R25V474M1632 N931L51110
C020 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N931L51110 C3721 141L188O1 C-CERAMIC-CHI
P
GRM1882C1H152JA01D CH 50V 152J1608 N931L51110
C033 141L074O7 C-CERAMIC-CHI
P
GRM2162C1H331JZ01D CH 50V 331J2125 N931L51110 C3722 141L184O7 C-CERAMIC-CHI
P
GRM1882C1H331JA01D CH 50V 331J1608 N931L51110
C036 181P81749 C-ELECTROLYTIC-CHI
P
UUQ1V4R7MCLHNEGB 35V4R7M 4X5.4 N931L51110 C3730 181P82123 C-ELECTROLYTIC-CHI
P
RVC-16V100MD61P1U-R2 16V100M 4X5.
8
N931L51110
C037 181P81749 C-ELECTROLYTIC-CHI
P
UUQ1V4R7MCLHNEGB 35V4R7M 4X5.4 N931L51110 C3731 141P22610 C-CERAMIC-CHI
P
LLL31MR71E474MA01
L
X7R25V474M1632 N931L51110
C038 181P81749 C-ELECTROLYTIC-CHI
P
UUQ1V4R7MCLHNEGB 35V4R7M 4X5.4 N931L51110 C3P07 172P27054 C-STACKED-META
L
ECHU1H223JX5 50V 223J 3225 N931L51110
C039 181P81749 C-ELECTROLYTIC-CHI
P
UUQ1V4R7MCLHNEGB 35V4R7M 4X5.4 N931L51110 C3P11 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110
C03
A
141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C3P12 181P81726 C-ELECTROLYTIC-CHI
P
UUQ1C470MCLHNEGB 16V470M 6.3X5.
4
N931L51110
C03B 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N931L51110 C3P17 141P22610 C-CERAMIC-CHI
P
LLL31MR71E474MA01
L
X7R25V474M1632 N931L51110
C03C 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C3P21 172P27054 C-STACKED-META
L
ECHU1H223JX5 50V 223J 3225 N931L51110
C03D 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N931L51110 C42P1 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N931L51110
C03F 141P22077 C-CERAMIC-CHI
P
C3216JB0J226K
T
B 6.3V 226K321
6
N931L51110 C42P2 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110
C046 181P81749 C-ELECTROLYTIC-CHI
P
UUQ1V4R7MCLHNEGB 35V4R7M 4X5.4 N931L51110 C4301 141L188O1 C-CERAMIC-CHI
P
GRM1882C1H152JA01D CH 50V 152J1608 N931L51110
C047 181P81749 C-ELECTROLYTIC-CHI
P
UUQ1V4R7MCLHNEGB 35V4R7M 4X5.4 N931L51110 C4302 141L184O9 C-CERAMIC-CHI
P
CM105CH391J50A
T
CH 50V 391J1608 N931L51110
C048 181P81749 C-ELECTROLYTIC-CHI
P
UUQ1V4R7MCLHNEGB 35V4R7M 4X5.4 N931L51110 C4303 141L184O9 C-CERAMIC-CHI
P
CM105CH391J50A
T
CH 50V 391J1608 N931L51110
C049 181P81749 C-ELECTROLYTIC-CHI
P
UUQ1V4R7MCLHNEGB 35V4R7M 4X5.4 N931L51110 C4307 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N931L51110
C04
A
141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C4310 181P82123 C-ELECTROLYTIC-CHI
P
RVC-16V100MD61P1U-R2 16V100M 4X5.
8
N931L51110
C04B 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N931L51110 C4311 141P22621 C-CERAMIC-CHI
P
LLL31MR71H104MA01
L
X7R50V104M1632 N931L51110
C04C 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C4401 141L188O1 C-CERAMIC-CHI
P
GRM1882C1H152JA01D CH 50V 152J1608 N931L51110
C04D 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N931L51110 C4402 141L184O9 C-CERAMIC-CHI
P
CM105CH391J50A
T
CH 50V 391J1608 N931L51110
C04F 141P22077 C-CERAMIC-CHI
P
C3216JB0J226K
T
B 6.3V 226K321
6
N931L51110 C4403 141L184O9 C-CERAMIC-CHI
P
CM105CH391J50A
T
CH 50V 391J1608 N931L51110
C053 141L074O7 C-CERAMIC-CHI
P
GRM2162C1H331JZ01D CH 50V 331J2125 N931L51110 C4410 181P82123 C-ELECTROLYTIC-CHI
P
RVC-16V100MD61P1U-R2 16V100M 4X5.
8
N931L51110
C060 141L069O5 C-CERAMIC-CHI
P
GRM21BB11C105KC01
L
B 16V 105K 212
5
N931L51110 C4411 141P22621 C-CERAMIC-CHI
P
LLL31MR71H104MA01
L
X7R50V104M1632 N931L51110
C073 141L074O7 C-CERAMIC-CHI
P
GRM2162C1H331JZ01D CH 50V 331J2125 N931L51110 C45P1 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N931L51110
C076 172P27070 C-STACKED-META
L
ECHU1C103GX5 16V 103G 2125 N931L51110 C45P2 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110
C091 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C4601 141L188O1 C-CERAMIC-CHI
P
GRM1882C1H152JA01D CH 50V 152J1608 N931L51110
C092 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N931L51110 C4602 141L184O9 C-CERAMIC-CHI
P
CM105CH391J50A
T
CH 50V 391J1608 N931L51110
C095 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C4603 141L184O9 C-CERAMIC-CHI
P
CM105CH391J50A
T
CH 50V 391J1608 N931L51110
C096 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N931L51110 C4801 141L188O1 C-CERAMIC-CHI
P
GRM1882C1H152JA01D CH 50V 152J1608 N931L51110
C1W2 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110 C4802 141L184O7 C-CERAMIC-CHI
P
GRM1882C1H331JA01D CH 50V 331J1608 N931L51110
C1W4 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110 C4807 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N931L51110
C1W5 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110 C4810 181P82123 C-ELECTROLYTIC-CHI
P
RVC-16V100MD61P1U-R2 16V100M 4X5.
8
N931L51110
C221 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C4811 141P22610 C-CERAMIC-CHI
P
LLL31MR71E474MA01
L
X7R25V474M1632 N931L51110
C222 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 C4821 141L188O1 C-CERAMIC-CHI
P
GRM1882C1H152JA01D CH 50V 152J1608 N931L51110
C223 181P81726 C-ELECTROLYTIC-CHI
P
UUQ1C470MCLHNEGB 16V470M 6.3X5.
4
N931L51110 C4822 141L184O7 C-CERAMIC-CHI
P
GRM1882C1H331JA01D CH 50V 331J1608 N931L51110
C230 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C4830 181P82123 C-ELECTROLYTIC-CHI
P
RVC-16V100MD61P1U-R2 16V100M 4X5.
8
N931L51110
C231 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 C4831 141P22610 C-CERAMIC-CHI
P
LLL31MR71E474MA01
L
X7R25V474M1632 N931L51110
C232 141P22077 C-CERAMIC-CHI
P
C3216JB0J226K
T
B 6.3V 226K321
6
N931L51110 C5001 141L188O1 C-CERAMIC-CHI
P
GRM1882C1H152JA01D CH 50V 152J1608 N931L51110
C251 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C5002 141L185O1 C-CERAMIC-CHI
P
GRM1882C1H471JA01D CH 50V 471J1608 N931L51110
C252 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 C5102 141L185O1 C-CERAMIC-CHI
P
GRM1882C1H471JA01D CH 50V 471J1608 N931L51110
9Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
CV-0MW3R45...(1)
CV-0MW3R45-2...(2)
ELECTRICAL PARTS LIST

Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
C511 181P75090 C-ELECTROLYTI
C
RW2-16V332MI6P2#-T4 16V332M 12.5X2
5
N931L51010 C726 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110
C551 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C727 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C552 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 C728 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C554 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C729 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C555 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 C730 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110
C556 181P81726 C-ELECTROLYTIC-CHI
P
UUQ1C470MCLHNEGB 16V470M 6.3X5.
4
N931L51110 C7301 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110
C56P1 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N931L51110 C7302 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C56P2 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C7303 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110
C57P1 141L163O8 C-CERAMIC-CHI
P
GRM188B11E104KA01D B 25V 104K 160
8
N931L51110 C7304 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C57P2 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C7305 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C5802 141L185O1 C-CERAMIC-CHI
P
GRM1882C1H471JA01D CH 50V 471J1608 N931L51110 C7306 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110
C5901 141L188O1 C-CERAMIC-CHI
P
GRM1882C1H152JA01D CH 50V 152J1608 N931L51110 C7307 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110
C5902 141L185O1 C-CERAMIC-CHI
P
GRM1882C1H471JA01D CH 50V 471J1608 N931L51110 C7308 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C5910 181P82123 C-ELECTROLYTIC-CHI
P
RVC-16V100MD61P1U-R2 16V100M 4X5.
8
N931L51110 C7309 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110
C5911 141P22610 C-CERAMIC-CHI
P
LLL31MR71E474MA01
L
X7R25V474M1632 N931L51110 C731 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C5912 141P22610 C-CERAMIC-CHI
P
LLL31MR71E474MA01
L
X7R25V474M1632 N931L51110 C7310 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C5922 141L183O5 C-CERAMIC-CHI
P
MCH185A101JK CH 50V 101J1608 N931L51110 C7311 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110
C5930 181P82123 C-ELECTROLYTIC-CHI
P
RVC-16V100MD61P1U-R2 16V100M 4X5.
8
N931L51110 C7312 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C5931 141P22610 C-CERAMIC-CHI
P
LLL31MR71E474MA01
L
X7R25V474M1632 N931L51110 C7313 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C5932 141P22610 C-CERAMIC-CHI
P
LLL31MR71E474MA01
L
X7R25V474M1632 N931L51110 C7314 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110
C59A0 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N931L51110 C732 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C5P07 172P27054 C-STACKED-META
L
ECHU1H223JX5 50V 223J 3225 N931L51110 C733 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C5P10 141L162O3 C-CERAMIC-CHI
P
GRM188B11H153KA01D B 50V 153K 160
8
N931L51110 C734 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110
C5P15 181P81726 C-ELECTROLYTIC-CHI
P
UUQ1C470MCLHNEGB 16V470M 6.3X5.
4
N931L51110 C735 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C5P21 172P27054 C-STACKED-META
L
ECHU1H223JX5 50V 223J 3225 N931L51110 C736 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110
C5PA0 141L162O3 C-CERAMIC-CHI
P
GRM188B11H153KA01D B 50V 153K 160
8
N931L51110 C737 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C5PA1 172P27054 C-STACKED-META
L
ECHU1H223JX5 50V 223J 3225 N931L51110 C738 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C5PA5 181P81726 C-ELECTROLYTIC-CHI
P
UUQ1C470MCLHNEGB 16V470M 6.3X5.
4
N931L51110 C739 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110
C5PA7 172P27054 C-STACKED-META
L
ECHU1H223JX5 50V 223J 3225 N931L51110 C73M1 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C5S12 181P75090 C-ELECTROLYTI
C
RW2-16V332MI6P2#-T4 16V332M 12.5X2
5
N931L51010 C740 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110
C611 181P75090 C-ELECTROLYTI
C
RW2-16V332MI6P2#-T4 16V332M 12.5X2
5
N931L51010 C741 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C6P07 172P27054 C-STACKED-META
L
ECHU1H223JX5 50V 223J 3225 N931L51110 C742 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110
C6P15 181P81726 C-ELECTROLYTIC-CHI
P
UUQ1C470MCLHNEGB 16V470M 6.3X5.
4
N931L51110 C743 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C6P21 172P27054 C-STACKED-META
L
ECHU1H223JX5 50V 223J 3225 N931L51110 C744 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C6W2 141P175O1 C-CERAMIC-CHI
P
C3225X5R0J107M
T
X5R6.3V107K322
5
N931L51110 C745 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110
C701 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110 C746 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C702 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C747 141P22077 C-CERAMIC-CHI
P
C3216JB0J226K
T
B 6.3V 226K321
6
N931L51110
C703 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110 C750 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C704 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110 C752 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C705 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110 C753 141P153O1 C-CERAMIC-CHI
P
GRM155B11E103KA01D B 25V 103K100
5
N931L51110
C706 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C754 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C707 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110 C755 141L165O0 C-CERAMIC-CHI
P
GRM188B10J105KC01D B6.3V 105K 160
8
N931L51110
C708 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110 C756 141P22077 C-CERAMIC-CHI
P
C3216JB0J226K
T
B 6.3V 226K321
6
N931L51110
C709 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110 C75M3 141L067O1 C-CERAMIC-CHI
P
CM21B225K25A
T
B 25V 225K 212
5
N931L51110
C710 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110 C75S1 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C711 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110 C764 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C7110 141P22077 C-CERAMIC-CHI
P
C3216JB0J226K
T
B 6.3V 226K321
6
N931L51110 C765 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C7111 141P22077 C-CERAMIC-CHI
P
C3216JB0J226K
T
B 6.3V 226K321
6
N931L51110 C76M3 141L067O1 C-CERAMIC-CHI
P
CM21B225K25A
T
B 25V 225K 212
5
N931L51110
C712 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110 C76S1 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C713 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110 C770 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110
C714 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110 C771 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110
C715 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110 C772 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110
C716 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110 C773 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110
C717 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110 C774 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110
C718 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110 C779 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110
C719 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C7G1 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110
C720 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110 C7G2 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110
C7201 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110 C7G3 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110
C7202 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 C7G4 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110
C721 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110 C7J4 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C722 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110 C7T1 141L181O9 C-CERAMIC-CHI
P
GRM1882C1H220JZ01D CH50V220J 1608 N931L51110
C723 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110 C7X1 141L181O7 C-CERAMIC-CHI
P
GRM1882C1H180JZ01D CH50V180J 1608 N931L51110
C724 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C7X2 141L181O7 C-CERAMIC-CHI
P
GRM1882C1H180JZ01D CH50V180J 1608 N931L51110
C725 141P162O1 C-CERAMIC-CHI
P
CM05CH270J50AH CH 50V 270J1005 N931L51110 C809 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110
10 Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
CV-0MW3R45...(1)
CV-0MW3R45-2...(2)
ELECTRICAL PARTS LIST

Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
C810 141L066O3 C-CERAMIC-CHI
P
CM21B475K16A
T
B 16V 475K 212
5
N931L51110 C9101 141P170O2 C-CERAMIC-CHI
P
GRM32RB11H105KA01
L
B 50V 105K 322
5
N931L51110
C812 141L181O5 C-CERAMIC-CHI
P
GRM1882C1H150JZ01D CH50V150J 1608 N931L51110 C9102 141P21710 C-CERAMIC-CHI
P
CKG32KX7S1H106M
T
X7S 50V106M322
5
N931L51110
C813 141L181O5 C-CERAMIC-CHI
P
GRM1882C1H150JZ01D CH50V150J 1608 N931L51110 C9103 141P21710 C-CERAMIC-CHI
P
CKG32KX7S1H106M
T
X7S 50V106M322
5
N931L51110
C825 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110 C9104 141P151O3 C-CERAMIC-CHI
P
CM05W5R222K50AH B 50V 222K100
5
N931L51110
C826 141L049O8 C-CERAMIC-CHI
P
CM316B226K06AT-N B 6.3V 226K321
6
N931L51110 C9106 141P170O2 C-CERAMIC-CHI
P
GRM32RB11H105KA01
L
B 50V 105K 322
5
N931L51110
C840 141L169O2 C-CERAMIC-CHI
P
C1608JB1A105K
T
B10V 105K 160
8
N931L51110 C9107 141P170O2 C-CERAMIC-CHI
P
GRM32RB11H105KA01
L
B 50V 105K 322
5
N931L51110
C851 141P175O1 C-CERAMIC-CHI
P
C3225X5R0J107M
T
X5R6.3V107K322
5
N931L51110 C9108 141L166O7 C-CERAMIC-CHI
P
GRM188R11H104KA93D R 50V 104K 160
8
N931L51110
C8A0 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110 C9109 141L166O7 C-CERAMIC-CHI
P
GRM188R11H104KA93D R 50V 104K 160
8
N931L51110
C8A1 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110 C9110 181P74341 C-ELECTROLYTIC-TAP
E
25PX2200MM55G4Y12521 25V 222M N931L51010
C8A2 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110 C9111 141L067O3 C-CERAMIC-CHI
P
GRM21BR11E105KA99
L
R 25V 105K 212
5
N931L51110
C8A3 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110 C9112 141L067O3 C-CERAMIC-CHI
P
GRM21BR11E105KA99
L
R 25V 105K 212
5
N931L51110
C8A7 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110 C9113 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110
C8B00 141L162O1 C-CERAMIC-CHI
P
GRM188B11H103KA01D B 50V 103K 160
8
N931L51110 C9114 181P80855 C-ELECTROLYTIC-CHI
P
UUD1V221MNLZMLGS 35V 221M N931L51110
C8B07 181P80839 C-ELECTROLYTIC-CHI
P
UUD1E471MNLZMLGS 25V 471M N931L51110 C9117 141P21710 C-CERAMIC-CHI
P
CKG32KX7S1H106M
T
X7S 50V106M322
5
N931L51110
C8B08 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9118 141L047O3 C-CERAMIC-CHI
P
GRM31MR71H474KA01
L
B 50V 474K 321
6
N931L51110
C8B1 141L165O0 C-CERAMIC-CHI
P
GRM188B10J105KC01D B6.3V 105K 160
8
N931L51110 C9119 141L047O3 C-CERAMIC-CHI
P
GRM31MR71H474KA01
L
B 50V 474K 321
6
N931L51110
C8B11 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9120 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C8E41 141L160O9 C-CERAMIC-CHI
P
GRM188B11H102KA01D B 50V 102K 160
8
N931L51110 C9122 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C8E42 141L160O9 C-CERAMIC-CHI
P
GRM188B11H102KA01D B 50V 102K 160
8
N931L51110 C9123 141P175O2 C-CERAMIC-CHI
P
GRM32ER60J107ME20L N931L51110
C8P0 141L169O2 C-CERAMIC-CHI
P
C1608JB1A105K
T
B10V 105K 160
8
N931L51110 C9124 141P175O2 C-CERAMIC-CHI
P
GRM32ER60J107ME20L N931L51110
C8P1 141L169O2 C-CERAMIC-CHI
P
C1608JB1A105K
T
B10V 105K 160
8
N931L51110 C9125 141L166O7 C-CERAMIC-CHI
P
GRM188R11H104KA93D R 50V 104K 160
8
N931L51110
C8P2 141L169O2 C-CERAMIC-CHI
P
C1608JB1A105K
T
B10V 105K 160
8
N931L51110 C9126 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C8P3 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110 C9127 141L161O8 C-CERAMIC-CHI
P
GRM188B11H562KA01D B 50V 562K 160
8
N931L51110
C8P5 141L169O2 C-CERAMIC-CHI
P
C1608JB1A105K
T
B10V 105K 160
8
N931L51110 C9129 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C8P6 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110 C9130 141P153O1 C-CERAMIC-CHI
P
GRM155B11E103KA01D B 25V 103K100
5
N931L51110
C8P7 141L169O2 C-CERAMIC-CHI
P
C1608JB1A105K
T
B10V 105K 160
8
N931L51110 C9131 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C8P8 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110 C9132 141P163O9 C-CERAMIC-CHI
P
CM05CH151J50AH CH 50V 151J1005 N931L51110
C8R9 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 C9134 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110
C8S01 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9135 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110
C8S02 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9140 141L047O3 C-CERAMIC-CHI
P
GRM31MR71H474KA01
L
B 50V 474K 321
6
N931L51110
C8S05 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9141 141L047O3 C-CERAMIC-CHI
P
GRM31MR71H474KA01
L
B 50V 474K 321
6
N931L51110
C8S06 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9142 141L063O3 C-CERAMIC-CHI
P
GRM21BR71H224KA01
L
X7R50V224K212
5
N931L51110
C8S07 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9143 141L169O8 C-CERAMIC-CHI
P
GRM188B30J475KE18D B 6.3V 475K160
8
N931L51110
C8S08 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9144 141L169O8 C-CERAMIC-CHI
P
GRM188B30J475KE18D B 6.3V 475K160
8
N931L51110
C8S13 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9145 141P21710 C-CERAMIC-CHI
P
CKG32KX7S1H106M
T
X7S 50V106M322
5
N931L51110
C8S14 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9146 141L166O7 C-CERAMIC-CHI
P
GRM188R11H104KA93D R 50V 104K 160
8
N931L51110
C8S41 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9147 181P81953 C-ELECTROLYTIC-CHI
P
UUD1V470MCLZMLGS 35V 470M N931L51110
C8S42 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9148 141P175O2 C-CERAMIC-CHI
P
GRM32ER60J107ME20L N931L51110
C8S47 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9149 141P175O2 C-CERAMIC-CHI
P
GRM32ER60J107ME20L N931L51110
C8S48 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9150 141P159O0 C-CERAMIC-CHI
P
GRM155B11A104KA01D B 10V 104K100
5
N931L51110
C8S49 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9153 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C8S50 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9154 141P153O1 C-CERAMIC-CHI
P
GRM155B11E103KA01D B 25V 103K100
5
N931L51110
C8S57 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9156 141P153O1 C-CERAMIC-CHI
P
GRM155B11E103KA01D B 25V 103K100
5
N931L51110
C8S58 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C9157 141P165O7 C-CERAMIC-CHI
P
GRM1552C1E271JD01D CH 25V 271J1005 N931L51110
C8S80 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C9158 141P167O9 C-CERAMIC-CHI
P
GRM1552C1H102JA01D CH 50V 102J1005 N931L51110
C8S89 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C9180 141P21710 C-CERAMIC-CHI
P
CKG32KX7S1H106M
T
X7S 50V106M322
5
N931L51110
C8S97 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C9188 141L162O7 C-CERAMIC-CHI
P
C1608JB1H473K
T
B 50V 473K 160
8
N931L51110
C8S98 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C9189 141P153O3 C-CERAMIC-CHI
P
GRM155B11E223KA61D B 25V 223K100
5
N931L51110
C8SA3 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C91A2 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110
C8SA4 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C931 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N931L51110
C8SA7 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C932 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110
C8SA8 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110 C933 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110
C9040 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C934 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N931L51110
C9041 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 C935 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110
C9056 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N931L51110 C9373 141L049O8 C-CERAMIC-CHI
P
CM316B226K06AT-N B 6.3V 226K321
6
N931L51110
C9057 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 C951 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N931L51110
C9058 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110 C952 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110
C9059 181P82123 C-ELECTROLYTIC-CHI
P
RVC-16V100MD61P1U-R2 16V100M 4X5.
8
N931L51110 C953 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110
C90A1 181P81737 C-ELECTROLYTIC-CHI
P
UUQ1E221MCLHNEGS 25V221M 8X10 N931L51110 C954 181P82126 C-ELECTROLYTIC-CHI
P
RVC-16V470MF61P1U-R2 16V470M 6.3X5.
8
N931L51110
C90A2 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 C95A2 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110
C90A3 181P81737 C-ELECTROLYTIC-CHI
P
UUQ1E221MCLHNEGS 25V221M 8X10 N931L51110 C95A3 141L187O7 C-CERAMIC-CHI
P
GRM1882C1H102JA01D CH 50V 102J1608 N931L51110
C90A4 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N931L51110 C95A5 181P82110 C-ELECTROLYTIC-CHI
P
RVC-10V101MF80P1U-R2 10V101M 6.3X7.
7
N931L51110
C90P1 141P21810 C-CERAMIC-CHI
P
GRM188R11H102JA01D R 50V 102J 1608 N931L51110 C95A6 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110
C9100 141P170O2 C-CERAMIC-CHI
P
GRM32RB11H105KA01
L
B 50V 105K 322
5
N931L51110 C95A7 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110
11 Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
CV-0MW3R45...(1)
CV-0MW3R45-2...(2)
ELECTRICAL PARTS LIST

Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
C9A0 181P81737 C-ELECTROLYTIC-CHI
P
UUQ1E221MCLHNEGS 25V221M 8X10 N931L51110 D931 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L51110
C9A1 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N931L51110 D932 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L51110
C9B0 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110 D951 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L51110
C9B01 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110 D952 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L51110
C9B1 181P80839 C-ELECTROLYTIC-CHI
P
UUD1E471MNLZMLGS 25V 471M N931L51110 D95A5 264P59852 DIODE-ZENER-CHIP DZ2J043HYL N931L51110
C9B2 141L067O3 C-CERAMIC-CHI
P
GRM21BR11E105KA99
L
R 25V 105K 212
5
N931L51110 D9A2 264P63410 DIODE-CHIP RB160L-60TTE2
5
N931L51110
C9B3 141L067O3 C-CERAMIC-CHI
P
GRM21BR11E105KA99
L
R 25V 105K 212
5
N931L51110 D9B1 264P63410 DIODE-CHIP RB160L-60TTE2
5
N931L51110
C9B4 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N931L51110 D9B7 264P607O2 DIODE-CHIP 1SR154-400TE2
5
N931L51110
C9B5 141L069O1 C-CERAMIC-CHI
P
CM21B225K10AT-N B 10V 225K 212
5
N931L51110 D9B8 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L51110
C9B6 189P17010 C-DOUBLE-LAYE
R
DHL-5R5D104
T
5.5V 104Z N931L51010 D9C4 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L51110
C9B7 181P80895 C-ELECTROLYTIC-CHI
P
UUD0J221MCLZMLGS 6.3V 221M N931L51110 D9C8 264P59826 DIODE-ZENER-CHIP DZ2J082MYL N931L51110
C9B8 141L169O2 C-CERAMIC-CHI
P
C1608JB1A105K
T
B10V 105K 160
8
N931L51110 D9D1 264P607O2 DIODE-CHIP 1SR154-400TE2
5
N931L51110
C9B9 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110 D9D3 264P607O2 DIODE-CHIP 1SR154-400TE2
5
N931L51110
C9C0 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 D9D33 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L51110
C9C1 181P81727 C-ELECTROLYTIC-CHI
P
UUQ1C101MCLHNEGS 16V101M 8X6.2 N931L51110 D9D4 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L51110
C9C2 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N931L51110 D9D8 264P59826 DIODE-ZENER-CHIP DZ2J082MYL N931L51110
C9C3 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N931L51110 D9S1 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N931L51110
C9C4 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 D9S5 264P59824 DIODE-ZENER-CHIP DZ2J068MYL N931L51110
C9C5 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110 H-IC-1 591K55210 HOLDER-IC ECOTRIO T0.
8
N931L51010
C9D0 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 HTR05 594L54810 HOLDER N931L51010
C9D1 181P81727 C-ELECTROLYTIC-CHI
P
UUQ1C101MCLHNEGS 16V101M 8X6.2 N931L51110 IC001 262P24110 IC-TAPE PCM1804S1DB
R
A
/D N931L51110
C9D2 141L063O2 C-CERAMIC-CHI
P
GRM21BB11H104KA11
L
B 50V 104K212
5
N931L51110 IC002 262P24310 IC-TAPE
A
K5357VT-E2 N931L51110
C9D3 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N931L51110 IC003 266P511O3 IC-TAPE NJM4580M-D DMP 8P N931L51110
C9D33 141L168O8 C-CERAMIC-CHI
P
CM105B105K16A
T
B 16V 105K 160
8
N931L51110 IC004 266P511O3 IC-TAPE NJM4580M-D DMP 8P N931L51110
C9D34 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110 IC0050 266L065O5 IC-TAPE NJM2115V-TE1 N931L51110
C9D4 141L164O6 C-CERAMIC-CHI
P
GRM188B11C104KA01D B 16V 104K 160
8
N931L51110 IC200 262P34310 ICTAP
E
PCM1690IDCARM
E
DAC N931L51110
C9D5 141L069O7 C-CERAMIC-CHI
P
GRM21BB10J106KE01
L
B 6.3V 106K212
5
N931L51110 IC3101 266P74510 IC SA5532AD
R
EMP 8P N931L51110
C9G01 141L188O5 C-CERAMIC-CHI
P
GRM1882C1H222JA01 CH 50V 222J1608 N931L51110 IC311 266P59513 IC TDA7563B N931L51010
C9P1 141P163O5 C-CERAMIC-CHI
P
GRM1552C1H101JZ01D CH 50V 101J1005 N931L51110 IC3401 266P74510 IC SA5532AD
R
EMP 8P N931L51110
C9S1 141P21810 C-CERAMIC-CHI
P
GRM188R11H102JA01D R 50V 102J 1608 N931L51110 IC4201 266P74510 IC SA5532AD
R
EMP 8P N931L51110
C9S5 141P21810 C-CERAMIC-CHI
P
GRM188R11H102JA01D R 50V 102J 1608 N931L51110 IC4501 266P74510 IC SA5532AD
R
EMP 8P N931L51110
D006 264P516O1 DIODE-CHIP S3D6600 N931L51110 IC511 266P65212 IC-MAG TDA7575B 1CH*150W-1OHM N931L51010
D007 264P516O1 DIODE-CHIP S3D6600 N931L51110 IC512 266P65212 IC-MAG TDA7575B 1CH*150W-1OHM N931L51010
D3350 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L51110 IC550 262P06912 IC-TAPE PCM1753TDBQRME N931L51110
D3351 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L51110 IC5601 266P74510 IC SA5532AD
R
EMP 8P N931L51110
D3360 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L51110 IC5701 266P74510 IC SA5532AD
R
EMP 8P N931L51110
D3361 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L51110 IC611 266P65212 IC-MAG TDA7575B 1CH*150W-1OHM N931L51010
D4450 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L51110 IC701 262P71511 IC-TRA
Y
TMS320D810K003BZKB
T
DSP N931L51110
D4451 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L51110 IC702 931L69110
A
SSY-ROM N931L51110
D4460 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L51110 IC703 262P73111 IC IS45S16400F-7TLA1 64M-SDRAM N931L51110
D4461 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L51110 IC707 262P21729 IC-TAPE IC-PST8229U
R
CMOS
_
RESE
T
N931L51110
D5450 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L51110 IC732 262P25612 IC-TAPE S-1172B12-E6T1G N931L51110
D5451 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L51110 IC7J4 262P15413 IC-TAPE TC7SH08FU-TE85L
_
JF 1G 2IN-AND N931L51110
D5460 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L51110 IC801
(
1
)
931L69011
A
SSY-ROM N931L51110
D5461 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L51110 IC801
(
2
)
931L69012
A
SSY-ROM N931L51112
D6A2 264P65310 DIODE RB521G-30 T2
R
N931L51110 IC802 262P21729 IC-TAPE IC-PST8229U
R
CMOS
_
RESE
T
N931L51110
D73M1 264P59852 DIODE-ZENER-CHIP DZ2J043HYL N931L51110 IC803 262P09210 IC BR24L04F-WE2 4KBIT EEPROM N931L51110
D75S1 264P59852 DIODE-ZENER-CHIP DZ2J043HYL N931L51110 IC840 266P66310 IC-TAPE HA12240FPEL-E N931L51110
D76S1 264P59852 DIODE-ZENER-CHIP DZ2J043HYL N931L51110 IC9053 266P75211 IC-TAPE NJM2884U1-05
(
TE1
)
N931L51110
D8A0 264P59819 DIODE-ZENER-CHIP DZ2J051MYL N931L51110 IC9120 262P33510 IC-TAPE TPS43330QDAPRQ1 N931L51110
D8A1 264P59819 DIODE-ZENER-CHIP DZ2J051MYL N931L51110 IC9180 262P31942 IC-TAPE BU4242F-T
R
CMOS RESE
T
N931L51110
D8E41 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N931L51110 IC931 266P75210 IC-TAPE NJM2884U1-33
(
TE1
)
N931L51110
D8E42 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N931L51110 IC932 266P66514 IC-TAPE NJM2846DL3-33
(
TE1
)
REG 3.3V/1.0
A
N931L51110
D9053 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L51110 IC951 266P75211 IC-TAPE NJM2884U1-05
(
TE1
)
N931L51110
D90A1 264P63410 DIODE-CHIP RB160L-60TTE2
5
N931L51110 IC9B1 262P21410 IC BD3571HFP-T
R
N931L51110
D90A5 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N931L51110 IC9B3 266P75210 IC-TAPE NJM2884U1-33
(
TE1
)
N931L51110
D90D2 264P607O2 DIODE-CHIP 1SR154-400TE2
5
N931L51110 IC9C4 266P75440 IC NJM2871BF04 N931L51110
D90P1 264P59839 DIODE-ZENER-CHIP DZ2J270MYL N931L51110 IC9D33 266P66514 IC-TAPE NJM2846DL3-33
(
TE1
)
REG 3.3V/1.0
A
N931L51110
D9102 264P66410 DIODE RB055L-40
_
TE2
5
N931L51110 IC9D4 266P75440 IC NJM2871BF04 N931L51110
D9103 264P66410 DIODE RB055L-40
_
TE2
5
N931L51110 L0090 351P12263 COIL-CHIP BK2125LM252-
T
LM252 2125 N931L51110
D9104 264P66410 DIODE RB055L-40
_
TE2
5
N931L51110 L0A1 351P12263 COIL-CHIP BK2125LM252-
T
LM252 2125 N931L51110
D9105 264P56927 DIODE-ZENER-CHIP EDZ TE61 18B N931L51110 L0A2 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110
D9180 264P56914 DIODE-ZENER-CHIP EDZ TE61 5.1B N931L51110 L200 351P12263 COIL-CHIP BK2125LM252-
T
LM252 2125 N931L51110
D9181 264P618O2 DIODE-CHIP MC2848-T150-1 N931L51110 L311 351P11310 COIL-CHOKE
A
LD-20-8 N931L51010
12 Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
CV-0MW3R45...(1)
CV-0MW3R45-2...(2)
ELECTRICAL PARTS LIST

Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
L511 351P11310 COIL-CHOKE
A
LD-20-8 N931L51010 PLTD2 443P01012 TERMINA
L
SD01123-21 N931L51110
L611 351P11310 COIL-CHOKE
A
LD-20-8 N931L51010 PLTD3 443P01012 TERMINA
L
SD01123-21 N931L51110
L664 351P12450 COIL-CHIP FBMH3225HM601N
T
HM601 3225 N931L51110 PLTD4 443P01012 TERMINA
L
SD01123-21 N931L51110
L7110 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 Q73M1 260L059O5 TRANSISTOR-CHI
P
DTC124EU
A
N931L51110
L7111 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 Q73S1 260L059O5 TRANSISTOR-CHI
P
DTC124EU
A
N931L51110
L7114 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 Q73S2 260M06210 TRANSISTOR-CHI
P
2SA1576A R
_
S N931L51110
L7510 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 Q75M1 260L059O5 TRANSISTOR-CHI
P
DTC124EU
A
N931L51110
L752 351P096O2 COIL-CHIP BK1608TS601-
T
TS601 160
8
N931L51110 Q75S1 260M06210 TRANSISTOR-CHI
P
2SA1576A R
_
S N931L51110
L753 284P01910 FILTER-CHI
P
BLM31PG500SN1
L
N931L51110 Q75S2 260L059O5 TRANSISTOR-CHI
P
DTC124EU
A
N931L51110
L754 284P01910 FILTER-CHI
P
BLM31PG500SN1
L
N931L51110 Q76M1 260L059O5 TRANSISTOR-CHI
P
DTC124EU
A
N931L51110
L7A0 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q76S1 260M06210 TRANSISTOR-CHI
P
2SA1576A R
_
S N931L51110
L7A1 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q76S2 260L059O5 TRANSISTOR-CHI
P
DTC124EU
A
N931L51110
L7A2 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q828 260M06216 TRANSISTOR-CHI
P
DTA143EU
A
N931L51110
L7A3 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q829 260P108O1 TRANSISTOR-CHI
P
DTC144EU
A
N931L51110
L7A4 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q8P6 260M06216 TRANSISTOR-CHI
P
DTA143EU
A
N931L51110
L7D0 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q8P7 260M06216 TRANSISTOR-CHI
P
DTA143EU
A
N931L51110
L7D1 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q90A1 260M06212 TRANSISTOR-CHI
P
2SC4081 T106 R
_S
N931L51110
L7D2 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q90A2 260M06210 TRANSISTOR-CHI
P
2SA1576A R
_
S N931L51110
L7J0 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q90A6 260P72810 TRANSISTO
R
2SA1869-Y
(
MTSA,Q
)
N931L51010
L7J1 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q9109 260P69411 TRANSISTOR-TAP
E
SP8K4 TB N931L51110
L7J2 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q9120 260P69411 TRANSISTOR-TAP
E
SP8K4 TB N931L51110
L7J3 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q9121 260L059O8 TRANSISTOR-CHI
P
DTA114EUAT10
6
N931L51110
L7J4 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q9122 260P108O1 TRANSISTOR-CHI
P
DTC144EU
A
N931L51110
L7N4 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q9126 260P109O2 TRANSISTOR-CHI
P
DTA144EU
A
N931L51110
L7P3 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q9132 260P108O1 TRANSISTOR-CHI
P
DTC144EU
A
N931L51110
L7P6 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q9133 260P108O1 TRANSISTOR-CHI
P
DTC144EU
A
N931L51110
L7R3 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q9142 260P69411 TRANSISTOR-TAP
E
SP8K4 TB N931L51110
L7R5 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q95A1 260M06212 TRANSISTOR-CHI
P
2SC4081 T106 R
_S
N931L51110
L7R6 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q95A2 260M06210 TRANSISTOR-CHI
P
2SA1576A R
_
S N931L51110
L7T5 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 Q95A5 260P19110 TRANSISTOR-CHI
P
2SA1681
(
T2LMTSA
_
F
)
N931L51110
L8B00 351P15810 COIL FBMJ3216HM380N
T
HM380 N931L51110 Q983 260P18810 TRANSISTOR-CHI
P
2SA2097
(
T6L1MBSSN
Q
N931L51110
L8B1 351P07411 COIL-CHOKE DN-MB550 N931L51010 Q984 260P18810 TRANSISTOR-CHI
P
2SA2097
(
T6L1MBSSN
Q
N931L51110
L8P1 351P095O4 COIL-CHOKE-CHIP BK1608LM252-
T
N931L51110 Q98C 260M06212 TRANSISTOR-CHI
P
2SC4081 T106 R
_S
N931L51110
L90A1 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 Q98D 260M06210 TRANSISTOR-CHI
P
2SA1576A R
_
S N931L51110
L90A2 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 Q98E 260M06212 TRANSISTOR-CHI
P
2SC4081 T106 R
_S
N931L51110
L90A5 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 Q98F 260M06210 TRANSISTOR-CHI
P
2SA1576A R
_
S N931L51110
L90D2 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 Q9E1 260L059O5 TRANSISTOR-CHI
P
DTC124EU
A
N931L51110
L9101 351P17661 COIL-CHOKE CDRH105RNP-2R2NC 2.2UH N931L51110 Q9E2 260M06215 TRANSISTOR-CHI
P
DTA124EU
A
N931L51110
L9102 351P10297 COIL-CHOKE-CHIP 7B12NA-4R3N-R 4.3UH N931L51110 Q9E3 260L059O5 TRANSISTOR-CHI
P
DTC124EU
A
N931L51110
L9120 351P17667 COIL-CHOKE CDRH105RNP-6R8NC 6.8UH N931L51110 Q9G1 260L059O5 TRANSISTOR-CHI
P
DTC124EU
A
N931L51110
L9122 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 Q9G2 260M06215 TRANSISTOR-CHI
P
DTA124EU
A
N931L51110
L9141 351P17667 COIL-CHOKE CDRH105RNP-6R8NC 6.8UH N931L51110 Q9G3 260L059O5 TRANSISTOR-CHI
P
DTC124EU
A
N931L51110
L9149 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 Q9P1 260M06210 TRANSISTOR-CHI
P
2SA1576A R
_
S N931L51110
L93A1 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 Q9P2 260L059O5 TRANSISTOR-CHI
P
DTC124EU
A
N931L51110
L95A1 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 Q9S1 260M06212 TRANSISTOR-CHI
P
2SC4081 T106 R
_S
N931L51110
L9A2 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 Q9S5 260M06212 TRANSISTOR-CHI
P
2SC4081 T106 R
_S
N931L51110
L9B0 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 R001 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110
L9B1 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 R0011 103P504O9 R-CHIP RMC1/16104FTP 1/10W 104F 1608 N931L51110
L9B9 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 R0012 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110
L9D3 351P12430 COIL-CHIP FBMH3216HM501N
T
HM501 3216 N931L51110 R0013 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110
P001 452P23214 CONNECTOR 7382-5842 14P 040-3 N931L51010 R001
A
103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110
P002 452L173O3 CONNECTOR 7322-8380-30 18P SIDE N931L51010 R001B 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110
P003 452L34211 CONNECTOR 9442B-14J-T 14P SIDE N931L51010 R002 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110
P200 452P35614 CONNECTOR-TAPE 52559-1452 14P TOP N931L51110 R0021 103P504O9 R-CHIP RMC1/16104FTP 1/10W 104F 1608 N931L51110
P500 452L219O3 CONNECTOR 9117S-13D 13P BOTTOM N931L51010 R0022 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110
P9100 442P01910 TERMINA
L
OGCP-702020G Z4L N931L51110 R0023 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110
P9101 442P01910 TERMINA
L
OGCP-702020G Z4L N931L51110 R002
A
103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110
P9102 442P01910 TERMINA
L
OGCP-702020G Z4L N931L51110 R002B 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110
P9103 442P01910 TERMINA
L
OGCP-702020G Z4L N931L51110 R003B 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
P9104 442P01910 TERMINA
L
OGCP-702020G Z4L N931L51110 R004 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
PLTA8 443P01012 TERMINA
L
SD01123-21 N931L51110 R005 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110
PLTAU6 443P01012 TERMINA
L
SD01123-21 N931L51110 R005
A
103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110
PLTAU7 443P01012 TERMINA
L
SD01123-21 N931L51110 R005B 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110
PLTD1 443P01012 TERMINA
L
SD01123-21 N931L51110 R011 103P503O6 R-CHIP RMC1/16822FTP 1/10W 822F 1608 N931L51110
13 Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
CV-0MW3R45...(1)
CV-0MW3R45-2...(2)
ELECTRICAL PARTS LIST

Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
R012 103P503O8 R-CHIP RMC1/16123FTP 1/10W 123F 1608 N931L51110 R3206 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110
R013 103P503O4 R-CHIP RMC1/16562FTP 1/10W 562F 1608 N931L51110 R3209 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N931L51110
R013
A
103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110 R3211 103L296O1 R-CHIP RMC1/16105JTP 1/10W 105J 1608 N931L51110
R014 103L290O9 R-CHIP RMC1/16470JTP 1/10W 470J 1608 N931L51110 R3331 103L301O1 R-CHIP RPC50T680J 1/2W 680J 5025 N931L51110
R014
A
103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110 R3332 103L301O0 R-CHIP RPC50T560J 1/2W 560J 5025 N931L51110
R0150 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L51110 R3333 103L301O1 R-CHIP RPC50T680J 1/2W 680J 5025 N931L51110
R0151 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L51110 R3335 103L241O3 R-CHIP RMC1/8101JATP 1/4W 101J 3216 N931L51110
R015B 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110 R3336 103L241O3 R-CHIP RMC1/8101JATP 1/4W 101J 3216 N931L51110
R016B 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110 R3700 103P503O0 R-CHIP RMC1/16272FTP 1/10W 272F 1608 N931L51110
R0194 103L199O9 R-CHIP RMC1/10JPATP 1/8W 0 2125 N931L51110 R3701 103P513O7 R-CHIP RMC1/16113FTP 1/10W 113F 1608 N931L51110
R01B 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 R3702 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110
R02B 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 R3703 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110
R031 103P503O6 R-CHIP RMC1/16822FTP 1/10W 822F 1608 N931L51110 R3711 103L296O1 R-CHIP RMC1/16105JTP 1/10W 105J 1608 N931L51110
R032 103P503O8 R-CHIP RMC1/16123FTP 1/10W 123F 1608 N931L51110 R3720 103P503O0 R-CHIP RMC1/16272FTP 1/10W 272F 1608 N931L51110
R033 103P503O4 R-CHIP RMC1/16562FTP 1/10W 562F 1608 N931L51110 R3721 103P513O7 R-CHIP RMC1/16113FTP 1/10W 113F 1608 N931L51110
R034 103L290O9 R-CHIP RMC1/16470JTP 1/10W 470J 1608 N931L51110 R3722 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110
R037 103L196O1 R-CHIP RMC1/10105JATP 1/8W 105J 2125 N931L51110 R3723 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110
R039 103L196O1 R-CHIP RMC1/10105JATP 1/8W 105J 2125 N931L51110 R3731 103L296O1 R-CHIP RMC1/16105JTP 1/10W 105J 1608 N931L51110
R03B 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 R3CK1 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110
R047 103L196O1 R-CHIP RMC1/10105JATP 1/8W 105J 2125 N931L51110 R3DA1 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110
R049 103L196O1 R-CHIP RMC1/10105JATP 1/8W 105J 2125 N931L51110 R3L01 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L51110
R04B 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 R3L02 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L51110
R051 103P503O6 R-CHIP RMC1/16822FTP 1/10W 822F 1608 N931L51110 R3L03 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L51110
R052 103P503O8 R-CHIP RMC1/16123FTP 1/10W 123F 1608 N931L51110 R3L04 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L51110
R053 103P503O4 R-CHIP RMC1/16562FTP 1/10W 562F 1608 N931L51110 R4300 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N931L51110
R054 103L290O9 R-CHIP RMC1/16470JTP 1/10W 470J 1608 N931L51110 R4301 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110
R05B 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 R4302 103P503O8 R-CHIP RMC1/16123FTP 1/10W 123F 1608 N931L51110
R06B 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 R4303 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110
R071 103P503O6 R-CHIP RMC1/16822FTP 1/10W 822F 1608 N931L51110 R4304 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110
R072 103P503O8 R-CHIP RMC1/16123FTP 1/10W 123F 1608 N931L51110 R4305 103P503O8 R-CHIP RMC1/16123FTP 1/10W 123F 1608 N931L51110
R073 103P503O4 R-CHIP RMC1/16562FTP 1/10W 562F 1608 N931L51110 R4306 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110
R074 103L290O9 R-CHIP RMC1/16470JTP 1/10W 470J 1608 N931L51110 R4309 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N931L51110
R07
A
103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 R4311 103L296O1 R-CHIP RMC1/16105JTP 1/10W 105J 1608 N931L51110
R201 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R4400 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N931L51110
R2010 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R4401 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110
R2011 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R4402 103P503O8 R-CHIP RMC1/16123FTP 1/10W 123F 1608 N931L51110
R2012 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R4403 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110
R2013 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R4404 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110
R2014 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R4405 103P503O8 R-CHIP RMC1/16123FTP 1/10W 123F 1608 N931L51110
R2015 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R4406 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110
R2016 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R4409 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N931L51110
R2017 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R4411 103L296O1 R-CHIP RMC1/16105JTP 1/10W 105J 1608 N931L51110
R2018 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R4441 103L301O1 R-CHIP RPC50T680J 1/2W 680J 5025 N931L51110
R2019 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R4442 103L301O0 R-CHIP RPC50T560J 1/2W 560J 5025 N931L51110
R202 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R4443 103L301O1 R-CHIP RPC50T680J 1/2W 680J 5025 N931L51110
R203 103P153O6 R-CHIP RMC1/16S822JTH 1/16W 822J 1005 N931L51110 R4445 103L241O3 R-CHIP RMC1/8101JATP 1/4W 101J 3216 N931L51110
R205 103P153O6 R-CHIP RMC1/16S822JTH 1/16W 822J 1005 N931L51110 R4446 103L241O3 R-CHIP RMC1/8101JATP 1/4W 101J 3216 N931L51110
R3100 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N931L51110 R4800 103P503O0 R-CHIP RMC1/16272FTP 1/10W 272F 1608 N931L51110
R3101 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110 R4801 103P513O7 R-CHIP RMC1/16113FTP 1/10W 113F 1608 N931L51110
R3102 103P503O8 R-CHIP RMC1/16123FTP 1/10W 123F 1608 N931L51110 R4802 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110
R3103 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110 R4803 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110
R3104 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110 R4811 103L296O1 R-CHIP RMC1/16105JTP 1/10W 105J 1608 N931L51110
R3105 103P503O8 R-CHIP RMC1/16123FTP 1/10W 123F 1608 N931L51110 R4820 103P503O0 R-CHIP RMC1/16272FTP 1/10W 272F 1608 N931L51110
R3106 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110 R4821 103P513O7 R-CHIP RMC1/16113FTP 1/10W 113F 1608 N931L51110
R3109 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N931L51110 R4822 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110
R3111 103L296O1 R-CHIP RMC1/16105JTP 1/10W 105J 1608 N931L51110 R4823 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110
R311S 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L51110 R4831 103L296O1 R-CHIP RMC1/16105JTP 1/10W 105J 1608 N931L51110
R312S 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110 R5000 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
R3200 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N931L51110 R5001 103P504O1 R-CHIP RPC05T223F 1/10W 223F 1608 N931L51110
R3201 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110 R5002 103P513O7 R-CHIP RMC1/16113FTP 1/10W 113F 1608 N931L51110
R3202 103P503O8 R-CHIP RMC1/16123FTP 1/10W 123F 1608 N931L51110 R5003 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110
R3203 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110 R5008 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L51110
R3204 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110 R5100 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
R3205 103P503O8 R-CHIP RMC1/16123FTP 1/10W 123F 1608 N931L51110 R5101 103P504O1 R-CHIP RPC05T223F 1/10W 223F 1608 N931L51110
14 Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
CV-0MW3R45...(1)
CV-0MW3R45-2...(2)
ELECTRICAL PARTS LIST

Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
R5102 103P513O7 R-CHIP RMC1/16113FTP 1/10W 113F 1608 N931L51110 R729 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110
R5103 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110 R72
A
103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110
R5441 103L301O1 R-CHIP RPC50T680J 1/2W 680J 5025 N931L51110 R72B 103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110
R5442 103L301O0 R-CHIP RPC50T560J 1/2W 560J 5025 N931L51110 R730 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110
R5443 103L301O1 R-CHIP RPC50T680J 1/2W 680J 5025 N931L51110 R7306 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
R5445 103L241O3 R-CHIP RMC1/8101JATP 1/4W 101J 3216 N931L51110 R731 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110
R5446 103L241O3 R-CHIP RMC1/8101JATP 1/4W 101J 3216 N931L51110 R732 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110
R5800 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R733 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110
R5801 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110 R734 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110
R5802 103P503O8 R-CHIP RMC1/16123FTP 1/10W 123F 1608 N931L51110 R735 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110
R5803 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110 R736 103P150O5 R-CHIP RMC1/16S220JTH 1/16W 220J 1005 N931L51110
R5900 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R737 103P150O5 R-CHIP RMC1/16S220JTH 1/16W 220J 1005 N931L51110
R5901 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110 R739 103P150O5 R-CHIP RMC1/16S220JTH 1/16W 220J 1005 N931L51110
R5902 103P503O8 R-CHIP RMC1/16123FTP 1/10W 123F 1608 N931L51110 R73M1 103L293O1 R-CHIP RMC1/16332JTP 1/10W 332J 1608 N931L51110
R5903 103P502O4 R-CHIP RPC05T821F 1/10W 821F 1608 N931L51110 R73S1 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N931L51110
R5911 103L296O1 R-CHIP RMC1/16105JTP 1/10W 105J 1608 N931L51110 R73S2 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N931L51110
R5921 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110 R740 103P150O5 R-CHIP RMC1/16S220JTH 1/16W 220J 1005 N931L51110
R5922 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L51110 R741 103P150O5 R-CHIP RMC1/16S220JTH 1/16W 220J 1005 N931L51110
R5931 103L296O1 R-CHIP RMC1/16105JTP 1/10W 105J 1608 N931L51110 R742 103P150O5 R-CHIP RMC1/16S220JTH 1/16W 220J 1005 N931L51110
R5CD1 103P151O7 R-CHIP RMC1/16S221JTH 1/16W 221J 1005 N931L51110 R743 103P150O5 R-CHIP RMC1/16S220JTH 1/16W 220J 1005 N931L51110
R5CD2 103P151O7 R-CHIP RMC1/16S221JTH 1/16W 221J 1005 N931L51110 R744 103P150O5 R-CHIP RMC1/16S220JTH 1/16W 220J 1005 N931L51110
R5CD3 103P151O7 R-CHIP RMC1/16S221JTH 1/16W 221J 1005 N931L51110 R745 103P150O5 R-CHIP RMC1/16S220JTH 1/16W 220J 1005 N931L51110
R5CF 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R746 103P150O5 R-CHIP RMC1/16S220JTH 1/16W 220J 1005 N931L51110
R5CK1 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R747 103P150O5 R-CHIP RMC1/16S220JTH 1/16W 220J 1005 N931L51110
R5CK2 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R748 103P150O5 R-CHIP RMC1/16S220JTH 1/16W 220J 1005 N931L51110
R5CK3 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R749 103P150O5 R-CHIP RMC1/16S220JTH 1/16W 220J 1005 N931L51110
R5DA1 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R74M1 103L293O1 R-CHIP RMC1/16332JTP 1/10W 332J 1608 N931L51110
R5DA2 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R750 103P150O5 R-CHIP RMC1/16S220JTH 1/16W 220J 1005 N931L51110
R5DA3 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R751 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R5P10 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R752 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R5P11 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R753 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R5P19 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110 R754 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R5PA0 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R755 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R5PA1 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R756 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R5PA9 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110 R757 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R701 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R758 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R702 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R759 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R703 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R75M1 103L293O2 R-CHIP RMC1/16392JTP 1/10W 392J 1608 N931L51110
R704 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R75M2 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N931L51110
R705 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R75S1 103L292O9 R-CHIP RMC1/16222JTP 1/10W 222J 1608 N931L51110
R706 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R75S2 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L51110
R707 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R75S3 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N931L51110
R708 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R75S4 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N931L51110
R709 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R76M1 103L293O2 R-CHIP RMC1/16392JTP 1/10W 392J 1608 N931L51110
R70B1 103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110 R76M2 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N931L51110
R70B7 103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110 R76S1 103L292O9 R-CHIP RMC1/16222JTP 1/10W 222J 1608 N931L51110
R70G3 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L51110 R76S2 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L51110
R70R1 103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110 R76S3 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N931L51110
R710 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R76S4 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N931L51110
R711 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R770 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R712 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R771 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R713 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R772 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R714 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R773 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R715 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R774 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R716 103P150O7 R-CHIP RMC1/16S330JTH 1/16W 330J 1005 N931L51110 R775 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R720 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110 R776 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R721 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110 R777 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
R722 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110 R778 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
R723 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110 R779 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
R724 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110 R77H1 103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110
R725 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110 R780 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
R726 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110 R781 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
R727 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110 R782 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
R728 103P151O2 R-CHIP RMC1/16S820JTH 1/16W 820J 1005 N931L51110 R783 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
15 Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
CV-0MW3R45...(1)
CV-0MW3R45-2...(2)
ELECTRICAL PARTS LIST

Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
R784 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 R7J7 141P163O1 C-CERAMIC-CHI
P
GRM1552C1H680JZ01D CH 50V 680J1005 N931L51110
R7849 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R7J8 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R785 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110 R7J9 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R7856 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R7L4 103P152O5 R-CHIP RMC1/16S102JTH 1/16W 102J 1005 N931L51110
R7859 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R7ND0 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110
R786 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R7ND1 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110
R787 103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110 R7ND2 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110
R7874 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R7ND3 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110
R788 103P152O5 R-CHIP RMC1/16S102JTH 1/16W 102J 1005 N931L51110 R7ND4 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110
R789 103P152O5 R-CHIP RMC1/16S102JTH 1/16W 102J 1005 N931L51110 R7ND9 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110
R78N4 103P154O1 R-CHIP RMC1/16S223JTH 1/16W 223J 1005 N931L51110 R7R4 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
R790 103P152O5 R-CHIP RMC1/16S102JTH 1/16W 102J 1005 N931L51110 R7T1 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110
R791 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R7T9 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110
R792 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R7X1 103L296O1 R-CHIP RMC1/16105JTP 1/10W 105J 1608 N931L51110
R793 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R7X2 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
R795 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R808 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R796 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R809 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L51110
R797 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R8100 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R798 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R8101 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110
R799 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R8102 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110
R7A0 103P151O6 R-CHIP RPC03T181J 1/16W 181J 1005 N931L51110 R8114 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110
R7A1 103P151O6 R-CHIP RPC03T181J 1/16W 181J 1005 N931L51110 R8117 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110
R7A2 103P151O6 R-CHIP RPC03T181J 1/16W 181J 1005 N931L51110 R8122 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110
R7A3 103P151O6 R-CHIP RPC03T181J 1/16W 181J 1005 N931L51110 R8125 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110
R7A4 103P151O6 R-CHIP RPC03T181J 1/16W 181J 1005 N931L51110 R8128 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110
R7A6 103P152O5 R-CHIP RMC1/16S102JTH 1/16W 102J 1005 N931L51110 R813 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
R7A7 103P152O5 R-CHIP RMC1/16S102JTH 1/16W 102J 1005 N931L51110 R814 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110
R7A8 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R8141 103P155O3 R-CHIP RMC1/16S224JTH 1/16W 224J 1005 N931L51110
R7A9 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R8142 103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110
R7AM0 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R8143 103P155O3 R-CHIP RMC1/16S224JTH 1/16W 224J 1005 N931L51110
R7B0 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R8144 103P155O3 R-CHIP RMC1/16S224JTH 1/16W 224J 1005 N931L51110
R7B1 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R818 103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110
R7B2 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R819 103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110
R7B3 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R821 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R7B4 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R822 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7B5 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R823 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7B6 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R826 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R7B7 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R829 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7B8 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R830 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7B9 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R8301 103P53467 R-CHIP RLC16-R220JTP N931L51110
R7C0 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R831 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7C1 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R832 103L293O0 R-CHIP RMC1/16272JTP 1/10W 272J 1608 N931L51110
R7C2 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R835 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7C3 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R836 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7C4 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R837 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7C5 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R839 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7C6 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R840 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7C7 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R841 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7C8 103P151O0 R-CHIP RMC1/16S560JTH 1/16W 560J 1005 N931L51110 R842 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7C9 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R843 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R7D0 103P151O9 R-CHIP RMC1/16S331JTH 1/16W 331J 1005 N931L51110 R844 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R7D1 103P151O9 R-CHIP RMC1/16S331JTH 1/16W 331J 1005 N931L51110 R845 103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110
R7D2 103P151O9 R-CHIP RMC1/16S331JTH 1/16W 331J 1005 N931L51110 R846 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7E0 103P150O9 R-CHIP RMC1/16S470JTH 1/16W 470J 1005 N931L51110 R849 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R7G8 103L199O9 R-CHIP RMC1/10JPATP 1/8W 0 2125 N931L51110 R850 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7J0 103P151O6 R-CHIP RPC03T181J 1/16W 181J 1005 N931L51110 R851 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7J1 103P151O6 R-CHIP RPC03T181J 1/16W 181J 1005 N931L51110 R852 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7J2 103P151O6 R-CHIP RPC03T181J 1/16W 181J 1005 N931L51110 R854 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7J3 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R856 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R7J4 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R857 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R7J4
A
103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R858 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R7J4G 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110 R859 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R7J5 141P163O1 C-CERAMIC-CHI
P
GRM1552C1H680JZ01D CH 50V 680J1005 N931L51110 R860 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
R7J6 141P163O1 C-CERAMIC-CHI
P
GRM1552C1H680JZ01D CH 50V 680J1005 N931L51110 R861 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110
16 Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
CV-0MW3R45...(1)
CV-0MW3R45-2...(2)
ELECTRICAL PARTS LIST

Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
R862 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R90A4 103L191O7 R-CHIP RMC1/10221JATP 1/8W 221J 2125 N931L51110
R865 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110 R90A5 103L192O5 R-CHIP RMC1/10102JATP 1/8W 102J 2125 N931L51110
R867 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R90A6 103L191O4 R-CHIP RMC1/10121JATP 1/8W 121J 2125 N931L51110
R868 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R90P1 103L194O1 R-CHIP RMC1/10223JATP 1/8W 223J 2125 N931L51110
R869
A
103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R9100 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
R869B 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R9102 103P158O0 R-CHIP RPC03T1R0J 1/16W 1R0J 1005 N931L51110
R870
A
103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R9103 103P158O0 R-CHIP RPC03T1R0J 1/16W 1R0J 1005 N931L51110
R870B 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R9106 103P55310 R-CHIP SR732BTTD33LJ 1/3W 33LJ 3216 N931L51110
R874 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110 R9107 103P55310 R-CHIP SR732BTTD33LJ 1/3W 33LJ 3216 N931L51110
R875 103L295O3 R-CHIP RMC1/16224JTP 1/10W 224J 1608 N931L51110 R9108 103P152O1 R-CHIP RMC1/16S471JTH 1/16W 471J 1005 N931L51110
R876 103L295O3 R-CHIP RMC1/16224JTP 1/10W 224J 1608 N931L51110 R9109 103L242O5 R-CHIP RMC1/8102JATP 1/4W 102J 3216 N931L51110
R879 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110 R9111 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
R880 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110 R9115 103P55310 R-CHIP SR732BTTD33LJ 1/3W 33LJ 3216 N931L51110
R881 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R9116 103P55310 R-CHIP SR732BTTD33LJ 1/3W 33LJ 3216 N931L51110
R884 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110 R9117 103L248O3 R-CHIP RPC18T1R8J 1/4W 1R8J 3216 N931L51110
R886 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R9118 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R898 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R9119 103L248O3 R-CHIP RPC18T1R8J 1/4W 1R8J 3216 N931L51110
R899 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R9120 103P114O2 R-CHIP RGC1/16SC273DTH 1/16W 273D 1005 N931L51110
R8A0 103P154O2 R-CHIP RMC1/16S273JTH 1/16W 273J 1005 N931L51110 R9121 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
R8A1 103P154O2 R-CHIP RMC1/16S273JTH 1/16W 273J 1005 N931L51110 R9122 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L51110
R8A3 103P164O9 R-CHIP RMC1/16S104FTH 1/16W 104F 1005 N931L51110 R9123 103P114O3 R-CHIP RGC1/16SC333DTH 1/16W 333D 1005 N931L51110
R8A37 103P173O5 R-CHIP RMC1/16S752FTH 1/16W 752F 1005 N931L51110 R9124 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R8A38 103P503O3 R-CHIP RMC1/16472FTP 1/10W 472F 1608 N931L51110 R9127 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R8A39 103P503O3 R-CHIP RMC1/16472FTP 1/10W 472F 1608 N931L51110 R9131 103P153O6 R-CHIP RMC1/16S822JTH 1/16W 822J 1005 N931L51110
R8A40 103P503O3 R-CHIP RMC1/16472FTP 1/10W 472F 1608 N931L51110 R9132 103P153O2 R-CHIP RMC1/16S392JTH 1/16W 392J 1005 N931L51110
R8B1 103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110 R9133 103P113O9 R-CHIP RGC1/16SC153DTH 1/16W 153D 1005 N931L51110
R8B2 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L51110 R9135 103P152O1 R-CHIP RMC1/16S471JTH 1/16W 471J 1005 N931L51110
R8B3 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L51110 R9136 103P152O5 R-CHIP RMC1/16S102JTH 1/16W 102J 1005 N931L51110
R8B38 103P154O1 R-CHIP RMC1/16S223JTH 1/16W 223J 1005 N931L51110 R9138 103P152O5 R-CHIP RMC1/16S102JTH 1/16W 102J 1005 N931L51110
R8B39 103P151O8 R-CHIP RMC1/16S271JTH 1/16W 271J 1005 N931L51110 R9141 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
R8B4 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R9142 103P159O9 R-CHIP RMC1/16SJPTH 1/16W 0 1005 N931L51110
R8B40 103P152O9 R-CHIP RMC1/16S222JTH 1/16W 222J 1005 N931L51110 R9147 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
R8B5 103P151O3 R-CHIP RMC1/16S101JTH 1/16W 101J 1005 N931L51110 R9149 103P55310 R-CHIP SR732BTTD33LJ 1/3W 33LJ 3216 N931L51110
R8C1 103P153O3 R-CHIP RMC1/16S472JTH 1/16W 472J 1005 N931L51110 R9151 103P55310 R-CHIP SR732BTTD33LJ 1/3W 33LJ 3216 N931L51110
R8C2 103P153O3 R-CHIP RMC1/16S472JTH 1/16W 472J 1005 N931L51110 R9153 103P55310 R-CHIP SR732BTTD33LJ 1/3W 33LJ 3216 N931L51110
R8C3 103P153O3 R-CHIP RMC1/16S472JTH 1/16W 472J 1005 N931L51110 R9154 103P55310 R-CHIP SR732BTTD33LJ 1/3W 33LJ 3216 N931L51110
R8C4 103P153O3 R-CHIP RMC1/16S472JTH 1/16W 472J 1005 N931L51110 R9160 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R8D39 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110 R9161 103P150O1 R-CHIP RMC1/16S100JTH 1/16W 100J 1005 N931L51110
R8D40 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110 R9163 103P112O5 R-CHIP RGC1/16SC102DTH 1/16W 102D 1005 N931L51110
R8D41 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110 R9165 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L51110
R8D42 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110 R9166 103P114O2 R-CHIP RGC1/16SC273DTH 1/16W 273D 1005 N931L51110
R8E41 103L241O3 R-CHIP RMC1/8101JATP 1/4W 101J 3216 N931L51110 R9167 103P155O3 R-CHIP RMC1/16S224JTH 1/16W 224J 1005 N931L51110
R8E42 103L241O3 R-CHIP RMC1/8101JATP 1/4W 101J 3216 N931L51110 R9168 103P113O9 R-CHIP RGC1/16SC153DTH 1/16W 153D 1005 N931L51110
R8E44 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110 R9169 103P152O9 R-CHIP RMC1/16S222JTH 1/16W 222J 1005 N931L51110
R8E45 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110 R9170 103P114O5 R-CHIP RGC1/16SC473DTH 1/16W 473D 1005 N931L51110
R8F1 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R9181 103L293O5 R-CHIP RMC1/16682JTP 1/10W 682J 1608 N931L51110
R8F2 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R9183 103P503O9 R-CHIP RMC1/16153FTP 1/10W 153F 1608 N931L51110
R8F3 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R9186 103P156O1 R-CHIP RMC1/16S105JTH 1/16W 105J 1005 N931L51110
R8F4 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R9196 103P155O3 R-CHIP RMC1/16S224JTH 1/16W 224J 1005 N931L51110
R8F6 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110 R931 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
R8F7 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110 R932 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
R8F8 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L51110 R951 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
R8P6 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110 R95A1 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L51110
R8P7 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110 R95A2 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L51110
R8SG0 103L199O9 R-CHIP RMC1/10JPATP 1/8W 0 2125 N931L51110 R95A3 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N931L51110
R8SG9 103L199O9 R-CHIP RMC1/10JPATP 1/8W 0 2125 N931L51110 R95A4 103L191O7 R-CHIP RMC1/10221JATP 1/8W 221J 2125 N931L51110
R8U1 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110 R95A5 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L51110
R8U2 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110 R95A6 103L191O3 R-CHIP RMC1/10101JATP 1/8W 101J 2125 N931L51110
R8U3 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110 R9A01 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R8U4 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L51110 R9A02 103P155O3 R-CHIP RMC1/16S224JTH 1/16W 224J 1005 N931L51110
R9053 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110 R9B5 103L298O0 R-CHIP RMC1/161R0JTP 1/10W 1R0J 1608 N931L51110
R90A1 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L51110 R9B6 103P53467 R-CHIP RLC16-R220JTP N931L51110
R90A2 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L51110 R9B8 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
R90A3 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N931L51110 R9B9 103L296O1 R-CHIP RMC1/16105JTP 1/10W 105J 1608 N931L51110
17 Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
CV-0MW3R45...(1)
CV-0MW3R45-2...(2)
ELECTRICAL PARTS LIST

Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
R9C0 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L51110
R9C01 103P154O5 R-CHIP RMC1/16S473JTH 1/16W 473J 1005 N931L51110
R9C02 103P155O3 R-CHIP RMC1/16S224JTH 1/16W 224J 1005 N931L51110
R9C1 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L51110
R9C2 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N931L51110
R9C3 103L192O1 R-CHIP RMC1/10471JATP 1/8W 471J 2125 N931L51110
R9C4 103L291O4 R-CHIP RMC1/16121JTP 1/10W 121J 1608 N931L51110
R9C5 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
R9C6 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
R9C8 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L51110
R9C9 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L51110
R9D0 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L51110
R9D1 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L51110
R9D2 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N931L51110
R9D3 103L192O1 R-CHIP RMC1/10471JATP 1/8W 471J 2125 N931L51110
R9D33 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
R9D4 103L291O4 R-CHIP RMC1/16121JTP 1/10W 121J 1608 N931L51110
R9D5 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
R9D6 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
R9D8 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L51110
R9D9 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L51110
R9E3 103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110
R9G3 103P153O7 R-CHIP RMC1/16S103JTH 1/16W 103J 1005 N931L51110
R9G40 103L249O9 R-CHIP RMC1/8JPATP 1/4W 0 3216 N931L51110
R9G41 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
R9P2 103L193O3 R-CHIP RMC1/10472JATP 1/8W 472J 2125 N931L51110
R9P3 103L193O3 R-CHIP RMC1/10472JATP 1/8W 472J 2125 N931L51110
R9P4 103P154O1 R-CHIP RMC1/16S223JTH 1/16W 223J 1005 N931L51110
R9S1 103P504O9 R-CHIP RMC1/16104FTP 1/10W 104F 1608 N931L51110
R9S2 103P504O9 R-CHIP RMC1/16104FTP 1/10W 104F 1608 N931L51110
R9S5 103P504O9 R-CHIP RMC1/16104FTP 1/10W 104F 1608 N931L51110
R9S6 103P504O9 R-CHIP RMC1/16104FTP 1/10W 104F 1608 N931L51110
RG0002 141P151O7 C-CERAMIC-CHI
P
GRM155B11H472KA01D B 50V 472K100
5
N931L51110
RG010 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
RG011 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
RG012 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
RG013 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L51110
RG57 103L190O1 R-CHIP RMC1/10100JATP 1/8W 100J 2125 N931L51110
RG58 103L199O9 R-CHIP RMC1/10JPATP 1/8W 0 2125 N931L51110
RT801 265M006O1 THERMISTOR-CHI
P
NCP18XH103E03RB/TH113H103HT N931L51110
X7X1 285P11410 CRYSTA
L
SMD-49 24.576MHZ N931L51110
X812 285P11439 CRYSTAL-CHI
P
SMD-49 3.98MHZ 3.98MHZ N931L51110
(
1
)
931L51010 S5-PCB-AMP N903L56510
(
1
)
931L51110 S6-PCB-AMP N931L51010
(
2
)
931L51012 S5-PCB-AMP N903L56511
(
2
)
931L51112 S6-PCB-AMP N931L51012
18 Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
CV-0MW3R45...(1)
CV-0MW3R45-2...(2)
ELECTRICAL PARTS LIST

R7874
R0150
R0151
R014A
D9S5
C90P1
L9B9
RG0002
C8B03
C8B04 C8B05
C8B06
C8B07
C8B08
C8B09
R01B
L7D0
R77H1
L7D1
L7D2
C8B10
C8B11
C8B12
D952
R015B
R02B
C0194
R037R039
C42P1
R016B
C42P2
C001
D90P1
C002
C003
R7A0
C004
C005
R7A1
R90P1
C95A2
R03B
C006
R812
R7A2
R813
C95A3
R7A3
C007
R7A4
R814
C95A5
Q95A1
Q95A2
R7A6
C95A6
R7A7
R047
R7A8
C4410
R049
R7A9
C4411
Q95A5
C9040
R7B0
R7B1
R04B
R7B2
R7B3
R7B4
C4610
R7B5
C4611
R7B6
R7B7
P500
R7B8
C7301
R7B9
C7302
C7303
C7110
C7304
C5PA0
R0194
IC4201
C7305
C7111
C5PA1
C7306
C7307
C4810
R7C0
C7308
C4811
R7C1
C7309
R9B5
C5PA5
R7J4A
R7C2
R05B
R9B6
R7C3
C5PA7
R9B8
R7C4
R9B9
R835
C9059
R7C5
C411
R836
R7C6
R7C7
R837
R7J4G
C7310
R7C8
R838
R7C9
R839
D95A5
C221
R95A1
C7311
R95A2
C7312
C222
R5CF
C5S12
C7313
C223 R95A3
R95A4
C7314
R5CH
R95A5
L90A1
R95A6
R7D0
R840
R841
R7D1
R4411
C611
L90A5
R06B
R842
C036
R9C6
R7D2
C037
R843
C038
R844
L0090
R9C9
R845
C039
R846 R8B38
C8P0
R8B39
C8P1
C9B01
C9B02
C03A
R4611
C8P5 C812
C03B
C8P6
C03C
C813
R8B40
R850
C4830
C03D
R7E0
C4831
R851
R07A
R852
C046
R9D6
C03F
C047
R854
C048
R5PA0
L7J0
C049
R5PA1
R9D9
R8D39
L7J1
R856
L7J2
R857
L7J3
C3P07
R858
L7J4
C9A0
C9A1
R4811
R859
R8D40
R8D41
C04A
R8U1
R8U2
X812
R8D42
C04B
C04C
R8U3
C04D
R8U4
C5010
C5011
C3P11
C04F
C3P12
R865 R867
C3P17
C8SA3
C9B0
R868
C8SA4
C9B1
R869A R869B
C9B2
R70B7
C9B3
C8SA7
C9B4
C8SA8
C9B5
C9B6
C9B7
C9B8
C9B9
C3P21
R874
R875
R876
C0012
P550
R7G9
C9C1
R4831
R879
C9C2
C0016
C9C3
C9C4
C9C5
R880
R7AM0
C56P1
R881
C56P2
R884
C0022
R886
C9D1
R5011
C9D2
C9D3
C9D4
C9D5
IC001
C0029
IC002
RT801
L7N4
R898
IC200
R899
R0011
C31P1
R0012
C31P2
R0013
C3110
R7J0
C3111
R7J1
L311
R89A
R7J2
R7J3
R7J4
R8100
IC5601
R7J5
R8101
R8102
R7J6
R7J7
R7J8
R7J9
C33P1
C33P2
C7G1
R001A
R0021
L511
Q9P1
C7G2
R001B
R0022
Q9P2
R0023
IC411
L7P3
C4P07
C8W0
C3510
C8W1
C3511
C8W2
L7P6
D9A2
P9100
P9101
R002A
IC801
R002B
P9102P9103
P9104
IC3101
C4P11
IC611
C4P12
C3710
R7L4
C3711
C4P17
D9B1
R3111
C0066
C0067
C0068
C0069
IC3301
R003B
D9B7
D9B8
C4P21
C898
L8B1
L7R3
R870A
L7R5
R870B
L7R6
D9C4
Q9S1
C9102
C9103
C9104
C7J4
R3511
Q9S5
IC0050
C3730
C3731
R8141
R8142
R8143
R8144
Q9109
D9D1
IC9B1
C9110
D9D4
R3711
R005A
C90A1
C9111
R005B
C9112
C90A3
C9113
C90A4
C9114
C9117
R701
R8SG9
R702
Q90A6
C0093
R703 R704 R705
C0095
L7T5
R706
C0097
R707 R708
IC9C4
PLTA8
R709
Q9120
C9125
D9102 D9103
R710
R9100
D9104
R711
P001
R712
R9102
P002
R713
R9103
P003
R714
R715 R716
R9106 R9107
C4310
IC9D4
R9108
C4311
R3731
R9P2
R9P3
P200
R8A0
R9P4
D90A1
R8A1
R8A2
R8A3
C45P1
R90A1
R9111
C45P2
C5P07
C9140
C9141
C9145
C9146
Q9142
C9147
R7R4
R72A
R9121
PLTD1
C5P15
R72B
PLTD2
PLTD3
PLTD4
C311
C312
R736
R737
R9127
R739
C5P21
R8C3
R8C4
C9158
R740
R4311
R741
C511
R742
R743
R7ND0
R744
IC4501
R745
R7ND1
R7ND2
R746
R7ND3
R747
R8A37
R8A38
R748
R7ND4
R8A39
R749
R9S1 R9S2
R7T1
R7ND9
R9S5
R9S6
R8A40
R750
R751
R752
R9142
R753
R8D8
R754
R7T9
R755
C8S01
C9P1
R756
C8S02
R757
C8S03
R758
C8S04
R759
C8S05
C8S06
C8S07
C8S08
C8S09
C8A7
L95A1
R764
R78N4
C8S10
C8S11
C8S13
C9180
R2010
C8S14
R2011
R2012
R2013R2014
IC7J4
C9G01
R8F1
R2015
R8F2
R2016
R2017
R8F3
R770
R8F4
R2018
R70R1
R2019
R771
R8F6
R772
C0103
R773
R8F7
R8F8
C0104
R774
R775
R776
C8S22
R777
R9167
R778
C8S24
R779
RG011
C8S25
RG012
C8S26
RG013
L7111
C8S29
R780
R9170
R781
R782 R783
C6P07
R784
R785
C9S1
C8S31
R786
C556
C8S32
R787
C8S33
R788
R789
C7T1
C9S5
R7X0
C57P1
R7X1
R7X2
C57P2
R7X3
R790 R791
C6P15
R792
R793
C1W0
L7510
R795
C8S41
R796
C8S42
R797
C1W4
R798R799
C5910
C954
C5911
C8S49
C6P21
C763
C764
C765
C8S50
C0135
C0136
PLTAU6
PLTAU7
C770
C3210
C771
C3211
IC5701
C34P1
IC311
C34P2
RG57
RG58
L611
C5930
R7849
IC701
C5931
IC702
C0150
IC511 IC512
IC707
L7A0
L7A1
C8S71
L7A2
C8S72
L7A3
C8S73
L7A4
HTR05
C7X1C7X2
R7856
R7859
R001
R002
L9A2
R004
R9G40
C8S80
R3211
R005
R9G42
R013A
IC3401
X7X1
R201
C8S89
R202
R203
L9B0
L9B1
D9S1
L9101
L9102
L9120
L9141
IC9B3
Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
PARTS LAYOUT ON PRINTED CIRCUIT BOARD
MODEL : CV-0MW3R45,-2
(PARTS SIDE)
PCB-MAIN
19

C8B00
RG0001
C8S97
C8S98
IC732
C4R042
D951
IC932
C91A2
Q9E1
Q9E2
Q9E3
IC550
R031
R032R033
L9D3
R034
R9G70
C73M1
R808
C4401
R809
Q73M1
C4402
C4403
L664
R5DA1
R5DA2
R5DA3
R8P6
R8P7
C75M3
C4601
Q75M1
C4602
C95A7
C4603
R818
R819
Q9G1
C9041
Q9G2
C013
Q9G3
C4801
R051
R821
C4802
R052
R822
C016
R823
R053
R824
R054
R826
C4807
R829
D73M1
C020
R73M1
R4400
R830
R831
R4401
R4402
C9056
R832
R4403
C9057
C9058
R4404
R4405
R4406
R4409
R75M1
R75M2
R4600
R9C0
R9C1
R4601
R4602
R9C2
L90A2
R9C3
C033
R4603
R9C4
R4604
R071
C4821
R4605
R9C5
R4606
C4822
R072
R073
R4607
R074
R9C8
R4609
C809
R4800
C230
R4801
R849
C231
R4802
C232
C8P2 C8P3
R4803
R9D0
C810
R9D1
R9D2
L9122
R9D3
C8P7
R9D4
C8P8
R9D5
C5001
C5002
D9053
R9D8
R7306
R9053
R5PA8 R5PA9
C053
R9E3
R860
C825
R861
R3L01
R3L02
R862
C826
R3L03
R3L04
R70B1
R4820
C251
R4821
Q73S1
C252
R4822
Q73S2
R4823
C060
L90D2
R7G0
C8R8
R7G1
C8R9
R4441
C75S1
R4442
D006
R4443
D007
Q75S1
R4445
L9149
Q75S2
R4446
C9C0
R5000
R7G8
R5001
R5002
R5003
C840
D4450
D4451
C073
R9G3
R5008
C076
C5802
C9D33
C9D0
C9D34
D4460
C851
R73S1
D4461
R73S2
IC003 IC004
C3101
C3102
C3103
D75S1
L0A1
L0A2
C3107
R75S1
R75S2
R75S3
R75S4
C59A0
C091
C092 C095 C096
R5800
C3501
C291
R5801
C3502
C292
R5802
D9D33
C3503
R5803
C6W2
C7G3
C3507
R9D33
C7G4
R8301
C3701
C3702
IC9D33
R70G3
R3100
R8114
R3101
R3102
R3103
R8117
C3707
R3104
R3105
IC802
R3106
IC803
P9105
R3109
P9106
C311S
R8122 R8125
R8128
R3500
R3501
R5441
R3502
R5442
R3503
R5443
R3504
R3505
C3721
R5445
R3506
C3722
R5446
R3507
R3509
R3700
C9100
D5450
C9101
R3701
D5451
R3702
R3703
D9C8
Q9101
R3CK1
C9106 C9107
C9108
R4R01
C9109
R4R02
R4R03
R4R04
D9D3
R311S
R8SG0
D5460
R8SG1
D5461
C90A2
D9D8
Q90A1
Q90A2
C9118
C9119
R3331
R3332 R3333
R3335
L752
R3336
L753
R312S
IC840
R3720
C9120
L754
R3721
C4301
C4302
R3722
C9122
R3723
C4303
C9123
C9124
Q9121
Q9122
C9126
C9127
C4307
C9128
D9105
C9129
R9101
C74M1
Q9126
Q74M1
C9130
R9109
C9131
C9132
C9134
D3350
C9135
D3351
Q9132
Q9133
C76M3
R720
R721
D90A5
Q76M1
R722
R90A2
R90A3
R723
R90A4
R724
R725
R90A5
R9115
R90A6
R726
R9116
R727
R9117
R9118
R728
R9119
R729
C7201
C9142
C7202
C9143
C9144
C5P10
D3360
R8B1
D3361
R8B2
Q983
R8B3
C411S
C9148
R730
R4300
R8B4
R9120
Q984
C9149
R4301
R8B5
R731
R9122
R4302
R732
R9123
R4303
R733 R734
R9124
R4304
R735
R4305
D74M1
R4306
C9150
IC9120
L8B00
R4309
R74M1
C9153
C9154
C701
R931
C9155
R8C1
R5CD1
R8C2
C9156
C702
R932
R5CD2
C703
C9157
Q98C
R5CD3
R7WP0
C704
Q98D
C705
Q98E
R9131
C8E41
D899
Q98F
R9132
C706
C8E42
C707
R9133
C708
C709
R9135
R76M1
R9136
R76M2
R9138
C710
C711
R4CK1 R3DA1
D90D2
C712
C713 C714
R9141
C715 C716
C717
C718
R5P10
C719
R5P11
L93A1
R411S
R9147
C8A0
C8A1
R9149
C8A2 C8A3
C720
R5P18
C721
R951
R5P19
C722
C5102
C723
C724
C725
R9151
R9152
C726
C727
R9153
C728
R9154
C729
D8E41
D8E42
C9373
R412S
D8E43
D8E44
C8B1
R8E41
R8E42
R8E43
R8E44
C730
R8E45
C731
C732
C733
R9160
C734
C9188
C9189
R9A01
R9161
C735
C736
R9A02
R9163
C737
C738
C739
R9165
Q74S1
R9166
Q74S2
RG010
R9168
R9169
C931
C932
C933
L7110
C740
C934
C741
C935
R9C01
C76S1
C742
R9C02
C743
C744
L7114
C745
C551
Q76S1
C552
C746
Q76S2
C747
C554 R5100
C555
R5101
R5102
R5103
C750
D9180
D9181
C5901
C752
C5902
C753
C754
L200
C755
R9181
C756
R9183
C1W1
C1W2
R9186
C1W3
IC9180
C1W5
C951
R74S1
C1W6
C952
R74S2
C1W7
C953
C8S47
C1W8
C8S48
C3201
C3202
C5912
C3203
D76S1
R76S1
R9196
R76S2
R76S3
R76S4
C8S57 C8S58
R5CK1
R4DA1
C772
D6A2
C5922
R5CK2
C773
R5CK3
C774
C775
C776
Q8P6
C777
Q8P7
C778
C8S60
R5900
C779
C8S61
R5901
C8S62
R5902
R5903
D8A0
D8A1
D8A2
C3607
D8A3
C780
C781
C782
C5932
IC703
L8P1
R3200
R3201
R5911
R3202
R3203
R3204
Q828
Q829
R3205
R3206
R3209
R5921
R9G41
R5922
RG070
D931
D932
R205
R011
R206
R012
R013
R014
R5931
IC931
IC951
IC9053
Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
PARTS LAYOUT ON PRINTED CIRCUIT BOARD
MODEL : CV-0MW3R45,-2
(PATTERN SIDE)
PCB-MAIN
20
