Mixtile H17A User manual

Mixtile Hub
User Manual
Home Automation Server
Model: H17A
MHV001

1. 目目
1. Preface........................................................................................................ 1
2. Safety Instructions..................................................................................... 2
3. About Mixtile Hub....................................................................................... 4
3.1 Overview ................................................................................................................ 4
3.2 Specication........................................................................................................... 6
4. Parts and Functions .................................................................................. 7
5. Before Use .................................................................................................. 9
5.1 Assemble the Power Adapter ................................................................................. 9
5.2 Simple Setup........................................................................................................ 10
6. Getting Started ......................................................................................... 12
6.1 Download Mixtile App........................................................................................... 12
6.2 Create Account/Login (Optional) .......................................................................... 12
6.3 Add Mixtile Hub .................................................................................................... 12
7. Basic Operations ..................................................................................... 13
7.1 Boot the Hub ........................................................................................................ 13
7.2 Shut down the Hub............................................................................................... 13
7.3 Restore to Factory Settings.................................................................................. 13
7.4 Reset Network...................................................................................................... 13
8. Legal Compliance .................................................................................... 14
9. Warranty and Service .............................................................................. 17
9.1 Limited Warranty .................................................................................................. 17
9.2 Service ................................................................................................................. 17
Contents

1
1. Preface
Thank you for purchasing Focalcrest Mixtile Hub, the home automation server.
In order to use your hub safely and effectively, please read this User Manual
thoroughly before use and follow the instructions provided. Please keep this
User Manual for future reference.
Focalcrest reserves the rights to change the product information and
speccications without notice. Products and specications discussed herein
are for reference purposes only. All information discussed herein may change
without notice and without warranties of any kind. This document and all
information discussed herein remain the sole and exclusive property of
Focalcrest.

2
2. Safety Instructions
Warning: These safety instructions provide important safety information and
should be observed at all times. Please read them before using the product.
General Safety
• This product is designed to be used in dry indoor places. It is not water
proof, please keep it away from rain or water.
• Adapter shall be installed near the hub and shall be easily accessible.
• Do not use the hub if it is damaged or it shows any kind of visible damage.
• Do not handle the hub and its components with wet hands.
• Do not dismantle the hub.
• The AC adapter may become hot during normal operation of your hub. Use
care when handling the adapter during or immediately after operation.
• Always use genuine parts and accessories provided. Using parts and
accessories other than the provided one may cause short circuits or
overheating, and result in electric shock or re.
Location
• Always place the hub on an even and stable surface.
• Keep the hub away from direct sunlight or moisture.
• Keep the hub away from heat sources, such as stovetops or ovens.
• Do not subject the hub to extreme temperatures.
• Do not subject the hub to strong impact or vibration.
• Keep the hub away from potentially dangerous location, such as
flammable, explosive, chemical-laden or wet atmospheres where petrol or
ammable liquids are used for storage.

3
Cleaning and Maintenance
It is recommended that you clean the hub by wiping it gently using a soft and dry
cloth. Do not use water, chemical substances or detergents. These may cause
discoloration or corrosion to the product’s exterior, and may cause a fire or
electric shock.
Do not attempt to repair the hub or its accessories by yourself, as damage or
personal injury may occur. Damage caused by unathorized repair is not under
the warranty. Please contact our Authorized Service Center for any possible
problems concerned with the product.
Warning
WARNING: No user-serviceable parts inside. Refer all servicing to qualified
service personnel.
Focalcrest disclaims all liability for any accidents or damage caused by
using the product in the ways that are not described in this User Manual
or using non-genuine parts or accessories.

4
3. About Mixtile Hub
3.1 Overview
Mixtile Hub is a home automation server that can connect to various smart
home devices from different brands. It enables you to control and monitor your
home within one app and automates your smart home devices to meet your
desired scenarios.
Package Contents
Note: The images shown in this User Manual are for reference only and may slightly differ from the actual
product. The plug is varied according to the destination country/region.
Mixtile Hub x 1 AC Adapter x 1
User Manual x 1

5
Features
• Automated Operation
Mixtile Hub can connect to a wide range of smart home devices and
automates such devices to respond to your unique schedules and customized
scenes.
• App Control
Simply adding your smart home devices to Mixtile App, you are able to control
and monitor your home anywhere in the world, within one app.
• High Security
Mixtile Hub protects your data with multiple layers of security, and can
automatically identify safe or risky device and alert you if necessary.
• Backup Battery
When hit by power outage, the built-in battery can automatically power the hub
and enable the hub to continue communicating with working devices powered
by batteries.
• Open Source System
Open source system for developers, adding more brands and devices as you
like is possible.

6
3.2 Specication
Model H17A
Processor Allwinner H3
Communication IEEE 802.11b/g/n; 2.4GHz Wi-Fi Compliant
ZigBee, Z-Wave
Storage 8GB eMMC
Memory 1GB DDR3 1333MHz
Built-in Speaker 1.5W/8ohm
Built-in Battery 2500mAh Rechargeable Lithium-ion Battery
Adapter Input: AC 100-240V; 50/60Hz; 0.6A
Output: 5V/2.5A
Network Connection 2.4G Wi-Fi/Ethernet
Operating Temperature 32 °F to 140 °F /0°C to 60°C
Storage Temperature 23°F to 113°F /-5°C to 45°C
Net Weight*10.65lb /295g
Gross Weight*11.68lb /760g
Dimension 5.5” x 5.5” x 1.1”/140 x 140 x 27mm
Materials Plastics
Origin China
Manufacturer Shenzhen ZHIQU Technology Limited
Address RM1101, Tower B, Haisong Building, Tairan 9th
Road, Futian District, Shenzhen, China
*1: Average weight: there may be slight weight deviation for each device.

7
4. Parts and Functions
Parts Functions
Reset Button 1. Reset the network. See 7. Basic Operations.
2. Restore to factory settings. See 7. Basic Operations.
Power Port The supplied power adapter converts AC power to DC power
for use with this port.
HDMI Port Support an HDMI cable for connection to TV.
Ethernet Port Support a standard Ethernet Cable for connection to a
local network.
USB Port Support a USB cable for data exporting or other USB
enabled accessories.
Status Light Indicate the real time status of the hub.
Status Light
Reset Button
Power Port Ethernet Port
HDMI Port
USB Port
Top View
Back View

8
The status light indicates the status of the hub:
Color Meanings
Solid blue 1. The device is starting up.
2. The device works normally.
Spinning blue The device is ready for setup.
Blink blue 5 times Identify Mixtile Hub.
Spinning green Mixtile Hub is searching for sensors.
Solid yellow 1. Network disconnected.
2. Sensors disconnected.
Breathing yellow Sensors are low battery.
Solid orange You have silenced the alarm temporarily.
Breathing orange Mixtile Hub is low battery.
Fast ashing red A sensor has reached emergency level.

9
5. Before Use
5.1 Assemble the Power Adapter
Before use, you need connect the AC adapter with the plug to assemble a ready
to use power adapter.
»Properly align the key in the plug and the slot in the AC Adapter, and nger-
tighten the plug and AC Adapter to hold the adapter rmly in place.

10
5.2 Simple Setup

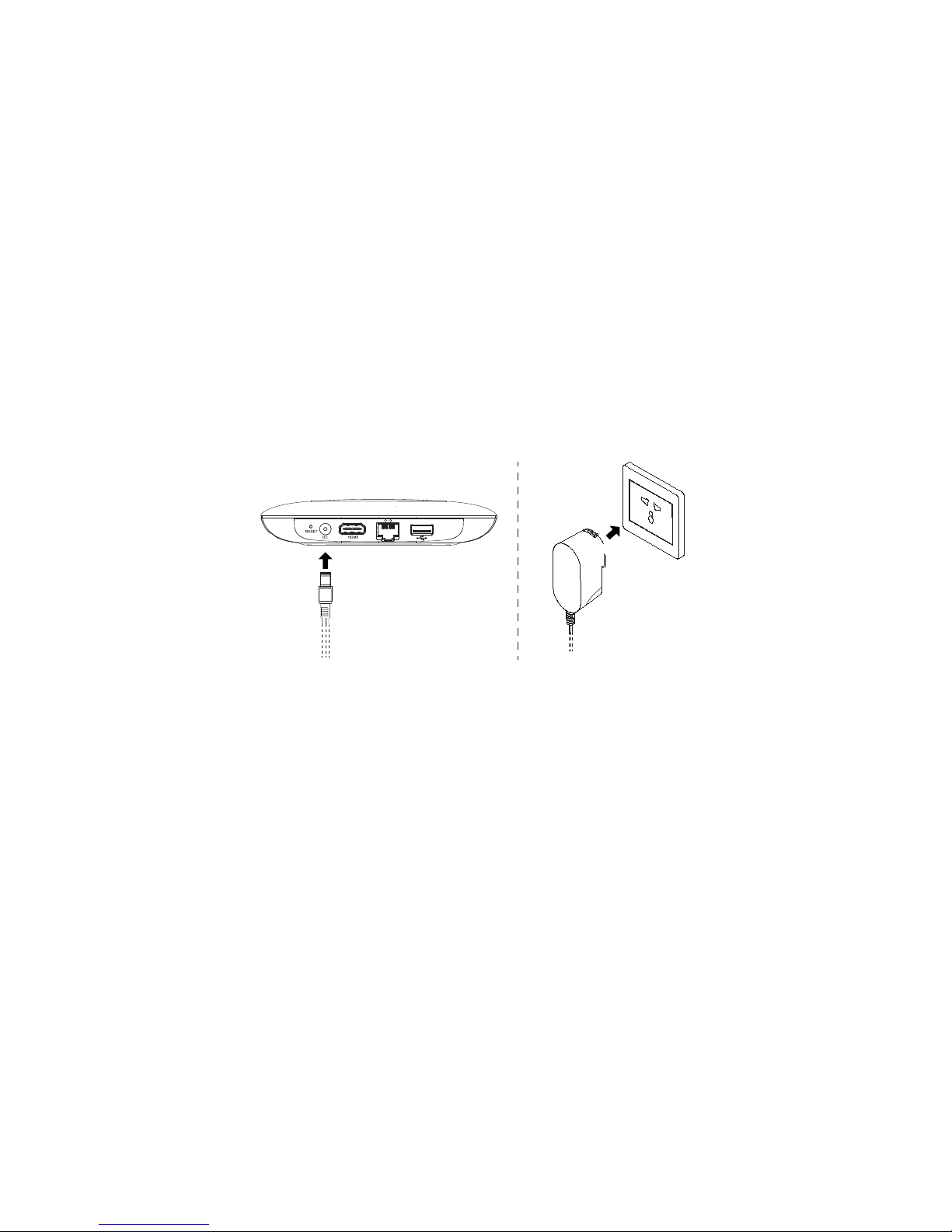

Attach External Power Supply
»Plug in the adapter to an outlet and attach the power connector to the back
of the Hub.
Warning: Only use the adapter and its accessary provided.
Connect to the Internet
Mixtile Hub can be connected to the internet through Wi-Fi or an active Ethernet
Cable.
a) Wi-Fi Connection
»Follow the instructions in Mixtile App to complete the connection.

11
b) Ethernet Cable Network Connection
»Insert an active Ethernet Cable into the Ethernet port of the hub.
Connect to TV (Optional)
When the hub is connected to TV, you will be able to see the hub status on the
TV. The HDMI cable is not provided.
»Attach the HDMI cable to the hub and plug in the other side of the cable to
the TV.
»Follow the instructions on the screen to complete the connection.

12
6. Getting Started
6.1 Download Mixtile App
Visit Apple App Store or Google Play Store to download the latest version of the
Mixtile App.
Note: The Mixtile App supports iOS 8+ or Android OS 4.0+.
6.2 Create Account/Login (Optional)
You can create an account as instructed. If you already have an account, please
login directly.
Note: Account is not mandatory, you can skip this procedure and continue
using mixtile hub.
6.3 Add Mixtile Hub
Follow the instructions on the app to add Mixtile Hub. A pairing code is
required. You can nd the code on the label pasted on the hub.
Note: The rst person who adds the hub will be assigned as the owner of the
hub. The others who want to add the hub must be invited by the device owner.

13
7. Basic Operations
7.1 Boot the Hub
The hub is about to work when it is plugged into the outlet.
7.2 Shut down the Hub
The hub stops working when it is unplugged.
Note: When the hub is unplugged, the built-in battery doesn’t work as well.
During power outage, you need keep the hub plugged in, so that the built-in
battery can power the hub automatically.
7.3 Restore to Factory Settings
Unplug the hub, and then re-plug the hub into the outlet while keep pressing the
Reset Button.
7.4 Reset Network
Long press the Reset Button to reset the network. You need re-congure your
network.

14
8. Legal Compliance
Disposal Instructions
This symbol on the product or on its packaging indicates that this product must not be
disposed of with your other household waste. Instead, it is your responsibility to dispose
of your waste equipment by handing it over to a designated collection point for the recy-
cling of waste electrical and electronic equipment. The separate collection and recycling
of your waste equipment at the time of disposal will help conserve natural resources and
ensure that it is recycled in a manner that protects human health and the environment. For
more information about where you can drop off your waste equipment for recycling, please
contact your local city ofce, your household waste disposal service, or the shop where you
purchased the product.
CE Compliance Statement
This product had been subject to testing requirements for the CE mark, and has been
approved to claim CE mark for the standard:
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

15
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harm-
ful interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the re-
ceiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
To comply with FCC RF exposure compliance requirements, this grant is applicable to
only mobile configurations. The antennas used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or transmitter.

16
Use of Free and Open-Source Software
This document contains licensing information relating to the use of free and open-source
software (FOSS) with or within the Mixtile Hub software.The open source software is
governed by the terms and conditions of the applicable open source license, and you are
bound by the terms and conditions of the applicable open source license in connection with
your use and distribution of the open source software in this product. You agree to comply
with all such licenses and other notices. If you do not agree to such terms, you may not
install, download, or otherwise use the open source software.
A document containing the complete and current list of FOSS packages used in Mixtile Hub
software can be found here:
www.mixtile.com/foss

17
9. Warranty and Service
9.1 Limited Warranty
Thank you for purchasing Focalcrest Mixtile Hub. Focalcrest values your business and
always attempts to provide you the very best quality of service.
Focalcrest warrants to the purchaser of the product in its original sealed packaging that
the product is free from defects in material and workmanship, for the limited warranty pe-
riod, which duration is One years, beginning on the date the product was purchased in its
original sealed packaging.
The warranty stated herein shall NOT apply if:
a) The product was not used in accordance with any accompanying instructions.
b) The product was not used for its intended function and environment.
c) Any failure or defect arose out of the presence of a third party product or component,
whether authorized or not.
d) Any failure or defect was a result of improper installation or testing, misuse, neglect,
unauthorized repair, modication, accident or other external causes.
e) Customer does not provide required proof of purchase.
Focalcrest reserves the right of nal decision in all warranty cases. Focalcrest may interpret
and revise the content of this warranty terms.
9.2 Service
If you have any question, please contact us through www.mixtile.com. If it becomes
necessary to return the device for repair, contact your local distributor for more information.

Focalcrest
___________________________________________________________
For more information, please visit www.mixtile.com
