MK-SCARIFIER
OWNER’S MANUAL &
OPERATING INSTRUCTIONS
www.mkdiamond.com
Caution: Read all safety and operating instructions
before using this equipment. This owner’s manual
MUST accompany the equipment at all times.
Revision 105
Manual Part# 158537
SG-9
SG-5
01.2014

2
Congratulations on your purchase of a MK-Scarier. We are certain that you will be pleased with
your purchase. MK Diamond takes pride in producing the nest construction power tools and dia-
mond blades in the industry.
Operated correctly, your MK-Scarier should provide you with years of service. In order to help you,
we have included this manual. This owners manual contains information necessary to operate and
maintain your MK-Scarier safely and correctly. Please take the time to familiarize yourself with the
MK-Scarier by reading and reviewing this manual.
Read and follow all safety, operating and maintenance instructions.
If you should have questions concerning your MK-Scarier please feel free to call our friendly
customer service department at [phone].
Regards,
MK Diamond
NOTE THIS INFORMATION FOR FUTURE USE:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASE PLACE:
PURCHASE DATE:
NOTE: For your (1) one year warranty to be effective, complete the warranty card
(including the Serial Number) and mail it in as soon as possible.
INTRODUCTION

3
TABLE OF CONTENTS
SAFETY PAGE
Safety Messages 4
Damage Prevention Message 4
General Safety Precautions and Hazard Symbols 4-7
California Proposition 65 Message 8
Electrical Requirements and Grounding Instructions 9
Electric Motor Safety 10-11
Safety Label Locations 12
Specic Warnings 13
Product Specications 13
UNPACKING ASSEMBLY
Unpacking 14

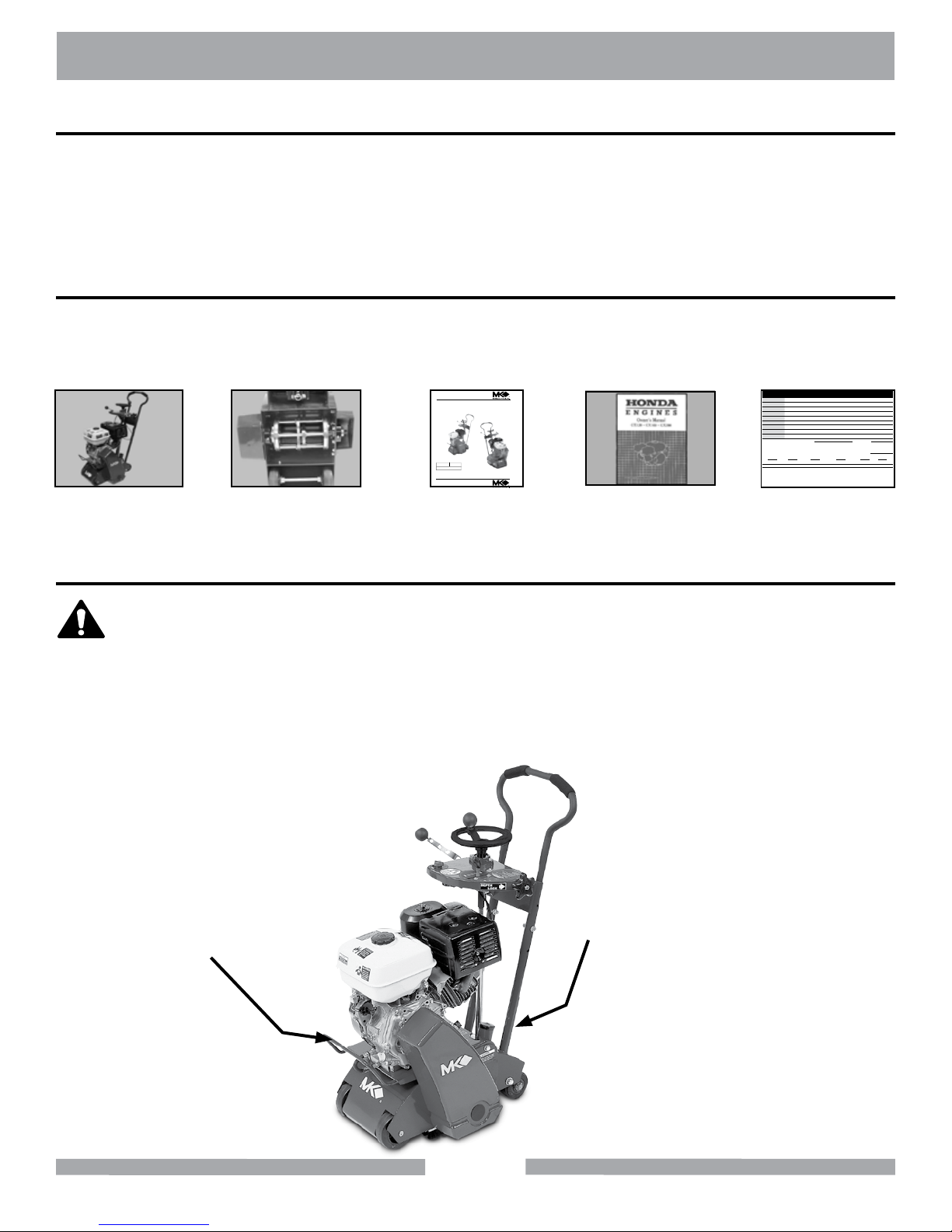

Contents 14
Transport 14
Handlebar 15
SCARIFIER DRUM

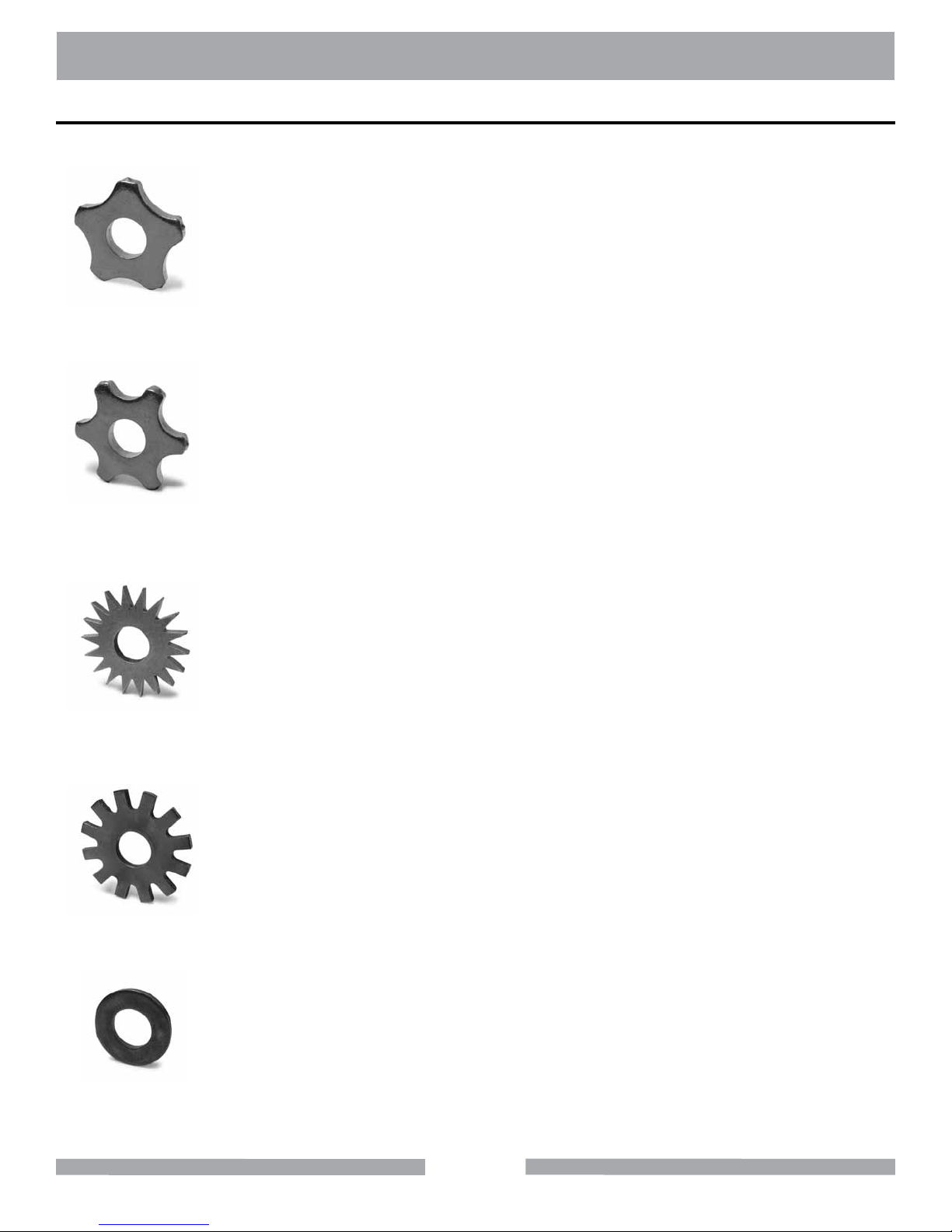

Scarier Drum Cutter 16

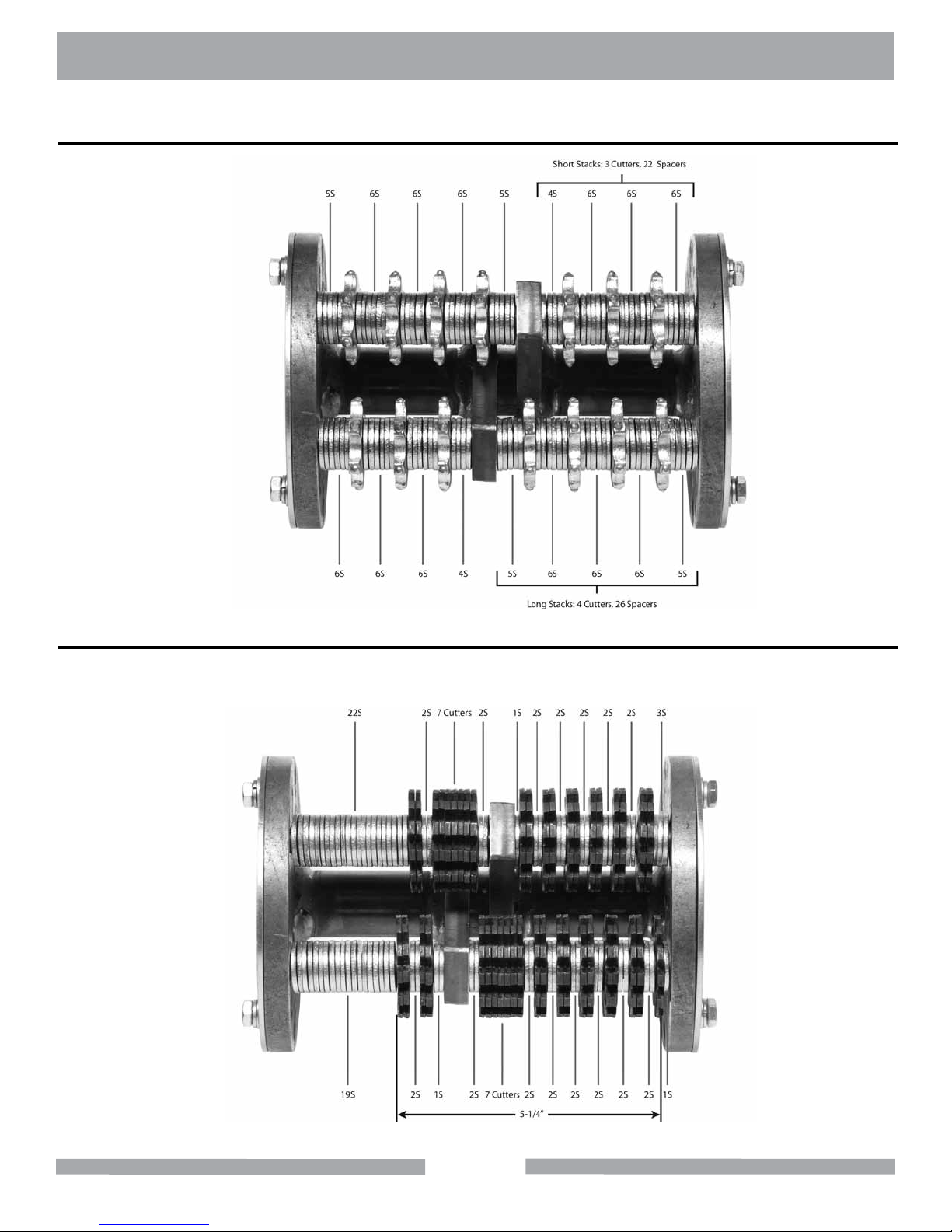

Drum Conguration 17-18
Assembly 19-20
ASSEMBLY
Assembly 21-24
SETUP
Vacuum Setup 25
Filling Oil Reservior & Fuel Tank 24-25
Pre-start Inspection 26
Setup 27-28
Operation 29-30
Cleanup 30-31
MAINTENANCE
Maintenance 32-47
THEORY
Theory of Scarifying 48
ACCESSORIES
Accessories 49
ORDERING & RETURN INSTRUCTIONS
Ordering Information 50
Return Material Policy 50
CONTACT & LIMITED WARRANTY
Contact 51
Limited Warranty 51

4
MK-SCARIFIER SAFETY
ALWAYS keep the Blade and Belt Guards in place. DO NOT operate this machine with any
guard or safety device removed. A Guard, or any damaged part should be repaired or
replaced immediately.
ON
(
(
))
Read and follow all safety, operating and maintenance instructions. Failure to read and follow
these instructions could result in injury or death to you or others. Failure to read and follow these
instructions could also result in damage and/or reduced equipment life. Safety warnings and
guidelines do not by themselves eliminate danger. They are not substitutes for proper accident
prevention procedures and good judgement.
SAFETY MESSAGES
A Damage Prevention Message is to inform the user of important information and/or instructions that
could lead to equipment or other property damage if not followed. Information Messages convey
information that pertains to the equipment being used. Each message will be preceded by the word
NOTE, as in the example below.
DAMAGE PREVENTION AND INFORMATION MESSAGES
NOTE: Equipment and/or property damage may result if these instructions are not followed.
GENERAL SAFETY PRECAUTIONS AND HAZARD SYMBOLS
A safety message alerts you to potential hazards that could hurt you or others. Each safety message is
preceded by a safety alert symbol ( ) and one of three words: DANGER, WARNING, or CAUTION.
DANGER You WILL be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
WARNING You CAN be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
CAUTION You CAN be INJURED if you DO NOT follow directions. It may also be used to
alert against unsafe practices.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
((
))
In order to prevent injury, the following safety precautions and symbols should be followed at all times!
REMOVE ADJUSTING KEYS AND WRENCHES
Form a habit of checking to see that keys and adjusting wrenches are removed from the
power tool before it is turned on.
KEEP WORK AREA CLEAN
Cluttered work areas and benches invite accidents.
DO NOT USE IN DANGEROUS PLACES
DO NOT use power tools in damp or wet locations nor expose them to rain. Always keep
the work area well lighted.
ALWAYS read this Owner’s Manual before operating the machine. DO NOT operate or
service this equipment before reading this entire manual. Read and understand all warn-
ings, instructions and controls on the machine. Know how to stop the equipment quickly in
case of emergency. It is the operators responsibility to use this machine under safe work-
ing conditions and conform with federal, state and local codes or regulations pertaining to
safety, air, pollution, noise etc...
ON
(
(
))

5
MK-SCARIFIER SAFETY
ALWAYS place the power ON/OFF switch in the OFF position when the saw is not in use.
ON / OFF
MAKE THE WORKSHOP KID PROOF
Make the workshops kid proof by using padlocks, master switches or by removing starter keys.
DO NOT FORCE THE TOOL
A power tool will do a job better and safer operating at the rate for which it was designed.
USE THE RIGHT TOOL
DO NOT force a tool or an attachment, to do a job that it was not designed to do.
USE THE PROPER EXTENSION CORD

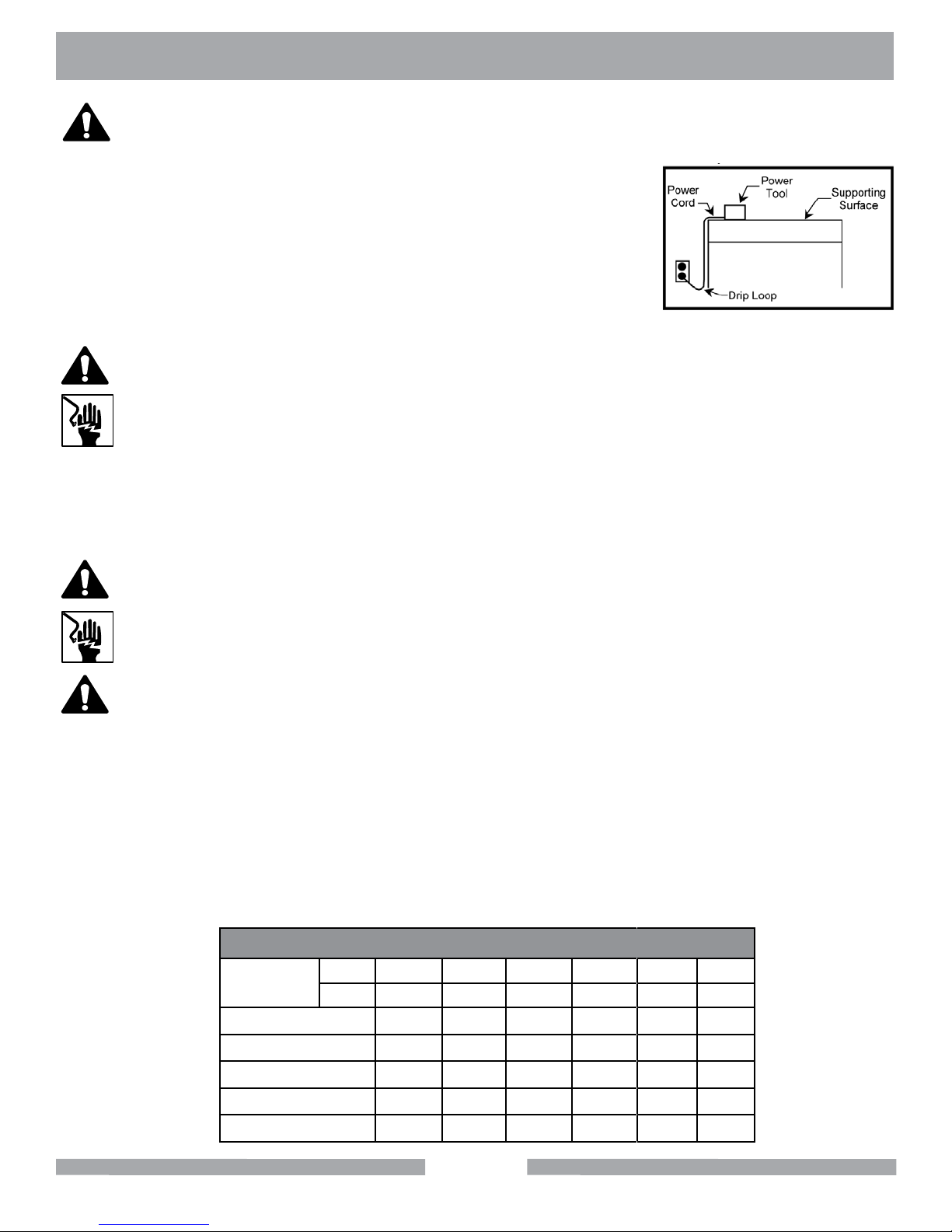

If using an extension cord make sure it is in good condition rst. When using an extension
cord, be sure to use one heavy enough to carry the current your product will draw. An under-
sized cord will cause a drop in line voltage that will result in a loss of power and overheating.
Page 9 shows the correct AWG size to use depending on cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier
the cord.
USE PROPER APPAREL
DO NOT wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may be
caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to
contain long hair.
SECURE WORK
Clamps or a vise should be used to hold work whenever practical. Keeping your hands free
to operate a power tool is safer.
DO NOT OVERREACH
Keep proper footing and balance at all times by not overreaching.
MAINTAIN TOOLS WITH CARE
Keep tools clean for the best and safest performance. Always follow maintenance instruc-
tions for lubricating, and when changing accessories.
DISCONNECT TOOLS
Power tools should always be disconnected before servicing or when changing accessories,
such as blades, bits, cutters, and the like.
KEEP CHILDREN AWAY
All visitors and children should be kept a safe distance from work area.
ALWAYS wear approved respiratory, head, ear and eye protection
when operating this machine.
PERSONAL PROTECTIVE EQUIPMENT
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))

6
MK-SCARIFIER SAFETY
NEVER LEAVE A TOOL UNATTENDED
TURN POWER OFF - Do not leave a tool until it comes to a complete stop. Always turn a
power tool OFF when leaving the work area, or, when a cut is nished.
NEVER STAND ON THE TOOL
Serious injury could occur if a power tool is tipped, or if a cutting tool is unintentionally con-
tacted.
CHECK FOR DAMAGED PARTS
Before using a power tool, check for damaged part. A guard or any other part that is damaged
should be carefully checked to determine if would operate properly and perform its intended
function. Always check moving parts for proper alignment or binding. Check for broken parts
and mountings and all other conditions that may affect the operation of the power tool. A
guard, or any damaged part, should be properly repaired or replaced.
Consult the owner’s manual for recommended accessories. Using improper accessories
may increase the risk of personal or by-stander injury. Unauthorized equipment
modifications will void all warranties. Manufacturer does not assume responsibility for any
accident due to equipment modifications.
USE RECOMMENDED ACCESSORIES
AlwAys ensure that the machine is on level ground before using.
When loading or unloading the machine, use caution. Remove the blade prior to hoisting,
loading and transporting the machine.
TRANSPORT
A blade or cutter should always be installed so that rotation is in the direction of the
arrow imprinted on the side of the blade or cutter. It should correspond with the rotational
direction of the motor. Always feed work into a blade against the direction of rotation.
DIRECTION OF ROTATION
NEVER disconnect any "emergency or safety devices". These devices are intended for
operator safety. Disconnection of these devices can cause severe injury, bodily harm, or
even death! Disconnection of any of these devices will void all warranties. Unauthorized
equipment modifications will void all warranties. Manufacturer does not assume
responsibility for any accident due to equipment modifications.
NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.
Check the chemical properties of the material to be cut/grinded and follow all EPA/OSHA
Regulations.

7
MK-SCARIFIER SAFETY
Diamond Blades improperly used are dangerous. Comply with American National Standards Institute
Safety Code, B7.1 and, Occupational Safety and Health Act covering Speed, Safety Guards, Flanges,
Mounting Procedures, General Operating Rules, Handling, Storage and General Machine Conditions
WARNING
((
)
)
on
DO NOT EXPOSE TO RAIN
DO NOT expose to rain or use in damp locations.
ROTATING PARTS
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never
operate the motor with covers, shrouds, or guards removed.
OVER SPEED
NEVER tamper with the governor components or settings to increase the maximum
speed. Severe personal injury and damage to the engine or equipment can result if op-
erated at speeds above maximum.
ON
(
(
))
ELECTRICAL SHOCK
NEVER touch electrical wires or components while the engine is running. Exposed,
frayed or worn electrical wiring and plugs can be sources of electrical shock which could
cause severe injury or burns. Do not touch the plug with wet hands.

8
MK-SCARIFIER SAFETY
WARNING
SILICA DUST WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition
may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz,
brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of
airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis. In ad-
dition, California and some other authorities have listed respirable crystalline silica as a substance
known to cause cancer. When cutting such materials, always follow respiratory precautions.
Use appropriate NIOSH-approved respiratory protection where dust hazard may occur. Paper masks
or surgical masks without a NIOSH approval number are not recommended because they do little to
protect the worker. For more information about respirator programs, including what respirators have
received NIOSH approval as safe and effective, please visit the NIOSH website at:
http://www.cdc.gov/niosh/topics/respirators
Observe OSHA regulations for respirator use (29 C.F.R.§1910.134 and §1503.1).
Visit http://www.osha.gov for more information.
CALIFORNIA PROPOSITION 65 MESSAGE
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities con-
tain chemicals known (to the State of California) to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead, from lead-based paints
• Crystalline silica from bricks, cement and other masonry products
• Arsenic and chromium, from chemically treated lumber
For further information, consult the following sources:
http://www.osha.gov/dsg/topics/silicacrystalline/index.html
http://www.cdc.gov/niosh/docs/96-112/
http://oehha.ca.gov/prop65/law/P65law72003.html
http://www.dir.ca.gov/Title8/sub4.html
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area, and work with approved safety
equipment, such as dust masks that are specially designed to lter out microscopic particles. Where
use of a dust extraction device is possible, it should be used. To achieve a high level of dust collec-
tion, use an industrial HEPA vacuum cleaner. Observe OSHA 29 CFR part 1926.57 and 1926.103.
Sawing, grinding and drilling generate dust. Excessive airborne particles may cause irritation to eyes,
skin and respiratory tract. To avoid breathing impairment, always employ dust controls and protection
suitable to the material being sawed or drilled; See OSHA (29 CFR Part 1910.1200).

9
MK-SCARIFIER SAFETY
ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS
In order to prevent potential electrical shock and injury, the following electrical safety precautions and
symbols should be followed at all times!
In case of a malfunction or breakdown, grounding provides a path of least resistance for electric cur-
rent to reduce the risk of electric shock. This tool is equipped with an electric cord having an equip-
ment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING
• Do not modify the plug provided – if it will not t the outlet; have the proper outlet installed by a
qualied electrician
• Improper connections of the equipment-grounding conductor can result in a risk of electric
shock. The equipment-grounding conductor is the insulated conductor that has an outer
surface that is green, with or without yellow stripes. If repair or replacement of the electric cord
or plug is necessary, do not connect the equipment-grounding conductor to a live terminal
• Check with a qualied electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded
• Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that
accept the tool’s plug
• Repair or replace a damaged or worn cord immediately
WARNING
This tool is intended for use on a circuit that has an outlet that looks like the one shown in Sketch A.
The tool has a grounding plug that looks like the plug illustrated in Sketch A. A temporary adapter,
which looks like the adapter illustrated in sketches B and C, may be used to connect this plug to a
2-pole receptacle as shown in Sketch B, if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet can be installed by a qualied electri-
cian. The green-colored rigid ear, lug, and the like, extending from the adapter, must be connected to
a permanent ground such as a properly grounded outlet box.
NOTE: Use of a temporary adapter is not permitted in Canada.
Grounding
Means
(A)
Metal Screw
Cover of
Grounded
Outlet Box
(D)
ADAPTER
(C) Grounding
Pin
Grounding
Pin (B)
Circuit and Adapter Information

10
MK-SCARIFIER SAFETY
To avoid the possibility of the appliance plug or receptacle getting wet, position the machine to one
side of a wall mounted receptacle. This will prevent water from dripping onto the receptacle or plug. A
“drip loop,” shown in the picture below, should be arranged by the user to properly position the power
cord relative to the power source.
WARNING
WARNING
WARNING
To reduce the risk of electrocution, keep all connections dry and off the ground. A Ground Fault
Circuit Interrupter (GFCI) should be provided on the circuit(s) or outlet(s) to be used for this
machine. Receptacles are available having built-in GFCI protections and may be used for this
measure of safety. When using an extension cord, GFCI should be installed closest to the power
source, followed by the extension cord and lastly, the machine.
The water pump requires a GFCI. To reduce risk of electrical shock when operating the machine
with the pump plugged into the 3-pole receptacle on the motor, connect the saw to a GFCI outlet.
See the pump manual and informational tags enclosed separately for all pump information.
ON
(
(
))
ON
(
(
))
CAUTION
DO NOT EXPOSE TO RAIN
For maintenance care and operation of the electric motor, refer to your electric motor instruction book-
let furnished with the electric motor. Protect the electric motor from dust as much as possible and keep
ventilating openings clean. Before plugging in the machine, make sure that the outlet voltage is within
the voltage marked on the machines's data plate.
DO NOT spray water on the electric motor. DO NOT touch the plug with wet hands. To reduce
the risk of electrocution, keep all connections dry and off the ground.
ELECTRIC MOTOR SAFETY
DO NOT operate electric motor in an explosive environment.
DO NOT expose to rain or use in damp locations.
ON
(
(
))
ON
(
(
))
ON
(
(
))
WARNING
If operating the equipment in damp locations is unavoidable, ALWAYS use a Ground Fault
Circuit Interrupter, ALWAYS wear rubber gloves and footwear in damp conditions.
DO NOT abuse the cord. Never use the cord to carry the equipment or to pull the plug from
the outlet. Keep the cord away from heat, sharp edges, and moving parts. Replace dam-
aged cords immediately. Damaged cords increase the risk of electric shock.
ON
(
(
))
ON
(
(
))
ON
(
(
))

11
MK-SCARIFIER SAFETY
Drip Loop Information
WARNING
Use only extension cords that are intended for outdoor use. These extension cords are
identied by a marking “Acceptable for use with outdoor appliances; store indoors while not
in use." Use only extension cords having an electrical rating not less than the rating of the
product. Do not use damaged extension cords. Examine extension cords before using and
replace if damaged. Do not abuse extension cords and do not yank on any cord to discon-
nect. Keep cords away from heat and sharp edges. Always disconnect the extension cord
from the receptacle before disconnecting the product from the extension cord.
WARNING
Use of under sized extension cords result in low voltage to the motor that can result in mo-
tor burnout and premature failure. MK Diamond warns that equipment returned to us showing
signs of being run in a low voltage condition, through the use of undersized extension cords will
be repaired or replaced totally at the customer's expense. There will be no warranty claim.
To choose the proper extension cord,
• Locate the length of extension cord needed in the table below.
• Once the proper length is found, move down the column to obtain the correct AWG
size required for that length of extension cord.
To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch
the plug with wet hands.
WARNING
WARNING
EXTENSION CORD LENGTH
Nameplate
Amperes
115V 25' 50' 75' 100' 150' 200'
250V 50' 100' 150' 200' 300' 400'
0 - 5 16 16 16 14 12 12
5.1 - 8 16 16 14 12 10 •
8.1 - 12 14 14 12 10 • •
12.1 - 15 12 12 10 10 • •
15.1 - 20 10 10 10 • • •
The “drip loop” is that part of the cord below the level of the receptacle,
or the connector, if an extension cord is used. This method of position-
ing the cord prevents the travel of water along the power cord and
coming in contact with the receptacle.
If the plug or receptacle gets wet, DO NOT unplug the cord. Discon-
nect the fuse or circuit breaker that supplies power to the tool. Then
unplug and examine for presence of water in the receptacle.

12
MK-SCARIFIER SAFETY
WARNING
When refueling
stop engine and
allow to cool.
DO NOT overll
tank.
!
DANGER
The exhaust from this product
contains chemicals known to
the State of California to cause
cancer, birth defects or other
reproductive harm.
!
CAUTION
DO NOT
touch hot
surface.
!
CAUTION
Accidental start hazard.
Disconnect spark plug
prior to servicing.
!
SERVICE OR
WARRANTY
FOR INFORMATION ON
PLEASE CALL
1-800-474-5594
NOTICE
Overtensioning of belts
will result in premature
crank and/or bearing failure.
!
CAUTION
Keep
hands and
feet clear.
!
Label A Label B
Label C
Label D Label E Label F
Label G
Label H
Label I Label J Label K Label L
CAUTION
DO NOT
operate without
guards in place.
!
WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in
their composition may give off dust or mists containing crystalline silica. Silica is a basic
component of sand, quartz, brick clay, granite and numerous other minerals and rocks.
Repeated and/or substantial inhalation of airborne crystalline silica can cause serious
or fatal respiratory diseases, including silicosis. In addition, California and some other
authorities have listed respirable crystalline silica as a substance known to cause cancer.
!
For manuals and parts
lists scan the QR code
with your smart phone
DANGER
Lethal exhaust
gases. Use only
in well ventilated
areas. DO NOT
use indoors.
DO NOT operate
this equipment
before reading
the owner’s
manual!
WARNING
!
SAFETY LABEL LOCATIONS
Safety labels contain important safety information. Please read the information contained on each
safety label. These labels are considered a permanent part of your saw. If a label comes off or
becomes hard to read, contact MK Diamond or your dealer for a replacement.
Warning Sheet
Part # 166010
Decal/Label Location Description
A Belt Guard - Side Warning - Silica Warning
B Belt Guard - Side Notice - Overtension of the belts
C Console Warning - Read Owner’s Manual
D Belt Guard Caution - Keep Hands & Feet Clear
EConsole Service or Warranty
F Belt Guard Caution - Guards in place
G Belt Guard QR Code for Manual
H Gas Tank - Top Danger - State of California
I Gas Tank - Top Caution - Do Not Touch
JGas Tank - Side Warning - Do Not OVerfill Tank
K Gas Tank - Side Danger - Silica Warranty
L Cutting Drum Caution - Spack Plug
Label G Label D
Label C
Label E
Label A
Label B
Label F
Label H
Label I
Label L
Label J
Label K

13
MK-SCARIFIER PRODUCT SPECIFICATIONS
SPECIFIC WARNINGS
PRODUCT SPECIFICATION
General Description
MotorandWeightSpecications
ScarierUsage
Features
• Read Owners Manual
• Wear Protective Gear for Head, Lungs, Ears and Eyes
• Engage/Disengage Lever allowing the operator to raise or lower the cutting drum without
changing the cutting depth setting.
• Ergonomically designed handlebar to reduce fatigue.
• Poly micro V-belt to ensure maximum power transfer from the engine to the cutting drum.
Operated and used according to this manual, the Scarier will provide years of dependable service.
The Scariers are is engineered with an 8” Cutting Drum. The SG-9 has a Honda engine and the
SG-5 has a Baldor motor. The scarier is designed with ne depth control allowing the operator to
make depth adjustments in 1/16-inch increments.
The Scariers use a 6-inch diameter, 8-inch long cutting drum with 6 hardened steel shafts that will
accommodate the most common cutting discs.
The Scarier is designed to grind surfaces, remove old coatings, prepare surfaces before applying
new coatings, roughen surfaces, groove surfaces and slot surfaces.
Depending on cutting wheel style, production rate varies from 350 to 500 square feet per hour for a 1/8-inch
removal depth.
Model MK-SG-9 MK-SG-5
Engine/Motor Honda (Gas) Baldor (Electric)
Power GX270 Cyclone 5 HP 230V
Weight (not including drum) 170 lbs. (77kg) 170 lbs. (77kg)
Drum Dimensions (Dia. x L) 6” x 8” 6” x 8”
Drum Weight 30 lbs. (14 kg) 30 lbs. (14kg)
L x W x H (in) 23” x 20” x 43” 23” x 20” x 43”
L x W x H (mm) 813 x 508 x 1,092 813 x 508 x 1,092
DrumCongurations Part # Part #
Scarier with 5 Point Carbide Drum (no cutters) 158532 158533
Scarier with 5 Point Carbide Drum 158941 165276
Scarier with 6 Point Carbide Drum 158942 165277
Scarier with 18 Point Carbide Drum 158943 165278
Scarier with 12 Point Carbide Drum 158944 165279

14
MK-SCARIFIER UNPACKING
UNPACKING
CONTENT
TRANSPORT
Your Scarier has been shipped from the factory thoroughly inspected. Only minimal assembly is
required.
If not already done, remove the Scarier from the pallet and place it on a at surface (lift the scarier
using the lifting points shown below).
MK-SCARIFIER
OWNER’S MANUAL, PARTS LIST &
OPERATING INSTRUCTIONS
www.mkdiamond.com
Caution: Read all safety and operating instructions
before using this equipment. This owner’s manual
MUST accompany the equipment at all times.
Revision 103
Manual Part# 158537
SG-9
SG-5
08.2013
SG-9
SG-5
Scarier Cutting Drum Owner’s Manual Motor/Engine
Manual
Warranty
Card
In the containers, you will nd one (1) Scarier, one (1) cutting drum, one (1) owner’s manual, one
(1) Honda owner’s manual and one (1) warranty card.
1. The Scarier weighs approximately one hundred and eighty-ve (185)
pounds (with the Cutting Drum assembled the scarier weighs approximately
230 pounds), use care when transporting.
2. Two people are required to transport the Scarier.
To lift the scarier, each person will stand on opposite sides of the Scarier and grasp the rear Han-
dlebar and the front Handle/Stand to lift, as shown below.
Name
address
City
state zip Code
phoNe Fax
e-mail
produCt model
part NumBer
maChiNe serial#
MK DiaMonD Warranty CarD
q tile distriButor q home CeNter q equipmeNt supply house
q tool supply q Bldg material supply q reNtal equipmeNt house
are you a do-it-yourselFer qor CoNtraCtor qIF so, what type? tile qmasoNry qother
what Criteria was importaNt iN ChoosiNg this saw? (rate From 1 to 5, 5 BeiNg the most importaNt)
power preCisioN portaBility availaBility other
If within one (1) Year from the date of purchase, this MK Diamond saw fails due to defect in material or workmanship, MK will repair it, free of charge when the unit is re-
turned to the dealer where it was purchased. This warranty DOES NOT cover normal wear or damage resulting from operator abuse. In no event shall MK Diamond Products,
Inc. be liable for consequential damages arising out of the failure of any product if operated improperly. MK Diamond Products may act as a warranty station for motor/en-
gine repairs based on an individual agreement with the manufacturer. This warranty is in lieu of all other warranties express or implied.
©2010 All Rights reserved. MK Diamond Products, Inc. • P/N 155037 MK Warranty Card (02/10)
mK diamoNd warraNty 1315 Storm Parkway, Torrance, CA 90509 USA | www.mkdiamond.com | 1.800.421.5830 | 1. 310.539.5158
where did you purChase this saw Fro m ? N a me
CommeNts or suggestioNs:
priCe
date purChased
CAUTION
Handle/
Stand
Lift Point
Handlebar
Lift Point

15

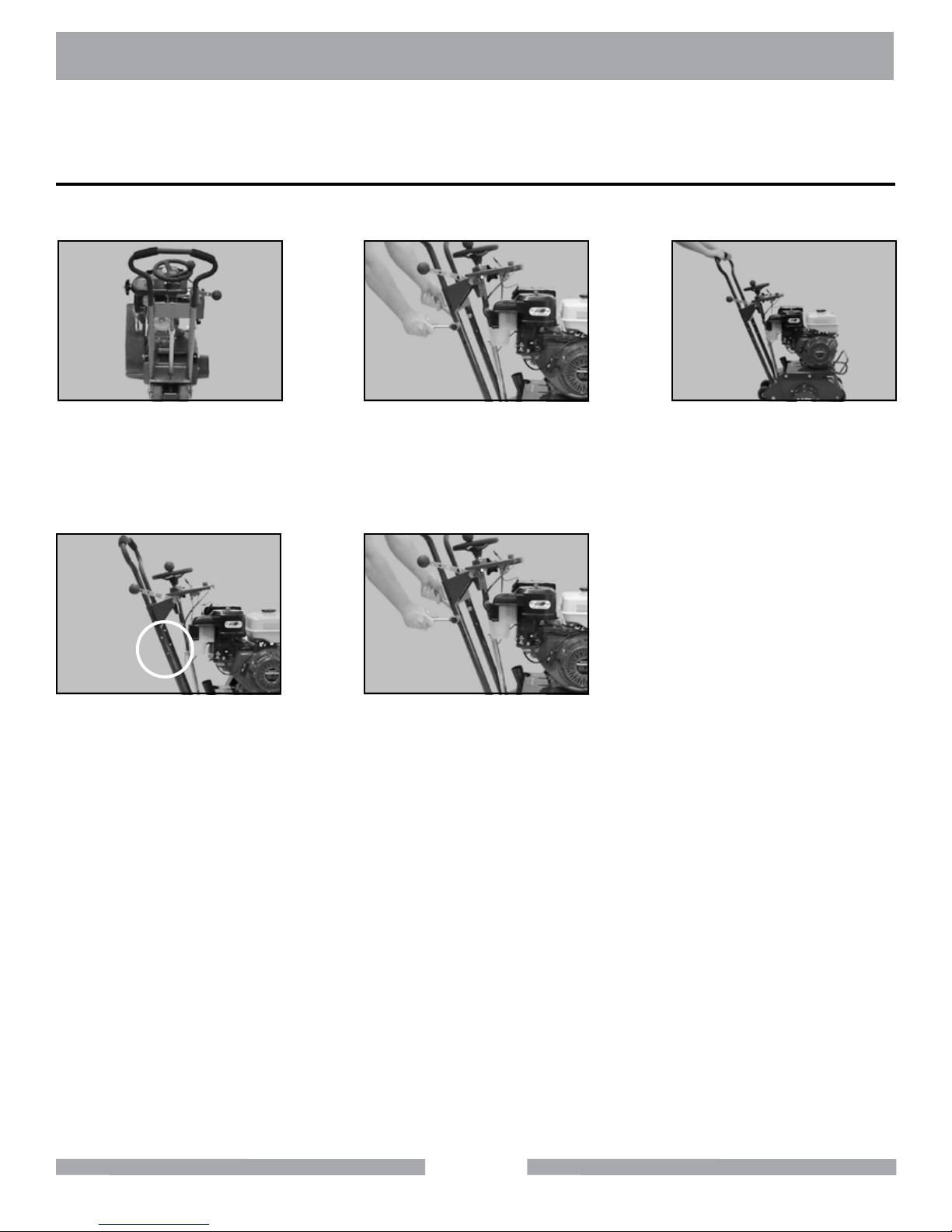

MK-SCARIFIER HANDLEBAR ASSEMBLY
Follow the assembly instructions to prepare your Scarier for operation.
Handlebar Adjustment
Adjust the Handlebar for for ease of operation and comfort of the user.
(A)
Locate the Handlebar retain-
ing bolts.
(B)
Remove the Retaining Bolts
using 9/16 wrenches and/or
sockets.
(C)
Raise or lower the Handle-
bar as needed.
(D)
Align one set of Retaining
Bolt holes in the Handlebar to
the holes in Scarier Frame.
(E)
Install the Retaining Bolts
and tighten using 9/16
wrenches and/or sockets.
NOTE: Do not rotate saw to rest on handlebar. Engine damage will result.

16
MK-SCARIFIER SCARIFIER DRUM
• Used for grinding, leveling, grooving, cleaning, and preparing concrete
• Five-point carbide tips (1-3/4” OD x 5/8” ID x 1/4”)
• Longer life than steel tooth cutters, average of 6000 to 8000 square feet
• Maximum cutting rate is 1/8” per pass
• Used for grinding, leveling, grooving, cleaning, and preparing concrete
• Five-point carbide tips (1-3/4” OD x 5/8” ID x 1/4”)
• Exceptional life, average of 8000 to 10000 square feet
• Maximum cutting rate is 1/8” per pass
• Used for general cleaning of concrete or asphalt including removal of
paint, epoxy, urethane, adhesive, and heavy dirt, grease and oil deposits
• 18 tooth hardened steel, (2” OD x 5/8” ID x 1/4”)
• Average life of 500 to 800 square feet
• Maximum cutting rate is 1/16” per pass
• Used for paint and oil removal, trafc and shop oor safety-line removal,
cleaning and concrete preparation
• 12 tooth, hardened steel (2” OD x 9/16” ID x 1/4”)
• Average life of 500 to 800 square feet
• Maximum cutting rate is 1/16” per pass
• Used to ll empty space between the cutting discs
• 1/2” ID hardened steel
Five Tooth Carbide Tip Star
Six Tooth Carbide Tip Star
18 Tooth Steel Sharp Tooth Cutter
12 Tooth Steel Blunt Tooth Cutter
Hardened Steel Spacer
Part # 158583
Part # 158584
Part # 158585
Part # 158586
Part # 158575
ScarierDrumCutters

17

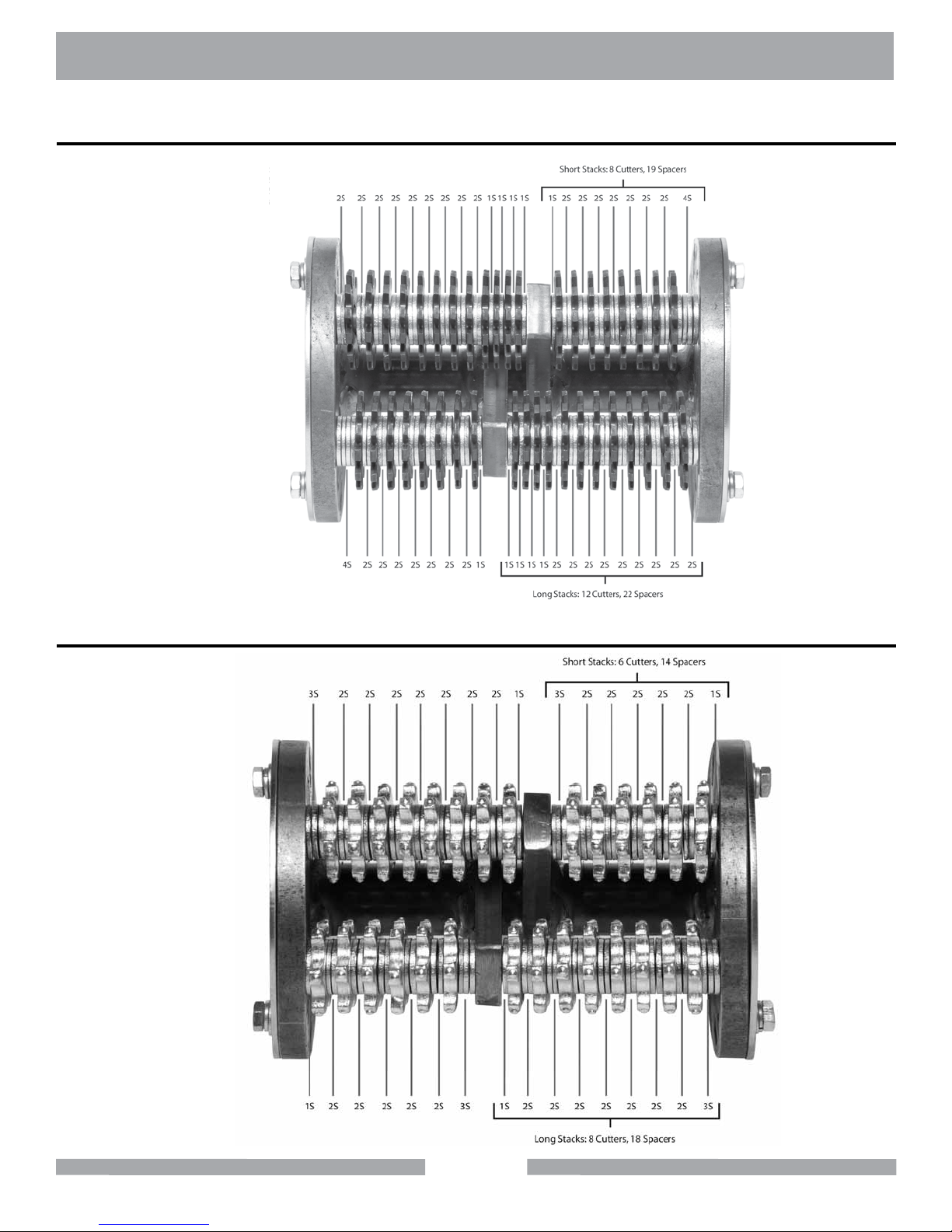

MK-SCARIFIER DRUM CONFIGURATIONS
SteelDrumCongurationforRemoval
GeneralPurpose/CleaningDrumConguration
120 Steel Cutters
246 Spacers (S)
6 Shafts
84 Carbide Stars
192 Spacers (S)
6 Shafts

18
MK-SCARIFIER DRUM CONFIGURATIONS
1”GrooveDrumConguration
5”Stripe/LineDrumConguration
42 Carbide Stars
288 Spacers (S)
6 Shafts
123 Steel Cutters
231 Spacers (S)
6 Shafts

19
MK-SCARIFIER ASSEMBLY
The Height Adjustment Hand-wheel will adjust the depth (up or down) of the Cutting Drum
by 1/16 of an inch per turn.
A) Congure the Cutting Drum for Grooving
B) Locate the lowest spot and highest spot on the surface
C) Adjust the height of the Cutting Drum to remove approximately 1/16 of an inch from the
high spot
D) Set the Vibration Lock
E) Move the Scarier in a smooth forward motion.
F) When the Cutting Discs are no longer contacting the surface, return the Scarier to the
starting position
G) Repeat Steps A through E until the Surface is level (See Figure 1)
A) Congure the Cutting Drum for Grooving
B) Adjust the Cutting Drum Depth until the Scarier is cutting grooves approximately 1/8 of
an inch
C) Move the Scarier in a smooth forward motion
D) Should the Cutting Discs loose contact with the surface, repeat Step B and continue
forward motion
E) Repeat Steps A through D until the desired number of grooves are cut (See Figure 2)
NOTE:
Leveling a Surface
Cutting/Grooving a Surface
Direction of Movement
Set 1/16 –
inch below
the surface
High Point
Figure 1
Figure 2
Set 1/8 – inch
below the
surface
Maintain
set cutting
depth
Direction of Movement

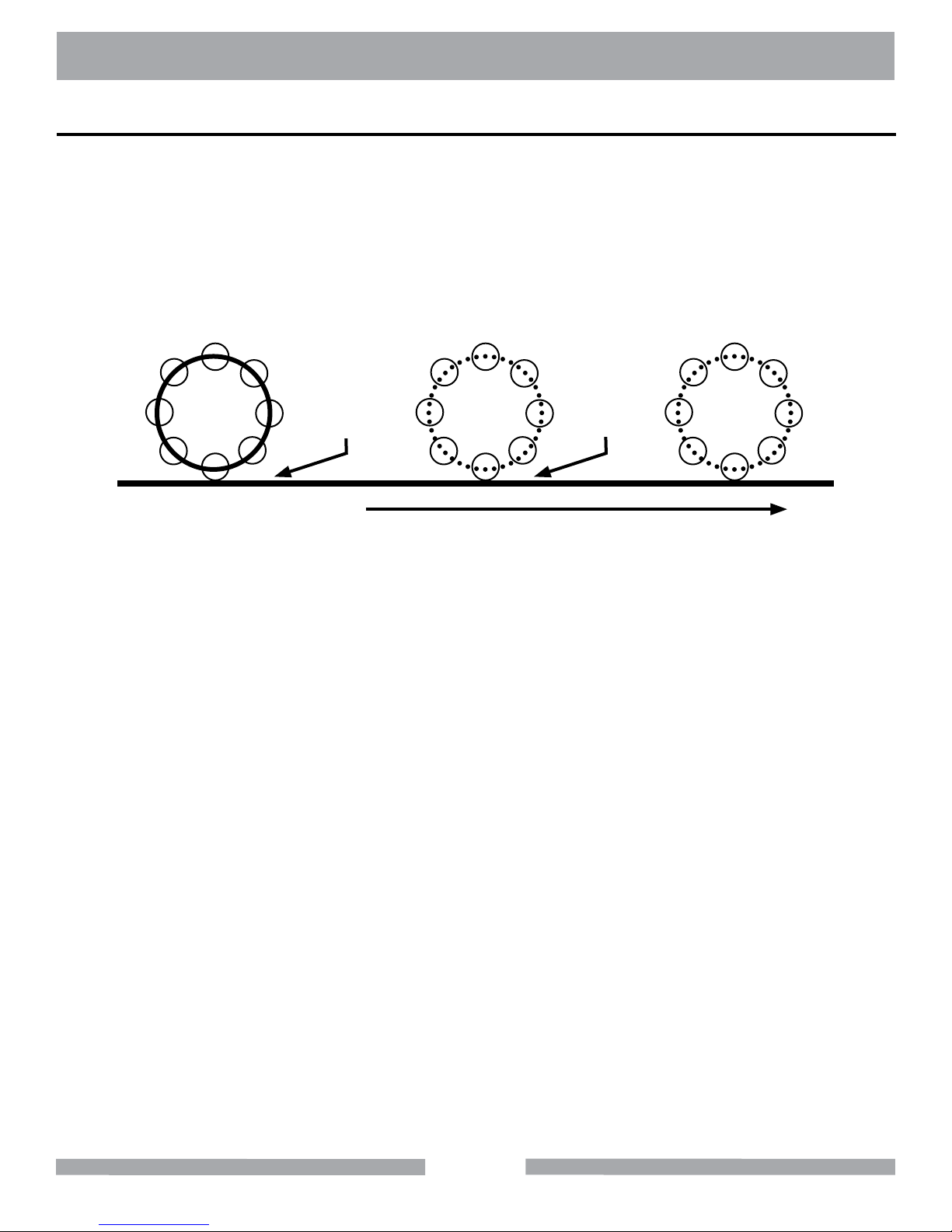

20
MK-SCARIFIER ASSEMBLY
Figure 3
A) Congure the Cutting Drum for Surface Prep.
B) Adjust the Cutting Drum Depth until the Cutting Discs are contacting the surface (increase
the depth of the Cutting Drum as necessary to increase the “roughness of the surface”
C) Scarier in a smooth forward motion
D) Should the Cutting Discs loose contact with the surface, repeat Step B and continue for-
ward motion
E) Repeat Steps A through D until the desired roughness is achieved. (See Figure 3)
Roughening or Preparing a Surface
Direction of Movement
Set depth to
contact the
surface
Maintain
set cutting
depth
