MOUNTING AND
INSTRUCTION MANUAL
NMI – Network MOBALine Interface
Please study these instructions prior to installation.

© MOBATIME 2 / 24 800916.03
Certification of the Producer
STANDARDS
The Network MOBALine Interface NMI was developed and produced in accordance with the EU guidelines:
2004 / 108 / EG
96 / 48 / EG
References to the Instruction Manual
1. The information in this Instruction Manual can be changed at any time without notice.
The current version is available for download on www.mobatime.com.
2. This Instruction Manual has been composed with the utmost care, in order to explain all details in re-
spect of the operation of the product. Should you, nevertheless, have questions or discover errors in
this Manual, please contact us.
3. We do not answer for direct or indirect damages, which could occur, when using this Manual.
4. Please read the instructions carefully and only start setting-up the product, after you have correctly
understood all the information for the installation and operation.
5. The installation must only be carried out by skilled staff.
6. It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or
another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH,
D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.

© MOBATIME 3 / 24 800916.03
Table of contents
1Safety ............................................................................................................................................................4
1.1Safety instructions.....................................................................................................................................4
1.2Symbols and signal words used in this instruction manual.......................................................................4
1.3Intended use..............................................................................................................................................4
1.4Observe operating safety!.........................................................................................................................5
1.5Consider the installation site! ....................................................................................................................5
1.6Please observe the electromagnetic compatibility!...................................................................................5
2Maintenance..................................................................................................................................................6
2.1Troubleshooting: Repairs ..........................................................................................................................6
2.2Cleaning ....................................................................................................................................................6
2.3Disposing...................................................................................................................................................6
3General information – Introduction................................................................................................................7
3.1Scope of delivery.......................................................................................................................................7
3.2Device description in this manual..............................................................................................................7
3.3Function description ..................................................................................................................................7
4Configuration, displays and connections.......................................................................................................8
4.1Configuration.............................................................................................................................................8
4.2Reset push-button.....................................................................................................................................8
4.3Connections and displays .........................................................................................................................8
4.4Operation modes / synchronization ..........................................................................................................9
4.4.1Unicast............................................................................................................................................9
4.4.2Multicast .........................................................................................................................................9
4.5Time signal outputs .................................................................................................................................10
4.5.1MOBALine ....................................................................................................................................10
4.5.2DCF 77 current loop.....................................................................................................................10
5Monitoring TREND clocks ...........................................................................................................................10
6Mounting and commissioning......................................................................................................................10
7Operating behavior......................................................................................................................................11
7.1Power supply...........................................................................................................................................11
7.2DHCP ......................................................................................................................................................11
7.3IPv6 .........................................................................................................................................................11
7.4DHCPv6 ..................................................................................................................................................11
7.5Autokonfiguration / SLAAC .....................................................................................................................11
7.6SNMP ......................................................................................................................................................12
7.7Local time calculation..............................................................................................................................12
7.8Accuracy / Loss of synchronization.........................................................................................................12
7.9Redundant time source ...........................................................................................................................12
7.9.1NTP client unicast ........................................................................................................................12
7.9.2NTP client multicast......................................................................................................................12
7.10MOBA-NMS (MOBATime Network Management System) .................................................................13
8Update .........................................................................................................................................................14
8.1Bootloader update...................................................................................................................................15
9Factory settings ...........................................................................................................................................16
10Time zone table...........................................................................................................................................17
11Measurements.............................................................................................................................................19
12Technical data .............................................................................................................................................20

© MOBATIME 4 / 24 800916.03
1 Safety
1.1 Safety instructions
Read this chapter and the entire instruction manual carefully and follow all instructions
listed. This is your assurance for dependable operations and a long life of the device.
Keep this instruction manual in a safe place to have it handy every time you need it.
1.2 Symbols and signal words used in this instruction manual
Danger!
Please observe this safety message to avoid electrical shock!
There is danger to life!
Warning!
Please observe this safety message to avoid bodily harm and injuries!
Caution!
Please observe this safety message to avoid damages to property and devices!
Notice!
Additional information for the use of the device.
1.3 Intended use
The Network MOBALine Interface is a device which serves as an interface between
NTP (Ethernet) and MOBALine. The interface receives the current time information
from NTP and provides it to terminal devices using MOBALine.
A detailed function description can be found in chapter 3.3 Function description.
The technical data can be found in chapter 12 Technical data.
!
!

© MOBATIME 5 / 24 800916.03
1.4 Observe operating safety!
Never open the housing of the device! This could cause an electric short or even a
fire, which would damage your device. Do not modify your device!
The device is not intended for use by persons (including children) with limited physi-
cal, sensory, or mental capacities or a lack of experience and/or knowledge.
Keep packaging such as plastic films away from children. There is the risk of suffo-
cation if misused.
1.5 Consider the installation site!
To avoid any operating problems, keep the device away from moisture and avoid
dust, heat, and direct sunlight. Do not use the device outdoors.
The device is designed for 19" racks and should only be operated installed in a 19"
cabinet.
Danger! Make sure
that you wait before using the device after any transport until the device has
reached the ambient air temperature. Great fluctuations in temperature or humidi-
ty may lead to moisture within the device caused by condensation, which can
cause a short.
1.6 Please observe the electromagnetic compatibility!
This device complies with the requirements of the EMC directives 2004/108/EC and
96/48/EC
!
Caution!
!
Caution!
!
Caution!

© MOBATIME 6 / 24 800916.03
2 Maintenance
2.1 Troubleshooting: Repairs
If you cannot rectify the problems, contact your supplier from whom you have pur-
chased the device.
Any repairs must be carried out at the manufacturer’s plant.
Disconnect the power supply immediately and contact your supplier, if …
liquid has entered your device
the device does not properly work and you cannot rectify this problem yourself.
2.2 Cleaning
Please make sure that the device remains clean especially in the area of the con-
nections, the control elements, and the display elements.
Clean your device with a damp cloth only.
Do not use solvents, caustic, or gaseous cleaning substances.
2.3 Disposing
Device
At the end of its lifecycle, do not dispose of your device in the regular household rub-
bish. Return your device to your supplier who will dispose of it correctly.
Packaging
Your device is packaged to protect it from damages during transport.
Packaging is made of materials that can be disposed of in an environmentally friendly
manner and properly recycled.

© MOBATIME 7 / 24 800916.03
3 General information – Introduction
3.1 Scope of delivery
Please check your delivery for completeness and notify your supplier within 14 days
upon receipt of the shipment, if it is incomplete.
The package you received contains:
1 x NMI – Network MOBALine Interface
2 x 2-pole plug
3.2 Device description in this manual
This instruction manual is for the Network MOBALine Interface. Below, it will be re-
ferred to as NMI or interface for improved readability.
3.3 Function description
The NMI is a device which works as an interface between NTP (Ethernet) and
MOBALine. For this purpose, the NMI evaluates NTP packages and generates a
MOBALine signal for up to 12 slave clocks out of the received time information.
The NMI does not possess a configuration switch. The configuration takes place exclu-
sively over MOBA-NMS (not included in delivery) or alternatively via SNMP or using
DHCP parameters.
Using the NMI, MOBALine slave clocks (TREND only) can be completely monitored for
the first time. The TREND clocks can report their correct functionality back to the NMI.
The state of monitored clocks can be checked with MOBA-NMS.
The power supply is carried out via PoE (Power over Ethernet). The NMI reports to the
switch as a class 2 device.
In addition, the NMI possesses a passive current loop interface. This can be used for
synchronizing a slave clock (e.g. ETC) using NTP.

© MOBATIME 8 / 24 800916.03
4 Configuration, displays and connections
4.1 Configuration
The NMI can be fully controlled and configured with MOBA-NMS. In addition, it is pos-
sible to give out parameters through DHCP or SNMP.
More detailed information about the configuration with MOBA-NMS, DHCP and SNMP
can be found in the document BE-800793.
4.2 Reset push-button
The NMI possesses a reset push-button between the two 2-pole clamps. To restart the
NMI (software reset), the push-button must be pressed for at least 4 seconds.
If the push-button is pressed for more than 20 seconds, the factory settings are loaded
(see chapter 9 Factory settings).

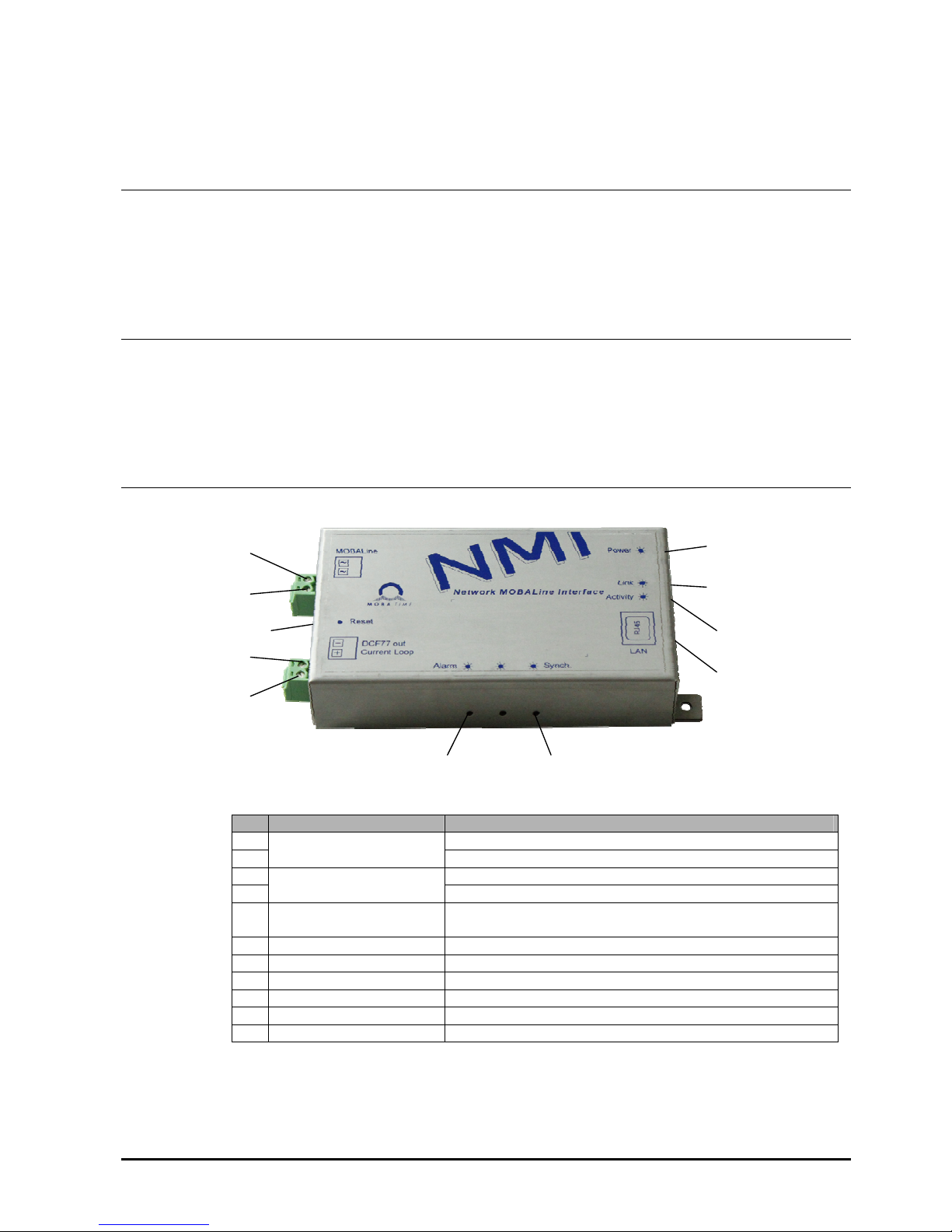

4.3 Connections and displays
The interface features the following connections and displays:
1
2
3
4
5
67
11
10
9
8
No. Group Meaning and function
1 MOBALine out MOBALine output signal, connection b
2 MOBALine output signal, connection a
3 DCF77 out current loop negative connection ( - DCF out)
4 positive connection ( + DCF out)
5 Reset push-button pressed for > 4 seconds, device restarts
pressed for > 20 seconds, device resets to factory settings
6 Alarm LED (red) ON: at least 1 alarm active
7 Synch. LED (green) ON: NTP synchronization OK
8 LAN socket (RJ45) Ethernet connection
9 LAN activity LED (yellow) blinks: active network traffic
10 LAN link LED (green) ON: Ethernet link OK
11 Power LED (green) ON: PoE supply OK

© MOBATIME 9 / 24 800916.03
4.4 Operation modes / synchronization
For time synchronization, two operation modes are available, unicast or multicast.
4.4.1 Unicast
The interface is synchronized from an NTP server to UTC (coordinated world time).
This operation mode supports the monitoring and configuration of the NMI via the net-
work connection. The configuration can take place automatically through a DHCP
server or manually using the software MOBA-NMS.
For monitoring and configuration with MOBA-NMS, one of the group addresses (mul-
ticast IP) 239.192.54.0 or 239.251.34.0 for IPv4 resp. FF38::EFC0:3600 or
FF38::EFFB:2200 for IPv6 or the IP address is used.
In this operation mode, the interface will try to obtain the following network parameters
from a DHCP server (see also chapter 7.2):
-IP address
-gateway address
-subnet mask
-NTP server address(es) / time zone server address
-SNMP manager address
In this operating mode, the clock will try to obtain the following network parameters in
an IPv6 network from a DHCPv6 server (see also chapter 7.4):
-IP address
-NTP server address(es) / time zone server address
-SNMP manager address
The NTP server addresses must be configured as a DHCP option by the network ad-
ministrator. If an address is sent to the NMI, the latter will request NTP and time zone
packages from the former. The request interval can be configured using the software
MOBA-NMS.
4.4.2 Multicast
The interface is synchronized to UTC (coordinated world time) by an NTP server. The
configuration can only be carried out using the software MOBA-NMS.
For monitoring and configuration with MOBA-NMS, one of the multicast group ad-
dresses (multicast IP) is used. The group address is an IP address in the multicast
range (224.0.0.0 to 239.255.255.255), addresses selected by Moser-Baer AG from a
freely available range:
-IPv4:239.192.54.x and 239.251.34.x, whereat x = 1..15
With IPv6, the ranges mentioned above are implemented as follows:
-IPv6:FF3y::EFC0:360x and FF3y::EFFB:220x, whereat x = 0x1..0xF and y=scope
E.g.: 239.192.54.5 FF38::EFC0:3605 or 239.251.34.10 FF38::EFFB:220A
For scope, the following values are possible:2 = Link Local Scope
5 = Site Local Scope
8 = Organization Local Scope
14 = Global Scope
Contrary to unicast mode, the interface receives multicast addressed NTP and time
zone packages from an NTP server on a fixed group address (multicast IP). The
standard port numbers are 123 (NTP) and 65534 (time zone). The operation mode
multicast poses the smallest configuration effort for a network administrator.

© MOBATIME 10 / 24 800916.03
4.5 Time signal outputs
The NMI is equipped with two time signal outputs: MOBALine and DCF current loop.
4.5.1 MOBALine
BA
• frequency modulated MOBALine time signal for self-setting slave clocks.
(TREND, SEM40/SAM40, SAM 00)
• output format: local time
• electrical properties: 20V / 50Hz
4.5.2 DCF 77 current loop
-+
• synthetic DCF time signal for synchronizing sub-master clocks (e.g. ETC).
• output format: local time
• electrical properties: passive current loop output
opto-coupler:
U
max=30V, Ion=10..15mA, Ioff=2mA @ 20V.
5 Monitoring TREND clocks
Using an NMI and MOBA-NMS, up to max. 12 TREND clocks can be monitored. Detailed in-
structions for configuration and monitoring can be found in the TREND clock manual (BE-
800913).
6 Mounting and commissioning
In order to mount the NMI and to launch it for the first time, the following process can be used:
1. Mount NMI to desired spot
2. Connect Ethernet cable with PoE supply
3. Configure using MOBA-NMS
4. Connect MOBALine slave clocks to line input
5. Alternatively, connect DCF current loop, if a sub-master clock shall be synchronized
6. If desired, configure TREND clocks for monitoring (see chapter 5)
7. After a short period of time, the alarm LED (red) should go out and the sync LED (green)
should light up
Notice: The NMI must be synchronized before TREND clocks can be configured!
