Quick Start Guide
Area for Picture Placement
Installation Guide
Indoor industrial router

1
Quick Start Guide
This guide covers the Indoor Industrial Router. This guide provides a series
of step by step instructions to ensure the configuration of your router goes
as smoothly as possible.
Please check that you have received all the items in your package:
Description QTY
NTC-40WV-03 Indoor Industrial Router 1
Ethernet cable 1
Power Supply Unit 1
Antennas 4
Quick Start Guide 1
If any of these items are missing, please contact Mobily Customer Service

Indoor Industrial Router
2
Overview of LEDs
LED Display Description
Power (red) Solid ON The red Power LED indicates correct power is applied
to the DC power input.
Tx/Rx
(amber)
Solid ON The amber LED will light upon data being sent to or
received from the cellular network.
DCD (green) Solid ON The green Carrier Detect LED illuminates to indicate a
Data connection.
Service Type
(green)
The green LED will illuminate when cellular network coverage is
detected.
Solid ON 3G: indicates UMTS/HSPA available coverage
Blinking EDGE: indicates EDGE available coverage
Off 2G: indicates GSM/GPRS available coverage only.
RSSI (green) This green LED indicates the Received Signal Strength.
There are three possible states that the RSSI LED can operate in,
based upon signal level.
Solid ON HIGH - Indicates the RSSI level is -77dBm (high), or
greater
Flashing MEDIUM - Indicates the RSSI level is between
-91dBm and -78dBm, (medium)
Off LOW - Indicates the RSSI level is less than -92dBm
(low)

3
Overview of the Indoor
Industrial Router
Interfaces
SIM Card Bay
For insertion and removal of
the SIM card
SMA Female
For Main 3G antenna
connection
SMA Female
For receive diversity
antenna connection
Reverse Polarity SMA Female Jack
For WiFi antennas Ethernet Port
Connect to a terminal
using RJ45 cable
Reset Button
Push to reboot the router
or enter recovery mode
2Way Captive Power Terminal Block
Power terminal block and the wide voltage
range of 9-28V DC simplify the installation in
different industrial environments
Voice (RJ-11) Port
Insert one end of a RJ-11 Cable into
the Line port and the other end into
an analogue telephone

Indoor Industrial Router
4
Conguring your Router
You will need an active SIM card to configure your router.
Step 1: Insert the SIM card
Press the SIM Eject button to eject SIM card bay. Make sure the SIM card
is inserted correctly by inserting the SIM the gold side facing down in the
direction as shown below:
Insert
SIM Card
Press the
SIM Eject
Button
Step 2: Set up the Router
Connect the supplied antennas to the Router by screwing them onto the
antenna connectors. Connect the power adapter to the mains and plug the
output into the power terminal of the router.The red Power LED on the
panel should illuminate.
+VE -VE
Polarity of
Power Terminal
Polarity for 2 way captive
power Terminal Block
+
-

5
Step 3: Connect Your Computer
Connect one end of the supplied Ethernet cable into the Ethernet port
of your router. Connect the other end of the cable into the LAN port of
your computer.
Wait a few seconds for your computer to establish connection with the
router. If the connection is not established automatically, verify that your
computer is configured to obtain an IP address automatically.
Step 4: Access Your Router’s Homepage
The NTC-40WV-03 router’s homepage can be accessed by using the
web address http://my.router, or alternately via default IP address
http://192.168.1.1.
This URL opens the management console, where you can:
• View the status of your router.
• Make changes to the routers configurations.
There are two system management accounts:
Root Manager Account Admin Manager Account
Username root Username admin
Password admin Password admin
The admin manager account allows users to manage all settings of the router
except functions such as Firmware Upgrade, Mobile Broadband Connection
Settings, Device Configuration Backup and Restore and Reset to Factory
Default Settings, which are privileged only to the Root manager account.

Indoor Industrial Router
6

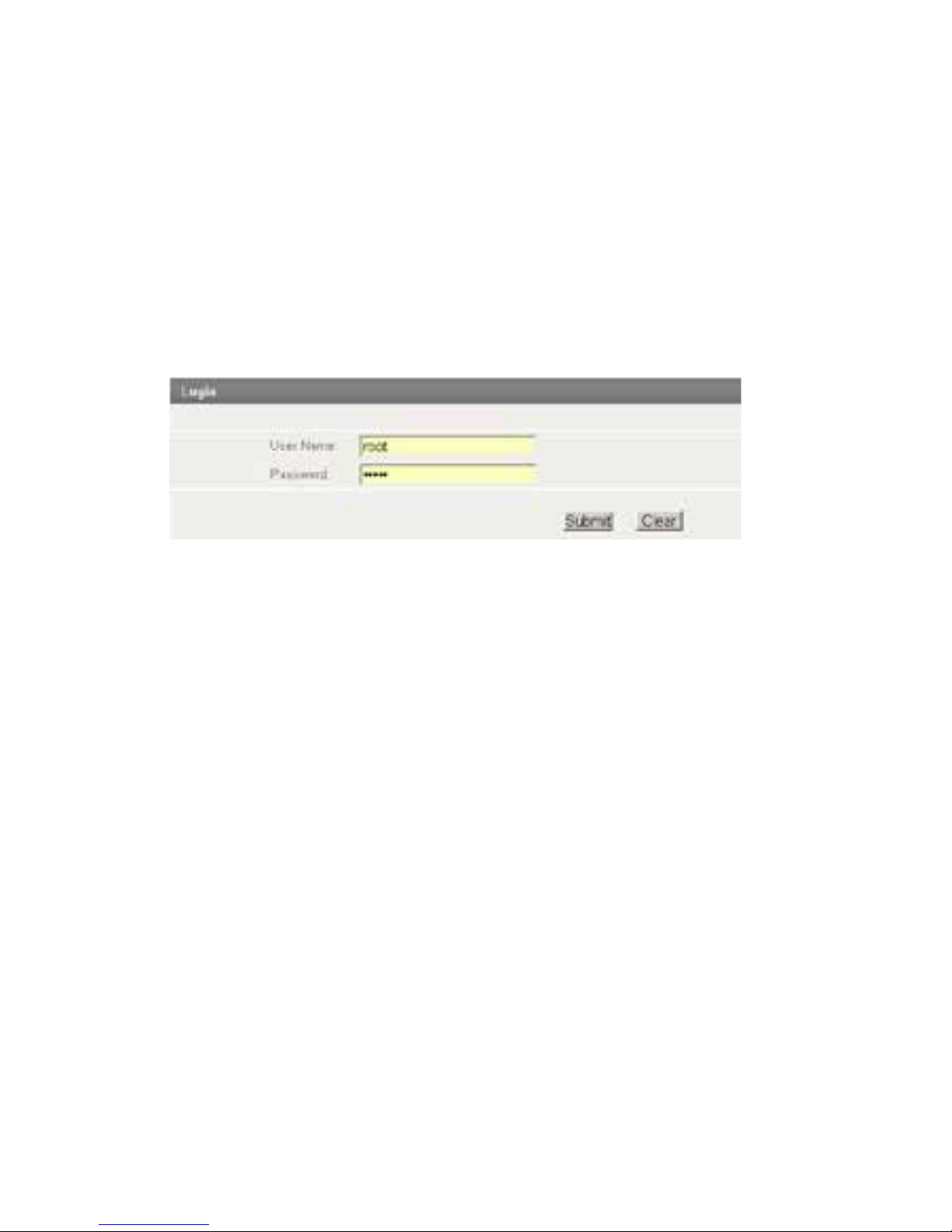

To access the homepage:
• Open your web browser and enter the URL http://my.router
• Click Login and type the username/password for Root manager account.
• Then click on Submit.
NOTE: First time users should use Root manager account to configure Mobile
Broadband settings

7
Step 5: Unlocking the SIM

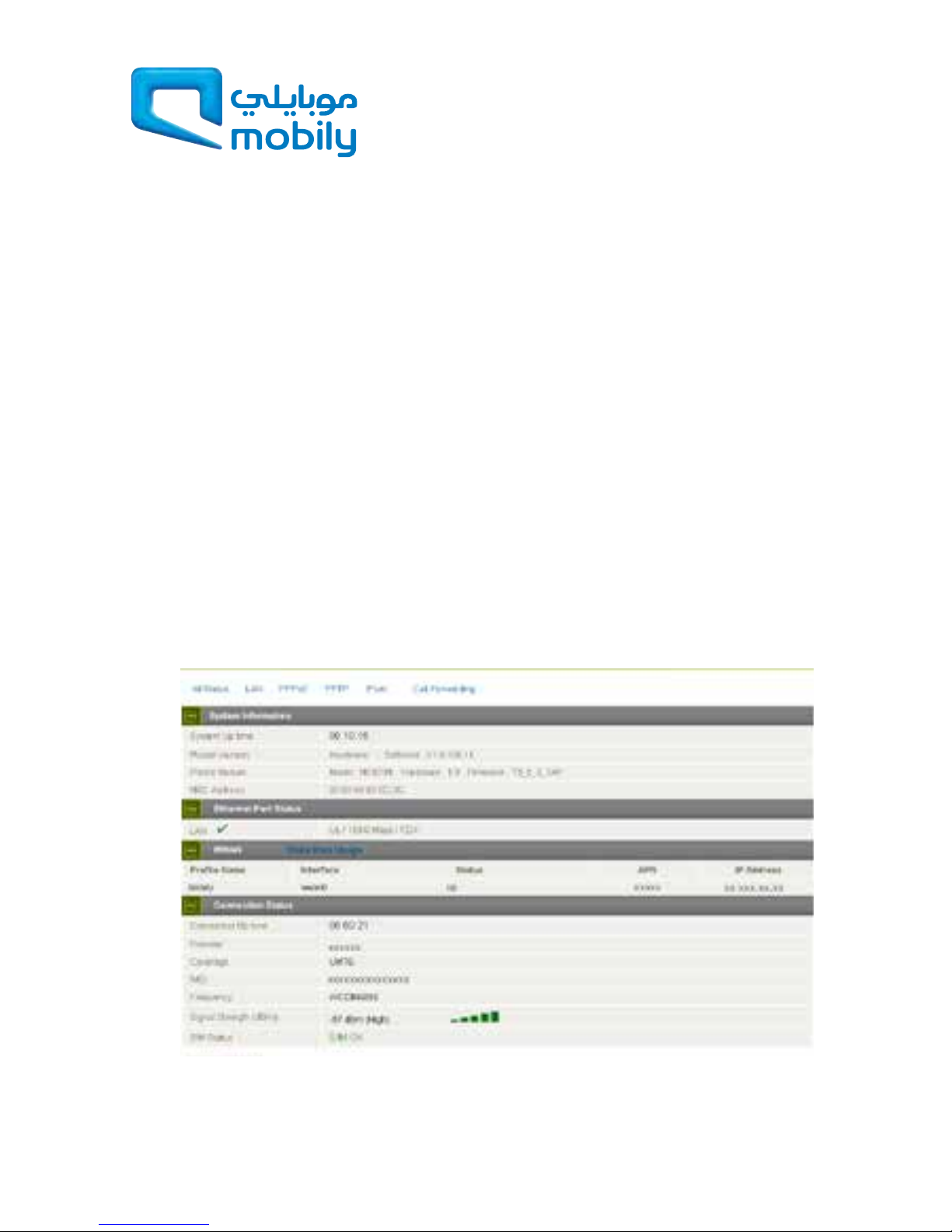

If the SIM card is locked you will need to unlock it with the appropriate PIN
code. You can find out if the SIM is locked by viewing the SIM Status on
the Status page:
If the SIM Status is SIM PIN Required or SIM Locked, then follow the
steps below to unlock the SIM card:
• From the menu, select Internet Settings -> Mobile Broadband
-> SIM Security. This will open up the page displaying SIM Security
Settings as shown below:
• Enter the PIN code in the PIN field and then enter it again in the
Confirm PIN field.
It is highly recommended that you select Remember PIN so that you will
not have to enter the PIN code each time the SIM is inserted. Alternatively
you can also disable SIM PIN protection by selecting Disable PIN from the
PIN Protection drop down menu.
• Click Save.
• Wait few seconds and verify that the SIM Status reads SIM OK.

Indoor Industrial Router
8
Step 6: Connect to the Internet
Your router should automatically connect to the Internet if the SIM status
reads SIM OK. If it does not, follow the steps listed below to setup the
Mobile Broadband connection.
By default, the router is set to automatically configure the mobile
broadband connection. It tries to detect the correct APN and connection
details in order to connect to your Mobile Broadband service.
If the auto-configuration is unsuccessful, you will need to enter the
connection details as follows:
• From the menu, select Internet Settings -> Mobile Broadband ->
Connection.
• Unselect the Automatically configure my mobile broadband box and
click Save.

9

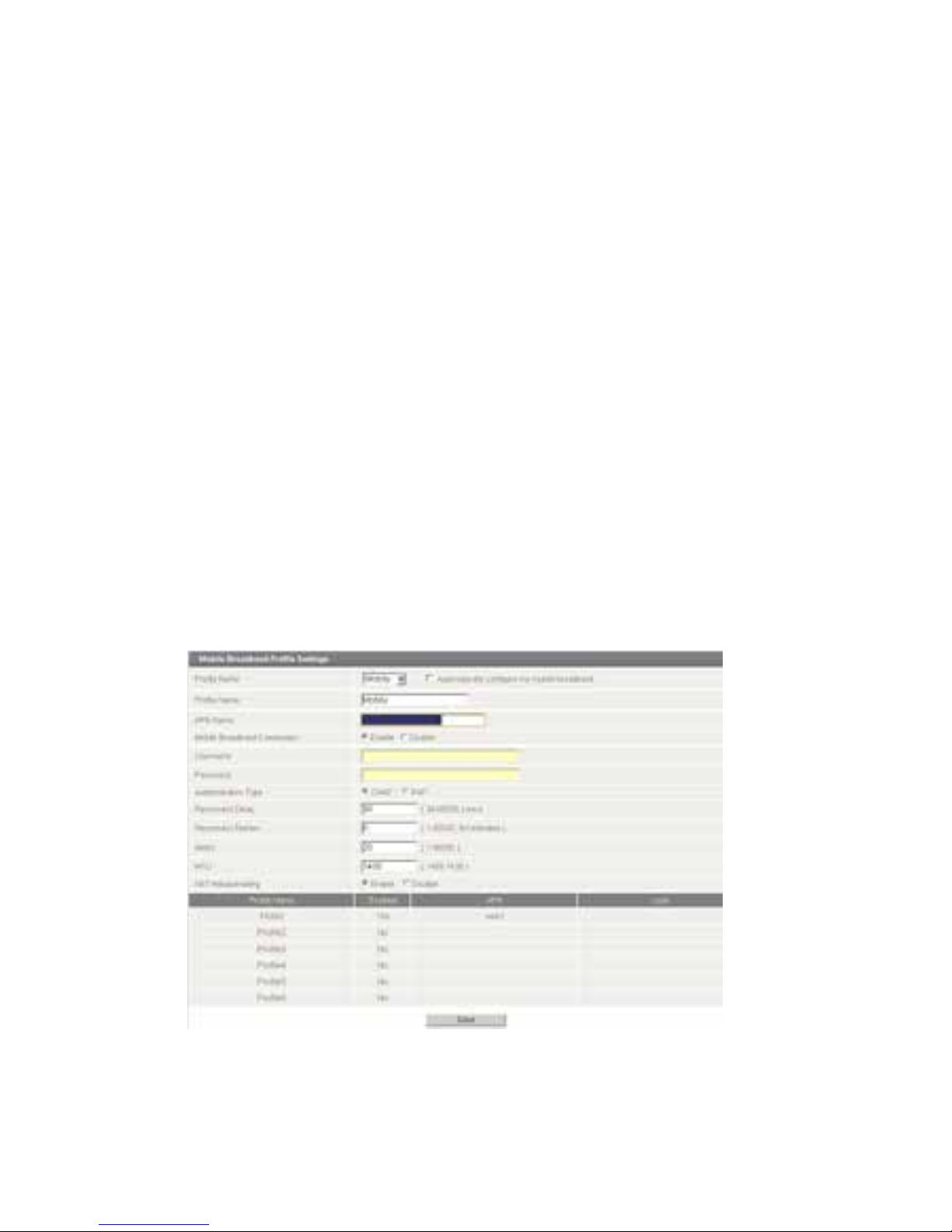

• Select a profile name from the pull down menu to save the profile
settings. You can configure and save the mobile broadband settings the
router will use to connect to a particular network.
• Enter the connection details (APN Name) provided by your mobile
broadband service provider. You may need to enter a Username and
Password provided by your Mobile Broadband service provider.
• Ensure the Mobile Broadband Connection radio button is set to Enable.
• Click Save.
Verify Connection Status
Click on the Status link to return to the status page.
The WWAN Status should be Up. The IP Address field shows the current
IP address that the network has allocated for the Router.

Indoor Industrial Router
10
Wireless LAN Connection

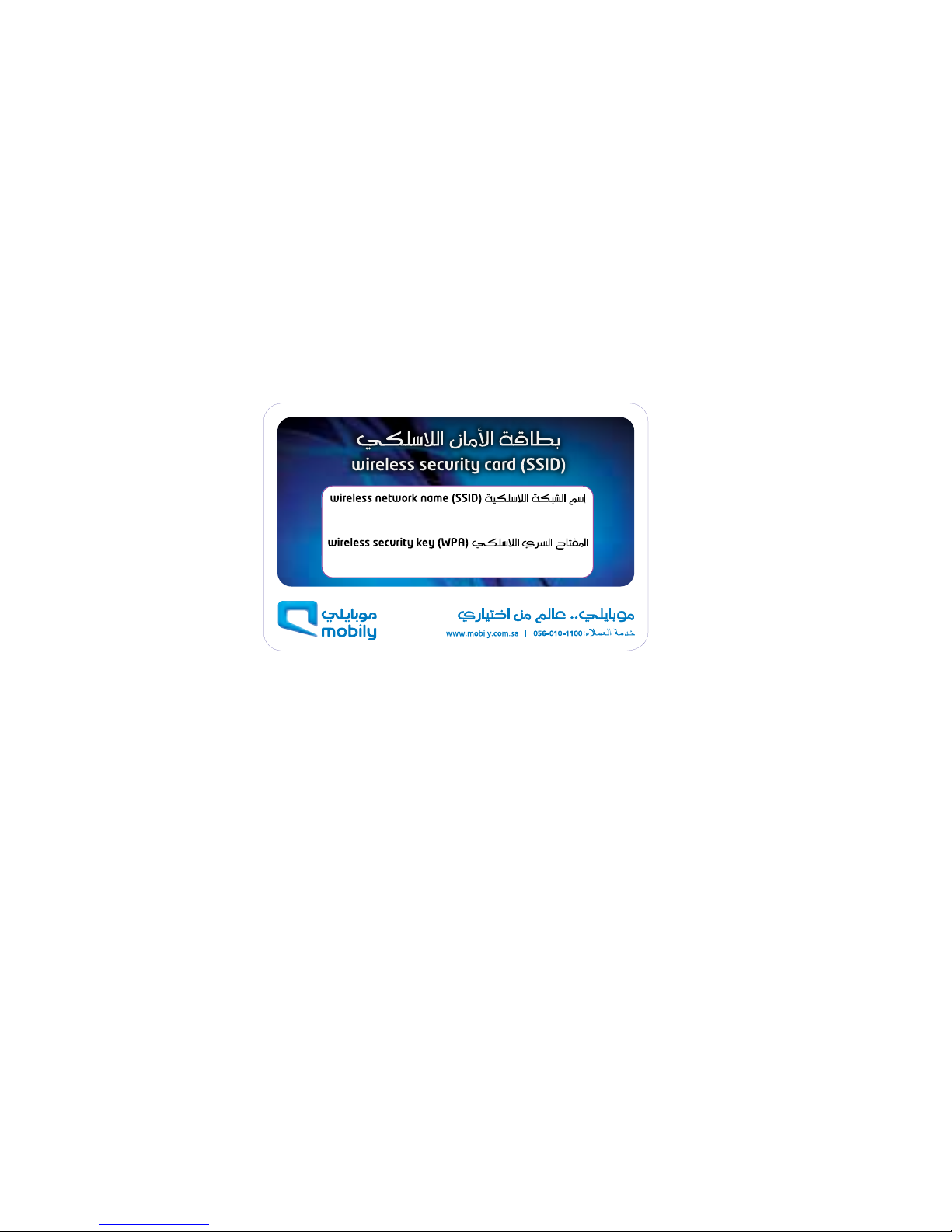

The WiFi Network Name (SSID) and WiFi Security Key are unique for your
device and are printed on the back of your router. The credentials are also
printed on the Wireless Security Card.
The router has the Wireless LAN enabled by default. Follow these steps to
connect to the Internet wirelessly:
• Ensure wireless network is enabled on your device.
• Open the wireless network manager on your device and connect to the
Wireless Network Name (SSID).
• When prompted for your wireless security settings, enter the Wireless
Security Key.
• Wait a few seconds for the connection to establish.
Congratulations - your Router is now ready to use!
For more detailed information on the configuration and activation of other
features, please visit our website www.mobily.com.sa and download the
user guide.


