MicroNet SP3354 V3 User manual

Installation Guide
Broadband ADSL Router
Model No. SP3354 V3
http://www.micronet.info
1
CE Declaration of conformity
This equipment complies with the requirements relating to
electromagnetic compatibility, EN55022 class A for ITE, the essential
protection requirement of Council Directive 89/336/EEC on the
approximation of the laws of the Member States relating to
electromagnetic compatibility.
FCC Part 68
This equipment complies with Part 68 of the FCCRules. On the
bottom of this equipment is a label that contains the FCC Registration
Number and Ringer Equivalence Number (REN) for this equipment.
You must provide this information to the telephone company upon
request.
The REN is useful to determine the quantity of devices you may
connect to the telephone line and still have all of those devices ring
when your number is called. In most, but not all areas, the sum of the
REN of all devices connected to one line should not exceedfive (5.0).
To be certain of the number of devices you may connect to your line,
as determined by the REN, you should contact your local telephone
company to determine the maximum REN for your calling area.
If the modem causes harm to the telephone network, the telephone
company may discontinue your service temporarily. If possible, they
will notify you in advance. But if advance notice isn't practical, you will
be notified as soon as possible. You will be advised of your right to file
a complaint with the FCC.
The telephone company may make changes in its facilities,
equipment, operations, or procedures that could affect the proper
operation of your equipment. If they do, you will be notified in
advance to give you an opportunity to maintain uninterrupted
telephone service.
If you experience trouble with this modem, please contact your dealer
for repair/warranty information. The telephone company may ask you
to disconnect this equipment from the network until the problem has

2
been corrected or you are sure that the equipment isnot
malfunctioning.
This equipment may not be used on coin service provided by the
telephone company. Connection to party lines is subject to state tariffs.
Installation
This device is equipped with a USOC RJ11C connector.
FCC Part 15
The modem gene rates and uses radio frequency energy. If it is not
installed and used properly in strict accordance with the user's
manual, it may cause interference with radio and television reception.
The modem has been tested and found to comply with the limits for
Class B computing devices in accordance with the specifications in
Subpart B, Part 15 of the FCC regulations. These specifications are
designed to provide reasonable protection against such interference
in a residential installation. However, there is no guarantee that
interference will not occur in a particular installation. FCC regulations
require that shielded interface cables be used with your modem.
If interference does occur, we suggest the following measures be
taken to rectify the problem:
1) Move the receiving antenna.
2) Move the modem away from the radio or TV.
3) Plug the modem into a different electrical outlet.
4) Discuss the problem with a qualified radio / TV technician.
CAUTION:
Changes or modifications not expressly approved by theparty
responsible for compliance to the FCC Rules could void the user's
authority to operate this equipment.
Cable connections:
All equipment connected to this modem must use shielded cable as
3
the interconnection means.
Notes:
Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received including
interference that may cause undesired operation.

4
Table of Contents
CE Declaration of conformity.......................................................................1
Chapter 1 Introduction...............................................................................6
1.1 Overview...........................................................................................6
1.2 Features............................................................................................7
1.3 System Requirements....................................................................8
Chapter 2 Installation....................................................................................9
2.1 Checklist............................................................................................9
2.2 The Front LEDs.............................................................................10
2.3 The Rear Ports..............................................................................11
2.4 Hardware installation....................................................................12
Chapter 3 Configuration.............................................................................15
3.1 Purpose...........................................................................................15
3.2 Determine your connection settings.........................................15
3.3 Connecting the ADSL Router to your network.......................17
3.4 Configuring with Web Browser..................................................18
3.5 Status...............................................................................................19
3.5.1 Home...................................................................................19
3.5.2ADSL....................................................................................21
3.5.3 LAN......................................................................................23
3.5.4 PPP......................................................................................24
3.6 Configuration..................................................................................25
3.6.1 WAN.....................................................................................25
3.6.2 LAN......................................................................................29
3.6.3 PPP......................................................................................31
3.6.4 NAT......................................................................................34
5
3.6.5 Virtual Server .....................................................................37
3.6.6 DNS......................................................................................38
3.6.7 Bridge Filtering ..................................................................40
3.6.8 Save Settings.....................................................................41
3.6.9 Reboot Without Saving....................................................42
3.7 Admin Privilege..............................................................................43
3.7.1 WAN Status ........................................................................43
3.7.2 ATM Status .........................................................................44
3.7.3 TCP Status..........................................................................45
3.7.4 Route Table ........................................................................46
3.7.5 Learned (Bridge) MAC Table..........................................49
3.7.6ADSLConfiguration..........................................................50
3.7.7 RIP Configuration..............................................................51
3.7.8PasswordConfiguration..................................................54
3.7.9 Miscellaneous Configuration..........................................56
3.7.10 Reset to Factory Default...............................................58
3.7.11 Diagnostic Test ................................................................59
3.7.12 Code Image Update.......................................................61
3.7.13 Network Code Image Update ......................................62
3.7.14 System Log......................................................................64
Chapter 4 Troubleshooting.........................................................................65
Appendix A Glossary...................................................................................70
Appendix B Cabling / Connection............................................................80

6
Chapter 1Introduction
ThisADSL Router provides home connectivity to an ADSL service
provider network over an ADSL/Asynchronous Transfer Mode (ATM)
physical layer. TheRouter can run upstream maximum transmission
rates of 640Kbps and downstream maximum transmission rates of
8Mbps. The actual rate depends on the copper category of your
telephone wire, distance from the central office and the type of ADSL
service subscribed.
The4-port 10/100MEthernetprovidesconnection to an Ethernet LAN
or Ethernet-equipped PC, and thisRouter is easy to install and to
configure.
1.1 Overview
SP3354is built upon a scalable architecture and is fully compliant
with full-rate ADSL (T1.413 Issue 2 and G.dmt standards) and the
splitterless G.Lite (G.992.2) standards, including Annex A (ADSL over
POTS) and Annex B (ADSL over ISDN). This broad level of
compliance ensures that products based on the AccessRunner can
address the existing installed base and continued deployment of
ADSLlines.
ThisADSLRouterallowsan always-on high-speed broadband
connection to the Internet. It uses existing twisted-pair telephone lines
to deliver data rates at more than 100 times the speed of
conventional dial-up modems, and without the interruptions that can
plague telephone service. Data transfer rates of up to 8 Mbps
downstream and 1 Mbps upstream make it the ideal solution for
high-bandwidth applications for corporate networks, Internet and
video delivery.
Networking support includes both bridge and router modes. The
router mode includes advanced features such as Network Address
7
Translation (NAT), Dynamic Host Protocol (DCHP) and Routing
Information Protocol (RIPv2) processor, ADSL DMT Engine,
Analogue Front End (AFE) and Line Driver.
1.2 Features
ADSLCompliance
-Compliant with ADSL standards
Full-rate ANSI.413 Issue 2 and ITU G.dmt (G.992.1) standards
Splitter less ITU G.lite (G.992.2) specification
Annex A (ADSL over POTS) and Annex B (ADSL over ISDN)
-DMTmodulation and demodulation
-Full-rate adaptive modem
Maximum downstream rate of 8 Mbps
Maximum upstream rate of 1 Mbps
-Tone detection for low power mode
-Supports splitter less ADSL implementation
-Supports Dying Gasp
-Interoperable with all major DSLAM equipment
ATM Protocols
-WAN mode support:
PPP over ATM (RFC 2364) and
PPP over Ethernet (RFC 2516)
-LAN mode support:
bridged/routed Ethernet over ATM (RFC 1483) and
classical IP over ATM (RFC 1577)
-ATM ForumUNI 3.1/4.0PVC
-Up to 8 VCs (virtual circuits)
-ATM SAR (segmentation and reassembly)
-ATM AALC (adaption layer type 5)
-OAM F4/F5
Bridge Mode
-Ethernet to ADSL self learning Transparent Bridging (IEEE
802.1D)
-Supports up to 128 MAC learning addresses
Router Mode
-IP routing-RIPv2
-Static routing

8
-DNS Proxy
-Port Forwarding
-DHCP (dynamic host configuration protocol) server and client
-NAT (network address translation)
-MAPT (network address and port translation)
-ICMP (Internet control message protocol)
-Simultaneous USB and Ethernet operation
Security
-User authentication for PPP
-PAP (password authentication protocol)
-CHAP (challenge authentication protocol)
-Password protected system management
Ethernet Interface
-Compliant with IEEE 802.3 and 802.3u 10/100 Mbps
HTTPWeb-Based Management
-Firmware upgrade via FTP
-Customizable Web pages
-WAN and LAN side connection statistics
-Configuration of static routes and routing table
-Password protected access
-Selectionof bridgeorrouter mode
-PPP user ID and password
-Configuration of VCs (virtual circuits)
1.3 System Requirements
1) Personal computer (PC)
2) Pentium II 233 MHz processor minimum
3) 32 MB RAM minimum
4) 20 MB of free disk space minimum
5) Ethernet Network Interface Controller (NIC) RJ45 Port
6) Internet Browser
9
Chapter 2 Installation
This chapter offers information about installing your router. If you are
not familiar with the hardware or software parameters presented here,
please consult your service provider for the values needed.
2.1 Checklist
Check the shipping box carefully to ensure that the contents include
the items you ordered. If any of the items are missing or damaged,
contact your local distributor. The contents of your carton may vary
depending on your service provider.
Contents description
1) ADSL Router for home/office use.
2) ADSL Router Installation and Operation Guide (this publication)
3) Quick Installation Guide
4) Power supply with 9VDC /1.5 A power adapter
5)ADSL cable RJ-11 telephone cable
6) Ethernet cable Ethernet category 5 twisted pair cable

10
2.2 The Front LEDs
LED State Description
POWER ON
OFF Modem is powered ON Modem is powered OFF
READY Flashing
OFF When the router is working properly The router is not ready
ADSL
ON "Showtime"-successful connection between ADSL modem and telephone
company's network
Flashing
"Handshaking"-modem is trying to
establish a connection to telco's network
LINK
OFF Modem is powered OFF ADSL Carrier
Detect if LED is flash
ACT Flashing
Data transmitting between LAN and PC
LAN
LAN(1-4)
These four LAN (Local Area Network) ports are where
you will connect networked devices, such as PCs,
print servers, remote hard drives, and anything else
you want to put on your network.
11
2.3 The Rear Ports
Connector Description
POWER Power connector with 9Vdc/ 1.5 Ampere
Reset
Button The reset button, when pressed, resets the modem without the need to unplug the power cord
LAN (1-4) Router is successfully connected to a device
through the corresponding port (1, 2, 3 or 4). If the
LED is flashing, the Router is actively sending or
receiving data over that port.
ADSL
Connector TheRJ-11 connector allows data communication
between the modem and the ADSL network through
a twisted-pairphonewire

12
2.4 Hardware installation
This section describes how to connect and configure the ADSL router.
Step 1. Connect the ADSL Line
Connect the router directly to the wall jack using the included
ADSL cable.
Step 2. Connect a Workstation to the Router's LAN port
There are two methods to connect the router and workstation.
The one use the crossover Ethernet cable to connect directly
between them. The other use straight Ethernet cable to
connect router with hub (or switch), then go to the
workstation.
Step 3. Connect the Power Adapter to the Router
Connect the power adapter to the port labeled POWER on
the rear panel of router.
Step 4. Connect All Cables to the Network
The procedure for connecting cables differs depending on
whether or not your telephone equipment is connected to a
POTS splitter.
13

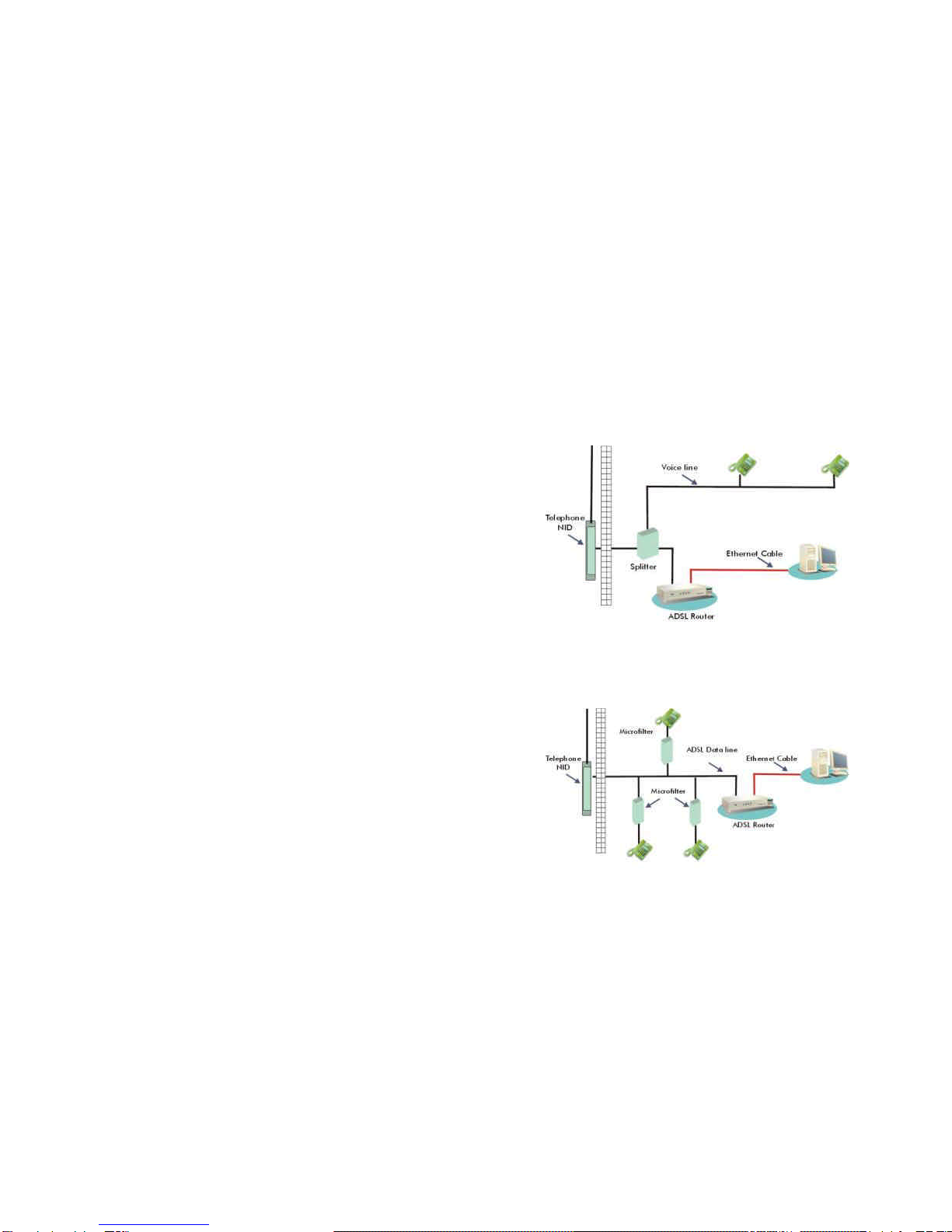

POTS Splitter Configuration (ADSL over POTS)
A POTS splitter separates data signals from voice signals on your
telephone line. The POTS splitter works by running a separate data
line from the voice line, so that the ADSL router has a dedicated cable
for data transmission. Figuresbelowshow to connect all cables to the
Router.
Note: The POTS splitter may also be installed on the outside of the
house adjacent to the telephone network interface device (NID).

14

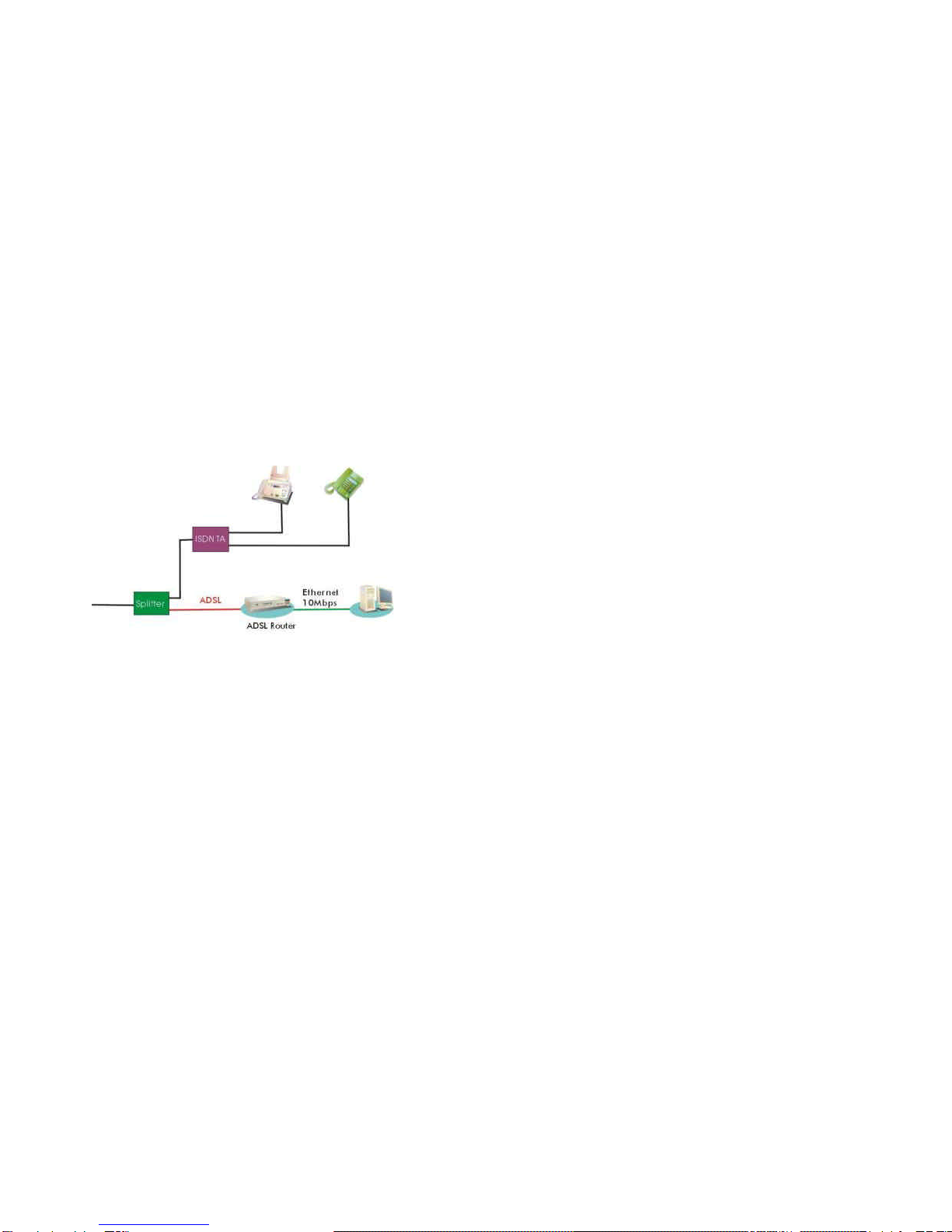

ISDN Splitter Configuration (ADSL over ISDN)
A ISDN splitter separates ADSL signals from ISDN signals on your
ISDN telephone line. The ISDN splitter works by running a separate
ADSL line from the ISDN line, so that the ADSL router has a
dedicated cable for data transmission. Figure shows how to connect
all cables to the Router.
Note: The ISDN splitter may also be installed on the outside of the
houseadjacentto the telephone network interface device (NID).
15
Chapter 3 Configuration
3.1 Purpose
This chapter provides information about configuring the ADSL Router.
3.2Determine your connection settings
Before you configure the router, you need to know the connection
information supplied by your ADSL service provider.
ProtocolSelection
1) PPPoEVC-Mux
2) PPPoELLC
3) PPPoENone
4) PPPoAVC-Mux
5) PPPoALLC
6) 1483 Bridged IP VC-Mux
7) 1483 Bridged IP LLC
8) 1483 Routed IP VC-Mux
9) 1483 Routed IP LLC
10) Classical IP over ATM

16
Gather the information as illustrated in the following table and keep it
for reference.
PPPoE VC-Mux:
VPI/VCI, Service Name, Username, Password, and Domain
Name System (DNS) IP address (it can be automatically
assigned from ISP or be set fixed)
PPPoE LLC: VPI/VCI, Service Name, Username, Password, and Domain
Name System (DNS) IP address (it can be automatically
assigned from ISP or be set fixed)
PPPoE None:
VPI/VCI, Service Name, Username, Password, and Domain
Name System (DNS) IP address (it can be automatically
assigned from ISP or be set fixed)
PPPoA
VC
-Mux: VPI/VCI, Username, Password, and Domain Name System (DNS) IP address (it can be automatically assigned from ISP or
be set fixed).
PPPoA LLC: VPI/VCI, Username, Password, and Domain Name System
(DNS) IP address (it can be automatically assigned from ISP or
be set fixed).
1483 Bridged IP
VC
-Mux: VPI/VCI
1483 Bridged IP
LLC: VPI/VCI
1483 Routed IP
VC
-Mux: VPI/VCI, IP address, Subnet mask, Gateway address, and DomainName System (DNS) IP address (it is fixed IP address).
1483 Routed IP
LLC: VPI/VCI, IP address, Subnet mask, Gateway address, and Domain Name System (DNS) IP address (it is fixed IP address).
Classical IP
over ATM: VPI/VCI, IP address, Subnet mask, Gateway address, and Domain Name System (DNS) IP address (it is fixed IP address).
17
3.3Connecting the ADSL Router to your network
Unlike a simple hub or switch, the setup of the ADSL Router consists
of more than simply plugging everything together. Because the
Router acts as a DHCP server, you will have to set some values
within the Router, and also configure your networked PCs to accept
the IP Addresses the Router chooses to assign them. Generally there
are several different operating modes for your applications. And you
can know which mode is necessary for your system from ISP. These
modesare router,bridge,PPPoE+NAT andNATand PPPoA+NAT.
Actually all these are for IP address of WAN.
1. If your ISP provides RFC1483 Routed mode, it means the IP
address of LAN will be routed via WAN. You should set the
"Router" mode in the ADSL router for this situation, also set the IP
address / netmask of LAN and VPI/VCI of WAN. Then save and
reboot Router, it will work fine with your whole system. The
computer should be set the fixed assigned IP address with the
same domain at this mode.
2. If your ISP provides RFC1483 Bridge mode plus PPPoE, it
means the IP address of computer or router will be assigned
automatically via PPPoE. There are two methods you can use at
this mode. First you can set the "bridge" mode, give VPI/VCI of
WAN and install PPPoE driver on your computer. Then save and
reboot router, it will work fine with your whole system. You need to
use Dial_Up_Network to get the IP address of computer every
time. Second method you can set the "PPPoE+NAT" mode, give
VPI/VCI of WAN and set user's name & password for PPPoE on
your router. Then save and reboot router, it will work fine with
your whole system. The computers should be set as DHCP client
to get IP dynamically.
3. If your ISP provides RFC2364 mode, it means the IP address of
router will be assigned automatically via PPPoA. You can set the
"PPPoA+NAT" mode, give VPI/VCI of WAN and set user's name
& password for PPPoA on your router. Then save and reboot
router, it will work fine with your whole system. The computers
should be set as DHCP client to get IP dynamically.
4. If your ISP provides RFC1483 Routed and the serial static IP

18
address for you, there are two methods you can use at this mode.
First you can set the"router" mode and give VPI/VCI of WAN.
Then save and reboot router, it will work fine with your whole
system. The computers should be set the fixed assigned IP
address at this method. Second method you can set the "NAT"
mode, give VPI/VCI/ IP address /netmask of WAN. Then save
and reboot router, it will work fine with your whole system. The
computers should be set as DHCP client to get IP dynamically.
3.4Configuring with Web Browser
Open the web browser, enter the local port IP address of the ADSL
Modem/Router, which default at http://10.0.0.2, and click 'Go' to get
the login page.
If you want to configure the device with administrator level, type
admin in the username field and epicrouterin the password field.
19
If you want to configure the device with the user level, typeuser in
the username field and password in thepasswordfield.
Then, click OK to log in. You can modify these passwords for security
and management purpose.
At the configuration homepage, the left navigation pane where
bookmarks are provided links you directly to the desired setup page.
Clickon the desired item to expand the page in the main navigation
pane.
3.5Status
3.5.1 Home
TheHomePage shows the firmware versions and WAN and LAN
interface status.
Firmware Version: This field display the Conexant firm ware
(vxworks.z) version number.
Customer Software Version:This field displays the customer'
sown firmware version number and it is based on revision.txt.

20
WAN: These fields display the IP address, Subnet Mask and
MAC address for the WAN ADSL) interface.

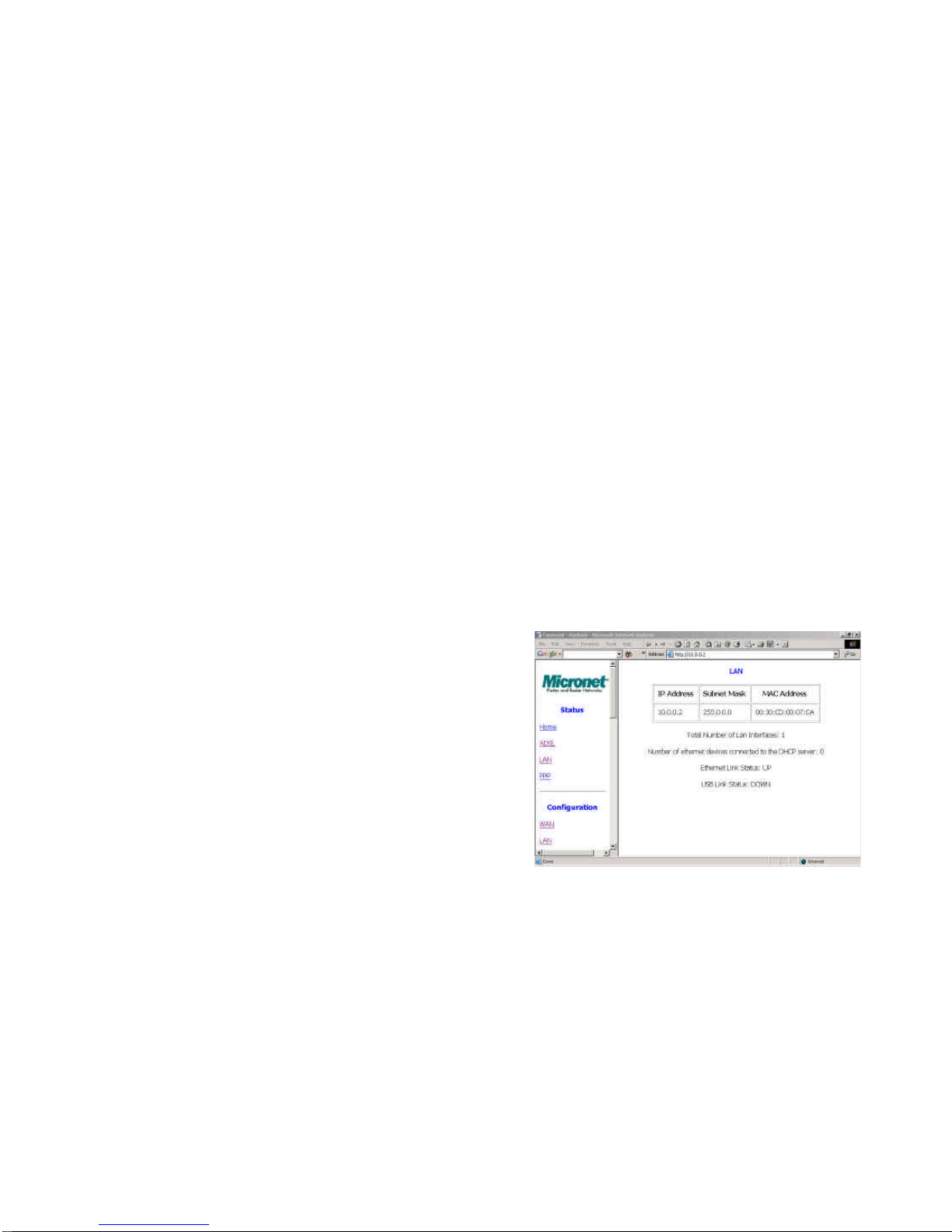

LAN: These fields display the IP address, Subnet Mask and MAC
address for the LAN interface.
Total Number of LAN Interfaces: This field displays the total
number of available interfaces for the LAN interface.
Number of Ethernet Devices Connected to the DHCP Server:
These fields display the DHCP client table with the assigned IP
addresses.
21
3.5.2 ADSL
TheADSLStatus page shows the ADSL physical layer status.
Showtime Firmware Version:This field displays the Conexant
ADSL data pump firmware version number.
ADSLLineStatus: This field displays the ADSL connection
process and status.
ADSL Modulation: This field displays the ADSL modulation
status for G.dmt or T1.413.
ADSLAnnexMode: This field displays the ADSL annex modes
forAnnexAorAnnexB.
ADSL Startup Attempts: This field displays the ADSL
connection attempts after lossof showtime.
ADSL Max Tx Power: This field displays the transmit output

22
power level of the CPE.
ADSL CO Vendor: This field displays the Central Office DSLAM
vendor name, if available.
Elapsed Time: This field displays the time of the modem has
been in operation.
SNR Margin: Amount of increased noise that can be tolerated
while maintaining the designed BER (bit error rate). The SNR
Margin is set by Central Office DSLAM. If the SNR Margin is
increased, bit error rate performance will improve, but thedata
rate will decrease. Conversely, if the SNR Margin is decreased,
bit error rate performance will decrease, but the data rate will
increase.
Line Attenuation: Attenuation is the decrease in magnitude of
the ADSL line signal between the transmitter (Central Office
DSLAM) and the receiver (Client ADSL Modem), measured in dB.
It is measured by calculating the difference in dB between the
signal power level received at the Client ADSL modem and the
reference signal power level transmitted from the Central Office
DSLAM.
Errored Seconds:The error during Showtime, whenever, a
given sec contains CRC error, that second will be declared error
second.
Loss of Signal: This field displays the count of event of ADSL
signal loss.
Loss of Frame: This field displays the count of event of ADSL
frame loss.
CRC Errors: This field displays the number of transmit data
frames containing CRC errors.
DataRate: This field displays the ADSL data rate.
Latency:This field displays the latency modes for fast or
interleave.
23
3.5.3 LAN
TheLAN page shows the information and status of LAN port, DHCP
client table,Ethernet link and USB link.
LAN: These fields display the IP address, Subnet Mask and MAC
address for the LAN interface.
Total Number of LAN Interfaces: This field displays the total
number of available interfaces for the LAN interface.
Number of Ethernet Devices Connected to the DHCP Server:
These fields display the DHCP client table with the assigned IP
addresses and MAC addresses.
Ethernet Link Status: This field displays the link up or down for
the Ethernet.
USB Link Status: This field displays the link up or down for the
USB.

24
3.5.4 PPP
ThePPP Status page shows the status of PPP for each PPP
interface.
PPP:These fields display the Connection Name (user defined),
Interface (PVC), Mode (PPPoE or PPPoA), Status (Connected or
Not Connected), Packets Sent, Packets Received, Bytes Sent
and Byte Received.
ConnectandDisconnect: This field allows the user to manually
connect/disconnect the PPP connection for each PPP interface.
In another word, each PPP session can be connected and
disconnected individually.
25
3.6 Configuration
3.6.1 WAN
TheWAN configuration page allows the user to set the configuration
for the WAN/ADSL ports.
Per VC Settings:Under Per VC Setting, it provides the
configurations for VPI/VCI, Static IP Address Subnet Mask, and
Gateway. The Static IP Address, Subnet Mask and Gateway are
used for Static IP configuration. Current Conexant firmware
supports eight PVCs.
To switch b etween the PVCs, please choose the options of virtual
circuit and click on the Submit button to switch over.
MACSpoofing: The MAC Spoofing is developed to solve the
scenario when the ISP only recognizes one MAC address. Copy
the ISP-recognized MAC address here.

26
ATM
Service Category:UBR and CBR are supported from the ATM.
Bandwidth:Bandwidth setting takes effect only when the CBR is
selected. The maximum available bandwidth is from the
upstream data rate of ADSL status page (see Section 3.4.2
Status -ADSL).
Encapsulation, Bridge, PPP, and DHCP Client
WAN Configuration Bridge Mode
IP address N/A
Subnet Mask N/A
Encapsulation 1483 Bridged IP LLC,
1483 Bridged IP VC-Mux
Bridge Enabled
PPP Service N/A
PPP User name N/A
PPP Password N/A
DHCPClient enable
Unchecked
Router Mode
WAN Configuration PPPoA/PPPoE Dynamic IP Static IP
IP address Automatically assigned by ISP Provided by ISP
Subnet Mask Automatically assigned by ISP Provided by ISP
Encapsulation PPPoA LLC/VC-Mux,
PPPoE LLC/VC-Mux,
1483 Bridged/Routed IP LLC,
1483 Bridged/Routed VC-Mux,
Classical IP over ATM
Bridge Disabled Disabled
PPP Service Provided by ISP N/A
PPP User name Provided by ISP N/A
PPP Password Provided by ISP N/A
DHCPClientenable
Unchecked Checked Unchecked
27
PPP Configuration
The current release supports multiple PPP sessions per PVC. The
PPP configuration in the WAN configuration page is for the first PPP
session for each PVC. The predefined PPP Account Name (Account
ID) is “Simple PPP Account 0” for PVC0 and predefined PPP
Connection Name is “Simple PPP Session 0” for PVC0. For the other
PVC X, the predefined account name and connection name will be
Simple PPP Account X and Simple PPP Session X. X is the PVC
number from 1 to 7.
For the multiple PPPsessions, please go to PPPConfiguration page.
Service Name: The service name of PPP is required by some
ISPs. If the ISP does not provide the Service Name, please leave
it blank.
Disconnect Timeout: The Disconnect Timeout allows the user to
set the specific period of time to disconnect from the ISP. The
default is 0, which means never disconnect from the ISP.
MRU: Maximum Receive Unit indicates the peer of PPP
connection the maximum size of the PPP information field this
device can be received. The default value is 1492 and is used in
the beginning of the PPP negotiation. In the normal negotiation,
the peer will accept this MRU and will not send packet with
information field larger than this value.
MTU: Maximum Transmission Unit indicates the network stack of
any packet is larger than this value will be fragmented before the
transmission. During the PPP negotiation, the peer of the PPP
connection will indicates its MRU and will be accepted. The
actual MTU of the PPP connection will be set to the smaller one
of MTU and the peer’s MRU. The default is value 1492.
MSS: Maximum Segment Size is the largest size of data that
TCP will send in a single IP packet. When a connection is
established between a LAN client and a host in the WAN side, the
LAN client and the WAN host will indicate their MSS during the
TCP connection handshake. The default value is 1432.

28
Automatic Reconnect: When it is checked, it will maintain the
PPP connection all the time. If the ISP shut down the PPP
connection, it will automatically reconnect PPP session.
Authentication:When AUTO option is chosen, the PAP mode
will run first then CHAP.
Host name: Required by some ISPs. If the ISP does not provide
the Host name, please leave it blank.
IGMP
IGMP relay/proxy specification and environment:Support IGMP
proxy/relay function for ADSL modem, based on the following
requirement and case:
On CO side, there must be at least one IGMP querier (router) present.
IGMP querier will send IGMP query packet. The ADSL modem is
responsible to relay these IGMP query to Ethernet.
End-user multicast application device send IGMP report while
receiving IGMP query or being activated by user, the ADSL modem
should be responsible to proxy (that is, change source IP to ADSL
modem’s WAN IP) the IGMP report to ADSL WAN side, include all
PVCs. The same case is for IGMP leave packet.
Not necessary to relay multicast routing between two ADSL PVCs or
two interfaces in LAN side.
Special purpose multicast packet (such as RIP 2 packet) should run
without interference.
Rx Entity Packet Class TTL
Action Notes
IGMP query 1RelaytoEthernet
IGMP report 1Ignore
IGMP leave 1Ignore
ADSL
General Multicast IP -Relay toEthernet
IGMP query 1Ignore
IGMP report 1Relay to all ADSL PVC
IGMP leave 1Relay to all ADSL PVC
Ethernet
General Multicast IP -Ignore
29
3.6.2 LAN
TheLAN configuration page allows the user to set the configuration
for the LAN port.
LAN IP Address & Subnet Mask: The default is 10.0.0.2 and
255.0.0.0. User can change it to other private IP address, such as
192.168.1.2, and 255.255.255.0.
DHCP Server
SystemAllocated: The DHCP address pool is based on LAN
port IP address plus 12 IP addresses. For example, the LAN IP
address is 10.0.0.2; the DHCP address pool is at the rangeof
10.0.0.3 to 10.0.0.14.
User Defined:The DHCP address pool is at the range of User
Defined Start Address and User Defined End Address. The

30
maximum pool size can be 253 IP addresses: 255 total IP
addresses –1 broadcast address –1 LAN port IP address.
DHCP Gateway Selection: The default setting for the DHCP
Gateway Selection is “Automatic”. The user can select the “User
Defined” to specify “User Defined Gateway Address”. The DHCP
server will issue the “User Defined Gateway Address” to the LAN
DHCPclients.
Leasetime:The Lease time is the amount of time of a network
user will be allowed to connect with DHCP server. If all fields are
0, the allocated IP addresses will be effective forever.
User mode: Under the Single User mode, the DHCP server only
allocates one IP address to local PC. Under the Multiple User
mode, the DHCP server allocates the IP addresses specified bye
the DHCP address pool.

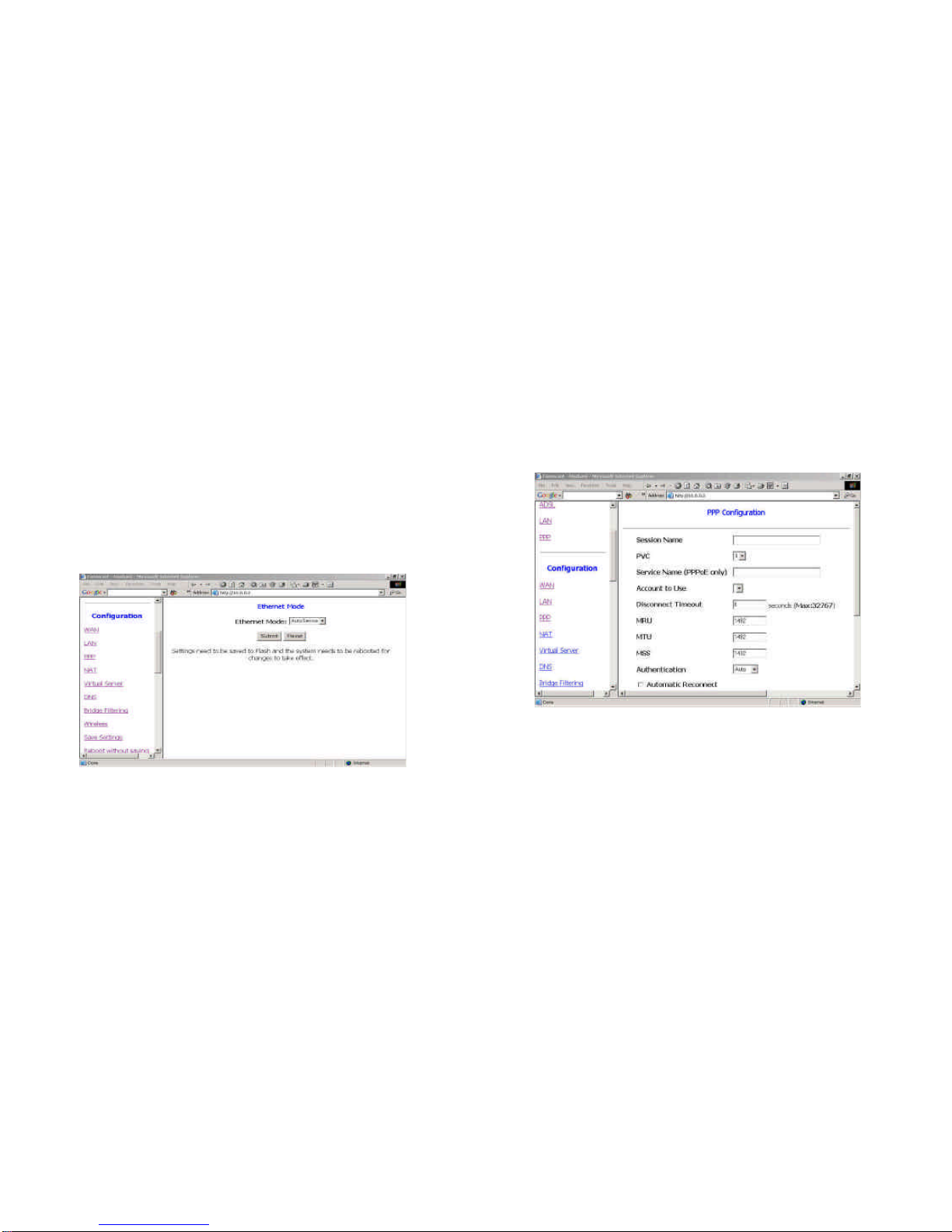

Ethernet Mode Setting
The Ethernet Mode configuration page allows the user to set the LAN
portintoAuto Sense, 100 Mbps Full Duplex, 100 Mbps Half Duplex,
10 Mbps Full Duplex or 10 Mbps Half Duplex.
31
3.6.3 PPP
ThePPP Configuration page allows the user to configure multiple
PPP sessions for each PVC. It can support up to total of 16 PPP
sessions, and each PVC can support up to 8 PPP sessions. The
multiple PPP sessions may be configured with any combination over
8PVCs.
Session Name: This field allows the user to enter his/her own
session Name to distinguish different session for different PPP
accounts and different PVCs.
PVC: This field allows the user to choose the specific PVC for
PPP session.
Service Name: The service name of PPP is required by some
ISPs. If the ISP does not provide the Service Name, please leave
it blank.

32
Disconnect Timeout: The Disconnect Timeout allows the user to
set the specific period of time to disconnect from the ISP. The
default is 0, which means never disconnect from the ISP.
MRU: Maximum Receive Unit indicates the peer of PPP
connection the maximum size of the PPPinformation field this
device can be received. The default value is 1492 and is used in
the beginning of the PPP negotiation. In the normal negotiation,
the peer will accept this MRU and will not send packet with
information field larger than this value.
MTU: Maximum Transmission Unit indicates the network stack of
any packet is larger than this value will be fragmented before the
transmission. During the PPP negotiation,the peer of the PPP
connection will indicates its MRU and will be accepted. The
actual MTU of the PPP connection will be set to the smaller one
of MTU and the peer’s MRU. The default is value 1492.
MSS: Maximum Segment Size is the largest size of data that
TCP will send in a single IP packet. When a connection is
establishedbetween aLAN client and a host in the WAN side, the
LAN client and the WAN host will indicate their MSS during the
TCP connection handshake. The default value is 1432.
Automatic Reconnect: When it is checked, it will maintain the
PPP connection all the time. If the ISP shut down the PPP
connection, it will automatically reconnect PPP session.
Authentication:When AUTO option is chosen, the PAP mode
will run first then CHAP.
PPPConfigurationStatus will be displayedat thebottomof this
page to show all the Session Names with its Adapter (PVC
number), Mode (PPPoA or PPPoE), Service Name, Account to
Use (PPP Account ID), Disconnect Timeout configuration, MRU,
MTU, MSS, Authentication Mode (Auto, CHAP or PAP), and Auto
Reconnect configuration.

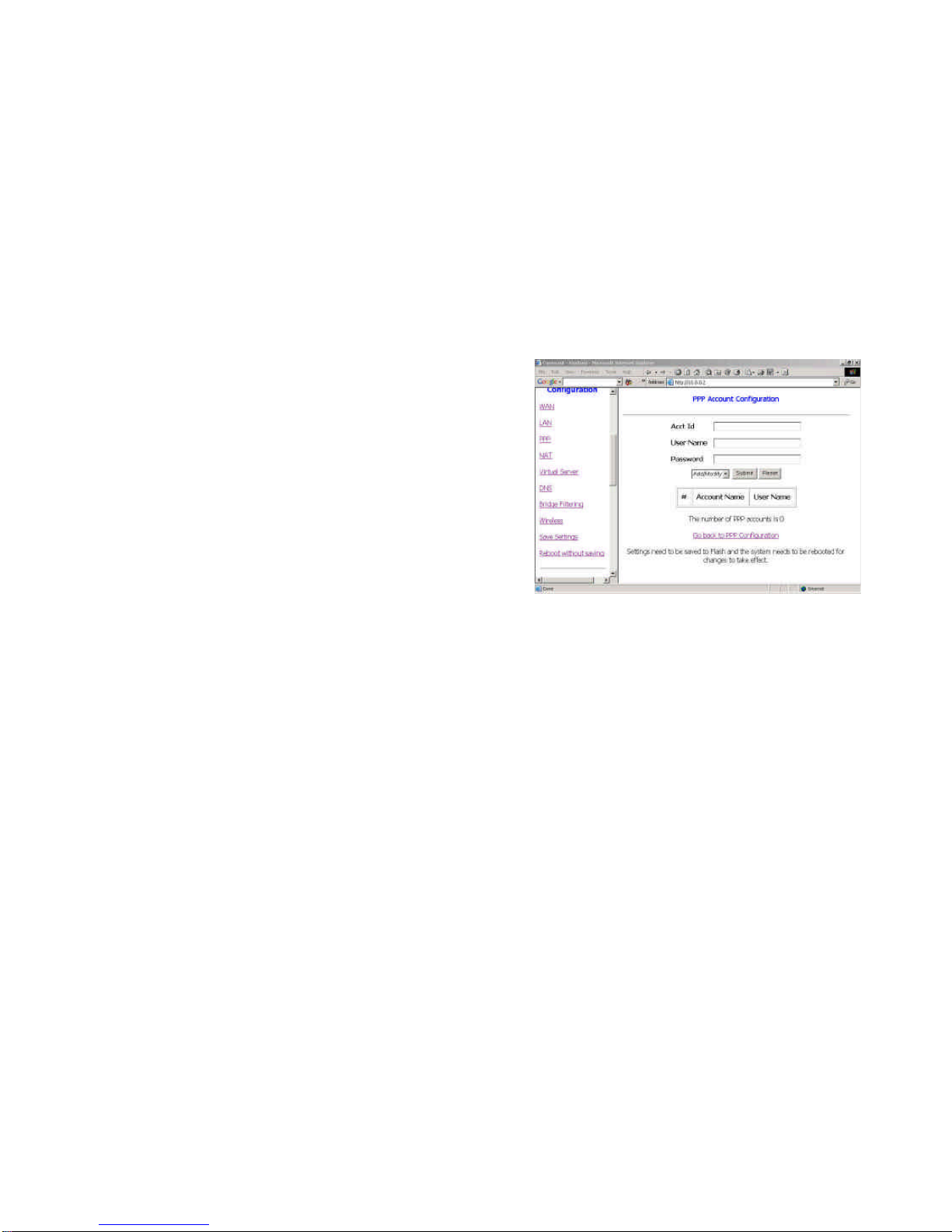

To configure the PPP, must go to thePPP Account Configuration
page first to configure Account ID, Users Name and Password.
33
AccountID: This field allows the user to enter his/her own
account ID to distinguish different accounts.
User Name: Enter the PPP user name (usually provided buy the
ISP).
Password: Enter the PPP password (usually provided buy the
ISP).
PPPAccountConfigurationStatus will be displayed at the
bottom of this page to show all the accounts with its Account
Name and User Name. (It does not show the password.)
The Number of PPP Accounts: This field displays the total
number of PPP Accounts is entered.

34
3.6.4 NAT
TheNAT Configuration page allows the user to set the configuration
for the Network Address Translation. The default setting is Dynamic
NAPT. It provides dynamic Network Address Translation capability
between LAN and multiple WAN connections, and the LAN traffic is
routed to appropriate WAN connections based on the destination IP
addresses and Route Table. This eliminates the need for the static
NAT sessionconfiguration between multiple LAN clients and multiple
WAN connections.
When the Dynamic NAPT is chosen, there is no need to configure the
NAT Session and NAT Session Name Configuration.
Session Name Statuswill be displayed at the middles of this
page to show the corresponding Session Name with its IP
address.
Available Session Statuswill be displayed at the end of this
35
page to show all the session Names with its WAN Interface.
Session Name: This field allows the user to entere his/her own
session Name todistinguishdifferent NAT session fordifferent
interfaces among different PPP sessions and different PVCs.
Interface: This field allows the user to choose specific WAN
Interface (PVC or PPP Session) for NAT Session.
NATSessionNameStatus will be displayed at the bottom of this
page to show all the Session Names with its WAN Interface.
Click the link Go back to NAT Configuration to the NAT
configuration page. Select the NAT option. Select the Session Name
and assign the PC IP address, and choose the Add action. Click the
Submit button and go to theSave Settings to save this
configuration.
NAT allows only one entry (User IP) per session.
NAPT(Static)
TheNAPT option maps the single WAN IP addresses to many local
PCs IP addresses. (1×N). It is the multiple-mapping mechanism. For
each WAN Interface, more than one local PCs can be associated with
one WAN Interface. Click the link Session Name Configuration to
add the session name for WAN interface.
Session Name:This filed allows the user to enter his/her own
session Name todistinguishdifferent NAT session for different
interfaces among different interfaces among different PPP
sessions and different PVCs.
Interface: This filed allows the user to choose specific WAN
Interface (PVC or PPP Session) for NAT Session.
NAT Session Name Statuswill be displayed at the bottom of this
page to show al the Session Names with its WAN Interface.

36
Click the link Go back to NAT Configuration to the NAT
configuration page. Select the NAPT option. Select the Session
Name and assign the PC IP address, and choose theAdd action.
Click theSubmit button and go to the SaveSettings to save this
configuration.
NAPTallows many entries (User IPs) per session.
SessionNameStatus will be displayed at the middle of this page to
show the corresponding Session Name with its IP address.
AvaiableSessionsStatus will be displayed at the end of this page to
show all the Session Names withits WAN Interface.
37
3.6.5 Virtual Server
TheVirtual Server Configuration page allows the user to set the
configurationof Virtual Server. This firmware includes the Free BSD
version firewall. All UDP/TCP ports are protected from intrusion. If
any specific local PCs need to be mapped to the UDP/TCP ports on
WAN side, please input the mapping here.
PublicPort: This field allows the user to enter the port number of
the Public Network.
PrivatePort: This field allows the user to enter the port number
of the Private Network.In most cases, the private port number is
same as public port number.
Host IP Address: This field allows the user to enter the private
network IP address for the particular sever.

38
3.6.6 DNS
The DNS Configuration page allows the user to set the configuration
of DNS proxy. The firmware supports DNS proxy function. For the
DHCP requests from local PCs, the DHCP server will set the LAN
port IP as the default DNS server. Thus, all DNS query messages will
come into LAN port first. The DNS proxy on the ADSL modem
recorded the available DNS servers, and forward DNS query
messages to one of DNS server.
Disable DNS Proxy: The LAN port does not process the DNS
query message. For the DHCP requests from local PCs, the
DHCP server will set the user-configured preferred DNS sever or
alternate DNS server whichever is available as the DNS server.
Then all DNS query messages will be directly sent to the DNS
servers.
UseAutoDiscoveredDNSServersOnly: The DNS proxy will
store the DNS server IP addresses obtained from DHCP client or
39
PPP into the table. Andall DNS query messages will be sent to
one of the dynamically obtained DNS servers.
UseUserConfiguredDNSServersOnly: The DNS proxy will
use the user-configured preferred DNS server and alternate DNS
server. And all DNS query message will be sent toone of DNS
servers. Enter the DNS IP in the Preferred DNS Server and
Alternate DNS Server fields.
Auto Discovery + User Configured:The DNS proxy’s table has
all the IP addresses of dynamically obtained and user configured
DNS servers.
