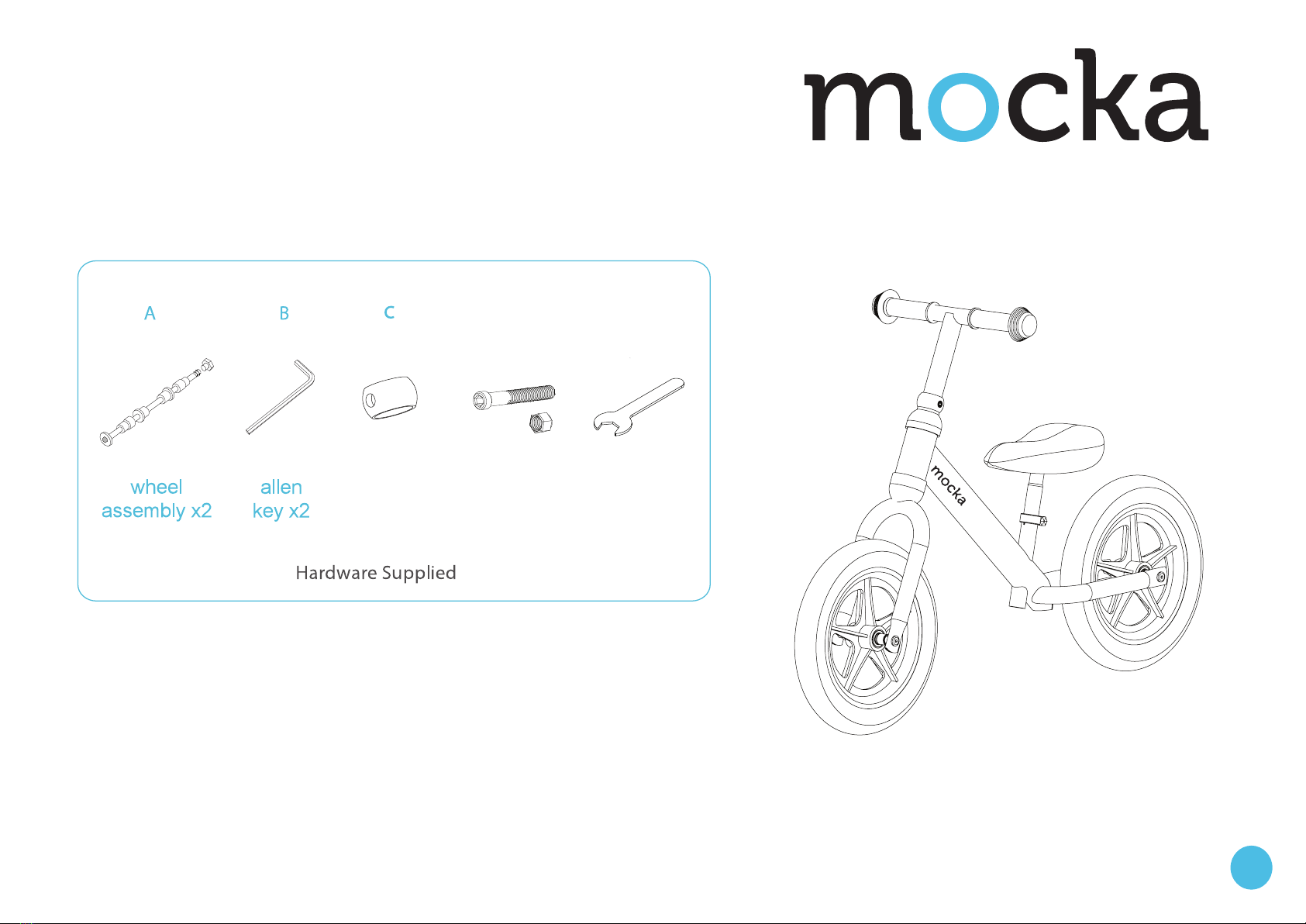

Mocka Rocket Bikes User manual

spanner
x1
ALL nuts and bolts must be checked and tightened before first use.
Regularly check all screws are tight to ensure safety.
Mocka Rocket Bikes are designed for children aged 18 months - 4 years. These bikes
should not be used on public roads or near traffic. Wearing a helmet is advisable. Only one
child at a time should use the bike. Recommended for children under 30kgs.
Adult supervision is strongly recommended at all times. Ensure your child is confident the
bikes to ensure safety. All screws, steering and axles must be checked by an adult before
use.
Please keep your bike protected from water and moisture, they should not be left outside
for long periods of time and should be dried down after use. Clean with a damp cloth - do
not use chemiscal spray cleaners.
screw
cap x1
(pre-installed)
D
nut &
bolt x1
(pre-installed)
E
Rocket Bikes
1
mocka.co.nz | mocka.com.au
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.

12
Attach the two main parts of the bike frame together with the connector
as shown.
Separate the 2x wheel assemblies (A) into individual components. Put the
axle through one side of the wheel frame, thread on two spacers and put
on the wheel. Thread the other two spacers and attach the nut. Tighten
with 2x allen keys (B), one on each side. Repeat to attach the other wheel.
Rocket Bikes
2
mocka.co.nz | mocka.com.au
Assembly Instructions

12
Attach the two main parts of the bike frame together with the connector
as shown.
Separate the 2x wheel assemblies (A) into individual components. Put the
axle through one side of the wheel frame, thread on two spacers and put
on the wheel. Thread the other two spacers and attach the nut. Tighten
with 2x allen keys (B), one on each side. Repeat to attach the other wheel.
34
Thread the screw cap (C) onto the pole, then attach the handlebars to
the frame using the bolt (D) and nut (D) as shown. Tighten with an allen
key (B).
DD
Unscrew the nut and bolt (D) to remove it from the screw cap (C) using
an allen key (B).
D
D
C
Rocket Bikes
3
mocka.co.nz | mocka.com.au
Assembly Instructions

56
You’re done, enjoy!
To adjust the seat, loosen the nut with the spanner (E) and slide the pole
up or down into the desired location then re-tighten the nut.
E
Rocket Bikes
