Modellbau Lindinger Decathlon 30cc User manual
www.pilotwww.pilot--rc.comrc.com
Wingspan: 88 in
Wingarea:1479.8sp in
Length: 78.8 in
Engine: 50CC
Assembly Manual For
Modellbau Lindinger GmbH
1
INTRODUCTION
Thank you for purchasing
our new 30cc Decathlon.we
strive to achieve the real Quick
Builded and ARF aircraf .
It just requires the least
amout of assembly of any kit
that almost finished in
factory.To obtain the perfect
performence,boththe design
and manufacturing have been
taken care with the highest
quality from any
hardware,covering ,wood and
glue in the construction as
well.By optimal weight and
reliable construction,youwill
find this plane is really ideal
for relaxing.
So we hope every effort and
service we offer will make you
feel easy and have a wonderful
time in the pleasure of flying.
More information on website
www.pilotwww.pilot--rc.comrc.com
Modellbau Lindinger GmbH
2
WARRANTYWARRANTY
■All Pilot-RC products are guaranteed against
defects for 30 days of receiving your airplane. This
warranty is limited to construction or productions
defects in both material and workmanship , doesn't
cover any component parts damaged by use or
modification .
■The manufacture can't supervise the assembly
,operation and maintenance ,and can't ensure your
radio system is in good condition. Therefore ,we are
not responsible for any damageoccurring during
the use of a radio controlled model. It is impossible
to determine for certain wehther crash damage was
the result of a radio systerm failure or pilot error even
improper installation of our products.Model airplane
owner is using it on his own responsibility.
■In no event should Pilot-RC accept the liability
exceeds the original cost of the airframe (not include
engine and radio system).
■No matter what reason you wish to return this
airplane , all shipping cost will be paid by costumer.If
some parts require replacement from us ,the original
parts’ return is at costumer' expense.
Modellbau Lindinger GmbH
3
ATTENTIONATTENTION
■You should not regard this plane as toy!
■To ensure safety,please read the instruction
manual thoroughly before assembly .
■Building and operating model plane require
diligent practicing and correct guidance. Any
neglect,carelessness and missing experience can
cause serious bodily harm and property damage.
■Seek the assistant of a experienced person or
airplane model clubs in assembly ,operation and
maintenance to ensure quick and successful learning
■Fly only in proven model airfield that AMA
(Academy of Model Areonautics) approved
Pilot-RC has the right to change to this plane
,instruction and limited warranty without notice.
If you have any problems and questions ,please
contact pilot –RC
Email: pilot-rc@139.com , pilot-rc@hotmail.com
Cellphone:+86 760 88781293
FAX: +86 760 88780293
Address: No.34, Chengnan Er Road , Zhongshan city, 528400,Guangdong
Province, China
Modellbau Lindinger GmbH
4
Introduction ………………….………..….…….….
Warranty …………………….……..….…..…….
Attention …………….…………..….……..…….
FuselageUnit
Rudder Assembly
RudderControl Horns ………..…….…...……..
Tail Wheel Installation …………..……..........
Landing Gear Assembly .
Main Landing Gear Installation ………….…..…….
Pants Installation …………..….………
Servo Unit
Wing Servo Assembly
Servo Arm Installation ………….….……….
Aileron Control Horns ………….……….…..
Servo Installation …….…………..……
Rudder Servo Assembly
Servo Tray Installation ….…….….......……..
Servo Installation ……….….……...……
Elevator Servo Assembly
Servo Arm Installation ………….…………….
Elevator Control Horns ……………....….……
Servo Installation ……………….....………
Engine Unit
Firewall Assembly ……….…….....……….
Engine Assembly ……….…..……..……
Throttle Servo Assembly ….….…...…….……
Ignition Module ………….…….……….
Hatch And Fule Tank ………….….……....……
FinalAssembly Unit
Switch Assembly ………….….……....……
LED Assembly ………….….……....……
WingAssembly ………….….……....…………
Elevator Assembly ……………….….……....……
Crowl Assembly ……………….….…….....……
CG And Control Throws …………………………..
Flight Preperation …...…………….….…..……
INDEX
1
2
3
17
18
5
7
9
11
12
13
14
22
23
24
27
30
29
31
32
33
34
35
37
40
41
42
Modellbau Lindinger GmbH
5
Fuselage Unit
Rudder Assemby
Rudder Control Horn
1. Tear off the cover on the horns
and locking plates
2. Trace around the locking plate
with kinfe and cut off the cover
below.Then the pre-cut slots appear
3. Scuff the middle of horns with a
piece of sand paper for good glue
bond.Then clean up the surface
Modellbau Lindinger GmbH
6
Rudder Assembly
4. Apply the 30 minutes epoxy
inside the pre-cut slot, and coat the
horn with epoxy as shown
Make sure the horn line up with
ground and align the both side
before epoxy has cured`
5. Slid the horn into slot slightly
,mountthe locking plates in
place.Wipe away excess glue with
rubbingalcohol
Modellbau Lindinger GmbH
7

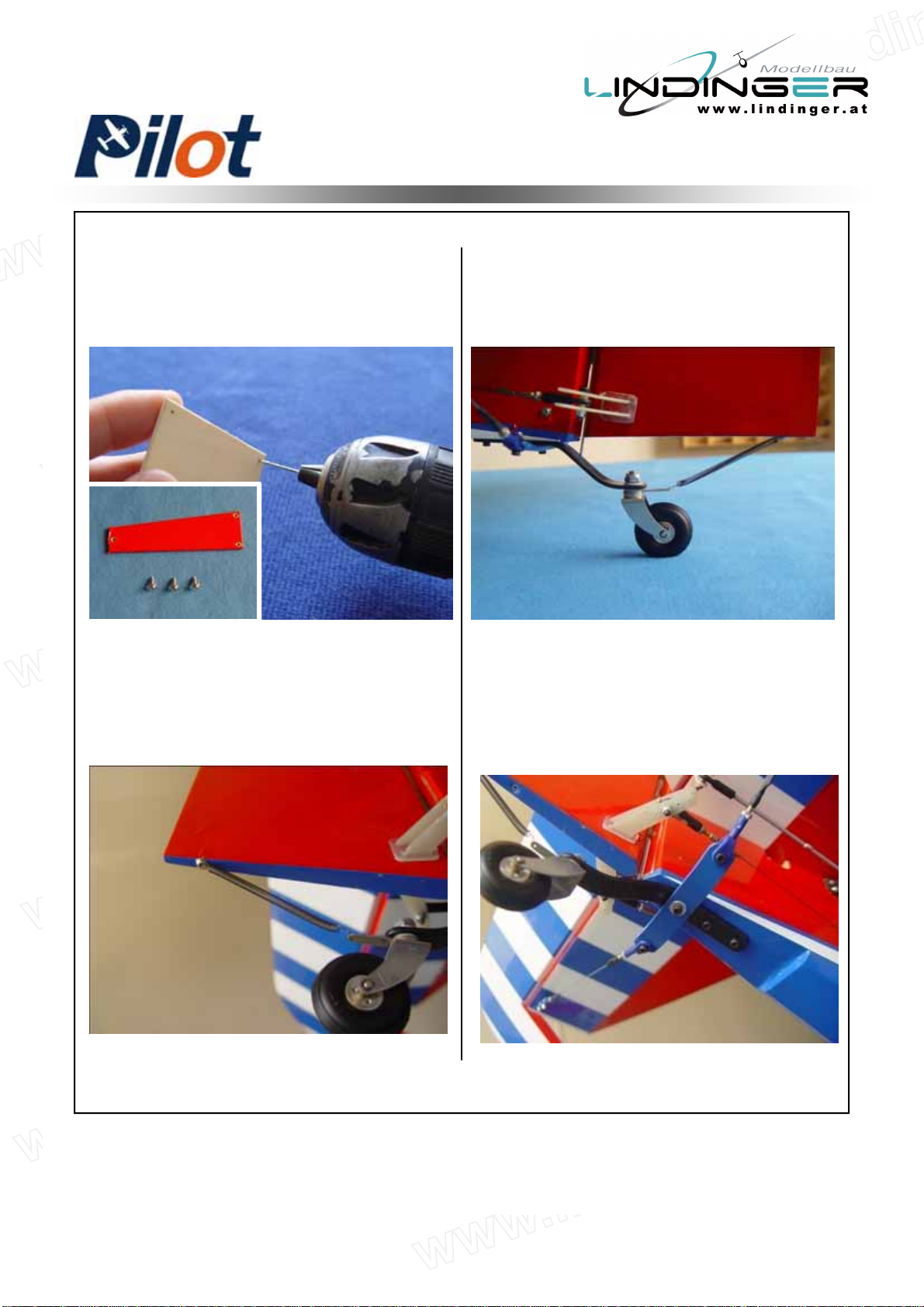

Tail Wheel Installation
Rudder Assembly
1. Draw a center line with a pencil
as shown
2. Drill holes on the tail wheel
mountingblock according the bracket
taped on place or mounted with bolt
as shown
3. Install the blind nuts through the
opening in the rear of the fuse and
mount screws for the tail wheel
using Blue Loctite in the thread
Modellbau Lindinger GmbH
8
Rudder Assembly
5. Drill hole 1mmbit and mount
spring on the buttom of rudder with
self-tapping screws as shown.Cut
away excess wire
4.Install the hatch over the opening
in the rear of fuse with 3 screws in
accordance with the pre-drilled holes
More detail will be shown in
Elevator Assembly of Final
Assembly Unit
Ensurespring have pulled tightly
Modellbau Lindinger GmbH
9

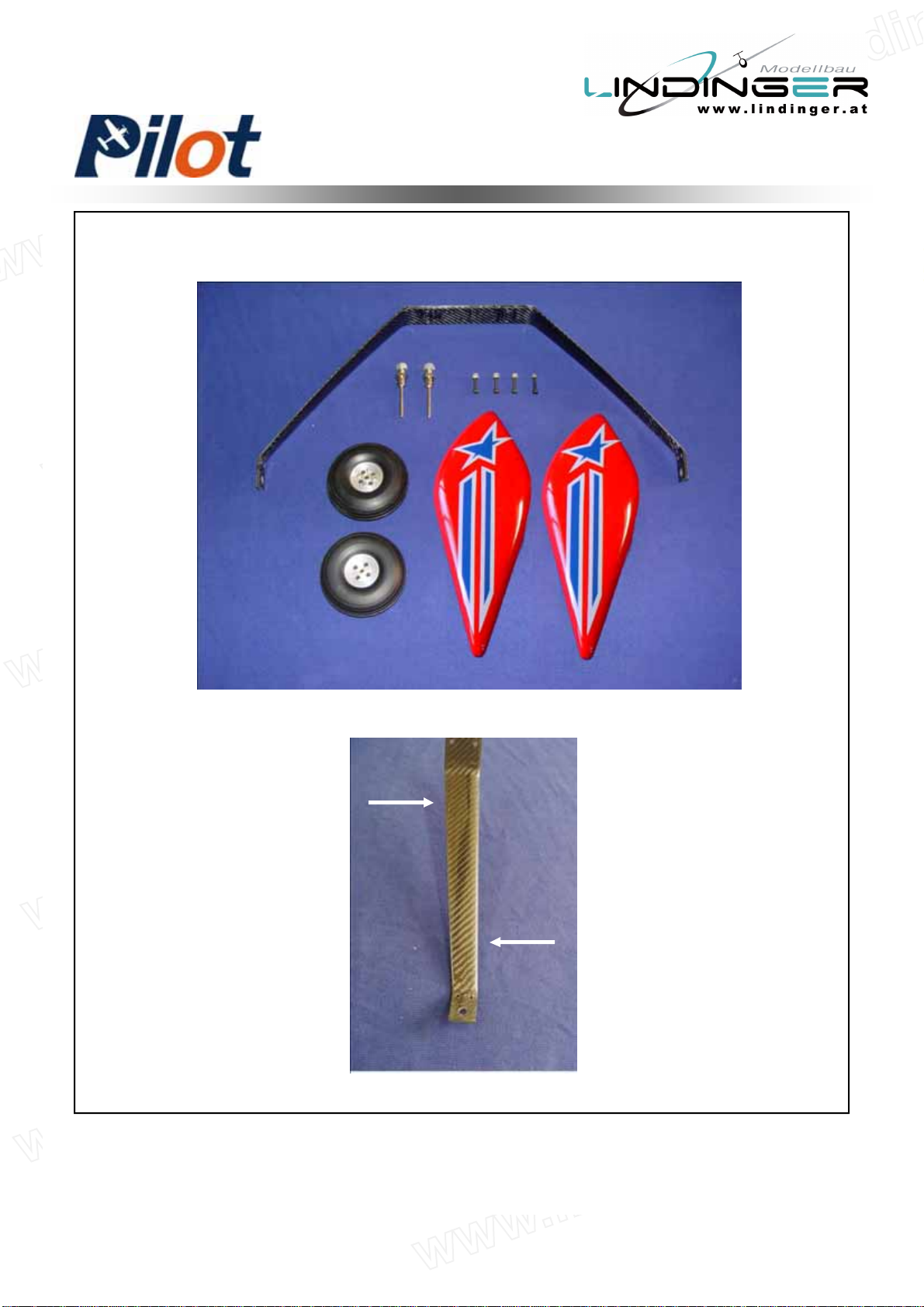

Main Landing Gear Installation
Landing Gear Assembly
NOTE: the correct edge in mounting
Taper to
rear
Straight
edge to
front of
fuse
Modellbau Lindinger GmbH
10
Landing Gear Assembly
1. Install the landing gear with the
bolts and locking nuts
Note:Don’t over tighten and crack
the carbon fiber
2. Install the landing gear axles with
lock nut ,but do not tighten 4. Make the flat sides of the axle bolt
vertical with ground .Then tighten the
lock nut against the landing gear strut
3. Lift the rear of fuse to line it up with
ground as shown
Modellbau Lindinger GmbH
11
Landing Gear Assembly
1. Lift the rear of fuse and line the
wheel pant up with the ground by
slipping them over the axles and
supportingthem from the rear for the
proper clearance
2. Drill the holes for the mounting
bolts and install the blind nuts.
3. Finish the wheel pants mounting
with the bolts and use Blue Loctite
on the threads
5. Install the collars and wheel in
order with a drop of Blue Loctite on
the collar set screw and ensure the
wheel is free to rotate.
Pants Installation
Modellbau Lindinger GmbH
12
Servo Unit
Wing Servo Assembly
Minimum Request Servo:

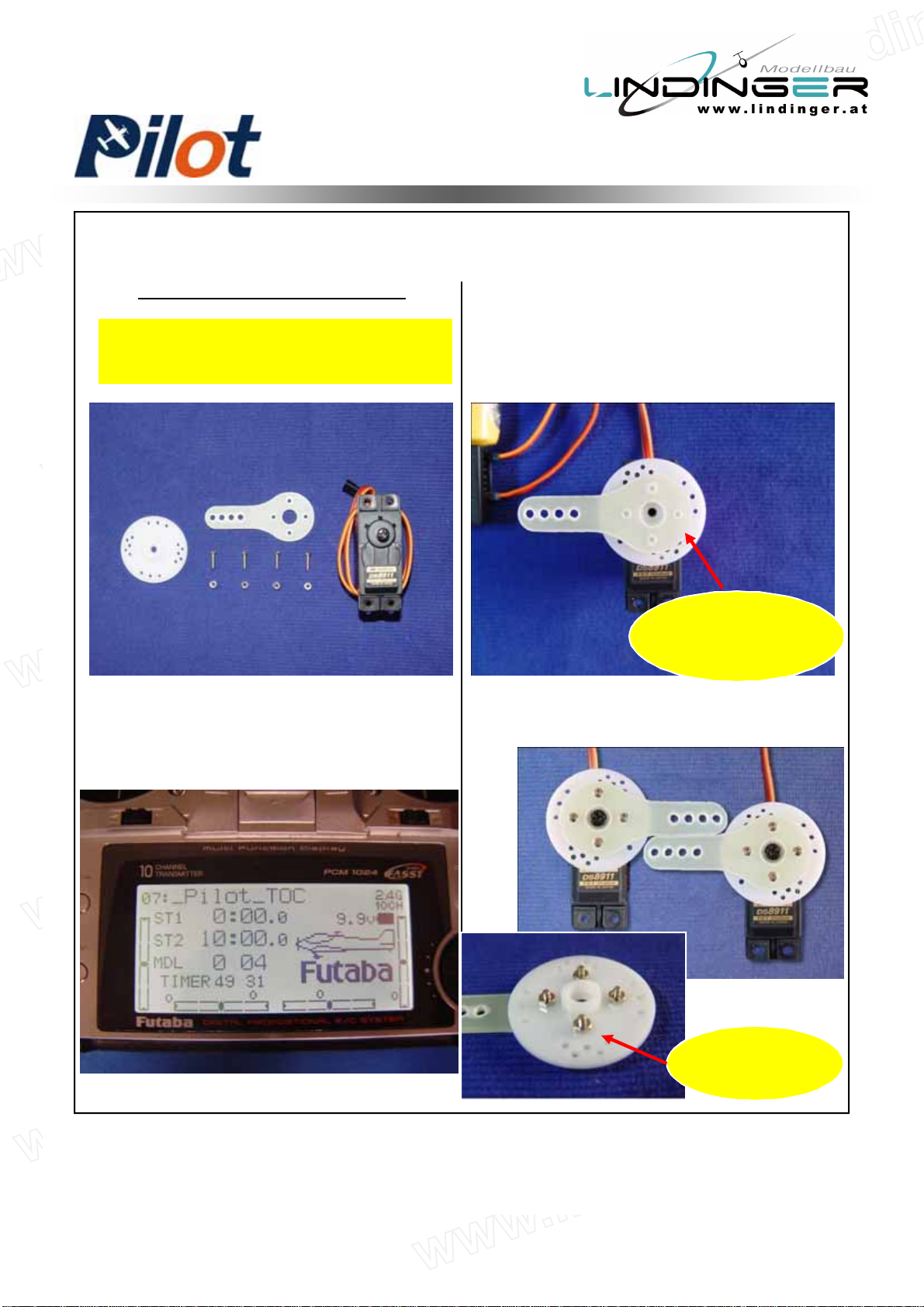

Servo Arm Installation
1. Turn on your transmitter and
plug the servo into receiver. Ensure
every channel is neutral
2. Ensure the servo arm is 90
degrees with servo as shown. Then
mark and drill holes with 2mm bit
3. Mounting screws and nuts
180in.zo / Metal Gear / Digital
Adrop of fast
cured gulehere
Pre fasten the arm
with drops of fast
cured guleon edge
Modellbau Lindinger GmbH
13
Aileron Control Horns
1. Tear off the cover on the horns
and locking plates
2. Trace around the locking plate
with kinfe and cut off the cover
below.Then the pre-cut slots appear
3. Scuff the horns with a piece of
sand paper for good glue bond.Then
clean up the surface
Wing Servo Assembly
Modellbau Lindinger GmbH
14
4. Apply the 30 minutes epoxy
inside the pre-cut slot for horn ,and
coat the horn with epoxy as shown
5. Slide the horn into slot slightly
and Mount thelocking plate in
place.Wipe away excess epoxy
with rubbingalcohol

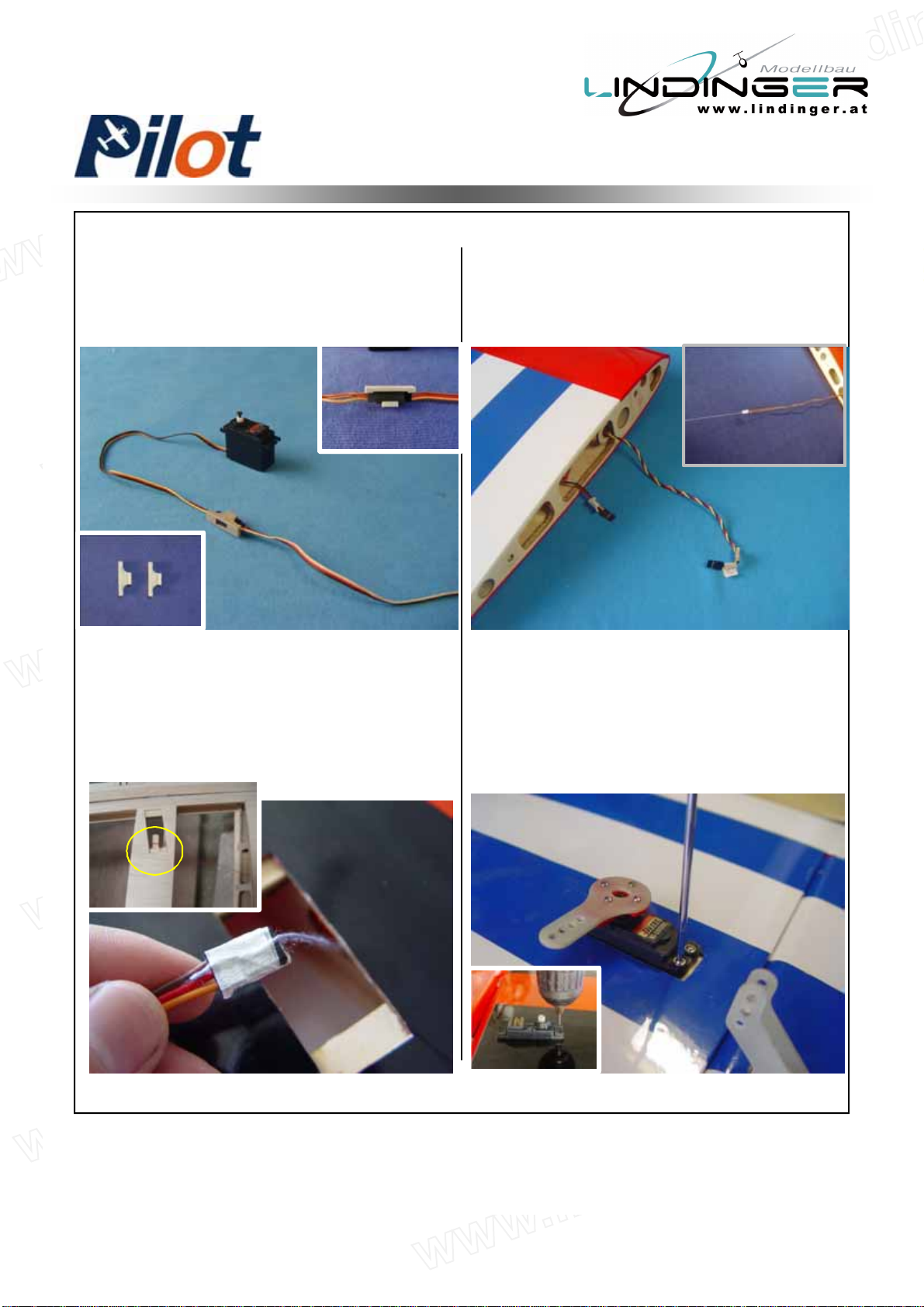

Servo Installation
Wing Servo Assembly
Modellbau Lindinger GmbH
15
3. Cut out the cover for servo
location carefully .Tape the lead to
pull-string tightly. In order to ensure
theservo wire can be pulled out
without hanging up inside wing
4. Then put the extention lead
throughthe root of wing
5. Install servo with mounting
screws. Face the brand toward the
trailing edge of the wing. Use 1mm
bit to drill the mounting holes
Wing Servo Assembly
2. Lock the connector with the
provided safety clip against vibration
and loosened tension as shown
Modellbau Lindinger GmbH
16
6. Install the servo arms facing
toward thewing tip and adjust
pushrodin proper length to keep the
aileron panel on the neutral position
7. Repeat all the step above for the
other wing
The strut would be mountedin the
Final Assembly Unit
Wing Servo Assembly
Modellbau Lindinger GmbH
17
Rudder Servo Assembly
Servo Tray Installation
1. Turn on your radio device
according the Wing Servo
Installation.Keep the tray holes on
center and thearm aligned with
brand as shown. Then tape tightly
2. Drill holes with 2mm bit
Adrop of fast
cured gulehere
3. Mounting screws and nuts
Minimum Request Servo:
180in.zo / Metal Gear / Digital
Or pre fasten the arm
with drops of fast
cured guleon edge
Modellbau Lindinger GmbH
18

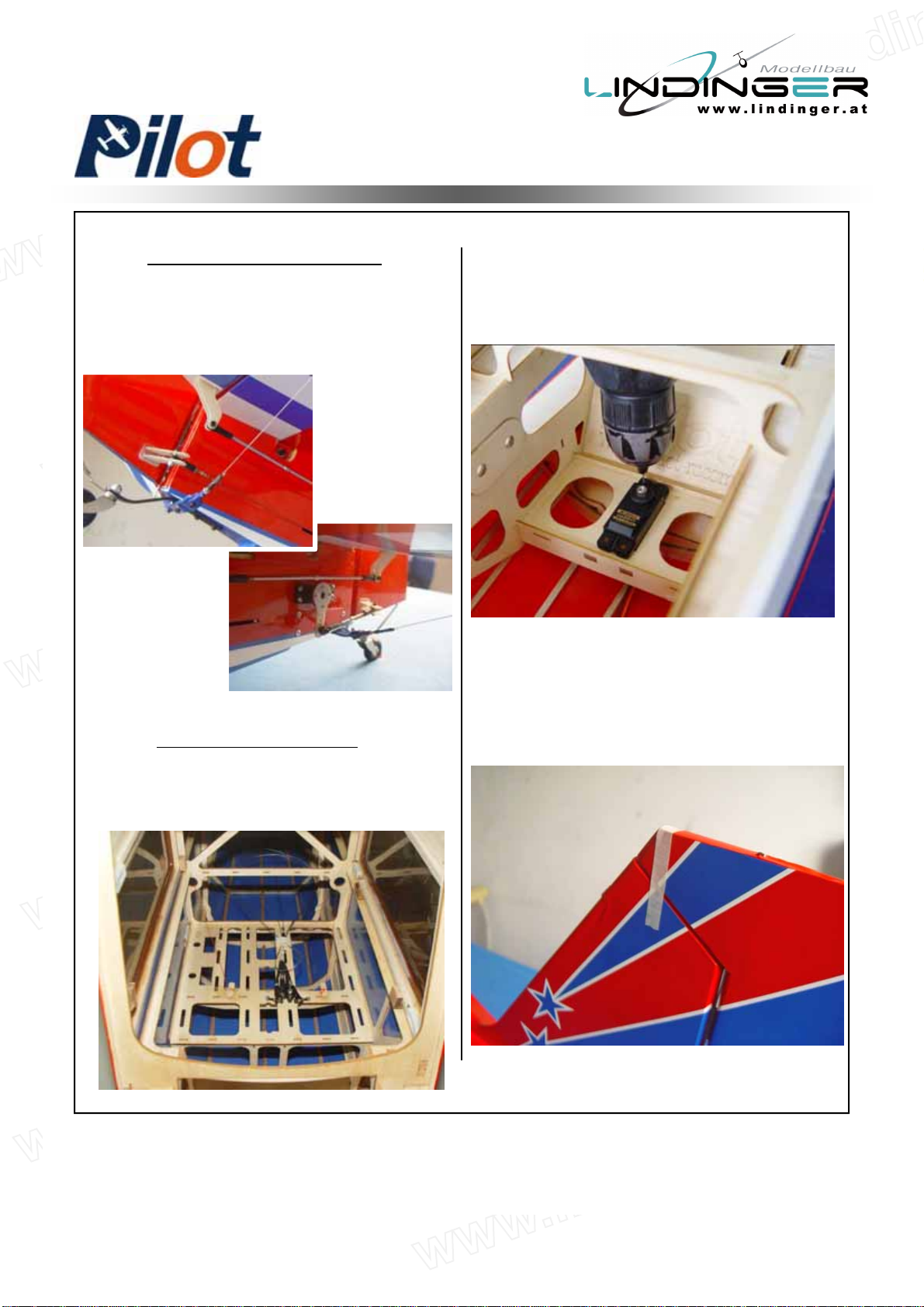

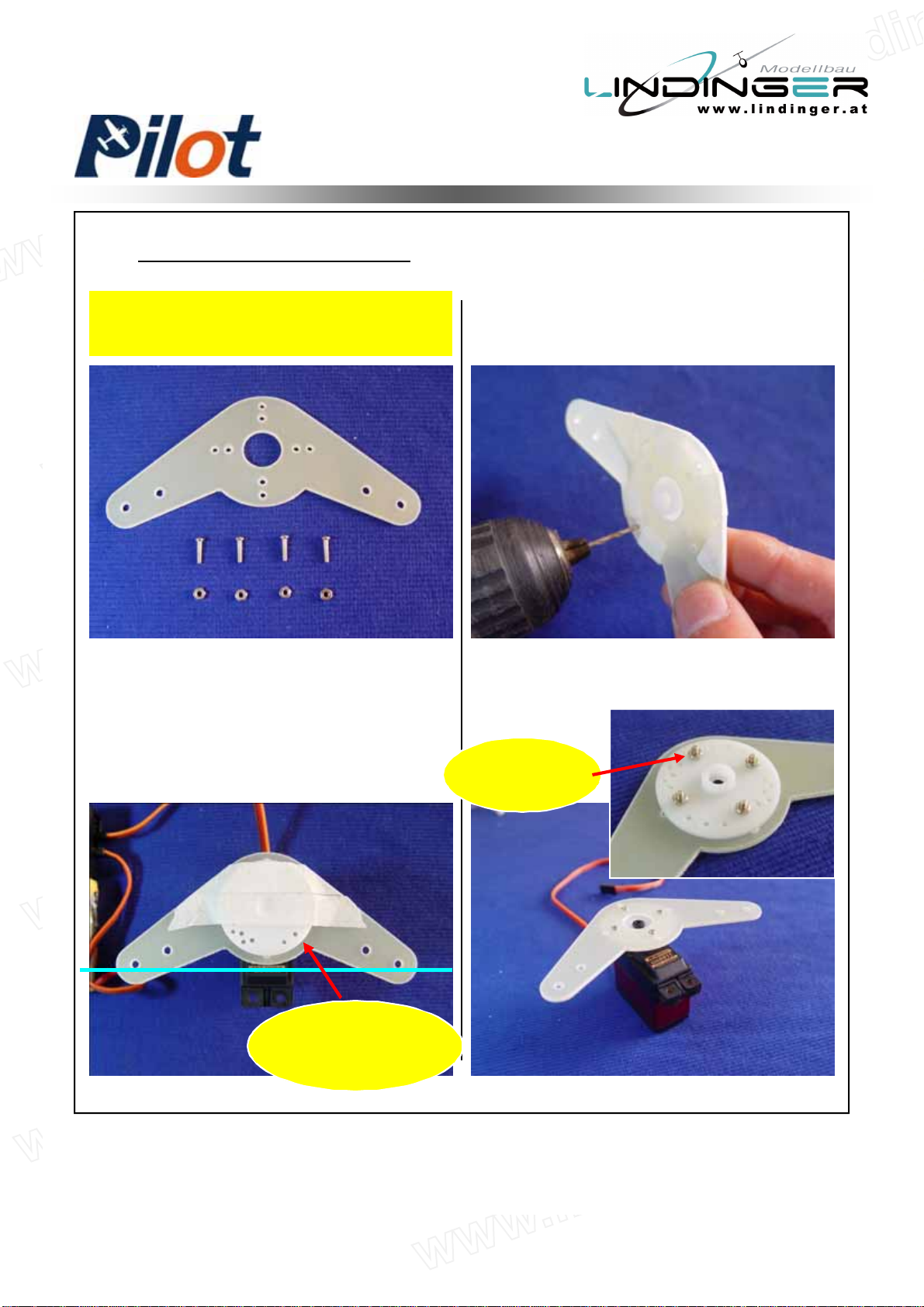

Servo Installation 1.Mount servo with mounting
screws and face the brand toward
the rudder.Drill holes with 1mm bit
2. Tape the rudder panel to top of
thevertical fin in theneutral position
to make it straight
The rudder cables and couplers have
been installed as shown
Rudder Servo Assembly
The rudder servo installation would
go on two plans,just choose the one
you like.
Plan 2
Plan 1
RudderServo Plne 1
Modellbau Lindinger GmbH
19

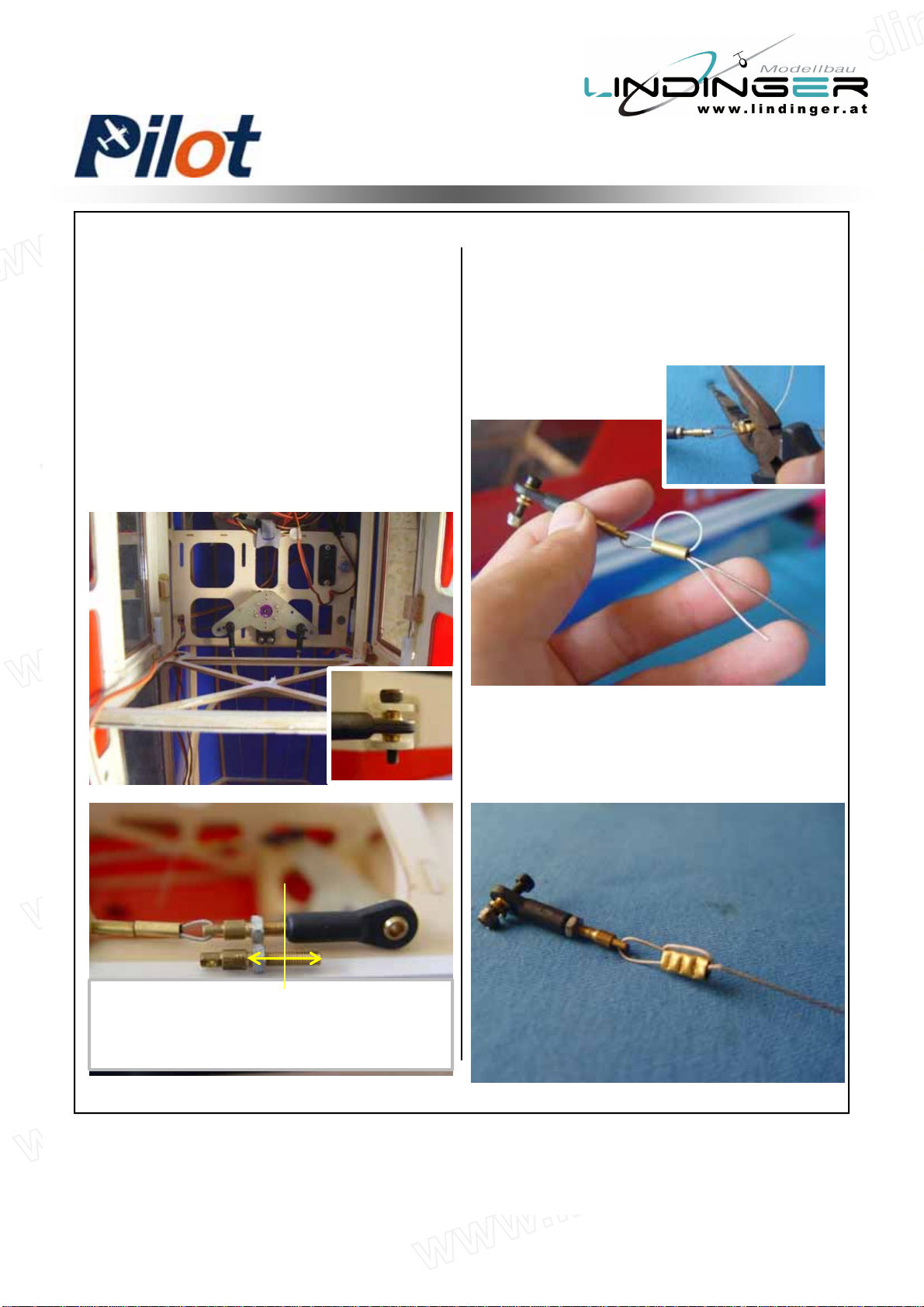

4.Turn on your radio to keep the
servo neutral. Mount the pre-installed
boll link to the rudder arm without
locking nut. Put two brass tube
throughthe cable and thread through
the coupler hole. Ensure the cables
are straight
NOTICE: The coupler is best to
thread half way into ball link for
further tightening next
5. Crimp them in place with crimping
pliers
6. Cut away excess cable
Rudder Servo Assembly
3. Attach the pre-installed boll link
tothe rudder horn and not tighten
the locking nut
Modellbau Lindinger GmbH
