Modellbau Lindinger Sukhoy 29S 30E ARF User manual

Modellbau Lindinger GmbH e-Mail: offi[e-mail] www.lindinger.at
SebArt professional line
New Sukhoi 29 S 30E
ARF
ASSEMBLY MANUAL
The new Sukhoi 29S 30E ARF was designed by Italy aerobatic
pilot, Sebastiano Silvestri and the design is based on of his new
Tournament Of Champion’s competition airplane.
This professional ARTF kit is the result of Sebastiano’s long
research in 3D performance. This combined with an extremely
lightweight structure, the all wood airframe, the big control
surfaces and the new revolutionary landing gear Lift Generator
give the Sukhoi 29S 30E an impressive thrust-to-weight ratio and
crisp control authority at any airspeed and flight condition….That
for this small class of airplane is revolutionary!
The Sukhoi 29S 30E can do it all…unbelievable easy harriers,
torque rolls, blenders, waterfalls and almost anything else you can
dream up are waiting you!
.....the only aerobatic limit is your fantasy!
Specifications
Wing Span:……….....130 cm (51,18 in.)
Recommended power set up:
Length:….......…...….130 cm (51,18 in.) Motor:...Hacker A30-10XL
Wing Area:…..........37 dm² (57,35 sq.in) ESC:...X55 SBec Pro
Weight: 1.250g. RTF less battery (44 oz) Battery: FlightPower 2170-3S or 2500-3S
Radio:….4-Channel with 4 micro servos Propeller: APC 15x8E

Modellbau Lindinger GmbH e-Mail: offi[e-mail] www.lindinger.at
2
Table of contents
Table of contents...............................................................................................................………..2
Required radio, motor and battery.............................................................................................…. 3
Additional required items, tools and adhesives.............................................................................. 3
Warning.......................................................................................................................................... 3
Before starting assembly ...........................................................................................................… 3
Using the manual........................................................................................................................... 3
Warranty information…................................................................................................................. 4
Section 1 – wing fillet installation…..............................................................................................5
Section 2 – ailerons installation......................................................................................................6
Section 3 – aileron servo & control horn installation…............................................................…. 7
Section 4 – rudder installation….................................................................................................... 9
Section 5 – elevator installation ………..…...................................................................................10
Section 6 – tail wheel installation…...………................................................................................12
Section 7 – rudder servo & control horn installation……………………………………………..13
Section 8 – elevator servo & control horn installation…………………………….…………….. 14
Section 9 – landing gear & wheels installation…..…..…………...................................................15
Section 10 – electric motor installation…….................................................................................. 16
Section 11 – cowl installation……........................................................................................…….17
Section 12 – final radio installation …………................................................................................18
Wings installation............................................................................................................................19
Decal set application....................................................................................................................... 20
Control throws................................................................................................................................ 20
Mixing………................................................................................................................................. 20
Rates and expos..........................................................................................................................….21
Recommended CG......................................................................................................................….21
Range test your radio..................................................................................................................….21

Modellbau Lindinger GmbH e-Mail: offi[e-mail] www.lindinger.at
3
Required radio, motor and battery
Radio equipment:
•Minimum 4-channel radio system
•4 digital mini servo, recommended JR PROPO DS 385
•2 servo extension 300mm, for elevator and rudder servos
•4 servo extension 100mm, for aileron’s servos
Recommended electric motor for best performance:
•Hacker A30-10XL + X55 BEC controller + APC 15x8E
Recommended Li-Po battery pack for best performance:
•FlightPower EVO 20 2170mAh 3S.….for unlimited 3D
•FlightPower EVO 20 2500mAh 3S…..for duration and precision
Additional required item, tools and adhesives
Tools:
•Drill
•Drill bits: 1,5mm
•Phillips screwdriver
•Hobby knife
•Masking tape
•Soldering iron
Adhesives:
•thin CA
•medium CA
Warning
This RC aircraft is not a toy!
If misused, it can cause serius bodily harm and damage to property.
Fly only in open areas, preferably in official flying sites, following all instructions included with
your radio and motor.
Before starting assembly
Before starting the assebly of your Sukhoi 29S 30E, remove each part from its bag and protection
for a prior inspection. Closely inspect the fuselage, wing panels, rudder, and stabilizer for damage.
If you find any damage or missing parts, contact the place of purchase.
If you find any wrinkles in the covering, use a heat gun or covering iron to remove them. Use
caution while working around areas where the covering material overlap to prevent separating the
covers.

Modellbau Lindinger GmbH e-Mail: offi[e-mail] www.lindinger.at
4
Using the manual
This manual is divided into sections to help make assembly easier to understand and to provide
breaks between each major section.
In addition, check boxes () have been placed next to each step to keep track of each step
completed. Steps with two boxes indicate that the step will require repeating, such as for a right or
left wing panel, two servos, etc.
Rember to take your time and follow the directions.
Warranty information
SebArt garantees this kit to be free from defects in both material and workmanship at the date of
purchase.
This warranty does not cover any parts damage by use or modification, and in no case shall
SebArt’s liability exceed the original cost of the purchased kit.
Further, SebArt reserve the right to change or modify this warranty without notice.
In that SebArt has no control over the final assembly or material used for the final assembly, no
liability shall be assumed or accepted for any damage of the final user-assembled product. By the
act of using the product, the user accepts all resulting liability.
If the buyer is not prepared to accept the liability associated with the use of this product, the buyer
is advised to return this kit immediately in new and unused condition to the place of purchase.

Modellbau Lindinger GmbH e-Mail: offi[e-mail] www.lindinger.at
5
Section 1 – wing fillet installation




step 1
Locate the carbon tube and the wing to the fuselage. Locate the corresponding wing fillet to the
wing. Test fit the fillet and his alignment with the wing panel and fuselage. Once satisfied with the
fit, glue the wing fillet to the wing panel using medium CA. Use the glue carefully avoid over runs
onto the area to be covered with the material.





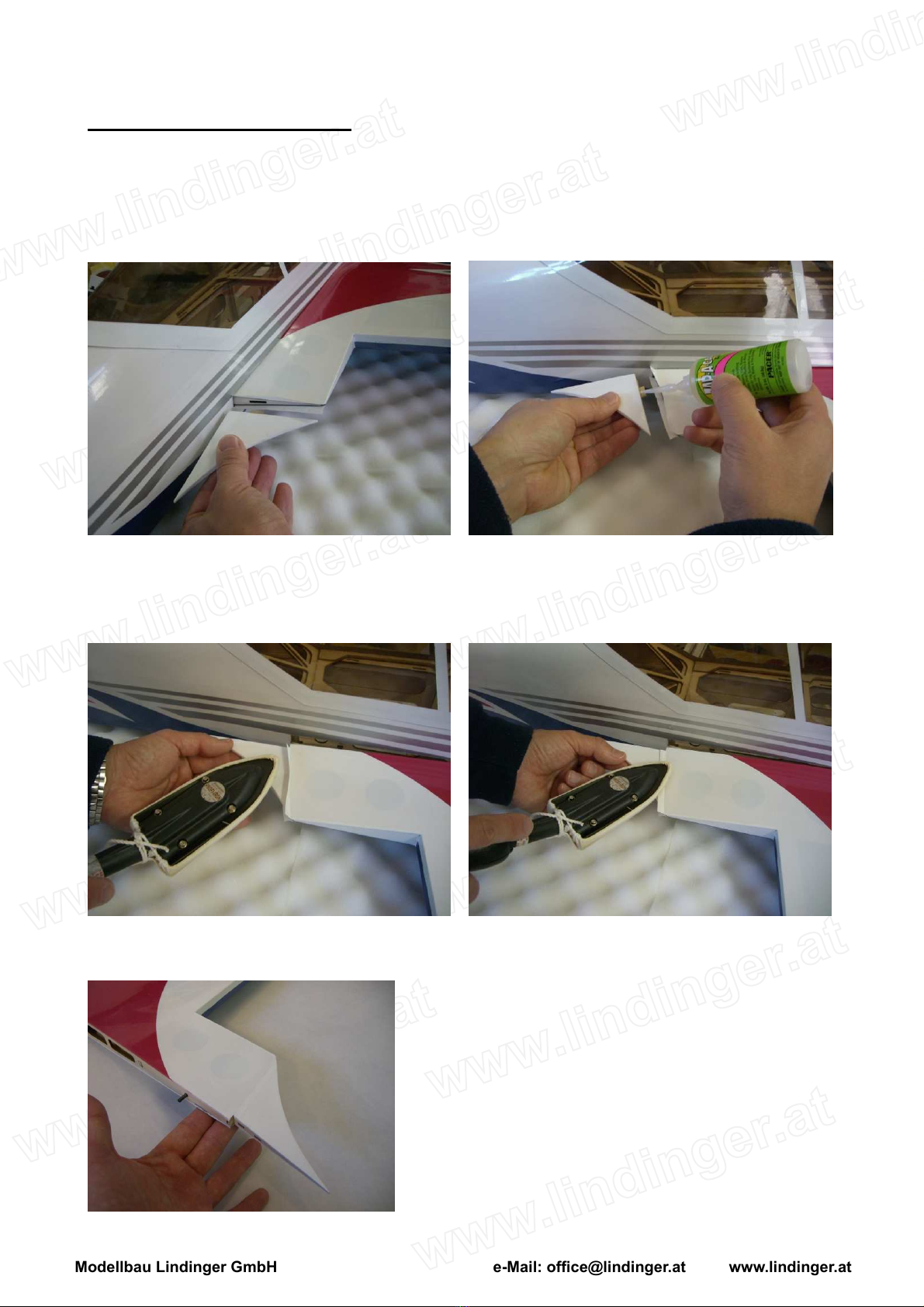

step 2
Use the covering iron carefully, at a medium temperature, to glue the cover material down around
the area of the fillet. Use caution while working around areas where the cover material overlaps to
prevent separating the covers.


step 3
Repeat steps 1 through 2 for the remaining wing panel and wing fillet.

Modellbau Lindinger GmbH e-Mail: offi[e-mail] www.lindinger.at
6

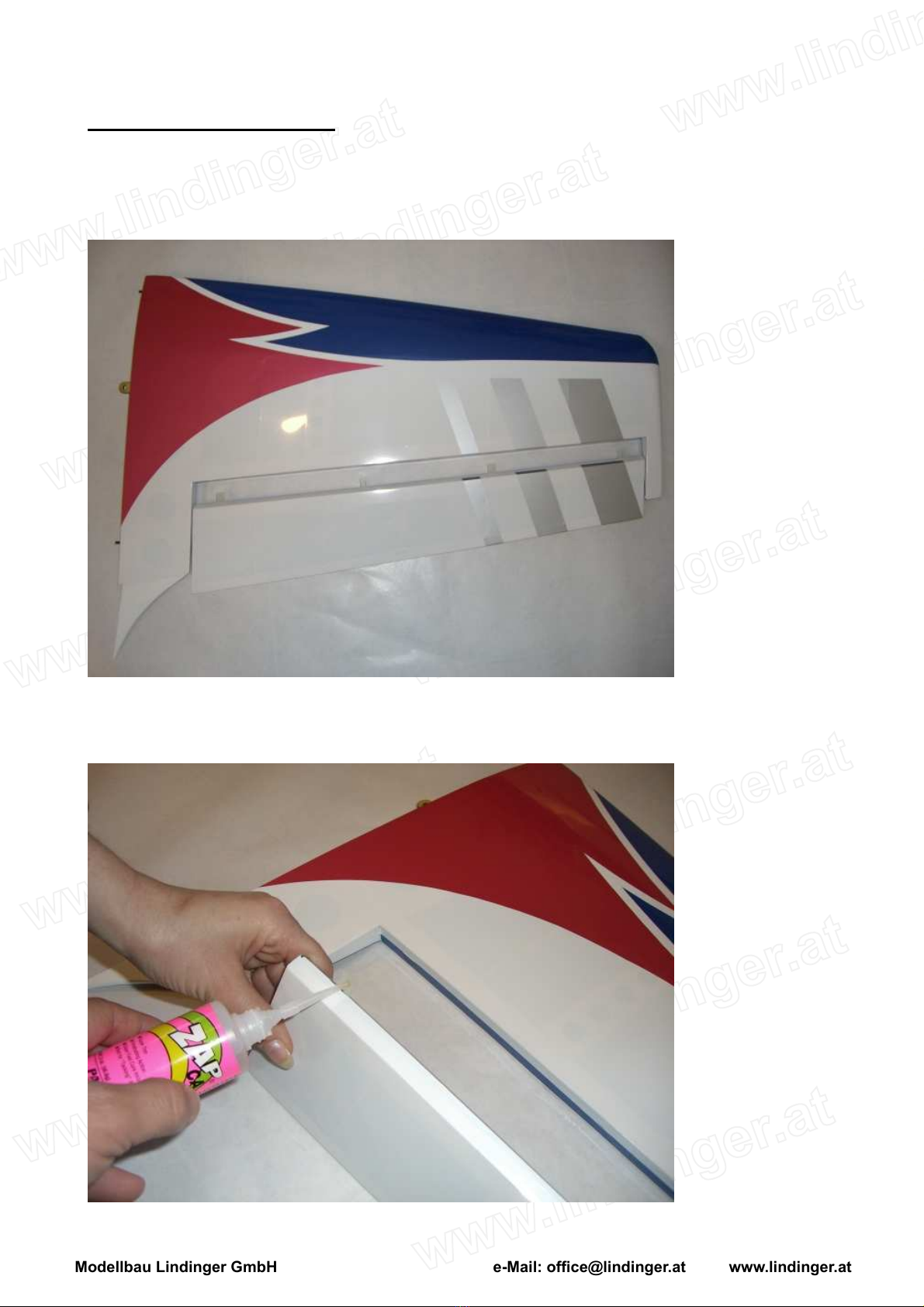

Section 2 – ailerons installation




step 1
Trial fit the four aileron hinges, included in the hardware pack, in their place and verify the correct
position and alignment of the aileron with the wing panel.




step 2
Carefully glue, with some drops of thin CA, each of the four hinges in the aileron.

Modellbau Lindinger GmbH e-Mail: offi[e-mail] www.lindinger.at
7




step 3
Locate the aileron and carefully glue, with some drops of thin CA, each of the four hinges into the
wing panel.




step 4
Work the aileron up and down some times to work the hinges and check for proper movement.


step 5
Repeat steps 1 through 4 for the remaining wing panel.

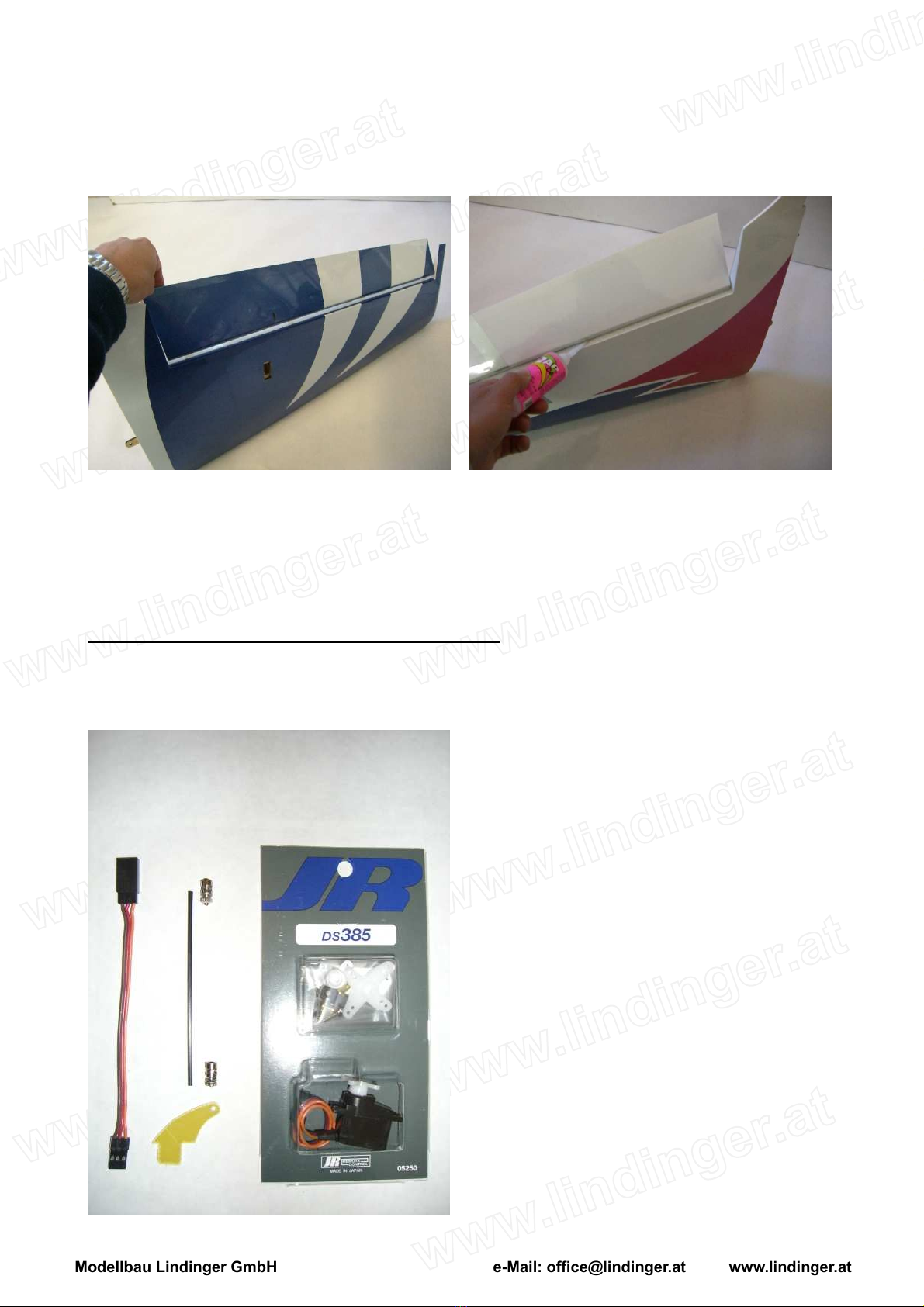

Section 3 – aileron servo & control horn installation




step 1
Locate the following items, one servo extension 100mm long and the servo (servos and extensions
are not included).

Modellbau Lindinger GmbH e-Mail: offi[e-mail] www.lindinger.at
8




step 2
Install the servo hardware (gommets and eyelets) and install the servo into the wing panel using a
Phillips screwdriver. Glue the fibreglass horn with medium CA into the aileron.




step 3
Install the carbon rod, and make the final adjustment as per picture.


step 4
Repeat steps 1 through 3 for the remaining wing panel.

Modellbau Lindinger GmbH e-Mail: offi[e-mail] www.lindinger.at
9
Section 4 – rudder installation


step 1
Test fit the rudder in his place into the fuselage, check for a correct alignment and than glue it with
some drops of medium CA.


step 2
Insert the three hinges in their appropriate slots in the rudder. Verify the correct position-alignment
and glue them with some drops of thin CA.


step 3
Locate the rudder and carefully glue the hinges with some drops of thin CA.

Modellbau Lindinger GmbH e-Mail: offi[e-mail] www.lindinger.at
10

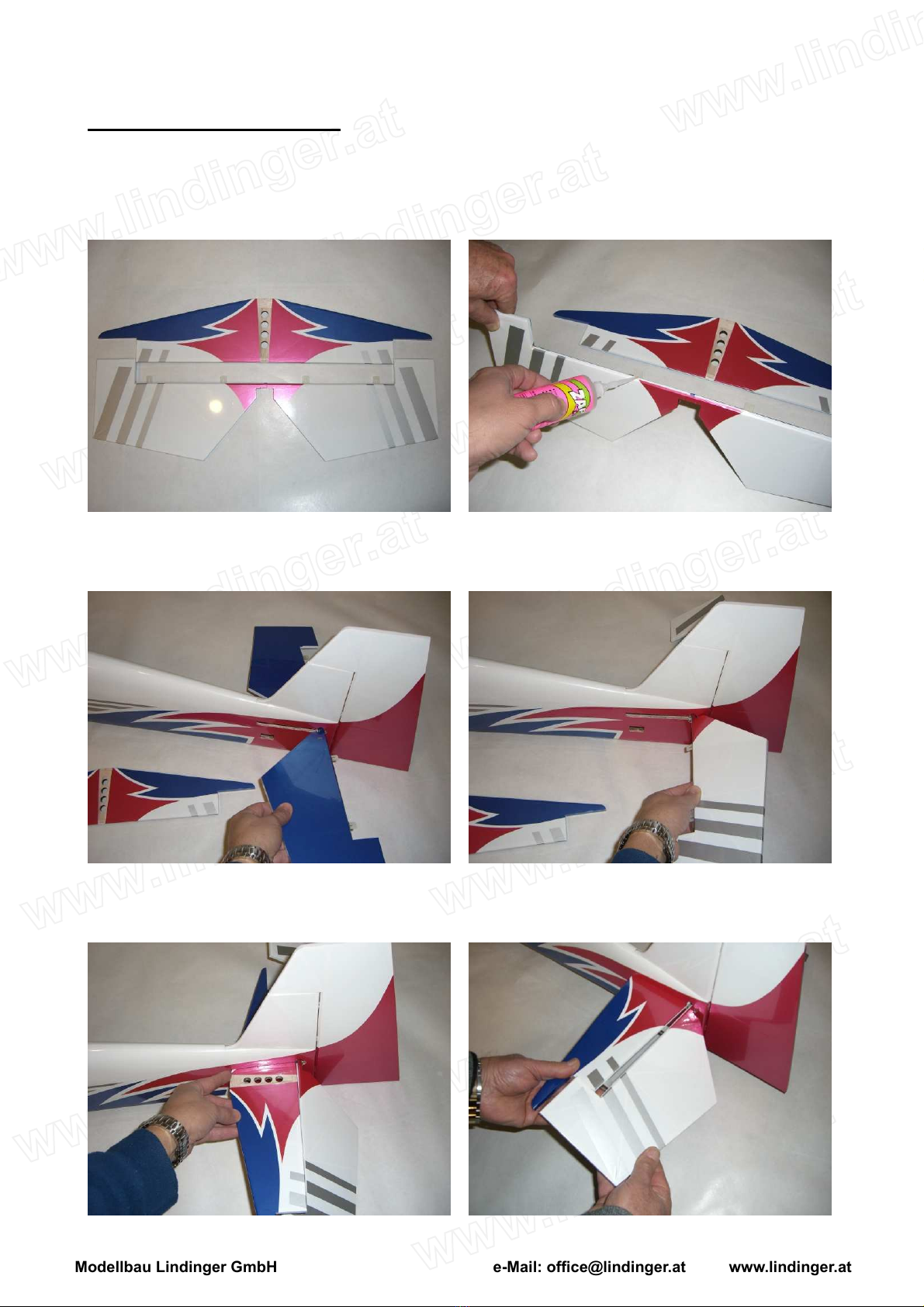

Section 5 – elevator installation


step 1
Insert in the elevator the four hinges into their appropriate slots and verify the correct position and
alignment of the elevator with the stabilizer. Then carefully glue the hinges, with some drops of thin
CA, in the elevator only.


step 2
Insert carefully the elevator through the fuselage.


step 3
Insert carefully the stabiliser into fuselage space. Locate the elevator hinges into the stabiliser.
