Modsel I-Move User manual
Rounds Trolley User Guide
Thank you for placing your confidence in our rounds trolleys. They have been engineered
from quality materials and hand-made with care to fulfil the requirements of the healthcare
industry. Your trolley will give years of trouble-free service if used and cared for in
accordance with our directions.
Before using yourrounds trolley please take the time to read our userguide carefully and familiarise
yourself with the controls and operation of the unit.
It is important to assess that this equipment is suitable for your patients clinical needs.
Modsel offers a range of rounds trolleysdesigned for a wide variety of facility types and departmental
use.
08/10/2020 - Page 1 of 10
"Trusted products made for trusted professionals"
Warnings & Safe Operation
These instructions must be read and understood by all personnel who will use our products.
Patient/Staff Safety
Patients, especially children must not be left unattended on or with a trolley at any time.
Care must be taken in the operation of all moving parts and accessories to minimise risk of injury to
staff or patients.
Trolley top must be in the optimum position for each carer.
Maximum static load capacity on the trolley is 10kg depending on the model type and must not be
exceeded.
Any weight must be distributed as evenly as possible on trolley top.
Clips, locks or retainers are supplied by the manufacturer for patient / staff safety and must not be
removed.
Only apply brakes when the trolley is stationary.
Raising and Lowering
The trolley top will raise when the height adjustment lever is released.
Grip the trolley top firmly with both hands when adjusting the height.
Do not allow the top to raise quickly.
Always keep your back straight.
Stand close and maintain control of the trolley.
08/10/2020 - Page 3 of 10
"Trusted products made for trusted professionals"
General Use

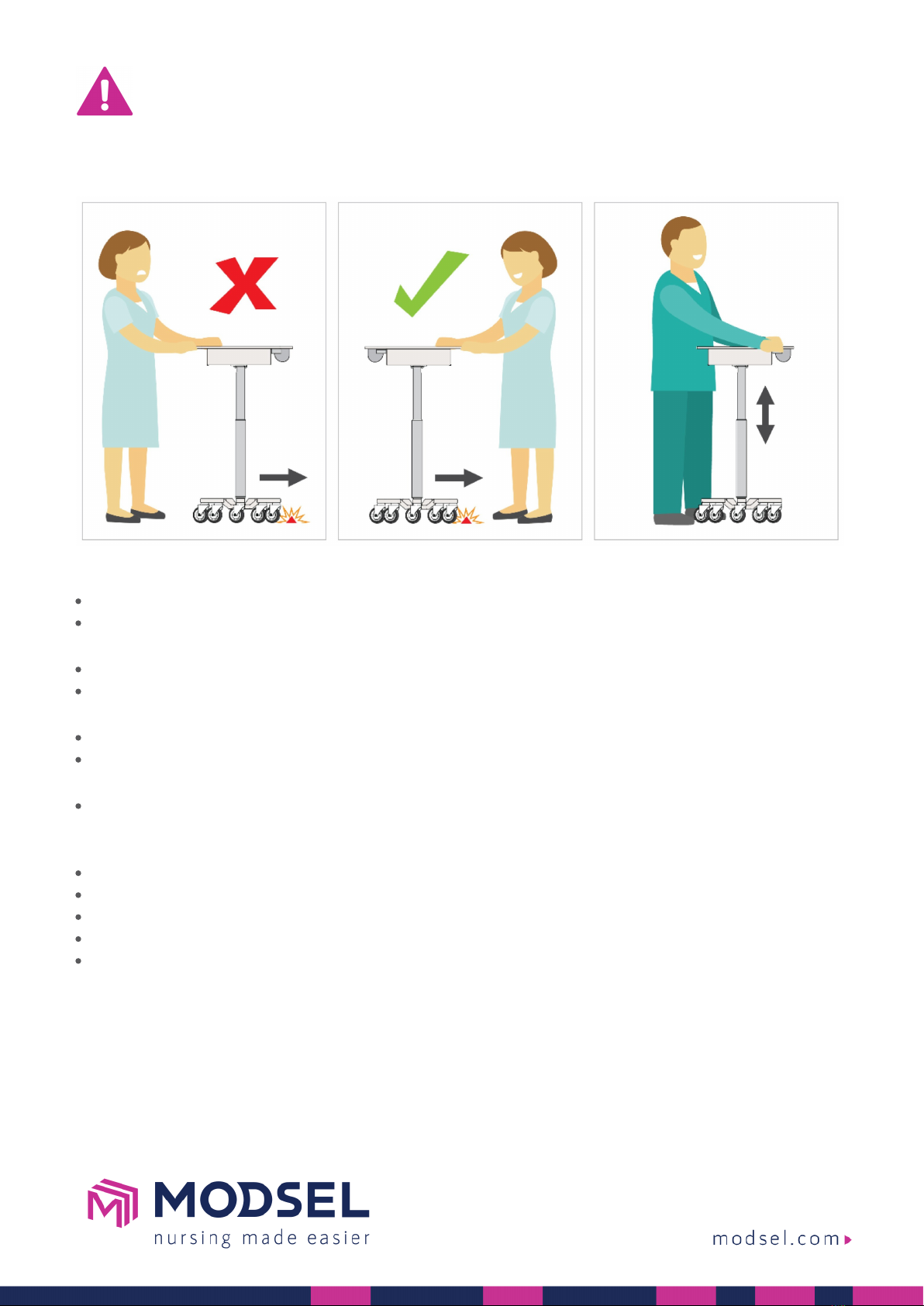

Trolley must never be left on sloping surfaces unattended, even with brakes fully engaged.
Only wheel on smooth, level flooring. Traversing side on, across slopes is to be avoided under any
circumstances.
On wet or slippery flooring do not lean or apply unnecessary force against trolley, as it may slide; even
with brakes fully applied.
Always use both hands when moving the trolley.
Always move the trolley at the lowest practical height.
Never PUSH the trolley over floor obstructions.
Always PULL carefully over floor obstructions.
Do not run or move quickly with the trolley.
Do not lean or sit on the trolley top.
Maintenance
Periodic maintenance must be done in accordance with theuser guide to ensure the safest product at
all times and meet warranty requirements.
If any faults are evident, the rounds trolley should be immediately removed from service until repaired.
08/10/2020 - Page 4 of 10
"Trusted products made for trusted professionals"
Assembly
Item list
Top shelf unit
Base with Castors
Main lifting column
2 - M5 x 12 Bolts (for securing the release lever)
1 - M8 x 90 Bolt, 2 - M8 washer (securing column to base)
3 - M6 x 16 Bolts, 3 - M6 Nyloc nuts (securing shelf onto top of column)
Tools Required
10 and 13mm ring spanners
3 and 4mm Allen keys
Medium strength thread locker (ie. Loctite 243)
Step 1 -Stand the column upside down and place base onto it as per image (right). Secure using the M8
bolt with the 2 washers (critical spacers) as well as thread locker on the bolt. The orientation of the base
must be set while doing this, one of the legs must be pointing directly opposite where the release
cable comes out of the top of the column, see image.
Step 2 - Turn the unit up the right way and place the top shelf onto it, the release cable needs to be
pointing directly out to the back of the top shelf. Secure the top using the 3 x M6 bolts & nuts.
Step 3 -Peel the covering off the double sided tape on the release lever and fasten under the back right
hand edge of the shelf, using the 2 x M5 bolts.
08/10/2020 - Page 5 of 10
"Trusted products made for trusted professionals"
Cleaning
Cleaning is always a concern. It must happen to control infection and cross contamination,
however ongoing changes in technology and supply can affect the life of vital supporting
equipment.
We continue to develop our products and use materials or coatings that will withstand the tough and
aggressive chemicals used in present cleaning programs. Our ranges of Modselrounds trolleys have
been carefully designed with the ease of cleaning, safety and longevity in mind.
Cleaning Instructions
Nonphenolic disinfectants are recommended in a diluted solution.
Use all wipes, detergents and disinfectants according to the manufacturers specifications.
Treat specific stains promptly to ensure complete removal, wipe stain from ‘outside in’ to avoid
spreading.
With difficult mattress stains, use a mild proprietary vinyl cleaner.
Machine washing and autoclaving is not recommended.
DO NOT tumble dry, use phenolic disinfectants, abrasive no aqueous cleaners, steel wool or non-
proprietary cleaners containing solvents.
DAMAGE CAUSED BY THESE PROCESSES ARE IDENTIFIABLE AND MAY VOID WARRANTY
Wipe off cleaning product residue with a clean, soft cloth and rinse with fresh warm water immediately
after use. If particular cleaner/disinfectant is not listed we advise to test the particular surface
disinfectant in advance or to contact us in case of any doubts.
08/10/2020 - Page 6 of 10
"Trusted products made for trusted professionals"
Maintenance
Some parts of a rounds trolley such as castors and struts are subject to heavy daily use and
will gradually wear. Periodic maintenance will increase the life of your product by controlling
the speed of wear.
After each (12) twelve months of use, the trolley must be checked in accordance with our recommended
Service Checklist.
TO ENSURE WARRANTY, PERIODIC MAINTENANCE RECORDS MUST BE RETAINED.
To service your trolley, contact your Servicing Engineer, Distributor or Modsel on 1300 785 790.
08/10/2020 - Page 7 of 10
"Trusted products made for trusted professionals"
15 Year Warranty
We warrant in the event that:
Any fabricated structure failure is found within (15) fifteen years from the date of invoice due to faulty
workmanship.
A part or parts of plastic not covered by the above warranty, are found within (5) five years from the
date of invoice to have a structural defect.
Any externally supplied moving parts including springs, castors, hydraulic rams, struts, levers etc not
covered by the above warranty, are subject to third party warranties or found within (1) one year from
the date of invoice to have a structural defect.
The purchaser, within (14) fourteen days of discovery of the defect or defects gives written notice to
Modsel or their distributor or agent, and:
The defect or defects are not due to:
Cosmetic issues such as fading, crazing, discoloration.
Lack of maintenance as per minimum requirements.
Vandalism, negligence, abuse, accidents, improper installation or normal wear and tear.
Products tampered with or altered, modified or repaired by anyone when not approved by Modsel.
Conditions such as close proximity to salt, extreme hot or cold temperatures.
Non-adherence to cleaning and care instructions.
Permeation of fluid substances into foam.
Incorrect usage of electric parts as per the operating directions.
Modsel will:
At our option, repair or replace the part or parts found within our reasonable judgement to have been
defective in workmanship or materials. Should your trolley ever require attention due to a failure as
defined under the warranty above, pleasecontactModsel oryour local distributor from whom your
trolley was originally purchased.
08/10/2020 - Page 8 of 10
"Trusted products made for trusted professionals"
