Moffat MDW 542 User manual

User Manual
Dishwasher
MDW 542
152952 66/0en 13-02-2006 17:05 Pagina 1
All manuals and user guides at all-guides.com
all-guides.com

2

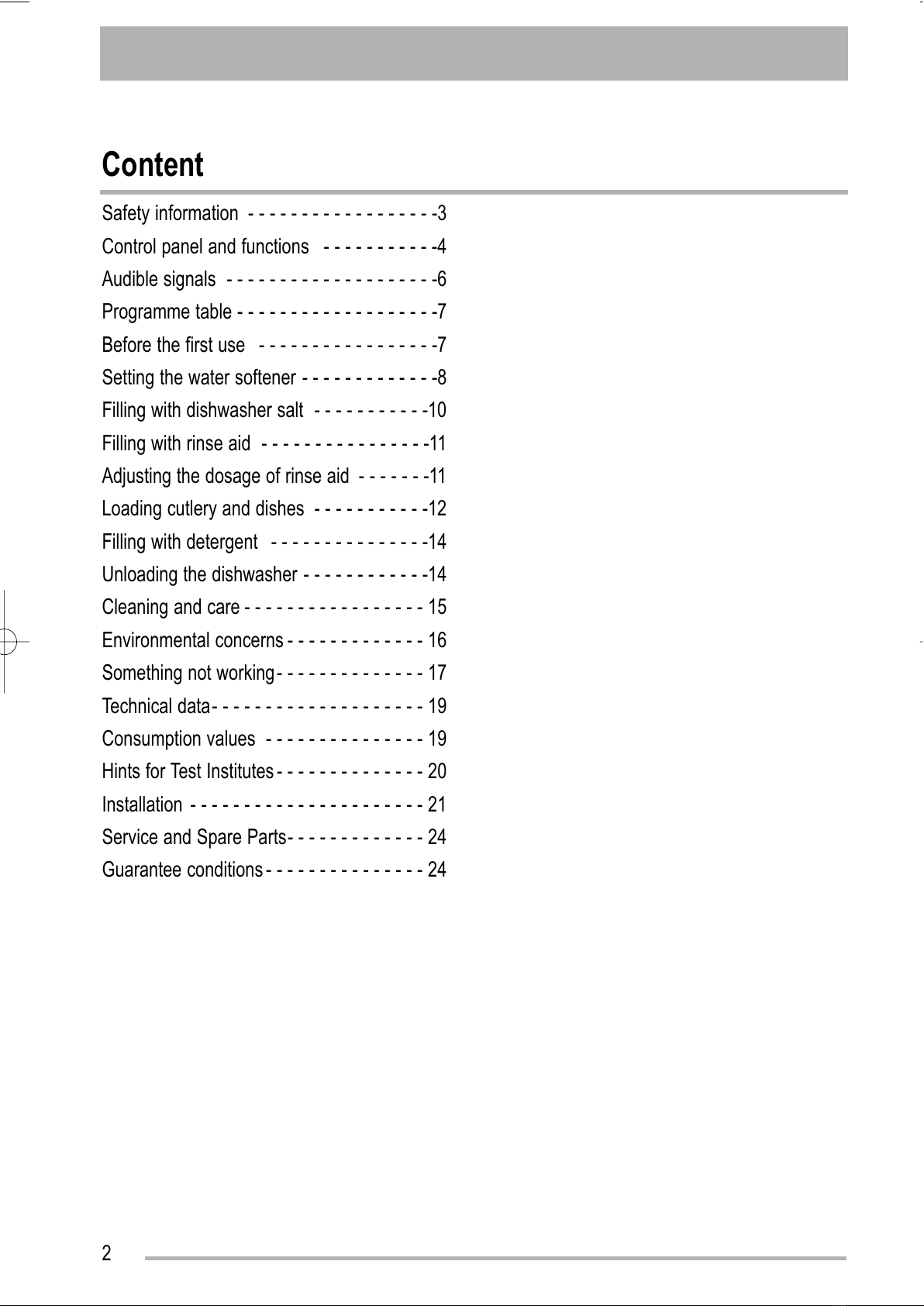

Content
Safety information - - - - - - - - - - - - - - - - - -3
Control panel and functions - - - - - - - - - - -4
Audible signals - - - - - - - - - - - - - - - - - - - -6
rogramme table - - - - - - - - - - - - - - - - - - -7
Before the first use - - - - - - - - - - - - - - - - -7
Setting the water softener - - - - - - - - - - - - -8
Filling with dishwasher salt - - - - - - - - - - -10
Filling with rinse aid - - - - - - - - - - - - - - - -11
Adjusting the dosage of rinse aid - - - - - - -11
Loading cutlery and dishes - - - - - - - - - - -12
Filling with detergent - - - - - - - - - - - - - - -14
Unloading the dishwasher - - - - - - - - - - - -14
Cleaning and care - - - - - - - - - - - - - - - - - 15
Environmental concerns - - - - - - - - - - - - - 16
Something not working- - - - - - - - - - - - - - 17
Technical data- - - - - - - - - - - - - - - - - - - - 19
Consumption values - - - - - - - - - - - - - - - 19
Hints for Test Institutes - - - - - - - - - - - - - - 20
Installation - - - - - - - - - - - - - - - - - - - - - - 21
Service and Spare arts- - - - - - - - - - - - - 24
Guarantee conditions - - - - - - - - - - - - - - - 24
152952 66/0en 13-02-2006 17:05 Pagina 2
All manuals and user guides at all-guides.com

3

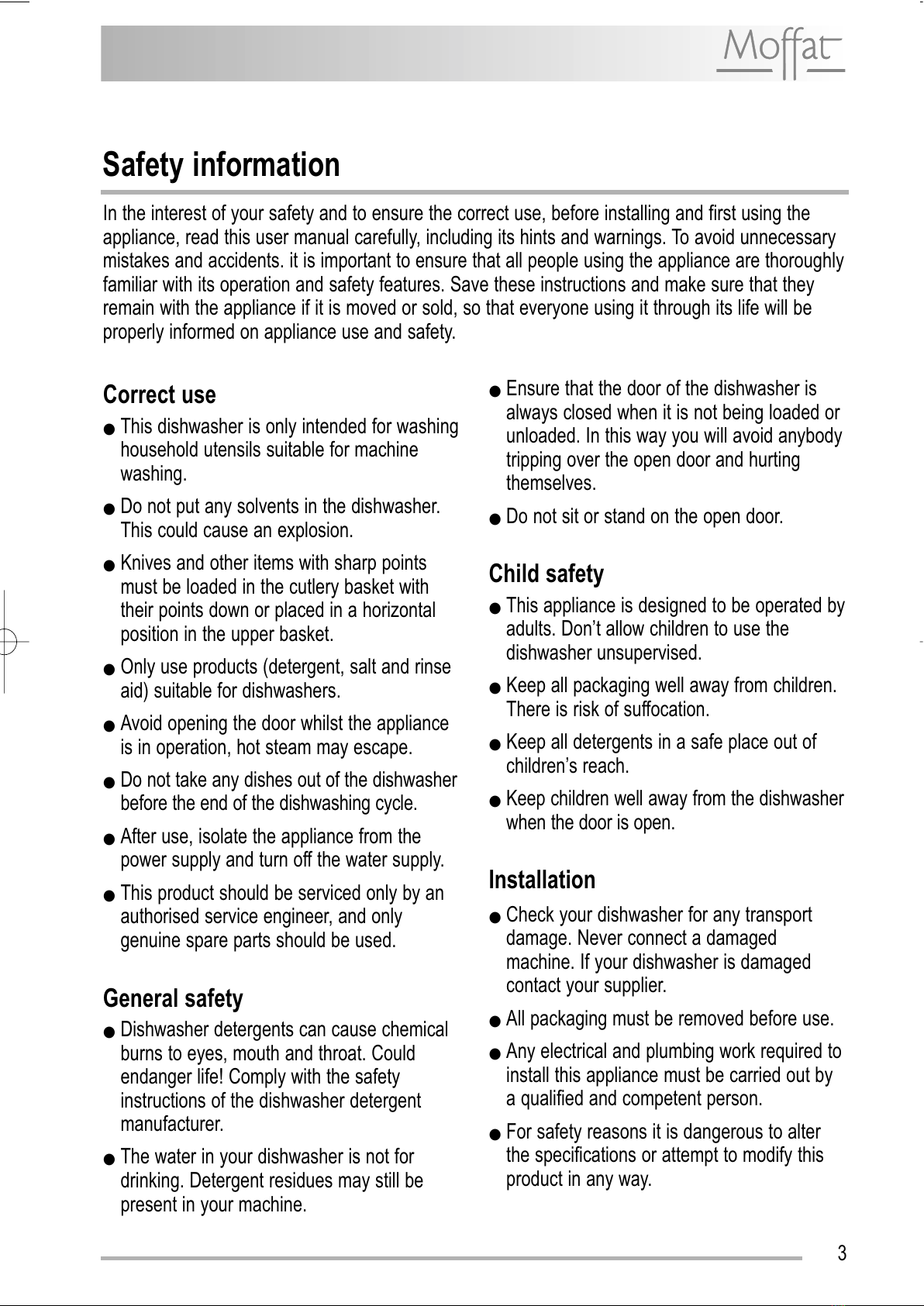

Safety information
Correct use
●This dishwasher is only intended for washing
household utensils suitable for machine
washing.
●Do not put any solvents in the dishwasher.
This could cause an explosion.
●Knives and other items with sharp points
must be loaded in the cutlery basket with
their points down or placed in a horizontal
position in the upper basket.
●Only use products (detergent, salt and rinse
aid) suitable for dishwashers.
●Avoid opening the door whilst the appliance
is in operation, hot steam may escape.
●Do not take any dishes out of the dishwasher
before the end of the dishwashing cycle.
●After use, isolate the appliance from the
power supply and turn off the water supply.
●This product should be serviced only by an
authorised service engineer, and only
genuine spare parts should be used.
General safety
●Dishwasher detergents can cause chemical
burns to eyes, mouth and throat. Could
endanger life! Comply with the safety
instructions of the dishwasher detergent
manufacturer.
●The water in your dishwasher is not for
drinking. Detergent residues may still be
present in your machine.
●Ensure that the door of the dishwasher is
always closed when it is not being loaded or
unloaded. In this way you will avoid anybody
tripping over the open door and hurting
themselves.
●Do not sit or stand on the open door.
Child safety
●This appliance is designed to be operated by
adults. Don’t allow children to use the
dishwasher unsupervised.
●Keep all packaging well away from children.
There is risk of suffocation.
●Keep all detergents in a safe place out of
children’s reach.
●Keep children well away from the dishwasher
when the door is open.
Installation
●Check your dishwasher for any transport
damage. Never connect a damaged
machine. If your dishwasher is damaged
contact your supplier.
●All packaging must be removed before use.
●Any electrical and plumbing work required to
install this appliance must be carried out by
a qualified and competent person.
●For safety reasons it is dangerous to alter
the specifications or attempt to modify this
product in any way.
In the interest of your safety and to ensure the correct use, before installing and first using the
appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary
mistakes and accidents. it is important to ensure that all people using the appliance are thoroughly
familiar with its operation and safety features. Save these instructions and make sure that they
remain with the appliance if it is moved or sold, so that everyone using it through its life will be
properly informed on appliance use and safety.
152952 66/0en 13-02-2006 17:05 Pagina 3
All manuals and user guides at all-guides.com

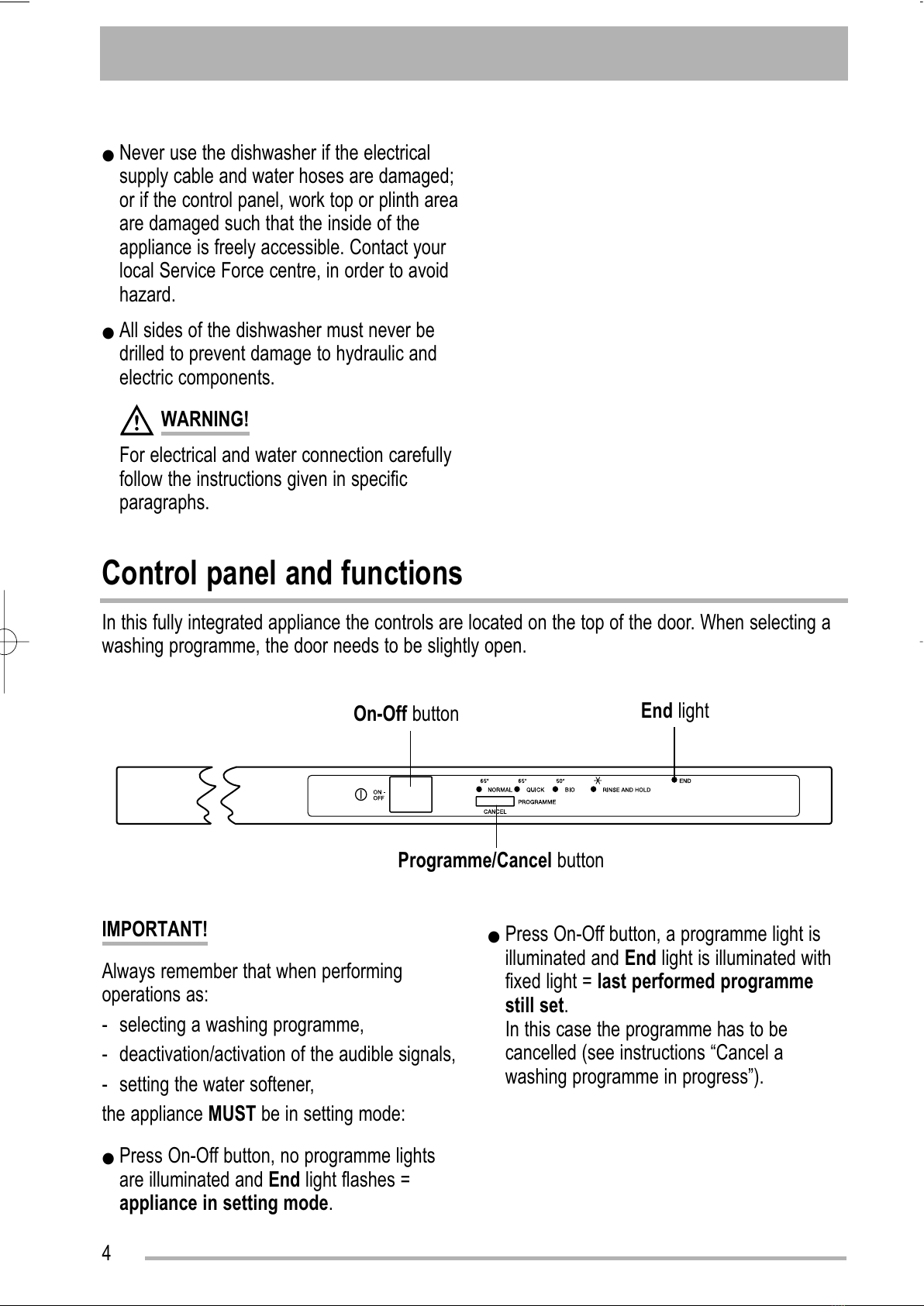

Control panel and functions
4
Programme/Cancel button
On-Off button nd light
In this fully integrated appliance the controls are located on the top of the door. When selecting a
washing programme, the door needs to be slightly open.
●Never use the dishwasher if the electrical
supply cable and water hoses are damaged;
or if the control panel, work top or plinth area
are damaged such that the inside of the
appliance is freely accessible. Contact your
local Service Force centre, in order to avoid
hazard.
●All sides of the dishwasher must never be
drilled to prevent damage to hydraulic and
electric components.
WARNING!
For electrical and water connection carefully
follow the instructions given in specific
paragraphs.
IMPORTANT!
Always remember that when performing
operations as:
- selecting a washing programme,
- deactivation/activation of the audible signals,
- setting the water softener,
the appliance MUST be in setting mode:
●ress On-Off button, no programme lights
are illuminated and nd light flashes =
appliance in setting mode.
●ress On-Off button, a programme light is
illuminated and nd light is illuminated with
fixed light = last performed programme
still set.
In this case the programme has to be
cancelled (see instructions “Cancel a
washing programme in progress”).
152952 66/0en 13-02-2006 17:05 Pagina 4
All manuals and user guides at all-guides.com

5

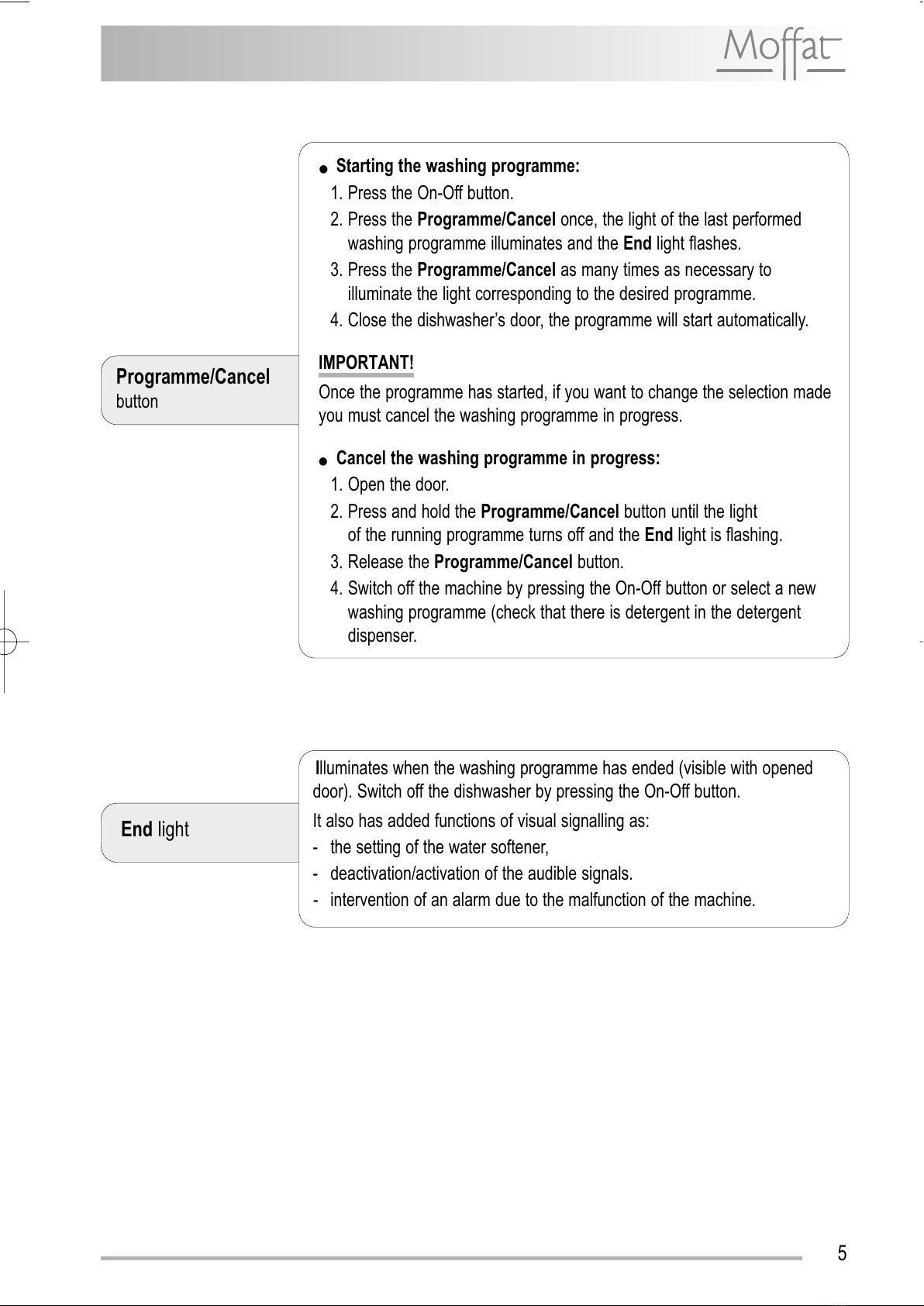

Programme/Cancel
button
●Starting the washing programme:
1. ress the On-Off button.
2. ress the Programme/Cancel once, the light of the last performed
washing programme illuminates and the nd light flashes.
3. ress the Programme/Cancel as many times as necessary to
illuminate the light corresponding to the desired programme.
4. Close the dishwasher’s door, the programme will start automatically.
IMPORTANT!
Once the programme has started, if you want to change the selection made
you must cancel the washing programme in progress.
●Cancel the washing programme in progress:
1. Open the door.
2. ress and hold the Programme/Cancel button until the light
of the running programme turns off and the nd light is flashing.
3. Release the Programme/Cancel button.
4. Switch off the machine by pressing the On-Off button or select a new
washing programme (check that there is detergent in the detergent
dispenser.
nd light
Illuminates when the washing programme has ended (visible with opened
door). Switch off the dishwasher by pressing the On-Off button.
It also has added functions of visual signalling as:
- the setting of the water softener,
- deactivation/activation of the audible signals.
- intervention of an alarm due to the malfunction of the machine.
