Moffat MCH665X Technical manual

8028007214
ISTRUZIONI
LIBRETTO
H>
=65
cm
B
A
B2
S>150 cm²
B1
OFF
ON
Cod.
TYPE
SERIE BATCH
W
Hz
VW tot
W MAX
M2
L L
3
1
M1
2
2
208
2 3 4
3
1
4
10mm
5
7
6
S>150 cm2
9
1 2
8
5
3 4
2
1

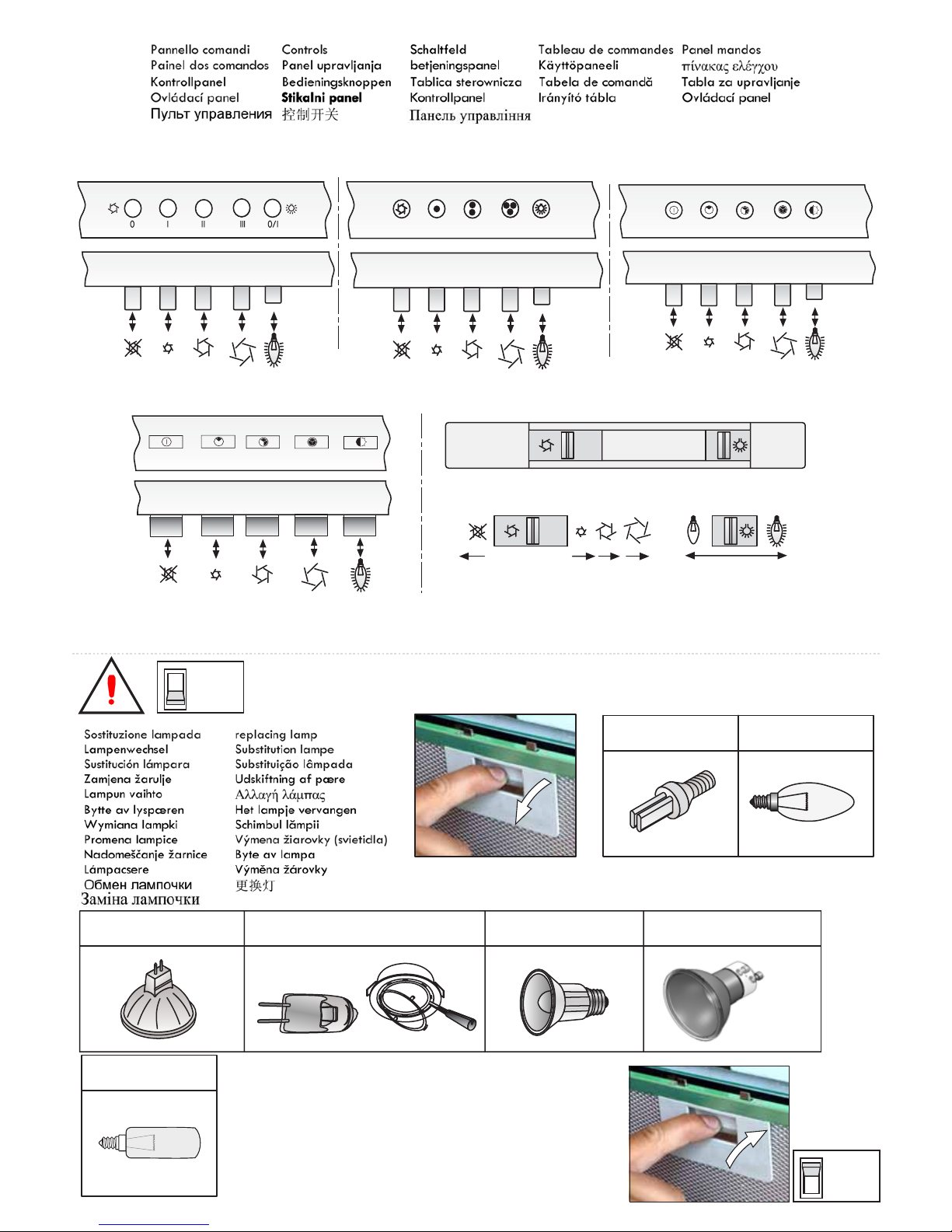

OFF
ON
OFF
ON
OFF
ON
OFF
ON
E14 40Wmax
E14 11Wmax
GU5.3 20Wmax G4 20Wmax E14 50Wmax GU10 50Wmax
E14 40Wmax
OFF
ON
60°
OFF
ON
24

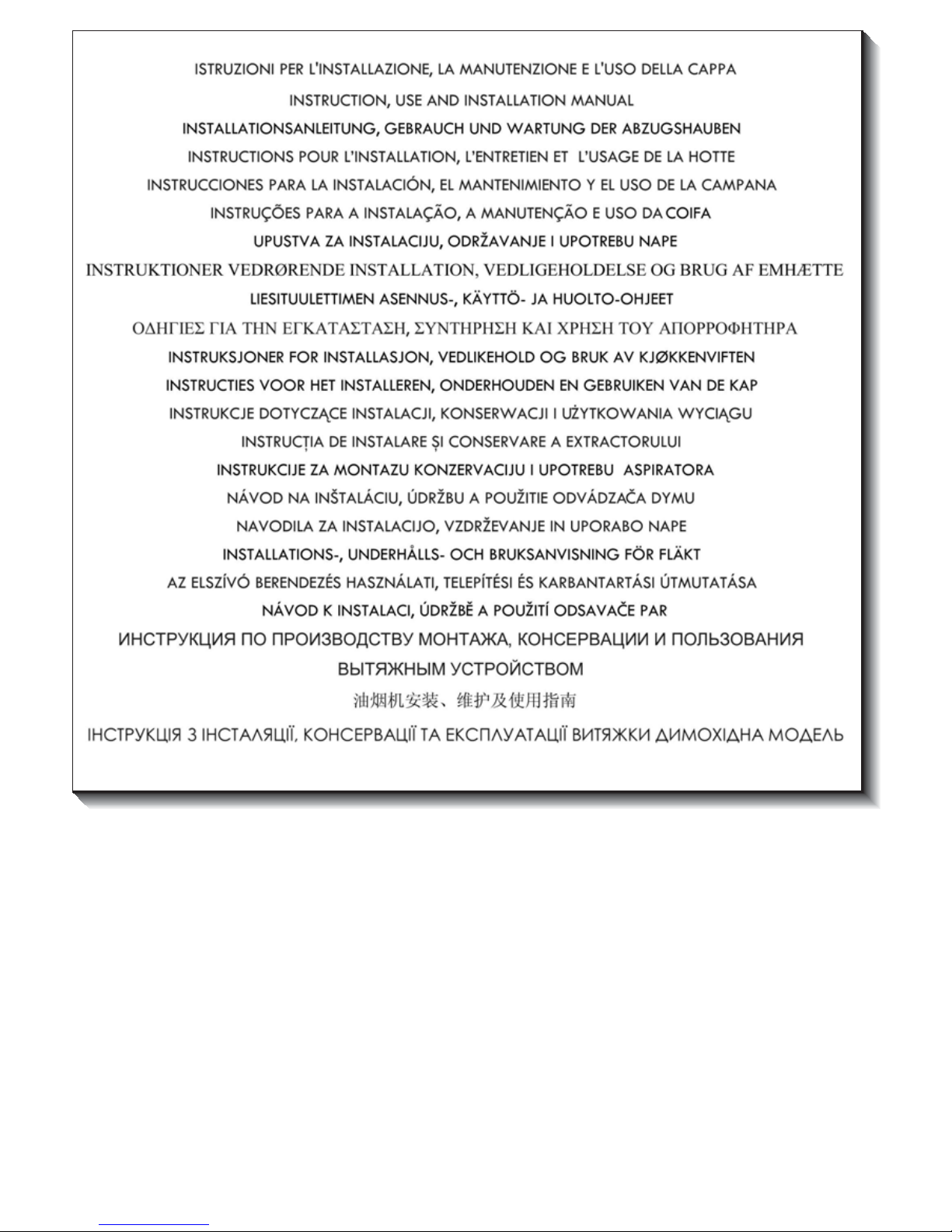

ISTRUZIONI PER L'INSTALLAZIONE, LA MANUTENZIONE E L'USO DELLA CAPPA
GENERALITAí
Prima di installare e/o usare la cappa leggere attentamente ed integralmente le istruzioni.
Prima di installare la cappa assicurarsi che la tensione (V) e la frequenza (Hz) indicati sulla targhetta matricola e dati tecnici posta all'interno dell'apparecchio
corrisponda alla tensione e frequenza disponibili nel luogo d'installazione.
INSTALLAZIONE
In nessun caso la cappa deve essere collegata a camini di scarico di altri apparecchi alimentati con energia diversa da quella elettrica
(scaldabagni - caldaie - stufe - ecc.).
L'apparecchio non deve essere sovrapposto a stufe con piastra radiante superiore.
COLLEGAMENTO ELETTRICO
La cappa Ë destinata ad essere installata in modo fisso e permanente. Collegare l'apparecchio alla rete elettrica. Per tensione di linea e frequenza
consultare la targa matricola posta all'interno dell'apparecchio, avendo cura di allacciare il cavo ad una spina oppure collegare l'apparecchio ad un
interruttore onipolare con una distanza di apertura dei contatti di almeno 3mm. Il cavo di alimentazione (tipo H05VV-F 2x0.75mm ) collegato ai morsetti
contraddistinti con L (linea), N (neutro) della cappa e fissato con il serracavo, deve essere collegato ad un idoneo ed accessibile punto di alimentazione
fisso a cura del personale specializzato ed autorizzato che deve eseguire l'installazione nel rispetto delle norme e leggi vigenti prevedendo a monte
del collegamento elettrico un interruttore onnipolare con apertura dei contatti di almeno 3mm. Collegare il cavo di alimentazione, se munito di una spina,
ad una presa di corrente che permette l'inserimento o il disinserimento della medesima ad apparecchio installato o ad una presa comandata da
interruttore onnipolare con una distanza di apertura dei contatti di almeno 3 mm.
Il costruttore declina ogni responsabilit‡ nel caso non vengano osservate tutte le norme antinfortunistiche vigenti e necessarie al normale esercizio e
regolare funzionamento dell'impianto elettrico.
MANUTENZIONE
Assicurarsi sempre prima di effettuare qualsiasi operazione che il cavo di alimentazione sia disinserito dalla presa di corrente o che l'interruttore sia
nella posizione OFF.
Pulizia: Pulire le parti esterne con un panno morbido e detersivo liquido non corrosivo, evitare l'uso di polveri abrasive o di spazzole.
AVVERTENZE
La pulitura deve venire effettuata secondo le istruzioni del costruttore specialmente riguardo ai depositi sulle superfici insudiciate contro un possibile
rischio di incendio. Prestare attenzione che i fuochi siano sempre coperti in modo tale da non procurare surriscaldamento al filtro della cappa.
Non friggere mai lasciando la pentola senza sorveglianza: l'olio contenuto nella pentola puÚsurriscaldarsi e incendiarsi. Nel caso di olio usato il rischio
di autocombustione Ë pi˘ elevato. E' assolutamente vietato eseguire cotture con sviluppo di fiamma sotto la cappa (es. flambee). L'aria raccolta non
deve essere convogliata in un condotto usato per lo scarico di fumi di apparecchi alimentati con energia diversa da quella elettrica, inoltre deve essere
prevista un'adeguata aerazione del locale quando la cappa e apparecchi alimentati con energia diversa da quella elettrica vengono usati contemporaneamente.
Se la cappa Ë utilizzata nella versione aspirante, assicurarsi delle condizioni del camino di scarico, nel caso quest'ultimo sia rimasto inutilizzato per
lungo tempo. Ricordarsi di prestare attenzione alle norme vigenti locali e alle prescrizioni delle autorit‡ competenti in merito allo scarico dell'aria da
evacuare nel funzionamento aspirante della cappa. Tutti i suggerimenti dati a riguardo devono essere scrupolosamente osservati al fine di evitare
possibili incendi
IL COSTRUTTORE DECLINA OGNI RESPONSABILITA' NEL CASO NON VENGANO OSSERVATE LE INDICAZIONI QUI SOPRA DESCRITTE
IN MERITO AD INSTALLAZIONE. MANUTENZIONE ED IDONEO UTILIZZO DELLA CAPPA
INSTRUCTION, USE AND INSTALLATION MANUAL
GENERAL GUIDELINES
Before installing and / or using the cooker hood carefully read all the instructions.
Before installing the cooker hood make sure the voltage (V), frequency (Hz) indicated on the serial number plate and specifications on the rating plate
on the inside of the cooker hood correspond to the voltage and frequency of the mains supply.
INSTALLATION
The cooker hood must not be installed and connected to flues where other appliances are installed and which run off other energy supplies
different to electricity (water heaters - boilers ñ cookers (range/agas) - etc.).
The cooker hood must not be installed above cookers with eye-level grills.
ELECTRICAL CONNECTION
This cooker hood is designed for permanent fixture. Connect to mains supply. Check voltage and frequency given on the rating plate located on the
inside of the hood. Connect the mains cable to a power socket or to a omnipolar switch with a contact gap of at least 3 mm. The mains cable (type
H05VV-F 2 x0.75 mm2) is connected to terminals marked with the letters L (power line)and N (neutral) mounted on the hood and is secured in position
by a cable gland. The mains cable must be connected to a suitable and easily accessible fixed power point. As the electrical installation must comply
with the laws and regulations in force only a qualified and authorised electrician must install the hood including connecting it to a omnipolar switch with
a contact gap of at least 3 mm.
Connect the mains cable if provided with a plug to a power socket. The user must have access to the power socket to be able to connect and disconnect
the plug once the hood is mounted and fixed or the mains cable can be plugged into a socket with a omnipolar switch with a contact gap of at least 3
mm.
The manufacturer shall decline all responsibility if the governing health and safety laws are not observed which permit a safe and correct use of the
hood and electrical connections.
MAINTENANCE
Before servicing or repairing the hood make sure the appliance is disconnected from the mains supply either by removing the plug or switching the
power socket to OFF.
Cleaning: clean the outer part of the hood with a soft cloth and liquid detergent and do not use abrasive cleaning products or scouring pads.
WARNINGS
"Warnings areas bhind filters are not intended to be cleaned"
Follow the cleaning instructions given by the manufacturer and in particular take care that there are no grease deposits on the surface of the hood
which could create a possible fire hazard. Make sure the electric hob rings or gas rings are always covered when in use to avoid heating the filter.
When frying never leave pans unattended as there is the risk of the oil overheating and catching fire. If reusing frying oil the fire risk is greater. Never
prepare flambÈ (flame cooked food) dishes under the hood. The air ducted by the hood must not be conveyed into a flue used for other appliances
that run off other energy supplies different to electricity. The kitchen must have good air ventilation when the hood and other appliances which run off
other energy sources are in use. If the air is to be ducted, before installing make sure the flue is in good condition especially if it has been out of use
for a long period of time. Always observe governing laws and regulations regarding ducting waste gases. All recommendations given must be scrupulously
observed to avoid any possible fire hazard.
THE MANUFACTURER SHALL DECLINE ALL RESPONSIBILITY IF THE FOREGOING RECOMMENDATIONS AND INSTRUCTIONS REGARDING
INSTALLATION, MAINTENANCE AND USE ARE NOT OBSERVED AND RESPECTED WHEN USING THE COOKER HOOD.
I
GB
D
F
E
P
HR
DK
FIN
GR
N
NL
PL
RO
SB
SK
SLO
S
H
CZ
RUS
CN
