molitor 4K Light User manual

molitor 4K Light
Copyright© molitor GmbH Page 1 of 39
molitor 4K Light
Manual V0.1
Firmware Version 1.0.41
Thu Dec 03 11:00:00
english

molitor 4K Light
Copyright© molitor GmbH Page 2 of 39
Content
1. Technical Data..........................................................................................................................................5
1.1. SUPPORTED FILE FORMATS...........................................................................................................................5
VIDEO........................................................................................................................................................................................5
IMAGES.....................................................................................................................................................................................5
AUDIO.......................................................................................................................................................................................6
DATA STORAGE.........................................................................................................................................................................6
CONNECTIONS ..........................................................................................................................................................................6
DETAILS.....................................................................................................................................................................................7
SCOPE OF DELIVERY..................................................................................................................................................................7
2. Hardware Overview..................................................................................................................................8
2.1. Front............................................................................................................................................................8
2.2. Back.............................................................................................................................................................8
Wireless Antenna Connection ..................................................................................................................................................8
AV Output 4-Pole Mini-Jack......................................................................................................................................................8
Gigabit LAN Port .......................................................................................................................................................................9
SPDIF Optical ............................................................................................................................................................................9
Power Adaptor Connection ......................................................................................................................................................9
2.3. Right Side.....................................................................................................................................................9
USB 3.0 .....................................................................................................................................................................................9
USB 2.0 .....................................................................................................................................................................................9
MicroSD ....................................................................................................................................................................................9
3. First Steps............................................................................................................................................... 10
3.1. Setup ......................................................................................................................................................... 10
3.2. Connecting Outputs.................................................................................................................................... 10
Video.......................................................................................................................................................................................10
Audio ......................................................................................................................................................................................10
3.3. Network..................................................................................................................................................... 10
3.4. Starting the molitor 4K Light Player............................................................................................................. 11
3.5. Playback files.............................................................................................................................................. 11
4. Configuration of the molitor 4K Light Player............................................................................................ 11
4.1. The Remote Control.................................................................................................................................... 12
4.2. OSD Menu.................................................................................................................................................. 13
Network & Internet ................................................................................................................................................................13
Display Setup ..........................................................................................................................................................................16
Date & time ............................................................................................................................................................................17
Bluetooth Setup......................................................................................................................................................................18
4.3. CFPSetup.txt File ........................................................................................................................................ 18
Video und Audio Settings .......................................................................................................................................................19
Netzwerk ................................................................................................................................................................................19
Display Time ...........................................................................................................................................................................19
Orientation .............................................................................................................................................................................19
ShowTouch .............................................................................................................................................................................20
5. Playback................................................................................................................................................. 20
5.1. Without Playlist.......................................................................................................................................... 20
5.2. With Playlist (PLAYLIST.txt)......................................................................................................................... 20

molitor 4K Light
Copyright© molitor GmbH Page 3 of 39
Required Parameters..............................................................................................................................................................21
Optional Parameters ..............................................................................................................................................................21
Scheduled Playlists .................................................................................................................................................................22
HTML5 Browser ......................................................................................................................................................................23
6. External Control...................................................................................................................................... 24
6.1. Control via UDP (User Datagram Protocol) .................................................................................................. 24
6.2. Playback Commands................................................................................................................................... 24
PAUSE .....................................................................................................................................................................................24
CONTINUE...............................................................................................................................................................................24
PAPL........................................................................................................................................................................................24
STATUS?..................................................................................................................................................................................24
NEXT .......................................................................................................................................................................................24
PREV........................................................................................................................................................................................24
PLAY........................................................................................................................................................................................25
PLAYFILE..................................................................................................................................................................................25
JUMP.......................................................................................................................................................................................25
RUNTIME?.............................................................................................................................................................................25
TIMETOFINISH?.....................................................................................................................................................................25
6.3. File Commands........................................................................................................................................... 26
PLAYLIST?................................................................................................................................................................................26
FOLDERLIST?...........................................................................................................................................................................26
6.4. USB Touchscreen........................................................................................................................................ 26
HTML with Touch....................................................................................................................................................................26
Touchscreen ...........................................................................................................................................................................26
6.5. USB Numblock............................................................................................................................................ 29
6.6. USB Presenter ............................................................................................................................................ 30
6.7. USB Keyboard............................................................................................................................................. 31
6.8. USB Mouse................................................................................................................................................. 31
7. Anhang .................................................................................................................................................. 32
7.1. UltraHD_Konverter.......................................................................................Fehler! Textmarke nicht definiert.
Java Installation ......................................................................................................................................................................32
UltraHD_Konverter starten ................................................................................................ Fehler! Textmarke nicht definiert.
Bild Dateien auswählen ...................................................................................................... Fehler! Textmarke nicht definiert.
Eigenschaften wählen......................................................................................................... Fehler! Textmarke nicht definiert.
Zielordner wählen............................................................................................................... Fehler! Textmarke nicht definiert.
Starten Sie die Umwandlung .............................................................................................. Fehler! Textmarke nicht definiert.
Dateien auf SD Karte / USB Speicher kopieren................................................................... Fehler! Textmarke nicht definiert.
7.2. Update Firmware........................................................................................................................................ 37
Download Files .......................................................................................................................................................................37
Release Update.......................................................................................................................................................................38
7.3. EC –DECLARATION OF CONFORMITY .......................................................................................................... 39
Molitor GmbH does not warrant that the hardware will work properly in all environments and applications,
and makes no warranty and representation, either implied or expressed, with respect to the quality,
performance, merchantability, or fitness for a particular purpose.
Molitor GmbH has made every effort to ensure that this User’s Manual is accurate; Molitor GmbH disclaims
liability for any inaccuracies or omissions that may have occurred.

molitor 4K Light
Copyright© molitor GmbH Page 4 of 39
Information in this User’s Manual is subject to change without notice and does not represent a
commitment on the part of Molitor GmbH. Molitor GmbH assumes no responsibility for any inaccuracies
that may be contained in this User’s Manual. Molitor GmbH makes no commitment to update or keep
current the information in this User’s Manual and reserves the right to make improvements to this User’s
Manual and/or to the products described in this User’s Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate
your comments and suggestions.

molitor 4K Light
Copyright© molitor GmbH Page 5 of 39
1. Technical Data
SUPPORTED FILE FORMATS
VIDEO
*Bei Erwerb einer optionalen 4K-Dekoderlizenz
IMAGES

molitor 4K Light
Copyright© molitor GmbH Page 6 of 39
AUDIO
DATA STORAGE
CONNECTIONS

molitor 4K Light
Copyright© molitor GmbH Page 7 of 39
DETAILS
SCOPE OF DELIVERY

molitor 4K Light
Copyright© molitor GmbH Page 8 of 39
2. Hardware Overview
Front
1. System-LED
2. Time
3. Various Symbols (Network; USB-Device; Playback Status)
Back
Connection Descriptions from Left:
1. Wireless Antenna Connection (10cm Antenna included in Delivery)
2. AV Output 3.5mm Mini-Jack 4-Pole (CVBS und Stereo Audio)
3. Gigabit LAN-Port
4. HDMI2.0 Output
5. S/PDIF Optical Audio Output
6. Power Adaptor (5V)
Wireless Antenna Connection
For an improved Wifi reception, screw in the included 10cm Antenna here.
AV Output 4-Pole Mini-Jack
4-Pole 3.5mm Mini-Jack connection.
1. Ground
2. CVBS
3. Audio Right
4. Audio Left

molitor 4K Light
Copyright© molitor GmbH Page 9 of 39
Gigabit LAN Port
Integrate the 4K Light Player into an existing network or build up your own network of 4K Light Players.
It can either be integrated via DHCP or be assigned a fixed IP address. For details please refer to the
Network Settings section.
SPDIF Optical
Digital Audio output. Connect an optical TOSLINK cable to transmit the audio signal to your end device.
Power Adaptor Connection
Connect the provided 5V power adapter to this port.
Right Side
Connection description from left:
1. USB 3.0
2. USB 2.0
3. MicroSD
USB 3.0
USB 3.0 Port for the connection of external devices such as: Mouse, Keyboard, Presenter, Touchscreens,
etc…
USB 2.0
USB 2.0 Port for the connection of external devices such as: Mouse, Keyboard, Presenter, Touchscreens,
etc…
MicroSD
Insert your MicroSD card with your playback content here.
Supported data formats: FAT32, NTFS, exFAT

molitor 4K Light
Copyright© molitor GmbH Page 10 of 39
3. First Steps
Setup
Remove the molitor 4K Light player from the packaging.
Connecting Outputs
Video
Connect the molitor 4K Light player to your display or projector using the HDMI2.0b port on the rear of
the device.
By default, the molitor 4K Light will choose a suitable resolution automatically. In some cases, the display
can send the incorrect information and the signal will not be best possible option. You can then configure

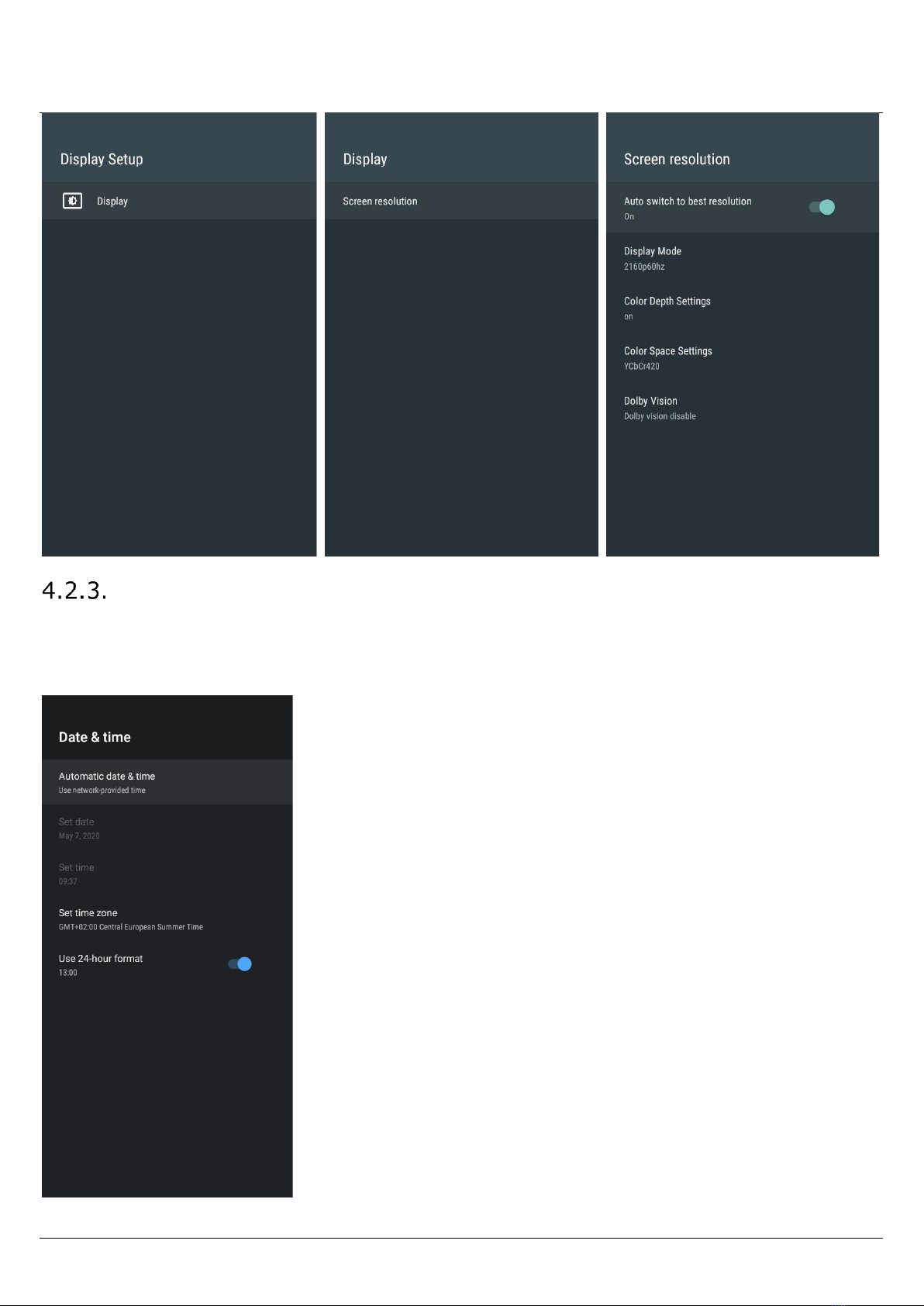

the player individually. You can read more in chapter 4.2.2. Display Setup
If no storage device with playable files is plugged in, the start page with version info is displayed.
Otherwise, it will play directly from MicroSD card or USB memory.
Audio
You can connect audio via 3 separate outputs:
1. Digital audio via the HDMI output on the back.
2. Digital audio via the SPDIF optical output on the back.
3. Analog audio via the 4-Pole Mini-Jack AV output on the back.
All audio outputs are active simultaneously and so you do not need to change any settings.
Network
In order to use the network functions of the 4K Light Player, you must connect it to a network.
The following features are only usable if the 4K Light Player is connected to your local network:
•Display of external HTML Websites
•UDP Control
•Set time and date via NTP server
Please follow these steps to connect the molitor 4K Light to your local network:
I. Connect a CAT5 Ethernet cable to the Gigabit LAN Port on the back.
II. IP Address:
By default, DHCP is activated. If you have a DHCP Server in your network, you do not need to
configure anything. The obtained IP can be seen on the display, if neither SD Card nor USB storage
is present.
To assign a static IP address, you can either to it via the settings screen on the display or the
CFPSetup.txt file.
a. On the Player:
Press the Setup button on the included remote control.

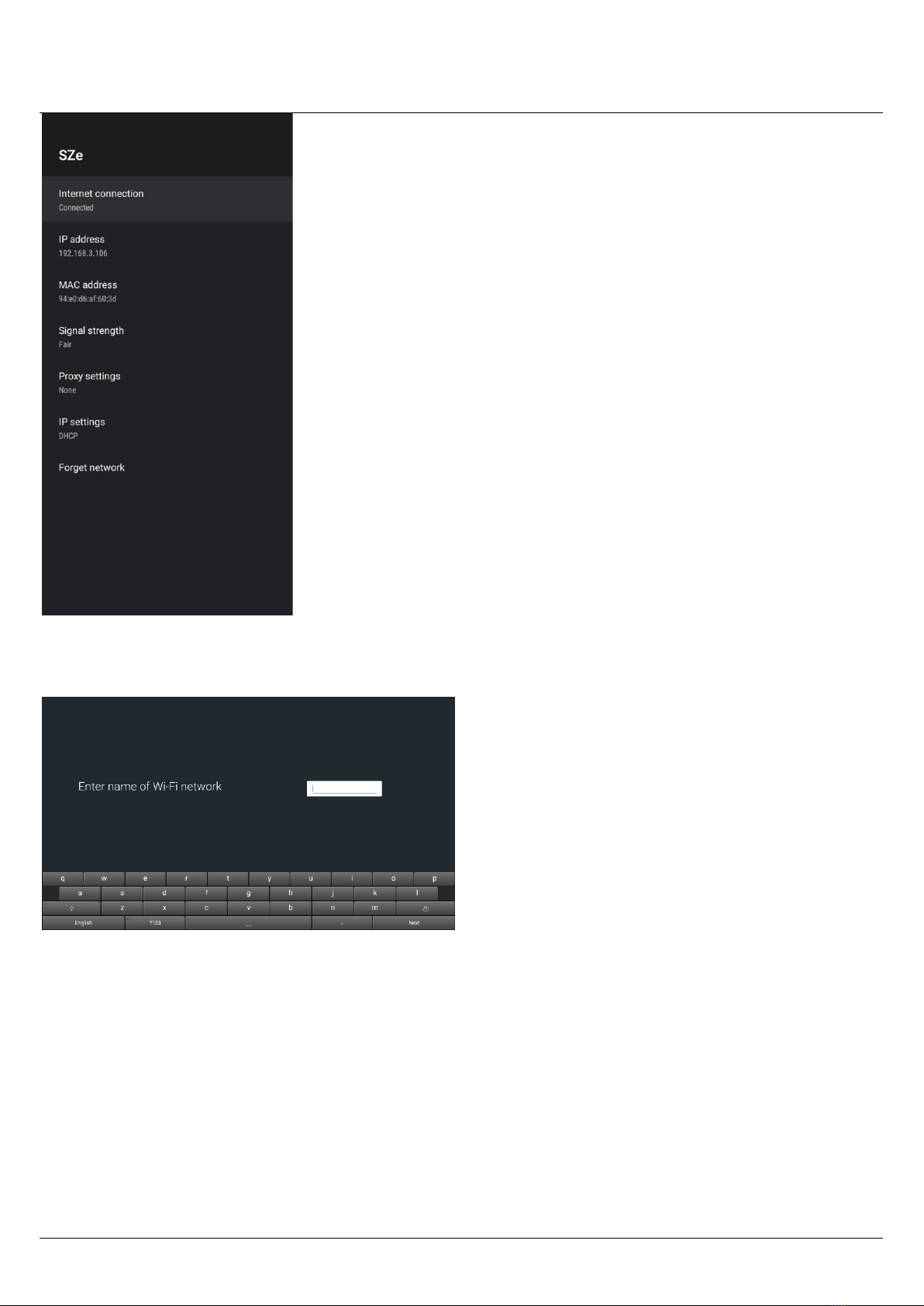

Use the selection arrows and the OK button to select Network & Internet.
There you can either activate and configure the Wifi or update the settings for a wired
network.
b. With CFPSetup.txt:
Create a text file called “CFPSetup.txt” or edit the one provided on the SD Card. Set

molitor 4K Light
Copyright© molitor GmbH Page 11 of 39
DHCP to Off, or any IP setup will be ignored. Follow this syntax:
DHCP Off
IP 192.168.0.2
Subnet 255.255.255.0
Gateway 192.168.0.2
Save this file on the SD Card or USB storage and insert it into the molitor 4K Light
Player. The new setting will be applied instantly.
Starting the molitor 4K Light Player
Connect the 5V power supply to the power socket on the rear of the molitor 4K Light Player. Then connect
the power supply to the mains (220V). The Power LED on the front will change from orange to red and you
will see a boot screen on the display. As soon as the molitor 4K Light starts playback, the LED will change
to green and your content or the setup screen will appear on the display.
Playback files
Copy your media files to the root directory of the SD Card or USB storage.
Playback will start in alphanumerical order. After the last file has ended, playback will continue with the
first item.
If you want to change the playback order, you can create a Playlist. You can find details on how to do this
in section 5.2
4. Configuration of the molitor 4K Light Player
There are two ways to configure the molitor 4K Light player:
1. Via the Remote Control
2. Via the Setiup file CFPSetup.txt

molitor 4K Light
Copyright© molitor GmbH Page 12 of 39
The Remote Control
5: Volume
2: Setup Button
4: Mouse Pointer
On / Off
6: Back Button in
the Menu
8: Direct Selection
of Playback ITEMS
7: Display Mode
Adjustment
Portrait / Landscape
1: Mute
On / Off
3: Selection Arrows
and OK Button

molitor 4K Light
Copyright© molitor GmbH Page 13 of 39
1
Mute Activation / Deactivation
2
Show Setup Menu
3
Selection Arrows and OK Button
4
Mouse Pointer On / Off. The mouse pointer can be moved with the selection arrows and confirmed
with the OK Button.
5
Volume Adjustment
6
Back Button in Menu
7
Display Mode adjustment. Switch between Portrait und Landscape.
8
Direct selection of ITEMS via Index number.
OSD Menu
When you press the Setup button on the remote control, the Setup menu will open on the right side of the
display.
Network & Internet
You can update network settings here.

molitor 4K Light
Copyright© molitor GmbH Page 14 of 39
4.2.1.1. Wi-Fi and Available networks
When Wi-Fi is activated, you can choose from available wireless networks and enter the network
password:
Input is possible either via a connected USB Keyboard, or with the Remote Control/Touch/USB Mouse via
the onscreen keyboard. Press the back button on the remote control to close the keyboard and navigate
the text field.
Impotant: Wi-Fi will ONLY function when there is NO LAN cable connected.
4.2.1.2. Wi-Fi IP and Details
If you are connected to a Wi-Fi network, you can select it and press OK to switch to the Wi-Fi network
details. There you can change proxy settings, as well as IP Addresses/Gateway/Subnet/DNS information.

molitor 4K Light
Copyright© molitor GmbH Page 15 of 39
4.2.1.3. Add new network
You can manually input a Wi-Fi SSID Name in case it is not publicly visible.
Input is possible either via a connected USB Keyboard, or with the Remote Control/Touch/USB Mouse via
the onscreen keyboard. Press the back button on the remote control to close the keyboard and navigate
the text field.
4.2.1.4. Scanning always available
This feature is not available for the 4K Light Player
4.2.1.5. Proxy settings (For LAN Cable)
You can define a proxy server for access to the Internet.
Input is possible either via a connected USB Keyboard, or with the Remote Control/Touch/USB Mouse via
the onscreen keyboard. Press the back button on the remote control to close the keyboard and navigate
the text field.

molitor 4K Light
Copyright© molitor GmbH Page 16 of 39
4.2.1.6. IP Settings (For LAN Cable)
First select automatic assignment of the IP address via DHCP or manual (static). With DHCP you don't
have to do anything else if your network supports this function.
If you choose Static, you can define the IP Addresses/Gateway/Subnet/DNS here.
Input is possible either via a connected USB Keyboard, or with the Remote Control/Touch/USB Mouse via
the onscreen keyboard. Press the back button on the remote control to close the keyboard and navigate
the text field.
Display Setup
You can reach the resolution settings by selecting Display Setup -> Display -> Screen Resolution
4.2.2.1. Auto switch to best resolution
Activate this function to automatically select the displays preferred resolution(EDID).
4.2.2.2. Display Mode
Select the desired resolution. After the selection you will be asked to confirm within 15 seconds before the
previous resolution is restored.
4.2.2.3. Colour Depth Settings
On = 10 Bit Colour Depth (HDR)
Off = 8 Bit Colour Depth
4.2.2.4. Color Space Settings
Choose your desired colour space.
4.2.2.5. Dolby Vision
Activate or Deactivate Dolby Vision HDR. (Experimental!)

molitor 4K Light
Copyright© molitor GmbH Page 17 of 39
Date & time
Set the date and time either automatically via an NTP Server, or manually.
You can also define the timezone.
The time and date is maintained when the power is disconnected via an internal battery.

molitor 4K Light
Copyright© molitor GmbH Page 18 of 39
Bluetooth Setup
The 4K Light Player supports the connection of Bluetooth devices, for example, Speakers or Headphones.
In order to add a new device (Pairing), choose Add Accessory and activate Device Search (Pairing) on your
device.
As soon as a device has been found, it can be selected from the list to connect it to 4K Light Player.
CFPSetup.txt File
HDMI Auto On
Resolution 3840x2160p60
Volume 5
DHCP On
IP 192.168.0.2
Subnet 255.255.255.0
Gateway 192.168.0.1
DNS 192.168.0.1
UDP Port 4950
NTP Control On
Timezone CET
Standard Displaytime 5
Orientation Landscape
ShowTouch Off

molitor 4K Light
Copyright© molitor GmbH Page 19 of 39
Video und Audio Settings
HDMI Auto On
Resolution 3840x2160p60
Volume 5
•HDMI Auto
oOff: Selected resolution will be applied.
oOn: The resolution of the 4K Light Player will be selected automatically according to the
displays preferred settings. This is the default configuration.
Sometimes the display will not request the best possible resolution. In these cases, the
correct resolution should be manually applied.
•Resolution
oSelect the resolution of the display.
•Volume
oValues from 0 to 10
▪0 Mute
▪10 max. Volume
Netzwerk
DHCP On
IP 192.168.0.2
Subnet 255.255.255.0
Gateway 192.168.0.1
DNS 192.168.0.1
UDP Port 4950
•DHCP
oOff: Your IP, Subnet, Gateway, DNS settings will be applied.
oOn: IP settings will be provided by DHCP server. Custom values will be ignored.
•IP Address
•Subnet mask
•Gateway
•DNS
•UDP Port Default Port is 4950. For synchronised playback, all 4K Light Players must use the
same port.
Display Time
Displaytime 5
Duration that images or HTML content are displayed on screen in seconds by default.
Orientation
Orientation Landscape
Images and Websites will be displayed in Landscape orientation
Orientation Portrait
Images and Websites will be displayed in Portrait orientation.
For videos, the aspect ratio is reversed, but the videos themselves are not rotated.

molitor 4K Light
Copyright© molitor GmbH Page 20 of 39
ShowTouch
ShowTouch On
When using a touch screen, a short animation is shown on the display at each touch.
ShowTouch Off
There will be no animation shown for each touch.
5. Playback
Without Playlist
The easiest way to playback media files is to:
1. Copy the files to the root directory of the SD Card / USB storage.
2. Plug the SD Card / USB storage into the 4K Light Player.
The 4K Light Player starts the playback of the files in alphanumerical order (0-9, A-Z). Videos will be
played once, image content is displayed for the duration defined as Displaytime (Default is 5 seconds)
Once all files have been played, the cycle will restart with the first item.
Special cases:
•Single video on SD Card: Will be looped seamlessly (no black frame)
•Single picture on SD Card: Will be displayed continuously
Example of the alphanumerical playback order:
1. 0.jpg
2. 05_movie5.mp4
3. 1.mp4
4. movie1.mov
5. picture2.jpg
With Playlist (PLAYLIST.txt)
If you want to have full control over the order in which the items will be played, or if you want to use
advanced features during playback, you can create a PLAYLIST.txt.
It is created as a normal text file, that contains the file names and optional entries, that control the
succession of an item or advanced features.
In order to do this:
•Create a text file with a text editor of your choice and name it “PLAYLIST.txt”
Example:
[ITEM 0]
File=Movie1.mp4
[ITEM 1]
Displaytime=12
