Gold Note GIGLIO User manual

Italian Music Experience
OWNER’S MANUAL
GIGLIO
THE ITALIAN TURNTABLE

1
IMPORTANT SAFETY INFORMATION
This appliance has a serial number located on the rear panel.
Please record the model and serial number and retain them for your records.
Serial Number:
Model:
Do not disassemble any part of the product.
Do not use any part of the product for other purposes.
For service and problems of any kind, contact qualied Gold Note personnel.
Protect the product from rain and humidity and keep away from heat sources, electric and electronic motors etc.
The power Chord supplied must be used only on this unit.
Gold Note does not have responsibility for any improper use of this unit.
CAUTION!
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER ONLY TO QUALIFIED GOLD NOTE SERVICE PERSONNEL FOR SERVICE
WARNING!
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE

2
IMPORTANT SAFETY INFORMATION
1. Read these instructions and store them.
2. Heed all warnings.
3. Follow the instructions.
4. Do not use this apparatus near water.
5. Clean only with a dry cloth.
6. Do not block the ventilation openings and install in
accordance with the manufacturer's instructions.
7. Do not install near heat sources such as radiators, heat
registers, stoves or other apparatus (including ampliers) that
produce heat.
8. Do not defeat the safety purpose of the polarised or
grounding-type plug: a polarised plug has two blades with
one wider than the other.
A grounding type plug has two blades and a third grounding
prong.
The wide blade or the third prong are provided for your safety.
If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
9. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
10. Only use attachments/accessories specied by the
manufacturer.
11. Use only with the cart, stand, tripod, bracket, or table
specied by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
12. Unplug this apparatus during lightning storms or when
unused for long periods of time.
13. Refer all servicing to qualied service personnel only.
Servicing is required when the apparatus has been damaged
in any way (such as when the power cord or plug is damaged,
liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or
moisture) and in any case when the apparatus does not
operate normally or has been dropped.

3
INTRODUCTION
The Giglio follows the beauty and technical innovation of the
new generation of turntable designed by Gold Note featuring
unique musical qualities and the legacy of strong Tuscan
origins.
The Giglio features a 50mm curved plinth made of lacquered
MDF or Harwood Walnut, quality materials chosen for their
exceptional elasticity, strength and high density, being at the
same time evocative of Tuscany landscape, one of the most
recognisable places in the world, creating a strong union
between the nished product and the skilful local craftsmen
who made it by hand.
The curved plinth is precisely cut in the inner side to nd the
perfect tuning of the wood that is interfaced with a 3mm
stainless steel board. The structure is completed with a 20mm
thick black polished acrylic top plinth, where the electronic
board of the turntable is installed, thus lowering the
frequency resonance.
The curved wooden plinth is the result of years of research at
the Gold Note engineering labs in order to replace a bigger
mass plinth of a more traditional rectangular shape structure;
the extra rigidity given by the curves of the plinth allow a
sophisticated technical design and a great exclusive look.
The Giglio features a 12Volt synchronous motor directly
derived from Mediterraneo.
Thanks to our proprietary power control generator based
on a Quadral-Core micro-controller, Giglio can effectively
control vibrations and deliver high torque for the greatest
dynamic and resolution.
The Power Supply electronically controls the 33⅓rpm, the
45rpm modes and the ne speed adjustment storing the
selection permanently in memory even when disconnected
from the power.
The new perfectly polished hourglass motor pulley also
allows the turntable belt to spin smoothly thus reducing the
wow&utter and noise as never before.
The 80mm long platter Spindle/bearing comes directly from
the top quality design of the Mediterraneo; it is fully
recessed into the acrylic top plinth in order to keep the thick
platter as closest as possible to the turntable structure to
reduce turbulences generated by the rotation and achieving
a virtual zero vibration point.
The platter is 33mm thick made of Polyvinyl, a very elastic
but deaf material, it features an extraordinary ability to
reduce vibrations while the high-mass helps the rotational
stability.
The platter is designed to operate at only 3mm from the
plinth. Such small platter/plinth interference minimise
turbulences for the greatest noiseless functionality..
The choice of materials shows a dedication to the native
ground that goes beyond the musical dimension of the
product to create a truly unique experience.
Every Gold Note products is 100% proudly designed, manufactured and assembled in Italy

4
CONTENT AND KEY FEATURES
WHAT YOU WILL FIND IN THE PACKAGE
•1 TURNTABLE plinth
• 1 DUST COVER (detachable)
•1 POWER ADAPTER with 12V cable

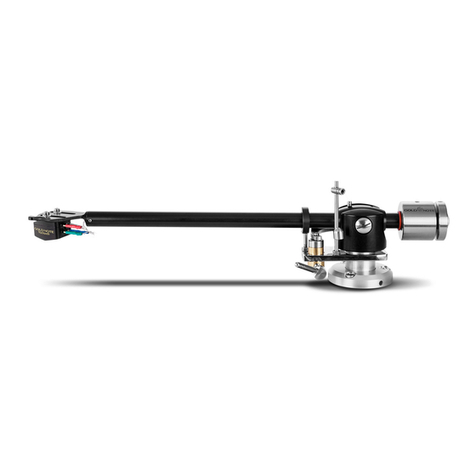

•1 B-5.1 TONEARM with the cable already installed
•1 COUNTERWEIGHT
•1 DRIVE BELT
•1 TURNTABLE CLAMP
•1 PLATTER SPINDLE TIP to clamp the platter
•3 SPIKE WASHERS
•1 OIL JAR
•1 ALLEN KEY 2,5mm
to block the ARM LIFT BOARD
•1 ALLEN KEY 2,0mm to remove the DIN PILLAR
•1 ALLEN KEY1,5mm to adjust the VTA of the tonearm, to
remove the LIFT CUEING to adjust the ANTI SKATE CYLINDER
•1 ALLEN KEY 0,9mm
to adjust the TONEARM SHELL AZIMUTH
•1 PROTRACTOR/OVERHANG for cartridge alignment
with STROBOSCOPE for ne speed adjustments
•1 INSTRUCTION MANUAL
•1 GN STYLUS GAUGE
CONSTRUCTION FEATURES
This section describes the special features of your Giglio, the
construction details, the reasons for the technical choices and
the originality of the design.
• The Giglio is a rigid turntable that uses a 50mm thick plinth
madeof Hardwood or MDF interfaced with a 3mm stainless steel
and a 20mm acrylic plinth.
• The plinth bears three adjustable aluminium feet to ensure
high insensitivity to vibrations.
• The turntable platter is 35mm thick and made of Polyvinyl, a
particularly deaf polymer.
• The recessed Spindle allows the platter to spin very close to
the turntable plinth in order to reduce the turbulence caused
by rotation.
• The spindle is a high quality machined stainless steel piece
that clamps the platter with its conical shape named Split-
Spindle™, it's 80mm long to ensure a top class performance.
A large longitudinal groove is located on its axis to allow the
lubricating oil to run constantly. The longer spindle eradicates
any pendulum effect and distributes the inertial energy along
its entire axis, completely annulling any type of lateral friction.
• The bronze bearing is rectied to guarantee a smooth
spindle rotational stability while a customised bottom platter
bearing enables very low noise.
• The platter bearing is threaded outside in order to be tightly
blocked to the plinth of the turntable on its own axis allowing a
precise coupling.
• The custom AC 12 Volt electronically controlled motor allows
33⅓rpm & 45rpm electronic speed control and pitch
adjustment.
Besides the special motor guarantees a perfect rotation
stability and great torque in complete silence.
The nal result is a total control over the power supply in order
to give the motor its perfect phasing, with a convenient speed
33/45rpm adjustable set up and ne pitch control.

5
CONTENT AND KEY FEATURES
MAIN FEATURES
• WOW & FLUTTER 0,1%
• RUMBLE -78dB
• SPEED 33⅓rpm and 45rpm ±0,1%
• SPEED CHANGING electronic with ne pitch control
• TRANSMISSION 70 shores rectied black NBR belt
• MOTOR synchronous 12 Volt High Torque externally
powered
• PLATTER Ultra Deaf Polyvinyl 35mm thick
• PLATTER SPINDLE Special Split-Spindle™ clamping the
platter
• PLATTER BEARING 5mm Chromed Steel ball bearing with
adjustable brass seat in nely polished bronze case
POWER
•MAIN SUPPLY 100V~ 115V~ 230V~ 50 or 60Hz
(depending on market destination not convertible)
• POWER CONSUMPTION 20 Watt
FINISHES
• LOWER PLINTH
Walnut Hardwood or Black or White lacquered MDF 50mm
thick
• UPPER PLINTH Black Polished Acrylic with S/Steel
• METAL PARTS Black (Silver on demand)
• PLATTER Black
PHYSICAL
• DIMENSIONS 425x200x360mm (LxHxD)
• WEIGHT Kg. 15,00

6
SET-UP INSTRUCTION
FIRST OPERATION
1. Please remove carefully all the protecting foam and check if
all the listed items are supplied.
2. Place the Giglio deck on a levelled surface, such as a wall
shelf immune to footfall, then level the turntable.
3. Plug the DIN/RCA cable of the arm on the shaft female
connector DIN side, hooking the RCA connectors to the
amplier phono input.
4. Install the counterweight into the rear arm wand of the arm
selecting the correct cartridge tracking weight with the help of
a precision scale (not supplied).
5. Install the turntable belt surrounding the hourglass motor
pulley and the platter outer perimeter.
6. Plug the Power Adapter cable to the 12V rounded plug
Turntable Speed Control and then plug the AC
adapter to the AC plug once selected the right international
plug supplied.
POSITIONING THE GIGLIO
Your Giglio has been designed for Hi-Fi systems. It must be
protected from direct sun and humidity. Do not place it near
heating sources, electrical and electronic motors, mobile
phones etc.. The levelling and positioning on a solid shelf, as
explained in the previous chapter, is fundamental to ensure
the best audio performances.
OPERATING THE 33⅓rpm & 45rpm CONTROL
The turntable is fully controlled by an electronic power supply.
TURNTABLE SPEED CONTROL ADJUSTMENTS
• Inner button starts and stops the 33⅓rpm speed.
Once the 33⅓rpm is playing its red LED light turns on.
• Outer button starts and stops the 45rpm speed.
Once the 45rpm is playing its red LED light will be on.
The Giglio also features a ne speed adjustment “Pitch
Control” function to allow a very ne and precise speed
calibration.
PITCH CONTROL MODE
To enter the PITCH CONTROL MODE press and hold for 4
seconds both 33⅓rpm and 45rpm buttons while the turntable
is spinning.
When the red LED light shuts down, the unit is ready for the
ne speed adjustment.
• PITCH –press repeatedly the 33⅓rpm button until the
correct speed is reached.
The LED light flashes every time the button is pressed.
• PITCH + press repeatedly the 45rpm button until the correct
speed is reached.
The LED light flashes every time the button is pressed.
See pag.12 for images.
To switch off of the PITCH CONTROL MODE press
and hold for 4 seconds both the 33⅓rpm and the
45rpm buttons until the LED light is on and steady
again.

7
INSTALLING THE PLATTER
To assemble the platter you are going to need
33mm platter supplied
Platter Spindle Tip
STEP 1
positionthe platter on the turntable as shown
in the picture: the platter should t perfectly
on the spindle flat surface.
STEP 2
thread the spindle tip as show in the picture
to secure the platter to the turntable.
STEP 3
the conical shape of the spindle tip must be
rmly threaded and will clamp the platter to
the plinth.

8
INSTALLING THE BELT AND THE TONEARM CABLE
Wrap the belt around the pulley and the platter as shown in the picture:
Thetonearmcableshouldbealwaysconnectedbeforethetonearmisinstalledontheturntable.
Alwayspayattentiontothecableandmakesureitisconnectedbeforeplacingthe tonearminposition.
The Male DIN plug and the female
DIN plug must be connected as
shown in the picture below.
REAR SIDE

9
ANTI-SKATING, AZIMUTH, COUNTERWEIGHT ADJUSTMENTS
1
2
34
5
1.
ANTI-SKATING nylon wire with bullet counterweight
2. ANTI-SKATING adjustment bar
3. ANTI-SKATING support hoop
4.TONEARM COUNTERWEIGHT: to set up the correct tracking force depending on the phono cartridge in use
5. SHELL AZIMUTH ADJUSTMENT: to adjust the alignment of the tonearm head-shell (0,9mm Allen Wrench)
INSTALLING THE ANTI-SKATING SYSTEM
1. Slip the loop of the ANTI-SKATING nylon wire over the groove of the ADJUSTMENT BAR
2. Feed the wire through the loop of the SUPPORT HOOP
3. Adjust the ANTI-SKATING force choosing the correct groove on the ADJUSTMENT BAR
1
2
+_

10
VTA SETUP
AZIMUTH
After the cartridge has been properly installed on the tone arm,
adjust the Azimuth of the shell with the supplied 0,9mm Allen
Wrench.
Setting a correct Azimuth will provide a better audio
performance.
VTA SETUP
Loose the Hex-bolt indicated by the arrow on the collar using the
1,5mm Allen Wrench supplied to lift up or down the arm
correctly adjusting the VTA as necessary.

11
POWER SUPPLY
Power Supply Adapter AC Plug it is necessary to use the correct AC plug based on your local area.
U.S.A plug
U.K. Plug
European plug
Australian plug
PLEASE NOTE WELL: Before plugging the AC adapter plug the round connector indicated here.

12
POWER ADAPTER & SPEED CONTROL
INNER BUTTON OUTER BUTTON
CONNECTING THE POWER SUPPLY ADAPTER
Use only the original GOLD NOTE AC adapter to power the turntable to
ensure the correct functioning.
PLEASE NOTE:Before plugging the adapter in to the AC make sure the
connector is plugged into the turntable.
TURNTABLE SPEED CONTROL
• INNER BUTTON starts and stops the 33⅓rpm speed. When the 33⅓rpm is playing its red LED light turns on.
• OUTER BUTTON starts and stops the 45rpm speed. When the 45rpm is playing its red LED light turns on.
The Mediterraneo also features a ne speed adjustment “Pitch Control” function to achieve a precise control over the speed of the
turntable.
PITCH CONTROL MODE
To enter the PITCH CONTROL MODE press and hold for 4 seconds both the 33⅓rpm and the 45rpm buttons while the turntable is
spinning at 33⅓rpm or 45rpm until the red LED light shuts down. The unit is now ready to adjust the speed with the help of the
stroboscope.
• PITCH – press in sequence the 33⅓rpm button until the correct speed is reached.
The LED light flashes every time the button is pressed.
• PITCH + press in sequence the 45rpm button until the correct speed is reached.
The LED light flashes every time the button is pressed.
To switch off of the PITCH CONTROL MODE press and hold for 4 seconds boththe33⅓rpm and the45rpm buttons until the LED light
is on and steady again.

13
CALIBRATION: CARTRIDGE OVERHANG, ALIGNMENT & SPEED
allignment 66 mm. allignment 120,9 mm.
Stroboscope 50Hz
51015
20
Overhang
Stroboscope 50Hz
5101520
Overhang
Stroboscope 50Hz
5101520
Overhang
Our turntables and tone arms are always supplied with the Gold Note Calibration Tool to calibrate correctly the setup.
With this tool you will be able to adjust:
A) Phono Cartridge alignment
B) Overhang
C) 45rpm and 33⅓rpm speed
(requires a strobe light)
SPEED ADJUSTMENTS
Check the speed with the help of a strobe light (eventually a home NEON can also work).
When the speed is correct you will be able to see the sequence of black rectangular signs as if they were stable and xed while
the platter is spinning.
The outer line is to check the 33⅓rpm
The inner line is to check the 45rpm
OVERHANG
To set the correct overhang the Calibration Tool must be inserted on to the turntable record pin and the cartridge Tip must be
positioned on top of the pin.
Adjust the position of the cartridge until the suggested overhang of the phono cartridge is reached as indicated by the
manufacturer.
B
A
C

14
CARTRIDGE ALIGNMENT
PHONO CARTRIDGE ALIGNMENT
To correctly align the phono cartridge and achieve the best tracking position, point the tip of the phono cartridge into the white
circles as in the picture below.
The body of the phono cartridge must be aligned to the vertical stripes in order to achieve the best position for musical reproduction.
allignment 66 mm. allignment 120,9 mm.
Stroboscope 50Hz
51015
20
Overhang

15
DETACHABLE DUST COVER
The new Gold Note dust cover features detachable hinges, a new
proprietary design developed to let you enjoy your turntable at the
best in any situation.
The new dust cover is incredibly versatile and allows the usage of
the turntable with or without it.
We are proud to offer this new solution to our clients to help them
preserve their turntables in ideal functional and cosmetic
conditions.
The new design also provides a stop point at about 90° to the dust
cover: in this position it automatically stops and the hinges will
hold the dust cover avoiding overturning.
Removing the dust cover is simple and quick:
lift the dust cover until it reaches the 90° stop point and it's
completely opened, then gently slide it towards LEFT
(facing the turntable) to detach it from the plinth.
Please Note: the dust cover can be removed and reinserted
only when it's in its resting position, completely opened at
90°.
PICTURE 1
PICTURE 3
PICTURE 2

16
WARRANTY & SERVICE
WARRANTY
To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the
appropriate area of the web site:
www.goldnote.it/warranty
If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit will not be
covered by any warranty and the registration will be refused.
The warranty does not does not cover in any case: Tubes, Phono Cartridge Styli and Batteries.
SERVICE
Every GOLD NOTE® product is the result of meticulous technological research, and consequently their correct functioning is guaranteed.
In spite of this it is possible that problems may emerge which non-specialist users cannot resolve.
In this case, contact your dealer to be advised on how the fault can be solved.
Do not return any object directly to the factory or to the national distributor or without being authorised to do so.
In such cases both GOLD NOTE® and the distribution agents operating within your territory decline responsibility of any kind.
For more information please visit www.goldnote.it/service
PLEASE NOTE
Descriptions and technical characteristics may vary at any time and without notice.

17
TROUBLESHOOTING
PROBLEM
CAUSE
SOLUTION
Levelling the turntable.
Cleaning the turntable.
Motor heating.
Motor noise.
The turntable is not levelled.
The turntable is dirty and requires
cleaning
The motor is too hot.
The motor produces a low scraping
noise while in function.
The motor produces a buzzing noise
while in function.
With a spirit level, only level the Turntable Platter
through its shelf layer eventually screwing its feet just
for very fine adjustment, take care of levelling the
platter on its vertical and horizontal lines
Be sure that the turntable layer is enough solid and
rigid to support the weight of the turntable easily
With EXTREME care use ONLY very soft 100% cotton
cloth to sweep dust and stains out.
Any acid or not extremely soft cloth will irreversibly
damage the turntable fine aesthetic.
Do not use any alcohol to clean the turntable anodised
label, pulley and motor spindle.
Only dry cloth is allowed
AC synchronous motors as the ones used by Gold
Note may warm up to 50° Celsius without creating
any problem.
Gently lift the pulley enough as required to avoid
the noise.
Adjust the 3 stainless steel screws on the motor's
cover: unscrew them slightly until the motor spins
smoothly and without noise.
TROUBLESHOOTING

18
NOTE

Italian Music Experience
www.goldnote.it
