General information
In order to ensure proper and safe use of the lithium-ion battery, please read this user manual
carefully and completely. Keep this user manual accessible to any person involved in installing,
using or maintaining the lithium-ion battery and make sure that this user manual is completely
read, understood and observed before starting any work on the lithium-ion battery.
This manual contains all information necessary to install, use and maintain lithium-ion
batteries in lithium iron phosphate (LFP) and nickel manganese cobalt (NMC) technology. Both
technologies will be referred to as lithium-ion battery in this user manual. All specified safety
instructions and directives are prerequisites for safe work and must be observed. The
illustrations in this user manual are provided for basic understanding and may differ from the
actual version. The original version of this user manual was prepared in German. Any edition
that is not written in German is merely a translation of the German user manual.

Lithium-ion batteries user manual as of December 09, 2020 Page 2 of 19
Exclusion of liability
Akkumulatorenfabrik MOLL GmbH + Co. KG cannot be held responsible for any damage caused
by improper use of the lithium-ion battery or for any damage arising by failure to comply with
the provisions of this user manual. These damages shall include personal injuries, material
damage, product damages as well as consequential damages, repair damages and other
detrimental actions taken by unqualified personnel. This limitation of liability shall also apply
for the usage of non-original spare parts.
It is prohibited to carry out arbitrary conversions or technical modifications to the product.
For any further information or supporting documents please contact:
Akkumulatorenfabrik MOLL GmbH + Co. KG
Angerstraße 50
96231 Bad Staffelstein
Germany
Phone.: [phone]
Email: [email protected]
Website: www.moll-batterien.de
Please consult our website for the latest version of the user manual (under “Downloads”).

Lithium-ion batteries user manual as of December 09, 2020 Page 3 of 19
Table of contents
1Introduction .................................................................................................................................... 5
Product description................................................................................................................. 5
Terminology............................................................................................................................. 5
Hazard warnings...................................................................................................................... 6
2Technical information..................................................................................................................... 6
Environmental conditions ....................................................................................................... 6
Battery components and dimensions ..................................................................................... 7
3Safety instructions and safety precautions during installation .................................................... 8
General information................................................................................................................ 8
Correct behaviour in emergency situations............................................................................ 9
Correct behaviour in case of fire........................................................................................... 10
Fire extinguishing .......................................................................................................... 10
Fire fighting instructions................................................................................................ 10
Effective handling of an accident .......................................................................................... 10
4Installation .................................................................................................................................... 11
General information.............................................................................................................. 11
Check after unpacking........................................................................................................... 11
Preparing the lithium-ion battery for use ............................................................................. 11
Connection cable................................................................................................................... 11
Parallel connection of lithium-ion batteries.......................................................................... 11
Disconnecting the lithium-ion battery .................................................................................. 12
Installing the lithium-ion battery in the vehicle.................................................................... 13
5Using the battery .......................................................................................................................... 13
General information.............................................................................................................. 13
Charging the battery.............................................................................................................. 14
LED state of charge display.................................................................................................... 14
6Inspection and cleaning................................................................................................................ 18
General information.............................................................................................................. 18
Inspection.............................................................................................................................. 18
Cleaning................................................................................................................................. 19
Maintenance.......................................................................................................................... 19
7Storage .......................................................................................................................................... 19
8Transport....................................................................................................................................... 20
9Disposal and recycling .................................................................................................................. 21

Lithium-ion batteries user manual as of December 09, 2020 Page 4 of 19
General information.............................................................................................................. 21
Disposal of a non-critical lithium-ion battery........................................................................ 21
Disposal of a critical lithium-ion battery ............................................................................... 21
10 Safety symbols on the lithium-ion battery label..................................................................... 21
11 General terms and conditions.................................................................................................. 22
12 Further information.................................................................................................................. 22

Lithium-ion batteries user manual as of December 09, 2020 Page 5 of 19
1Introduction
Product description
In the first place, the lithium-ion battery is designed as power supply battery, e.g. for Caravans.
The battery must not be used for any applications other than those described in this user
manual. Any other use of the lithium-ion battery constitutes improper use resulting in
invalidation of product warranty. MOLL assumes no liability for damages caused by improper
use, wrong application or careless handling of the lithium-ion battery. Please read this user
manual carefully and completely prior to unpacking and using the product.
A technical data sheet and a material safety data sheet are available from MOLL as additional
documents. The provisions specified in both these data sheets must be strictly observed at all
times.
The lithium-ion battery complies with the following directives:
oDirective 2006/66/EC of the European Parliament
oEMC Directive 2004/108/EC (electromagnetical compatibility)
oCE, Richtlinie 2014/30/EU, electromagnetical compatibility
oEMV: emitted interference: EN 61000-6-3;
oInterference immunity: EN 6100-6-2
oDIN EN / IEC 62133, Safety requirements for portable sealed secondary lithium cells,
and for batteries made from them, for use in portable applications
oDIN EN / IEC 62619, Safety requirements for secondary lithium cells and batteries, for
use in industrial applications
oUN38.3, Transportation test for lithium-ion batteries
oDIN EN / IEC 62281, Safety of primary and secondary lithium cells and batteries during
transport
oCE, Richtlinie 2014/35/EU, low voltage directive
Depending on the type of battery, the above mentioned directives are valid.
In order to ensure correct and safe use of the lithium-ion battery, this user manual must be
available for the user at any time. For this reason the user manual must kept in a readily
accessible and safe location near to the lithium-ion battery.
Terminology
Service life Expected battery lifespan if all provisions specified in this user
manual are observed
SoC State of Charge [%]
BMS Battery Management System

Lithium-ion batteries user manual as of December 09, 2020 Page 6 of 19
Hazard warnings
Following hazard symbols are used in this user manual:
Warning! Non-observance of the provisions specified in this user manual may damage
the lithium-ion battery, the environment of the lithium-ion battery and may cause personal
injuries.
Caution! Non-observance of the provisions specified in this user manual may cause
malfunctions. This hazard symbol is intended to remind the user to handle the lithium-ion
battery and the system the battery is connected to with care.
2Technical information
See also appendix „Technical data sheet“
Environmental conditions
Warning! The lithium-ion battery may only be used under the conditions specified in
this user manual. Using the lithium-ion battery under conditions outside the limits specified
in this user manual may result in personal injuries and damage to the battery.
The lithium-ion battery must always be kept in a well ventilated, dry, clean and dust-free
environment. Never expose the battery to fire, water or solvents.
In case the lithium-ion battery is installed and used in an enclosed housing, it is advisable to
provide ventilation holes with a minimum area of 100 cm² in order to allow sufficient
exchange of air and to avoid heat build-up.
Operating temperature range during charging: 0°C to + 55°C
Operating temperature range during discharging: - 20°C to + 55°C*
Storage temperature range: - 20°C to + 45°C**
Recommended relative humidity during storage: 45% to 85%
Vibration and impact resistance: Tested according to UN38.3
* At very low temperatures, battery capacity / performance may be reduced.
** Long-term storage outside recommended temperature range may reduce the battery
service life.

Lithium-ion batteries user manual as of December 09, 2020 Page 7 of 19
Battery components and dimensions
oBattery box with carrying handles
oPositive terminal with M6 screw thread
oNegative terminal with M6 screw thread
oCAN connection port

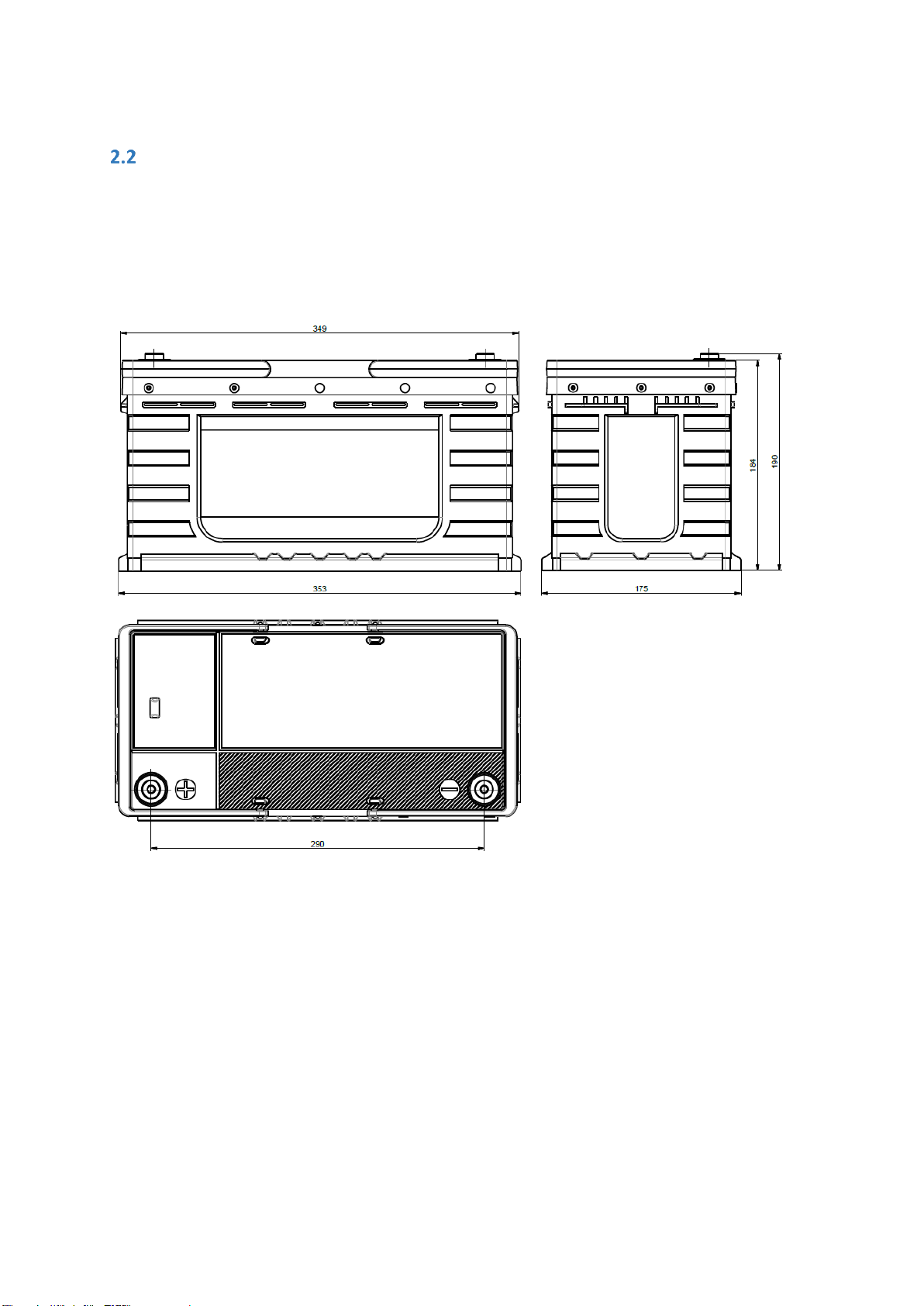

Figure 1. Dimensions of the lithium-ion battery with M6 screw threads

Lithium-ion batteries user manual as of December 09, 2020 Page 8 of 19
3Safety instructions and safety precautions during installation
General information
For reasons of safety, any installer or user must become familiar with following safety
instructions and safety precautions before using the lithium-ion battery:
oOvervoltage, wrong wiring, reverse polarity of the terminals or short circuits between
the terminals may damage the lithium-ion battery which can be extremely dangerous.
oThe lithium-ion battery must not be installed on flammable material or flammable
ground as well as in places where flammable materials are stored or in other
environments that are liable to catch fire.
oBefore starting to work on the lithium-ion battery or make measurements, the vehicle
ignition must be turned off. The connecting terminals of the vehicle must be
disconnected from any electric load.
oThe hazard symbols and safety instructions on the battery label must be observed and
must never be removed from the battery.
oThe safety instructions specified in the user manual must be observed.
oLithium-ion batteries must never be opened, dismantled or mechanically damaged in
any way.
oLithium-ion batteries must not be exposed to heat or fire. During storage, lithium-ion
batteries must be protected from direct sunlight.
oIn case of exceptional heat development during operation, the lithium-ion battery
must be disconnected and removed from the vehicle. Inform your dealer immediately.
oThe lithium-ion battery must never be short-circuited. If several lithium-ion batteries
are stored in a compartment, it must be ensured that the batteries cannot short-circuit
each other. It must also be ensured that the batteries cannot be short-circuited by any
other electroconductive objects.
oThe lithium-ion battery must be kept in the original package until being used.
oLithium-ion batteries must be protected from mechanical impacts.
oIn case of battery leakage, the leaking electrolyte must never come into contact with
skin or eyes. In case of skin contact, the affected area has to be cleaned with water and
soap immediately. In case of eye contamination, the affected eye must be thoroughly
rinsed with clean water immediately. In both cases, a doctor must be consulted
without delay.
oIn case of swallowing of leaking electrolyte, a doctor must be consulted immediately.
oThe lithium-ion battery is usually charged by the electrical system of the vehicle. If the
battery is charged outside of the vehicle, only those chargers can be used that are
recommended by the battery distributor. Alternatively, the battery can be charged by
specially skilled personnel.

Lithium-ion batteries user manual as of December 09, 2020 Page 9 of 19
oPlease note the markings of the polarities on battery terminals and connection
terminals of the vehicle to ensure safe use: Positive terminals (+) are marked in red
colour, negative terminals (-) are marked in blue or black.
oLithium-ion batteries of different brands, capacity, size or type must not be connected
with each other.
oAs a matter of principle, solely the lithium-ion battery type recommended by the
vehicle manufacturer must be installed.
oLithium-ion batteries must always be kept dry and clean.
oDirty battery terminals must be cleaned with a dry and clean cloth.
oCorroded battery terminals must never be used.
oLithium-ion batteries are delivered in a low state of charge. The full capacity of the
lithium-ion battery is available as soon as the battery has been fully charged. In
principle, the correct charger must be used. For correct charging, the instructions of
the vehicle manufacturer must be observed.
oThe original product documents (such as this user manual) must be kept until the
lithium-ion battery is disposed of properly.
oThe lithium-ion battery must be used for the designated application only.
oDuring longer periods of non-use, the lithium-ion battery should be removed from the
vehicle to reduce self-discharge. In doing so, the provisions of the vehicle
manufacturer must be observed. It must also be noted that the terminals of the
lithium-ion battery have to be covered with protective caps or with any other
appropriate insulating material (e.g. insulating tape) in order to prevent short circuits.
oAt the end of its service life, the lithium-ion battery must be disposed of according to
legal provisions.
Warning! It must be ensured that no water can enter the lithium-ion battery and that
the battery is not soiled.
Warning! The lithium-ion battery must not be mechanically damaged.
Warning! The battery terminals must not come into contact with electroconductive
objects.
Correct behaviour in emergency situations
For correct behaviour in emergency situations, the information in the separately provided
safety data sheet must be observed.
In the event that a user comes into contact with substances from inside the battery, the
following measures are recommended:

Lithium-ion batteries user manual as of December 09, 2020 Page 10 of 19
Inhalation: Leave the contaminated area and consult a doctor without delay!
Eye contamination: Rinse affected eye for 15 minutes with clean water and consult a doctor
without delay!
Skin contact: Clean the affected area with water and soap and consult a doctor without delay!
Swallowing: Consult a doctor without delay!
Correct behaviour in case of fire
Fire extinguishing
In case of a burning lithium-ion battery any type of extinguisher can be used, preferably an
ABC powder extinguisher. This type of extinguisher can be used to extinguish other burning
materials involved in the fire as well. In addition, the fire can also be extinguished with plenty
of water (cooling effect).
Fire fighting instructions
In case of fire, the vehicle ignition must be turned off if possible without risk for the user.
Lithium-ion batteries must be removed from the fire area if possible without risk. Water is
useful to cool down the lithium-ion batteries and the fire area. In case of a burning lithium-
ion battery, the fire department must be alerted in any case, even if the fire could be
successfully extinguished since a renewed flare-up of the fire cannot be excluded. If possible,
the extinguished lithium-ion battery should be observed until the fire department arrives.
Attention must be paid to the fact that new substances are created in the event of a fire and
therefore the fire residues must be inspected by a specialist and disposed of accordingly.
Only carry out fire fighting measures if there is no danger to life and limb. Otherwise leave the
danger zone immediately and inform the fire department.
Effective handling of an accident
Persons must be taken out of the danger zone immediately. In any case the fire department /
police must be alerted. First responders and emergency services must be informed of the
presence of a lithium-ion battery in the vehicle.
If the lithium-ion battery has been flooded or immersed in water, the following measures are
recommended:
In case of flooding, first switch off the power supply to the lithium-ion battery. The flooded
lithium-ion battery must not be reused and must be disposed of in accordance with legal
requirements.
