MD-4200 USER’S MANUAL
HD Driving Image Recorder

02

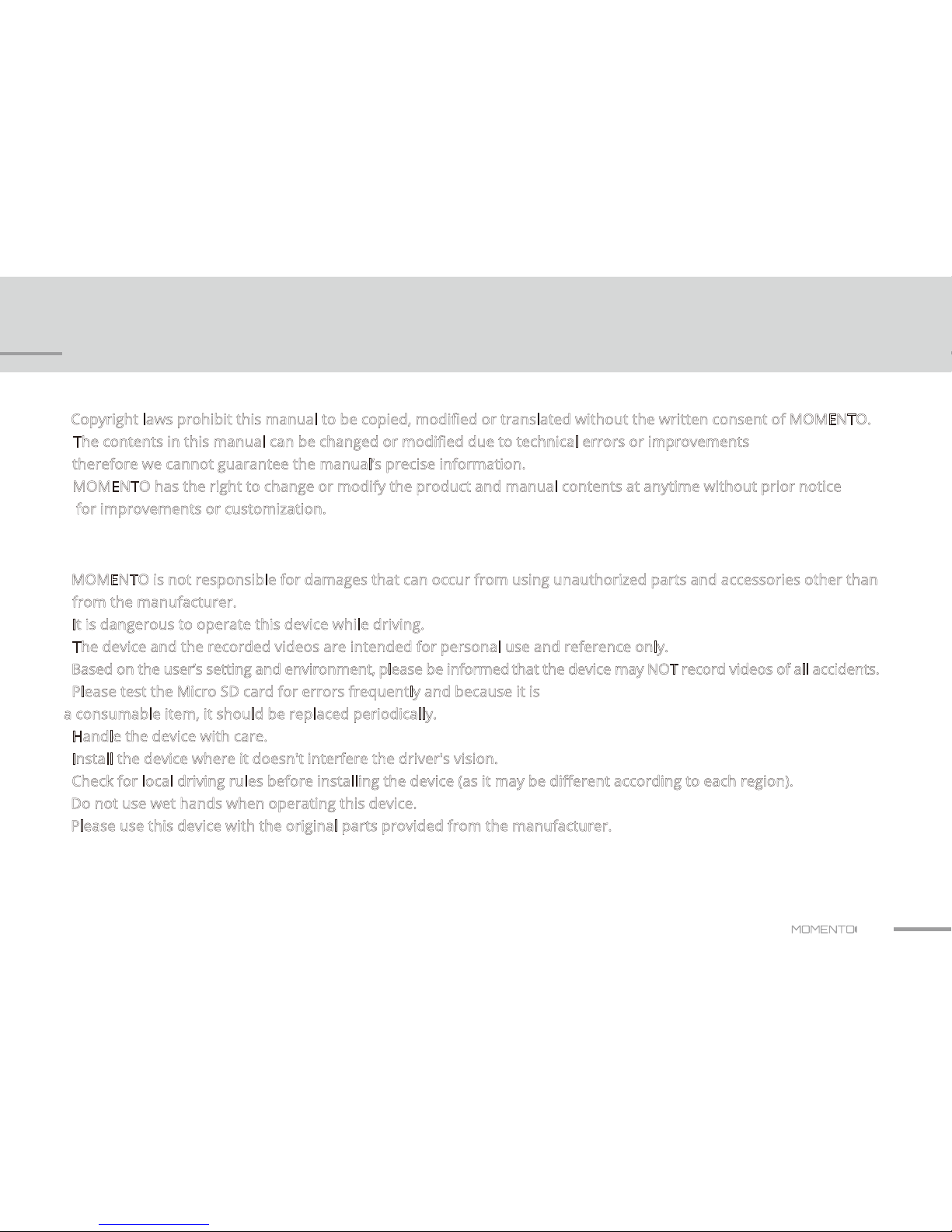

■Copyright laws prohibit this manual to be copied, modified or translated without the written consent of MOMENTO.
■The contents in this manual can be changed or modified due to technical errors or improvements
therefore we cannot guarantee the manual’s precise information.
■MOMENTO has the right to change or modify the product and manual contents at anytime without prior notice
for improvements or customization.
■MOMENTO is not responsible for damages that can occur from using unauthorized parts and accessories other than
from the manufacturer.
■It is dangerous to operate this device while driving.
■The device and the recorded videos are intended for personal use and reference only.
■Based on the user’s setting and environment, please be informed that the device may NOT record videos of all accidents.
■Please test the Micro SD card for errors frequently and because it is
a consumable item, it should be replaced periodically.
■Handle the device with care.
■Install the device where it doesn't interfere the driver's vision.
■Check for local driving rules before installing the device (as it may be different according to each region).
■Do not use wet hands when operating this device.
■Please use this device with the original parts provided from the manufacturer.
< CAUTION >
Before Using MOMENTO’s MD-4200

03

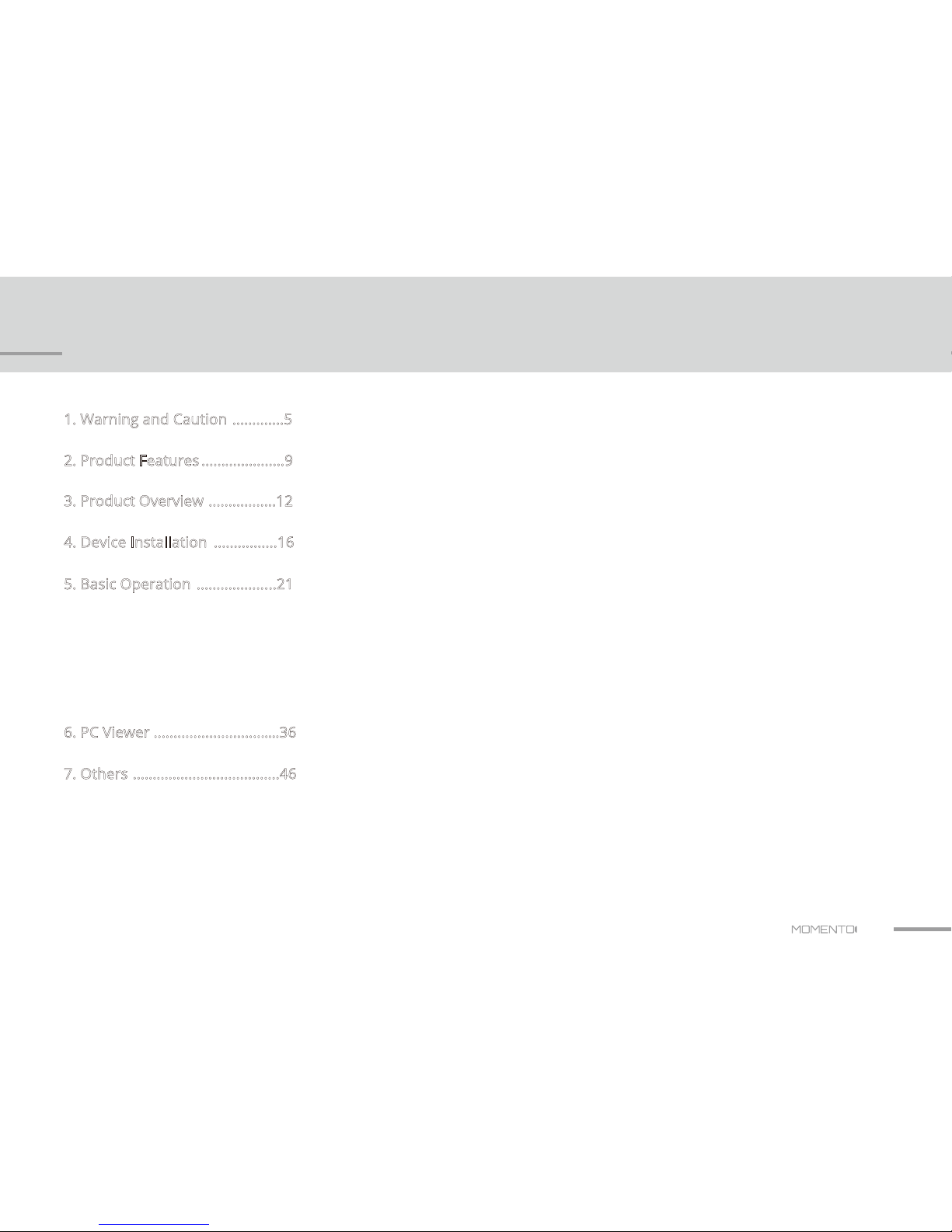

Table of Contents
1. Warning and Caution .............5
2. Product Features .....................9
3. Product Overview .................12
4. Device Installation ................16
5. Basic Operation ....................21
- Using the Touch Screen
- Device Control
- LED Indicator Light
- File List Management
- Firmware Update
6. PC Viewer ................................36
7. Others .....................................46
- Product Specifications
- Troubleshooting
- Warranty
- FCC Statement

Warning and Caution
01

Information to prevent factors that can cause physical damage
Information to prevent service errors or system damage
Warning
Caution
!
!
■ Do not disassemble, repair, or remodel the device – this can cause an electric shock.
■ Unplug the power cable if you smell something burning , smoke coming out or anything unusual.
■ Do not spray water or liquid on the device as the device will not function properly.
■ Handle the device with care.
■ Plug the power cable all the way in to make sure it is connected to the device.
■ Do not use damaged power cable.
■ Do not cut, bend, or mishandle the power cable.
■ Place the device and the cables away from heat or expose to high temperature.
■ If the device is not being used for a long period of time disconnect the power cable from the main device.
as this can cause battery discharge in the vehicle.
■ Do not use the device next to flammable liquids or gas.
■ It is dangerous to operate this device while driving.
■ Use only the voltage that is provided for this device.
■ Do not apply extreme force and place heavy items on the device and the power cable.
■ Do not use wet hands when operating this device.
These cautions are provided for user’s safety and prevent damages in the device.
Please take the time to read the manual for proper product usage.
!
!Warning
Warning and Caution
05

■Always keep the camera lens cleaned.
■ Make sure the device is firmly mounted during installation as it has a tendency to shift
when driving over speed bumps or unpaved roads.
■If the device breaks, call or bring it to a service center.
Do not touch the device as your hands might get hurt from the broken parts.
■ Do not use the device for a long period of time with the vehicle’s engine turned off.
■ Collision recording may not be enabled if the impact is very minor.
■ Install the hardwire cable through a professional installer.
■ Use this device only with the original parts provided from the manufacturer.
■ Reception of the GPS signal can be affected by the weather, environment, or road conditions.
■ Install the device where it does not interfere with the driver’s view.
■ Do not apply excessive force on the Micro SD card or insert it in the wrong direction.
■ Store Micro SD card separately when an accident occurs or if the device is not operating properly.
■ Stay away from parking in areas with direct sunlight.
■ The resolution quality of the video can be affected by the environmental conditions.
■ Maintain the device and the power cable in a safe area.
■ Do not use the device in high temperature or humidity.
■ The recommended operating temperature is -20° ~ 60°C / -4° ~ 140°F.
■ Windows of the vehicle should be always cleaned to use the device at best.
■ Contact customer service if you feel the device is not working properly.
!Caution
Warning and Caution
06

■ Do not use a pin or a nail to push the LCD.
■ Do not use excessive force when using the control buttons.
■ Do not use chemicals to clean the device.
■ Keep the product away from children and pets.
!Caution
Warning and Caution
07

Product Features
02

■ 3.5” TFT LCD
Provides high clarity and extreme brightness.
■Format Free Technology
Provides automatic memory format and maximizes the stability and minimizes file errors of Micro SD Card.
Automaticlly overwrites files when storage capacity is needed.
■PIP Multi Screen
Multi Screen feature allows you to view front / rear view screens simultaneously.
■ Audio / Voice Guide
Provides voice guide and alert sounds / messages.
■Micro SD Card Format
Micro SD card can be formatted directly using the device
■Front / Rear LED
Notifies the driver recording mode while driving, or parking.
■3 Axis Acceleration Sensor
Embedded G-Sensor senses the collisions and records them.
■Various Recording
Continuous, Incident-Continuous, Incident-Parking, Parking, Manual Recording types.
■Battery Discharge
Measures the voltage (battery) real time and prevents the vehicle from being discharged.
Product Features
09

■ Operation Temperature Sensor
Automatically senses over heating and high temperature of the devices and shuts off the power for protection.
■PC Viewer
PC Viewer for Windows is used to watch recorded videos.
■ Location and Speed Limit Sensor
Provides information about the vehicle’s location and speed.
Compatible with Google Map and allows to check travel routes.
■ Front Vehicle Move Alert (FVMA)
Alerts the driver when the front vehicle starts to move from a complete stop.
Product Features
10

Product Overview
03

12
Main Unit Quick Start
Guide Hardwire Cable
16GB
Micro SD Card
Module GPS
Optional
www.momentocam.com
MD-4200 QUICK START GUIDE
HD Driving Image Recorder
Windshield Mount
Rear Camera Rear Camera
Cable
※ Check for any missing components.
※The product and manual contents can be changed or modified at anytime without prior notice
for improvements or customization.
※Additional components are sold separately.
Product Overview

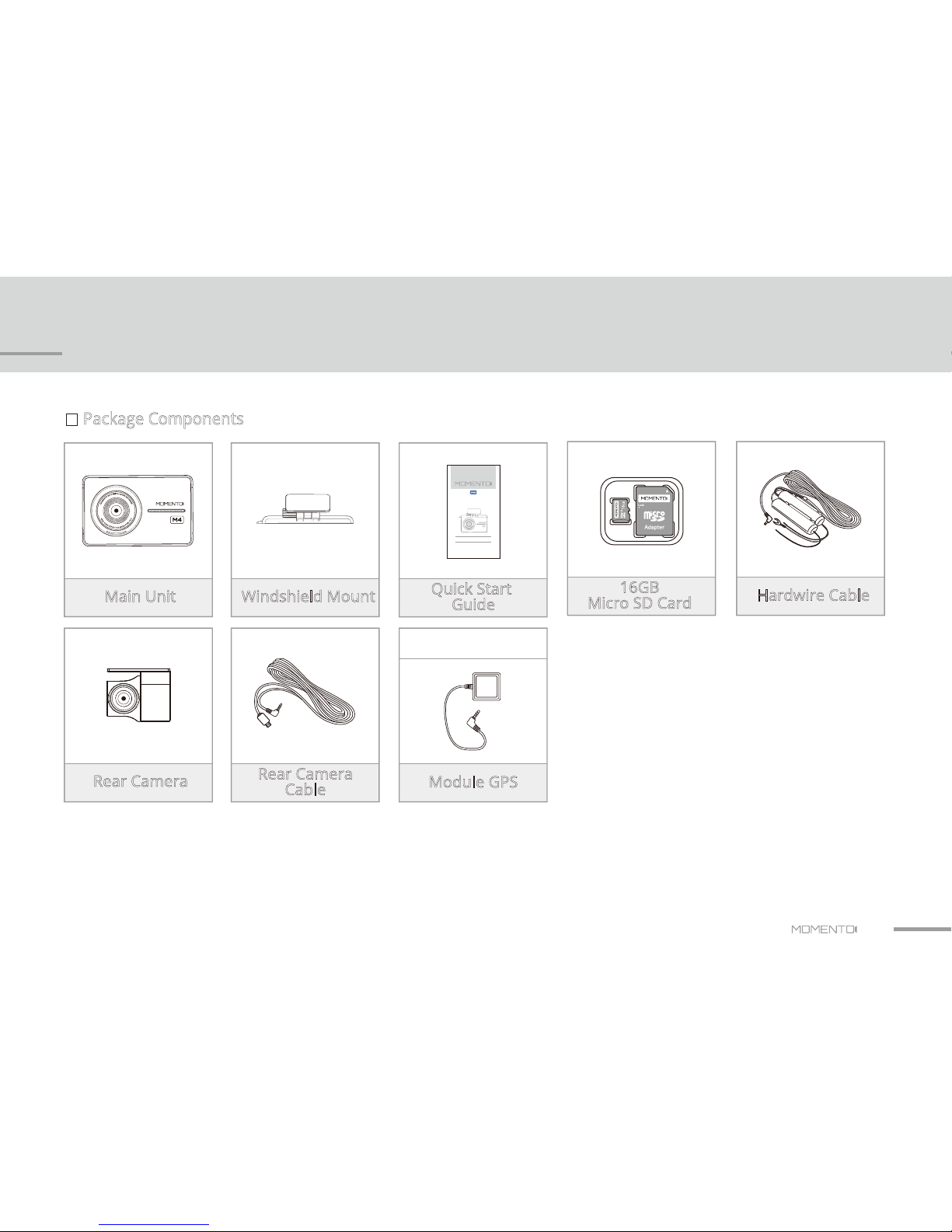

■Package Components

■ Main Unit (Front Camera)
13
Product Overview

④
③
②
①
⑤
⑥
⑦
⑩
⑪
⑨
⑧
14

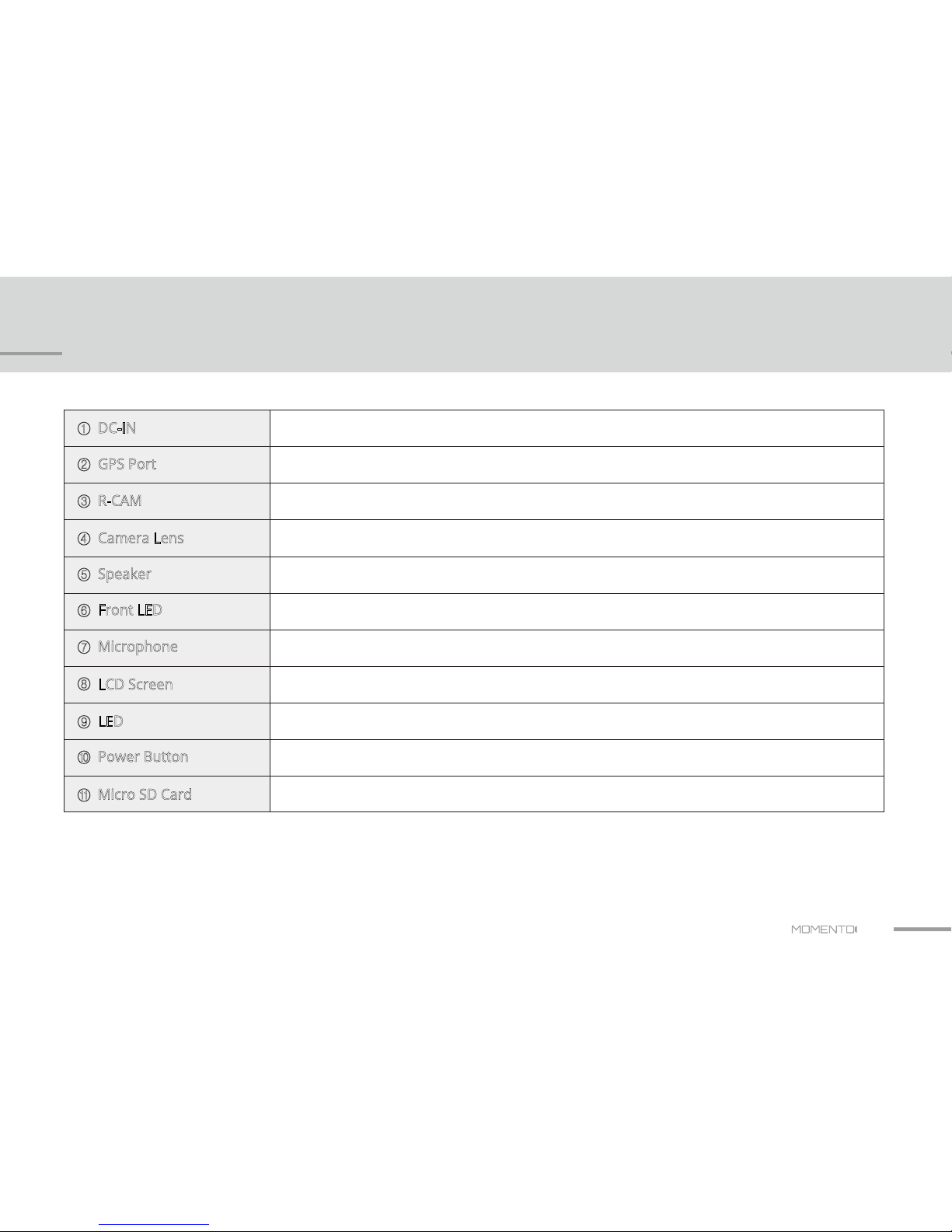

Power cable port
GPS module port
Rear camera port
Front camera for video recording
Voice guidance
Indicates vehicle is equipped with dash cam
Voice and audio record
Live view, playback, menu operation
Feature operation indicator light
ON/OFF button
Memory card slot (please check for insert/remove direction)
Camera Lens
R-CAM
GPS Port
DC-IN
Speaker
Front LED
LED
LCD Screen
Microphone
Power Button
Micro SD Card
Product Overview

04
Device Installation

< CAUTION >
■ It is dangerous to operate this device while driving.
■ Please check if the Micro SD card is inserted correctly before connecting to power.
■ Make sure the installation area is clean.
■ Disconnect the power cable if you are not using the device for a long period of time.
■ Handle the device with care.
■ Do not drop the product as it may not function properly.
■ Please make sure that the device is used in the suggested operating temperatures between -4° ~ 140°F.
■ During extreme high temperatures or hot weathers, parking indoors is suggested.
16
Device Installation

17
※Push the Micro SD card until you here a click sound or recording will not start.
※Make sure there are no particles on the Micro SD card.
※It is recommended to use the Micro SD card with this device only.
※Do not remove the Micro SD card when the device is operating.
▶ Refer to the above image and check the direction before inserting the Micro SD card into the slot.
▶ Push the Micro SD card all the way.
▶ You will here a voice guide that the Micro SD card has been inserted correctly when the power is on.
Insert / Remove Micro SD Card
Insert
Remove
Do not apply excessive force on the
Micro SD card or insert it in the
wrong direction.
1) Main Camera Installation
!Caution
Device Installation

18
Device Installation
1) Main Camera Installation
① Installation Location
Before installation, make sure the
engine is turned off. Clean the area
where the product will be installed.
※ Do not install the device where it
interferes with the driver’s vision.
② Connecting the Device and Mount
Align and attach the device to the
bottom holes of the mount.
③Attaching the Camera
Remove the double-sided tape and
attach the camera.
④Connecting Cables
Connect all the related cables (rear
camera, GPS, power) and adjust the
camera angle accordingly.
※ Make sure the cables of different
devices(navigation, GPS, and others)
do not overlap with each other.
⑤ Inserting the Micro SD Card
Insert the Micro SD card into the
Micro SD card slot in the direction
as shown in the left image.
※Do not apply excessive force on
the Micro SD card or insert it in the
wrong direction.
Rear Camera
Cable GPS Module Hardwire Cable

19
Device Installation
2) Rear Camera Installation
① Installation Location
Before installation, make sure the
engine is off. Clean the area where
the camera will be installed.
②Attaching the Camera
Remove the double-sided tape and
attach the camera.
③Connecting Cables
Connect rear camera cable and adjust
the camera angle accordingly.

Basic Operation
