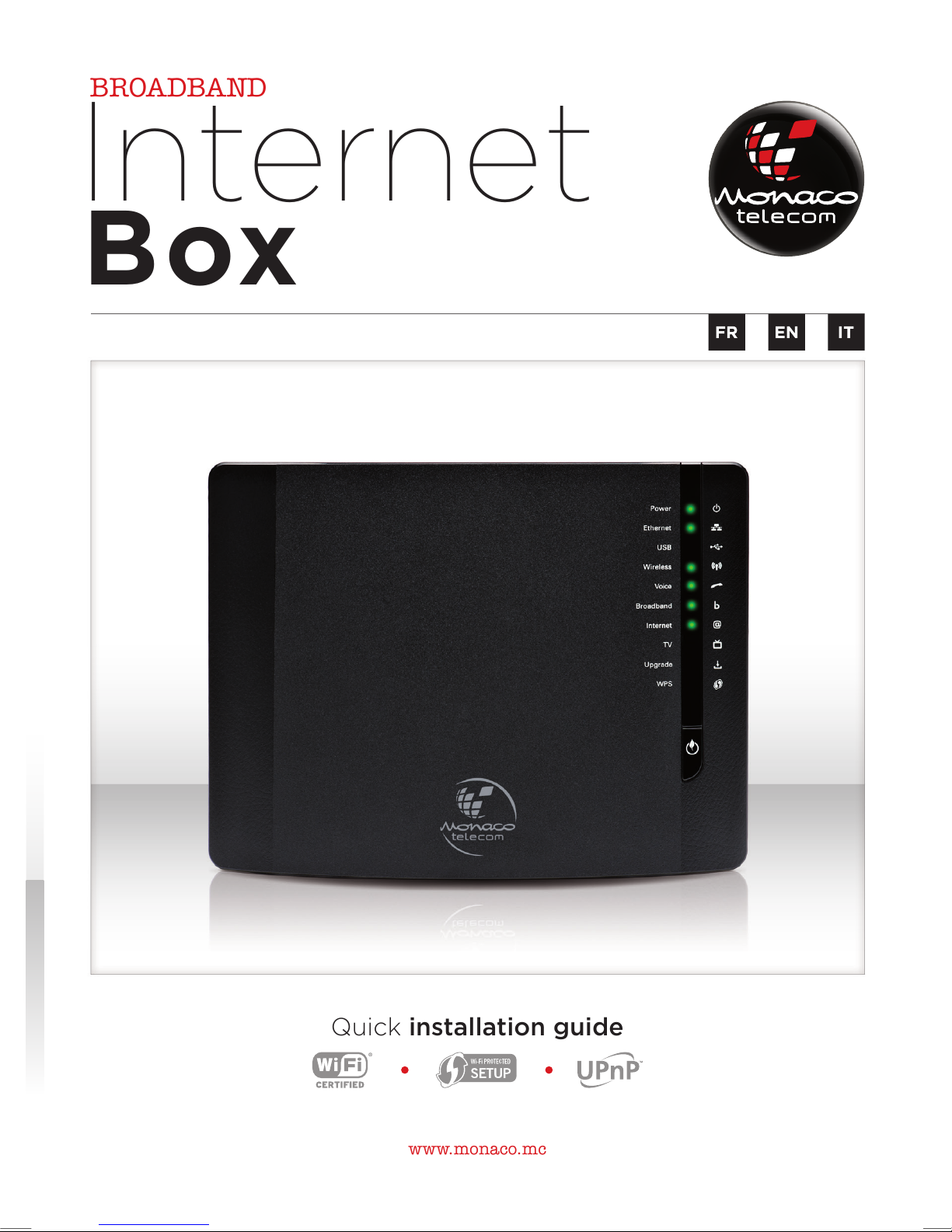

Monaco Internet Box User manual

Quick installation guide
www.monaco.mc
BROADBAND
Internet
Box

InternetBox đ16
Contents
When connecting the power adapter and the network cable,
do not connect any other devices.
17 Package contents
18 Before you begin
20 Powering your box
21 Wired Internet connection
22 Wireless Internet connection
26 Unlimited telephone calls
27 Practical information

En đ17
Package contents
AC Power adaptor
Box
1 xDSL filter:
(T-connector)
2 Ethernet cables:
one yellow and one red
1 xDSL cable:
grey (RJ11)

InternetBox đ18

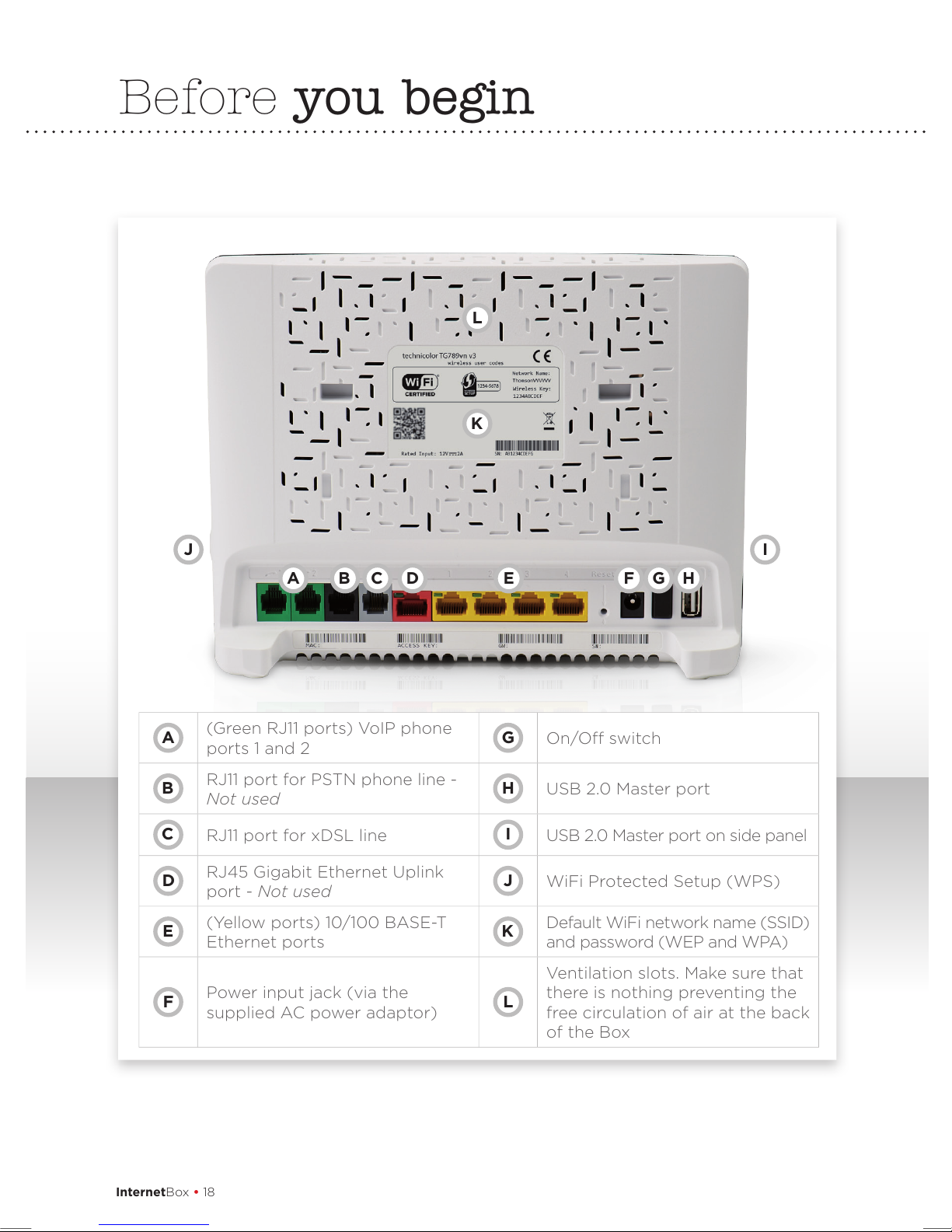

Before you begin
AB C DE F G H
I
K
L
A(Green RJ11 ports) VoIP phone
ports 1 and 2 GOn/Oswitch
BRJ11 port for PSTN phone line -
Not used HUSB 2.0 Master port
CRJ11 port for xDSL line IUSB 2.0 Master port on side panel
DRJ45 Gigabit Ethernet Uplink
port - Not used JWiFi Protected Setup (WPS)
E(Yellow ports) 10/100 BASE-T
Ethernet ports KDefault WiFi network name (SSID) and password (WEP and WPA)
FPower input jack (via the
supplied AC power adaptor) L
Ventilation slots. Make sure that
there is nothing preventing the
free circulation of air at the back
of the Box
J

En đ19

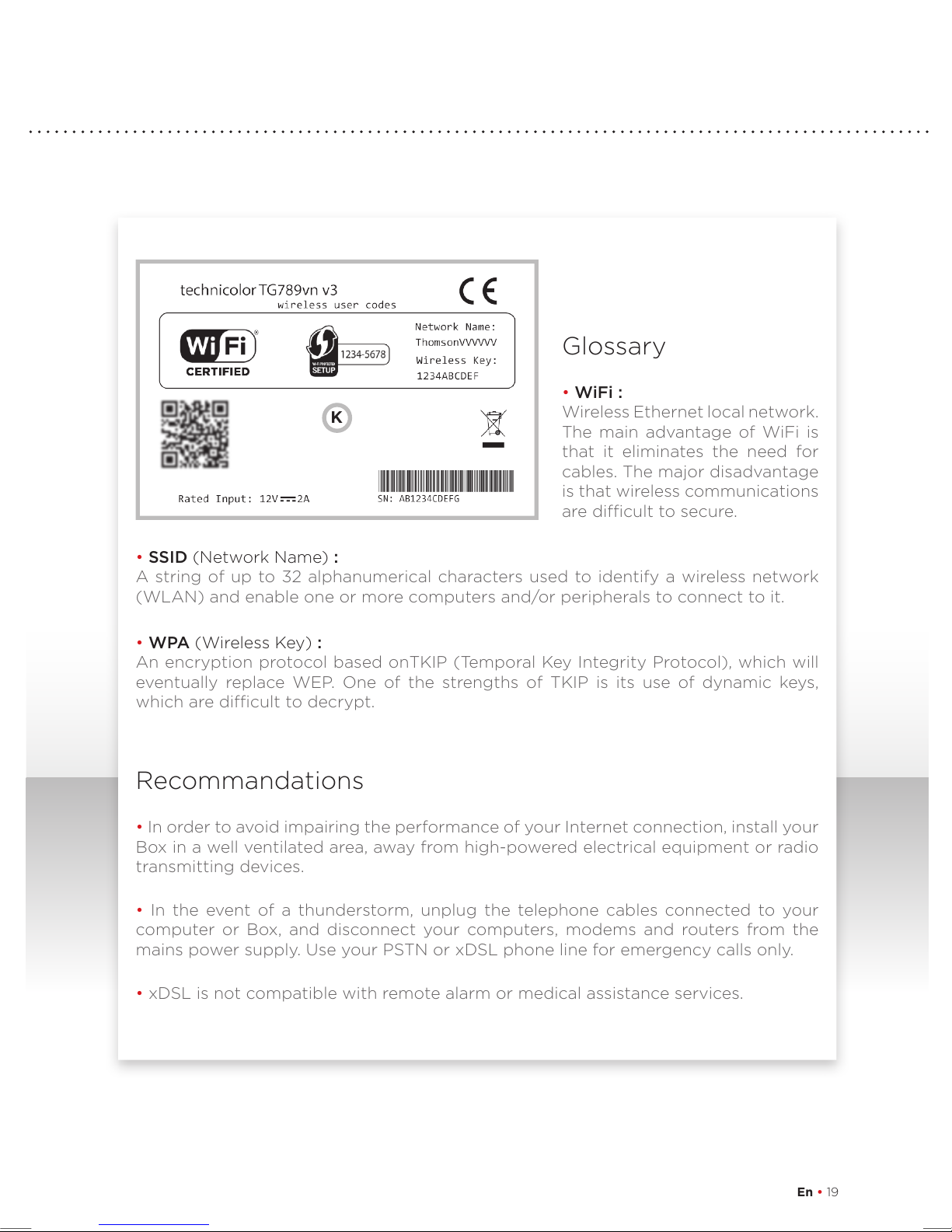

Glossary
đŏWiFi :
Wireless Ethernet local network.
The main advantage of WiFi is
that it eliminates the need for
cables. The major disadvantage
is that wireless communications
are dicult to secure.
đŏSSID (Network Name):
A string of up to 32 alphanumerical characters used to identify a wireless network
(WLAN) and enable one or more computers and/or peripherals to connect to it.
đŏWPA(Wireless Key) :
An encryption protocol based onTKIP (Temporal Key Integrity Protocol), which will
eventually replace WEP. One of the strengths of TKIP is its use of dynamic keys,
which are dicult to decrypt.
Recommandations
đŏIn order to avoid impairing the performance of your Internet connection, install your
Box in a well ventilated area, away from high-powered electrical equipment or radio
transmitting devices.
đŏ In the event of a thunderstorm, unplug the telephone cables connected to your
computer or Box, and disconnect your computers, modems and routers from the
mains power supply. Use your PSTN or xDSL phone line for emergency calls only.
đŏxDSL is not compatible with remote alarm or medical assistance services.
K

InternetBox đ20
Powering your box
AC power
adaptor
Connect grey
xDSL cable
(RJ11) to grey
port
Auto-configuration:
5-10 minutes
220 V
RJ45
xDSL
filter
C F
G
OR
Connect
power Power ON
Check
indicator lights

En đ21
Connect yellow
Ethernet cable to
1st yellow port
Power on the
computer
to Ethernet port
E

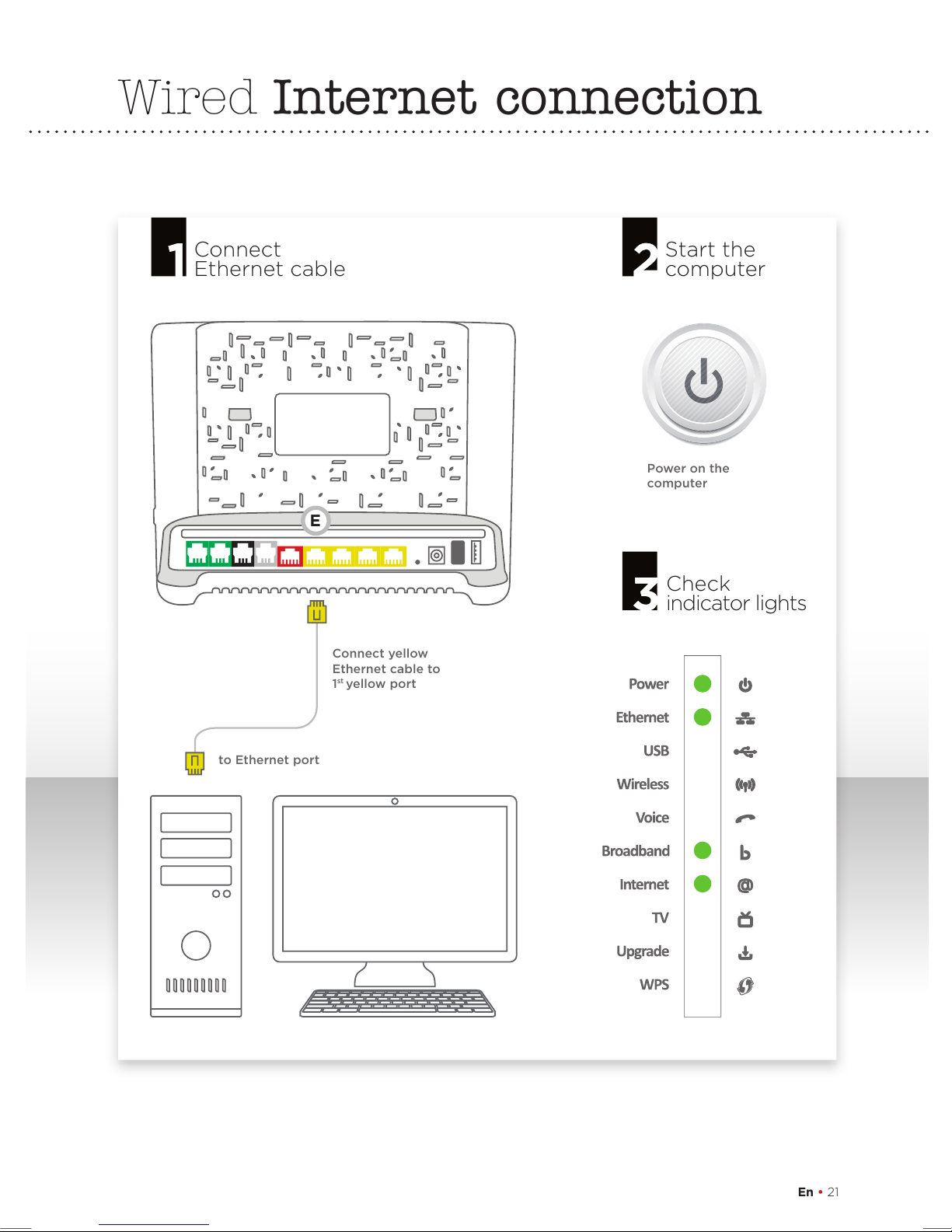

Wired Internet connection
Connect
Ethernet cable Start the computer
Check
indicator lights

InternetBox đ22
Wireless Internet connection 1
Are you already a Monaco Telecom client?
If you used the WiFi feature of your old Monaco Telecom Box in the past, no action is required on
your part. Your WiFi will be configured and activated automatically.
If you are a new customer you will need to create a MyMT account
(if you already have a MyMT account, go directly to step 3) Activating WiFi
đŏIf you have an Internet account: Your user ID and password can be found on the list
of settings that you received when you signed up for your contract.
Click "Nouveau Client?" to create
your new account on the home
page of the site www.monaco.mc
In the section labelled "Je ne suis
pas encore utilisateur", enter
your user ID "identifiant" et and
your password "mot de passe".
Scan me
for more information.

En đ23
Wireless Internet connection 2
Access your MyMT
customer account
A. Click the "Internet" tab.
B. Click "Mes produits et services".
C. Scroll down the page to the section labelled "Matériels associés à votre compte".
D. Click the "outils" button in the line labelled Type de matériel.
E. Click "Activer". Your WiFi connection settings appear and
a message confirming the activation will be displayed.
WiFi activation with MyMT
D
A
B
C
E
Scan me
for more information.

InternetBox đ24
Wireless Internet connection 3
Select your Box’s WiFi network
(SSID) and enter your WPA key
Make a note of the Network Name
(SSID) and the Wireless Key (WPA)
printed on the label (K)
WiFi
activation
Check
indicator lights
K
