Monessen Hearth DFX DBX24C User manual
Installation & Operating Instructions
334051
VFS DBX cover
This is an unvented gas-fired heater. It uses air
(oxygen) from the room in which it is installed.
Provisions for adequate combustion and
ventilation air must be provided. Refer to
33D4047 5/10 Rev. 4
DFX & DBX Series Vent Free Fireplaces
Gas Pressures .......................................................... 5
Gas Specifications .................................................... 5
Ignition Controls ....................................................... 5
Pilot .......................................................................... 5
Thermal Generator ................................................... 5
Fireplace and Framing Dimensions .......................... 6
What You Will Need .................................................. 7
General Fireplace Installation ................................... 7
Combustion and Ventilation Air ................................ 8

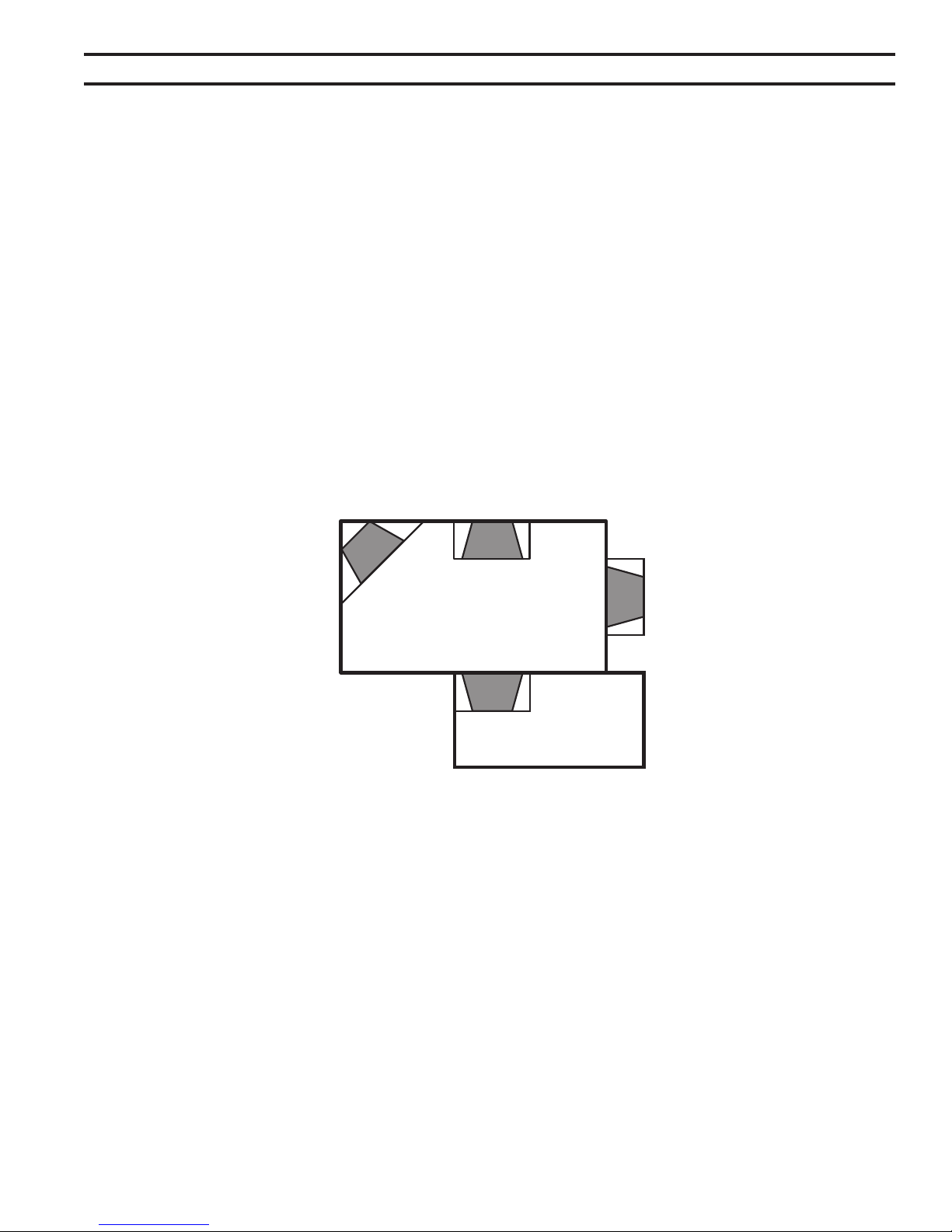

Fireplace Location .................................................... 9

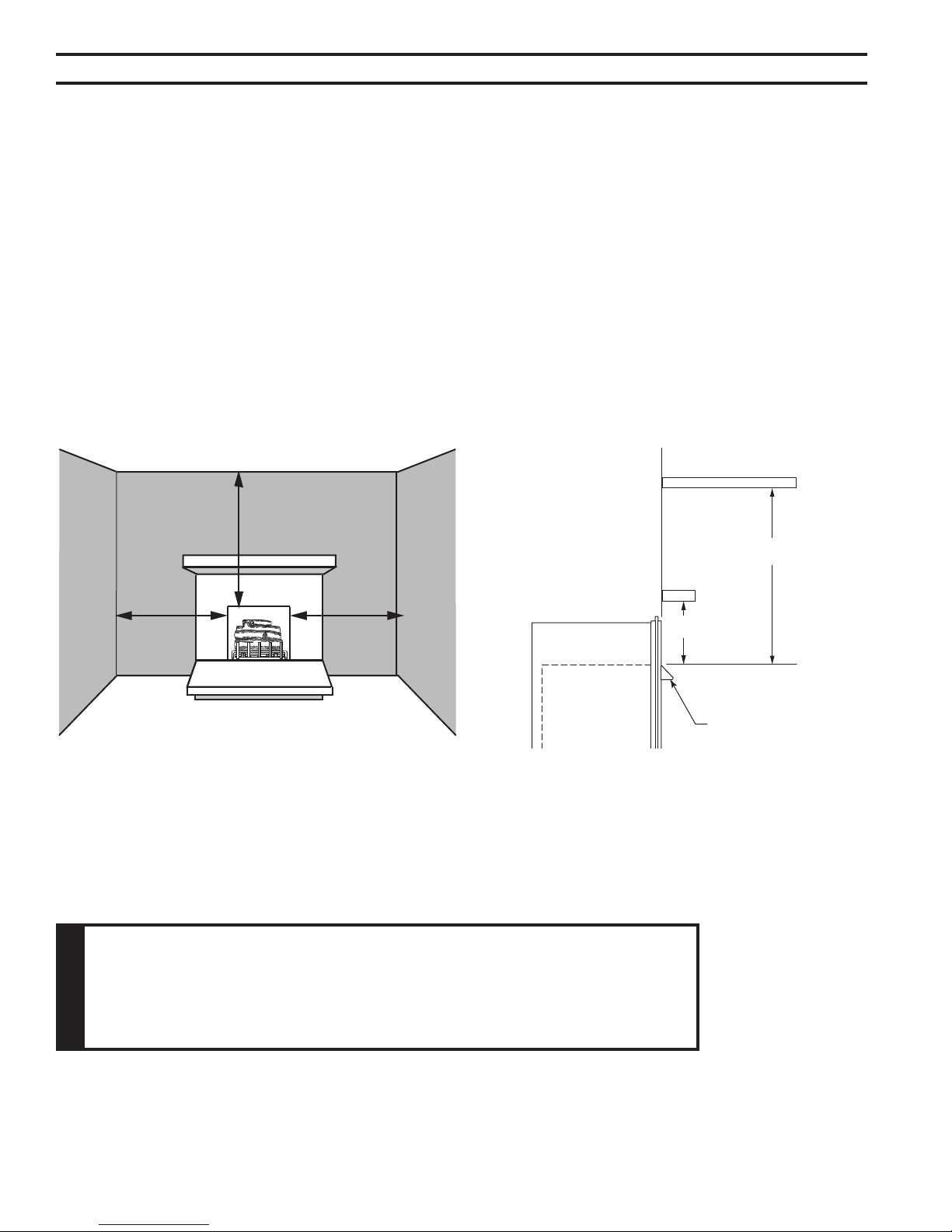

Clearances ............................................................. 10
Fireplace Installation .............................................. 11

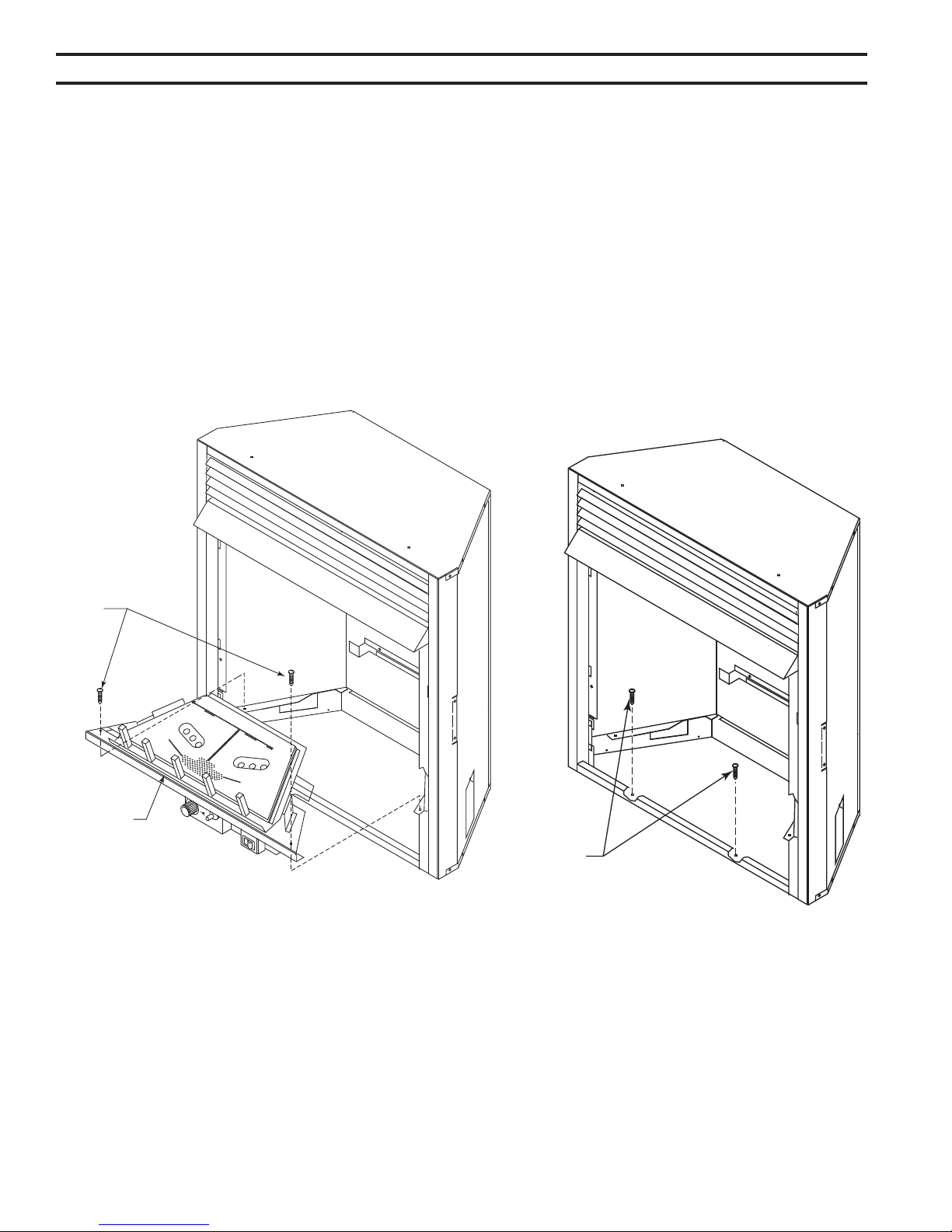

Secure Heater to Floor or Hearth ........................... 1
Manual Control ....................................................... 14
Thermostat Control ................................................. 14
Millivolt Control ....................................................... 14
Connect Optional Wall Switch ................................ 15
Connect Remote Receiver ..................................... 16
Check System Operation ....................................... 16

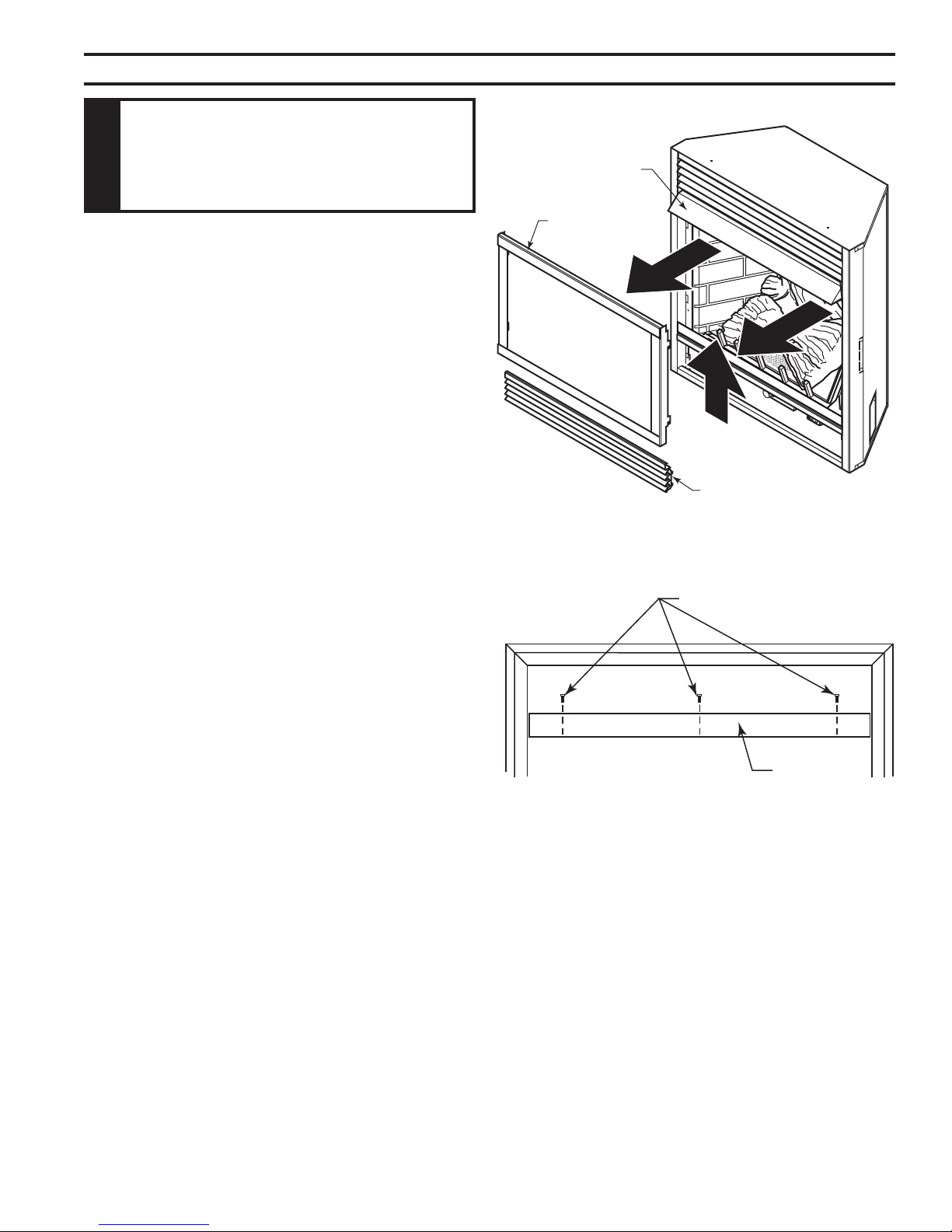

Screen Removal ..................................................... 17
Canopy Installation ................................................. 17

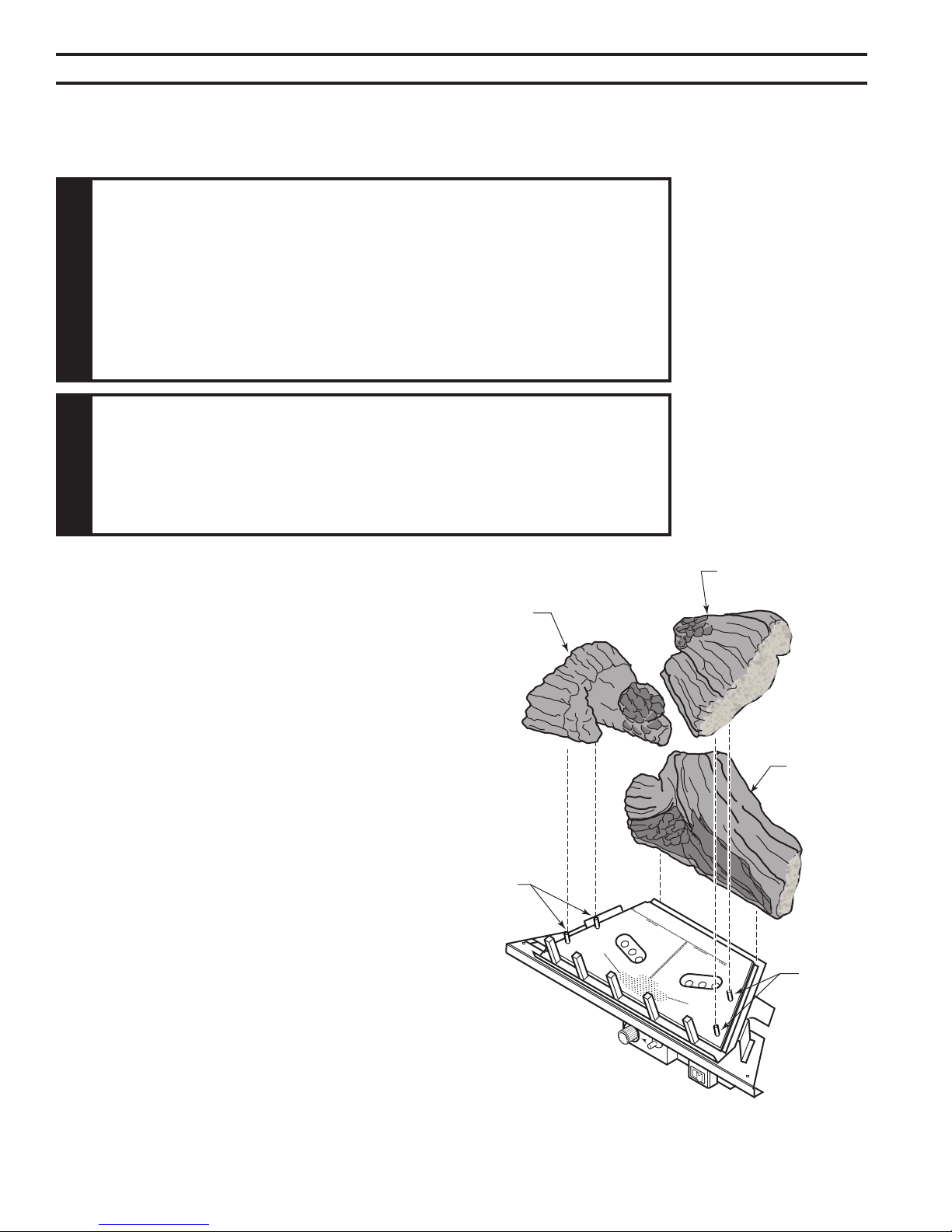

Log Placement ....................................................... 18
Rock Wool Placement ............................................ 19
Pilot Flame ............................................................. 0
Burner Flame Appearance ..................................... 1
For Your Safety Read Before Lighting ....................
Manual Control Lighting Instructions ...................... 3
Thermostatic Control Lighting Instructions ............. 4
MilliVolt Control Lighting Instructions ...................... 5
Match Lighting Instructions ..................................... 6
Cleaning and Servicing .......................................... 6
Firebox ................................................................... 8
DFX4C Millivolt & Manual Control Burner ........... 9
DFX3C Millivolt Burner ......................................... 30
DBX4C T-Stat Burner ........................................... 1
Forced Air Kit .......................................................... 3
Optional Brick ......................................................... 33
Optional Trim .......................................................... 33
Trim Installation ...................................................... 34
3
DFX & DBX Series Vent Free Fireplaces
Please leave these instructions with the appliance.
Please retain these instructions for future reference
.
1. Due to high temperatures, the appliance should be
located out of traffic and away from furniture and
draperies.
. Children and adults should be alerted to the hazard
of high surface temperature and should stay away
to avoid burns or clothing ignition.
3. Young children should be carefully supervised when
they are in the same room with the appliance.
4. Do not place clothing or other flammable material
on or near the appliance.
5. Any safety screen or guard removed for servicing
an appliance, must be replaced prior to operating
the heater.
6. Installation and repair should be done by a qualified
service person.
7. To prevent malfunction and/or sooting, an unvented
gas heater should be cleaned before use and at
least annually by a professional service person.
More frequent cleaning may be required due to
excessive lint from carpeting, bedding materials,
etc. It is imperative that control compartments,
burners and circulating air passageways be kept
clean.
8. Early signs of
carbon monoxide poisoning are similar to the flu with
headaches, dizziness and/or nausea. If you have these
signs, obtain fresh air immediately. Have the heater
serviced as it may not be operating properly.
9. The installation must conform with local codes or, in
the absence of local codes, with the
10. Do not install the DFX model in a bathroom or bedroom.
The DBX model may be installed in a bedroom, but
not in a bathroom.
11. Do not install the heaters in a bathroom or bedroom.
1. Correct installation of the ceramic fiber logs, proper
location of the heater, and annual cleaning are neces-
sary to avoid potential problems with sooting. Sooting,
resulting from improper installation or operation, can
settle on surfaces outside the fireplace. Refer to log
placement instructions for proper installation.
13. Avoid any drafts that alter burner flame patterns. Do not
allow fans to blow directly into fireplace. Do not place
a blower inside burn area of firebox. Ceiling fans may
create drafts that alter burner flame patterns. Sooting
and improper burning will occur.
14. Candles, incense, oil lamps, etc. produce
combustion byproducts including soot. Vent-free appli-
ances will not filter or clean soot produced by these
types of products. In addition, the smoke and/or aro-
matics (scents) may be reburnt in the vent-free appli-
ance which can produce odors. It is recommended to
minimize the use of candles, incense, etc. while the
vent-free appliance is in operation.
15. This is an unvented gas-fired heater. It uses air
(oxygen) from the room in which it is installed. Provi-
sions for adequate combustion and ventilation air must
be provided. Refer to
16. Keep room area clear and free from combustible
materials, gasoline and other flammable vapors and
liquids.
17. Unvented gas heaters are a supplemental zone heater.
They are not intended to be the primary heating appli-
ance.
18. Unvented gas heaters emit moisture into the living
area. In most homes of average construction, this
does not pose a problem. In houses of extremely
tight construction, additional mechanical ventilation is
recommended.
19. During manufacturing, fabricating and shipping, various
components of this appliance are treated with certain
oils, films or bonding agents. These chemicals are not
harmful but may produce annoying smoke and smells
as they are burned off during the initial operation of the
appliance; possibly causing headaches or eye or lung
irritation. This is a normal and temporary occurrence.
The initial break-in operation should last two to three
hours with the burner at the highest setting. Provide
maximum ventilation by opening windows or doors to
allow odors to dissipate. Any odors remaining after this
initial break-in period will be slight and will disappear
with continued use.
4
DFX & DBX Series Vent Free Fireplaces
0. Input ratings are shown in BTU per hour and are for
elevations up to ,000 feet. For elevations above ,000
feet, input ratings should be reduced 4 percent for each
1,000 feet above sea level. Refer to the National Fuel
Gas Code.
1. The appliance and its appliance main gas valve must
be disconnected from the gas supply piping system
during any pressure testing of that system at test pres-
sures in excess of 1/ psig (3.5 kPa).
. The appliance must be isolated from gas supply piping
system by closing its equipment shutoff valve during
any pressure testing of the gas supply piping system
at test pressures equal to or less than 1/ psig (3.5
kPa).
3. Do not use this room heater if any part has been under
water. Immediately call a qualified service technician
to inspect the room heater and to replace any part of
the control system and any gas control which has been
under water.
4. Never burn solid fuels in a fireplace where a unvented
room heater is installed.
5. Always have a fireplace screen in place when the
appliance is in operation and, unless other provisions
for combustion air are provided, the screen must have
an opening(s) for induction of combustion air.
Adhere to all local codes or, in their absence, the latest edition of THE NATIONAL FUEL GAS CODE
ANSI Z3.1 or NFPA54 which can be obtained from:
1430 Broadway
New York, NY 10018
or
Batterymarch Park
Quincy, MA 069
5
DFX & DBX Series Vent Free Fireplaces
This vent-free fireplace must be mounted on the floor or
on the optional fireplace hearth.
This unvented gas heater requires no outside venting and
burns cleanly with high heating efficiency.
This zero-clearance unvented gas heater can be installed
against (or recessed into) any wall that is accessible to a
gas line.
FP2507
VFS DBX controls
Piezo
Ignition
Fireplace
Screen
Control
Knob
Figure 1 -
Unvented Gas Heater
(Control Access Door Shown Open)
On/Off Switch FP507
Regulator Pressure Nat. 4.0” w.c. 3.5” w.c.
Pilot Regulator Nat. n/a 3.5” w.c.
Max. Inlet Pressure Nat. 10.5” w.c. 10.5” w.c.
Min. Inlet Pressure Nat. 5.0” w.c. 5” w.c.
Regulator Pressure LP 10.0” w.c. 10.0” w.c.
Max. Inlet Pressure LP 13.0” w.c. 13.0” w.c.
Min. Inlet Pressure LP 11.0” w.c. 11.0” w.c.
4DFXNMC Nat. Manual ,000 15,000
4DFXPMC LP Manual ,000 17,000
4DFXNVC Nat. Millivolt ,000 17,000
4DFXPVC LP Millivolt ,000 17,000
3DFXNVC Nat. Millivolt 6,000 0,000
3DFXPVC LP Millivolt 6,000 0,000
DBX4NTC Nat. T-Stat 10,000 --
DBX4PTC LP T-Stat 10,000 --
For LP models an external regulator is required
to reduce supply pressure to a maximum of 13" w.c.
Piezo ignitor allows ignition of the pilot without the use of
matches or batteries.
- All gas to the gas logs is shut off at the
valve.
- Valve position to light/maintain a standing
pilot.
- Valve position to turn ON/OFF log set with
remote switch/thermostat.
- Variable position to control flame height
(heat output). Both front and rear burners
are in operation to provide realistic glow
and yellow flame.
- All gas to the gas logs is shut off at the
valve.
- Valve position to light/maintain a standing
pilot.
- Variable position corresponding to desired
temperature.
The gas log heater is fitted with a specially designed safety
pilot light which senses the amount of oxygen available in
the room and shuts the gas log heater off if the oxygen level
begins to drop below a satisfactory level. The pilot can only
be relit when adequate fresh air is available.
The millivolt gas log pilot is fitted with a millivolt generator
to provide power for remote activation.
6
DFX & DBX Series Vent Free Fireplaces
O - Min. Rough Opening Width
Min. Rough
Opening
Depth
1/2”
or 5/8”
Min. Rough
Opening
Height
L
334051
VFS DBX dims
A
B
C
D
H
E
F
G
J
P
S
R
Q
S
I
N
M
K

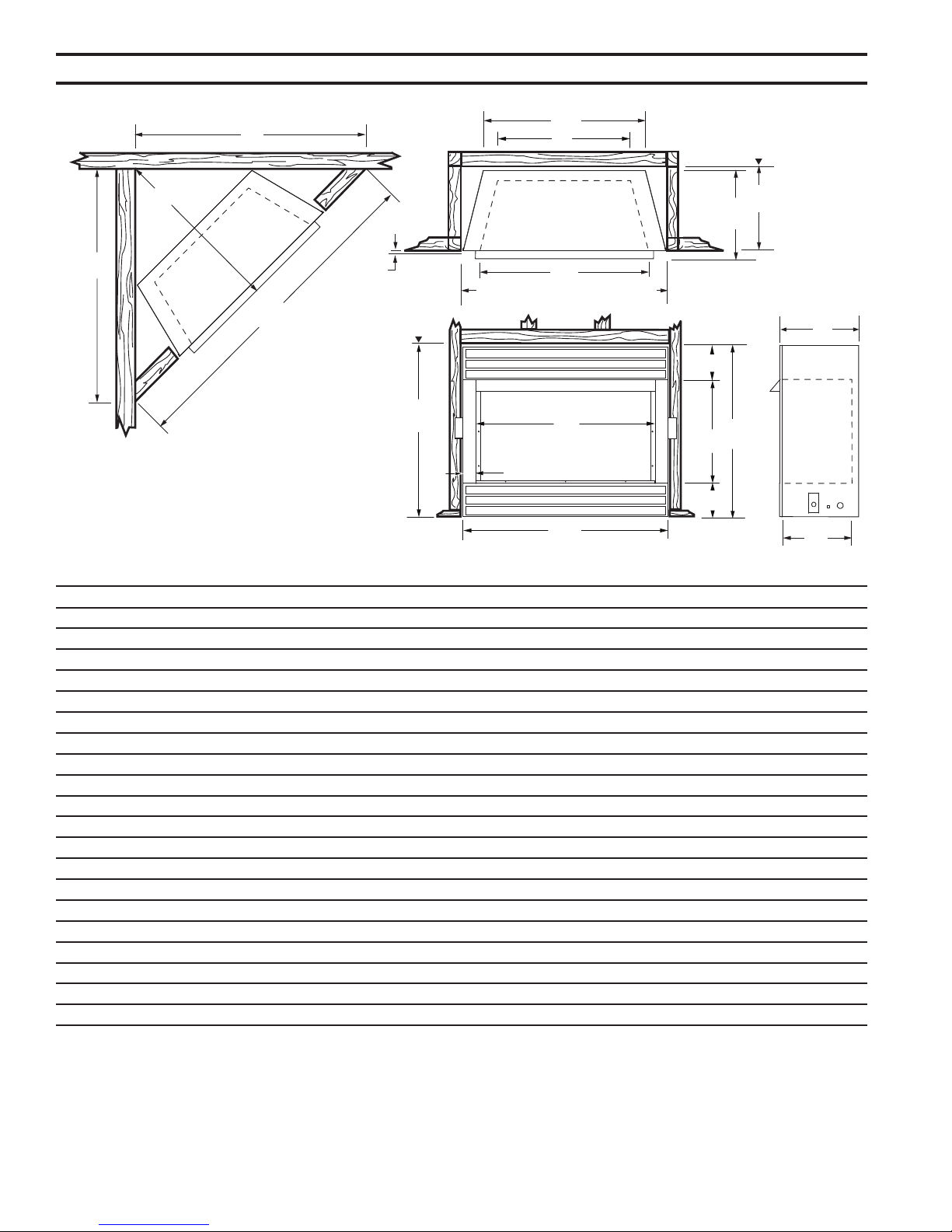

Figure 2 -
Fireplace and Framing Dimensions
A 4Z\x" (6 mm) 3" (813 mm)
B Z\x" (57 mm) 8C\v" (730 mm)
C 6Z\x" (673 mm) 30" (76 mm)
D 14" (356 mm) 1C\v" (553 mm)
E 17" (43 mm) 0Z\v" (514 mm)
F 4B\," (118 mm) 4C\v" (11 mm)
G 4M\," (14 mm) 5" (17 mm)
H 11M\," (30 mm) 13C\," (340 mm)
I 1" (5 mm) 1B\," (41 mm)
J 10Z\x" (67 mm) 1" (305 mm)
K 9" (9 mm) 10B\," (70 mm)
L 13Z\," (333 mm) 17Z\x" (445 mm)
M 1" (533 mm) 7" (686 mm)
N 6C\v" (680 mm) 30Z\v" (768 mm)
O 4C\v" (69 mm) 3Z\x" (86 mm)
P 10Z\x" (67 mm) 1Z\v" (311 mm)
Q 4Z\x" (1080 mm) 53C\v" (136 mm)
R 1" (533 mm) 6C\v" (680 mm)
S 30" (76 mm) 38" (965 mm)
7
DFX & DBX Series Vent Free Fireplaces
Make sure you have received all parts:
Check your packing list to verify that all listed parts have
been received. You should have the following:
• Unvented gas heater • Trim kit
• Two () 90°-angle brackets • Ceramic fiber logs
• Installation/operating instructions
• Canopy and three (3) screws
• Two () anchoring screws • Four (4) black screws
Millivolt controlled heater designed to be operated with
optional devices for ON/OFF functions.
• Hand held Remote with receiver
• Wall T-stat with 0' wire
• Wall switch with 0' wire
• Hand held Thermostat Remote w/receiver
Carefully inspect the contents for shipping damage. If any
parts are missing or damaged, immediately inform the
dealer from whom you purchased the appliance.
What you will need for installation:
You must have the following items available before pro-
ceeding with installation:
• External regulator (for propane/LPG only)
• Manual shutoff valve
• Piping which complies with local codes
• Sediment trap
• Phillips head screwdriver
• Tee joint.
• Pipe sealant approved for use with propane/LPG
• Pipe wrench
(Resistant to sulfur compounds)
In planning the installation for the fireplace it is necessary
to determine where the unit is to be installed and whether
optional accessories are desired. Gas supply piping should
also be planned. The following steps represent the normal
sequence of installation. Each installation is unique, how-
ever, and might require a different sequence.
1. Position fireplace in desired location. Refer to the
and and
, and sections found in this
manual.
Be sure all packing material has been removed
from underside the unit.
. Install canopy and logs per instructions found in this
manual. The canopy MUST be installed for safe opera-
tion of the unit.
3. Field wire main power supply to units with fan kit. Refer
to the found in this manual. (Electrical
connections should only be performed by an experi-
enced, licensed certified tradesman).
4. Install optional ON/OFF kit on units with millivolt control.
Refer to the installation instructions included with the
kit and also refer to the section found
in this manual.
5. Plumb gas line. Refer to the sec-
tion found in this
manual. (Gas connections should only be performed
by an experienced,
licensed/certified tradesman).
6. Complete finish wall material and/or surround.
8
DFX & DBX Series Vent Free Fireplaces
This heater shall not be installed in a confined space or unusually tight construction unless
provisions are provided for adequate combustion and ventilation air.
defines a confined space as a space
whose volume is less than 50 cubic feet per 1,000 BTU per hour (4.8 m3 per kw) of the aggre-
gate input rating of all appliances installed in that space, and an unconfined space as a space
whose volume is not less than 50 cubic feet per 1,000 BTU per hour (4.8 m3 per kw) of the
aggregate input rating of all appliances installed in that space. Rooms communicating directly
with the space in which the appliances are installed, through openings not furnished with doors,
are considered a part of the unconfined space.
a) walls and ceilings exposed to the outside atmosphere have a continuous water vapor
retarder with a rating of 1 perm
(6 x 1011 kg per pa/sec-m) or less with openings gasketed or sealed;
b) weather striping has been added on openable windows and doors, and
c) caulking or sealants are applied to areas such as joints around window and door frames,
between sole plates and floors, between wall-ceiling joints, between wall panels, at pen-
etrations for plumbing, electrical, and gas lines, and at other openings.
The following formula can be used to determine the maximum heater rating per the definition
of unconfined space:
(L1 + L) Ft x (W) Ft x (H) Ft
50
Consider two connecting rooms with an open area between, with the following dimensions:
L1 = 15Z\x Ft., L = 1 Ft., W = 1 Ft., H = 8 Ft.
(15Z\x + 1) x (1) x (8)
50
If there were a door between the two rooms the calculation would be based only on the room
with the heater.
(15Z\x) x (1) x (8)
50
x 1000
x 1000 = 5800 BTU/hr
x 1000 = 9,760 BTU/hr
BTU/hr =
BTU/hr =
BTU/hr =
W
H
FP2439
combustion air
Room Divider
Fireplace
Figure 3 -
Example of a Large Room with a Room
Divider
FP439
9
DFX & DBX Series Vent Free Fireplaces
Carefully select the best location for installation of your unvented fireplace. The following factors
should be taken into consideration.
• Clearance to side wall, ceiling, woodwork and window or other combustibles. Refer to “Clear-
ances” section on . Minimum clearances to combustibles
• Location must not be affected by drafts caused by kitchen exhaust fans, ceiling fans, return
air registers for forced air furnaces / air conditioners, windows or doors.
• Installation must provide adequate ventilation and combustion air.
•
• Location should be out of high traffic areas and away from furniture and draperies due to
heat from firebox.
• Never obstruct the front opening of the unvented fireplace or restrict the flow of combustion
and ventilation air.
• Minimize modifications to existing construction. below for location sugges-
tions.
• Do not install in the vicinity where gasoline or other flammable liquids may be stored. The
unvented firebox must be kept clear and free from the combustible materials.
FP2440
fireplace locations
Figure 4 -
Possible Fireplace Locations
FP440
10
DFX & DBX Series Vent Free Fireplaces
Ensure that minimum clearances shown in are maintained. Left and right clearances
are determined when facing the front of the firebox.
Follow these instructions carefully to ensure safe installation. Failure to follow these requirements
may create a fire hazard.
— The clearance from the inside of the appliance to any combustible adjacent
wall should not be less than 9" for the DBX4C/DFX4C and DFX3C.
— The ceiling must be at least 4" from the top of the firebox opening.
— The appliance may be placed against a combustible back wall.
— The fireplace may be installed directly on a combustible floor or a raised platform
of an appropriate height. Do not place fireplace on carpeting, vinyl, tile or other soft floor coverings.
It may, however, be placed on flat wood, plywood, particle board or other hard surfaces. Be sure
fireplace rests on a solid continuous floor or platform with appropriate framing for support and so
that no cold air can enter from under the firebox.
— The canopy supplied with the unit must be installed. If a combustible mantel
is installed. It must meet the clearance requirements detailed in
9"
Minimum
9"
Minimum
42" Minimum
FP2441
sidewall clg clear
FP441
Figure 5 -
Sidewall and Ceiling Clearances
256O”
12”
10”
19”
FP2508
VFS DBX mantel clearances
Canopy
FP508
Figure 6 -
Mantel Clearances
Figures 5 and 6
11
DFX & DBX Series Vent Free Fireplaces
If unit is to be “built in”, fireplace framing can be built before
or after the appliance is set in place.
Construct fireplace framing following
for fireplace dimensions. The framing
headers may rest directly on top of the firebox.
The fireplace may be installed directly on a combustible
floor or a raised platform of an appropriate height. Do
not place fireplace on carpeting, vinyl, tile or other soft
floor coverings. It may, however, be placed on flat wood,
plywood, particle board or other hard surfaces. Be sure
fireplace rests on a solid continuous floor or platform with
appropriate framing for support and so that no cold air can
enter from under the firebox.
Anchor fireplace to the side framing members using nail-
ing flanges.
K
J
FP2445
opening size
J 6C\v" 6C\v" 31Z\v"
(680 mm) (680 mm) (800 mm)
K 5" 5" 3ZC\zn"
(635 mm) (635 mm) (833 mm)
FP445

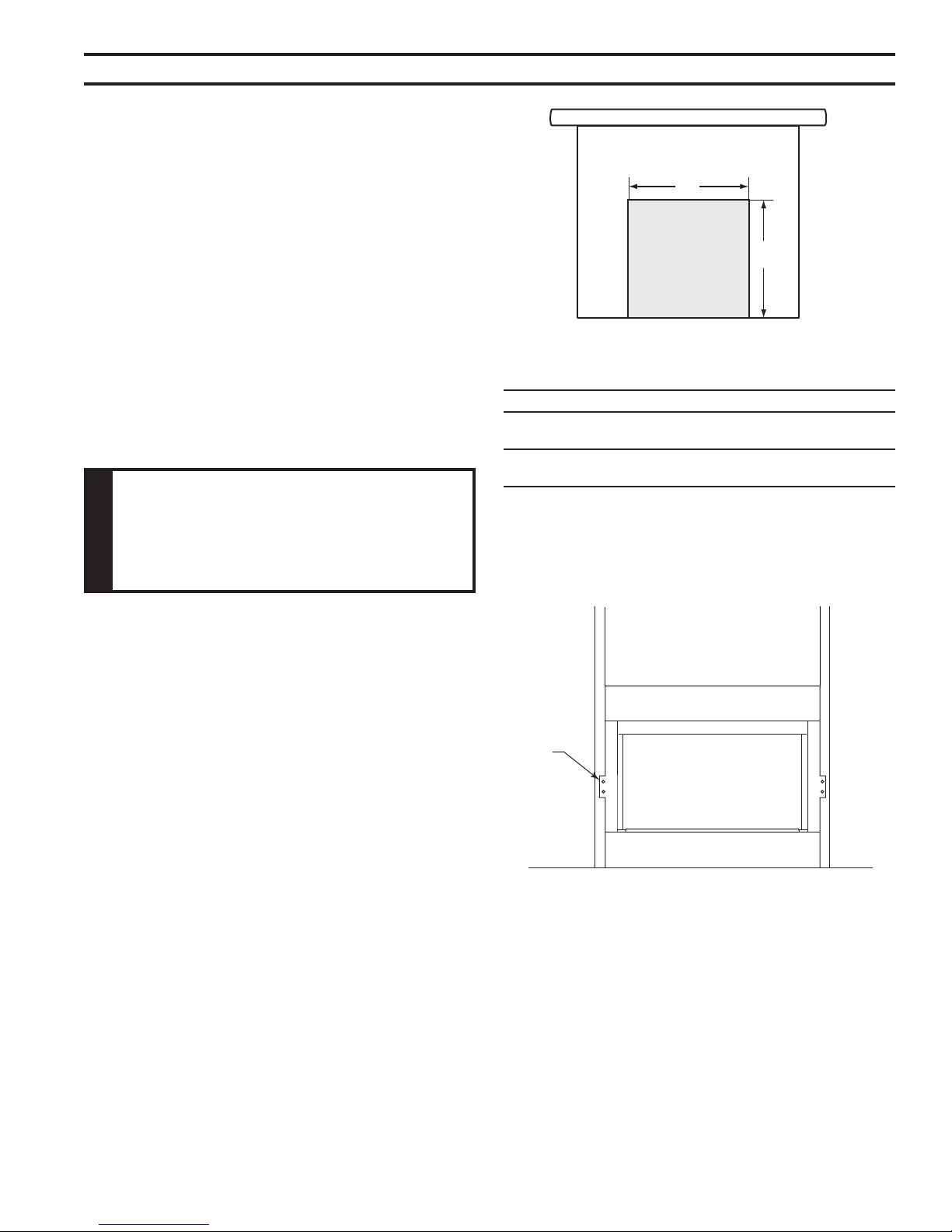

Figure 7 -
Custom Cabinet
When finishing a custom cabinet, mantel or other built-in
enclosure, the opening size to accommodate the fireplace with
trim installed is as follows:
1. Bend out the nailing flanges located on each side of the
firebox.
. Slide the firebox into prepared framing or position firebox
in its final position and frame later.
3. Level the firebox by checking the top edge of the firebox.
Shim if necessary.
4. Anchor firebox to the side framing members using 8d
nails or other suitable fasteners.
5. The canopy must be installed for safe operation of
the heater. for canopy installation
details.
FP2509
nailing flanges
Nail Sides
Through Nailing
Flanges
FP509
Figure 8 -
Nailing Flanges
1
DFX & DBX Series Vent Free Fireplaces
Clearance requirements as detailed in
section on of this manual, must be met before securing the heater in place.
To prevent movement, the heater must be secured to the floor or hearth.
1. Open the control access door and remove the screen.
. Remove carton containing the four-log set.
3. To remove the grate and base assembly, take out two () screws as shown in .
4. Lift grate and base assembly out of the firebox.
5. Secure the firebox with two anchoring screws (3/16" x 1Z\v" length) supplied with the fireplace
system.
If the unit is mounted on carpeting, tile or combustible material without the hearth, a metal
or wooden base covering the entire width and depth of the base must be installed.
FP2515
remove grate
Screws
Grate
FP515
Figure 9 -
Remove Grate
FP2516
secure base
Anchor Screws
3/16" x 1Z\v"
FP516
Figure 10 -
Secure Heater to Floor or Hearth
13
DFX & DBX Series Vent Free Fireplaces
A qualified gas appliance installer must connect the heater to the gas supply.
Consult all local codes.
Figure 10
Figure 11
FP2447
gas connection
3” Min.
To Fireplace
Pipe Coupling
Stainless
Flexible Tube
Pipe
Locations Pressure Tapping
Point Installation
Manual Shutoff
Valve
Gas Supply
Inlet
FP447

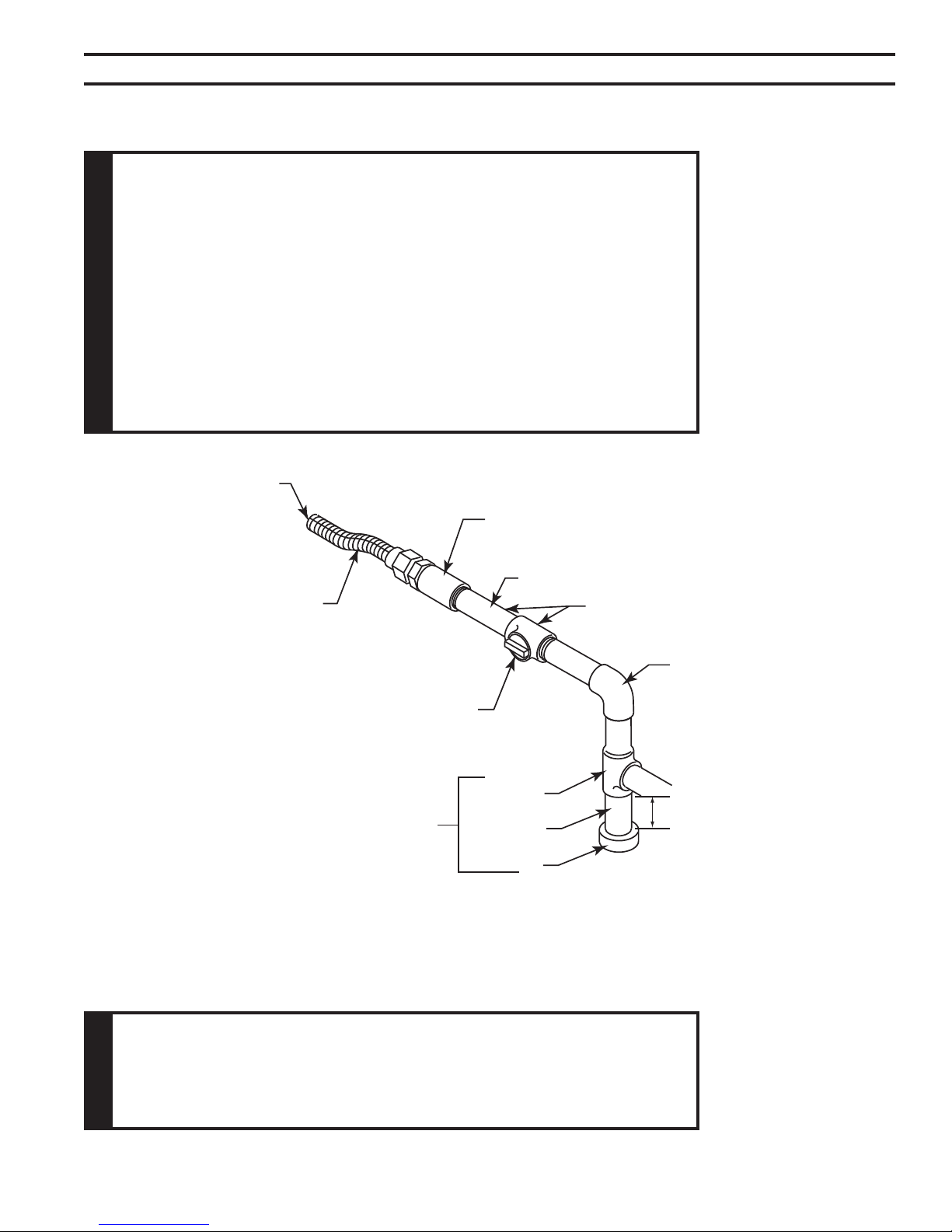

Figure 11 -
Gas Connection
Tee Joint
Pipe Nipple
Cap
Sediment
Trap
Loosen the pipe adapter on the flex tube before installing to the system
piping.
Always use an external regulator for all propane/LPG heaters only, to reduce the supply
tank pressure to a maximum of 13" w.c. This is in addition to the internal regulator in the
heater valve.
14
DFX & DBX Series Vent Free Fireplaces
When tightening the joint to the valve, hold the valve securely to prevent movement.
Test all gas joints from the gas meter to the heater valve for leaks using a gas analyzer or soap
and water solution after completing connection.
Check the gas pressure with the appliance burning and the control set to .
Open control access door at bottom front of unit to find valve and regulator referred to below.
The pressure regulator is preset and locked to discourage
tampering. If the pressure is not as specified, replace the
regulator with the correct part from the parts list in this
manual.
Remove 1/8" NPT plug, located on side of regulator body.
Install fitting and tubing to pressure gauge. After taking
pressure reading, reinstall test plug. Check for gas leaks.
FP2499
manual valve
NPT Test Plug
FP499

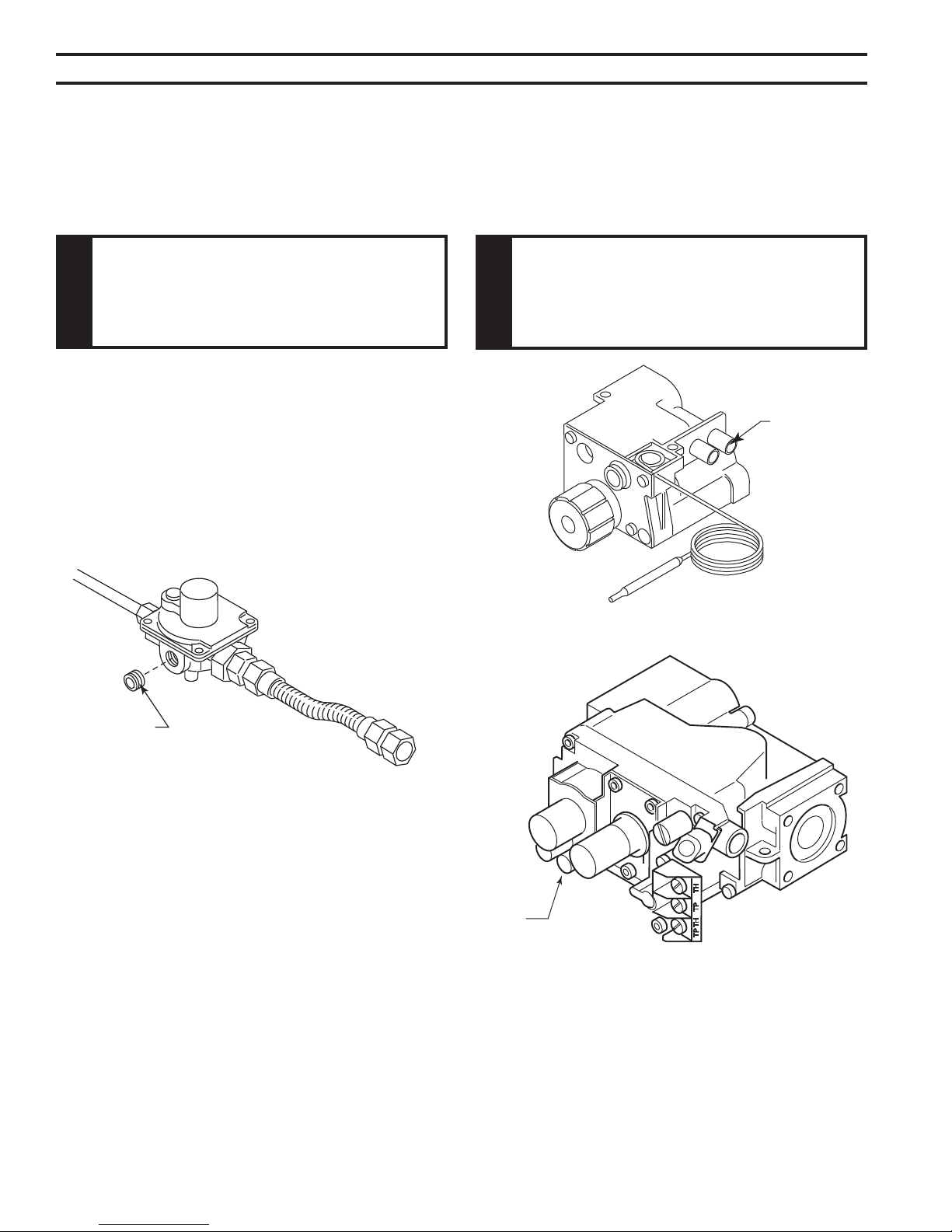

Figure 12 -
Pressure Test Point Location
- Manual Control
FP2510
thermostat control
Test Points
FP510
Figure 13 -
Alternate Test Point Location for
Thermostat control Units
Turn captured screw counter clockwise two or three turns
and then place tubing to pressure gauge over test point
(Use test point closest to control knob). After taking pres-
sure reading, be sure and turn captured screw clockwise
firmly to reseal. Do not over torque. Check for gas leaks.
The valve regulator controls the burner pressure which
should be checked at the pressure test point.
FP2511
millivolt test point
Test Port
'A'
FP511
Figure 14 -
Pressure Test Point Location - Millivolt Valve
Turn captured screw counter clockwise two or three turns
and then place tubing to pressure gauge over test point.
(Use test point “A” closest to gas inlet). After taking pressure
reading, be sure and turn captured screw clockwise firmly
to reseal. Do not over torque. Check for gas leaks.
15
DFX & DBX Series Vent Free Fireplaces
FP2112
wiring diagram
12/08
Figure 15 -
Wiring Diagram
Optional Wall
Switch or Remote Receiver
Switch
On/Off
Switch
On/Off
Switch
Wall
Switch
ODS Pilot
Valve
TH = 3
TP = 1
TP/TH =
ODS
Pilot
Spade
Terminal
FP11
1. Use 18 awg, two-wire cable, 15 feet maximum length.
. At one end of the cable, connect both wires to the wall switch or thermostat. At the other end,
connect one wire to TP/TH and one wire to TH. The color of the wires does not matter.
16
DFX & DBX Series Vent Free Fireplaces
THESE INSTRUCTIONS SUPERCEDE THE SECTION
ENTITLED “HEARTH MOUNT” IN THE MILLIvOLT
HAND-HELD REMOTE INSTRUCTIONS SUPPLIED
WITH THE REMOTE.

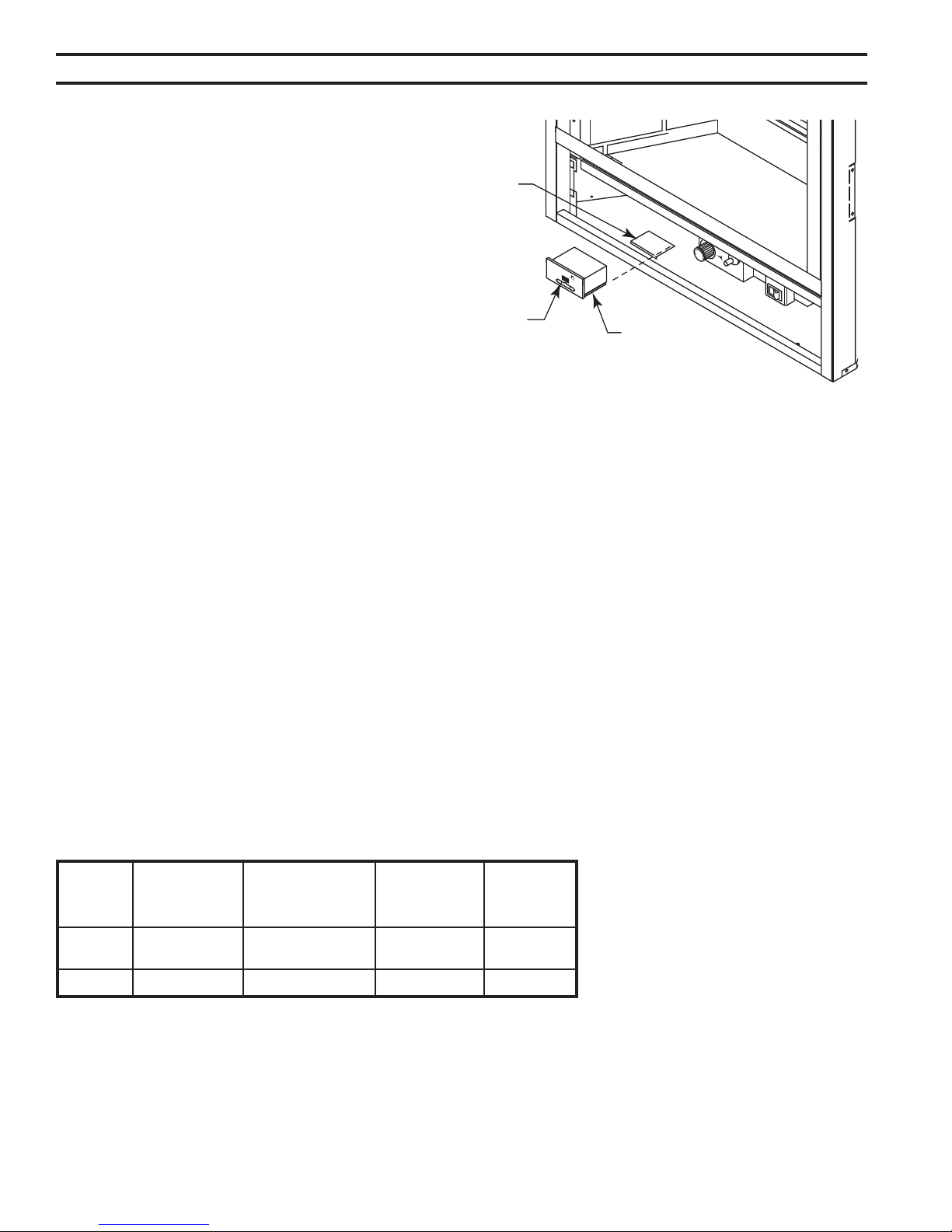

1. Remove bottom louvre door.
. Connect the remote connectors located in the unit.
3. Stick Velcro• pads with self-adhesive backing to bottom
of remote receiver and to floor of compartment behind
access panel.
4. Attach remote receiver to firebox with Velcro• pads.
Control switch must face forward.
Do not place remote in combustion chamber.
SKYTECH
OFF ON
REMOTE
FIREPLACE
REMOTE
FP2512
install remote rcvr
Velcro•
Remote
Receiver
Velcro•
FP51
Figure 16 -
Install Remote Receiver
The millivolt system and individual components may be checked with a millivolt meter having
a 0-1000 mV range. Conduct each check shown in chart below by connection meter test leads
to terminals as indicated.
a. If the reading is more than 100 millivolts and the automatic valve still does not come on,
replace the control.
b. If the closed circuit reading (“A” reading) is less than 100 millivolts, determine cause for
low reading, proceed to Section B below.
1. Check gas pressure to the unit. If gas pressure is within minimum and maximum on data
plate, then check pilot voltage, 35 millivolts minimum. If the minimum millivolt reading is
not obtainable, replace pilot.
A Complete & 3 Closed Closed
System
B Thermopile 1 & Open Open
17
DFX & DBX Series Vent Free Fireplaces
1. Remove bottom louver.
Removing fireplace screen frame panel by pushing
screen frame panel up and out.
Fireplace screen must be removed to access log
box and to install canopy.
FP2513
remove screen
Fireplace
Screen
Louvre FP513
Figure 17 -
Remove Fireplace Screen Panel
Canopy
1. Push louvers up and out to remove top louver assem-
bly.
. Align the black canopy with the holes in the top frame
assembly.
3. Install the three (3) screws (in owner’s manual packag-
ing) which attach the canopy to the top frame assembly.
4. Tighten all screws. Make sure the canopy is level and
secure. Install top louver assembly.
FP2514
install canopy
Screws
Canopy
FP514
Figure 18 -
Install Canopy
18
DFX & DBX Series Vent Free Fireplaces
— This unit is supplied with six (6) ceramic fiber logs. Do not handle
these logs with your bare hands.
After handling the logs, wash your hands gently with soap and water to
remove any traces of fibers.
Figure 19
1. Install the rear log (#3) on back of burner.
. Install the right log (#1) on burner pins on right side of
burner.
3. Install the left log (#) on burner pins on left side of
burner.
LG699
24VFSC logs
Left Log
#
Right Log #1
Rear Log #3
LG699
Figure 19 -
DFX24C Log Placement
Burner
Pins
Burner
Pins
19
DFX & DBX Series Vent Free Fireplaces
Install one-piece log on two burner pins.
Figure 20
1. Install front right log (#1) on two pins on right side of
burner.
. Install left front log (#) on two pins on left side of
burner.
3. Install back log (#3) on back of burner.
4. Install right middle log (#4) on two pins on burner. Rest
right end of right middle log on the right front log.
5. Install left middle log (#5) on two pins on burner. Rest
left end of left middle log on left front log.
Pins
LG700
32VFSC logs
Pins
Left Front
Log #
Left Middle
Log #5
Right Front
Log #1
Right
Middle
Log #4
Rear Log
#3
Pins
Pins
LG700
Figure 20 -
DFX32C Log Placement
LG701
24BDXC logs
One-piece Log
Burner
Pin
Burner Pin
LG701
Figure 21 -
24BDXC Log Placement
After installing logs, pull apart dime-size pieces of rock
wool. Sprinkle rock wool evenly over burner ports. Wash
hands after installing rock wool.
Itching may occur.
LG702
VFS DBX rockwool
Dime Sized
Rockwool
Pieces
Figure 22 -
Place Rockwool DFX24C/DFX32C
0
DFX & DBX Series Vent Free Fireplaces
FP2501
manual pilot flame
FP2273
pilot bad flame
FP2272
pilot correct flame
In addition, periodically check the flames visually during operation.
It should just
touch the top of the thermocouple tip for natural. for correct pilot
flame.
If the pilot flame does not touch the thermocouple, then the main burner cannot function
reliably. for incorrect shape of pilot flame.
Figure 23 -
Millivolt Control Pilot Flame Appearance
Thermocouple
for Natural Gas
Thermocouple
for LP
FP7
Thermocouple
for Natural Gas
Thermocouple
for LP FP73
Thermocouple
for Natural Gas Thermocouple
for LP
Thermocouple
for Natural Gas
Thermocouple
for LP
FP50
Figure 24 -
Manual & Hi/Lo Control Pilot Flame Appearance
Other manuals for DFX DBX24C
1
This manual suits for next models
2
Table of contents
Other Monessen Hearth Indoor Fireplace manuals
Monessen Hearth
Monessen Hearth 6000DV User manual
Monessen Hearth
Monessen Hearth MONAL User manual
Monessen Hearth
Monessen Hearth Peninsula 624DVPF Installation instructions
Monessen Hearth
Monessen Hearth Artisan AVFL Series User manual
Monessen Hearth
Monessen Hearth Magnum Unvented Vent-Free Fireboxes MCUF42D... User manual
Monessen Hearth
Monessen Hearth GCUF Series User manual
Monessen Hearth
Monessen Hearth Direct Vent Gas Fireplace MDV500 User manual
Monessen Hearth
Monessen Hearth DIS33 User manual
Monessen Hearth
Monessen Hearth BLDV7 SERIES BLDV500N/PV7;N/PSC7 User manual
Monessen Hearth
Monessen Hearth Lo-Rider Vent Free Firebox LCUF32-R Installation instructions
Monessen Hearth
Monessen Hearth Corner Fireplace 624WBCR Owner's manual
Monessen Hearth
Monessen Hearth Direct Vent Gas Fireplace BDV300 User manual
Monessen Hearth
Monessen Hearth NB24 User manual
Monessen Hearth
Monessen Hearth 624DVST Installation instructions
Monessen Hearth
Monessen Hearth AVFL42NTSC-SR Manual
Monessen Hearth
Monessen Hearth AVFL60NIP User manual
Monessen Hearth
Monessen Hearth Direct Vent BLDV500 Installation instructions
Monessen Hearth
Monessen Hearth Direct Vent BLDV400 Installation instructions
Monessen Hearth
Monessen Hearth DEB30 User manual
Monessen Hearth
Monessen Hearth DFS36NVC User manual
Popular Indoor Fireplace manuals by other brands
Napoleon
Napoleon GVF42N Installation and operation instructions
Majestic fireplaces
Majestic fireplaces NVBC42 Installation & operation instructions
Rockwood
Rockwood Compact Fireplace, Wood Box and Hearth Assembly instructions
FireplaceXtrordinair
FireplaceXtrordinair 564 Rectangular Face manual
Belleze
Belleze 050-HA-50118 instructions
Flavel
Flavel Warwick FIRC**MN User instructions
Superior Fireplaces
Superior Fireplaces VRT6036 Installation and operation instructions
Napoleon
Napoleon Entice 36 Series Installation and operation manual
Montigo
Montigo H38 SVO Information sheet
Dimplex
Dimplex DFB6016 Parts & service manual
White Mountain Hearth
White Mountain Hearth VFS32FB2DF-2 Installation instructions and owner's manual
Empire Comfort Systems
Empire Comfort Systems VFD32FB0L-2 Installation instructions and owner's manual
Bellfires
Bellfires HBXXL3 CF instructions
Flavel
Flavel ATLANTA FBFR**MN User instructions
Heatilator
Heatilator GDCH60 Series owner's manual
Piazzetta
Piazzetta MP 973 Instructions for installation, use and maintenance
Home Decorators Collection
Home Decorators Collection NORTHGLENN 1418FM-23-25 Assembly instructions
Napoleon
Napoleon BL36NTE-1 Installation and operation manual
