Monsher MHGR 61 C User manual

MHGR 61 C
Инструкция по эксплуатации
User manual
Газовая варочная панель
Gas cooktop

2English
PREFACE
Thank you for choosing our gas cooktop.
To use this appliance correctly and prevent any potential risk, read these
instructions before using the appliance.
Keep these instructions in a place where you can find them easily.
If you are unsure of any of the information contained in these instructions, please
contact our customer care centre.
The manufacturer shall not be responsible for any damages to persons or
property caused by incorrect installation or use of the appliance.
The appliance has been certified for use in countries other than those marked
on the appliance.
The manufacturer also reserves the right to make any modifications to the
products as may be considered necessary or useful, also in the interests of the
user, without jeopardising the main functional and safety features of the products
themselves.
The appliance is designed for a domestic environment and not a commercial one.
CONTENTS
Safety Warning
Safety Instructions...........................................................................................................3
Installation..........................................................................................................................5
Child and People Safety...................................................................................................6
During Use...........................................................................................................................7
Cleaning and Service......................................................................................................10
Environmental Information..........................................................................................10
Instructions for use and maintenance
Description of the appliance........................................................................................11
How to Use the appliance.............................................................................................12
Safety and Energy saving advice................................................................................14
Cleaning and Maintenance...........................................................................................15

3English
Technical instructions
Using instructions...........................................................................................................18
Positioning.........................................................................................................................19
Installing the appliance.........................................................................................................21
Gas Connection...............................................................................................................22
Gas Specifition.................................................................................................................23
Electrical Connection.....................................................................................................23
Gas adjustment...............................................................................................................23
Trouble shooting.............................................................................................................25
SAFETY INSTRUCTIONS
�Please take the time to read this Instruction Manual before installing or
using the appliance.
�This instruction booklet must be kept with the appliance for any future
reference. If the appliance is sold or transferred to another person,ensure the
booklet is passed on to the new user.
�The manufacturer declines any liability should these safety measures not
be observed.
�The following marks are made to be easily understood so that you can
prevent any accident caused by misuse in advance, and use the appliance more
conveniently.
�Read the following contents thoroughly and ensure you understand them.
Danger/Warning
Neglect of this mark may result in severe personal
injury or death.
Caution
Neglect of this mark may result in minor personal
injury or property damage.

4English
� The following marks are used in the Instruction Manual as follows:
Caution No Access
No Fire Tool Must Do
DANGER
� If gas seems to leak,take the actions as follow:
— Do not turn on the light.
— Do not switch on/off any electrical appliance and do not touch any electric
plug.
— Do not use a telephone.
1Stop using the product and close the middle valve.
2Open the window to ventilate.
3Contact our service centre by using a phone outside.
* The fuel gas contains mercaptan, so that you can smell the gas leak (smell of
rotten garlic or egg) even where only 1/1000 of the gas is in the air.

5English
INSTALLATION
WARNING
This appliance shall be installed in
accordance with regulations in force
and only used in a well ventilated space.
Prior to installation,ensure that the gas
and electrical supply complies with the
type stated on the rating plate.
Where this appliance is installed in
marine craft or in caravans, it should
not be used as a space heater.
The gas pipe and electrical cable must be
installed in such a way that they do not
touch any parts or the appliance.
CAUTION
� This appliance should be installed by a qualified technician or installer.
� The adjustment conditions for this appliance are stated on the label or
data plate.
� Remove all packaging before using the appliance.
� After unpacking the appliance, make sure the product is not damaged and
that the connection cord is in perfect condition. Otherwise, contact the dealer
before installing the appliance.

6English
� The adjacent furniture and all materials used in the installation must be
able to withstand a minimum temperature of 85° C above the ambient temperature
of the room it is located in, whilst in use.
� In the event of burner flames being accidentally extinguished, turn off the
burner control and do not attempt to re-ignite the burner for at least one minute.
� The use of a gas cooking appliance results in the production of heat and
moisture in the room in which it is installed. Ensure that the kitchen is well ventilated:
keep natural ventilation holes open or install a mechanical ventilation device
(mechanical extractor hood).
� Prolonged intensive use of the appliance may call for additional ventilation,
for example opening of a window, or more effective ventilation, for example
increasing the level of mechanical ventilation where present.
CHILD AND PEOPLE SAFETY
WARNING
� Do not allow children to play near or with
the appliance. The appliance gets hot when it is in
use.
� Children should be kept away until it has
cooled.

7English
CAUTION
� This appliance is designed to be operated by adults.
� Children can also injure themselves by pulling pans or pots off the appliance.
� This appliance is not intended for use by children or other persons whose
physical, sensory or mental capabilities or lack of experience and knowledge
prevents them from using the appliance safety without supervision or instruction
by a responsible person to ensure that they can use the appliance safety.
DURING USE

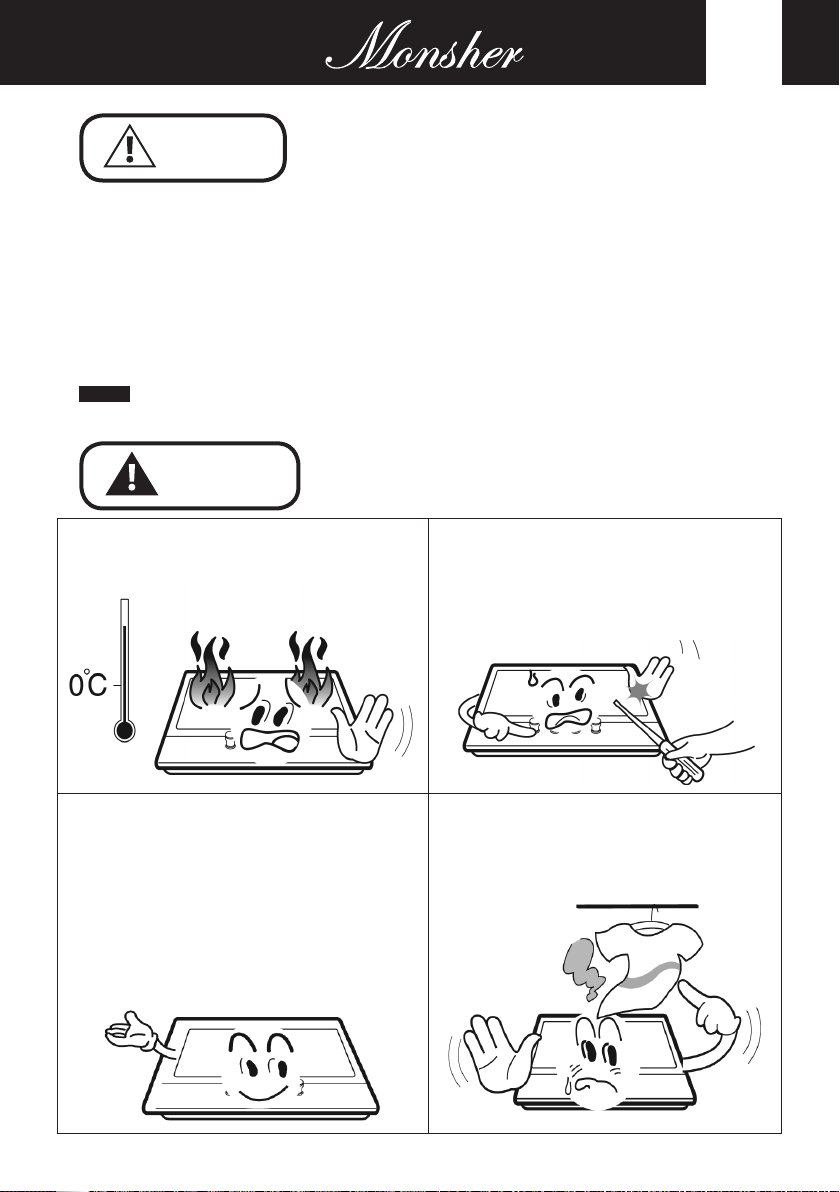

WARNING
Only use the appliance for preparing
food.
Do not modify this appliance. Burner
panel is not designed to operate from
an external timer or separate remote
control system.
The use of a gas cooking appliance
results in the production of heat and
moisture in the room in which it is
installed. Ensure that the kitchen is well
ventilated: keep natural ventilation holes
open or install a mechanical ventilation
device (mechanical extractor hood).
Do not use large cloths, tea towels or
similar as the ends could touch the
fames and catch fire.

8English
Never leave the appliance unattended
when cooking.
Do not use this appliance if it comes in
contact with water. Do not operate this
appliance with wet hands.
The heating and cooking surfaces of the
appliance become hot when they are in
use, take all due precautions.
Unstable or misshapen pans should not
be used on the appliance as they can
cause an accident by tipping or spillage.
Do not use or store fammable materials
in the storage drawer near this appli-
ance.
Perishable food, plastic items and aero-
sols may be affected by heat and should
not stored aboye or below the appliance.
Do not spray aerosols in the vicinity of
this appliance while it is in operaiton.
Ensure the control knobs are in the
‘ ’ position when not in use.

9English
CAUTION
� This appliance is intended for domestic cooking only.|t is not designed for
commercial or industrial purposes.
� Prolonged intensive use ofthe appliance may call for additional ventilation,for
example opening ofa window, or increasing the level of mechanical ventilation
where present.
� Use heat-resistant pot holders or gloves when handling hot pots and pans.
� Do not let pot holders come near open flames when lifting cookware.
� Take care not to let pot holders or gloves get damp or wet, as this causes
heat to transfer through the material quicker with the risk of burning yourself.
� Only ever use the burners after placing pots and pans on them. Do not
heat up any empty pots or pans.
� Never use plastic or aluminium foil dishes on the appliance.
� When using other electrical appliances, ensure the cable does not come
into contact with the appliance surfaces of the cooking appliance.
� If you have any mechanical parts eg. an artifical heart in your body, consult
a doctor before using the appliance.
� Do not use a tea towel or similar materials in place of a pot holder.Such
cloths can catch fre on a hot burner.
� When using glass cookware, make sure it is designed for top plate cooking.
If the surface is made of glass-cracked, switch off the appliance to avoid defeat
electrocution.
� To minimise the possibility of burns, ignition of flammable materials and
spillage, turn cookware handles toward the side or center of the top plate without
extending over adjacent burners.
� Always turn burner controls off before removing cookware.
� Carefully watch foods being fried at a high flame setting.
� Always heat fat slowly and watch as it heats.
� Foods for frying should be as dry as possible. Frost on frozen foods or
moisture on fresh foods can cause hot fat to bubble up and overthe sides of the
pan.
� Never try to move a pan of hot fat,especia||y a deep fat fryer.Wait until the
fat is completely cool.

10 English

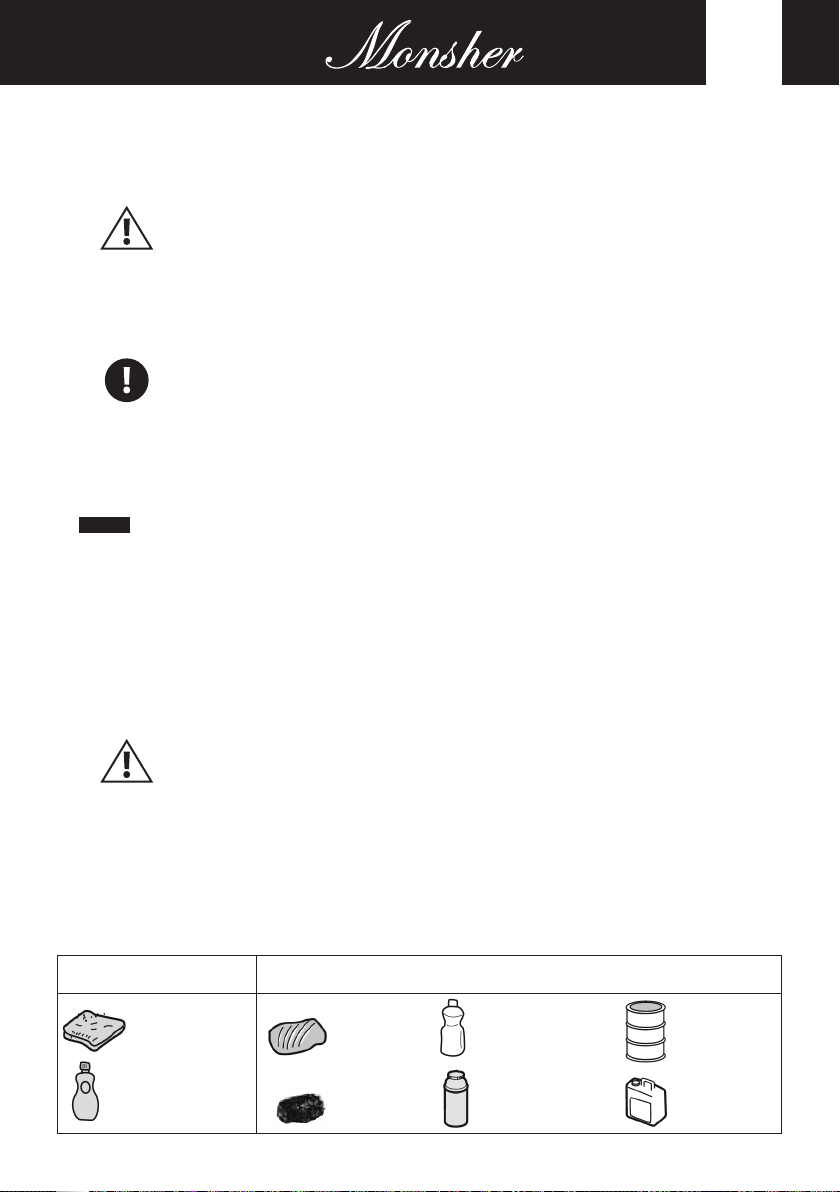

CLEANING AND SERVICE
WARNING
Never use abrasive or caustic
cleaning.
This appliance should only be repaired agents
or serviced by an authorised Service Engineer
and only genuine approved spare parts should
be used.
CAUTION
� Before attempting to clean the appliance, it should be disconnected from
the mains and cooled.
� You should not use a steam jet or any other high pressure cleaning equip-
ment to clean the appliance.
ENVIRONMENTAL INFORMATION
� After installation, please dispose of the packaging with due regard to safety
and the environment.
� When disposing of an old appliance, make it unusable, by cutting offthe
cable.
Correct Disposal of This Product (Waste Electrical & Electronic Equip-
ment)

11English
� This marking shown on the product or its literature, indicates that it should
not be disposed with other household wastes at the end of its working life. To pre-
vent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types ofwastes and recycle it responsibly
to promote the sustainable reuse of material resources.
� Household users should contact either the retailer where they purchased
this product, or their local government offce, for details of where and how they
can take this itemfor environmentally safe recycling.
� Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with other
commercial wastes for disposal.

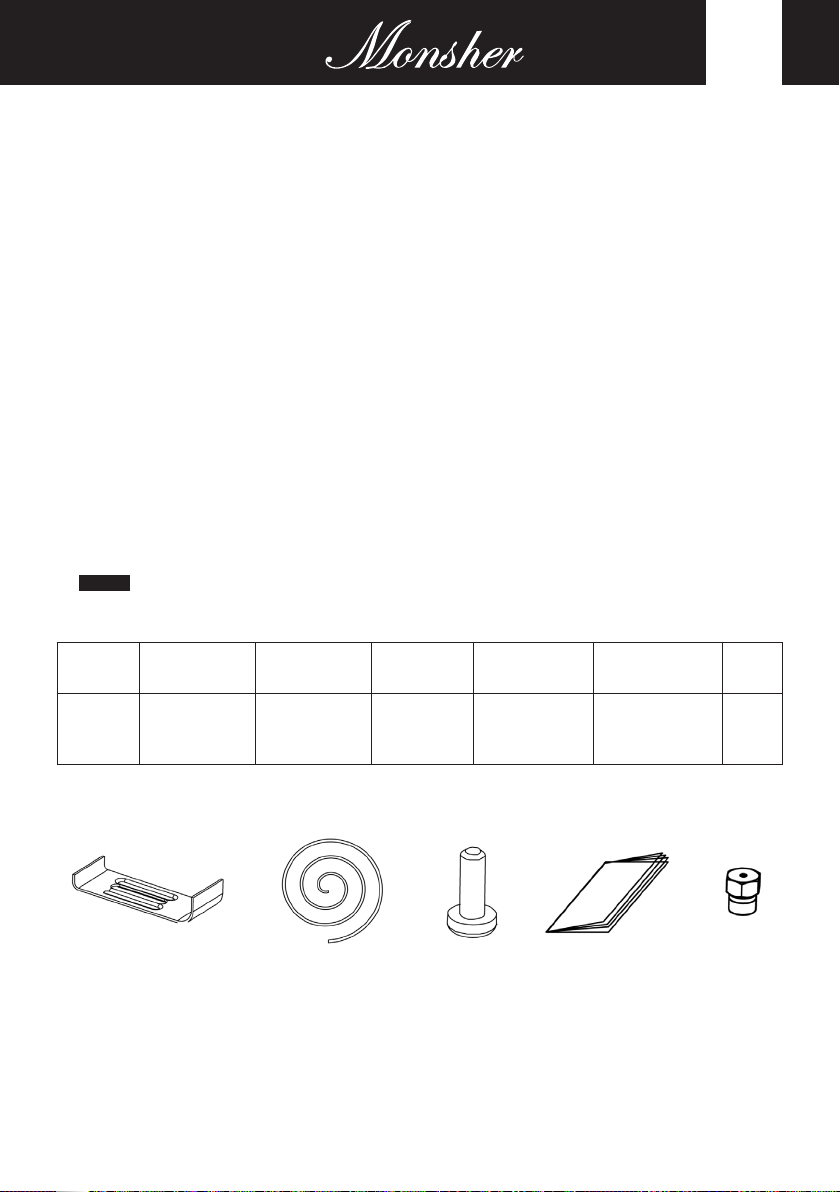

DESCRIPTION OF THE APPLIANCE
АCCESSORIES:
Bracket (4) Sponge (4) Screw (4) Instruction Manual (1) Injector (4)
Top Plate Dimension
(W х D х H) Ignition device Gas Connection Electric supply Burner Feature ∑Qn
Enamel 590 х 510 х 90 Continuous
Ignition Type G1/2, thread 220-240Vac,
50Hz-60Hz,
0.6W
Triple-Crown(1),
Semi-rapid(2),
Auxiliary (1) 8.3 kW

12 English

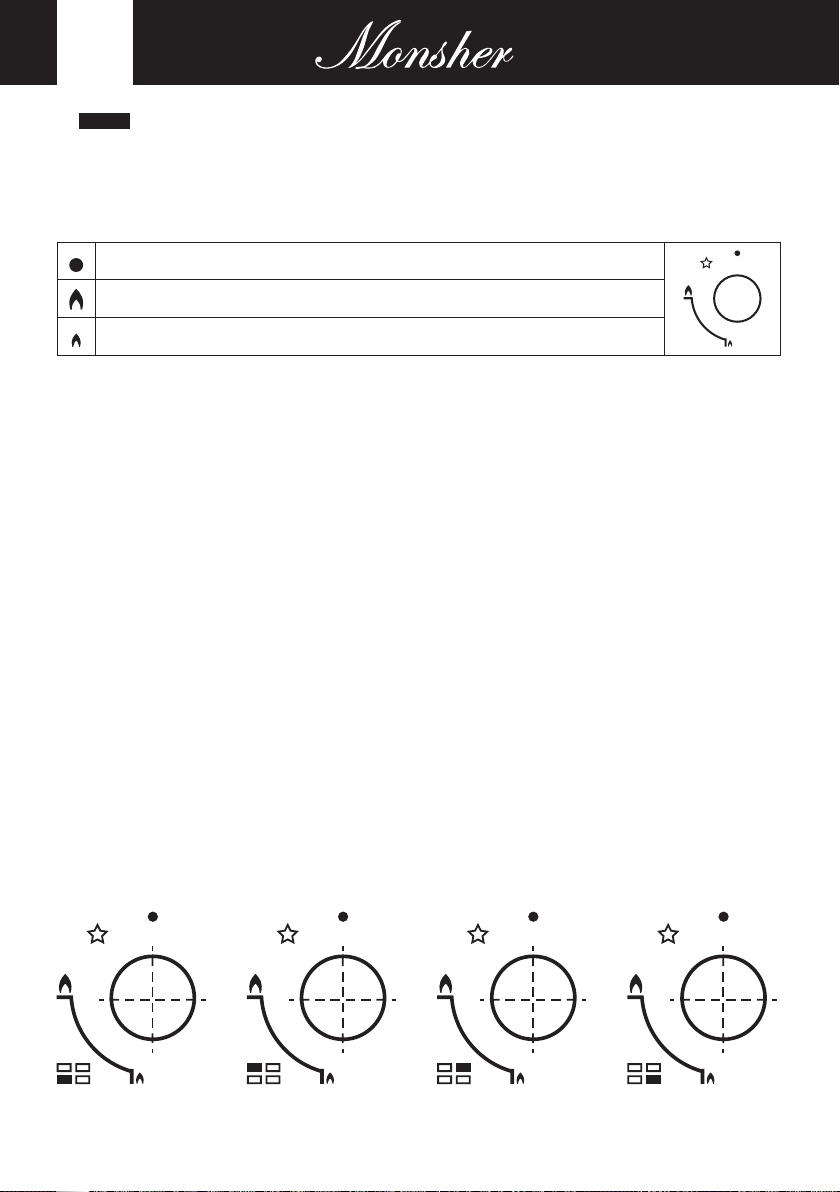

HOW TO USE THE APPLIANCE
The following symbols will appear on the control panel, next to each control handle:
Black circle: gas off
Large flame: maximum setting
Small flame: minimum setting
� The minimum setting is at the end of the anti-clockwise rotation of the
control handle.
� All operation positions must be selected between the maximum and mini-
mum position. .
� The symbol on the control panel,next to the control handle will indicate
which burner it operates.
AUTOMATIC IGNITION WITH FLAME FAILURE SAFETY DEVICE
The appliance is fitted with a flame failure safety device on each burner, which
is designed to stop the flow of gas to the burner head in the event of the flame
going out.
Automatic ignition with flame failure safety device

13English
The appliance is fitted with a flame failure safety device on each burner, which
is designed to stop the flow of gas to the burner head in the event of the flame
going out.
TO IGNITE A BURNER:
� Press in the control knob of the burner that you wish to light and turn it
anti-clockwise to the maximum position.
� If you keep the control knob depressed, the automatic ignition for the burner
will operate.
� You should hold down the control knob for 15 seconds after the flame on
the burner has lit. If after 15s the burner has not lit, stop operating the device and
open the compartment door and/or wait at least 1 min before attempting a further
ignition of the burner.
� After this 15-second interval, to regulate the flame you should continue turning
the control knob anti-clockwise until the flame is at a suitable level. The operating
position MUST be at a position between the maximum and minimum position.
� To switch the burner off, turn the control knob fully clockwise to the gas off
position.
� In case of power failure, the burners can be lit by carefully using a match.

14 English

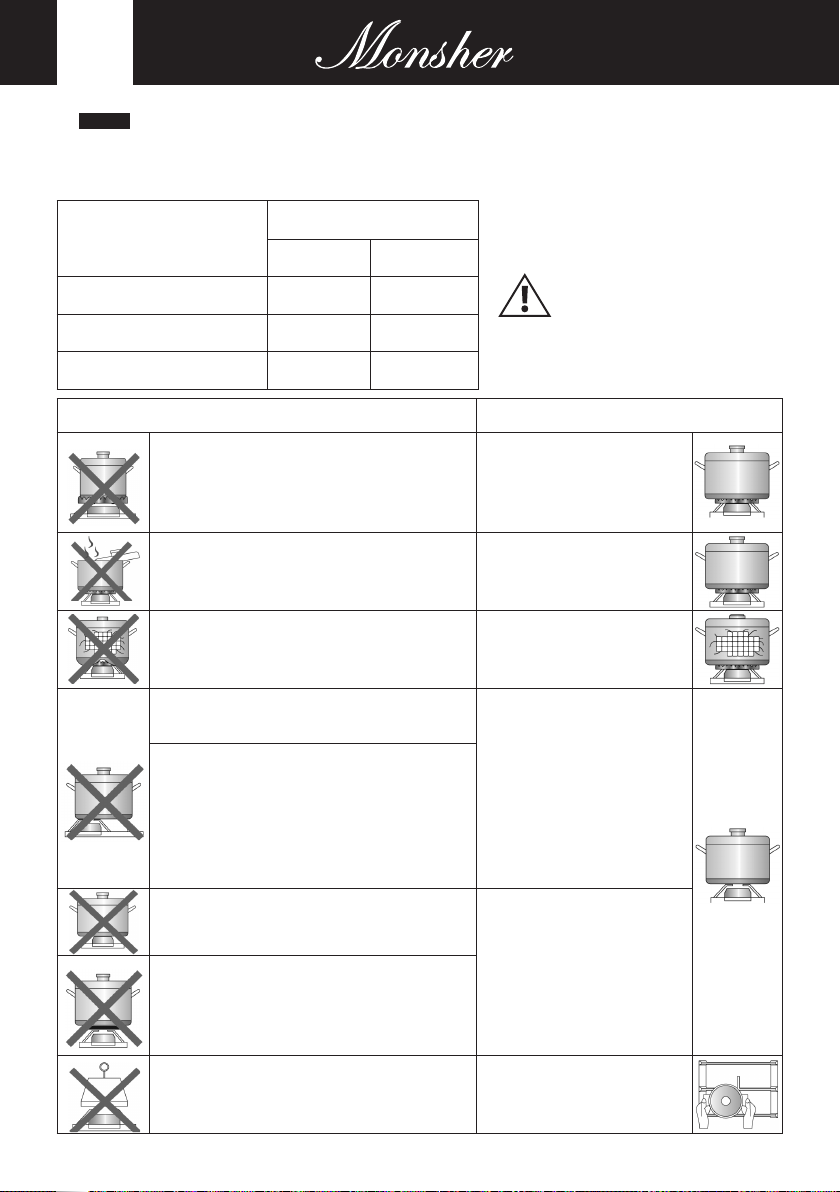

SAFETY AND ENERGY SAVING ADVICE
— The diameter of the bottom of the pan should correspond to that of the burner.
BURNERS PANS
Do not use cookware
that overlaps the edge
of the burner.
min. max.
Triple-Crown 200 mm 240 mm
Semi-Rapid 160 mm 180 mm
Auxiliary 120 mm 160 mm
NO YES
Do not use small diameter cookware on
large burners.
The flame should never come up the sides
of the cookware.
Always use cookware that
is suitable for each burner,
to avoid wasting gas and
discolouring the cookware.
Avoid cooking without a lid or with the lid
half off
-as this wastes energy
Place a lid on the cookware.
Do not use a pan with a convex or concave
bottom.
Only use pots,saucepans and
frying pans with a thick,flat
bottom.
Do not place cookware on one side of a
burner,as it could tip over.
Always place the cookware
right over the burners,not
to one side.
Do not use cookware with a large diameter
on the burners near the controls,which when
placed on the middle of the burner may
touch the controls or be so close to them
that they increase the temperature in this
area and may cause damage.
Never place cookware directly on top of
the burner.
Place the cookware on top
of the trivet.
Do not place anything, eg.flame tamer, as-
bestos mat, between pan and pan support
as serious damage to the appliance may
result.
Do not use excessive weight and do not hit
the cooktop with heavy objects.
Handle cookware care-
fully when they are on the
burner.

15English
� НIt is not recommended to use roasting pans,frying pans
or grill stones heated simultaneously on several burners
because the resulting heat build-up may damage the
appliance.
� Do not touch the top plate and trivet whilst in use for a
certain period after use.
� As soon as a liquid starts boiling,turn down the flame so
that it will barely keep the liquid simmering.
CLEANING AND MAINTENANCE
� Cleaning operations must only be carried out when the
appliance is completely cool.
� The appliance should be disconnected from your mains
supply before commencing any cleaning process.
� Clean the appliance regularly preferably after each use.
� Abrasive cleaners or sharp objects will damage the appliance
surface; you should clean it using water and a httie washing
up liquid.
USABLE UNUSABLE
Soft cloth Nylon
Brush Edible Oil Abrasive
Neutral Detergent Metal
Brush
Acidic/Alkali
Detergent
Thinner/
Benzene

16 English
PAN SUPPORT, CONTRA HANDLES
� Take off the Pan support.
� Clean these and the control handles with a damp cloth, washing up liquid
and warm water For smbbon soiling, soak beforehand.
� Dry everything with a clean soft cloth.
TOP PLATE
� Regularly wipe over the top plate using a soil cloth well wrung-oul in warm
water to which a little washing up liquid has been added.
� Dry the top plate thoroughly aiier cleaning.
� Thoroughly remove saltyfoods or liquids from the hub as soon as possible
to avoid the risk of corrosion.
� Stainless steel parts of the appliance may become discoloured over time
This is normal because of the high temperatures Each time the appliance is used
these parts should be cleaned with a product that is suitable for stainless steel.
BURNERS
� Remove the burner lids and Flame Spreaders by pulling them upwards and
away from the top plate.
� Soak them in hot water and a little detergent or washing up liqui.
� After cleaning and washing them, wipe and dry them carefully. Make sure
that the flame holes are clean and completely dry.
� Wipe the fixed parts of the burner cup with a damp cloth and dry afterwards.
� Gently wipe the ignition device and flame supervision device with a well
wrung-out cloth and wipe dry with a clean cloth.
� Before placing the burners back on the top plate, make sure that the injec-
tor is not blocked.

17English

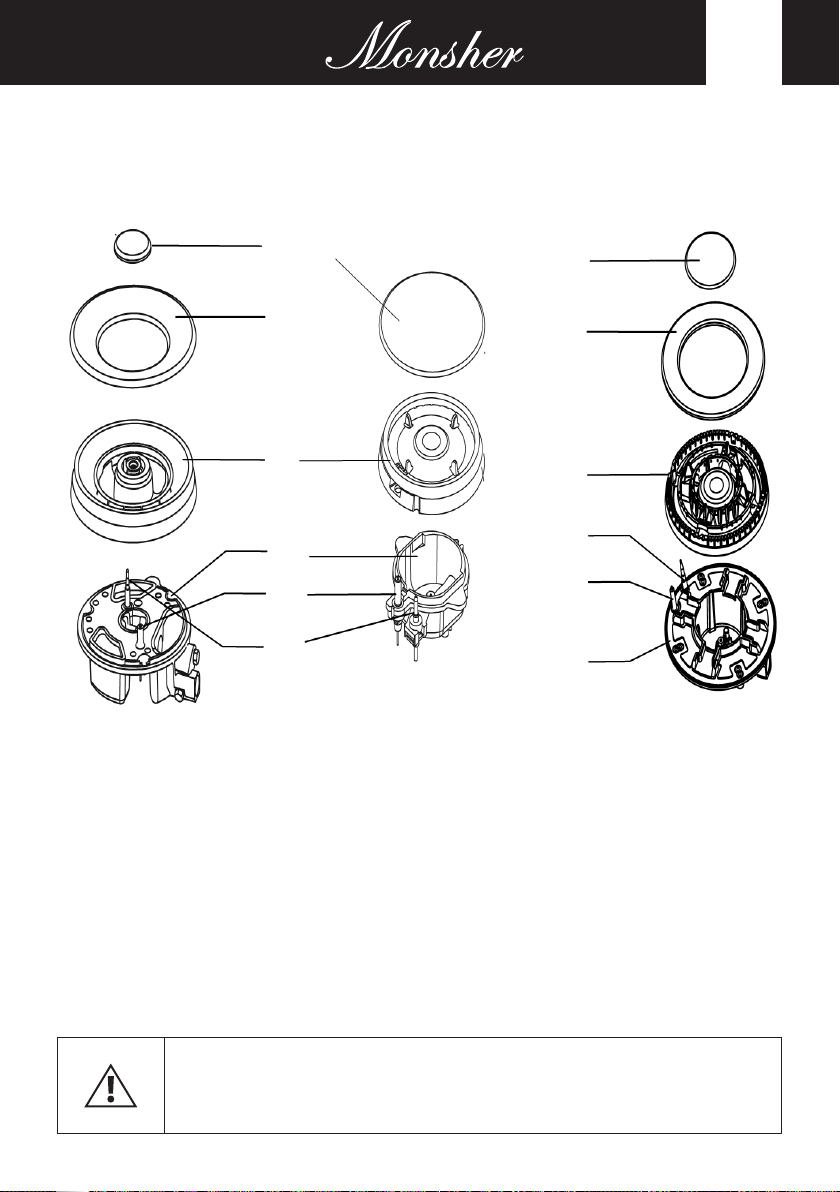

RE-ASSEMBLE THE AUXILIARY, SEMI-RAPID, RAPID AND TRIPLE-CROWN BURNERS
AS FOLLOWS:
1. Place the flame spreader (4) on to the burner cup (5) so that the ignition
device and the flame supervision device extend through their respective holes in
the flame spreader.The flame spreader must click into place correctly.
2. Position the burner lid (1,2,3) ontothe flame speader (4) so that the retaining
pins fit into their respective recesses.
Replace parts in the correct order after cleaning.
– Do not mix up the top and bottom.
– The locating pins must fit exactly into the notches.
1
22
3
4
4
5
6
7
3
7
6
5

18 English
USING INSTRUCTIONS
WARNINGS
�Do not modify this appliance.
�This appliance must be installed by an authorised technician or installer.
�Prior to installation, ensure that the local distribution conditions (nature
of the gas and gas pressure) and the adjustment of the appliance are compatible.
�The adjustment conditions for this appliance are stated on the label (or
data plate).
�This appliance is not connected to a combustion products evacuation de-
vice. It should be installed and connected in accordance with current installation
regulations. Particular attention should be given to the relevant requirements
regarding ventilaton.
�Before installing, turn off the gas and electricity supply to the appliance.
�All appliances containing any electrical components must be earthed.
�Ensure that the gas pipe and electrical cable are installed in such a way
that they do not touch any parts of the appliance which may become hot.
�Gas pipe or connector shouldn’t be bent or blocked by any other appliances.
�Check the dimensions of the appliance as well as the dimensions of the
gap to be cut in the kitchen unit.
�The panels located above the work surface, directly next to the appliance,
must be made of non-flammable material. Both the stratified surfacing and the
glue used to secure it should be heat resistant, to prevent deterioration.

19English
�Turn on appliance tap and light each burners. Check for a clear blue flame
without yellow tipping. If burners shows any abnormalities check the following :
– Burner lid on correctly
– Flame spreader positioned correctly
– Burner vertically aligned with injector nipple
�A full operational test and a test for possible leakages must be carried
out by the fitter after installation.
�The flexible hose shall be fitted in such a way that it cannot come into
contact with a moveable part of the housing unit and does not pass through any
space susceptible of becoming congested.
�Grease cranes produced at the factory to meet the requirement of all life
hob.
POSITIONING
Clearances
required
When fitting
the hob
With a cooker
hood above

20 English
This appliance is to be built into a kitchen unit or 600 mm worktop,providing
the following minium distances are allowed:
�The edges of the hob must be a minimum distance of 60 mm from a side or
rear wall.
�700 mm between the highest point of the hob surface (including the burners)
and the underside of any horizontal surface directly above it.
�400 mm between the hob surfaces, providing that the underside of the
horizontal surface is in line with the outer edge of the hob. If the underside of the
horizontal surface is lower than 400 mm, then it must be at least 50 mm away from
the outer edges of the hob.
�50 mm clearance around the appliance and between the hob surface and
any combustible materials.
�You must have a gap of at least 25 mm and at most 74 mm between the
underneath of the appliance and any surface that is below it.
— An oven must have forced ventilation to install a hob above it.
— Check the dimensions of the oven in the installation manual.
— The cut out size must obey the indication.
