Monster Group XXL User manual

29205
BBQ Smoker Grill XXL
INSTRUCTION MANUAL
www.monstershop.co.uk

02
PRODUCT DESCRIPTION
SPECIFICATION
This Jardi BBQ Smoker Grill is an ideal addition to any garden – whether you’re an
occasional BBQ enthusiast or a real grilling master – this is the ultimate tool to add to
your cooking entourage. With the 6 height adjustable coal tray, you can be rest assured
that you’ll be able to satisfy anyone’s taste buds.
PRODUCT SPECIFICS
Steel
111cm (H) x 142cm (W) x 62cm (D)
77cm x 43.5cm
34.5KG
PRODUCT FEATURES
• 6 height adjustable coal tray with handle
• 2 x Foldable shelves
• Temperature gauge
• Wire Brush
• Waterproof Cover
MATERIAL:
DIMENSIONS:
GRILL SIZE:
WEIGHT:
When first unpacking your BBQ smoker grill, check each part against this list to ensure that
they are all present. If any are missing contact us before attempting to assemble.
Part No. Description Illustration Quantity
1 Grill Lid X 1
2 Chimney X 1
PARTS LIST

03
29205 - BBQ SMOKER GRILL XXL
SPECIFICATION
PARTS LIST
Monster Group UK Limited’s liability will be limited to the commercial value of the
product only.
3 Vent Handles X 2
4 Temperature Gauge X 1
5 Lid Vents X 2
6 Bottle Opener X 1
7 Lid Handle X 1
8 Warming Rack X 1
9 Cast Iron Cooking
Grids
X 3
10 Li Rack X 1
11 Hooks X 4
12 Right Side Shelf X 1
13 Le Side Shelf X 1
14 Side Panel Support
Bar
X 2

04
PARTS LIST
15 Air Vents X2
16 Charcoal Tray X1
17 Ash Pan X 1
18 Ash Pan Handle X 1
19 Upper Hinges X 2
20 Lower Hinges X 2
21 Le Upper Bracket X 1
22 Right Upper Bracket X 1
23 Crank X 1
24 Lower Brackets X 2
25 Lower Arms X 2
26 Le Side Panel X 1
27 Rear Panel X 1
28 Front Panel X 1

05
PARTS LIST
29 Right Side Panel X 1
30 Cast Iron Door X 1
31 Wheels X 2
32 Axle X 1
33 Front Wheel Leg X 1
34 Rear Wheel Leg X 1
35 Front Stationery Leg X 1
36 Rear Stationery Leg X 1
37 Bottom Panel X 1
38 Frame Rear Beam X 1
39 Frame Side Beams X 2
40 Fire Damper X 1
41 Height Adjusting
Plate
X 1
42 Lever Support
Bracket
X 2
A M6 12mm Screw X 59
29205 - BBQ SMOKER GRILL XXL

06
PARTS LIST
B M6 20mm Screw X 4
C M6 35mm Screw X 8
D M6 18mm Screw X 8
E M5 12mm Screw X 20
F M4 10mm Screw X 4
G M6 Flange Nut X 27
H M5 Flange Nut X 10
I M8 Lock Nut X 2
J M4 Flat Gasket X 2
K M6 Flat Gasket X 5
L M8 Flat Gasket X 2
M Cotter Pin X 16
N M5 8mm Hinge Pin X 7
O M5 25mm Hinge Pin X 3
P M5 35mm Hinge Pin X 2
Q M5 45mm Hinge Pin X 2

07
SAFETY ADVICE
SAFE WORKING PRACTICE
Please read through the Safe Working Practice to ensure prevention of injury or
damage to the device.
• Ensure you have read and fully understood the instruction manual and safety advice before
assembling this product.
• Ensure that the grill is handled and assembled according to these instructions.
• Do not use this product for anything other than its intended purposes.
GRILL PLACEMENT SAFETY
GRILL PREPARATION SAFETY
• Always use the grill outdoors.
• NEVER use the grill in an enclosed space or under a covered area. Charcoal creates carbon
monoxide and therefore should always be burned in a well-ventilated area.
• DO NOT use this grill within 10’(3m) of any combustible material, including, but not limited to
shrubbery, trees, wood or treated wood decks, fences, patios, porches, walls, vehicles, gasoline,
lighter fluid, or any other flammable liquid.
• ONLY use this grill on a hard, level, non-combustible, stable surface, such as concrete that can
support the weight of the grill. NEVER use on wood or other combustible surfaces.
• NEVER use this grill where children or pets could come into contact with the grill.
• Do NOT use the grill without the ash tray in place.
• Do NOT use this grill unless fully assembled and all parts are in working order.
29205 - BBQ SMOKER GRILL XXL

08
CHARCOAL LIGHTING SAFETY
GRILL USE SAFETY
SAFETY ADVICE
SAFE WORKING PRACTICE
• We recommend a charcoal chimney starter to avoid the dangers of charcoal starter fluid.
ALWAYS read and follow the chimney starter manufacturer’s instructions and warnings. Failure
to do so could result in serious injury.
• If you use charcoal starter fluid, ONLY use starter fluid approved for lighting charcoal
• NEVER use gasoline, alcohol, kerosene, or any other highly flammable liquid. Use of any of
these or similar products could cause an explosion, possibly leading to severe bodily injury.
• ALWAYS clean up any starter fluid spills before lighting charcoal.
• ALWAYS allow charcoal starter fluid to completely burn o prior to closing the grill lid. Failure
to do so could trap fumes in the grill and might result in flash fire or explosion when the lid is
opened.
• NEVER add charcoal starter fluid to hot or warm coals. Flare-ups could occur and cause burns.
• ALWAYS store charcoal starter fluid safely away from grill. DO NOT store starter fluid or other
flammable liquids or materials under the grill.
• DO NOT use the grill in windy conditions.
• NEVER leave a hot grill unattended.
• Grill is hot when in use. To avoid burns:
• DO NOT attempt to move the grill while lit or still hot.
• ALWAYS wear protective gloves or oven mitts.
• DO NOT TOUCH any hot grill surfaces.
• DO NOT wear loose clothing or allow hair to come into contact with grill.
• NEVER add pre-soaked charcoal to hot or warm coals or ashes. Dangerous or explosive flare-
ups could occur and result in bodily harm.

09
SAFETY ADVICE
SAFE WORKING PRACTICE
• USE EXTREME CAUTION when adding charcoal and/or wood to the grill while cooking, as
charcoal is still hot and can cause burns.
• ALWAYS open lid completely and secure to prevent unexpected closing.
• NEVER place more than 8 lb (3.6kg) on any of the shelves. DO NOT lean on any shelf.
• NEVER add water when smoking as hot water may splash onto the coals creating a burst of
steam and hot ash.
• When grilling, grease from food may drip onto the charcoal and cause a grease fire. If this
happens close the lid and air vents to suocate the flame. NEVER use water to extinguish a
grease fire.
• Keep hands, face, and body a safe distance from the grill when opening the lid. Flare-ups may
occur when flames or hot coals encounter increased airflow.
• NEVER try to remove the ash tray while coals are hot. Doing so could cause burns.
AFTER USE SAFETY
• ALWAYS allow grill and components to cool completely before handling.
• Ensure the grill has fully cooled before covering with the cover provided.
• DO NOT remove ashes or used coals from the grill until they are fully extinguished.
• To extinguish charcoal, close all vents and close the grill lid for as long as possible. When they
must be removed, carefully place in a non-combustible metal container. Saturate coals and ash
with water and allow them to remain in the metal container for 24 hours before disposing.
• Keep extinguished coals and ash safely away from combustible structures and materials.
• Spray or douse the surfaces under and around the grill with water until completely wet to
extinguish any ashes, coals, or embers that may have fallen during grilling or cleaning.
• Store the grill in a dry location out of reach of children and pets when not in use.
29205 - BBQ SMOKER GRILL XXL

10
USER GUIDE
ASSEMBLY INSTRUCTIONS
1. Check you have each part that is needed to assemble the BBQ smoker grill.
2. Start by attaching the front stationary leg (35), rear stationary leg (36) and wheel legs
(33) (34) to the bottom panel (37) using 8x M6 12mm screws (A). Now insert the axle (31)
through the holes on the wheel legs (33) (34). Next, place the wheels (31) on the end of
each axle and secure with the M8 flat gasket (L) and M8 lock nuts (I).
3. Now turn the frame around so the wheels and feet are on the ground. Next attach the
frame side beams (39) and frame rear beam (38) to the inside of the legs using 12x M6
12mm screws (A).
4. Now connect the le side panel (26), rear panel (27), front panel (28) and right side panel
(29) together using 12x M6 12mm screws (A).
2 3
4

11
5. Next attach the furnace body you have just assembled to the legs of the base assembled
in step 3 using 8x M6 12mm screws (A).
USER GUIDE
ASSEMBLY INSTRUCTIONS
6. Take the two side panel support bars (14) to the two side panels and attach using 12x
M6 12mm screws (A), then secure them with 12x M6 flange nuts (G). Pre-install the 4x M6
18mm screws (D) to the side panel support bars (14).
6
7. Now attach the air vents (15) to
the two side panels using 8x M5
12mm screws (E) and secure
with 8x M5 flange nuts (H).
Secure the vent handles (3) to
the air vents (15) with the M4 flat
gaskets (J) and M4X10 screw (F).
7
29205 - BBQ SMOKER GRILL XXL
5

12
USER GUIDE
ASSEMBLY INSTRUCTIONS

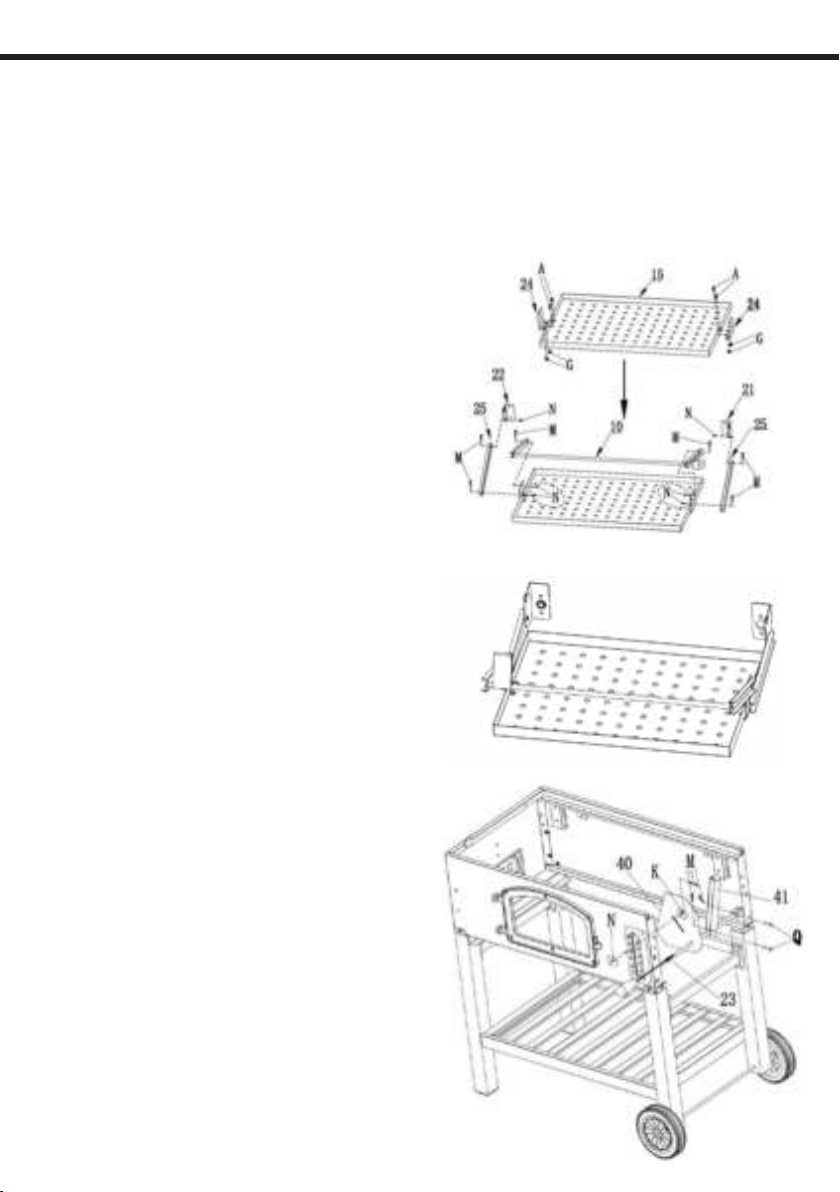

8. Attach the lower brackets (24) to the charcoal
tray (15) with 4x M6 12mm screws (A) and
secure them with 4x M6 flange nuts (G).
9. Connect the right upper bracket (22) and le
upper bracket (21) to the inside of the lower
arms (25) using 2x M5 8mm hinge pins (N) and
secure both of them with a cotter pin (M).
10. Next attach both lower arms to the outside
of the lower brackets (24) using 2x M5 8mm
hinge pins (N) and secure each of them with
a cotter pin (M).
11. Secure the li rack (10) to the lower brackets
using 2x M5 8mm hinge pin (N) and secure
them both with a cotter pin (M).
8
9
10
11
12
12. Insert the lever (23) through the front panel
on the right hand side, and then pass it
through both the fire damper (40) and the
high adjusting plate (41). Then secure it
to the rear panel with a M5 x 25mm hinge
pin (P) and cotter pin (M). Now secure the
high adjusting plate (41) to the lever with a
M5 25mm hinge pin (P) and cotter pin (M).
Finally, attach the M5 8mm hinge pin (N) to
the fire damper slice and M6 flat gasket, and
secure them with a cotter pin (M).

13
USER GUIDE
ASSEMBLY INSTRUCTIONS
13

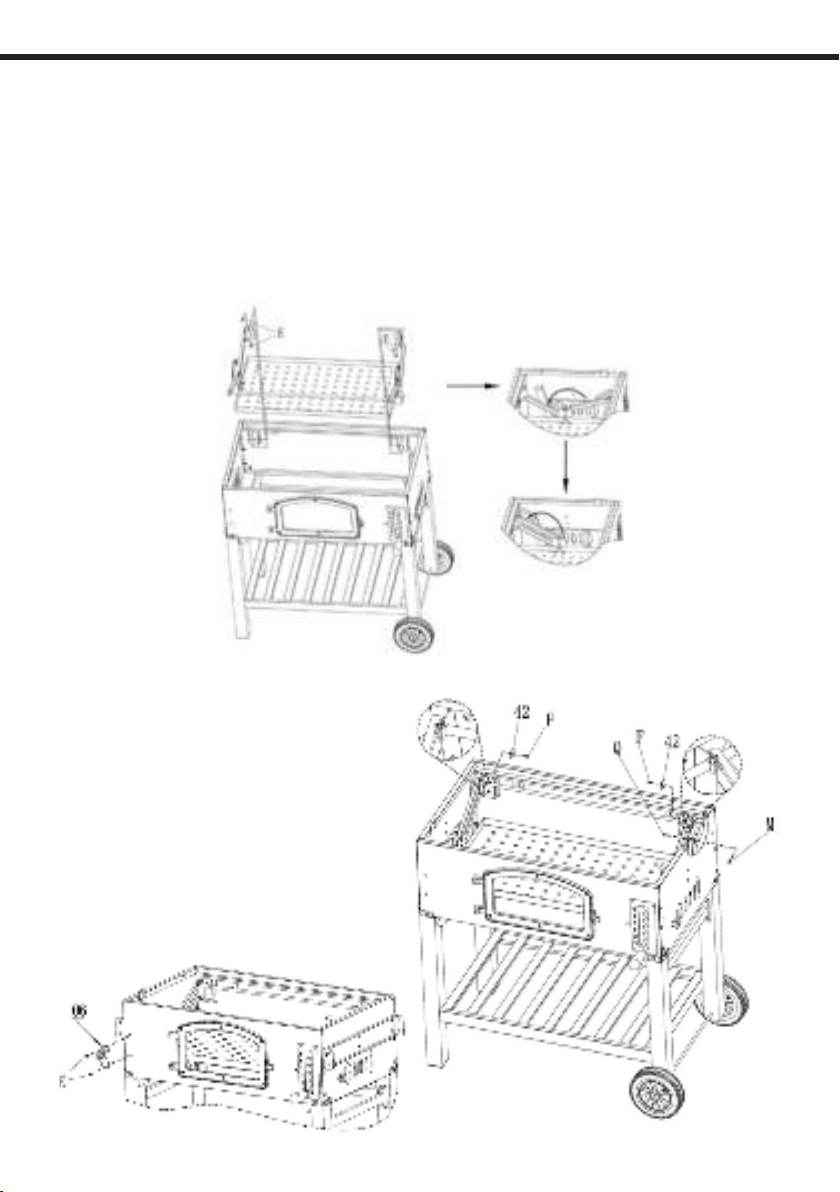

13. Secure the right and le upper bracket to the front panel using 4x M5 12mm screws
(E). Then drop the li rack (10) into the grooves of the le and right upper brackets
(21,22)
14. Secure the lever support bracket (42)
to the le and right upper brackets
with 2x M4 10mm screws (F). Now
secure the high adjusting plate (10)
to the li rack with M5 25mm hinge
pin (P) and a cotter pin (M).
15. Now attach the bottle opener (6) to
the front panel using 2x M5 12mm
screws (E).
29205 - BBQ SMOKER GRILL XXL
14
15

14
USER GUIDE
ASSEMBLY INSTRUCTIONS
16. Attach the cast iron door (30) to
the front panel by 2x M5 45mm
hinge pins (O) and secure them
with cotter pins (M).secure them
with 4x M6 flange nuts (G).
19. Slide the ash pan into the front
of the grill, directly under the
front panel. Then secure the
side hooks (11) to right side
shelf with 4x M5 12mm screws
(E).
18
16
17
17. Now drop the le side shelf (13) and right side shelf (12) onto the pre-installed screws
(D) from step 6. Secure both side shelves to the side panels with 4x M6 18mm screws
(D). Attach the lower hinges (20) to the rear panel using 4x M6 35mm screws (C) and
secure them with 4x M6 flange nuts (G).
18. Attach the ash handle (18) and the ash handle flange
to the ash pan (17) by using 2x M6 flat gaskets (K)
and 2x M6 20mm screws (B). shelf with 4x M5 12mm
screws (E).
19

15
USER GUIDE
ASSEMBLY INSTRUCTIONS
20. To assemble the lid, attach the lid handle
(7) and the lid handle flange to the grill
lid (1) by using 2x M6 flat gaskets (K) and
2x M6 20mm screws (B). Secure the lid
vents (5) to either side of the lid with 2x
M5 12mm screws (E) and 2x M5 flange
nuts (H).
29205 - BBQ SMOKER GRILL XXL
20
21. Secure the upper hinges (19) to the grill
lid using 4x M6 35mm screws (C) and 4x
M6 flange nuts (G).
22. Now you will attach the chimney to the lid.
First take the chimney lid away, then slide the
chimney (2) into the grill lid from the inside.
Now secure them with 3x M6 12mm screws (A)
and 3x M6 flange nuts (G). Secure the chimney
lid back onto the chimney with the provided
spring and chimney nut.
21
22
23
23. Next place the temperature gauge (4)
through the hole on the grill lid and
secure with the provided hardware.

16
24. Place the grill lid on top of the
body of the grill, the upper
hinges should fit inside of the
lower hinges. Connect the hinges
together using 2x M5 35mm
hinge pins (Q) and cotter pins
(M).
25. Snap the le and right sides of the warming rack (8) into the rack holders inside the
grill lid and secure it with cotter pins (M). Place the cast iron cooking grids (9) onto the
top ledge of the grill body. You should now have your fully assembled BBQ Smoker
Grill!
24
25

TROUBLESHOOTING
RESOLUTION GUIDE
If there appears to be any part missing from your order, contact our friendly and helpful
Customer Support Team within 7 days of receipt.
WHAT DO I DO IF THERE ARE MISSING PARTS FROM MY ORDER?
FOR ALL OTHER ISSUES, PLEASE CONTACT OUR
CUSTOMER SUPPORT TEAM.
We recommend that you clean the inside of your grill as soon as it is safe to do so with a
combination of hot soapy water and your complimentary wire brush. For the frame, use
only a so cloth and hot soapy water. Make sure to dry it o thoroughly before covering
with the cover provided.
HOW DO I CLEAN MY BBQ SMOKER GRILL?
17
29205 - BBQ SMOKER GRILL XXL

SPÉCIFICATIONS
DESCRIPTION DU PRODUIT
18
CARACTÉRISTIQUES DU PRODUIT
DÉTAILS DU PRODUIT
Ce barbecue fumoir grilloir Jardi sera parfait pour votre jardin - que vous soyez un
amateur du barbecue ou un vrai maître du grill – il est l’élément indispensable à votre
équipement de cuisine. Grâce à son bac à charbon à 4 hauteurs réglables, vous serez en
mesure de satisfaire les papilles gustatives de tous.
Acier
113.5cm (H) x 124cm (l) x 66cm (P)
59cm x 43.5cm
29KG
• Bac à charbon à 4 hauteurs réglables avec poignée
• 2 x étagères pliables
• Jauge de température
• Brosse métallique
• Housse imperméable
MATÉRIEL :
DIMENSIONS :
TAILLE DU GRILLOIR :
POIDS :
Lors du déballage de votre barbecue fumoir grilloir, veuillez vérifier chaque pièce par
rapport à cette liste afin de vous assurer qu’elles soient toutes présentes. Si des pièces sont
manquantes, veuillez nous contacter avant d’essayer assembler le barbecue.
Part No. Description Illustration Quantité
1 Couvercle du grilloir X 1
2 Cheminée X 1
LISTE DES PIÈCES

19
La responsabilité de Monster Group UK Limited sera limitée à la valeur commerciale
du produit.
SPÉCIFICATIONS
CARACTÉRISTIQUES DU PRODUIT
29205 - BBQ FUMOIR GRILLOIR XXL
3 Poignée pour évent X 2
4 Jauge de tempéra-
ture
X 1
5 Couvercle pour Évent X 2
6 Décapsuleur X 1
7 Poignée du couvercle X 1
8 Grille de réchaud X 1
9 Grille de cuisson en
fonte
X 3
10 Crémaillère X 1
11 Crochet X 4
12 Tablette latérale
droite
X 1
13 Tablette latérale
gauche
X 1
14 Barre de support de
panneau latérale
X 2

20
LISTE DES PIÈCES
15 Évent X2
16 Bac à charbons X1
17 Bac à cendres X 1
18 Poignée du bac à
cendres
X 1
19 Charnières
supérieures
X 2
20 Charnières inférieures X 2
21 Support supérieur
gauche
X 1
22 Support supérieur
droit
X 1
23 Levier X 1
24 Support inférieur X 2
25 Bras inférieur X 2
26 Panneau latéral
gauche
X 1
27 Panneau arrière X 1
28 Panneau avant X 1
