Monster Power Powerbar 1100 User manual

®
Home Theatre
Reference PowerCenter
™
POWERBAR™ 1100
POWERBAR™ 2100
Owner’s Manual

TABLE OF CONTENTS
Page
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i
Proper Grounding and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
A Note from the Head Monster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Monster’s Patented Clean Power™ Stages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
The Minds Behind the Monster PowerBar™ Design.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Monster PB 1100/PB 2100 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Hook-Up Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Audio Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Video Outlets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
High Current Audio Outlets (on the PB 2100 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Coaxial Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Phone Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Remote “AC/DC In” Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
PowerBar 1100 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
PowerBar 2100 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Appendices
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Warranty Registration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

i
IMPORTANT SAFETY INFORMATION
Please read and observe the following safety points at all times.
WARNING – Power Sources
Do not plug this PowerBar™ into a power outlet that differs from the source indicated for safe use on the PowerBar™.
If you don’t know the type of electrical power that is supplied to your home, consult your local power company
or a qualified electrician.
WARNING – Grounding and Polarization
A. Do not force your PowerBar™ plug into an outlet that is not designed to accept a three-wire grounded-type AC plug
(a three-prong plug). This plug is designed to be inserted into a grounded-type outlet only. If this plug doesn’t fit directly
inside your outlet, do not attempt to force it into the outlet. Never attempt to dismantle the plug in any way (or to alter
the power cord). Do not attempt to defeat the grounding feature by using a 3-to-2 prong adapter. If you have questions
about grounding, consult your local power company or a qualified electrician.
B. If you use rooftop devices such as satellite dishes, antennas, or any other component with wire that connects to your
PowerBar™, be sure the wire(s) is properly grounded. Use grounding techniques specified in Section 810 of the National
Electrical Code (NEC), ANSI/NFPA 70 (in Canada, Part 1 of the Canadian Electrical Code). This protects against voltage
surges and static charges.
C. Do not place any antenna near overhead power lines or any other power circuit. Do not touch any power line or power circuit.
Doing so may cause severe physical injury or possibly death.

ii
WARNING – Liquid: Avoiding Electrical Shocks
A. Do not operate your Monster PowerBar™ if liquid of any kind is spilled onto or inside the unit.
B. Do not operate your Monster PowerBar™ near rain or water that’s spilled or contained (e.g., bathtub,
kitchen or sink).
WARNING – Power Cord Safety
A. When routing your PowerBar’s AC power cord, do not place it near heavy foot traffic areas
(e.g., hallways, doorways, and floors). Do not create a trip hazard with the power cord.
B. If your power cord’s protective jacket begins to rip or fray, exposing the internal wiring, shielding, etc., disconnect it
from the power source and discontinue use of the Monster PowerBar™ immediately. See the Warranty Information section
of this owner’s manual for important details.
WARNING – Storm Precautions
In the event of a lighting storm, it’s always a good idea to disconnect your Monster PowerBar™; there is no need
to disconnect your separate components. Make sure that ALL of your components and PC products are protected
with Monster Power.
WARNING – No User Serviceable Parts Inside
If, for any reason, your PowerBar™ is not operating properly, do not remove any part of the unit (cover, etc.)
for repair. Unplug the unit and consult the Warranty Information section of this owner’s manual for important details.

iii
CAUTION – Exposure To Heat
Do not expose your PowerBar™ to direct sunlight or place it near wall heaters, space heaters, or any enclosed space
prone to temperature increase.
CAUTION – Proper Cleaning
In general, the only cleaning necessary for your Monster PowerBar™ is a light dusting. Unplug your component
from the wall before cleaning it. Do not use any type of liquid or aerosol cleaners.

iv
PROPER GROUNDING AND INSTALLATION
WARNING – Proper Grounding
Monster PowerBar™ requires a properly grounded 3-wire outlet for safety and to protect connected equipment. If your AC
outlet is improperly wired (no ground or reverse polarity), the green “GROUND OK” and/or “WIRING OK” LED indicators
on the front panel of the Home Theatre Reference PowerBar PB 1100/PB 2100 will not light up. If you’re not sure if your
home’s electrical wiring is properly grounded, have it checked by a qualified electrician.
Many older buildings are inadequately wired. It’s very common for a building to be improperly grounded. Building wiring
and grounding must conform to applicable NEC (USA) or CEC (Canada) codes for the Limited Connected Equipment
Warranty to be valid. If you’re not sure about your home’s wiring, have it checked by a qualified electrician.
Note to CATV Installer
This reminder is provided to call the CATV System Installer’s attention to Article 820-40 of the NEC that provides specific
guidelines for proper grounding and in particular, specifies that the cable ground shall be connected to the point of cable
entry as practical.
IMPORTANT NOTE – Proper Power and Protection
To completely protect your equipment against electrical surges, every AC power cable, coaxial cable and phone line
in the system must be connected to an appropriate PowerBar™.
IMPORTANT NOTE – Proper Protection and the Limited Connected Equipment Warranty
The Limited Connected Equipment Warranty becomes invalid if any wire (AC, coax, or phone), audio or video
interconnect leading into the equipment comes from a component that is not properly protected by the PowerBar™.
See the Warranty Information section of this owner’s manual for important details.

1
A NOTE FROM THE HEAD MONSTER
Dear Enthusiast,
THANK YOU for purchasing the Monster Power Home Theatre Reference PowerBar™.
This PowerBar reflects our commitment to creating performance-enhancing solutions
for home theatre systems, so you can enjoy superior sound and picture quality.
As a long-time audiophile and serious home theater enthusiast, I always knew problematic
AC power could degrade picture and sound quality. Unfortunately, ordinary AC power
accessories can compromise the performance of the components they power. So, I decided
to address the issue. And, with the help of Richard Marsh and other power experts, Monster
Power was born. This PowerBar’s advanced technology and innovative design provides
several unique performance and convenience features. Here are the highlights…
The Monster PowerBar does an excellent job of protecting your components from harmful
power surges, but it’s benefits include much more than just surge protection. The patented
Monster Clean Power™ filter circuitry virtually stops the electromagnetic and radio frequency
noise that goes right through typical surge protectors which can degrade sound and picture
quality. In addition, your PowerBar also features patented noise isolation circuits that
separate analog audio and video outlets. The result is high quality sound and picture that’s
free from performance-damaging interference.
Noel Lee

2
Other Monster Power breakthroughs include patented Tri-Mode™ protection featuring an audible alarm. This feature automatically
disconnects power from your electronics if you’re hit by a big surge. We’ve also included surge-protected coax and phone
connections to ensure protection for all of your components. The PowerBar also features a patent pending color-coding system,
which identifies where each component should be connected.
These days, home theater components are better than ever, providing thrilling and dramatic sound and razor sharp picture.
We know your new PowerBar will help bring it all together with Clean Power and superior system protection. With Monster
Power, you’ll enjoy the best possible sound and picture. And, that’s what home theater is all about.
Noel Lee,
The Head Monster

3
MONSTER’S PATENTED CLEAN POWER™ STAGES
Monster Clean Power performs two tasks that are vital to maintaining optimum home theater performance:
1) noise filtration and 2) noise isolation. The higher the Clean Power stage number (1-5), the more sophisticated
and advanced the filters are that reject noise generated on the AC powerline. In addition, the higher the Clean Power
stage number, the more isolation that exists between connected equipment for maximum rejection of component-
generated noise.
Monster PowerBars featuring Clean Power circuitry are each designated with a Clean Power Stage. The PowerBar
incorporates Monster Clean Power Stage 2 circuitry which filters both AC powerline noise and reduces noise generated
by your connected equipment. For example, your television generates video noise which is different than the analog
noise your AV receiver generates. Clean Power Stage 2 features two ultra-advanced, isolated filters (audio and video)
to provide for the best possible AC powerline noise rejection and inter-component isolation for improved component-
generated noise rejection. All of these features make the PowerBar ideal for your home theater system. To learn more
about patented Monster Clean Power and the complete product family of PowerCenters, voltage stabilizers
and amplifiers, please visit www.MonsterPower.com.

4
THE MINDS BEHIND THE MONSTER POWERCENTER DESIGN
Richard Marsh – There are few experts able to solve the complex problems associated with
AC power and complex home theater systems. Richard Marsh is one of these illustrious few.
He has designed best selling power conditioning components costing more than $3,000 US and
now brings his expertise to Monster Power. Richard developed Monster’s patented Clean Power™
circuitry. He is also responsible for several other groundbreaking designs. Richard’s background
and research into amplifier and capacitor design led to his development of the Servo-DC feedback
concept in power amplifiers – a concept that is used by virtually every amplifier manufacturer
today. His status as both the inventor of the MultiCap™ internal bypass capacitor and as the driving
force behind the high-end audio balanced circuit design concept has influenced the audiophile
community for years. Richard is responsible for some of the high-end audio world’s most respected
product designs, essays and articles, and has contributed to The Absolute Sound and Audio
magazines. He is included in Who’s Who in the West.
Demian Martin – Demian Martin has been solving complex AC power problems for several
years. As a technical consultant for successful paper and steel mills, Demian helped create several
innovative AC power solutions. He developed techniques to dramatically improve the efficiency of
these factories’ high power motor control systems – up to 50,000 watts — helping them avoid
the costly premiums many factories must pay for AC power inefficiency. Demian was also the
co-founder of Spectral Audio and was the chief designer of their many pioneering designs for
amplifiers, D/A converters, and other high-end audio designs. He now brings his expertise
to Monster Power’s elite research and development team.

5
Noel Lee – Noel Lee, The Head Monster, is best known for popularizing the concept of high
performance audio cable 25 years ago with his creation of Monster Cable. Originally a laser-fusion
design engineer at Lawrence Livermore National Laboratory and later a touring musician, Noel has
invented or co-invented over 250 U.S. and international patents and drives the explosive growth
of The Monster Group companies in more than 80 countries worldwide. Monster Power is Noel’s
realization of a long-nurtured vision of making affordable power solutions that deliver the best
possible sound and picture.

6
1
16
TOP VIEW
SIDE VIEW
67
913
10 11 12
8
2345

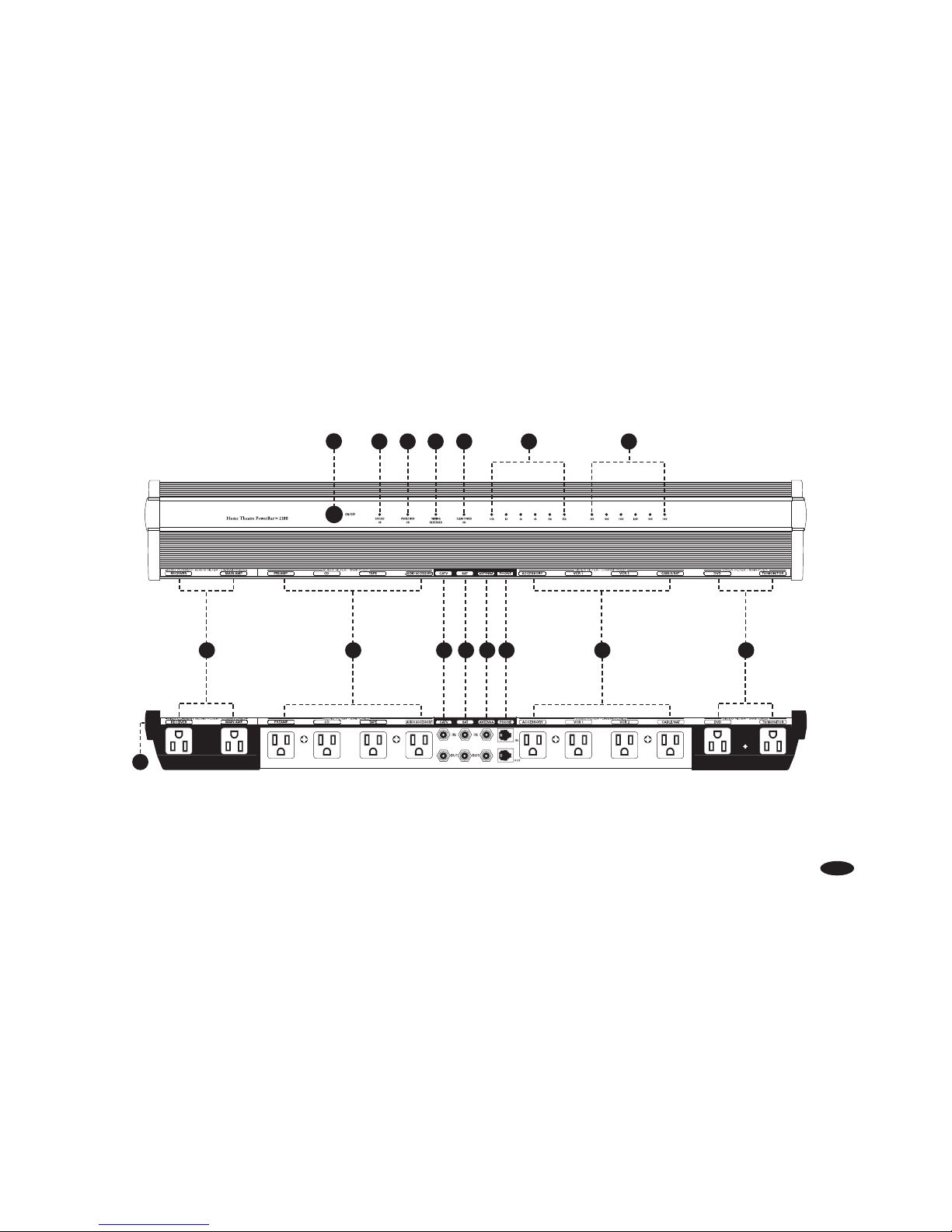

MONSTER PB 1100 POWERBAR FEATURES

7
3
12 5
16
TOP VIEW
SIDE VIEW
467
913
14 10 11 12 15
8

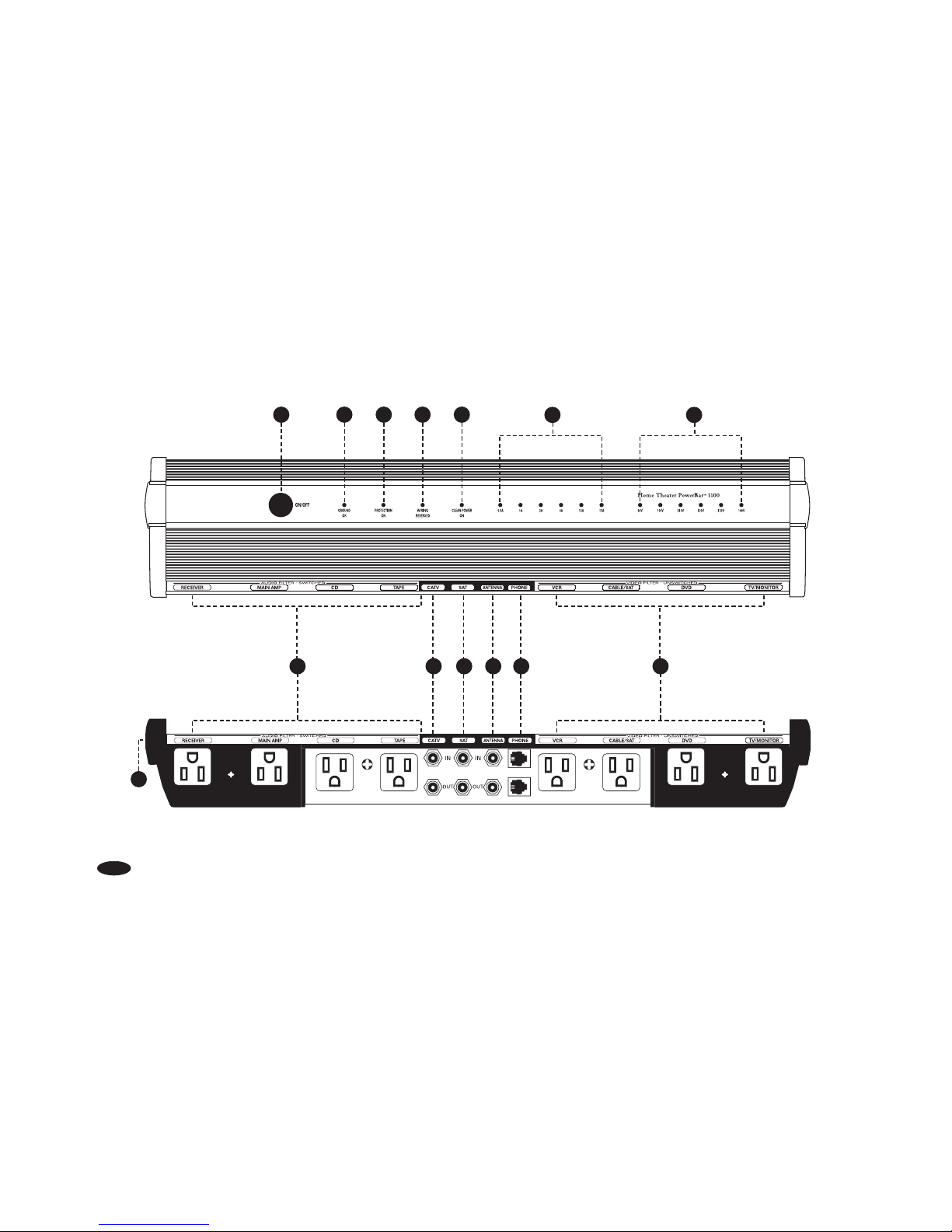

MONSTER PB 2100 POWERBAR FEATURES

8
MONSTER PB 1100/PB 2100 POWERBAR FEATURES
1. “On/Off” Button: Turns on and off switched outlets. (Unswitched outlets remain on at all times.)
2. “Ground OK” Indicator: Indicates the AC outlet the PowerBar is plugged into is properly grounded.
3. “Protection On” Indicator: Indicates Monster surge protection circuitry is functioning properly.
4. “Wiring Reversed” Indicator: Indicates the Line-neutral polarity is incorrect on the AC outlet the PowerBar
is plugged into. If this indicator is lit, consult your local power company or a qualified electrician.
5. “Clean Power On” Indicator: Indicates Monster Clean Power circuitry is functioning properly.
6. “Current Usage” Indicator: Indicates amperage draw through an LED bar graph.
7. “Input Voltage” Indicator: Indicates input voltage through an LED bar graph.
8. Audio Outlets (Switched): These outlets have a specifically designed filter circuit that reduces interference
to your audio components.
9. TV/Cable Protection: Provides surge protection for a TV/cable connection. The input connects the coaxial cable
from your cable company or antenna. The output connects the coaxial cable to your TV or cable box input.
10. Satellite Protection: Provides surge protection for a TV or satellite connection. The input connects the coaxial
cable from your satellite dish. The output connects the coaxial cable to your satellite receiver input.
11. Antenna Protection: Provides surge protection for an antenna connection. The input connects the coaxial cable
from your antenna. The output connects the coaxial cable to your TV input.

9
12. Phone Line Surge Protection: Provides surge protection against damaging voltage surges and spikes
from the phone line.
13. Video Outlets (Unswitched): These outlets have a specifically designed filter circuit that reduces interference
to your video components.
14. (PB 2100 only) High Current Audio Filter (Unswitched Outlets): These outlets have a specifically designed
filter circuit for high power audio components like amplifiers and pre-amplifiers.
15. (PB 2100 only) Video Outlets (Switched and Unswitched): These outlets have a specifically designed filter
circuit that reduces interference to your video components.
16. Remote “DC In” Control: Allows you to automatically turn on the PowerBar via the Remote “DC Out”
on another component, such as an A/V receiver.

10
HOOK-UP GUIDE
Audio Outlet Hook-Up
These outlets have a special filter circuit that is optimized to reduce interference to your audio components.
A) Attach a Monster Power® identification label to each component’s power cord before you plug it into the
appropriate color-coded PowerBar™ outlet.
B) Plug each component’s power cord (Receiver, Processor, etc.) into the PowerBar’s corresponding outlet.
For components not listed, determine if they are audio, video, or high current audio, and use a corresponding
outlet for best performance.
IMPORTANT NOTE
It does not harm video components to be connected to the audio outlets. However, for best performance,
we recommend plugging in only audio components to the audio outlets.

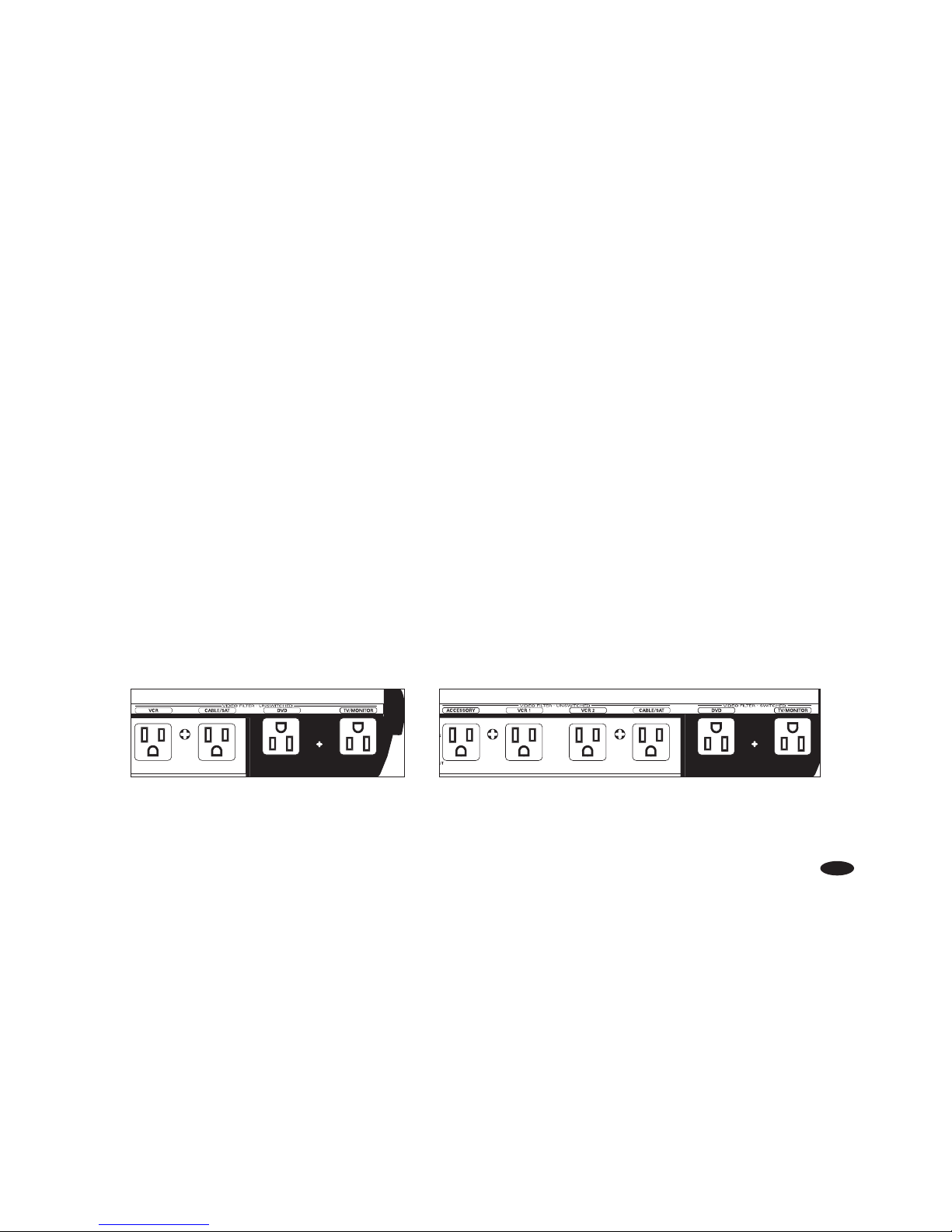

PowerBar™ PB 1100 PowerBar™ PB 2100

11
HOOK-UP GUIDE
Video Outlet Hook-Up
These outlets have a special filter circuit that is optimized to reduce interference to your video components.
A) Attach a Monster Power identification label to each component’s power cord before you plug it into
the appropriate color-coded PowerBar™ outlet.
B) Plug each component’s power cord (VCR, TV/Monitor) into the PowerBar’s corresponding outlet.
For components not listed, determine if they are audio, video, or high current audio components,
and use a corresponding outlet for best performance.
IMPORTANT NOTE
It does not harm audio components to be connected to the video outlets. However, for best performance, we recommend
plugging in only video components to the video outlets.
PowerBar™ PB 1100 PowerBar™ PB 2100

12
HOOK-UP GUIDE
High Current Audio Outlet (Unswitched) Hook-Up (PowerBar™ 2100 only)
These outlets are designed to deliver maximum current to power hungry components like amplifiers and pre-amplifiers.
A) Attach a Monster Power® identification label to each component’s power cord before you plug it into the
appropriate color-coded PowerBar™ outlet.
B) Plug each component’s power cord (Amplifier, etc.) into the PowerBar’s corresponding outlet. For components
not listed, determine if they are audio, video or high current audio, and use a corresponding outlet
for best performance.
IMPORTANT NOTE
It does not harm audio or video components to be connected to the high current audio outlets.
However, for best performance, we recommend plugging in only high-current audio components
to the high current audio outlets.

13
HOOK-UP GUIDE
Coaxial Connections Hook-Up
Coaxial connections provide surge protection against damaging voltage surges and spikes on the incoming coax cable.
Protect coaxial cables as follows:
Incoming
cable
line
Incoming
satellite
line
Incoming
antenna
line
To cable
receiver
To
satellite
receiver To TV
Note: You will need additional coaxial cables to connect the PB 1100/PB 2100 to your components.
