montpellier MBUF301 User manual

Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Built Under Freezer
MBUF301

Thank you for choosing this Montpellier appliance.
Our appliances have been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your appliance to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future
reference.
Your appliance is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your
appliance, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found inside your appliance.
There are two ways to register your Guarantee:
•
•
Online: Visit the Support page on our website and complete the online
Product Registration form. www.montpellier-appliances.com
By Post: Simply detach and fill in the form provided, attach a stamp and send
it in the post. Don’t forget to include your e-mail address so that we can send
confirmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com

2 | Instruction Manual
Contents
3
5
6
7
8
9
10
11
12
14
15
17
19
21
21
22
23
Important information
Important safety and usage instructions
Before first use
General use of the Freezer
Storage and use
Controls
Super freeze function
Care and cleaning
Defrosting the freezer
Troubleshooting
Installation and ventilation
Mounting the fascia doors

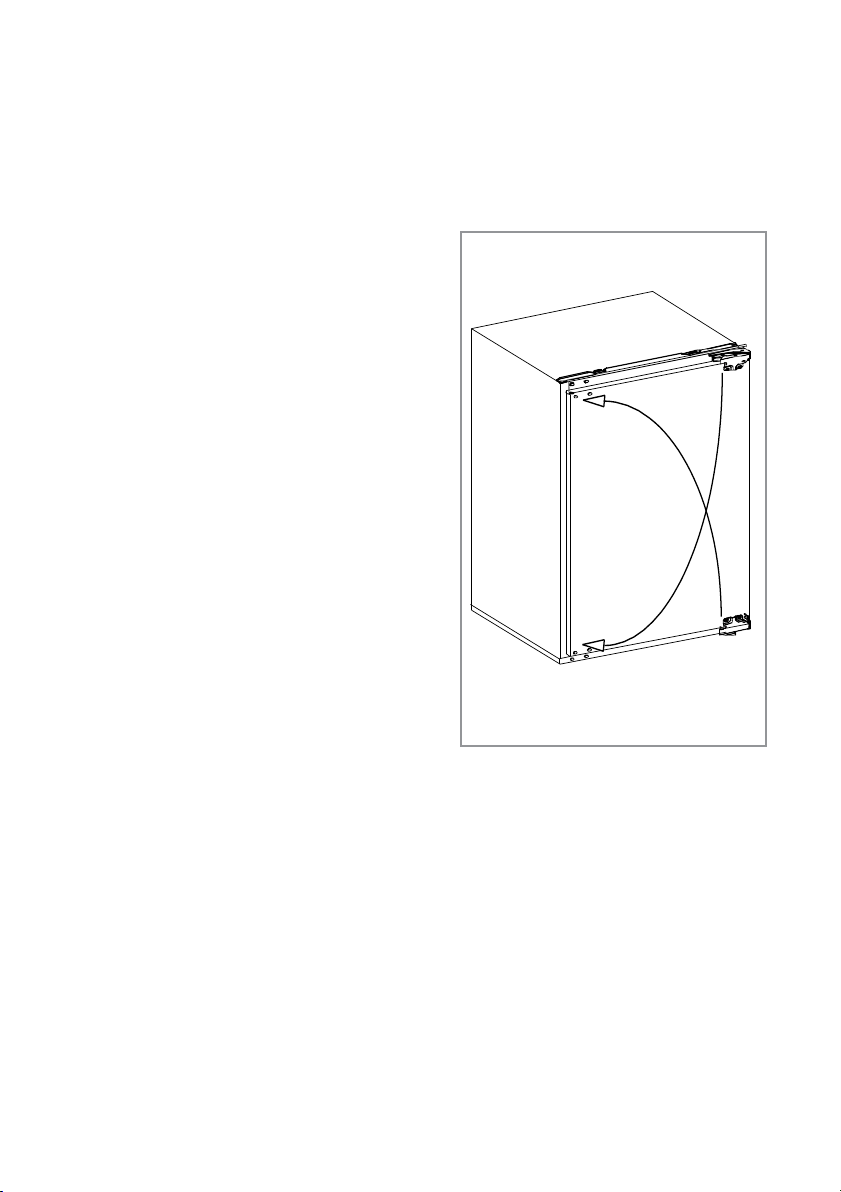

Reversing the fridge door
Electrical information
Changing the light bulb
Climate range
Energy Efficiency information
Warranty and service
IMPORTANT: Please read the user instructions carefully before
using the appliance for the first time and before installing it.
Failure to install the appliance, or to have it installed, asper
the user manual could invalidate the warranty. Any service
calls relating to misuse or incorrect installation could incur a
service charge.
10

Instruction Manual | 3
Important Information
The Manufacturer cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that the Manufacturer reserves the right to invalidate the guarantee
supplied with this product following incorrect installation or misuse
of the appliance or use in a commercial environment.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have
had supervision or instructions on how to use the appliance by
someone who is responsible for theirsafety.
Under no circumstances should any external covers be removed
for servicing or maintenance except by suitably qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee
purposes.
EU Declarations of Conformity
This appliance has been manufactured to the strictest standards
and complies with all applicable legislation, including Electrical
safety(LVD)2014/35/EUandElectromagnetic interference (EMC)
2014/30/EU. Parts intended to come into contact with food conform
to 1935/2004/EC.
Appliance Model
Serial Number
MBUF301

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
At the end of its working life, the product must not be disposed of
as urban waste. The refrigeration system contains insulating gases
and refrigerants, which require specialised waste disposal. The
valuable materials contained in this appliance can be recycled.
It must be taken to a special local authority differentiated waste
collection centre or to a dealer providing this service.
Before disposing of an old appliance, remove the door seals, latch
or bolt lock to avoid the risk of child entrapment.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both
energy and resources. As a reminder of the need to dispose of
household appliances separately, the product is marked with a
crossed-out wheeled dustbin.
Instruction Manual | 4

5 | Instruction Manual
Important Safety and Usage
Instructions
Never store inflammable or explosive items and strong corrosive
acids or alkalis in the appliance.
This is a household appliance, which is produced in accordance
with the national standard. It is intended for food storage only,
not for storage of blood, medicine and biological products.
To prevent risk of fire, keep the appliance away from petrol or any
other inflammables.
To prevent risk of electromagnetic interference or other
accidents, do not place a microwave oven on top of the
refrigerator or use any electric appliance inside therefrigerator.
Do not allow children to play with or near the appliance.
The internal surfaces of the fridge compartment may be very cold
when the appliance is running. Avoid touching, if possible, the
surfaces especially when hands are wet.
Do not splash water onto the appliance. Keep it away from places
of high humidity that may have adverse effect on the electric
insulation performance.
This appliance is designed to be used in ambient temperatures
between 18˚C and 38˚C. Use outside o fthis range may cause
the appliance to fail.
This refrigeration appliance is intended for use as a built-in
appliance.

6 | Instruction Manual
Before first use
You must allow the freezer to settle for at least twenty four
hours prior to switching the power on.
It is recommended that you clean the interior of the appliance prior
to first use, using a solution of bicarbonate of soda and warm water
and then thoroughly drying the interior.
The freezer may have an odour to it at first use. This will disappear
as the appliance cools.
When first switching the appliance on it is advisable to set the
freezer to setting 3 and leavethe freezer to settle for 24 hours
before adjusting the temperature to the preferred setting.
Please note:
The appliance will work continuously until it comes down to the
correct temperature.
If the appliance is switched off, you should allow five minutes
before switching it on again to prevent unnecessary damage to the
compressor.
Never store inflammable or explosive items and strong corrosive
acids or alkalis in the appliance.
The presence of some frosting within the appliance is not a
malfunction of the freezer.
Note: If the appliance does not have a freezer compartment ( )
it is not suitable for freezingfoodstuffs.

Instruction Manual | 7
General use of the Freezer
• The freezer compartments are designed to store only frozen
food
• Never put hot foods in the freezer, allow food to cool fully
before storing them in the freezer
• Follow the instructions on the food packaging for storage of
frozen food. If no information is provided, foods should not
be stored for more than three months after the purchase date
• Make sure food is clean and any extra water is wiped away before
putting into the fridge
• Store food in small packages (ideally less than 2.5kg). This
reduces the freezing time and improves the quality of the food
after thawing
• Wrap food before putting into the freezer. To stop the wrapping
sticking together, ensure it is dry
• Label the food before freezing with information including type
of food and dates of storage and expiry
• Once food is thawed, it must not be refrozen unless it has been
completely cooked. Only defrost as much food as is required, to
prevent wastage
• Bottled or canned drinks should not be stored in the freezer
compartments as they could explode
• Check the rating plate to confirm the maximum amount of fresh
food that can be frozen within a 24 hour period
• Do not attempt to freeze more than the maximum amount
• To freeze fresh food more quickly, set the temperature control to
setting 5 a few hours prior to placing food in the freezer
remembering to return the setting back to your preferred
setting once the food is frozen

8 | Instruction Manual
Storage and use
This freezer is suitable for storing deep frozen food (food which
has already been frozen before being added to the freezer), for
storing fresh food for a short period (2-3 weeks) by freezing it and
for making ice and ice cream.
Always remember to observe and
adhere to the recommended expira-
tion date of food.
Fresh food, and food which needs to
be stored for a long period, should
be kept at a temperature of -18°c or
below.
For this, we recommend using setting
3 or 4
If food only needs to be stored for
a short period then a setting of 2 or
3 will suffice.
Pleaseremember:Icecreamorice fordrinksshouldbeallowedto
sit at room temperature for several minutes before being used as
they can still be cold enough to cause damage to skin and lips.
Pleasenote:Thefreezershouldbedefrostedregularly.Ifyouare
unsure of when then it is advisable to do so when, and if, the ice
layer reaches 5mm thickness.
Fig. 1

Instruction Manual | 9
Controls
A. Freezer temperature adjustment sensor
This button is used to adjust the temperature within the freezer.
Press this sensor(A)once to activate adjustment, and then as many
times as necessary until the desired level is selected. The settings
range from 1 to super freeze ( ) with 1 being the warmest and
super freeze being the coldest.
Please note: Where possible, avoid having the temperature setting
on 5 or the super freeze all of the time. This well help to alleviate
strain on the compressor and system.
B. Freezer temperature setting display
This display will illuminate the current temperature setting. Adjusting
the temperature will cycle through this display.
Please note: You do not use numbers 1 to 5 or the snowflake to
change the temperature. Instead, use the freezer temperature
adjustment sensor (A).
C. Power button
Use this sensor(C)to switch the appliance on and off (standby mode).
The sensor will be illuminated when the appliance is off.
Fig. 2
C
B
A

10 | InstructionManual

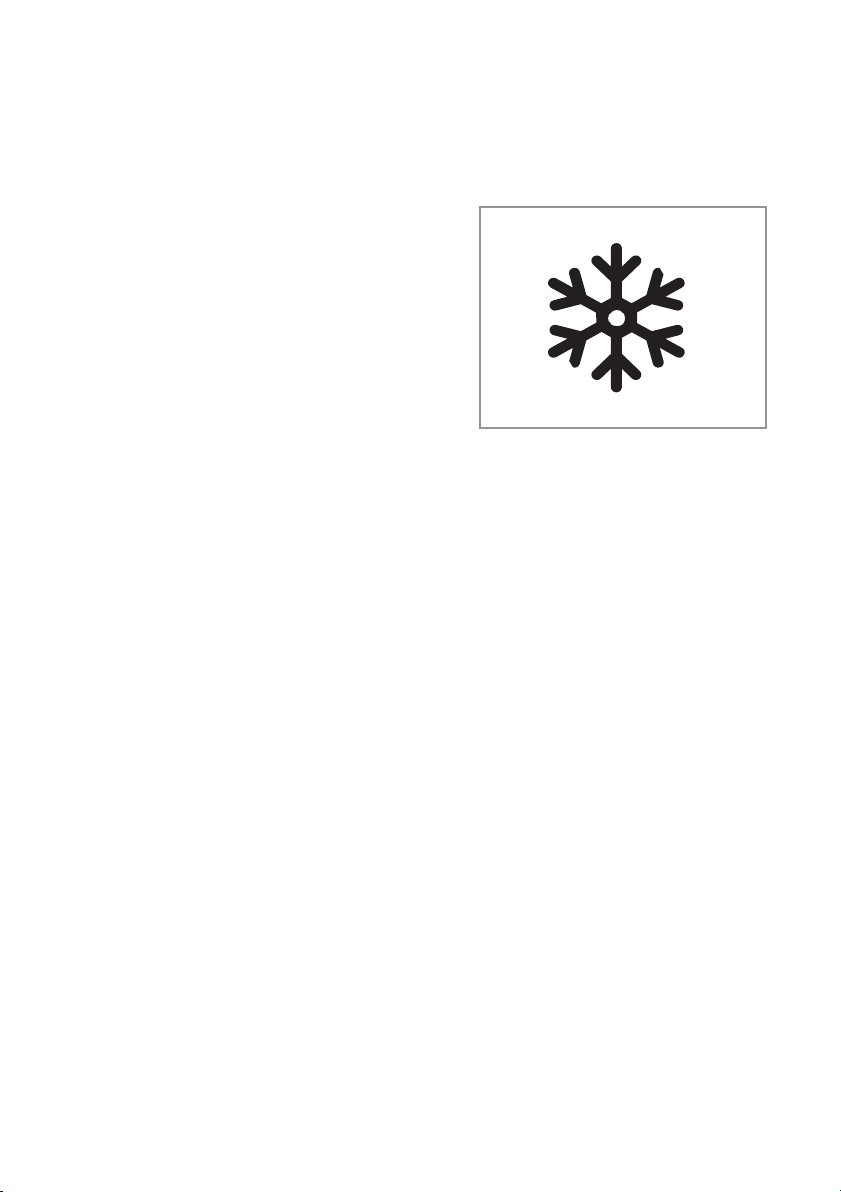

Fig. 3
Super freeze function
The 6th setting on the control panel, represented by the snowflake
(Fig. 3), is a super freeze function. This should be used when
freezing large quantities of food all
at once. Activate this function 2 or
3 hours before introducing the
food and do not leave it to run for
more than necessary. Leaving it to
run for longer will place
unnecessary strain on the cooling
system. The function will
automatically deactivate after
approximately 24 hours.
Care and cleaning
Always disconnect the appliance from the power supply before
any cleaning or maintenance.
The freezer should be cleaned using a solution of bicarbonate
of soda and lukewarm water. Do not use abrasive products or
detergents. After washing, rinse and dry thoroughly.
Clean the drawers separately by hand with a mild solution of
washing up liquid and water. Do not put them in the dishwasher.
If the appliance is not to be used for prolonged periods of time,
unplug and clean the appliance. The doors should be left slightly
ajar to prevent the formation of mildew and unpleasant odours. It
is important however that you ensure that no child or person could
become trapped in the appliance.

Instruction Manual | 11
Defrosting the freezer
Do not use heaters or defrosting sprays in this appliance.
Never use any metallic or sharp objects such as knives or forks to
remove the ice as this could damage the lining.
The freezer compartment should be defrosted regularly to ensure
the most efficient running of the freezer.
Once the ice is more than 5mm thick, the freezer should be
defrosted.
• 24 hours before defrosting the freezer, switch the temperature
control to setting 5 or switch on the super freeze function to
ensure food is fully frozen
• Before switching the freezer off, wrap the frozen food in sheets
of paper and store it in a cool dry place
• Switch the appliance off at the temperature control panel and
the mains and remove the freezer drawers
• To speed up the defrosting process, place a bowl of warm water
in the base of the freezer compartment
• The freezer should be cleaned using a solution of bicarbonate
of soda and lukewarm water. Do not use abrasive products or
detergents. After washing, rinse and dry thoroughly
• Clean the drawers separately by hand with a mild solution of
washing up liquid and water. Do not put them in the dishwasher
• Once cleaning is complete, reconnect the power

12 | InstructionManual
Troubleshooting
If you have any problems with your appliance, you should check
the troubleshooting guide prior to calling the Customer Care to
prevent unnecessary service calls and potential cost. Contact
details are on the back cover of this manual
If the appliance is not working, check the following:
• There is power to the appliance
• The house fuses are intact and the fuse in the plug has not
blown
• The on/off switch is not set to off
• The plug socket is functioning correctly. To check this, plug
another electrical appliance in to see if the socket is faulty
If the appliance is working, but not very well, check the
following:
• The appliance is not overloaded
• The thermostat is set to an appropriate temperature
• The doors are closing properly
• The cooling system at the rear of the appliance is clean and free
of dust, and not touching the rearwall
• There is enough ventilation at the side,rear walls and
underneath
• The lower vents are neither blocked nordirty
If the appliance is noisy, check the following:
• The appliance is level and stable
• The side and rear walls are clear, and there is nothing resting on
the appliance
• Note: The cooling gas in the refrigerator may make a slight
bubbling or gurgling noise, even when the compressor is not
running

Instruction Manual | 13
If there is water in the freezer, check the following:
• The appliance has power and the temperature control light is on
Check the door seal for any kinks, debris or damage. If you
notice any, and are unable to resolve the issue yourself, contact
the Customer Care so that the seal can be replaced
If excessive ice has formed in the freezer:
• Ensure that the temperature control is at the position you intend
for it to be and hasn’t been accidentally set to the highest setting.
If the freezer is set to maximum, try lowering the setting
• Check that there is some resistance when opening the door of
the appliance. If it opens at the slightest touch it may mean that
the door seal needs to be replaced or the appliance is not fitted
correctly and the door is not closing fully
• Check the door seal for any kinks, debris or damage. If you
notice any, and are unable to resolve the issue yourself, contact
the Customer Care so that theseal can be replaced

14 | InstructionManual
Installation and ventilation
This appliance must never be installed close to heat sources,
e.g. heating elements, cookers or in damp places.
• To ensure the appliance is level, you should use the height
adjustable feet at the front and rear of theappliance
• The ventilation system at the bottom of the appliance must not
be blocked
• Fig. 4 shows the installation requirements for your appliance. All
measurements are in millimetres. Failure to install the appliance
correctly can lead to increased running costs, premature failure
and may invalidate the warranty provided with the appliance
Fig. 4

Instruction Manual | 15
Mounting the fascia doors
Fig. 6 - Fitting the decor door bracket
Remove the white decorative cover (Fig. 5) by lifting it upwards.
Obtain the below measurements:
Dimension B = Measure
from the underside surface
of kitchen unit to the
bottom of fixing bracket.
Dimension C = Measure
from the underside surface
of kitchen unit to the top
of next unit door.
Unscrew and remove the
Fig. 5
1
2
Fig. 7
nuts and washers from the
top of the appliance door to remove
the bracket.
Fig. 7 - Fitting the decor door bracket
Subtract C from B and put the
fixing bracket (2) in place using this
measurement for the vertical position
and place to the centre for horizontal
position. Secure the fixing bracket (2)
using screws(1).
Fig. 8 - Fitting the decor door
Place the decor door onto the
appliance door by inserting adjustment
bolts into the slots on the
fixing
bracket. Locate the washers and screw
the nuts onto the adjustment bolts. Fig. 8

16 | InstructionManual
Fitting the decor door base fixings
With the appliance door open, locate the metal decor door base
fixing brackets and screw the fixings to the decor door. You may
need to remove and re-fit these brackets depending upon the
decor door used.
Fitting the decorative cover
Re-fit the decorative cover, that you removed in the first step, on
to the decor door fixing bracket. Check that the whole door
assembly operates smoothly and that the door seal of the
refrigerator is still creating a seal.
3
4
Fig.9-Aligningthedecordoor
Close the door and check the
alignment with the other unit doors.
Adjust the decor door by screwing or
unscrewing the adjustment bolts (3)
for vertical adjustment and by the
help of the slots on the fixing bracket
for other directions. Lock the screws
into place(4) once the door is
correctly positioned.
Fig. 9

Instruction Manual | 17
Reversing the freezer door
We recommend you seek the help of another individual to support
the doors whilst performing thisoperation.
1. Open the door
2. Carefully prise off the white cover
caps for the side that you wish to
switch the hinges to
3. Loosen the screws that hold the
hinges to the fridge cabinet and
remove the door
4. Remove the screws that secure the
hinge to the door
5. Place the door somewhere
safe where it will not cause or
receive damage
6. Relocate the hinges to their
opposing corners as shown in Fig.
10
7. Refit the door to the hinges.
Do not turn the door upside
down
8. Insert the cover caps (3) on the
opposite side in the exposed
holes
9. Ensure that the door seal is
correct, as per page 19
Fig. 10

18 | InstructionManual
Ensuring the door seals correctly:
It is normal for the seal to be compressed after the door has been
reversed.
With the door closed, use a hair dryer to expand the seal and fill the
gap between the door and the body of the appliance.
Take care not to use the hair dryer too close to the appliance, which
could damage the seal. A distance of approximately 10cm should be
adequate.
When completed, allow the seal and door to cool before touching
them.
Once done, the seal will remain in position.

Instruction Manual | 19
Electrical information
Warning! This appliance must be earthed.
The mains lead of this appliance has been fitted with a BS 1363A
13A fused plug. To change a fuse in this type of plug, follow the
steps below:
1. Remove the fuse cover(A) and fuse(B)
2. Fit replacement 13A fuse, ASTA approved to BS 1362 type, into
the fuse cover
3. Replace fuse cover
Important: Do not use the appliance without the fuse cover in
position.
How to connect an alternative plug
If the fitted plug is not suitable for your socket outlet, then it
should be cut off and disposed of safely to avoid possible shock
hazard. A suitable alternative plug of at least 13 amp rating to BS
1363 should be used.
Fig.11
Blue toNeutral
13A Fuse
Cord Clamp
B
Brown to live
A
Green and yellow to earth
13A
