montpellier MBUF300 User manual

Instruction Manual
en
MBUF300

Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in a modern factory and
checked under the most meticulous quality control procedures, will provide you
with Excellent service.
• This manual will help you use your appliance quickly and safely.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those about safety .
• Keep the manual in an easily accessible place as you may need it later.
• Also read the other documents provided with your product.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
APossible hazards to health and property
BWarning possibility of electric shock.

EN
3
1 Your Freezer 4
2 Warnings 5
Electrical Requirements ....................6
Warning! This Appliance Must Be
Earthed .............................................6
Important! Fitting A Different Plug ......6
Energy Saving Tips............................7
Compliance with WEEE Directive and
Disposing of the Waste Product: .......7
Compliance with RoHS Directive: .....7
Package information..........................7
3Installation 8
Electric connection ............................8
Disposing of the packaging ...............8
Disposing of your old freezer .............8
Placing and Installation ......................8
Reversing The Doors .......................11
Installation Instructions - Detailed Step
By Step ...........................................13
4 Before operating 19
Important Notes : ............................19
5 Using your freezer 20
Storing the frozen food ....................20
Defrosting.......................................20
Led Indicators And Control Panel ....21
6 Maintenance and cleaning 22
7 Do's and Don'ts 23
CONTENTS

EN
4
C Figures shown in this manual are schematic and may not correspond exactly with
your product. There may be items shown that are not present in your product.
1Your Freezer
1. Fast freeze compartment
2. Frozen food compartments
2
1

EN
5
2Warnings
• Do not connect your appliance to
the electricity supply until all packing
and transit protectors have been
removed.
• If transported horizontally leave
to stand upright for at least 4
hours before switching on to allow
compressor oil to settle
• If you are discarding an old
refrigerator with a lock or latch fitted
to the door, disable the lock/latch,
ensure that it is left in a safe condition
to prevent the entrapment of young
children.
• This fridge/freezer must only be used
for its intended purpose i.e the storing
and freezing of edible foodstuff.
• Do not dispose of the appliance on a
fire. At LEC, the care and protection
of our environment is an ongoing
commitment. This appliance which
is among the latest range introduced
is particularly environment friendly.
Your appliance contains non CFC
/ HFC natural substances in the
cooling system (Called R600a) and in
the insulation (Called cyclopentane)
which are potentially flammable
if exposed to fire. Therefore, take
care not to damage, the cooling
circuit / pipes of the appliance in
transportation and in use. In case of
damage do not expose the appliance
to fire or potential ignition source and
immediately ventilate the room where
the appliance is situated.
• We suggest you contact your local
authority for disposal information and
facilities available.
• See Installation Instructions on on
page 8 for information on suitable
location.
• To obtain the best possible
performance and trouble free
operation from your appliance it is
very important to carefully read these
instructions.
• On delivery, check to make sure that
the product is not damaged and that
all the parts and accessories are in
perfect condition.
• Ensure that the plug remains readily
accessible. Do not use multiple
adapter or extension cable.
• Failure to observe these instructions
may invalidate your right to free
service during the guarantee period.
• Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
• Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances
inside the food storage
compartments of the appliance,
unless they are of the type
recommended by the manufacturer.
• We suggest you keep these
instructions in a safe place for easy
reference.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have

EN
6
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to
ensure that they do not play with the
appliance.
Electrical Requirements
• Before you insert the plug into the
wall socket make sure that the
voltage and the frequency shown on
the rating plate inside the appliance
corresponds to yourelectricity supply.
• Rating label is on the left hand side of
fridge inner liner.
• We recommend that this appliance
be connected to the mains supply via
a suitable switched and fused socket.
The appliance must be positioned so
that the plug is accessible.
• Should the mains lead of the
appliance become damaged or
should it need replacing at any
time, it must be replaced by a
special purpose made mains lead
which can only be obtained from a
MONTPELLIER Authorised Service
Agent.
Warning! This Appliance
Must Be Earthed
• If the fitted moulded plug is not
suitable for your socket, then the plug
should be cut off and an appropriate
plug fitted. Destroy the old plug
which is cut off as a plug with bared
cord could cause a shock hazard if
inserted into a socket elsewhere in
the house.
• The moulded plug on this appliance
incorporates a 13 A fuse. Should
the fuse need to be replaced an
ASTABEAB approved BS 1362 fuse
of the same rating must be used. Do
not forget to refit the fuse cover. In the
event of losing the fuse cover the plug
must not be used until a replacement
fuse cover has been fitted.
• Colour of the replacement fuse cover
must be the same colour as that
visible on the pin face of the plug.
Fuse covers are available from any
good electrical store.
Important! Fitting A Different
Plug
• As the colours of the wires in the
mains lead of this appliance may
not correspond with the coloured
markings identifying the terminals in
your plug proceed as follows: (See
diagram).
1. Connect the green-yellow or green
(Earth) wire to the terminal in the plug
marked ‘E’ or with the symbol or
coloured green and yellow or green.
2. Connect the blue (Neutral) wire to
the terminal in the plug marked ‘N’ or
coloured black.
3. Connect the brown (Live) wire to the
terminal in the plug marked ‘L’ or
coloured red.
FITTED WITH
BS 1362 13A FUSE ALWAYS
FIT BS 1362 REPLACEMENT
CARTRIDGE FUSE
GREEN &
YELLOW
OR
GREEN
N
BLUE
OR
BLACK
L
BROWN
OR
RED
22mm.
6mm.
6mm.
6mm. 32mm.
12mm.
FUSE
CORD GRIP

EN
7
• With alternative plugs a 13 A fuse
must be fitted either in the plug or
adaptor or in the main fuse box. If in
doubt contact a qualified electrician.
Energy Saving Tips
1. Ensure your appliance is installed in a
well ventilated area.
2. Ensure the time between buying
chilled/frozen food and placing
them in your appliance is kept at
minimum, particularly in summer. We
recommend you use a cool bag or a
special carrier bag to carry perishable
food.
3. Do not leave the door (s) of your
appliance open longer than
necessary and ensure they are closed
properly after each opening.
4. Defrost frozen food in the fridge
compartment, so that frozen food
acts as an ice pack to assist cooling
in the fridge.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies with EU WEEE
Directive (2012/19/EU). This
product bears a classification
symbol for waste electrical
and electronic equipment
(WEEE).This product has
been manufactured with
high quality parts and
materials which can be reused and are
suitable for recycling. Do not dispose of
the waste product with normal domestic
and other wastes at the end of its
service life. Take it to the collection
center for the recycling of electrical and
electronic equipment. Please consult
your local authorities to learn about
these collection centers.
Compliance with RoHS
Directive:
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU). It does not contain
harmful and prohibited materials
specified in the Directive.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
Do not touch frozen food or frozen
surfaces with wet hands.
Avoid prolonged touching of frozen
food, ice, frozen surfaces
Possibility of low-temperature
burns!
If freezing to frozen surface occurs:
DO NOT TEAR AWAY!
-- use cool water to release.
FIRST AID ( if necessary)
: Hold affected area under cold
running water.

EN
8
3 Installation
BPlease remember that the
manufacturer shall not be held liable if
the information given in the instruction
manual is not observed.
Electric connection
Connect your product to an earthed
socket which is being protected by a
fuse with the appropriate capacity.
Important:
• The connection must be in
compliance with national regulations.
• The power cable plug must be easily
accessible after installation.
• The specified voltage must be equal
to your mains voltage.
• Extension cables and multiway plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions. Do not dispose of
them along with the normal household
waste.
The packing of your freezer is
produced from recyclable materials.
Disposing of your old freezer
Dispose of your old freezer without
giving any harm to the environment.
• You may consult your authorised
dealer or waste collection center of
your municipality about the disposal
of your freezer.
Before disposing of your freezer, cut
out the electric plug and, if there are
any locks on the door, make them
inoperable in order to protect children
against any danger.

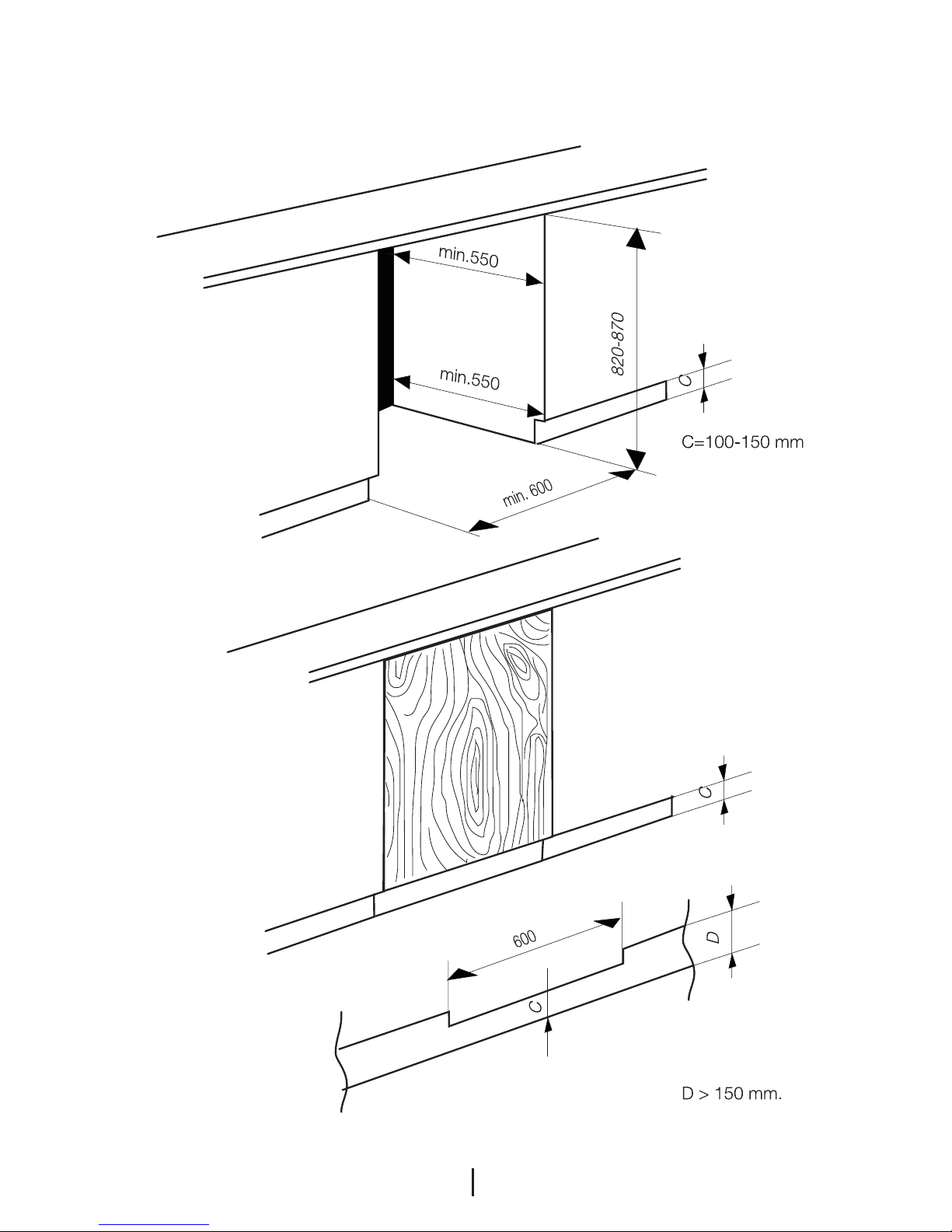

Placing and Installation
1. Install your freezer ina place that
allows ease of use.
2. Keep your freezer away from heat
sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your freezer
in order to achieve an efficient
operation. If the freezer is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm from
the wall. If the floor is covered from
a carpet, your product must be
elevated 2.5 cm from the floor.
4. Place your freezer on an even floor
surface to prevent jolts.

EN
9
Important
Installation Instructions
1. To avoid hazards due to instability of
the appliance, ti must be installed in
accordance with the instructions
2. Do not operate this applliance unless
installed correctly
3. The appliance should be located on a
smooth surface.To ensure that, your
appliance is standing level adjust the
four front and back feet by turning
clockwise or anti-clockwise, until
the product is in firm contact with
the floor. Correct adjustment of feet
avoids excessive vibration and noise.
4. Refer to «Cleaning and Care» section
to prepare your appliance for use.
To avoid any loss in performance,
air suction channels should not be
obstructed. (140 cm2)
Minimum distance between the wall
and the appliance must be at least 10
mm.
5. The appliance must be protected
against rain, moisture and other
atmospheric influences.
IMPORTANT: Care must be taken
while cleaning / avoid touching the
bottom of the condenser metal wires at
the back of the appliance as you might
injure your fingers and hands.
IMPORTANT: This appliance is not
designed for stacking with any other
appliance.When positioning your
appliance, take care not to damage
your flooring, pipes,wall coverings etc.

EN
10
30 mm
40 mm 40 mm
Wall
30 mm
Appliance
To avoid any loss in performance, air suction channels should not be obstructed.
(140 cm2)
Minimum distance between the wall and the appliance must be at least 30 mm.

EN
11
Reversing The Doors
Follow the step by step instructions
and the diagram below. Numbers in
brackets refer to diagrams.
1. Switch off at the socket outlet and
pull out the mains plug.
2. Remove all food, loose items and
fittings from inside the appliance and
door shelves.
3. Unscrew the bolts and remove the
upper and bottom hinges from the
cabinet and door. (1) (2)
4. Remove stoppers. (3) (4)
5. Fit the stoppers on the opposite side.
(5) (6)
6. Reposition the upper hinge on the
opposite side as bottom hinge (7)
7. Reposition the bottom hinge on the
opposite side as upper hinge. (8)
Locate the door and tighten the bolts
fixing the door.

EN
12

EN
13

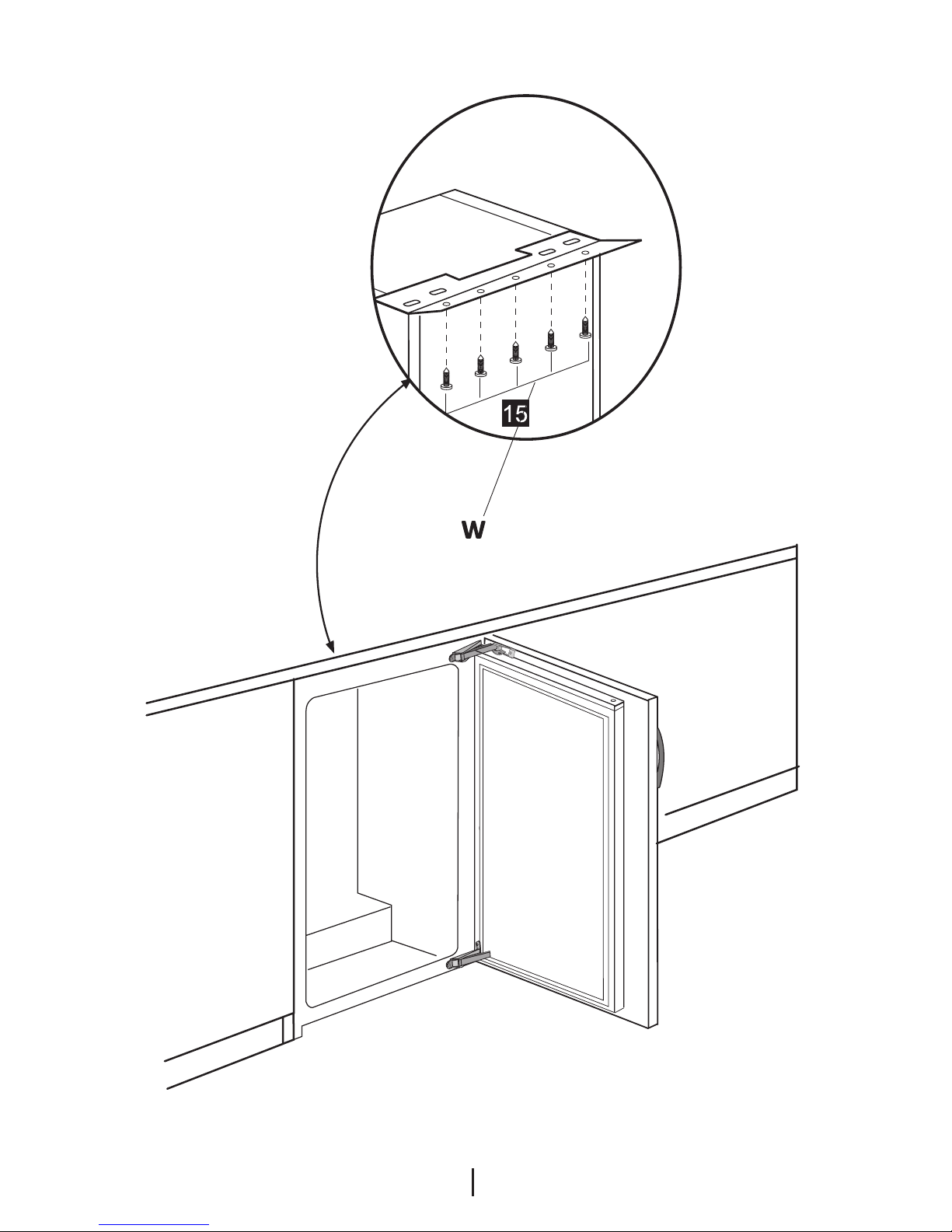

Installation Instructions - Detailed Step By Step
820 - 870
140 - 190
help of

EN
14

EN
15
Installation step No 2- do not fasten screws tightly as may need to be
adjusted.
Caution: For Integrated Handle Door Reverse brackets.

EN
16
Caution: For Integrated Handle Door Reverse brackets.

EN
17
Caution: For Integrated Handle Door Reverse brackets.

EN
18

EN
19
4Before operating
Final Check
Before you start using the freezer
check that:
1. The feet have been adjusted and the
product is level.
2. The interior is dry and air can circulate
freely at the rear.
3. Clean the interior as recommended
under "CLEANING AND CARE."
4. Insert the plug into the wall socket
and switch on the electricity supply.
Avoid accidental disconnection by
taping over the switch.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
whether the compressor is running
or not which is quite normal.
6. Front edges of the cabinet may feel
warm. This is normal. These areas
aredesigned to be warm to avoid
condensation.
7. Do not load the appliance
immediately it is switched on. Wait
until the correct storage temperature
has been reached. We recommend
that you check the temperature
with an accurate thermometer
(see; Temperature Control and
Adjustment).
Important Notes :
1. If there is a power failure do not open
the door. Frozen food should not be
affected if the failure lasts for less than
19 hours. If the failure is longer, then
the food should be checked and either
eaten immediately or cooked and then
re-frozen.
2. If you find the freezer door difficult to
open just after you have closed it,
don't worry. This is due to the pressure
difference which will equalise and allow
the door to open normally after a few
minutes.
3. Always wrap food using a suitable
packaging material before storing
in your appliance to avoid contact
with the appliance surface and food
remains for hygiene reasons.
4. The appliance may go to OFF position
when the knob is adjusted below MIN.
When the green indicator light is OFF,
the appliance is turned OFF also.
Once it is turned OFF (even for
defrosting), please adjust the knob
somewhere above MIN to be sure that it
is turned ON again. When the appliance
is turned ON, the green indicator will
light up.

EN
20
5Using your freezer
Storing the frozen food
Prepacked commercially frozen
food should be stored in accordance
with the frozen food manufacturer's
instructions for a frozen food
storage compartment.
The freezing area is marked with
symbol on the door liner.
To ensure that the high quality achieved
by the frozen food manufacturer and the
food retailer is maintained the following
should be remembered:
1. Put packets in the freezer as quickly
as possible after purchase.
2. Do not exceed "Use By", "Best
Before" dates on the packaging.
3. Please note that drawers, baskets,
flaps, trays are all removable.
Defrosting
Defrost twice a year or when a frost
layer of around 7 mm (1/4") has formed.
To start defrosting procedure turn the
thermostat knob to zero position
(Alternatively you may switch off the
freezer at the socket outlet and pull out
the mains plug.)
All food should be wrapped in several
layers of newspaper and stored in a
cool place (e.g. fridge or larder).
Remove all freezer drawers.The
special defrost collection basin collects
the defrost water. Therefore defrosting
can be conducted without mess.
Containers full of warm water may be
placed carefully in the freezer to speed
up the defrosting.
Do not use pointed or sharp edged
objects such as knives, forks to remove
the frost.
Never use hairdryers, electrical heaters
and other similar electrical
appliances for defrosting.
When defrosting has finished, sponge
out any defrost water which collects at
the bottom of the freezer and dry the
interior thoroughly. Turn the thermostat
knob to mid point. Close the freezer
door. Insert the plug into the wall socket
and switch on the electricity supply.
