MONUMEMT PELLET GRILL
USE AND CARE MANUAL
Model:86000
Please read this entire manual before installation and use of this pellet fuel-burning appliance.
Failure to follow these instructions could result in property damage, bodily injury or even death.
Contact local building or fire officials about restrictions and installation inspection requirements in your area.
THIS PELLET GRILL IS DESIGNED FOR OUTDOOR USE ONLY
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
WWW.MONUMENTGRILLS.COM

Table of Contents
1. Safety warning …………………………………………………….1
2. Certificates ………………………………………………………...2
3. Explosion view……………………………………………………..3
4. Parts list……………………………………………………………4
5. Hardware…………………………………………………………..4
6. Assembly steps ………………………………………………….5-15
7. Use of the Pellet Grill ...…………………………………………...15-18
8. Button Function Description …………………………………..18-20
9. Trouble Shooting ………………………………………………...20
Warranty
Three-Year Full Warranty on Grill
If this grill fails due to defective material or workmanship within three year from the date of
purchase, call 1-888-980-4933 to arrange for a free repair (or replacement if repair proves
impossible).
All warranty coverage excludes ignitor batteries and grill part paint loss, discoloration or rusting,
which are either expendable parts that can wear out from normal use within the warranty period, or
are conditions that can be the result or normal use, accident or improper maintenance,
All warranty coverage is void if this grill is ever used for commercial or rental purposes.
All warranty coverage applies only if this grill is used in the North America.
This warranty gives you specific legal rights, and you may have other right which vary from state to
state.
The warranty is only valid for original purchasers with proof of purchase from authorized
retailers. Any product bought second hand or through an unauthorized retailer, will not be covered
by warranty. It is the duty of the purchaser to verify that a retailer is authorized. A purchase on
Amazon or other marketplace internet retailer from any entity other than Monument Grills is not an
original purchase and will not qualify for a warranty

- 1 -
1. Safety Warning
※FOR OUTDOOR USE ONLY.
Use the device in open areas. Do not install under a combustible ceiling or overhang. Keep at least
40 inches away from flammable and explosive materials.
※Read the whole instruction carefully before installing and using the pellet grill. Install and use it as
required (outdoor use only). The company will not be responsible for any property loss, personal
injury or even death caused by failure to follow the instructions.
※About carbon monoxide poisoning: All grills or cooking utensils will generate organic gas when
burning materials (such as wood, gas, or carbon, etc).Monoxide will weaken the ability of blood
to deliver oxygen. Low oxygen content in blood will cause loss of consciousness or death. Know
the symptoms of carbon monoxide poisoning: dizziness, weakness, nausea, vomiting, nasal
congestion, lethargy or confusion in the use. See a doctor if you or others develop cold or flu-like
symptoms while cooking in the vicinity of this grill.
※The device is equipped with the ignition system. Do not use gasoline, kerosene, barbecue charcoal
or special ignition fluid to ignite.
※The grill should be plugged into a GFCI (Ground-Fault Circuit Interrupt) outlet.
DO NOT PLUG UNIT INTOAN EXTENSION CORD THAT IS NOT RATED FOR OUTDOOR
USE OR THAT IS LONGER THAN FIVE FEET.
※Dangerous voltage will cause shock, burn or death. In case of device failure, follow the prompt of
the instruction or contact local after-sales personnel for maintenance. Cut off the power before
maintenance.
※There will be high temperature in local positions in the use of the device, do not move the device
while in use or while the grill is still hot and take care of the old and children and beware of burn.
※Clean the remaining fuel after each use, for the fuel may block the material delivery structure when
it expands by damp.
※Use only food-grade wood pellets. Pellets diameter should not be more than 0.3 inches and no
longer than 1.2 inches in length. Using fuel pellets that are too large will cause he device to may
malfunction.
※To prevent grease fires, be sure to clean your grill on a regular basis including the ash pan and fire-
block board. If a grease fire should occur, press the OFF button on the control board and leave the
doors closed until the fire is out. DO NOT unplug the grill unless it’s absolutely necessary. The
combustion fan will continue to run for 5 minutes after the OFF button has been pressed.
※Never place your fingers near the auger, even if it is not rotating.
※Unplug the unit when not in use.
※Use heat resistant gloves during use.

- 2 -
2. Certificates

- 3 -
3. Exploded View

- 4 -
4. Part list
Seq.
No.
Material
Code
Appellation
Qty
Seq.
No.
Material
Code
Appellation
Qty
1
D010021363
Main Lid
1
27
A02120958
Probe
2
2
D010020530
Logo
1
28
D010021694
Outer Control box
1
3
D010021498
Main Lid handle
1
29
A02120956
Control panel
1
4
D010021535
Guilding board air vent
1
30
A02120957
Power Line
1
5
D010021530
Fire-block board
1
31
D010021708
Pellet drop assembly
1
6
D010021534
Oil guide plate
1
32
D010022368
Rotate board
1
7
D010020887
Support strip for Oil guide
plate
1
33
A0212578
Knob
1
8
D010022363
Oil leading slot
1
34
A02120437
heat insulation foam
1
9
D010022364
Main Lid Hinge-Left
1
35
D010023873
Pellet filling assembly
1
10
D010022366
Main Lid Hinge-Right
1
36
A02120561
buckle
2
11
A02120919
Hanger for cooking grid
2
37
D010022160
Burning cup
1
12
D010023853
Side Shelf assembly
1
38
D010021695
Control box
1
13
D010015801
Hook
1
39
D010020087
Repair board
1
14
D010021693
Cart connector
2
40
D010021699
Control box screen
1
15
D010021686
Back leg-Left-assembly
1
41
D010021556
Control box lid
1
16
D010021691
Right Leg
1
42
A02120435
Fan motor
1
17
A0209069
Oil bucket
1
43
A02120434
Auger motor
1
18
A02120964
Swivel Caster fixing plug
2
44
A02120430
Auger
1
19
D010021692
Bottom panel
1
45
D010022913
Igniter probe bracket
1
20
A0211004
Swivel Caster
2
46
A02120436
Igniter probe
1
21
D010021539
Front leg-Left
1
47
A02120928
Temperature sensor
1
22
D010016485
front shelf crash pad
2
48
A02120918
Cooking Grid
1
23
A02120929
Axle
2
49
A02120917
Warming rack
1
24
A02120970
Wheel
2
50
A02120936
lid seal ring
1
25
D010022199
Front Shelf
1
51
D010021507
Firebox Assembly
1
26
D010020905
Control box bottom pane
1
5. Hardware
X30
A B
X2
C
X8
D
X8
E
X4
F
X4
X2
G

- 5 -
6. Assembly steps
Make sure your grill is assembled properly. Detailed assembly instructions are packed with each grill
giving specific assembly procedures for each model. Follow these instructions carefully to ensure
correct and safe assembly of the grill.
Caution: Although we take every effort to ensure that the assembly process is as easy as possible, it
is inherent with fabricated steel parts that corners and edged can cause cuts if improperly handled
during assembly procedures. Be careful while handling any parts during assembly. It is strongly
recommended that you protect hands with a pair of work gloves.
0.2in
②
①
③
BX4
BX4

- 6 -
BX4
BX4

- 7 -
BX2

- 8 -
GX2

- 9 -
BX8
CX8
DX4

- 10 -
DX2
EX2
FX2
DX2
EX2
FX2

- 11 -

- 12 -
AX2

- 13 -
2
1
BX4

- 14 -

- 15 -
7. Use of the Pellet Grill
7.1 Placement of the Device

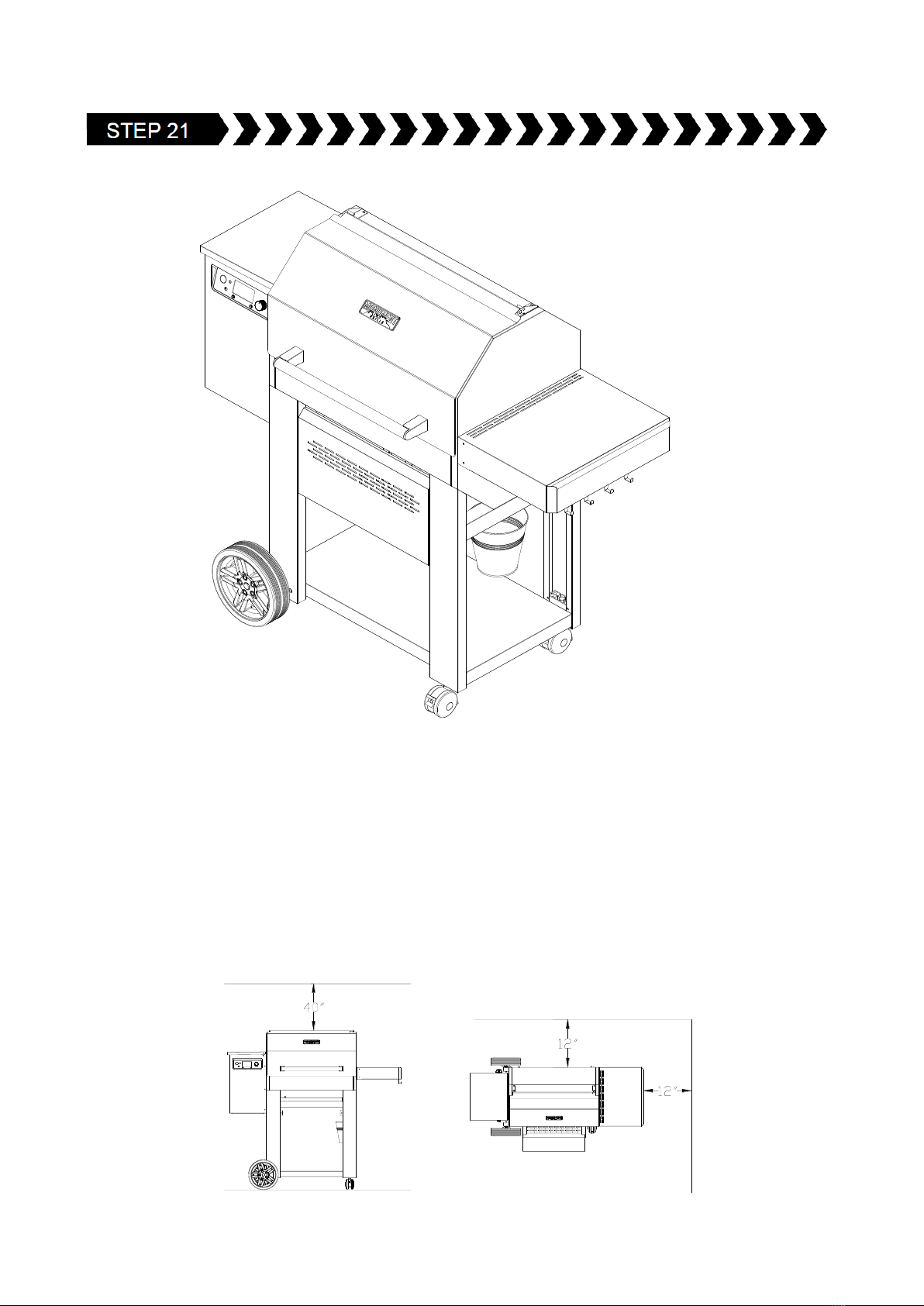

The pellet grill is designed for outdoor use only in an open and ventilate area. Keep the grill at least
the distance shown in the picture with fixed facilities around and keep far away from flammable and
combustible materials.

- 16 -
7.2 Selection of Fuels
Only food-grade wood pellets should be with this pellet grill. Users can buy pellets of different flavors
according to your own preference, but the granularity of pellets should not be more than 1.2”x0.3”.
If the fuel pellets are too large, the device may be extinguished due to poor feeding.
0.3"MAX
1.2"MAX
7.3 Confirmation before Powering on
Before powering on the device, you should re-confirm the safety of surrounding power environment,
and there is no damp or bare wire in the socket and plug.

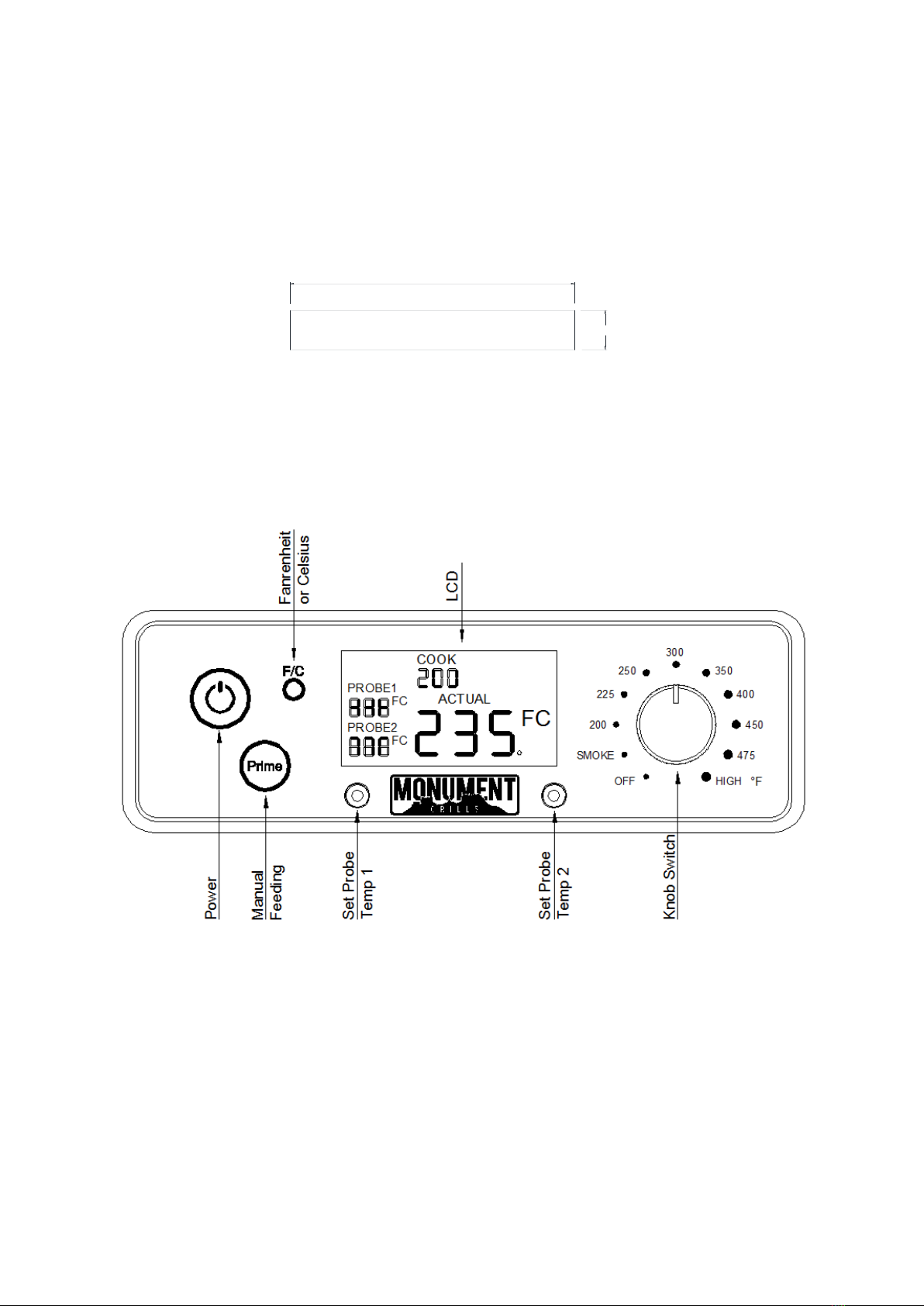

7.4 Button Interface
7.5 Ignition Instruction
Before each ignition, clean up the residual ash in the burning chamber. Then add new fuel to the
control box, it is better not to exceed the filter screen of the control box (about 2/3); put small amount
of new fuel into the burning chamber, and it is best that the fuel covers the ignition rod 1~2 layers in
a pyramid shape. Then put the fire-block plate, oil guide plate and grilling grate and then close the
cover, turn on the Power button and choose the required mode.

- 17 -
The device begins to ignite. White smoke will be emitted during the ignition of the fuel, and personnel
can stay away from the operating device before the completion of the ignition.
What needs to pay attention is, to save power, the ignition rod will work only when the Cook or
Smoke mode is first selected after powering on, and it will not work in other conditions, so if the fuel
is found not ignited, you should turn off the Power button first and turn on the Power button again
and choose corresponding mode to ignite again.
7.6 Turn off the Device
To safely turn off the grill follow the steps below.:
1) Open the upper cover of the control box, remove the residual fuel from the box and keep it
properly for next use;
2) Let the grill continue to work 5 to ten minutes to discharge the fuel in the feeder;
3) Next, click Power button to turn off the device, but do not unplug the power right now. At this
time, the cooling fan will continue to work for 5 minutes until the fuel is burned off and
extinguished.
4) Finally, please unplug the power, and store the grill in a cool and ventilated place to avoid
sun exposure and heavy rain.
7.7 Cooking Instructions
Breaking-In the Grill
We suggest turning the grill to 350F for ½ hour before cooking on the grill for the first time. This will
burn off any manufacturing oils and cure the paint.
Cooking
Once the grill is ignited, you can begin cooking by selecting anyof the cooking temperatures. Cooking
should be done with the lid closed only. If the lid is left open the feed rate will increase and the
temperature will overshoot. You should cook all meat using the temperature probe to ensure that the
internal temperature of the meet reaches the recommended temperature for the level of done desired.
Meat Probes
This smoker has a built-in meat probes to measure the temperature of the food as it is being cooked.
To use the probe, insert the probes into the food. Plug the connectors into the receptacle into the front
of the control panel. The probe temp shows on the lower left side of the display on the front
Not exceeding the
filter screen
igniter

- 18 -
Cleaning
Clean grates using a wire grill brush. This should be done with each use. DO NOT use oven cleaner
or abrasive cleaners on the painted grill surfaces. Use warm soapy water on all painted surfaces.
clean grease pan, grease trough, and grease drain tube occasionally. A spatula can be used to scrape
excess grease and a grill brush to brush clean. Do not allow grease to build up on the grease tray or
in the grease trough as this can cause flare-ups inside the grill. Make sure not to obstruct the
flow of grease off of the tray and into the grease rough. Make sure not to block the airflow to the
temperature sensor on the left side of the grill.
8. Button Function Description
This is the power button of the device (Power indication function included, The
indication is off when the device is off，The indication of blue light is on when the
device is on
This button is the unit switch button. The Fahrenheit temperature is displayed by default.
When it is on, it can display Celsius temperature, and it can be switched back to Fahrenheit.
The corresponding icon on the LCD will automatically switch.
This button is manual pellet feeding button. It will continually feed the pellet when you keep
Pressing the button. And will change to program feeding after releasing the button
Left is for PROBE 1 and right for PROBE 2
