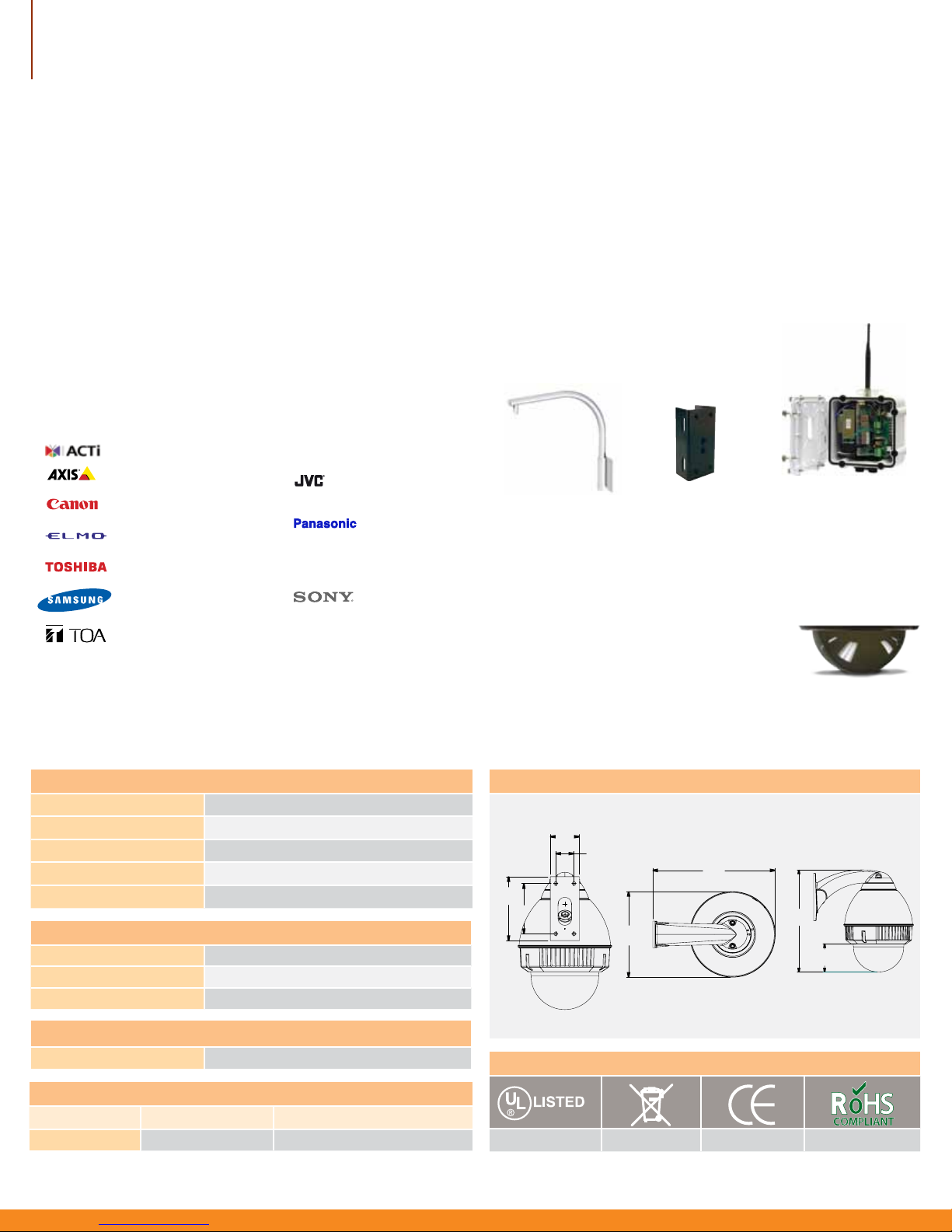

Moog Videolarm FusionDome FDW75C2N User manual

• Universal mounting plate accepts most IP network and analog
camera systems
• Durable engineered plastic top, 94V0 UV protected
• IP66 rated
Key Features
With its attractive design and compact size, Moog Videolarm’s FusionDome offers versatility and added protection to your video surveillance system.
Compatible with most of today’s leading IP and analog camera manufacturers, the FusionDome is constructed of a durable engineered plastic top,
94V0 UV protected, and includes an enhanced optical dome. To better meet the demands of your particular surveillance application, the FusionDome
is available with several unique options: pendant or wall mount, 12VDC input, heater/blower, xed or PTZ camera bracket, and more.
• Thermostatically controlled 12VDC or 24VAC
heater and surge protection (outdoor models only)
• Integrated wall mount standard; pendant mount available
(1½” pipe thread)
• Enhanced optically clear lower dome for increased visibility
HOUSING
ENCLOSURES_
CERTIFIED
FusionDome
FDW75

FDW75_
FDW75_
Outdoor / Indoor (PTZ) Housings:
The FDW75C2N is a IP network ready 7” outdoor dome housing with wall mount,
clear polycarbonate dome, with 24VAC input, heater/blower, for an IP network PTZ
camera, 120 to 24VAC transformer.
IFDP75TN is a indoor dome housing with pendant mount, tinted dome, for an IP
network PTZ camera, no electronics.
FDW75C12N is a 12VDC version of the FDW75C2N
Outdoor / Indoor (Fixed) Housings:
The FDW75F2N is a IP network ready 7” outdoor dome housing with wall mount,
clear polycarbonate dome, with 24VAC input, heater/blower, for an IP xed
camera, 120 to 24VAC transformer.
IFDP75TF is a indoor dome housing with pendant mount, tinted dome, for an IP
network xed camera, no electronics
SPECIFICATIONS:
Mechanical Specications
Size (h*w*d): 14.7” x 8.2” x 14.5” (374 x 208 x 369mm)
Weight: 11 lbs (5kg)
Construction TOP: 3mm engineered plastic
Construction DOME: Polycarbonate
Mount Bracket: Machined & cast aluminum
Electrical Specications
Power Requirements: 24VAC 55W (Heater/Blower 27W)
Dome 24VAC model: 12VDC, 50W
Dome 12VDC model: (includes 20W for heater)
Environmental Specications
Operating Temperature: -20° F to 120° F (-29° C to + 49° C)
Dimensions / Architectural Drawings
Shipping Specications
MODEL SHIPPING WEIGHT BOX DIMENSIONS
FDW75 110 lbs (49.9 kg) 17 x 14 x 17 (431.8 x 355.6 x 431.8 mm)
Dimensions are in inches
Certications and Ratings
UL Listed WEEE CE RoHS
Accessories:
Wall Mounts and Pendant Mounts available specify “W” for
Wall Mount or “P” for Pendant Mount
Tinted and Clear domes available specify “C” for Clear or “T” for Tinted
© 2009-2010, Moog Videolarm, Inc. All Rights Reserved
Product and company names listed are trademarks or trade names of their respective companies.
APM3
Aluminum pole
mount bracket with
female inserts
PB24L
Rugged outdoor wireless
box, 220/110VAC input and
24VAC output for camera
PRM50G
Heavy-duty aluminum
parapet mount bracket
with 20” extension,
includes 1 1/2” NPT
3.19
(80.9)
10.27
(260.9)
7.00
(177.8)
5.50
(139.7)
14.65
(372.1)
15.03
(381.7)
4.16
(105.6)
Compatible Cameras:
ACM-8201/8211,ACM-8511, CAM-6510 iCanView 250/252
213, 214, 215, 232D+, 233D
VB-C10, VB-C300, VB-C50i,
VB-C60, VC-C50i
PTC-200C, PTC-400C, PTC-401C IP
IK-WB21A
SND-3080, SND-5080, SND-560
SNP-3301/3370, SNP-1000A
2564
VN-C625U, VN-V685U,
VN-C655U, VN-V686BU,
VN-V686U
WV-NS202A, WV-NF284
WV-NS202A,WV-NS954
WV-NF302 , WV-NW502S
WV-SF336, KX-HCM180
SNC-RH124, SNC-RS44/46,
SNC-RX530/550/570
SNC-RZ25, SNC-RZ30,
SNC-RZ50
I CAN T E K
To view the latest listing of compatible cameras please visit
www.videolarm.com/thirdparty.jsp
PTZ:
FIXED COMPATIBLE CAMERAS ALSO AVAILABLE For detailed list see web site****
Moog Videolarm, 2525 Park Central Boulevard, Decatur, GA 30035 USA + 1.800.554.1124 www.videolarm.com
500-672 + 09-03-2010
