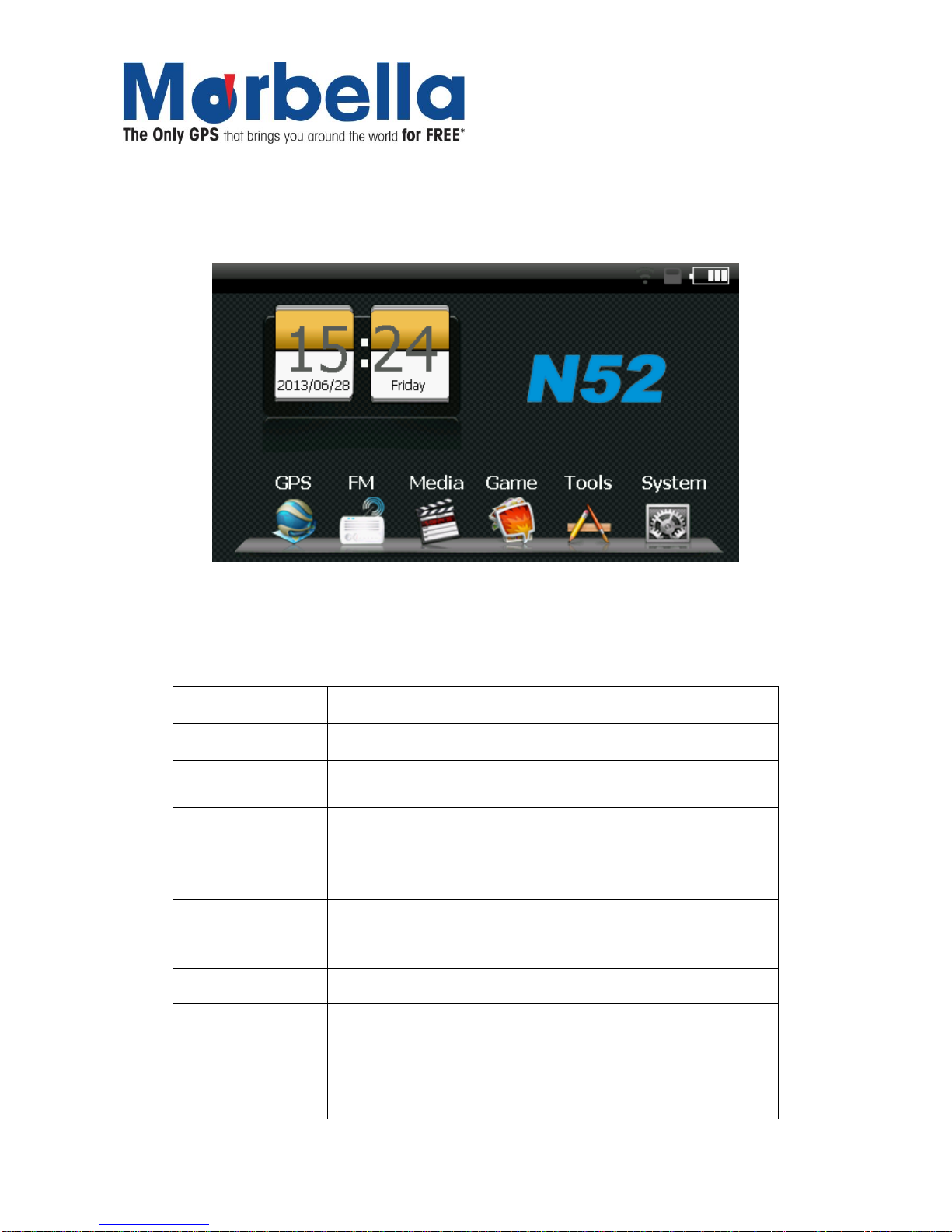

Morbella N52 User manual

Page 1
© 2013 Maka Technologies Group. All Rights Reserved.
N52 GPS Navigator
User Manual
R06
July 2013
Trademarks
All brand and product names are trademarks or registered trademarks of Maka GPS Technologies Group. In
association with Maka GPS Technologies Private Limited (Singapore), Maka GPS Technologies Sdn. Bhd.
(Malaysia) & Maka Technologies Group (H.K.) Limited
The information in this manual is subject to change without notice.

Page 2
© 2013 Maka Technologies Group. All Rights Reserved.
Before You Start
※Precautions and Notices
※DO NOT ADJUST THE “NAVI PATH” UNDER “SETTINGS” UNLESS YOU NEED TO
SWITCH IT TO OVERSEAS MAP.
※Use this product prudently. The product is designed to be use only as a navigation aid. It is not
for precise measurement of direction, distance, location or topography.
※The calculated route is for reference only. It is the user’s responsibility to follow the traffic signs
and local regulations along the roads.
※When you get off the car, do not leave your device on the dashboard that is subject to direct
sunlight. The overheating of the battery can cause malfunction and/or danger.
※GPS is operated by the United States government, which is solely responsible for the
performance of GPS. Any change to the GPS system can affect the accuracy of all GPS
equipments.
※GPS satellite signals cannot pass through solid materials (except glass). When you are inside
a tunnel or building, GPS positioning is not available. Tinted window, solar film or any form of
sticker on the front windscreen will affect the performance of the GPS satellite reception. It will
take slightly longer time than usual to fix your position.
※A minimum of 4 GPS satellite signals is needed to determine current GPS position. Signal
reception can be affected by situations such as bad weather or dense overhead obstacles (e.g.
trees and tall buildings).
※GPS signal will be affected under bad weather condition.
※A car holder is needed when using the device in a car. It is recommended that you place the
device in an appropriate place, so as not to obstruct the driver’s view, or deployment of
airbags.
※When battery run out, the device will automatically turn off the power. Kindly plug the cigarette
car charger to power it up.
※Overview

Page 3
© 2013 Maka Technologies Group. All Rights Reserved.
GPS Navigation Features
※Preloaded with Galactio SLA (Singapore Land Authority) and Malaysia Maps
provided by Malfreemaps (MFM).
※GPS positioning
※Optimal route calculation and trip plan
※Friendly and efficient navigation with turn-by-turn, voice, and visual guidance
※Fastest way for searching a location on the map for both Singapore and Malaysia
under Quick Search
- You may key in any of the alternatives here: Address/Postal Code/POI
- Using the “globe” icon located at the bottom of the page to filter out
unnecessary locations. (e.g. Selecting EAST area as your searching option and
key in KFC, GPS will only list out all the KFC in the east area.)
- Search using Malfreemaps (MFM) for a much more detail map in both West
and East Malaysia.
For example, You are looking for MAKA GPS Technologies Sdn. Bnd. in
Malaysia. 23-01, Jalan Adda 3/1, Taman Adda Heights, Johor Bahru, Malaysia
81100.
Step 1 –Switch map to Malaysia/Singapore MFM.
Step 2 –Click on [Search] button and enter your street name - JalanAdda 3/1
Step 3 –Click on [Ok] once result is displayed on the screen
Step 4 –Click on the display address on the screen again
Step 5 –Click on [Go] to start navigating.
Note: Please take note in Malaysia, only street names can be found in the GPS.

Page 4
© 2013 Maka Technologies Group. All Rights Reserved.
※Various ways for searching a location on the map under Destination mode
- Using a known “Address” (e.g. Alexandra Road, Hougang Avenue 8, Jalan
Bukit Bintang)
- Using POI (e.g. KFC, McDonalds, Holland Village, NEX Serangoon, and
Takashimaya). You may use the “globe” icon at the bottom of the page to filter
out unnecessary locations to minimize the time of searching.
- Using POI icon such “Restaurant”, “Building”, “Shopping” to locate the nearest
point of interest near your current location.
- Using Favorites (personal stored locations)
- Using History (previous destinations)
※Please refer to “Galactio Instruction Manual” stored inside the SD card /or
CD for a detail instruction on using the navigation software.
※Viewing modes for different needs and situations:
- 2D or 3D (3D Landmark and Junction View)
- Daytime or night-time view
- Turn-by-turn view of the route

Page 5
© 2013 Maka Technologies Group. All Rights Reserved.
Other Features
※FM Transmitter
※Audio Player
※Photo Viewer
※Movie Player
※Calculator
※Unit Converter
※Game Player
About this Manual
This manual is divided into four major parts:
※ Part I “Basic Operations” tell you how to get your device running and customize
system settings.
※Part II “Media” introduces Music Player, Photo Viewer, Video Player, Bluetooth
Communication and etc...
※Part III “Maintenance and Troubleshooting”
※Part IV “Service Centre Location”
※How to use the navigation? Please refer to Navigation Manual found from either
CD shown below (if available) or inside the SD card.
*Picture is for illustration only

Page 6
© 2013 Maka Technologies Group. All Rights Reserved.
You may download our both hardware and software instruction manual from online @
www.makagps.com.sg > Support > Download Instruction Manual for Marbella and choose
your Marbella model.

Page 7
© 2013 Maka Technologies Group. All Rights Reserved.
Part I. Basic Operations
Part I guides you through the process of getting your device running, familiarizes you with
the external components, and tells you how to customize system settings
1. Getting Start
This chapter tells you step by step how to perform the initial start-up and introduces you to
the external components of your device.
1.1 Understanding Hardware Features
The Marbella N52 5inch GPS Navigator equipped with the features as follows:
◆High performance, low-power consumption MediaTek MT3351 CPU
◆High performance memory RAM –128MB DDRAM
◆Embedded with internal 4GB NAND Internal Memory
◆Built-in FM Transmitter
◆Simple and easy operate user interface
◆SMART Power management: Smart Auto On/Off
◆Additional Data storage is strongly recommended to use a Micro-SD card to ensure
secure and fast data transmission.
◆Excellent in receiving signal: accurate position fixing provides you the satisfied
navigating service;
◆Entertainment: MP3 and MP4 function can relieve your fatigue;
You can use it when driving, walking, riding, or waiting for a meeting; the perfect “GPS +
entertainment” function can make your life and work more splendid.

Page 8
© 2013 Maka Technologies Group. All Rights Reserved.
1.2 Package
The packing box contains the following accessories, please contact Maka GPS
Technologies if there is any missing of accessories mentioned below;
1. GPS navigator
2. Car charger
3. CD (Hardware and Software Instruction Manual found inside)
4. Car bracket / Window mounting
5. Stylus will be located at the back of the car bracket for Marbella N52 5inch GPS
Navigator as shown below.
*Picture is for illustration only
1.3 Connecting to Car Power and Charging the Battery
Connect the adapter cable to your device and plug into a car charging slot or charge the
device via connecting AC adapter (optional) to Wall plug. When charging the battery for the
first time, you should charge it for a couple of hours.

Page 9
© 2013 Maka Technologies Group. All Rights Reserved.
NOTE:
●Depending on your region of purchase, the connector converter may not look exactly
the same as the picture shown.
●Marbella N52 5inch GPS Navigator will automatically switch ON during charging.
1. If you will not use the product for a long period of time, be sure to fully charge the
battery at least once every two weeks. Over discharge of the battery can affect the
charging performance.
2. Standard battery life will last from 1 hour to 2 hours after a complete full charge.
However, it is also depends on the Brightness of the screen, level of the volume and
etc Please go to “Settings” under Backlight and adjust the backlight.
3. Car charger is always an ideal tool to keep it standby with you just in case the battery
goes out.
1.4 Using Your Device in a Vehicle
Using the Car Holder
※CAUTION:
1. Select an appropriate location for the car holder. Never place the holder where the
driver’s field of vision is blocked.
2. If the car’s windshield is tinted with a reflective coating, an external antenna (optional)
may be needed to route the antenna to the top of the car through a window. When
closing the car window, be careful not to pinch the antenna cable. (Cars with an
anti-jam window design may automatically leave adequate space as needed.)
NOTE: Depending upon the specific model purchased, the car holder supplied with your
device may not look exactly the same as the picture shown.

Page 10
© 2013 Maka Technologies Group. All Rights Reserved.
*Picture is for illustration only
Important Notes for Use in a Vehicle
●Take care that the holder does not present any risk to safety, even in the case of an
accident, when installing it.
●Take care that the holder does not impede any safety components.
●The display of your navigation system may show “light re-flexions”. Please take care of
not being “blinded” during operation.
●Do not mount the components within the operating range of any airbags.
●Check the secure adherence of the suction cup at regular intervals.
●The power plug will consume power, even if no device is connected. Remove it when
not in use to avoid draining the battery.
●Check all safety equipment in your car after installation.
Connecting the Car Charger
The car charger supplies power to your device when you are using the device in a car.
※CAUTION : To protect your device against sudden surges in current, connect the
car charger only after the car engine has been started.
NOTE: Depending upon the specific model purchased, the car holder supplied with
your device may not look exactly the same as the picture shown.
1. Connect one end of the car charger to the power connector of your device.

Page 11
© 2013 Maka Technologies Group. All Rights Reserved.
2. Connect the other end to the cigarette lighter in the car to power and charge your
device and ensure that it will not lose contact while driving. This could cause a
malfunction.
*Picture is for illustration only
●Hint: Remove the car adapter from the cigarette lighter socket when ending a trip or
when parking the car for an extended period of time (even parking for a couple of hours
is advise to do so).
IMPORTANT CLAUSE
●The voltage of the car engine will normally shoot up very high after parking the car for a
period of time (even a couple of hours). We strongly advise our customer to remove the
car charger from their cigarette lighter after parking the vehicle or before switch on the
engine. Such faults caused damage to Marbella GPS Navigator short circuited or any
damages will be exempted from the warranty for such case.

Page 12
© 2013 Maka Technologies Group. All Rights Reserved.
2. Features & Specification
This chapter guides you through the process of using your device and familiarizes you with the basic
operations such as using the stylus pen and navigation pad.
2.1 Main features
◆Operating system: Microsoft Windows CE 6.0
◆High performance, low-power consumption MediaTek MT3351 CPU
◆High performance memory RAM –128MB DDRAM
◆Embedded with internal 4GB NAND Internal Memory
◆5〞TFT LCD display with resolution of 480*272 pixels
◆Built-in FM Transmitter
◆Hi-Fi stereo earphone and built-in Hi-Fi speaker, volume adjustable
◆Button and touch-screen operation
◆Built-in sensitive GPS antenna
◆The navigating software is running in “INTERNAL” NAND flash
◆Video format supported: ASF, AVI, WMV, 3GP, MP4, FLV
◆Photo format supported: BMP, JPG, PNG
◆E-book format supported : TXT
◆MINI USB port
◆Built-in rechargeable Li-battery which can be powered by travel and car charger.

Page 13
© 2013 Maka Technologies Group. All Rights Reserved.
2.2 Specification
CPU
MediaTek MT3351
RAM
128 MB DDR
LCD display
5” TFT LCD display,
Resolution :480RGB(H)x272(V)
Touch-screen
High-accuracy, endurable
touch-screen
USB
USB Client 2.0, MINI USB port
External Storage
Micro-SD/TF card slot ，the
maximum capacity of Micro-SD
Card supported maximum up to
16GB
Audio
A: Built-in high fidelity speaker
B: High fidelity stereo earphone
GPS
Cold start：<42s
Hot start：<3s(in the open area)
Warm start <36s
Battery
Built-in rechargeable Li-battery
Battery Charging
port
DC 5V port
Car Charger
DC9-24V, 5V／1.5A
Status of the LCD
light
When charging, the red light is on;
when charge finished, the blue light
is on.
Operating
System
Microsoft Windows CE 6.0
Navigation
Software
Preloaded and Encrypted into
Micro-SD Card
Video Player
ASF,AVI,WMV,3GP,MP4,FLV；
Audio Player
MP3 and WMA
Photo viewer
E-Album, JPG, GIF, BMP, PNG
EBook Viewer
TXT
Temperature
Operating Temperature ：0℃to
60℃
Storage Temperature ：-20℃to 60℃
Working humidity
range
45% to 80%RH

Page 14
© 2013 Maka Technologies Group. All Rights Reserved.
3. Basic Function
3.1.1. Main menu
3-1
3.1.2 Function introduction
Navigation
Provide navigation service
FM Transmitter
Allows playing music from GPS through the car stereo.
Video player
Support ASF, AVI, WMV, 3GP, MP4 and FLV format.
Support progress adjust, pause and full screen play
Photo viewer
Support JPG、BMP and PNG format. Support photo
rotate, enlarge/shrink pictures, automatic play and so on
E-book
Text format: txt.
Support page selection
Music
Audio playing format: WMA, MP3.
Support random playing, sequential playing, repeat
playing, pause, previous/next, volume
Game
7 Different Fun Games to keep you entertained
Setting
Brightness, Volume, Languages, Power, Time, System,
Default, GPS Info, Navi-Path. Activation of FM
Transmitter
Unit Tools
A useful application allow you convert unit
measurement.

Page 15
© 2013 Maka Technologies Group. All Rights Reserved.
3.1.3 Navigation functions and features
Please refer to “Galactio Navigation Software User Guide”found inside the internal NAND Flash or CD
found inside the package.
*Picture is for illustration only
1. Navigation
The navigator offers the route for the reference; determine the route by yourself, the driver
may be more familiar with the route than GPS navigator.
2. Receiving signal
Many factors such as high, dense buildings (in the tunnel, between the high building,
underground parking, under the trestle), various weather condition, and closure of the
satellite will affect the ability to receive signal so as to result in inaccurate position,
inefficiency of navigation operation and system function.

Page 16
© 2013 Maka Technologies Group. All Rights Reserved.
3.2 FM Transmitter
This feature is designed for transmitting the sound of this device via a set frequency to your car FM radio
receiver. It allows sound to be transmitted to the car audio system. The volume will be determined by the
car audio system set by user.
In the system UI open the FM Transmitter icon on the main menu to activate FM Transmission.
It will be illustrated like below:
Select Open Channel (Transmission On) –you have activated the FM Transmitter.
Select Close Channel (Transmission Off) –FM Transmitter is not be activated
Press or button, or directly drag the slide bar to set FM transmission frequency
Turn on car radio FM receiver and tune it to the same frequency as the transmission.
Please do not set a radio frequency used by a local radio station. Make sure that the radio station
is not occupied by any radio station.
Note: Any music or sound playing fromyour GPS will be output through your car stereo. No sound will be
output from the GPS.

Page 17
© 2013 Maka Technologies Group. All Rights Reserved.
Part II. Media
Part II introduces Music Player, Picture Viewer and Movie Player.
3.3 Audio player operation interface
This chapter introduces how to use the GPS video player to play your favorite music, and
let it be your personal MP3.
3.3.1 Functions and features
The audio player supports MP3 and WAV format, you could set the playing sequence as
you wish.
Before using the audio player, please copy the files to any folder.
3.3.2 Operation method
1．Single click the button to enter Music file list as 3-21
3-21

Page 18
© 2013 Maka Technologies Group. All Rights Reserved.
3-22
Function instruction
Close
Close current file
Last
Show last page
next
Show next page；
Song name
Show song name
Choose the song to enter the playing interface as 3-22

Page 19
© 2013 Maka Technologies Group. All Rights Reserved.
3-23
Previous
song
Play the previous song；
Play/pause
To play and pause, single click to pause,
click again to play continuously;
Stop
Single click to stop playing；
Next song
Play the next song；
Volume
Adjust volume. It shows volume is
decreased when it shift toward left. While
volume is increase when it is shifted toward
right.
Close
Single click to close the audio player；
Setting the
playing mode
Support sequential playing, loop playing,
repeat playing and random playing.
Open the play
list
Single click to display the play list, and
choose your favorite as picture 3-22
shows；

Page 20
© 2013 Maka Technologies Group. All Rights Reserved.
Playing
progress
Adjust the progress by slide the
progress-displaying bar; go left for
backwards, go right for forwards;
Song title
Show the song title
Time
consumption
Show the time progress；
Total time
Show the total time for playing the song;
Homepage
