Morbella N50 User manual

Page 1
© 2012 Maka Technologies Group. All Rights Reserved.
N50
5-inch GPS Navigator
User’s Manual
R06
May 2012
Trademarks
All brand and product names are trademarks or registered trademarks of Maka GPS
Technologies Group. In association with Maka GPS Technologies Private Limited (Singapore),
Maka GPS Technologies Sdn. Bhd. (Malaysia) & Maka Technologies Group (H.K.) Limited
The information in this manual is subject to change without notice.

Page 2
© 2012 Maka Technologies Group. All Rights Reserved.
Before You Start
※Precautions and Notices
※DO NOT ADJUST THE “NAVI PATH” UNDER “SETTINGS” UNLESS YOU
NEED TO SWITCH IT TO OVERSEAS MAP.
※Use this product prudently. The product is designed to be use only as a
navigation aid. It is not for precise measurement of direction, distance, location
or topography.
※The calculated route is for reference only. It is the user’s responsibility to follow
the traffic signs and local regulations along the roads.
※When you get off the car, do not leave your device on the dashboard that is
subject to direct sunlight. The overheating of the battery can cause malfunction
and/or danger.
※GPS is operated by the United States government, which is solely responsible
for the performance of GPS. Any change to the GPS system can affect the
accuracy of all GPS equipments.
※GPS satellite signals cannot pass through solid materials (except glass). When
you are inside a tunnel or building, GPS positioning is not available. Tinted
window, solar film or any form of sticker on the front windscreen will affect the
performance of the GPS satellite reception. It will take slightly longer time than
usual to fix your position.
※A minimum of 4 GPS satellite signals is needed to determine current GPS
position. Signal reception can be affected by situations such as bad weather or
dense overhead obstacles (e.g. trees and tall buildings).
※GPS signal will be affected under bad weather condition.
※A car holder is needed when using the device in a car. It is recommended that
you place the device in an appropriate place, so as not to obstruct the driver’s
view, or deployment of airbags.
※When battery run out, the device will automatically turn off the power. Kindly
plug the cigarette car charger to power it up.

Page 3
© 2012 Maka Technologies Group. All Rights Reserved.
※Overview
GPS Navigation Features
※Preloaded with Galactio SLA (Singapore Land Authority) and
Malaysia Maps provided by Malfreemaps (MFM).
※GPS positioning
※Optimal route calculation and trip plan
※Friendly and efficient navigation with turn-by-turn, voice, and visual
guidance
※Fastest way for searching a location on the map for both Singapore
and Malaysia under Quick Search
- You may key in any of the alternatives here: Address/Postal
Code/POI
- Using the “globe” icon located at the bottom of the page to filter out
unnecessary locations. (e.g. Selecting EAST area as your
searching option and key in KFC, GPS will only list out all the KFC
in the east area.)
- Search using Malfreemaps (MFM) for a much more detail map in
both West and East Malaysia. For example, You are looking for
MAKA GPS Technologies Sdn. Bnd. in Malaysia. 8A Jalan
Harmonium 23/13, Johor Bahru, Johor Malaysia 81100.
- First, switch map to Malaysia/Singapore MFM. Under quick search,
press on the “globe” icon to filter out the areas that are not required.
Please take note, only street names can be found in the GPS. In
this case, Jalan Harmonium 23/13 is the street name. Johor Bahru
is the name of a city. And Johor is one of the state in Malaysia.
Once, all of these are done, you may enter your street name.
-

Page 4
© 2012 Maka Technologies Group. All Rights Reserved.
※Various ways for searching a location on the map under Destination
mode
- Using a known “Address” (e.g. Alexandra Road, Hougang Avenue
8, Jalan Bukit Bintang)
- Using POI (e.g. KFC, McDonalds, Holland Village, NEX
Serangoon, and Takashimaya). You may use the “globe” icon at
the bottom of the page to filter out unnecessary locations to
minimize the time of searching.
- Using POI icon such “Restaurant”, “Building”, “Shopping” to locate
the nearest point of interest near your current location.
- Using Favorites (personal stored locations)
- Using History (previous destinations)
※Please refer to “Galactio Instruction Manual” stored inside the
SD card /or CD for a detail instruction on using the navigation
software.
※Viewing modes for different needs and situations:
- 2D or 3D (3D Landmark and Junction View)
- Daytime or night-time view
- Turn-by-turn view of the route

Page 5
© 2012 Maka Technologies Group. All Rights Reserved.
Other Features
※Audio Player
※Photo Viewer
※Movie Player
※Calculator
※Unit Converter
※Game Player
About this Manual
This manual is divided into four major parts:
※ Part I “Basic Operations” tell you how to get your device running and
customize system settings.
※Part II “Media” introduces Music Player, Photo Viewer, Video Player,
Bluetooth Communication and etc...
※Part III “Maintenance and Troubleshooting”
※Part IV “Service Centre Location”
※How to use the navigation? Please refer to Navigation Manual found
from either CD shown below (if available) or inside the SD card.
*Picture is for illustration only
You may download our both hardware and software instruction manual from
online @ www.makagps.com.sg > Support > Download Instruction Manual for
Marbella and choose your Marbella model.

Page 6
© 2012 Maka Technologies Group. All Rights Reserved.
Part I. Basic Operations
Part I guides you through the process of getting your device running,
familiarizes you with the external components, and tells you how to customize
system settings
1. Getting Start
This chapter tells you step by step how to perform the initial start-up and
introduces you to the external components of your device.
1.1 Understanding Hardware Features
The Marbella N50 5inch GPS Navigator equipped with the features as follows:
◆High performance, low-power consumption MediaTek MT3351 CPU
◆High performance memory RAM –128MB DDRAM
◆Embedded with internal 2GB NAND Internal Memory
◆Simple and easy operate user interface
◆SMART Power management: Smart Auto On/Off
◆Additional Data storage is strongly recommended to use a Micro-SD card
to ensure secure and fast data transmission.
◆Excellent in receiving signal: accurate position fixing provides you the
satisfied navigating service;
◆Entertainment: MP3 and MP4 function can relieve your fatigue;
You can use it when driving, walking, riding, or waiting for a meeting; the
perfect “GPS + entertainment” function can make your life and work more
splendid.

Page 7
© 2012 Maka Technologies Group. All Rights Reserved.
1.2 Package
The packing box contains the following accessories, please contact Maka GPS
Technologies if there is any missing of accessories mentioned below;
1. GPS navigator
2. Car charger
3. CD (Hardware and Software Instruction Manual found inside)
4. Car bracket / Window mounting
5. Stylus will be located at the back of the car bracket for Marbella N50 5inch
GPS Navigator as shown below.
*Picture is for illustration only
1.3 Connecting to Car Power and Charging the
Battery
Connect the adapter cable to your device and plug into a car charging slot or
charge the device via connecting AC adapter (optional) to Wall plug. When
charging the battery for the first time, you should charge it for a couple of
hours.

Page 8
© 2012 Maka Technologies Group. All Rights Reserved.
NOTE:
●Depending on your region of purchase, the connector converter may not
look exactly the same as the picture shown.
●Marbella N50 5inch GPS Navigator will automatically switch ON during
charging.
1. If you will not use the product for a long period of time, be sure to fully
charge the battery at least once every two weeks. Over discharge of the
battery can affect the charging performance.
2. Standard battery life will last from 1 hour to 2 hours after a complete full
charge. However, it is also depends on the Brightness of the screen, level
of the volume and etc Please go to “Settings” under Backlight and adjust
the backlight.
3. Car charger is always an ideal tool to keep it standby with you just in case
the battery goes out.
1.4 Using Your Device in a Vehicle
Using the Car Holder
※CAUTION:
1. Select an appropriate location for the car holder. Never place the holder
where the driver’s field of vision is blocked.
2. If the car’s windshield is tinted with a reflective coating, an external
antenna (optional) may be needed to route the antenna to the top of the
car through a window. When closing the car window, be careful not to
pinch the antenna cable. (Cars with an anti-jam window design may
automatically leave adequate space as needed.)
NOTE: Depending upon the specific model purchased, the car holder supplied
with your device may not look exactly the same as the picture shown.

Page 9
© 2012 Maka Technologies Group. All Rights Reserved.
*Picture is for illustration only
Important Notes for Use in a Vehicle
●Take care that the holder does not present any risk to safety, even in the
case of an accident, when installing it.
●Take care that the holder does not impede any safety components.
●The display of your navigation system may show “light re-flexions”. Please
take care of not being “blinded” during operation.
●Do not mount the components within the operating range of any airbags.
●Check the secure adherence of the suction cup at regular intervals.
●The power plug will consume power, even if no device is connected.
Remove it when not in use to avoid draining the battery.
●Check all safety equipment in your car after installation.
Connecting the Car Charger
The car charger supplies power to your device when you are using the device
in a car.
※CAUTION : To protect your device against sudden surges in current,
connect the car charger only after the car engine has been started.
NOTE: Depending upon the specific model purchased, the car holder
supplied with your device may not look exactly the same as the picture

Page 10
© 2012 Maka Technologies Group. All Rights Reserved.
shown.
1. Connect one end of the car charger to the power connector of your
device.
2. Connect the other end to the cigarette lighter in the car to power and
charge your device and ensure that it will not lose contact while driving.
This could cause a malfunction.
*Picture is for illustration only
●Hint: Remove the car adapter from the cigarette lighter socket when
ending a trip or when parking the car for an extended period of time (even
parking for a couple of hours is advise to do so).
IMPORATANT CLAUSE
●The voltage of the car engine will normally shoot up very high after parking
the car for a period of time (even a couple of hours). We strongly advise our
customer to remove the car charger from their cigarette lighter after parking
the vehicle or before switch on the engine. Such faults caused damage to
Marbella GPS Navigator short circuited or any damages will be exempted
from the warranty for such case.

Page 11
© 2012 Maka Technologies Group. All Rights Reserved.
2. Features & Specification
This chapter guides you through the process of using your device and familiarizes you
with the basic operations such as using the stylus pen and navigation pad.
2.1 Main features
◆Operating system: Microsoft Windows CE 6.0
◆High performance, low-power consumption MediaTek MT3351 CPU
◆High performance memory RAM –128MB DDRAM
◆Embedded with internal 2GB NAND Internal Memory
◆5〞TFT LCD display with resolution of 480*272 pixels
◆Hi-Fi stereo earphone and built-in Hi-Fi speaker, volume adjustable
◆Button and touch-screen operation
◆Built-in sensitive GPS antenna
◆The navigating software is running in “INTERNAL”NAND flash
◆Video format supported: ASF, AVI, WMV, 3GP, MP4, FLV
◆Photo format supported: BMP, JPG, PNG
◆E-book format supported : TXT
◆MINI USB port
◆Built-in rechargeable Li-battery which can be powered by travel and car
charger.

Page 12
© 2012 Maka Technologies Group. All Rights Reserved.
2.2 Specification
CPU
MediaTek MT3351
RAM
128 MB DDR
LCD display
5” TFT LCD display,
Resolution :480RGB(H)x272(V)
Touch-screen
High-accuracy, endurable
touch-screen
USB
USB Client 2.0, MINI USB port
External Storage
Micro-SD/TF card slot ，the
maximum capacity of Micro-SD
Card supported maximum up to
16GB
Audio
A: Built-in high fidelity speaker
B: High fidelity stereo earphone
GPS
Cold start：<42s
Hot start：<3s(in the open area)
Warm start <36s
Battery
Built-in rechargeable Li-battery
Battery Charging
port
DC 5V port
Car Charger
DC9-24V, 5V／1.5A
Status of the LCD
light
When charging, the red light is on;
when charge finished, the blue light
is on.
Operating
System
Microsoft Windows CE 6.0
Navigation
Software
Preloaded and Encrypted into
Micro-SD Card
Video Player
ASF,AVI,WMV,3GP,MP4,FLV；
Audio Player
MP3 and WMA
Photo viewer
E-Album, JPG, GIF, BMP, PNG
EBook Viewer
TXT
Temperature
Operating Temperature ：0℃to
60℃
Storage Temperature ：-20℃to 60℃
Working humidity
range
45% to 80%RH

Page 13
© 2012 Maka Technologies Group. All Rights Reserved.
3. Basic Function
3.1.1. Main menu
3-1
3.1.2 Function introduction
Navigation
Provide navigation service
Video player
Support ASF, AVI, WMV, 3GP, MP4 and FLV format.
Support progress adjust, pause and full screen play
Photo viewer
Support JPG、BMP and PNG format. Support photo rotate,
enlarge/shrink pictures, automatic play and so on
E-book
Text format: txt.
Support page selection
Music
Audio playing format: WMA, MP3.
Support random playing, sequential playing, repeat playing,
pause, previous/next, volume
Game
7 Different Fun Games to keep you entertained
Setting
Brightness, Volume, Languages, Power, Time, System,
Default, GPS Info, Navi-Path. Activation of FM Transmitter
Unit Tools
Auseful application allow you convert unit measurement.

Page 14
© 2012 Maka Technologies Group. All Rights Reserved.
3.2 Navigation functions and features

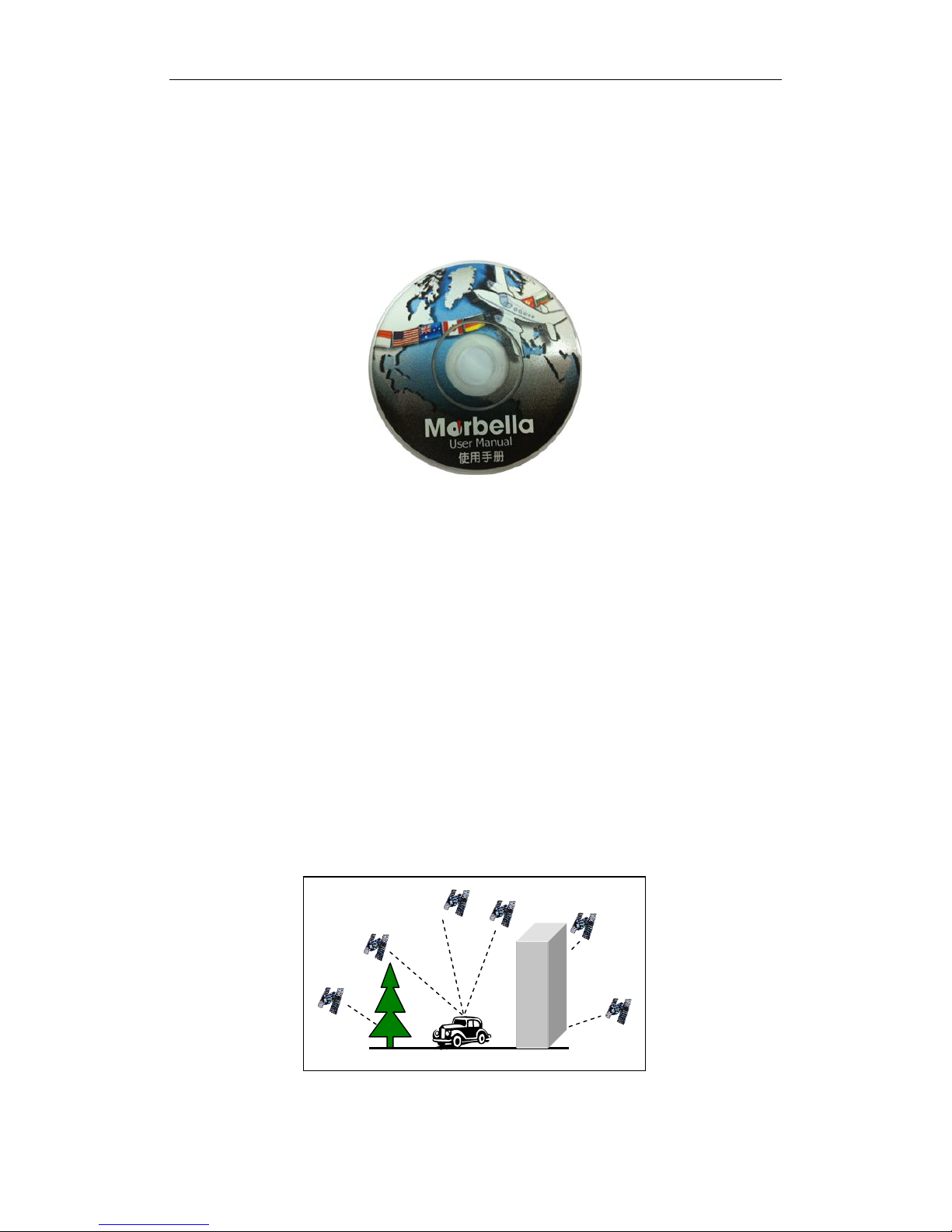

Please refer to “Galactio Navigation Software User Guide”found inside the internal NAND
Flash or CD found inside the package.
*Picture is for illustration only
1. Navigation
The navigator offers the route for the reference; determine the route by
yourself, the driver may be more familiar with the route than GPS navigator.
2. Receiving signal
Many factors such as high, dense buildings (in the tunnel, between the high
building, underground parking, under the trestle), various weather condition,
and closure of the satellite will affect the ability to receive signal so as to result
in inaccurate position, inefficiency of navigation operation and system function.

Page 15
© 2012 Maka Technologies Group. All Rights Reserved.
Part II. Media
Part II introduces Music Player, Picture Viewer and Movie Player.
3.3 Audio player operation interface
This chapter introduces how to use the GPS video player to play your favorite
music, and let it be your personal MP3.
3.3.1 Functions and features
The audio player supports MP3 and WAV format, you could set the playing
sequence as you wish.
Before using the audio player, please copy the files to any folder.
3.3.2 Operation method
1．Single click the button to enter Music file list as 3-21
3-21

Page 16
© 2012 Maka Technologies Group. All Rights Reserved.
3-22
Function instruction
Close
Close current file
Last
Show last page
next
Show next page；
Song name
Show song name
Choose the song to enter the playing interface as 3-22
3-23

Page 17
© 2012 Maka Technologies Group. All Rights Reserved.
Previous
song
Play the previous song；
Play/pause
To play and pause, single click to pause,
click again to play continuously;
Stop
Single click to stop playing；
Next song
Play the next song；
Volume
Adjust volume. It shows volume is
decreased when it shift toward left. While
volume is increase when it is shifted toward
right.
Close
Single click to close the audio player；
Setting the
playing mode
Support sequential playing, loop playing,
repeat playing and random playing.
Open the play
list
Single click to display the play list, and
choose your favorite as picture 3-22
shows；
Playing
progress
Adjust the progress by slide the
progress-displaying bar; go left for
backwards, go right for forwards;
Song title
Show the song title
Time
consumption
Show the time progress；
Total time
Show the total time for playing the song;
Homepage

Page 18
© 2012 Maka Technologies Group. All Rights Reserved.
3.4 Video operation Interface
This chapter introduced how to use the GPS video player.
3.4.1 Functions and features
1. Support ASF, AVI, WMV, 3GP, MP4 and FLV
2. Support full-screen playing, progress choosing and file selection;
Before using the Video player, please copy your video file（ASF, AVI, WMV,
3GP, MP4 and FLV）to any folder.
3.4.2 Operation
Single click the Video button to enter the video file list as the picture 3-24
3-24

Page 19
© 2012 Maka Technologies Group. All Rights Reserved.
3-25
Close
Single click to close current file.
Last
Show last page
next
Show next page
Video folder
name
Video folder name
Video name
Show video name
Choose the video to enter the playing interface as 3-26

Page 20
© 2012 Maka Technologies Group. All Rights Reserved.
3-26
Close
Click to close the video list;
Play
It shows stop playing. Single click will
continue to play.
Next
Play next video.
File list
Single click and shift to video file list, and
then choose your favorite video.
Volume
Single click volume. It shows volume is
decreased when it shift toward left. While
volume is increase when it is shifted
toward right.
Playing
progress
Adjust the progress by slide the
progress-displaying bar; go left for
backwards, go right for forwards;
Brightness
adjust
Adjust brightness with stylus while
moving toward left and right. Turn right
means turn brighter.
Play interface
Full screen play. Double click to return
normal play status.
Video name
Show current Video name
Time
Show the time consumed / The total time
of the video
