Morel HOGTALARE User manual

HOGTALARE
WIRELESS
STEREO
SPEAKER

Hogtalare Wireless Stereo Speaker
2
Hogtalare Wireless Stereo Speaker
3
TABLE OF CONTENT
IMPORTANT SAFETY INSTRUCTIONS
BOX CONTENTS
DEVICE LAYOUT
FIRST POWER UP (TURNING DEVICE ON \ OFF)
AUTOMATIC \ MANUAL POWER OPTIONS
CHOOSING YOUR SOURCE.
CONNECTING VIA BT (PAIRING).
TWS PAIRING
AUX 3.5MM STEREO INPUT.
ADJUSTING SOUND LEVEL.
USING A WIFI DONGLE.
REMOVING \ ATTACHING THE GRILL
TECHNICAL INFORMATION
FUNCTIONS AND OPERATIONS
TROUBLESHOOTING
2-6
7
8
9
10
11
12
13
14
14
15
16
17
18
19-21

Hogtalare Wireless Stereo Speaker
4
Hogtalare Wireless Stereo Speaker
5
IMPORTANT SAFETY INSTRUCTIONS
Read the safety and operation instructions before using the product.
Follow all the instructions and heed all warnings.
Keep the instructions handy for your future reference.
WARNING!
● WARNING - To reduce the risk of re or electric shock, do not expose
the device to water.
● WARNING - do not cover the device.
● WARNING - only use the accessories specied by the manufacturer
have been supplied with the device (power supply / adapter, etc).
● WARNING - the power plug and adapter should remain readily accessible
at all times and disconnected when the device is not in use or malfunctioning.
● WARNING - this device may cause hearing damage. Always adjust the
volume to a safe listening level and keep a safe listening distance.
● WARNING - do not attempt to open, repair or modify the device.
There are no user serviceable parts inside.
● WARNING - do not plug a guitar into the speaker Aux input.
● DANGER - always make sure the device is placed on a at and steady
surface. Be mindful of the product sliding to avoid accidental drops.
● The device should never be submerged in water. It is not waterproof.
INSTALLATION
● Keep the device away from direct heat (radiators, stoves, kettles, ovens, etc…)
● Keep the device away from re and ames (Candle, replace, bonre, etc…)
● Do not cover the front speaker grills.
● Place speaker on at and stable surface
● Plug in the supplied AC power cable to the speaker.
● Plug in the supplied AC power cable to the wall outlet.
● For installation inside a compatible cabinet (such as IKEA KALLAX \ EXPEDIT etc):
● Please take the grill o.
● Connect the power cord and pass the cable through the cabinet.
● Slide the speaker into the cabinet using the bass reex port as a handle
● Connect the power cable to the wall outlet.
● Once in position, place the grill back (if you want).
CONNECTION
● Only connect the device to compatible audio sources
as instructed in this manual.
● Only connect the device to the correct mains voltage
as specied on the equipment.
● Be mindful to any damage to the power cord, plugs and sockets. Do not use
faulty electrical equipment under any circumstances.
● Only use the supplied power supply and cable.
● Always unplug the device during lightning storms or when left unused
for extended periods of time.
● This device does not have a mechanical power switch, unplugging the power
supply is the only way to completely disconnect mains power to the device.
Always make sure the power plug is readily accessible.

Hogtalare Wireless Stereo Speaker
6
Hogtalare Wireless Stereo Speaker
7
CLEANING AND MAINTENANCE
● Keep the device away from dust, clean regularly with dry cloth
and vacuum cleaner.
● All servicing should be done by qualied service personnel. Servicing is
required if the device: has been damaged in any way, submerged or soaked in
water, does not operate normally, or has been dropped.
COMPLIANCE MARKS
FCC Statement: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit dierent from that
to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
● This device may not cause harmful interference.
● this device must accept any interference received, including interference
that may cause undesired operation.
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
IC Statement
This device complies with Industry Canada’s license-exempt RSS. Operation is
subject to the following two conditions:
● This device may not cause interference; and
● This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d’en compromettre le fonctionnement.

Hogtalare Wireless Stereo Speaker
8
Hogtalare Wireless Stereo Speaker
9
CAUTION
• Risk of electric shock! Do not open or disassemble the device. There are
no user serviceable parts inside. Refer servicing to qualied service personnel.
•
The equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
• This equipment is a Class II or double insulated electrical appliance.
• The max. operation temperature is 45 °C.
This device may not be treated as regular household waste. Management of WEEE
(Waste Electrical and Electronic Equipment) is applicable in member states of the
European Union and other European countries with individual national policies on the
management of WEEE. If you need more information on the collection, reuse and
recycling systems, please contact your local or regional waste administration facility.
For the declaration of conformity, visit this website: Morelhi.com
BOX CONTENTS
1. Power cord and region specic plugs.
2. Quick start user manual and safety information.
3. Högtalare active stereo loudspeaker (and grill).
1 2 3
WARNING: The mains plug or appliance coupler is used as disconnect device,
the disconnect device shall remain readily operable.
The equipment should be installed and operated with minimum distance 20cm
between the radiator and your body

Hogtalare Wireless Stereo Speaker
10
Hogtalare Wireless Stereo Speaker
11
DEVICE LAYOUT
FRONT BACK
1. Input selection button / indicator 1. Usb port (5v output DC only)
2. Bt tws pairing button /
input indicator 2. Aux input for 3.5Mm stereo plug
3. Power button / / indicator 3. Ac power input
4. Sound level up button 4. Standby \ auto on selector
5. Sound level down button 5. Wall mount connections
6. Left \ right tweeters
7. Bass reex port
8. Woofer
FIRST POWER UP
1. Press the power button to turn on the speaker.
2. When the speaker is turned on, all lights will turn on
(excluding the bt \ tws pairing indicator).
1
2
TURNING THE DEVICE TO STANDBY:
1. Pess the power button to turn the device to standby.
2. Power led indicator will switch o.
3. Device will go back to standby mode automatically
after 40 minutes of inactivity
1
2

Hogtalare Wireless Stereo Speaker
12
Hogtalare Wireless Stereo Speaker
13

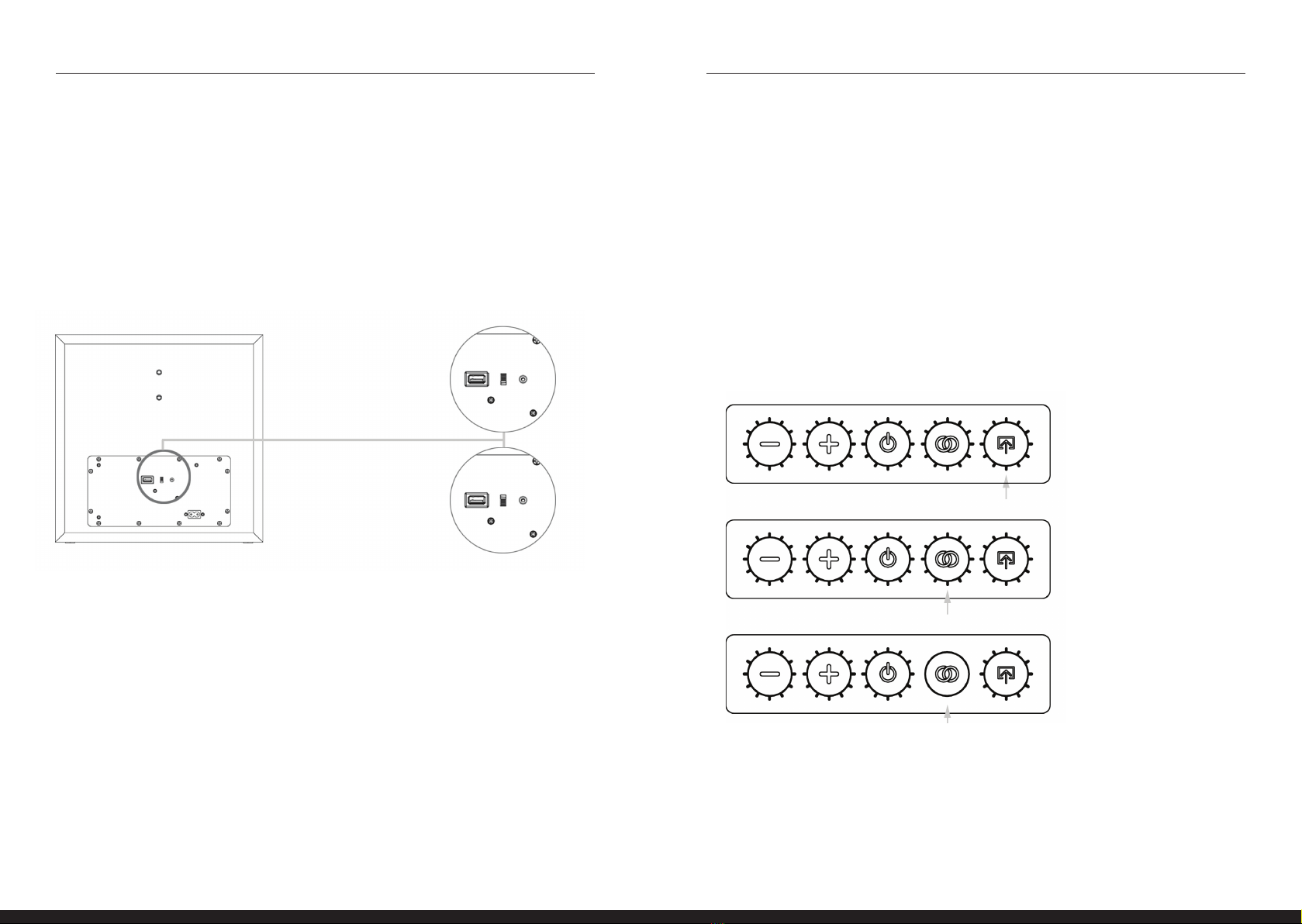

AUTOMATIC \ MANUAL POWER OPTIONS
Högtalare wireless stereo speaker has a switch on the back that toggles
between 2 power conditions:
1. Manual - the speaker will turn on or o only by the user.
2. Auto-on - the speaker will turn on once music is being streamed
to it or o after 5 minutes of inactivity.
1
2
CHOOSING YOUR SOURCE
Högtalare wireless stereo speaker has 2 audio source inputs - a bt input and an
aux 3.5Mm stereo input. To select your input source:
1. One short press on the input selection button / indicator
will switch between inputs.
2. If the bt tws pairing button / input indicator is on (or ashing) -
bt source is selected.
3. If the bt tws pairing button / input indicator is o -
aux 3.5mm stereo input is selected.
1
2
3

Hogtalare Wireless Stereo Speaker
14
Hogtalare Wireless Stereo Speaker
15

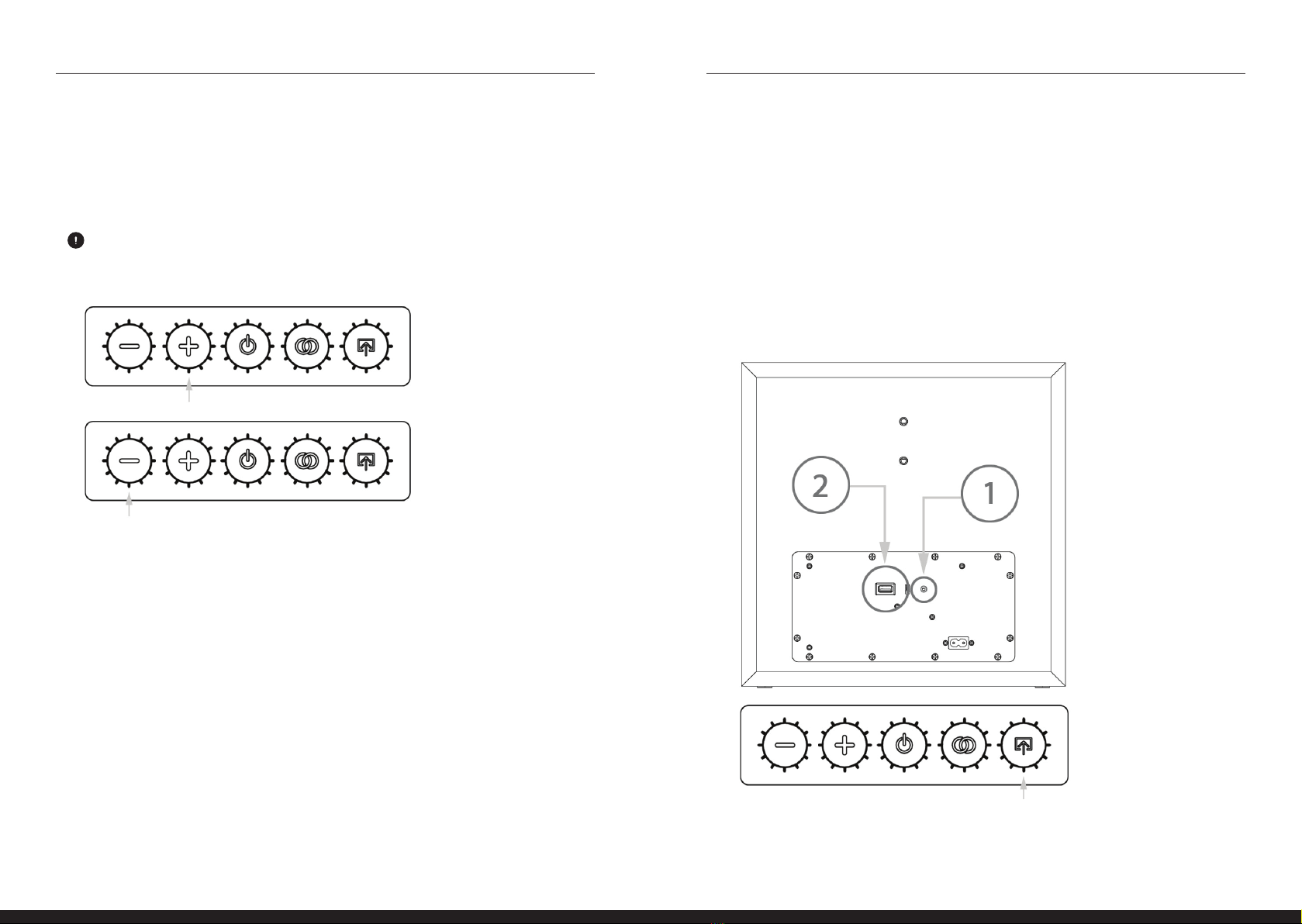

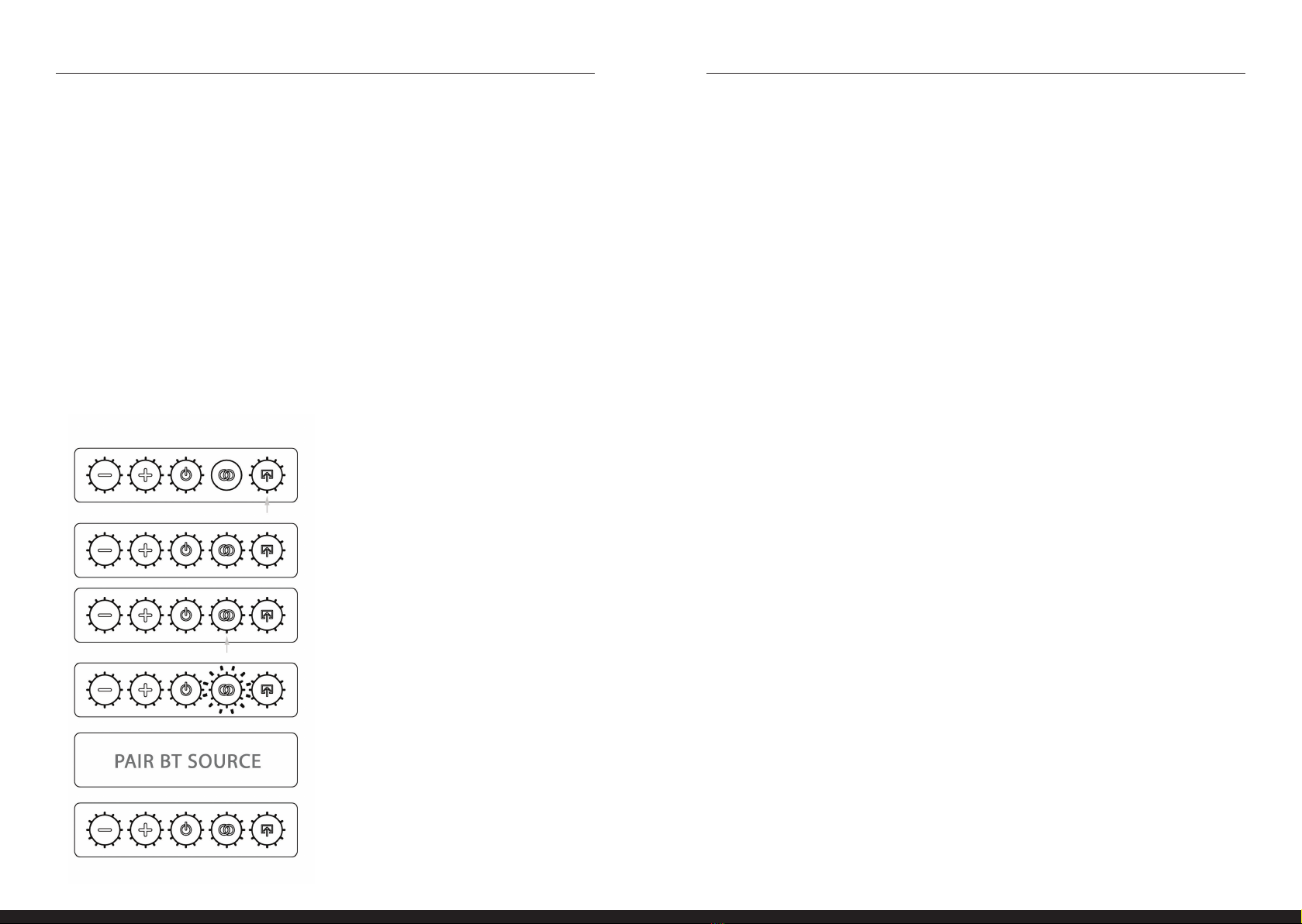

CONNECTING VIA BT (PAIRING)
1. Short-press the source button to switch device to BT mode.
2. Bt pairing button indicator will turn on (if a device is already paired)
or ash (if no device is paired).
3. Press bt tws pairing button / input indicator.
4. Bt tws pairing button / input indicator will start blinking
(fast short blinks).
5. Pair BT device (choose “högtalare” from the available
BT devices list on your BT compatible audio source).
6. Bt tws pairing button / input indicator will stop blinking and stay on.
1
2
3
4
5
6
TWS PAIRING
For a wider soundstage and increased output for larger spaces, HÖGTALARE
features TWS (true wireless stereo) functionality allowing you to pair 2 units
together to create a wider stereo setup:
1. Make sure both speaker units are on.
2. Set both units to bt mode by short-pressing the input selection button.
3. Bt tws pairing button / input indicator will turn on.
4. If no source is paired, pair your audio source to the speaker unit via bt.
5. Long-press the bt tws pairing button on the master - enable tws pairing.
6. Bt tws pairing button / input indicator will start to blink slowly.
7. Long-press the bt tws pairing button on the slave unit to pair it
with the master unit.
8. Master unit will play the left audio channel and the slave unit will play
the right audio channel.
Högtalare Wireless Stereo Speaker Will Remember up to 5 BT Devices and
will try to connect to them automatically when they are in range, and prioritize
the last connected device. If the BT source and the Högtalare wireless stereo
speaker get out of range and disconnect, Högtalare wireless stereo speaker will
attempt to auto-connect as soon As the BT device Moves Within Range Again.

Hogtalare Wireless Stereo Speaker
16
Hogtalare Wireless Stereo Speaker
17
BOTH: 1
BOTH: 2
BOTH: 3
MASTER: 4
MASTER: 5
MASTER: 6
SLAVE: 7
BOTH: 8
AUX 3.5MM STEREO INPUT
1. Connect 3.5Mm stereo plug to the device.
2. Short-press input selection button to switch to aux mode.
3. Bt tws pairing button / input indicator will turn o (indicating aux input).
1
2
3

Hogtalare Wireless Stereo Speaker
18
Hogtalare Wireless Stereo Speaker
19
ADJUSTING SOUND LEVEL
1. Press \ hold the sound level up button to increase sound level
2. Press \ hold the sound level down button to decrease sound level
WARNING: always make sure to adjust the volume to a safe listening level
depending on your environment and distance from the speaker.
1
2
USING A WIFI DONGLE
HÖGTALARE wireless stereo speaker features a 5v USB DC power outlet on the
back panel. This is not a digital audio input, it can only be used for charging or
powering other devices. To connect a wi dongle that requires a 5v power supply:
1. Connect the dongle stereo output to the aux 3.5Mm stereo input.
2. Connect the usb power source cable to the 5v usb dc power outlet.
3. Set högtalare to aux input by short-pressing the input selection button.
1/2
3

Hogtalare Wireless Stereo Speaker
20
Hogtalare Wireless Stereo Speaker
21

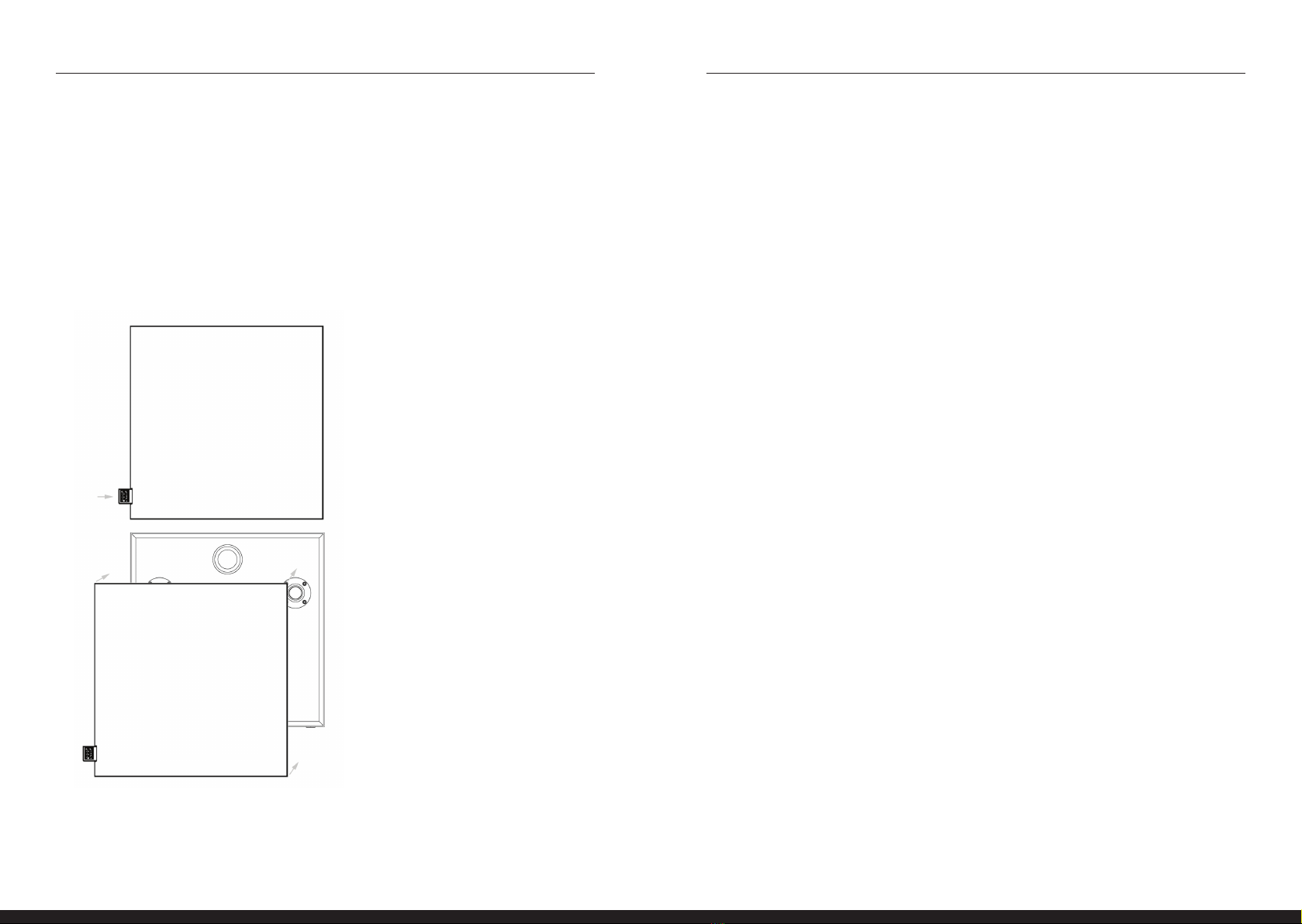

REMOVING \ ATTACHING THE GRILL
HÖGTALARE wireless stereo speaker comes with a removable grill that attaches
to place with hidden magnets.
1.
The remove the grill, gently pull the leather logo tag found on the bottom left side.
2. To place the grill back on, just push the grill into place and the magnets
will automatically lock it in place.
ATTENTION! The grill frame has waveguides that need to be positioned above
the tweeters. When placing the grill, make sure the leather logo tag is positioned
in the bottom left side.
1
2
TECHNICAL INFORMATION
All specications are subject to change without prior notice.
Driver And Build
• 1 X 6" Double magnet woofer
• 2 X 1” Soft dome tweeters (LR Stereo)
• 3 X Custom-made ampliers: 1X 25W - Woofer
2X15W - Tweeters
• 50W Per channel
• Frequency response: 3600-20,000 Hz
• Reinforced cabinet with wood frame
• Vinyl nish
• Single unit stereo
• 330X330X150
Connectivity
• BT 4.2 with APT-X support
• WiFi ready
• AUX Input (3.5mm PL jack)
• USB power input
• TWS pairing (Stereo Pairing)
• DSP crossover
• Power consumption: 80W

Hogtalare Wireless Stereo Speaker
22
Hogtalare Wireless Stereo Speaker
23
FUNCTIONS AND OPERATIONS
INDICATOROPERATIONFUNCTION
Only power indicator
light on
S for the Power button – short
press when device is o
TURN DEVICE ON
All lights on
Power button – short press when
device is on
TURN DEVICE OFF
BT TWS PAIRING
BUTTON / INPUT
INDICATOR on
INPUT SELECTION BUTTON –
short press
BT INPUT ACTIVE
BT TWS PAIRING
BUTTON / INPUT
INDICATOR fast blink
BT TWS PAIRING BUTTON -
short press when device is in BT
mode.
BT PAIRING MODE
BT TWS PAIRING
BUTTON / INPUT
INDICATOR o
INPUT SELECTION BUTTON –
short press
AUX INPUT ACTIVE
BT TWS PAIRING
BUTTON / INPUT
INDICATOR slow blink
BT TWS PAIRING BUTTON - long
press when device is in BT mode.
TWS PAIRING MODE
Master speaker will
make a notication
sound as “left speaker”
and slave speaker will
make notication sound
as “right speaker” after
power up or after TWS
pairing
TWS MODE ACTIVE
BT TWS PAIRING
BUTTON / INPUT
INDICATOR blinking
fast.
INPUT SELECTION BUTTON
– long press when BT device is
paired
DISCONNECT PAIRED BT
DEVICE
INPUT SELECTION
BUTTON / INDICATOR
blinking slow.
BT TWS PAIRING BUTTON /
INPUT INDICATOR – long press
when TWS is paired
DISABLE TWS MODE
TROUBLESHOOTING
ACTIONCAUSEPROBLEM
Only power indicator
light on
S for the Power button – short
press when device is o
THE DEVICE DOES NOT
TURN ON.
Press the source button
to switch to the correct
audio source
The device is set on the wrong
input source
THERE IS NO
SOUND
Connect the sound
source to the speaker
either via BT or with a
3.5mm aux cable
No audio source connected
Slightly increase the
volume on your sound
source, then slightly
increase the volume
on the speaker
Volume is set too low on
either the sound source or the
speaker
Press “Play” on your
audio source device
Audio source is not playing or
paused
Ensure that the audio
cable is properly
connected and that it is
not damaged
The audio cable is not properly
connected
THE SOUND IS
TO LOW
Slightly increase the
volume on your sound
source, then slightly
increase the volume on
the speaker
Volume is set too low on
either the sound source or the
speaker
Turn down the playback
volume on the sound
source or the speaker
Volume is set too high on either
the speaker or the audio source
THE SOUND
IS DISTORTED
Try another sound le
(mp3) or music player
The sound le (mp3)
is of poor quality

Hogtalare Wireless Stereo Speaker
24
Hogtalare Wireless Stereo Speaker
25
TROUBLESHOOTING
ACTIONCAUSEPROBLEM
Move the speaker
to another location.
Turn o or move the
interfering electronic
device
Interference from another
electronic device
ERRATIC
PERFORMANCE
Move the devices
closer so that they
are within 10 meters,
and unobstructed by
obstacles such as walls
or doors
Your device only supports
CANNOT CONNECT
OR PAIR WITH A
BT DEVICE
Ensure that BT is
enabled on your device
BT (hands-free) area
When the pairing button
is pressed, the speaker
searches for devices for
3 minutes
The pairing timed out
In most cases, you do
not need to enter the
pin code (password)
when connecting the
BT device to your
speaker. If the window
for entering the pin
code is displayed, use
the pin code 0000
Your device prompts you
for a pin code
The speaker cannot
connect using BT
hands-free area
function. Connect
using 3.5mm aux cable
instead
Your device only supports
BT (hands-free) area
function
TROUBLESHOOTING
ACTIONCAUSEPROBLEM
Move the devices
closer so that they
are within10 meters,
and unobstructed by
obstacles such as walls
or doors
The two BT devices are
too far apart or the connection
is aected due to obstacles
BT
CONNECTION
DROPS OUT
Items such as
microwave ovens,
wireless network
adapters, uorescent
lights and gas cookers
use the same frequency
range as the BT device.
This may lead to
interference with the
signal
There is a strong electric eld
Interfering with the devices

Hogtalare Wireless Stereo Speaker
26
Hogtalare Wireless Stereo Speaker
27
NOTES
A BT device could cause sound-related or technical faults,
depending on use, in the following cases:
• When some part of the body is in contact with the receiving/transmitting system
for the BT device or the stockwell.
• Electrical variations due to obstacles in the form of walls, corners, etc.
• Exposure to electrical disruptions from devices within the same frequency band,
for example medical equipment, microwave ovens and wireless networks.
This wireless device may cause electrical disruptions during use.

www.morelhifi.com
