USER MANUAL
CHEST FREEZER

1
1-7
8
9
10-11
12
13-15
For your safety and
correct usage, before
installing and first using the
appliance, read this user
manual carefully, including its
hints and warnings. To avoid
unnecessary mistakes and
accidents, it is important to
make sure that all people
using the appliance are
thoroughly familiar with its
operation and safety features.
Save these instructions and
be sure that they remain with
the appliance if it is moved or
sold, so that anyone using it
throughout its life will be
properly informed on usage
and safety notices.
For the safety of life and
property, keep the
precautions of these user's
instructions as the
manufacturer is not
responsible for damages
caused by omission.
Safety for children and others
who are vulnerable
 According to EN standard
This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved. Children shall not
play with the appliance.
Cleaning and user
maintenance shall not be
made by children without
supervision.
 According to IEC standard
This appliance is not intended
for use by persons (including
children) with reduced
physical, sensory or mental
capabilities, or lack of
experience and knowledge,
unless they have been given
supervision or instruction
16

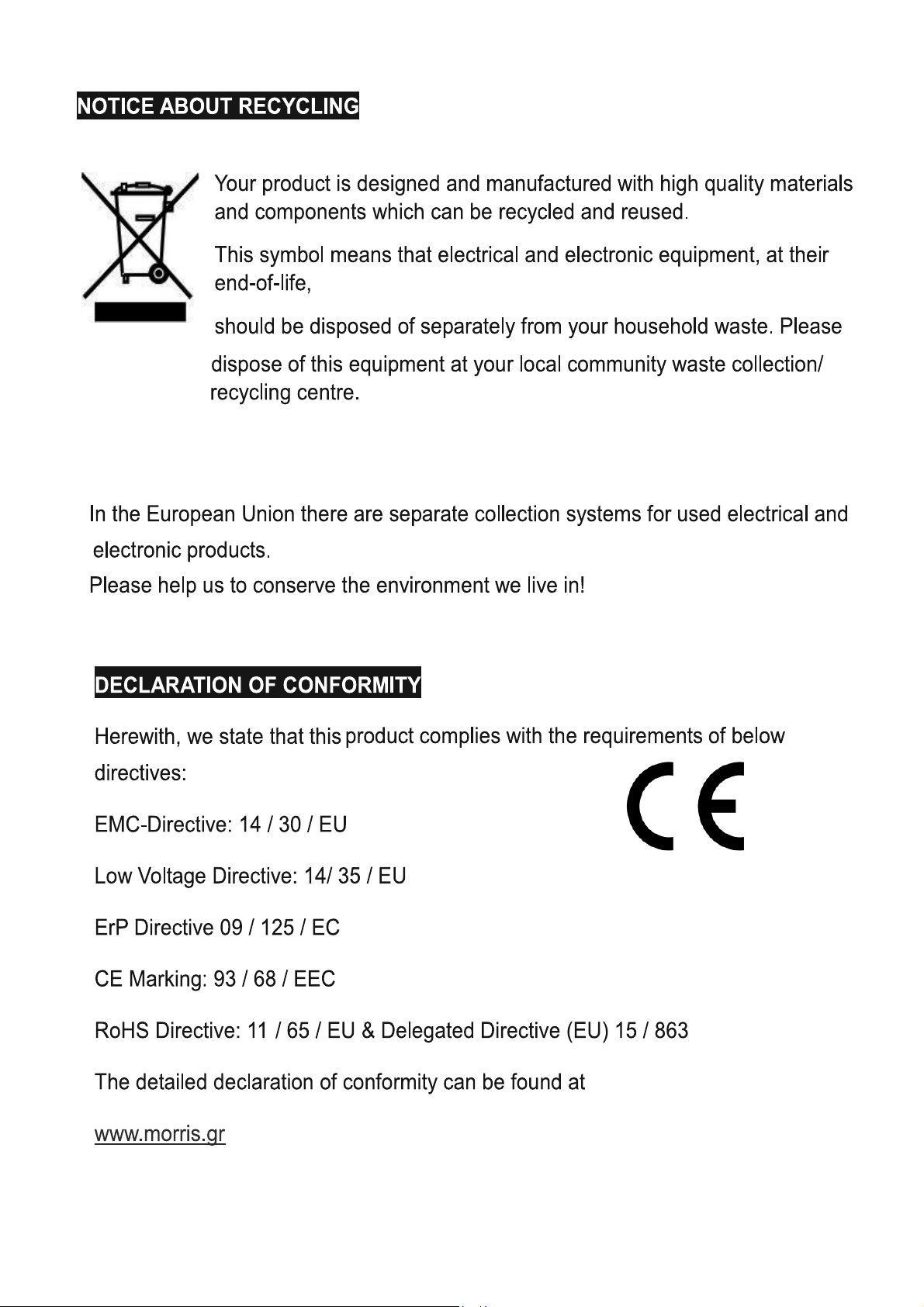

NOTICE ABOUT RECYCLING
DECLARATION OF CONFORMITY
16

2
concerning use of the
appliance by a person
responsible for their safety.
 Keep all packaging away
from children as there is risk
of suffocation
 If you are discarding the
appliance, pull the plug out
of the socket, cut the
connection cable (as close
to the appliance as you can)
and remove the door to
prevent children playing
from suffering an electric
shock or from closing
themselves inside.
 If this appliance, featuring a
magnetic door seals, is to
replace an older appliance
having a spring lock (latch)
on the door or lid, be sure to
make the spring lock
unusable before you discard
the old appliance. This will
prevent it from becoming a
death trap for a child
General safety
This appliance is
intended to be used in
households and similar
applications such as
-staff kitchen areas in shops,
offices and other working
environments;
-farm houses and by clients
in hotels, motels and other
residential type
environments;
-bed and breakfast type
environments;
-catering and similar
nonretail applications
 WARNING — Do not store
explosive substances such
as aerosol cans with a
flammable propellant in this
appliance.
 WARNING —If the supply
cord is damaged, it must be
replaced by the
manufacturer, its service
agent or similarly qualified
persons in order to avoid a
hazard.
 WARNING — Keep
ventilation openings in the
appliance enclosure or in
any built-in structure clear of
obstruction.
 WARNING — Do not use
mechanical devices or other
means to accelerate the
defrosting process, other
than those recommended by
the manufacturer.
 WARNING — Do not
damage the refrigerant
circuit.
 WARNING — Do not use

3
electrical appliances inside
the food storage
compartments of the
appliance, unless they are of
the type recommended by
the manufacturer.
 WARNING — The
refrigerant and insulation are
flammable. When disposing
of the appliance, do so only
at an authorized waste
disposal center. Do not
expose to flame.
 WARNING —When
positioning the appliance,
ensure the supply cord is not
trapped or damaged.
 WARNING —Do not locate
multiple portable
socket-outlets or portable
power supplies at the rear of
the appliance.
 WARNING —Damaged supply
cord must be repalced by a
special cord or assembly
available from the manufacture
or its service agent.
Replacing the LED light:
 WARNING —
If the product has
LED light
,
the LED light
must not be replaced by the
user! If the LED light is
damaged, contact the
customer helpline for
assistance.
Refrigerant
The refrigerant isobutene
(R600a) is contained within
the refrigerant circuit of the
appliance, a natural gas with
a high level of environmental
compatibility, which is
nevertheless flammable.
During transportation and
installation of the appliance,
ensure that none of the
components of the refrigerant
circuit becomes damaged.
The refrigerant (R600a) is
flammable.
 WARNING — Refrigerators
contain refrigerant and
gases in the insulation.
Refrigerant and gases must
be disposed of
professionally as they may
cause eye injuries or ignition.
Ensure that tubing of the
refrigerant circuit is not
damage prior to proper
disposal.
Warning: risk of fire/
flammable materials
If the refrigerant circuit is
damaged:
-Avoid naked flames and
sources of ignition.
-Thoroughly ventilate the
room in which the appliance
is situated.

4
It is dangerous to alter the
specifications or modify this
product in any way.
Any damage to the cord may
cause a short circuit, fire,
and/or electric shock.
Electrical safety
1. The power cord must not
be lengthened.
2. Make sure that the power
plug is not crushed or
damaged. A crushed or
damaged power plug may
overheat and cause a fire.
3. Make sure that you can
access the main plug of the
appliance.
4. Do not pull the main
cable.
5. If the power plug socket
is loose, do not insert the
power plug. There is a risk
of electric shock or fire.
6. You must not operate the
appliance without the
interior lighting lamp cover.
7. The fridge is only supplied
with power supply of single
phase alternating current of
220 ~ 240 V/50Hz. If
fluctuation of voltage in the
district of user is so large
that the voltage exceeds the
above scope, for safety sake,
be sure to apply A.C.
Automatic voltage regulator
of more than 350W to the
fridge. The fridge must
employ a special power
socket instead of common
one with other electric
appliances. Its plug
must match the socket
with ground wire.
Daily use
 Do not store flammable
gas or liquids in the
appliance. There is a risk of
an explosion.
 Do not operate any
electrical appliances in the
appliance (e.g. electric ice
cream makers, mixers etc.).
 When unplugging always
pull the plug from the mains
socket, do not pull on the
cable.
 Do not place hot items near
the plastic components of
the fridge.
 Do not place food products
directly against the air outlet
on the rear wall.
 Store pre-packed frozen
food in accordance with the
frozen food manufacturer’s
instructions.
 The manufactures storage
recommendations should be

2.
5
strictly adhered to. Refer to
relevant instructions for
storage.
 Do not place carbonated or
fizzy drinks in the freeze
compartment as it creates
pressure on the container,
which may cause it to
explode,
 The appliance is intended
for keeping food and/or
beverages in normal
households as explained in
this instruction booklet.
The appliance is heavy.
Care should be taken when
moving it.
resulting in
appliance .
damage to the
 Do not remove or touch
items from the
freezer
 Frozen food can cause frost
burns if consumed straight
compartment if your hands
are damp/wet, as this could
from the freezer
compartment. cause skin abrasions
or

Opening the door for long periods
can cause a significant increase
of the temperature in the
compartments of the appliance.

Clean regularly surfaces that can
come in contact with food and
accessible drainage systems.

Store raw meat and fish in suitable
containers in the refrigerator, so
t h a t i t i s n o t i n c o n t a c t w i t h o r d r i p
onto other food.

If the refrigerating appliance is
l e f t e m p t y f o r l o n g p e r i o d s , s w i t c h o f f ,
defrost, clean, dry, and leave the door
open to prevent mould developing
within the appliance.
 Do not place the appliance
in direct sunlight.
 Keep burning candles,
lamps and other items with
naked flames away from the
appliance so that do not set
the appliance on fire.
frost/freezer burns.
 Never use the
base, drawers, doors etc. to
stand on or as supports.
 Frozen food must not
be refrozen once it has
been thawed out.
 Do not consume
ice popsicles or ice
cubes straight from the
freezer as this can cause
freezer burn to the mouth
and lips.

To avoid items falling and
causing injury or
damage to the
appliance, do not overload the
door
racks or put too much
food in the crisper drawers.
In order to ensure better refrigeration effect,
you need to adjust the machine to the
Super Freeze mode 24h in advance when larger
food is put into at one time.
Super Freeze mode will automatically
return to the regular mode after 48h.

Caution!
Care and cleaning
 Before maintenance, switch
off the appliance and
disconnect the mains plug
from the mains socket.
 Do not clean the appliance
with metal objects, steam
cleaner, ethereal oils,
organic solvents or abrasive
cleansers.
 Do not use sharp objects to
remove frost from the
appliance. Use a plastic
scraper.
Installation important!
 For electrical connection
carefully, follow the
instructions given in this
manual.
 Unpack the appliance and
check if there are damages
on it. Do not connect the
appliance if it is damaged.
Report possible damages
immediately to the place you
bought it. In this case retain
packing.
 It is advisable to wait at least
four hours before connecting
the appliance to allow the oil
to flow back in the
compressor.
6
 Adequate air circulation
should be allowed around
the appliance reducing the
risk of overheating. To
achieve sufficient ventilation,
follow the instructions
relevant to installation.
 Wherever possible the back
of the product should not be
close to a wall to avoid
touching or catching warm
parts (compressor,
condenser) to prevent the
risk of a fire, follow the
instructions relevant to
installation
 The appliance must not be
locate close to radiators or
cookers.
 Make sure that the mains
plug is accessible after the
installation of the appliance.
This refrigeration equipment is
not intended to be used as a
built-in equipment.
Service
 Any electrical work required
to do the servicing of the
appliance should be carried
out by qualified electrician or
competent person. This
product must be serviced by
an authorized Serviced
Center, and only genuine
spare parts must be used.

7
Note: Children aged from 3 to 8 years are allowed to load and unload refrigerating
appliances.(This clause applies only to the EU region.)
When refrigerating food, please be careful not to contact the surface of the inner box
directly.
When frozen food, in order to prevent moisture loss, prevent the odor, should separate
the different food sealed storage, and can only
waterproof sealing material.
use non-toxic, tasteless, impermeable,
Hot food should be cooled to room temperature first, then put into the freezer, otherwise
i t w i l l a f f e c t t h e storage status of other foods and increase the power consumption.
Two-star frozen-food compartments are suitable for storing pre-frozen food, storing
or making icecream and making ice cubes.
One-, two- and three-star compartments are not suitable for the freezing of fresh food.
Order Compartments
TYPE
Target storage
temp.[ ℃ ]
Appropriate food
1
Fridge
+2 ≤ +6
Eggs, cooked food, packaged food, fruits and
vegetables, dairy products, cakes, drinks and
other foods are not suitable for freezing.
2
(***)*-Freezer
≤ -18
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended for 3 months, the longer the
storage time, the worse the taste and
nutrition), suitable for frozen fresh food.
3
***-Freezer
≤ -18
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended for 3 months, the longer the
storage time, the worse the taste and
nutrition), are not suitable for frozen fresh food.
4 **-Freezer
≤ -12
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended for 2 months, the longer the
storage time, the worse the taste and nutrition),
are not suitable for frozen fresh food.
5
*-Freezer
≤ -6
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended for 1 months, the longer the
storage time, the worse the taste and nutrition),
are not suitable for frozen fresh food.

8
This appliance is intended to be used in household and
similar applications such as
- staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
-catering and similar non-retail applications
This refrigerating appliance is not intended to be used
as a built-in appliance.
220-240
chest freezer
TheSuperFreezeisusedtoperformpre‐freezingandfastfreezinginsequenceofFreezer
compartment.Thisfunctionacceleratesthefreezingoffreshfoodand,atthesametime,
protectsfoodstuffsalreadystoredfromundesirablewarming. 
TofreezefreshfoodactivatetheSuperFreezefunctionatleast24hoursbefore
placingthefoodtocompletepre‐freezing 
Keepventilationopenings,intheapplianceenclosureorinthebuilt‐in 
structure,clearofobstruction. 
chest freezer
short time period as possible.

9
Introducing Winter Guard
Colder
This product features Hisense Winter Guard
technology. It allows the product to operate in
environments such as garages, sheds or outbuildings
where temperatures can drop as low as-15
Colder
Note:
This appliance performs well within the
climate class from SN to T showed in the
table below. It may not work properly if
being left at a temperature above or below
the indicated range for a long period.

10
Problem Solution
POWERFAILURE Keeptheopeningandclosingofthedoorforaminimumtimetopreventcoldair
fromescaping.
Avoidplacingnewitemsinthecoolerasthiswillraisethetemperatureinsidethe
compartment.
Incaseofalongpowersuspension,placedryiceinthefreezer
POWERCORD
PROBLEMS
Ifthesupplycordisdamaged,itmustbereplacebyaspecialcordorassembly
availablefromthemanufacturerortheserviceagent.
Theshowcasemustbepositionedsothattheplugisaccessibletothewalloutlet.
WHENNOTUSED
FORALONGPERIOD
Removeallitemsfromthecompartmentanddisconnectthepowercordplug
fromthewalloutlet.
Cleanthecompartmentinteriorandwipeawayallwater.
Topreventmoldformationandfoulodors,leavethedooropentodrythe
compartmentcompletely.
TRANSPORTATION Disconnectthepowercordplugfromthewalloutlet.
Whenmovingtheappliance,makesurethatthefeetdonotdamagethepower
cord.
Donotletthefeethitagainstfloorsteps,thresholds,etc.
TEMPORATY
STORAGE
Putpieceofwoodorothersimilaritembetween,thedoorandmainunitto
preventcompleteclosingofthedoor.
Be sure not to store the unused chest freezer in a location where children play.
Shouldachildenterthecompartmentandthedoorisclosed,thechildmaynotbe
abletoopenthedoorfromtheinside.

11
No refrigeration at all Is the power supply interrupted?
Is the power cord plug disconnected from the wall outlet?
Are the shop’s power fuses blown and/or the circuit breaker activated?
Is the temperature control turned to OFF?
Inadequate
refrigeration
Is the place of installation ventilated?
Is the freezer exposed to direct sunlight, placed near a heater or stove?
Are the lids opened and closed frequently?
Is the temperature control dial in the direction of Colder. If it is too cold, turn dial in
direction of Cold.
Is a lot of frost forming in the freezer compartment?
Excessive noise Is the floor underneath the freezer sturdy enough?
Is the unit shaking and/or rattling?
Is the rear panel of the unit in contact with a wall, etc.?
Is there a container or something behind the freezer?
The compressor will generate a rather loud sound for a while after operation is started.
The noise will cease together with refrigeration.
Condensation on
cooler exterior
Condensation may condense on the exterior of the unit and the door during hot and
humid days or depending on the place of installation. This occurs when the humidity is
high and water particles in the cold surfaces. This is normal.
Wipe away condensation with a dry cloth.
The circumference of
chest freezer feels hot
Especially in summer or in the period of starting running, the circumference of the chest
freezer feels hot because the Chest freezer inside has a pipe for radiating and preventing
condensation.
The heat does not affect inside goods.

12
W70191EED,W70297EED,W70420EED
Led
Baskat
Drain
Foot
ElectronicControl
Note!
●
To get the best energy efficiency of this product,please place all shelves,
drawers on their original position as the illustrationabove.

13
Control panel
It is used to control operation mode of the refrigerator and is located in the front of the
refrigerator.
NOTE: High temperature setting will
accelerate food waste.
Note: This figure is only a schematic diagram, so please refer to the physical object for
details.
2. Hint: Since the displayed setting temperature is not the actual temperature but the target
temperature, the temperature inside the refrigerator will vary depending on the stored foods.
3. Unlocking
When key locking icon of the refrigerator turns on, it means that keys of the refrigerator are
locked, and adjustment of temperature and modes is unavailable. If the refrigerating and freezing
key is pressed and held for about 3s at this moment, the locking indicator will turn off, keys
will be
unlocked, and the temperature and modes can be adjusted.
If no key is pressed within approximately 20s after 5 minutes of power on, the keys will be
locked automatically. If no key is pressed within approximately 60s, the indicator will turn off.
When any key is touched slightly at this
time, the indicator will turn on again. The
keys are not locked and the indicator turns
on within 5 minutes after power on.
4. Mode switching and temperature adjustment
NOTE: The setting range of temperature is 5 ℃ to -18 ℃ ,
lowest -24
℃ ( only comes with the super freeze function )
Mode switching:
1) After the refrigerating key is pressed and held for about 3s in interchangeable temperature
mode when the keys are unlocked, the refrigerating mode will be enabled; and,
refrigerating mode will be enabled when the refrigerating key is pressed briefly in freezing
mode;
2) After the refrigerating key is pressed and held for about 3s in a mode other than
interchangeable temperature mode when the keys are unlocked, the interchangeable
temperature mode will be enabled; and, after the refrigerating key is pressed and held for
Locking
indicator Temperature
display zone
Temperature
setting key
Temperature
setting key

about 3s in interchangeable temperature mode, the interchangeable temperature mode
will be exited, and the refrigerating or freezing mode will be enabled;
3) After the freezing key is pressed briefly in a mode other than freezing mode when the keys
are unlocked, the freezing mode will be enabled;
Temperature adjustment
1) Refrigerating temperature adjustment:
When the keys are unlocked, each time the refrigerating key is pressed in refrigerating mode,
the temperature display zone will change from current setting temperature in the following
order:
“5→4→3→2→8→7→6→5”.
2) Interchangeable temperature adjustment:
When the keys are unlocked, each time the refrigerating key is pressed in interchangeable
15
temperature mode, the temperature display zone will change from current setting
temperature in the following order:
0→-1→-2→…→-12→-13→1→0.
3) Freezing temperature adjustment:
When the keys are unlocked, each time the freezing key is pressed in freezing mode, the
temperature display zone will change from current setting temperature in the following order:
“-14→-15→-16→…→-22→-23→-24→-14”.
About 2s after the temperature setting is completed, the setting temperature flashes 5 times
and the setting takes effect.
4.Quick-freezing mode switching
After the freezing key is pressed and held for about 3s in a mode other than quick-freezing
mode when the keys are unlocked, the quick-freezing mode will be enabled, “-25” will be
displayed in temperature display zone and the quick-freezing icon turns on. If no key is pressed
then, the “-25” in temperature display zone will flash 5 times and setting of quick-freezing
mode takes effect; the temperature cannot be adjusted in quick-freezing mode. When the
refrigerating or freezing key is pressed briefly, the quick-freezing icon will flash 5 times to
remind
the user that the refrigerator is currently in quick-freezing mode;
After the freezing key is pressed and held for about 3s in quick-freezing mode when the keys
are unlocked, the quick-freezing mode will be exited, and the mode and setting temperature
before entering into quick-freezing mode will be resumed. After a period of continuous forced
freezing in quick-freezing mode, the mode will be exited
automatically and the original setting temperature will be followed during operation.
Notes: The quick-freezing mode allows for rapid refrigeration, but also increases power
consumption.
The refrigerator can automatically remember the state before power off in case of any power
failure, and run according to the state before power off after resumption of power, in which the
quick-freezing mode will not be remembered.
5.Alarm and handling
When "E1" is displayed in the temperature display zone, it means that temperature sensing
head of the refrigerator is out of order. Although the computer board will automatically
control the operation, you shall contact the maintenance point for repair in time.
14

15

16
