Mortch Prince User manual

Thank you for your purchasing the motorcvcle, with four stoke and pedal style. Hope
you enjoy driving it all the tine.
The motorcycle is the most fashionable pedal style and top grade and using for city
nowadays. Because it’s engine is produced by advanced technical and the parts and
components are selected to assemble, with large horsepower, low consuming, low noise,
electric ignition, electric starting, frame body with protecting, quick accelerating reaction,
actively driving, and superexcellent performance..
The manual contains the necessary instructions and guidance with respect to the
operation and maintenance of the motorcycle, keep it at an optima performance. lease you
understand if the specification is changed, the parts of drawing or contents in book are
different from the fact.
lease you read carefully the book before driving for your safety and making your
comfortable.
The capacity of motorcycle can proper adjusted by experienced worker according to
different the area, climate and conditions until the best condition, and don’t effect on the
performance.
lease you note environmentalism.
Mortch International Ltd
1
http://www.mortch.com

1.regulations of safe driving…………………1
Way of driving…………………………….2
Loading……………………………………3
2.locations of parts…………………………..4
3.handling of parts…………………………..5
Meters…………………………………….6
Indicators…………………………………6
Main switch………………………………7
Starting button switch comp head light…..8
Changing switch,head light button comp horn…..9
Switch comp turn signal………………….10
Key,helmet luggage box………………….11
Hey comp steering handle………………..12
Front luggage box………………………..13
Engine starting system…………………...14
Electric starting…………………………..14
Kick starting…………………………..…15
4.natural way of driving…………………….16
Correctly driving…………………………18
Way of parking…………………………..…21
5.inspecting before driving……………………22
Inspecting and supplying gasoline………….23
Inspect braking……………………………..24
Inspect braking light………………………..25
Inspect turn signal………………………….25
Inspect tire………………………………….26
Inspect air cleaner…………………………..28
Replace fuel………………………………...28
Replace gear oil…………………………….29
Inspect spark plug…………………………..30
Term maintenance program and schedule…..31
Clean out the battery………………………..32
Replace the fuse…………………………….33
Cleaning way of air cleaner……...…………34
Adjusting the carburetor and the choke….....35
7.specification table…………………………...36
8.electric circuit drawing……………………...37
Contents
Mortch International Ltd
2
http://www.mortch.com

1.SAFE DRIVING
Clothes:
WAY OF DRIVING
WAY OF DRIVING WAY OF DRIVING
WAY OF DRIVING
Safe driving main point is natural and relaxing
mood and wearing comfortable dress,
ay attention to driving with obeying ruler of
traffic, don’t worry and relax the mood.
CAUTION:
·the drivers don’t wear loose or longed clothes,
avoid to happen damage.
·the skin of body don’t touch with the exhaust
pipe after flameout the motorcycle within 10
minutes, for the temperature of is very high
during the driving.
Mortch International Ltd
3
http://www.mortch.com

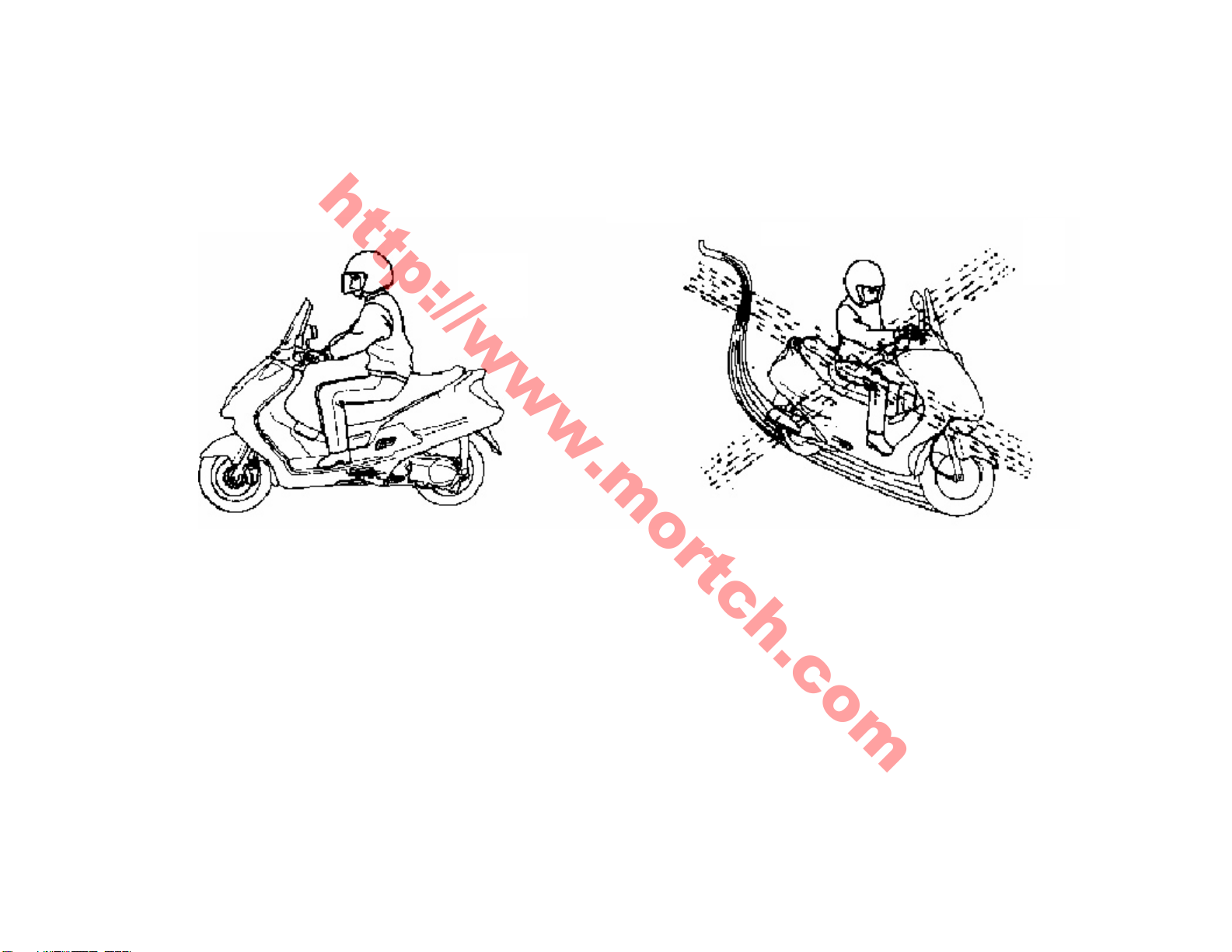

·keep your only natural posture to actively
driving the motorcycle.
· the position effect on the rider’s
safe,please seat at the center of double
seat, if driver seat at the end of double
seat and make front wheel reduce weight and
the handle bar will swing, in a word, this
happen to damage
·when driving at the swerve, please keep the
body to inner side, if else happen to damage.
·please pay attention to driving on the no-smooth
road.
Loading
Mortch International Ltd
4
http://www.mortch.com

·the handle bar can feel the change of weight
between the loading and no-loading. So please
driving caution. When the loading overtaking, the
handle bar shake easily, please avoid overtaking
driving.
NOTE:
·Don’t place the clothe under the seat(outer
luggage),if else, make the fuel system choked
and the engine ill.
·Don’t place the clothe between the outer cover
of frame and the engine if else happen to damage
the engine.
·Don’t replace the goods at the outer luggage
which is pointed, avoid to damage the outer of
frame body.
Mortch International Ltd
5
http://www.mortch.com

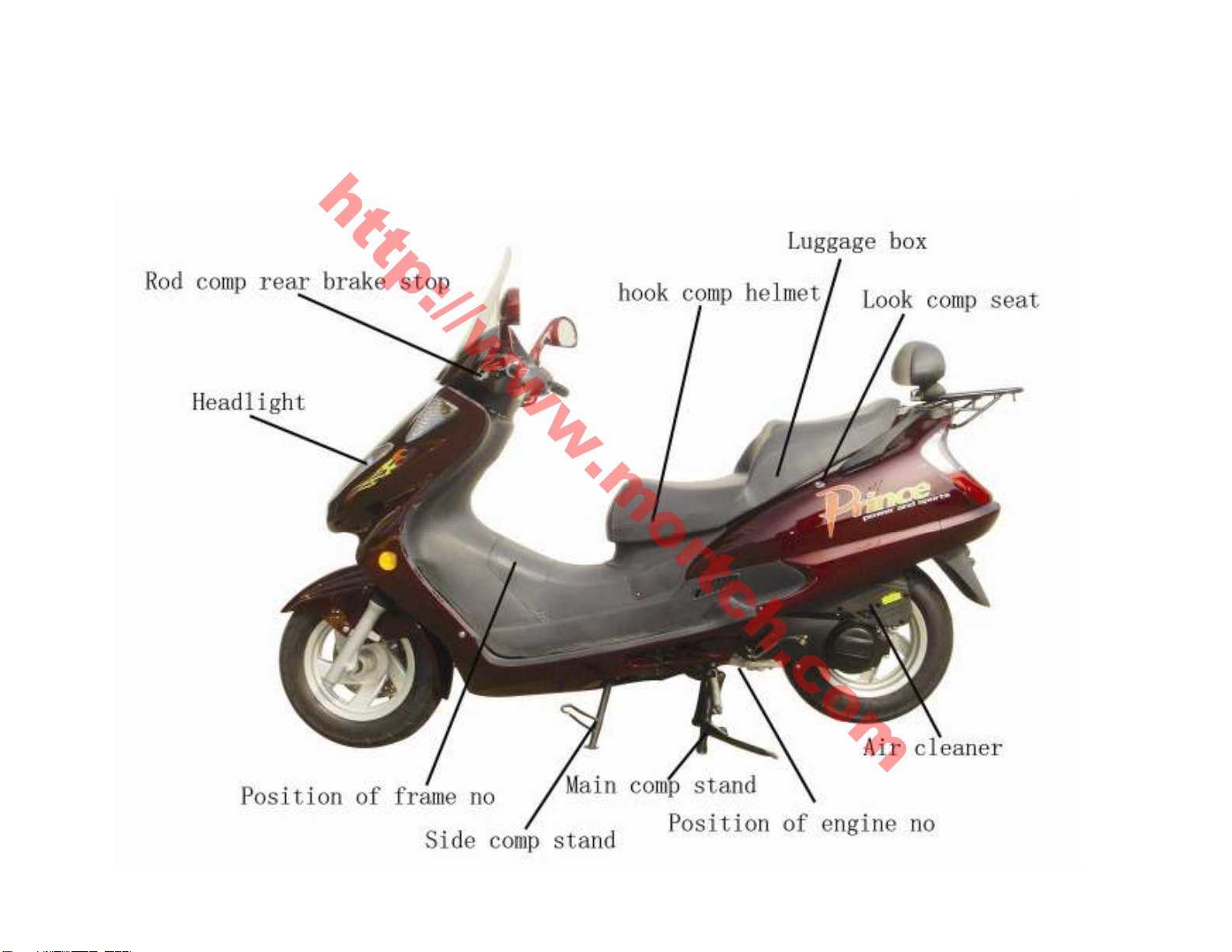

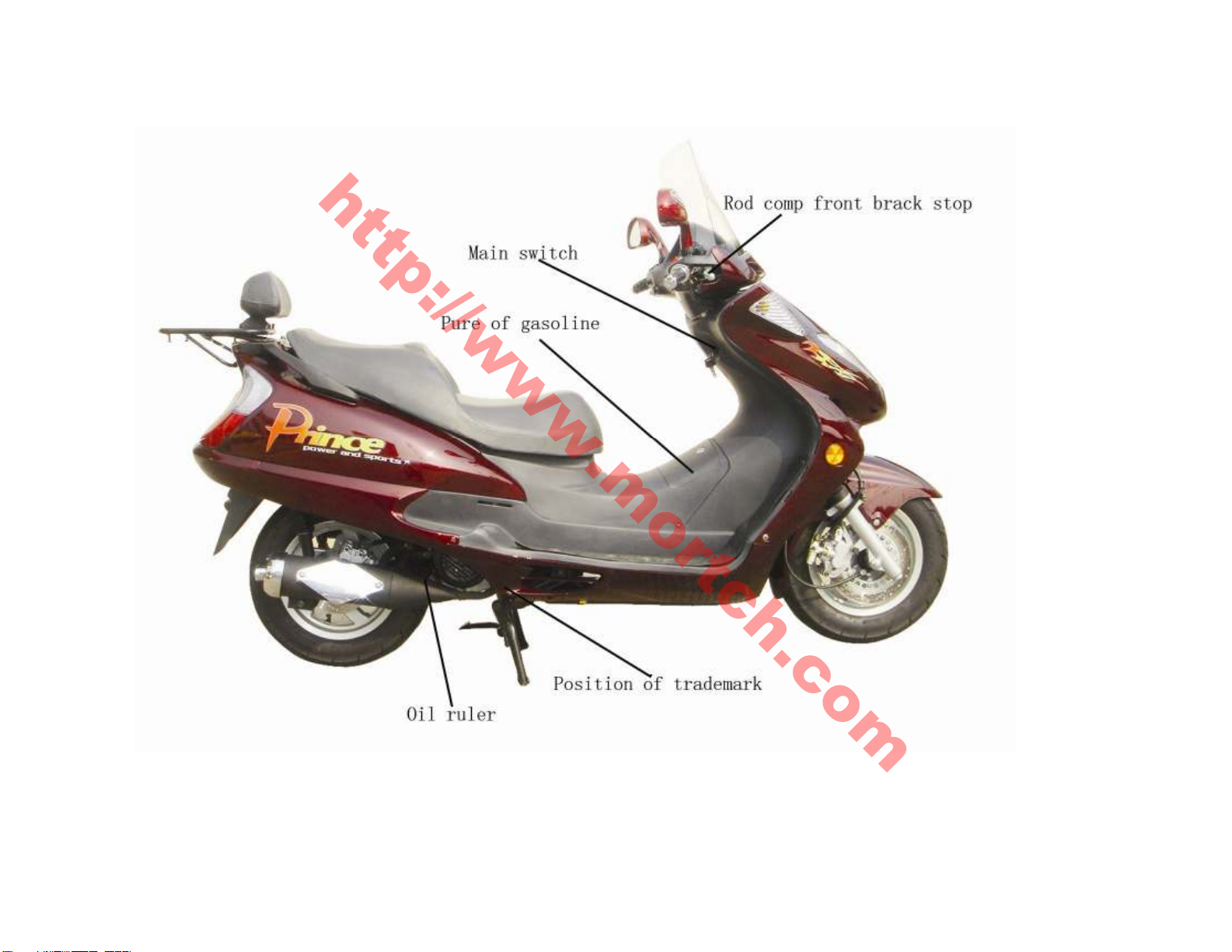

2.LOCATIONS OF ARTS:
Mortch International Ltd
6
http://www.mortch.com

Mortch International Ltd
7
http://www.mortch.com

3.INSTRUCTIONS FOR FHE
MOTORCYCLE
■
■■
■Speedometer nd indic tor
(1)Mile ge recorder
It display the total distance covered by the
vehicle(km)
(2)speed indic tor
The standard of speed:km/h
(3)Pilot of he dlight
ilot of headlight is switched and indicate the
pilot light.
(4)Turn sign l indic tor
The signal is switched and the indicator is
light.
(5)fuel meter
The fuel indicator shows the fuel capacity
remaining in the fuel tank(when the main switch
is ON,the meter indicates correctly, when the
position of OFF,the meter indicates correct) when
the needle is at the red zone,it indicated the fuel
is 1.5L,and please supply the fuel 90# in time.
(6)short ge dist nce meter
It is use for shortage distance and can indicate
“0”.
Mortch International Ltd
8
http://www.mortch.com

■Main switch
·Electrical source is cut off and the engine stopped.
·The key can be taken down.
·Electrical source is on and started.
·The key can not taken down when driving.
·The steering handle pipe is locked and avoid theft.
·The key can be taken down.
OFF
ON
LOCK
NOTE:
·When parking the motorcycle, lock
the turning bar and take down the key,
avoid to theft the motorcycle.
Mortch International Ltd
9
http://www.mortch.com

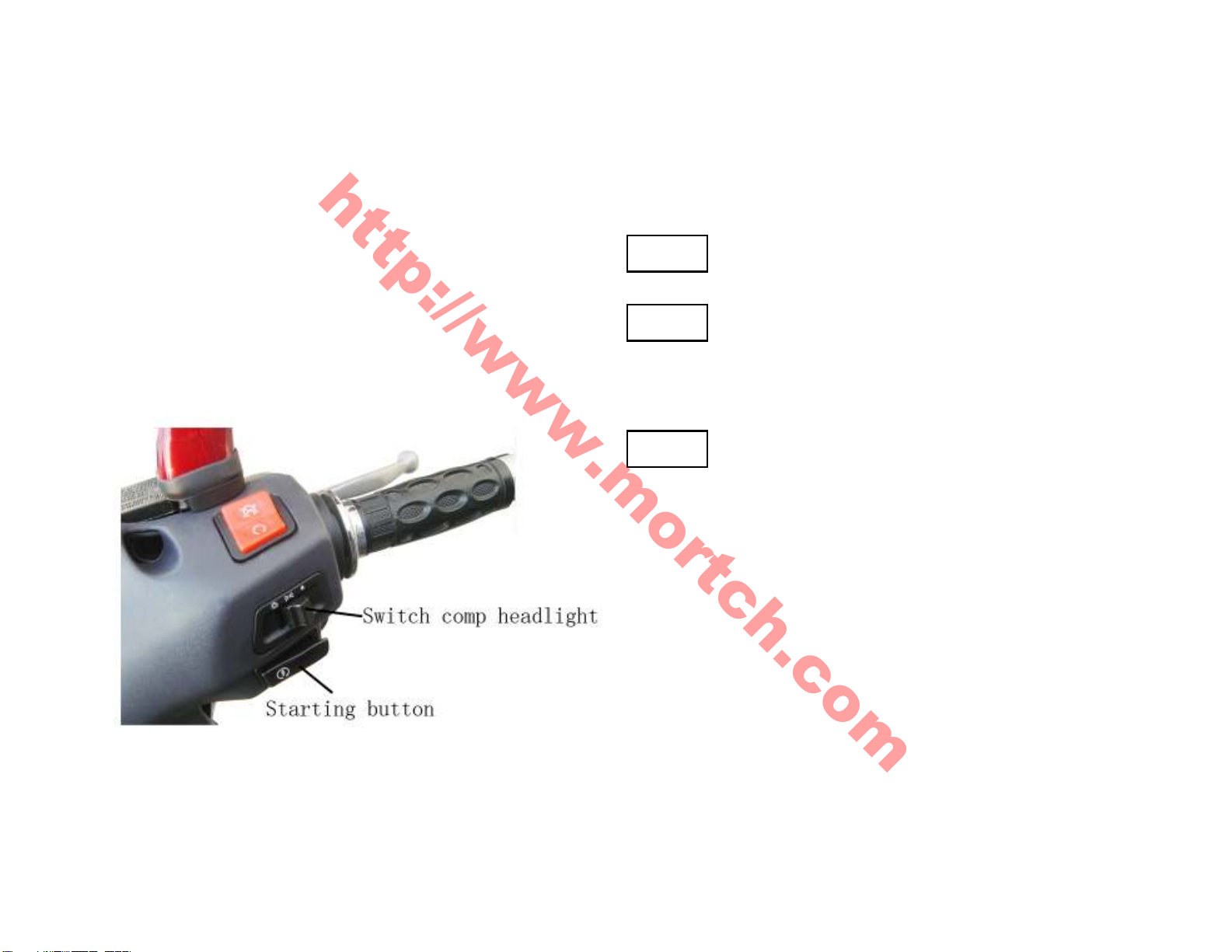

■Starting button:
When use the electric starting, please draw the
rod comp front brake stop, or step the pedal comp
rear brake, until the electrical source is touched
on.
■Switch comp headlight
■Headlight OFF:
·Headight,sidelights,speedometer
light are shut off.
· sidelights, speedometer light
are switched on.(the engine
don’t start and the lights are
shutoff)
·Headlight,speedometer light are
switched on(the engine don’t
start and the lights are shut off)
OFF
·
·
Mortch International Ltd
10
http://www.mortch.com

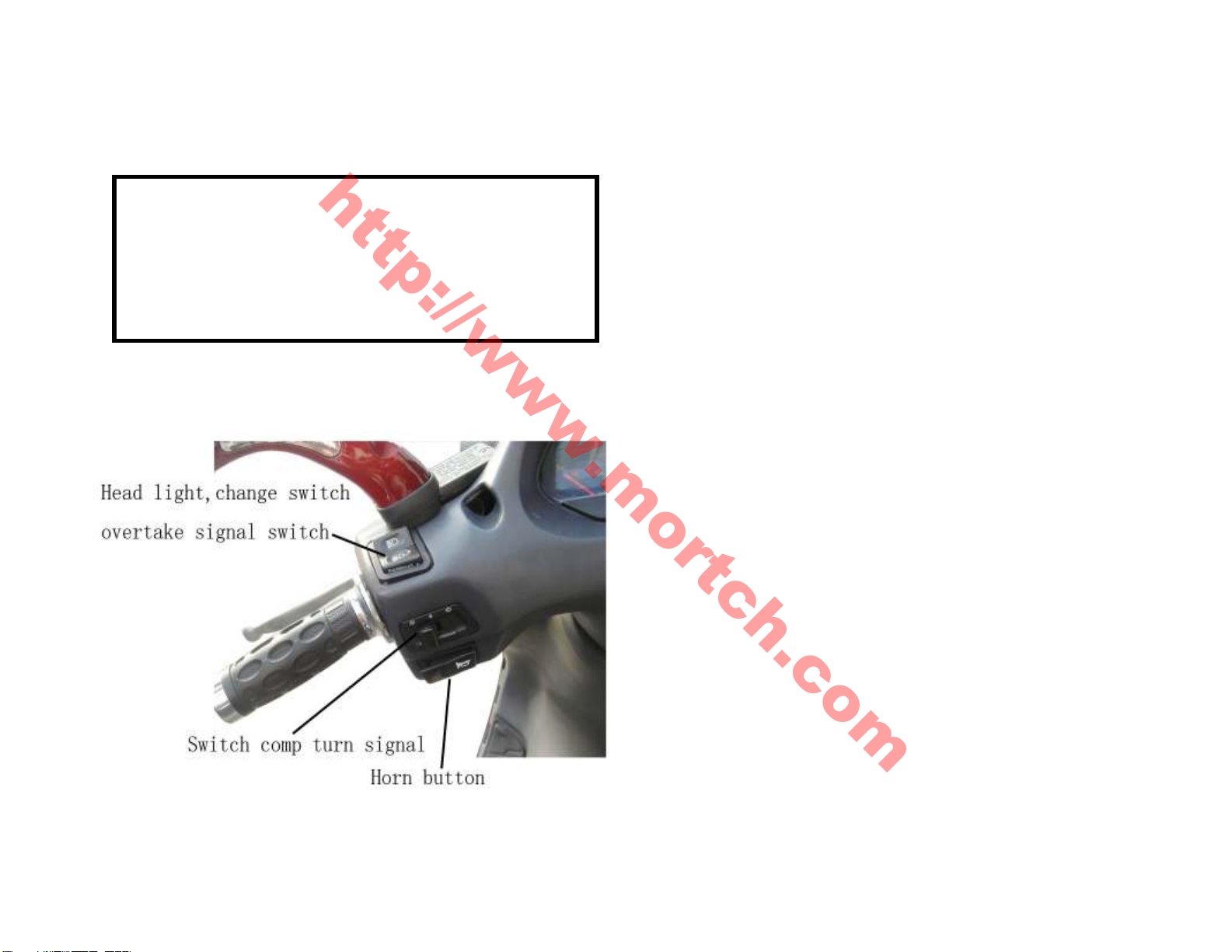

■HEAD LIGHT, CHANGE SWITCH OVERTAKE
HEAD LIGHT, CHANGE SWITCH OVERTAKE HEAD LIGHT, CHANGE SWITCH OVERTAKE
HEAD LIGHT, CHANGE SWITCH OVERTAKE
SIGNAL SWITCH
SIGNAL SWITCHSIGNAL SWITCH
SIGNAL SWITCH
when the pilot is switched, using the HI
When driving at the city and front
vehicle, using the LO, avoid to effect
on the sight of front
Overtaking warning light at the
position of LO, put down it and
headlight is switched on, indicates front
vehicle.
■HORN BUTTON:
When the main switch is ON, put down the
button of horn, and the horn tweets.
■Switch comp turn signal:
When swerve or change roadway, please turn
signal. When changing switch, the turn signal can
spark or shut off.
:Using it at the turning left.
:Using it at the turning right.
ASSIN
HI
LO
L
R
Mortch International Ltd
11
http://www.mortch.com

■
NOTE:
·lease return the turn signal after using
because it can’t relax, if else effect or other
people’s safe.
Mortch International Ltd
12
http://www.mortch.com

■KEY OF HEMET
W y of using
(1) Open lock comp seat and put up the seat.
(2) Make the key into hook.
(3) ush down seat and the seat auto can be
locked.
W y of t ke down
·The way of using is the same to above.

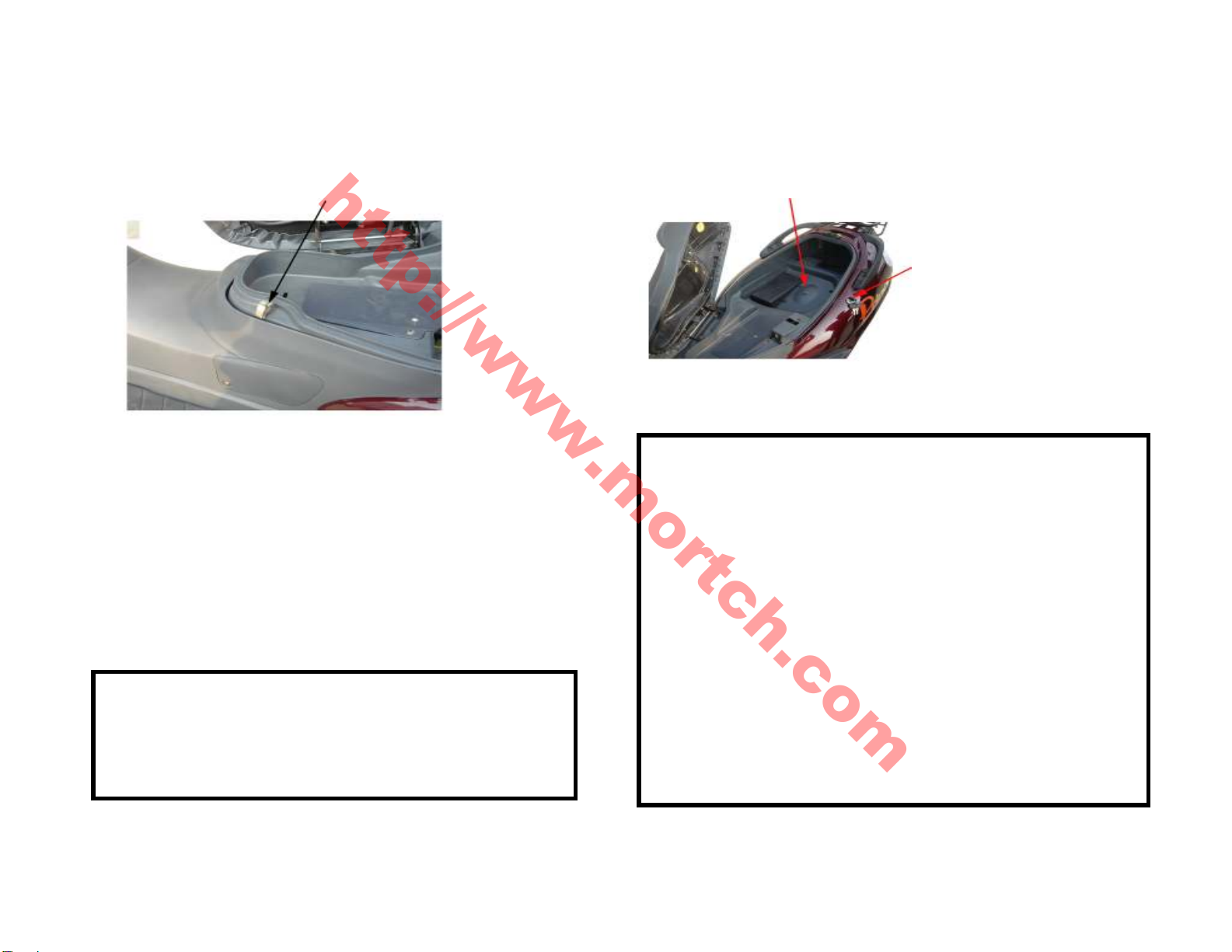

■LUGGAGE BOX:
Luggage box lies under the seat.
Way of opening seat is the same as above.
NOTE:
·When driving, don’t make the key leave the
helmet lock and avoid damage paint parts.
NOTE:
·The max weight of loading: not exceed 10kg.
·check the seat is locked.
·Don’t place the low-heat-resistant goods, foods
and combustible goods into the luggage box,
because of the high temperature of engine.
·Don’t place the expensive goods into the
luggage.
·Don’t make the water into the luggage box,
when cleaning the motorcycle.
Mortch International Ltd
13
http://www.mortch.com

■FRONT LUGGAGE BOX
Way of opening
Insert the key and turn it right, the front luggage
can push up.
Way of closing:
Insert the key and turn it right, close the cover of
luggage box. And then turn left and take down.
NOTE:
·The max weight of loading if front
luggage box: not exceed 1.5kg.
·Don’t place the expensive goods into box.
·lease note the expensive goods placed,
because water will into box when cleaning
the motorcycle.
Mortch International Ltd
14
http://www.mortch.com

■W y of st rting for engine:
(1) Check the gasoline, fuel and battery starting.
(2) Stand the main stand when starting engine,
and make the rear wheel nearly room.
(3) Turn the key of bank to “ON”.
(4) Adopt the electric/kick starting. If adopt
electric starting, must catch hold of front
brake bar or step rear brake pedal.
(5) When driving in winter, turn the key of bank
to “OFF”, kick starting about 5 times and
make into gasoline, then touché with the
electric road, with accelerating and warm up
the engine about 2- minutes. All are OK.
(6)Because the motorcycle designed advanced
electric starting valve, can start it with
kick/electric starting.
NOTE:
·lease using it according to above(5),when
the gasoline don’t reach the standard of 90# or
using it long time, and starting it again.
·when using the new motorcycle first, kick
starting it and can longed the usage life.
Mortch International Ltd
15
http://www.mortch.com

NOTE:
After starting the engine the hand leave the button
and don’t touch with it when driving; catch hold of
the front brake bar or step the rear brake pedal, the
braking light is switched, but pushing time is not
exceed seconds, and the tine share is about 10
seconds.The above times is not exceed 4times.
NOTE:
Return the starting arm after starting engine,
if else will effect on safe of driving .
Mortch International Ltd
16
http://www.mortch.com

4.WAY OF NATURAL DRIVING

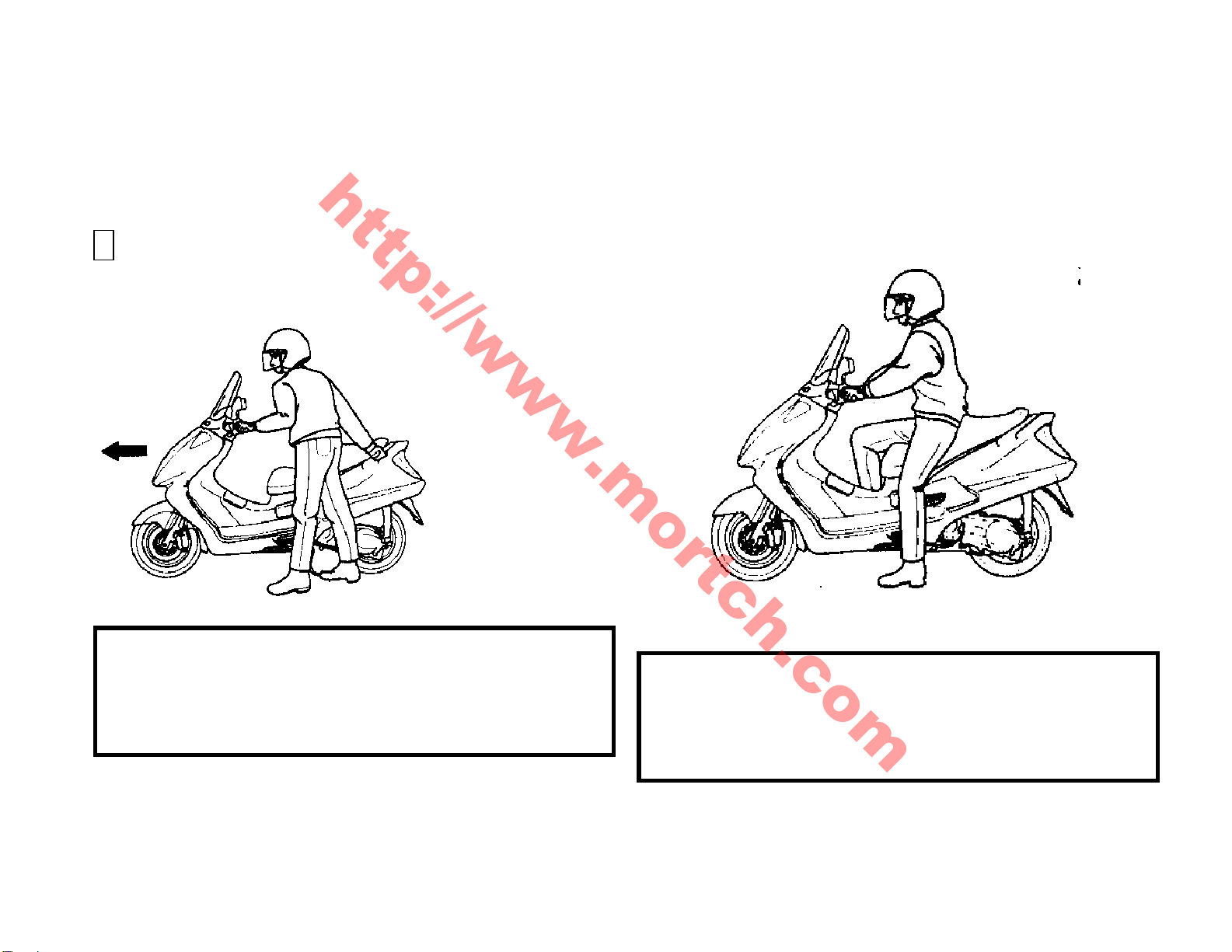

1 Spring the man stand firstly
·ush ahead and the main stand will auto spring.
·Ride the motorcycle from left side and seat well,
the left foot touch with room and avoid to rave.
NOTE:
·Don’t freely add oil and make the engine high
speed before the engine don’t driving.
NOTE:
·Keep the front and rear brake the position of
braking before driving.
Mortch International Ltd
17
http://www.mortch.com

2 Loose rod of rear brake
3 Turns the grip of throttle slowly and the
motorcycle moves slowly.
NOTE:
·Don’t add freely gasoline to the turning
bar after loosing the rod of rear braking,
avoid to happen dangerous
NOTE:
·Don’t turn the grip of throttle quickly and
avoid the motorcycle
Mortch International Ltd
18
http://www.mortch.com

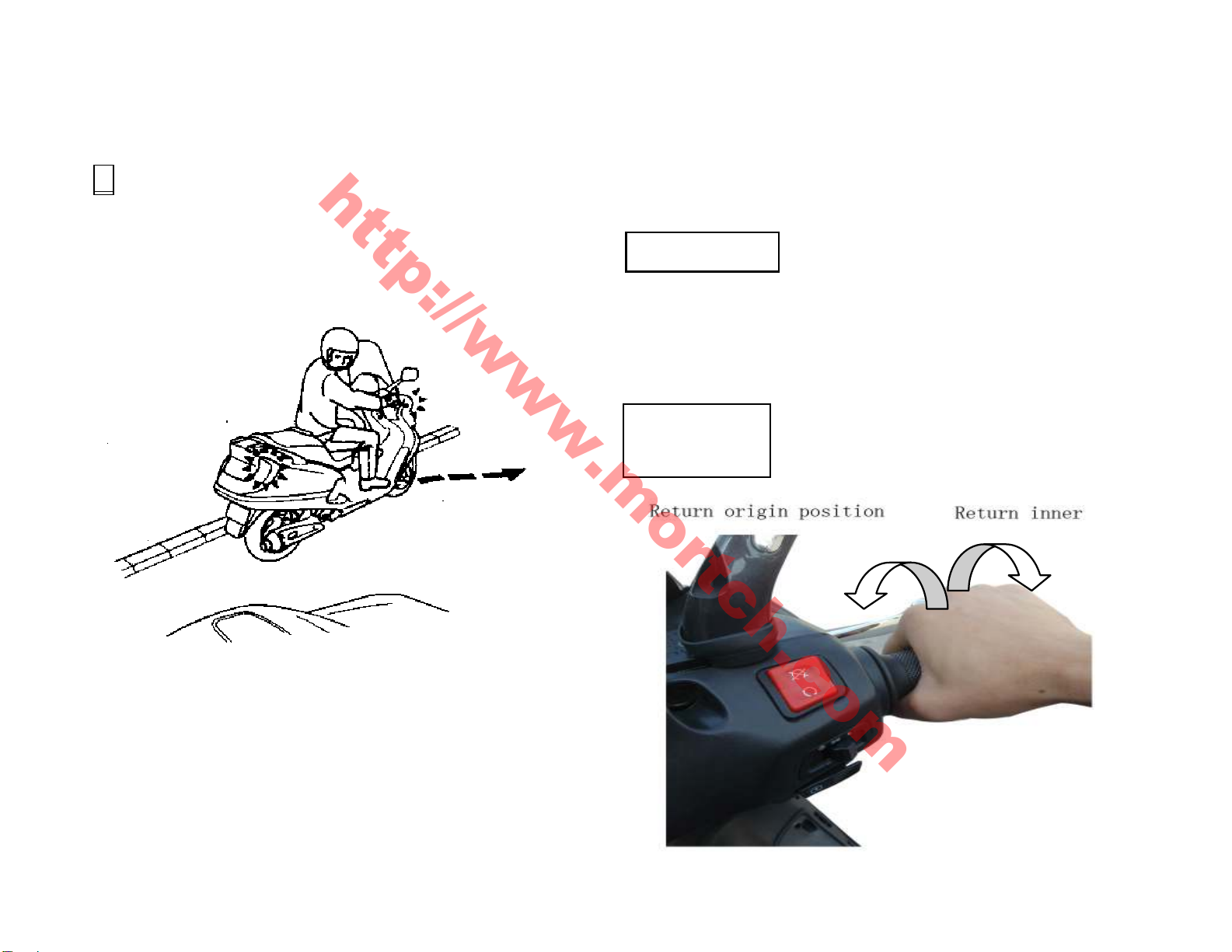

4 Correctly driving
Before driving the motorcycle, please open turn
signal and confirm the rear safe.
Adjusting of speed is controlled by the grip of
throttle.
The speed will become faster,
so please accelerate slowly.
The grip shall return to accelerate
and the power become high when
begin ning to start or climbing.
The speed become slowly.
Return inner
Return origin
position
Mortch International Ltd
19
http://www.mortch.com

■
■■

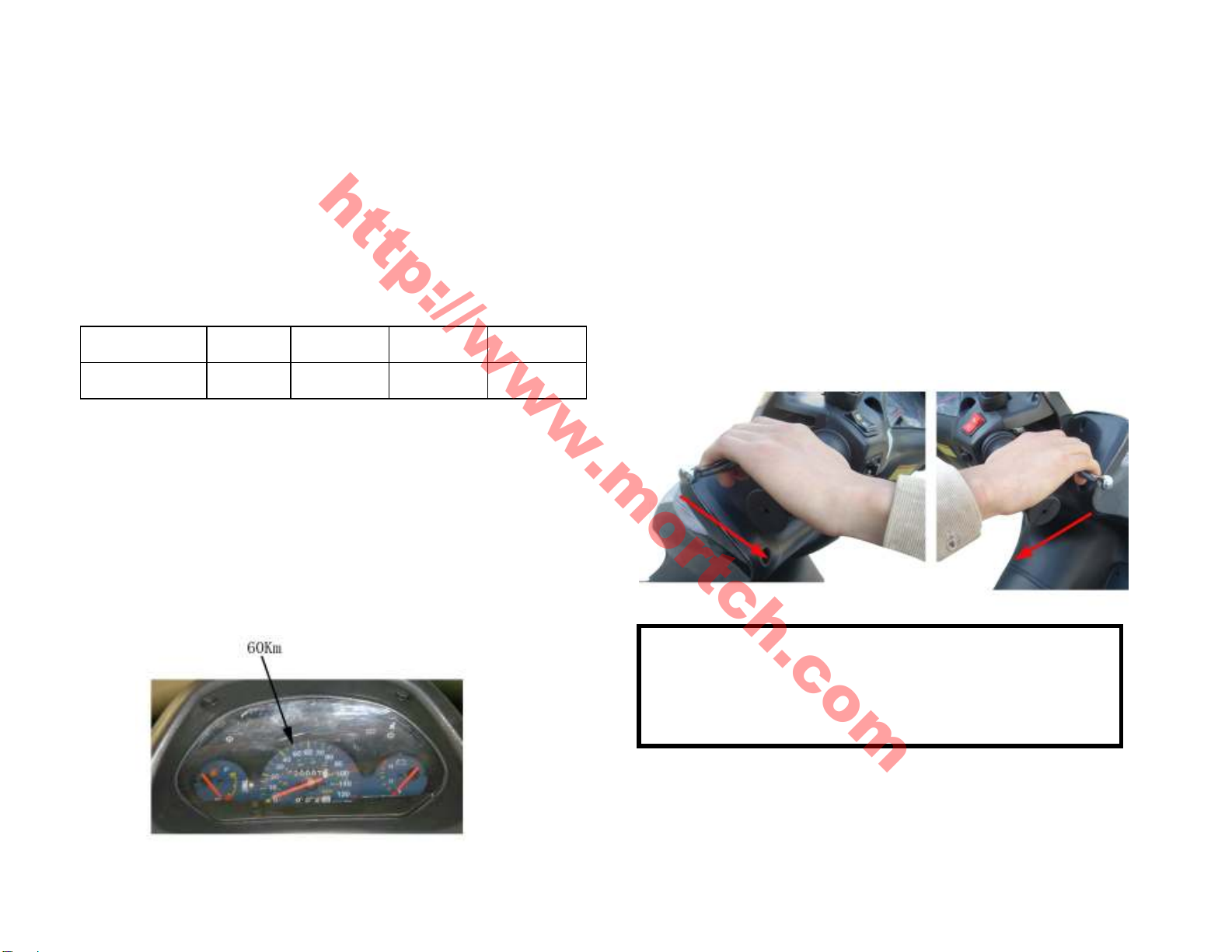

■The first period of new motorcycle
running will effect on the us ge of
engine.
·please keep the speed less 60km/h in the first
period of 1500km, details as followings;
D
riving mileage 0-300 300-500 500-1000 1000-1500
S
peed(km/h) 25-30 35-40 45-50 55-60
·Avoid accelerating quickly and overtaking
loading.
·Replace the oil of crankcase and gear oil the
warm condition the period of meshing.
·Avoid to driving long time by the full throttle
and notice to freely change speed, when the
distance of driving are over 1500km.
■
■
■
■Using the front&re r br king
stopping when p rking
·arking the motorcycle after returning the grip
of throttle to origin position.
·Start to parking slowly, and then step and sraw
urgently the vehicle.
NOTE:
·Don’t stop the motorcycle by the single
wheel, if else happen to accident.
Mortch International Ltd
20
http://www.mortch.com
