motif TWIST User manual

Name: Motif Twist
Model MT-10.1-2
Input: 500mA
Voltage: 6V
Address: 8 The Green Suite 501,
Dover, Delaware 19901
Telephone: [phone]
Email: [e-mail]
www.MotifMedical.com
TWIST
Before using this product, please carefully read the user manual.

1. Product Description
1.1 Twist
1.2 Product Warranty
2. Important Safeguards
2.1 Intended Use
2.2 Contraindications
2.3 Safety Information
3. Included with the Motif Twist
3.1 User Manual
3.2 Pump Components
3.3 Pump Accessories
4. Sterilization and Cleaning
4.1 Before Initial Use
4.2 After Each Use
4.3 Once Per Day
4.4 Tubing
5. Breast Pump Assembly
5.1 Battery Installation
5.2 Assembly Diagram
6. Breast Pump Features
7. Using Your Motif Twist
7.1 Preparing to Pump
7.2 Pumping
7.3 Single Pumping
7.4 Double Pumping
8. Troubleshooting
8.1 Common Issues
8.2 Breastshield Sizing
9. Storing and using Breast Milk
9.1 After Each Pumping Session
9.2 Freezing Breast Milk
9.3 Thawing Breast Milk
9.4 Storing Fresh Breast Milk
9.5 Storing Thawed Breast Milk
10. Electromagnetic Compatibility (EMC)
Motif Twist Operation Manual
Table of Contents

1.2 Product Warranty
Thank you for purchasing the Motif Twist. Please keep your receipt as proof
of purchase for any warranty claims.
Warranty Details
•The Motif Twist comes with a 12 month manufacturer's warranty for the
main pump and a 90 day warranty for the components.
•The warranty does not cover defects caused by misuse, abuse, improper
storage, or alteration of the product or components.
•The warranty does not cover misplacement or theft of the breast
pump or supplies.
•The warranty does not cover failure to comply with the operating
instructions of the device or components supplied with the product or
normal wear and tear.
•The user of this product assumes all responsibilities and risks for use
of this product.
WARNING: No modification of this device or its components is allowed.
1.Product Description
The Motif Twist double electric breast pump utilizes a vacuum to express
breast milk. The motor is classified as a medium vacuum and intermittent
suction device.
1.1
OFF
MIN
MAX
2. Important Safeguards
2.1 Intended Use
The Motif Twist Double Electric Breast Pump is intended for use by lactating
women to express and collect breast milk. The Twist can be used as a single
or double pump.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities unless they are under
supervision or instruction by persons responsible for their safety.
CAUTION: Sharing a breast pump can cause health hazards.
2.2 Contraindications
There are no known contraindications for this breast pump.
2.3 Safety Information
•Read all instructions before use.
•When using the adaptor, always use the correct voltage
(100v-240v, DC 5V, 1A).
•Only use the power adaptor that comes with your Motif Twist.
•If the supply cord is damaged, replace it immediately to avoid hazard.
•Do not immerse the main body in water or clean it with a wet cloth.
Always use a clean, dry towel.
•Keep all small components out of the reach of children, as small parts
can be a choking hazard.
•When the pump is not in use make sure itʼs unplugged from the outlet.
•The working life for this device and other accessories is 2 years.
•Store the device in a cool, dry place. Heating from a fireplace, radiant
heater, or moisture could potentially cause problems.
When used in conjunction with the following words, symbols indicate:
WARNING A hazard of serious injury or death.
!
CAUTION A hazard of minor injury or damage to the system.
!

3.3 Pump Accessories Included
- 2 180 ml Milk Collection Container Kits.
- 2 Bottle Nipples
4. Sterilization and Cleaning
4.1 Before Initial Use
Prior to using the pump for the first time, sanitize all parts
3. Included With Your Motif Twist
3.1 User Manual
3.2 Pump Components
*Note: While unpacking the box, make sure all of the following components are enclosed.
Name
User Manual
Diaphragm
Top
Diaphragm
Connector
Hygiene
Cover
Massage
Shield
Silicone
Gasket
Valve
1
2
2
2
2
2
2
Membrane
Storage
Container
Container
Base
Pump
Tubing
Tubing
Adaptor
Power
Adaptor
2
2
2
1
2
2
1
Shape Quantity Name Shape Quantity
2
4.2 After Each Use
1. Thoroughly wash your hands before handling each breast pump component.
2. Disassemble each part that comes into contact with breast milk including
the: valve, connector, tubing, tubing connector, bottle, bottle nipple.
3. Rinse each part in cool water to remove milk residue.
4. Separately wash each part in the sink with a soft brush or clean
dishcloth; OR soak each part in warm soapy water for 5 minutes and
thoroughly rinse them; OR seperate each part and wash them on the top
rack of your dishwasher.
5. Dry each part with clean towel and/or allow them to completely air dry
on a sanitary surface.
6. Wipe the main body with a dry, clean towel after each use.
7. Store parts after they completely dry in a clean bag or container.
Do not store any damp parts.
4.3 Once Daily
1. Sanitize each component that comes into contact with breast milk.
2. Disassemble the breast pump after use.
3. Place each breast pump component in a pot of water and submerge any
parts that come into contact with breast milk.
3. Bring water to a boil and allow parts to sanitize for 5 minutes.
4. Once the water has cooled, carefully remove each part. Use caution as
they might be hot.
5. Place the sanitized parts on a clean surface or towel.
6. Allow them to completely dry.
7. Store parts after they completely dry in a clean bag or container.
Do not store any damp parts
4.4 Tubing
1. Tubing should be cleaned after coming into contact with breast milk.
2. Make sure the the breast pump is turned off and unplugged, then detach
the tubing from the breast pump unit and breast shield.
3. Rinse the tube with cool water to remove any breast milk residue.
4. Wash the tubing in warm soapy water, then thoroughly rinse it with
cool water.
5. Hang tubing and allow to air dry completely.
*Note: Do not sterilize or wash the main body of the breast pump or the
power adaptor. Make sure to allow parts to dry completely before your
next pumping session.

5. Breast Pump Assembly (See Opposite Page)
1. Wash hands thoroughly and and sterilize each breast pump component
before assembly.
2. Snap the membrane into the valve until it lies completely flat.
3. Place the valve up into the connector and make sure the seal is tight.
4. Attach the massage pad onto the breastshield connector (optional).
5. Attach the diaphragm on top of the connector.
6. Connect the diaphragm top by attaching it to the top of the diaphragm.
7. Insert the tubing connector with the tubing attached into the diaphragm.
8. Screw the storage container onto the connector.
9. Insert the tubing connector into the tubing port on the breast pump.
10. Insert the DC connector on the power cord into the DC port on the pump,
then insert the USB into the USB socket adaptor and plug it into a power outlet.
11. After pumping, store your breastmilk in the refrigerator and clean your
pump. Make sure all electric components are dry.
5.1 Battery Installation
*Note: Be sure to turn off the pump and disassemble the parts when not in use.
1. Open the battery cover by rotating it to the left, and install four AA
batteries and close the cover.
2. Align the batter cover arrow with the arrow on the base and twist it to
the right to lock.
1. 2.
5.2 Breast Pump Assembly Diagram
TWIST
Tubing
Diaphragm Cover
Diaphragm
Diaphragm
Bottom
Silicone
Gasket
Valve
Membrane
Storage
Container
Container Base
Hygiene Cover
Connector
Massage Shield
Using the massage shield makes
the flange 21mm, remove for 24mm
Pump Motor
Tubing Adaptor
Power Adaptor

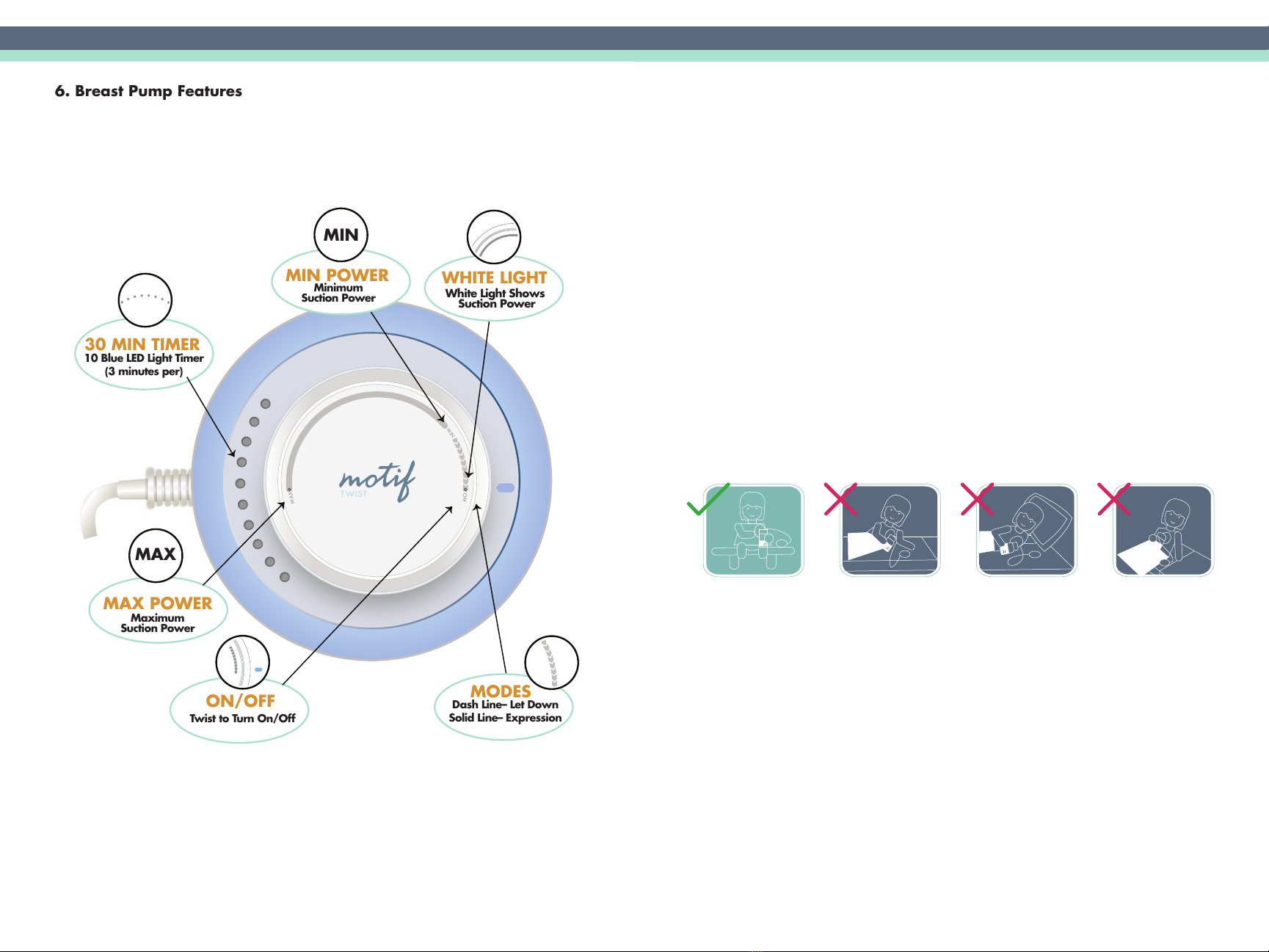

6. Breast Pump Features
OFF
MIN
MAX
30 MIN TIMER
10 Blue LED Light Timer
(3 minutes per)
ON/OFF
Twist to Turn On/Off
MAX POWER
Maximum
Suction Power
MAX
MIN POWER
Minimum
Suction Power
MIN
WHITE LIGHT
White Light Shows
Suction Power
MODES
Dash Line– Let Down
Solid Line– Expression
OFF
MIN
MAX
7. Using Your Motif Twist
7.1 Preparing to Pump
1. Thoroughly wash your hands with soap and water before touching any
pump parts.
2. Check each component for wear or damage before use and replace parts
when/if necessary.
3. Make sure that all components that come into contact with breast milk are
properly sanitized.
4. Assemble the breast shield, diaphragm, and bottle according to the
instructions and connect to the pump body via the tubing.
5. Ensure tubing is tightly connected to prevent air leakage.
6. Check battery level before use to ensure the device is fully charged.
7. Massage the breast for about 5 minutes with a warm towel to
promote expression.
7.2 Pumping
While using your Motif Twist maintain an upright position to prevent milk from
back flowing.
1. Place the breast shield on your breast so that your nipple is centered within
it. (Refer to the troubleshooting section to learn more about finding the correct
breast shield size).
2. Turn the breast pump on to begin pumping.
3. Ensuring proper let down is vital to successful expression. To achieve let
down, begin pumping with the dial set between "Min" and the midpoint of
the dial.
4. Once let down is achieved, increase suction by turning dial to any point
between the midpoint and "Max," this will allow you to transition to
expression mode.
5. Normal pumping durations last between 15 to 30 minutes, but vary
between individual moms.
6. After your pumping session, turn off the power and slide a finger between
your breast and the breast shield to separate them.

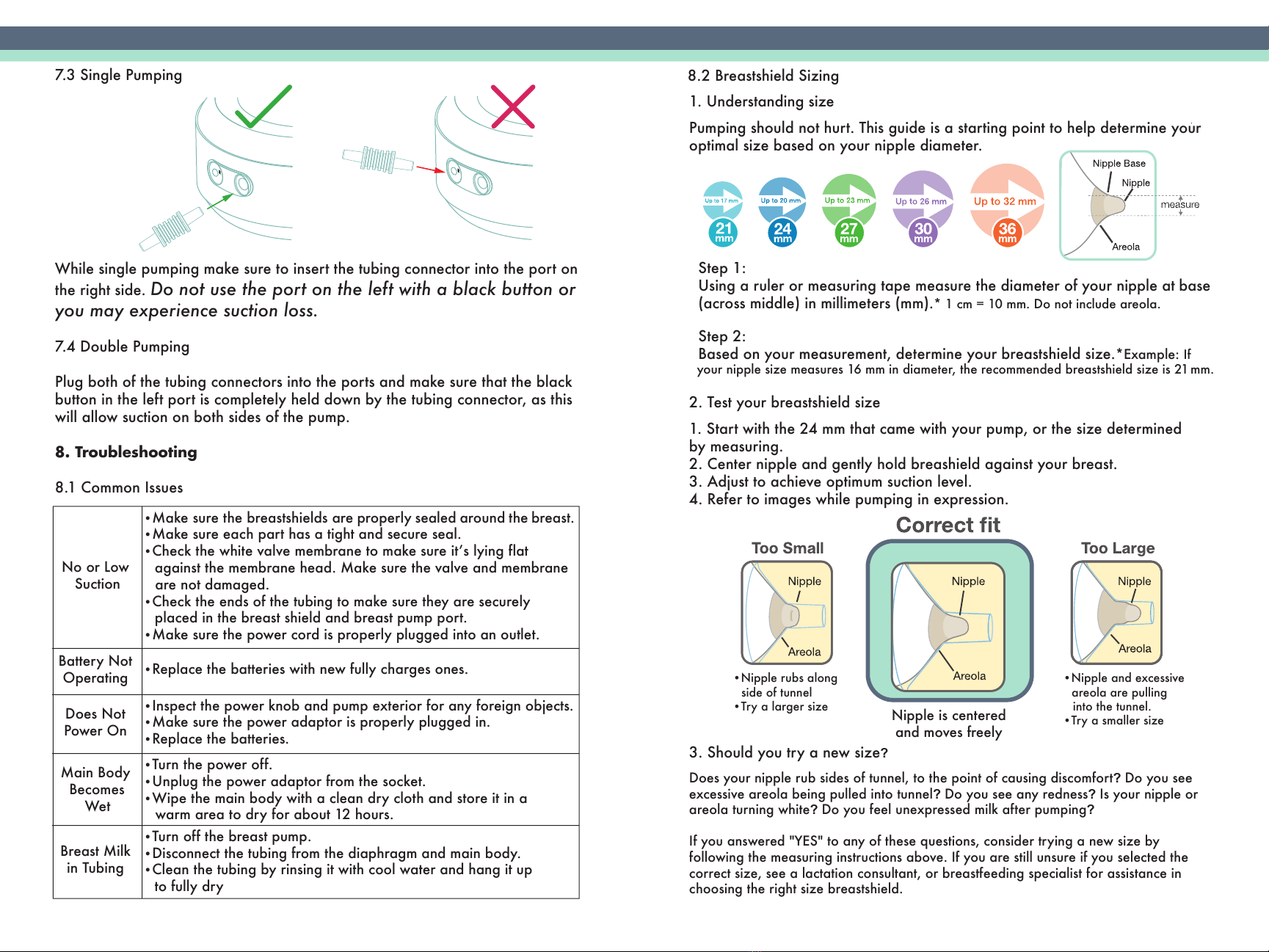

7.3 Single Pumping
While single pumping make sure to insert the tubing connector into the port on
the right side. Do not use the port on the left with a black button or
you may experience suction loss.
7.4 Double Pumping
Plug both of the tubing connectors into the ports and make sure that the black
button in the left port is completely held down by the tubing connector, as this
will allow suction on both sides of the pump.
8. Troubleshooting
8.1 Common Issues
•Make sure the breastshields are properly sealed around the breast.
•Make sure each part has a tight and secure seal.
•Check the white valve membrane to make sure itʼs lying flat
against the membrane head. Make sure the valve and membrane
are not damaged.
•Check the ends of the tubing to make sure they are securely
placed in the breast shield and breast pump port.
•Make sure the power cord is properly plugged into an outlet.
•Replace the batteries with new fully charges ones.
•Inspect the power knob and pump exterior for any foreign objects.
•Make sure the power adaptor is properly plugged in.
•Replace the batteries.
No or Low
Suction
Battery Not
Operating
Does Not
Power On
•Turn the power off.
•Unplug the power adaptor from the socket.
•Wipe the main body with a clean dry cloth and store it in a
warm area to dry for about 12 hours.
•Turn off the breast pump.
•Disconnect the tubing from the diaphragm and main body.
•Clean the tubing by rinsing it with cool water and hang it up
to fully dry
Main Body
Becomes
Wet
Breast Milk
in Tubing
8.2 Breastshield Sizing
1. Understanding size
Pumping should not hurt. This guide is a starting point to help determine your
optimal size based on your nipple diameter.
3. Should you try a new size?
Does your nipple rub sides of tunnel, to the point of causing discomfort? Do you see
excessive areola being pulled into tunnel? Do you see any redness? Is your nipple or
areola turning white? Do you feel unexpressed milk after pumping?
If you answered "YES" to any of these questions, consider trying a new size by
following the measuring instructions above. If you are still unsure if you selected the
correct size, see a lactation consultant, or breastfeeding specialist for assistance in
choosing the right size breastshield.
Step 1:
Using a ruler or measuring tape measure the diameter of your nipple at base
(across middle) in millimeters (mm).* 1 cm = 10 mm. Do not include areola.
Step 2:
Based on your measurement, determine your breastshield size.*Example: If
your nipple size measures 16 mm in diameter, the recommended breastshield size is 21 mm.
2. Test your breastshield size
1. Start with the 24 mm that came with your pump, or the size determined
by measuring.
2. Center nipple and gently hold breashield against your breast.
3. Adjust to achieve optimum suction level.
4. Refer to images while pumping in expression.
•Nipple rubs along
side of tunnel
•Try a larger size
•Nipple and excessive
areola are pulling
into the tunnel.
•Try a smaller size
Nipple is centered
and moves freely

9. Storing and Using Breast Milk
The following information is referenced from the Office of Womenʼs Health.
Store your breast milk in clean glass or hard BPA-free plastic bottles with
tight-fitting lids. You can also use milk storage bags, which are specifically
made for freezing human milk. Do not use disposable bottle liners or other
plastic bags to store breast milk.
9.1 After Each Pumping Session
• Label the date on the milk storage container. Include your childʼs name if
you are giving the milk to a childcare provider.
• If cream rises to the top of the bottles, gently swirl them to mix the cream
with the rest of the milk. Do not shake the milk, as it could cause some of the
milk nutrients to break down.
• Refrigerate or chill breast milk immediately after expression. You can
refrigerate breast milk in a cooler or insulated cooler pack, or freeze the
milk in small (2 to 4 ounce/60 to 110 g) batches.
9.2 Freezing Breast Milk
• If using BPA-free plastic or glass bottles, wait until milk is completely frozen
to tighten bottle caps or lids.
• Try to leave an inch or so from the milk to the top of the container, as it will
expand when freezing.
• Store milk in the back of the freezer, away from the freezer door.
9.3 Thawing and Warming Milk
• Clearly label milk containers with the date the milk was expressed.Use
oldest stored milk first.
• Thaw the bottle or bag of frozen milk by putting it in the refrigerator
overnight, holding it under warm running water, or by placing it in a container
full of warm water for several minutes.
• Never put a bottle or bag of breast milk in the microwave. Microwaving
breast milk creates hotspots that could burn or damage the milk.
• Swirl the milk, and test the temperature by placing a few drops on your
wrist. The milk should be comfortably warm, not hot.
• Use thawed breast milk within 24 hours. Never refreeze thawed breast milk.
9.4 Storing Fresh Breast Milk
9.5 Storing Thawed Breast Milk
Thawed Breast Milk
1 to 2 hours is best, do not store for over 4 hours.
24 hours.
Do NOT refreeze.
10. Electro Magnetic Compatibility (EMC)
1. This equipment has been tests and found to comply with the limits for
medical devices in EN601-1-2. These limits are designed to provide
reasonable protections against harmful interference in a typical
medical installation.
2. This equipment generates, uses, and can radiate radio frequency energy
and if not installed and used according to the instructions may cause harmful
interference to other devices nearby. However, there is no guarantee that
interference will not occur in a particular installation.
3. If this equipment does not cause harmful interference to other devices,
which can be determined the equipment off and on, the user is encouraged
to try and correct the interference by one of the following measures:
•Reorient or relocate the receiving device.
•Increase the separation between the equipment.
•Connect the equipment into an outlet on a circuit different from one that has
other devices connected.
•Consult the manufacturer or field service technician below. Our contact
information is listed on the last page.
Room temperature
(up to 77°F or 25°C)
Ideally, use
within 3-5 hours.
Containers should be
covered and kept as cool
as possible.Discard leftover
milk within 1 to 2 hours after
your baby is finished feeding.
Countertop or Table
39° F
(4° C) or colder
Use within
3-5 days.
Store milk in the back of the
main body of the refrigerator.
Use an insulated bag to store
milk in the back of the
refrigerator while at work.
Refrigerator
Temperature Longevity TipsStorage Method
0° F
(4° C) or colder.
Use within 3 to
6 months is best.
Store the milk in the back
of the freezer where the
temperature will remain
the most consistent.
Freezer

EMC Guidelines
Cable information is provided below for EMC reference.
Important information regarding Electromagnetic Compatibility.
Double electric breast pumps need special precautions regarding EMC and
need to be put into service according to the EMC information provided in the
user manual and other documents.
This double electric breast pump conforms to this
EN 60601-1-2:2007+AC:2010/IEC 60601-1-2:2007 standard for both
immunity and emissions.
The use of accessories and other cables other than those specified, with the
exception of accessories and cables sold by Motif Medical, LLC of the double
electric breast pump as replacement parts for internal components may result
in increased EMISSIONS and decreased IMMUNITY or decreased LIFESPAN
of the double electric breast pump.
The double electric breast pump should not be used adjacent to or stacked
with other equipment. In case adjacent or stacked use is necessary, the breast
pump should be observed to evaluate normal operation in the configuration in
which it will be used.
Cable Max. cable length,
Shielded/unshielded Number Cable classification
DC Power Line 5.9 ft Nonshielded 1 Set DC Power
]]]
MT-10.1-2
MT-10.1-2
MT-10.1-2
MT-10.1-2
Guidance and manufacturerʼs declaration - electromagnetic immunity - for all ME
EQUIPMENT and ME SYSTEM.
EMC Information
Table 1:Guidance and manufacturerʼs declaration – electromagnetic emissions
The
MT-10.1-2 is intended for use in the electromagnetic environment specified below.
The customer or user of the
MT-10.1-2 should assure that it is used in such an environment.
Emissions test Compliance Electromagnetic environment - guidance
RF emissions
CISPR 11 Group 1
The
MT-10.1-2 uses RF energy only for its internal function.
Therefore, its RF emissions are very low and are not likely
to cause any interference in nearby electronic equipment
RF emissions
CISPR 11
Harmonic emissions
IEC 61000-3-2
Voltage fluctuations/
Flicker emissions
IEC 61000-3-3
Compliance
Class A
Class B The
MT-10.1-2 is suitable for use in all establishments,
including domestic establishments and those directly
connected to the public low-voltage power supply
network that supplies buildings used for domestic
purposes.
Guidance and manufacturerʼs declaration - electromagnetic emissions - for all ME
EQUIPMENT and ME SYSTEM.
Table 2:Guidance and manufacturerʼs declaration – electromagnetic immunity
The MT-10.1-2 is intended for use in the electromagnetic environment specified below. The customer or the
user of the MT-10.1-2 should assure that it is used in such an environment.
Immunity test IEC 60601
Test level
Compliance
level
Electromagnetic environment - guidance
Electrostatic
Discharge(ESD)
IEC 61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be wood, concrete or
ceramic tile. If floors are covered with
synthetic material, the relative humidity
should be at least 30%.
Electrical fast
transient/burst
IEC 61000-4-4
±2 kV for power supply
lines
±1 kV for input/output
lines
±2 kV for power
supply lines
±1 kV for
input/output lines
Mains power quality should be that of a typical
commercial or hospital environment
Surge
IEC 61000-4-5
±1 kV lines to lines
±2 kV lines to earth
±1 kV lines to lines
±2 kV lines to earth
Mains power quality should be that of a typical
commercial or hospital environment.

Voltage dips, short
interruptions and voltage
variations on power
supply input lines
IEC 61000-4-11
<5% UT
(>95% dip in UT)
For 0,5 cycle
40% UT
(60% dip in UT)
For 5 cycle
70% UT
(30% dip in UT)
For 25 cycle
<5% UT
(>95% dip in UT)
For 5 cycle
<5% UT
(>95% dip in UT)
For 0,5 cycle
40% UT
(60% dip in UT)
For 5 cycle
70% UT
(30% dip in UT)
For 25 cycle
<5% UT
(>95% dip in UT)
Mains power quality should be that of a
typical commercial or hospital environment.
If the user of MT-10.1-2 requires continued
operation during power mains interruptions,
it is recommended that the MT-10.1-2 be
powered from an uninterruptible power
supply or a battery.
For 5 cycle
Power frequency
(50/60Hz) magnetic
field IEC 61000-4-8
3A/m 3A/m Power frequency magnetic fields should be
at levels characteristic of a typical location
in a typical commercial or hospital
environment
Note: UT is the a.c. mains voltage prior to application of the test level.
Guidance and manufacturerʼs declaration – electromagnetic immunity for ME
EQUIPMENT and ME SYSTEM that are not LIFE-SUPPORTING.
Table 3: Guidance and manufacturerʼs declaration – electromagnetic immunity
The MT-10.1-2 is intended for use in the electromagnetic environment specified below. The customer or the
user of the MT-10.1-2 should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance
level
Electromagnetic environment-guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 kHz to 80MHz
3 Vrms
80MHz to 2.5GHz
V1=3V
E1=3V/m
Portable and mobile RF communications
equipment should be used no closer to any
part of the SYSTEM, including cables, than
the recommended separation distance
calculated from the equation applicable to
the frequency of the transmitter.
Recommended separation distance
80MHz to 800MHz
800MHz to 2.5GHz
Where P is the maximum output power
rating of the transmitter in watts(W)
according to the transmitter manufacturer
and d is the recommended separation
distance in meters(m).
]
800MHz to 2.5GHz
]]
Recommended separation distances between portable and mobile RF communications equipment and the ME
EQUIPMENT and ME SYSTEM – for ME EQUIPMENT and ME SYSTEM that are not LIFE-SUPPORTING
Recommended separation distances between portable and mobile RF communications equipment and the
MT-10.1-2
The MT-10.1-2 is intended for use in an electromagnetic environment in which radiated RF disturbances are
controlled. The customer or the user of the MT-10.1-2 can help prevent electromagnetic interference by
maintaining a minimum distance between portable and mobile RF communications equipment (transmitters)
and the MT-10.1-2 as recommended below, according to the maximum output power of the communications
equipment.
Rated maximum
output power of
transmitter
W
Separation distance according to frequency of transmitter
m
150kHz to 80 MHz 80MHz to 800MHz
0.37 0.37
3.7 3.7
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site survey,
should be less than the compliance level in
each frequency range.
Interference may occur in the vicinity of
equipment marked wigh the following
symbol:
