User manual LFX Master DMX page 4 of 35
Chapter 1
Intended use
This product is for professional use only and has been designed for indoor use in dry envi-
ronment.
Please read this manual carefully before operation and follow the safety information.
The LFX Master DMX lighting effect generator allows for control of lamps connected at the
DMX-512 output.
The DMX-512 input allows for remote control of the unit or to extend the functions using an
external dimmer console.
Chapter 2
Safety - PLEASE READ
It is important to read ALL safety and installation instructions to avoid any damage to the
product and potential injury to yourself and others.
Only use this product if all cables, connectors and the product itself are undamaged.
The device must be used in accordance with local regulations only.
Do not operate the product if the ambient temperature exceeds 40°C / 104°F.
Exposure to moisture may cause damage to the product and will void your warranty.
Damage caused by inadequate cleaning or maintenance is not covered by the warranty.
Never connect the PSU and a battery or other power source at DC IN/OUT 1 and 2 at the
same time!
Only use the power supply unit (PSU) delivered from movie-intercom LightingFX Tools.
DANGER
Risk of injury or death through epileptic seizure.
Do not use the effect near stairways, in corridors or near public exits. Provide advance no-
tice that strobe lighting is in use. Display advisory notices on the set, at the pointof ticket
sales, on tickets if possible, in the program, and at the entrance(s) to the venue or studio.
Avoid extended periods of continuous flashing, particularly at frequencies of 10 to 20 flas-
hes per second. At flash rates below 5 flashes per second, it is estimated that only 5% of
flicker-sensitive persons will be at risk of seizure.
Make sure that personnel at the venue are trained in the care of a person who is having
an epileptic seizure and able to provide care if necessary. If strobes are in use and a per-
son has a seizure, switch the strobes off immediately. Mount strobes as high above head
height as practicable.

User manual LFX Master DMX page 5 of 35
Chapter 3
General features
3.1 Control panel
A coloured label represents the recommended default settings - set SPEED, TRANSITIONS
and DIMMER min to the corresponding coloured markers located on each scale.
Connections
Connect PSU 12 VDC here @ 1 or 2
- 1 and 2 throughput
- use second DC jack for powering
an external device, e.g. wireless
DMX transmitter or dimmer console
The DC input is internally protected
against short-circuit/polarity for the unit.
Caution: both DC-inputs are directly
connected with each other!
DMX input
- connect dimmer console/existing DMX universe here
- use as an inline device in an existing DMX universe, auto-terminate
edition June 2018- en 2.0.1
www.movie-inter.com
Start using the default settings of an effect.
Dimmer values for channel 1-3
DMX OUT
connect
device here
shapes edges of a flicker curve
DMX configuration IN & OUT
Effect presets

edition June 2018- en 2.0.1
www.movie-inter.com
User manual LFX Master DMX page 6 of 35
Power supply unit
Exclusively use the external PSU (Power supply unit) for
operation, included in delivery.
Plug-in the mains connector to 100 - 240 VAC/ 50 to 60
Hz. Please replace the interchangeable adaptor plug for
EU, US, UK, AU.
Connect the round DC-plug to the LFX Master DMX´s
DC input 1 or 2.
Alternatively use a battery (5 - 32 VDC) with a round
standard 2.1mm power plug, center positive.
Or use the USB > Power cable to poeer ot up.
3.2 Pre-programmed effects
Natural looking lighting effects
The unit is equipped with six pre-programmed effect presets. Obey safety instructions!
Each effect preset has a resolution of 24 fps at default values.
A coloured label on the control panel represents the recommended settings - set SPEED
and DIMMER min to the corresponding coloured markers located on each scale.
TRANSITIONS is set automatically to the recommended mode after selection of an effect.
preset name
fire
candle
TV
welding
"broken" fluoro
strobe
label
TV
!
application hints
single channel fire FX or use three
lamps for fire with flickering shadows,
torche
a slidely flickering candle FX, oil lamp,
lantern
play with TRANSITIONS and DIM-
MER min, reduce DIMMER min if
used with three channels
choose a lamp with small light
omitting surface, e.g. house-
hold type 60 W bulb
flickering effect of a TV, RGB color
shifts if used in RGB mode of LED fix-
ture or with three lamps geled
effect of welding or a short-circuit
set CCT to about 6500 Kelvin,
set TRANSITIONS to "med"
with LED
LED: set CCT to about 6500
Kelvin or above, for tungsten:
small wattage (bulb inertia)
"broken" fluoro will not come on, fli-
ckering tube LFX for LED or tungsten
rectangle signal, neon signs, flasher,
stroboscope, turn indicator;
speed from 70 msec to 28 sec
let "tube" turn on live by turning
DIMMER min to 100% rapidly
use as sequencer with 3 chan-
nels
CH2 & 3, each has 33% delay

User manual LFX Master DMX page 7 of 35
3.3 Dimmer MAX & min
Each generated lighting effect can be dimmed.
The LFX Master DMX provides the limitation of the …
- upper ("max") brightness level
- lower ("min") brightness level.
"Dimmer min" defines the intensity of flicker variations.
The brightness level alternates between these two values.
The "Dimmer max" knob dims all three channels.
Independend dimming of the channels
If you prefer to dim the three channels separately please use an external dimmer console
connected at "DMX-IN" and use the DMX-IN preset "3xOUT separate dim".
A minimum of six DMX channels are required for the console. > page 26
Relation between DIMMER max opposite DIMMER min
The value of DIMMER min always depends on the value of DIMMER max.
We strongly recommend to adjust the upper brightness limit ("DIMMER max") at first and
then adjust the value of DIMMER min.
In the DMX OUT configuration please select/edit effect channels DIM OUT 1, DIM OUT 2 or DIM OUT 3.
edition June 2018- en 2.0.1
www.movie-inter.com
If the maximum brightness level is reduced,
at the same time the minimum brightness level
will be decreased!
100%
brightness level
100%
50%
0 %
60%
value of Dimmer max. (incl. lower brightness level)
value of Dimmer min = lower brightness level
brightness alternation
100%
50%
0 %
80%
60%
upper limit
lower limit
after reducing
DIMMER max
brightness alternation
Monitor of
channels 1, 2, 3

edition June 2018- en 2.0.1
www.movie-inter.com
User manual LFX Master DMX page 8 of 35
3.4 Three output channels
Original flames of a fireplace are in motion. The direction of the omitted light is changing.
Therefore a fire effect may look more realistic if it is created by lighting sources from diffe-
rent directions.
The 3 channel “fire” preset of the LFX Master DMX automatically alternates the dim levels of
each channel the way a real flame would behave – flickering shadows.
For TV effects with three channels even the colour changes if RGB lamp mode is choosen.
Realistic looking fire with 3 channels

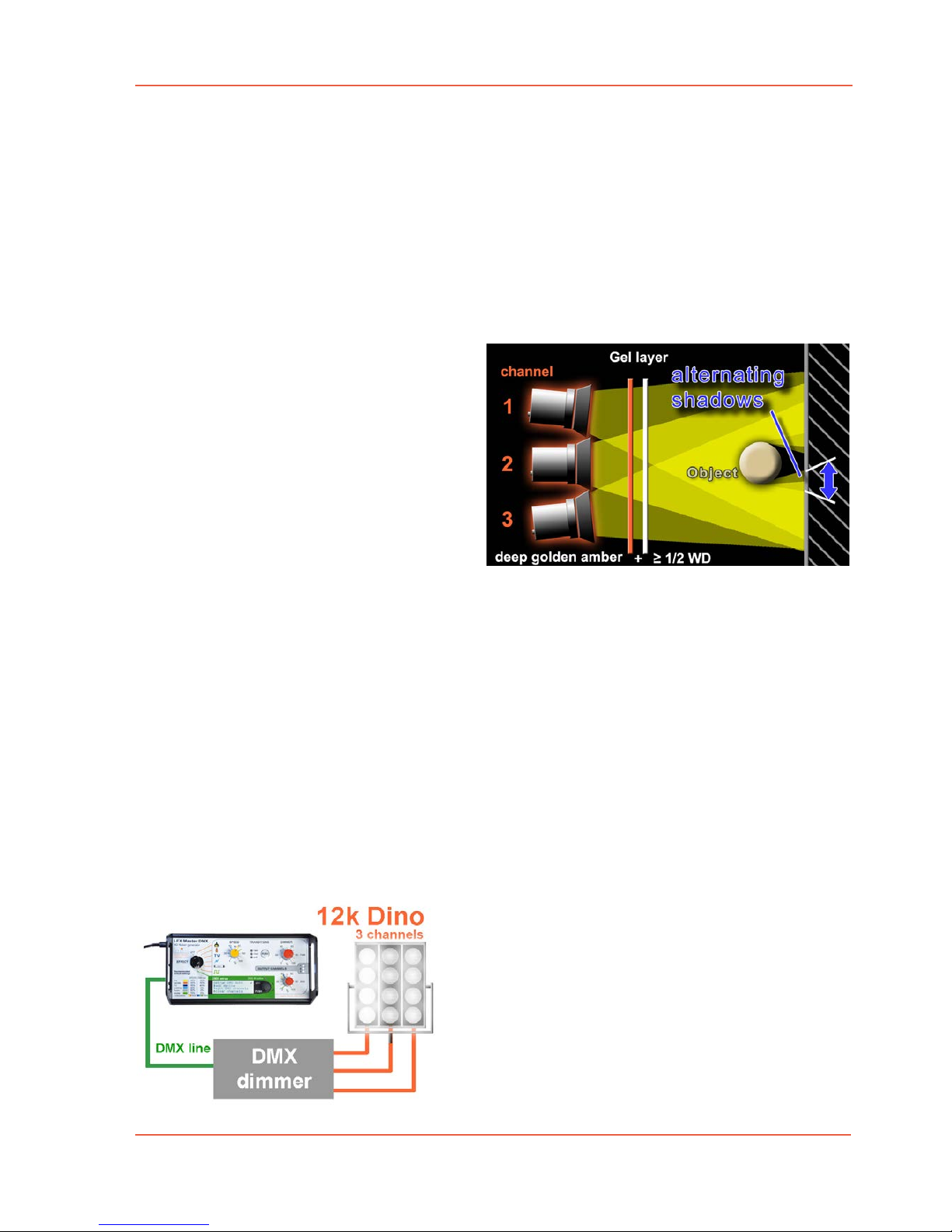

As shown to the right three lamps – sepa-
rately controlled by the LFX Master DMX
– will initiate three different cast shadows
of an object on a surface.
The suggested gel “deep golden amber”
is used to adjust the colour temperature.
The attached 1/2 white diffusion softens
the cast shadows of the three lamps, the
effect looks more natural.
If you remove the object you will not see any flickering shadows.
If the projection surface is too far away from the object you will not see
flickering shadows.
A single channel effect could have the same result, but, saves a lot of hardware set-up time.
Besides the adaptation to the filament inertia for tungsten the “Transitions” feature of the
LFX Master DMX also modifies the transitions between the channels, keep in mind for LED.
Gel and parameter library
With LED fixtures: add a gel by adding a DMX channel with a fixed value, or even bettter:
choose a gel from the gel library by gel name if set-up with an Arri or Kinoflo device preset.
Attach the three fixtures close to each other. WD gel is not required cause source is soft
anyway.
High power fire light
Choose the easy way to get a high power flickering
fire light.
Let it burn with one or multiple dino lights!
You may use a DMX-512 based 3 x 5k dimmer
hooked up at the DMX output of the LFX Master
DMX flicker generator.
Select device preset "tungsten dimmer".
Choose "hard" transitions for this effect.

User manual LFX Master DMX page 9 of 35
3.5 Transitions function
Use every type and size of
tungsten lamps or LED.
A result of an effect would look
different with the same signal
used at different lamp types/si-
zes, particularly if an LED lamp
is used.
“Transitions” adapts effects to
the duration of persistence of
various types of filaments or to
LED lamps.
The timing difference between the moment of electrical deactivation and the time of a com-
pletely extinguished light depends on the power of the bulb.
Choose the transition mode depending on the used type and size of lamp (bulb inertia).
Thus any lighting effect looks excellent – with a 10K, a redhead, a household type 60 W
bulb, fluoros or LED. The “Transitions” feature of the LFX Master DMX also modifies the
transitions between the channels
Also use “Transitions” for different styles of e.g. fire – from aggressive to smooth.
The Transition mode is automatically pre-selected if you turn rotary switch "EFFECT" to any
effect symbol. For Strobe effects "Transitions" is deactivated.
Depending on the manufacturer of the lamp a LED fixture might have different DMX input
signal pocessing. Some might "smooth" the signal, prefer to disable the "smooth" function.
3.6 mechanical mounting
Located on the rear bottom of the LFX
Master DMX there is a 1/4" thread.
Use a standard brass pin for mount-
ing, maximum length of the 1/4"
screw must not exceed 8 mm.
edition June 2018- en 2.0.1
www.movie-inter.com
Effect
Fire
Tungsten
60 W bulb
med
150-800 W
med
Candle
TV
Welding
"broken" tube
soft
med
med
hard
hard
hard
hard
hard
Strobe - -
LED
>1 kW
hard
"smooth" off
med
"smooth" ON
hard
hard
hard
soft
med
hard
hard
hard
hard
hard
hard
hard
hard
---
recommended settings for "Transistions"

edition June 2018- en 2.0.1
www.movie-inter.com
User manual LFX Master DMX page 10 of 35
3.7 General set-up procedure
First of all choose the lamp(s) you would like to control.
Got through steps 1 to 3.
For control of tungsten lamps one or many externally connected DMX-512 based dimmer
packs are required.
LED fixtures normally does not require a dimmer pack and can be controlled directly.
Add as many LED devices as required using a device preset.
Chapter 4
Online configuration Tool
On www.lfxmaster.com you may configure any output setting using an arbitrary number of
lights.
Enter the type and number of lamps, the set-up assistant will guide you through the settings.
Finally e-mail this step-by-step guide to your account.
This web site is permanently updated with new LED fixtures and features.
123
Power up @ DC-input 5-32
VDC 1 or 2
Connect a DMX device @
DMX OUT
WARNING
Never connect two power
sources at the same time
using DC IN/OUT 1 and 2!
Turn "EFFECT" to position
"DMX set-up"
Set-up the DMX communi-
cation with one or many
lamps using DMX-OUT de-
vice presets or custom set-
up
Choose a device preset
or
use the custom configurati-
on
Turn "EFFECT" to any EF-
FECT position.
Start with the default set-
tings printed on the control
panel.
create lighting effect
Risk of fire!
We would be very pleased if you would inform us about the successful use of a light
not included in the DMX device list. We update the device list constantly - that helps
other users!
A contact link can be found on this website.

User manual LFX Master DMX page 11 of 35
Chapter 5
Quick start guide for DMX OUT
1. Connect a DMX device at DMX OUT
2. Turn "EFFECT" to position "DMX set-up".
Connect the "Select LED" via DMX @ DMX OUT
Turn/push the JOG for navigation through the menu.
edition June 2018- en 2.0.1
www.movie-inter.com
Example here:
KinoFlo "Select LED"
set-up
DMX OUT
basics
DMX IN
help
set-up DMX OUT:
add device
edit DMX channels
clear channels
manufacturer:
KinoFlo
Arri
2 CH generic LED
tungsten dimmer
expert mode
FreeStyle
Select LED
Diva LED
Celeb LED
Parabeam/Parazip
for Select LED
CONFIRM SETTINGS
address = function
001 = DIM OUT 1
002 = CCT 2500K
003 = G/M 0 G/M
004 = GEL Apricot
005 = HUE 0º
006 = SAT 0%
expert mode
Scrollbar: more content visible
below last line, turn JOG to scroll
Set DMX start address for DIM OUT 1.
Optionally set values for Kelvin, G/M, GEL, ...
AND CONFIRM SETTINGS.
set-up Select LED
to "GEL/HUE mode"
8 bit, Smooth=off!
set DMX address 001
Set-up the Kino Flo fixture as
instructed on the display!
Add other devices for LFX Master
channel 2 & 3 for multi-channel LFX.
choose mode:
white mode
GELS/HUE
RGB
help
help
help
set here parameters
during this set-up or
edit it later in "DMX
OUT" > "edit DMX
channels"
Set level
Dimmer
max > 0 for
live preview
3. Create an effect > Turn "EFFECT" to any effect symbol.

User manual LFX Master DMX 2.0 page 12 of 35
Chapter 6
Product overview
The main purpose of the display is the DMX configuration and it signals received DMX data
when detected, then the green indicator "DMX IN active" is on.
Effects are set-up with all knobs (except "JOG") and the "Transitions" button.
The DMX OUT fixture library makes it very easy to set-up or edit existing values > page 16
Navigation with the JOG
Rotating the JOG allows for stepping through the menu items or adjusting selected values.
A push on the JOG selects a menu item or submits an action.
Symbols within the menu
Related topics
• DMX OUT device library > page 16
• custom DMX OUT configuration > page 22
• DMX IN presets > page 24
• custom DMX IN patching > page 29
edition June 2018- en 2.0.1
www.movie-inter.com
set-up
DMX OUT
basics
DMX IN
help
manufacturer:
KinoFlo
Arri
2 CH generic LED
tungsten dimmer
expert mode
Scrollbar: more content visible below last line,
turn JOG to scroll
visible area on display without scrolling
back
JOG: turn & push function
menu item > submenu available

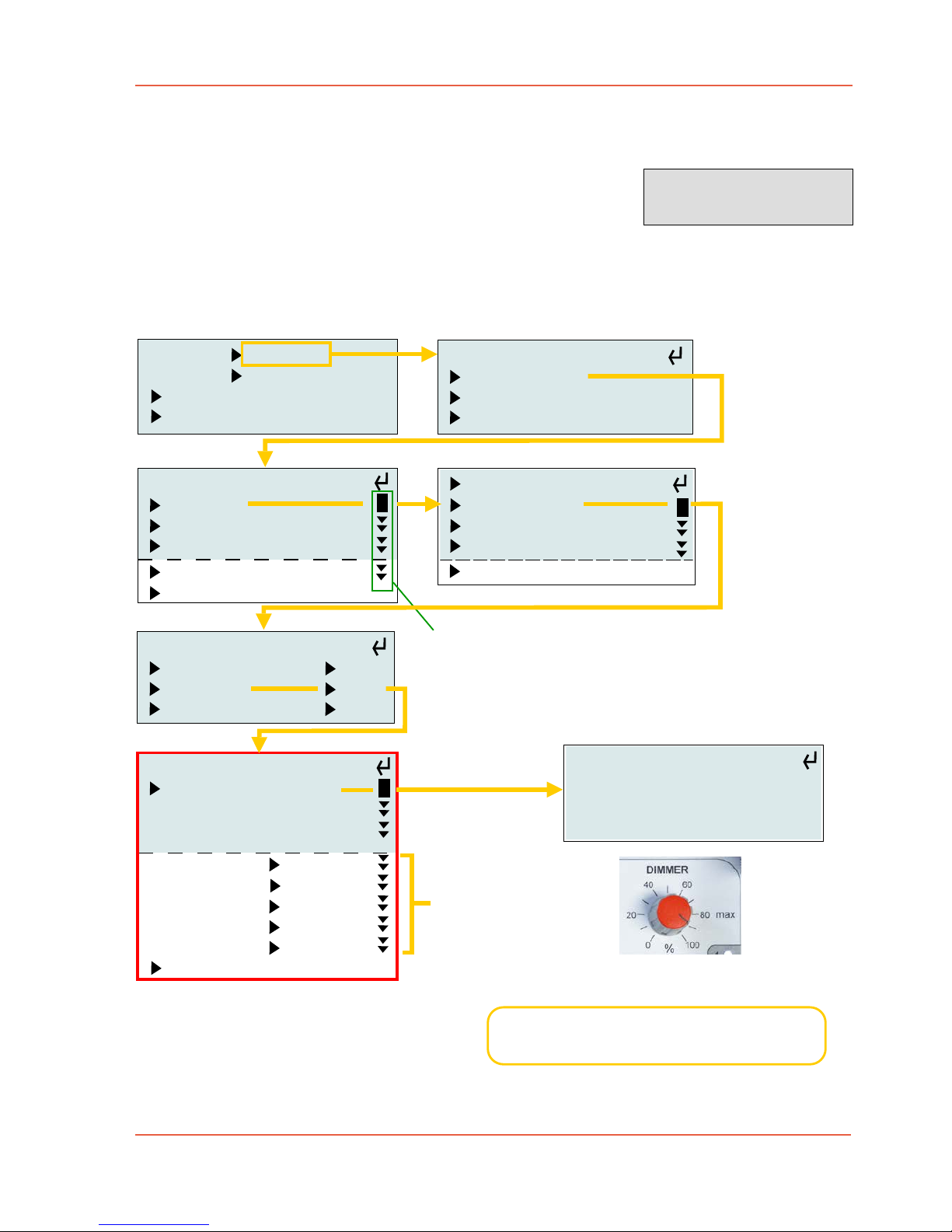

First level - knob EFFECT in position "DMX set-up"

6.1 Menu map - table 1 of 2
User manual LFX Master DMX 2.0 page 13 of 35
edition June 2018- en 2.0.1
www.movie-inter.com
Level 1 2 3
set-up DMX OUT
add device Manufacturer
brand device
KinoFlo
Freestyle Select LED
choose mode detailed config
for each device • White • GELS/HUE • RGB
set-up list with all channels and functions >CONFIRMATI- ON
Diva LED Celeb LED
Arri
Parabeam Arri L5, 7,10-C
• CCT • RGBW
Skypanel-C
• CCT • RGBW • GEL
2 CH generic LED
Broadcaster 2+
tungsten dimmer
choose function
choose value confirmation
instructions
detailed set-up instructions for device
edit DMX channels
Expert mode DMX OUT (example) address > function 001 > Dim OUT 1 002 > fix 000 003 > fix 000
add channel > choose function and values
clear channels
exit
• Dim OUT 1 • Dim OUT 2 • Dim OUT 3 • fix value • delete
for fix: 0...255
DMX channel 0...255
yes or no?

Level 1 2 3
set-up DMX IN load preset
• 3x out separate dim
• full remote control
instructions choose function
info screen what function is used
choose value
edit DMX channels
• optocal sensor IN
Expert mode DMX IN (example) address > function 001 > Patch 004 002 > fix 000 ... list of DMX channels & its function, value ...
• MAX OUT 1 • min OUT 1 • MAX OUT 2 • min OUT 2 • MAX OUT 3 • min OUT 3 • Effect • Speed • Transistions • Enable NEW • Patch • delete
for fix: 0...255 DMX channel 0...255
Basics
clear channels
add input channel deletes all input channels
factory reset software version info screen
help
www.lfxmaster.com general information screen how to set-up
calls expert mode, adds next available DMX channel
yes or no? yes or no?
edition June 2018- en 2.0.1
www.movie-inter.com
edition June 2018- en 2.0.1
www.movie-inter.com
edition June 2018- en 2.0.1
www.movie-inter.com
6.1 Menu map - table 2 of 2
User manual LFX Master DMX 2.0 page 14 of 35

User manual LFX Master DMX page 15 of 35
6.2 configuration of DMX OUT overview
There are two ways to configure DMX OUT:
edition June 2018- en 2.0.1
www.movie-inter.com
1
The most easy way:
Use a device preset from the fixture library
If the connected device is present in the preset list it
is advisable to use this preset.
You may edit this preset later in the expert mode.
Available device presets
Kino Flo: Freestyle
Mode
White
allocated
DMX channels
3
GELS/HUE
RGB
6
6
2
Expert mode:
customize DMX OUT configuration
modifiy extisting settings
or
manually add a DMX channel >
allocate a function:
DIM OUT 1, DIM OUT 2, DIM OUT
3 or a fixed DMX value
arbitrary configuration of all DMX
channels
for more details > page 22
Select LED
Diva LED
White
GELS/HUE
3
6
RGB
White
6
3
Celeb LED
GELS/HUE
RGB
6
6
White
GELS/HUE
3
6
Parabeam/Parazip
Arri: L5-C
RGB
6
1
CCT
RGBW
7
9
L7-C
L10-C
CCT
RGBW
7
9
CCT
RGBW
7
9
Skypanel-C
Broadcaster 2+
CCT
GEL
7
17
RGBW
9
4
2 channel generic LED
tungsten dimmer
2
12

edition June 2018- en 2.0.1
www.movie-inter.com
User manual LFX Master DMX page 16 of 35
Device library
The LFX Master DMX provides a pre-programmed device library for easy set-up of
most Arri and KinoFlo LED fixtures and some others.
A device preset automatically sets-up all required DMX output channels due to the
fixture mode shown on the following pages.
Instead of DMX displaying parameters as DMX values the device presets for Arri/Kinoflo
show "real" values like "2500" Kelvin or Hue Angle in degrees, gels by gel name.
The LFX Master DMX will convert these entries to DMX values not visible for the user.
After confirmation of the suggested settings you will see instructions on the screen of the -
LFX Master DMX how to set-up the connected device.
If you prefer to see the DMX value instead of the "real" fixture parameter please use the
"expert mode" > page 22
Recommended LED fixture modes
Before you choose a device preset please be aware which mode is most suitable for the
lighting effect.
Recommended LED fixture modes
Effect Fire
Brand
Kino Flo
fixture mode
White X
Candle TV
X X
Welding "broken" fluoro
X X
Arri
GELS/HUE
RGB
X
-
CCT
GEL
X
X
X
-
-
X
X
X
X
-
X
-
X
-
X
X
X
X
RGBW - - X - -
Strobe
X
X
-
X
X
-
6.2.1 Kinoflo device library
valid for all LED fixtures using 8 bit resolution
White mode GELS/HUE mode RGB Mode
CCT = 2700 ... 6500K CCT = 2500 ... 9900K CCT = 2500 ... 9900K
for Kinflo LED
CONFIRM SETTINGS
address = function
001 DIM OUT 1
002=CCT 2500K
003=G/M 0 G/M
expert mode
for Kinflo LED
CONFIRM SETTINGS
address = function
001 DIM OUT 1
002=CCT 2500K
003=G/M 0 G/M
004=GEL Apricot
005=HUE 0º
006=SAT 0%
expert mode
for Kinflo LED
CONFIRM SETTINGS
address = function
001 DIM OUT 1
002=CCT 2500K
003=G/M 0 G/M
004 R DIM OUT 1
005 G DIM OUT 2
006 B DIM OUT 3
expert mode
Note: In order to control the Gels, the G/M
channel needs to be set 0 G/M.
In order to control HUE and Saturation set
G/M: 0, AND GEL: -NO GEL-

edition June 2018- en 2.0.1
www.movie-inter.com
User manual LFX Master DMX page 17 of 35
6.2.1 Kinoflo device library (continued)
Gel library
listed in alphabetical order for GELS/HUE mode
- NO GEL-
Alice Blue
Apricot
Bastard Amber
Bright Blue
Bright Pink
Bright Red
Bright Rose
Chocolate
Chrome Orange
Congo Blue
Cosmetic Peach
Dark Amber
Dark Blue
Dark Green
Dark Lavender
Dark Magenta
Dark Pink
Dark Salmon
Dark Steel Blue
Dark Y Green
Daylight Blue
Deep Amber
Deep Blue
Deep Gld Amber
Deep Lavender
Deep Orange
Deep Straw
Deeper Blue
English Rose
Fern Green
Fire
Flame Red
Flesh Pink
Follies Pink
Gold Amber (default)
Gold Tint
Just Blue
KF 20K Blue Sky
KF Blue Screen
KF Candle Flame
KF Flo Cool White
KF Flo Warm White
KF Green Screen
KF LP Sodium Vpr
KF Mercury Vpr
Lagoon Blue
Lavender
Lavender Tint
Leaf Green
Light Amber
Light Blue
Light Lavender
Light Pink
Light Red
Light Rose
Light Salmon
Lighter Blue
Lilac Tint
Lime Green
Loving Amber
M Bastard Amber
Magenta
Marine Blue
Mauve
Med Blue-Green
Medium Amber
Medium Blue
Medium Pink
Medium Red
Medium Yellow
Middle Rose
Mist Blue
Moonlight Blue
Moss Green
Orange
Orange
Palace Blue
Pale Amber Gold
Pale Blue
Pale Gold
Pale Green
Pale Lavender
Pale Navy Blue
Pale Red
Pale Rose
Pale Salmon
Pale Violet
Pale Yellow
Paler Lavender
Peacock Blue
Pink
Primary Green
Primary Red
Rose Pink
Rose Purple
Rosy Amber
Scarlet
Sky Blue
Slate Blue
Smokey Pink
Sp Steel Blue
Special Lavender
Special M Blue
Spring Yellow
Steel Blue
Straw
Straw Tint
Summer Blue
Sunset Red
Surprise Peach
Surprise Pink
True Blue
Violet
White Flame
Yellow
Zenith Blue

edition June 2018- en 2.0.1
www.movie-inter.com
User manual LFX Master DMX page 18 of 35
6.2.2 Arri device library
valid for LED fixtures using 8 bit resolution
L5-C, L7-C, L10-C
CCT, mode 2 RGBW, mode 4
CCT = 2800 ... 10000K
for L5-C
CONFIRM SETTINGS
address = function
001 DIM OUT 1
002=CCT 2800K
003=G/M 0 G/M
expert mode
for L5-C
CONFIRM SETTINGS
address = function
001 MAS fix 255
002 R DIM OUT 1
003 G DIM OUT 2
004 B DIM OUT 3
005=WHT fix 000
expert mode
CCT, mode 2 GEL, mode 16 RGBW, mode 4
CCT = 2800 ... 10000K
Skypanel-C
for Skypanel-C
CONFIRM SETTINGS
address = function
001 DIM OUT 1
002=CCT 2800K
003=G/M 0 G/M
004=FAN fix 000
005=PRE fix 000
006=RES fix 000
007=RES fix 000
expert mode
for Skypanel-C
CONFIRM SETTINGS
address = function
001 DIM OUT 1
002=CT1 3200K
003=CM1 BestColor
004=GB1 LEE
005=GC1 ColorFilt
006=GE1 Gd Amber
007 XFA 100: 0
008=CT2 3200K
009=CM2 BestColor
010=GB2 LEE
011=GC2 ColorFilt
012=GE2 Li Red
013=GXT Direct
014=FAN fix 000
015=RES fix 000
016=RES fix 000
017=RES fix 000
expert mode
for Skypanel-C
CONFIRM SETTINGS
address = function
001 MAS fix 255
002 R DIM OUT 1
003 G DIM OUT 2
004 B DIM OUT 3
005=WHT fix 000
006=FAN fix 000
007=RES fix 000
008=RES fix 000
009=RES fix 000
expert mode
HINT
Fire effect with shifting
colors in Gel mode
Set channel 007/XFA (Cross-
fade between gel 1 and 2) to
function "DIM OUT 3"

edition June 2018- en 2.0.1
www.movie-inter.com
User manual LFX Master DMX page 19 of 35
6.2.3 Arri device library (continued)
Broadcaster 2+
CCT = 2800 ... 6500K
for Broadcaster 2+
CONFIRM SETTINGS
address = function
001 DIM OUT 1
002=CCT 2800K
003=G/M 0 G/M
004=RES fix 000
expert mode
Gel library Skypanel
listed in alphabetical order for GEL mode 16 (default shown bold)
Alice Blue
Apricot
Bastard Amber
Bright Pink
Bright Red
Bright Rose
Chocolate
Dark Amber
Dark Green
Dark Lavender
Dark Magenta
Dark Pink
Dark Salmon
Dark Steel Blue
Dark Yellow Green
Daylight Blue
Deep Amber
Deep Blue
Deep Golden Amber
Deep Lavender
Deeper Blue
English Rose
Evening Blue
Fern Green
Fire
Flame Red
Flesh Pink
Gold Amber
Gold Tint
Golden Amber
Just Blue
Lavender
Lavender Tint
LEE Green
Light Amber
Light Blue
Light Lavender
Light Pink
Light Red
Light Rose
Light Salmon
Lilac Tint
Lime Green
Loving Amber
Magenta
Marine Blue
Medium Amber
Paler Lavender
Peacock Blue
Pink
Med. Bastard Amber
Medium Pink
Medium Yellow
Middle Rose
Primary Red
Rose Pink
Rose Purple
Scarlet
Mist Blue
Moss Green
No Color Blue
No Color Straw
Sky Blue
Slate Blue
Smokey Pink
Special Lavender
Palace Blue
Pale Amber Gold
Pale Blue
Pale Gold
Spring Yellow
Steel Blue
Straw
Straw Tint
Pale Green
Pale Lavender
Pale Navy Blue
Pale Rose
Summer Blue
Sunset Red
Surprise Peach
Surprise Pink
Pale Salmon
Pale Violet
Pale Yellow
True Blue
Yellow
Zenith Blue

edition June 2018- en 2.0.1
www.movie-inter.com
User manual LFX Master DMX page 20 of 35
6.2.3 Other device libraries
2 channel generic LED preset Tungsten:
for other LED fixtures for 12 channel tungsten dimmer
for 2CH generic
CONFIRM SETTINGS
address = function
001 DIM OUT 1
002=CCT fix 000
expert mode
for tungsten
CONFIRM SETTINGS
address = function
001 DIM OUT 1
002 DIM OUT 2
003 DIM OUT 3
004 DIM OUT 1
005 DIM OUT 2
006 DIM OUT 3
007 DIM OUT 1
008 DIM OUT 2
009 DIM OUT 3
010 DIM OUT 1
011 DIM OUT 2
012 DIM OUT 3
expert mode
Mode PROS CONS
White/CCT
GEL/HUE
simple config, requires less DMX
channels
opposite "White/CCT" mode additio-
nally add a gel, green/magenta, hue
adjustment of Kelvin and dim level only
requires at least 6 DMX channels
RGB/RGBW
separate control of red green and
blue channel > TV effects
requires at least 6 DMX channels
Please see the according user manual of the DMX device for more details.
PRO - CONTRA modes
