CYP XA-2 Installation manual

CPLUS-11HB

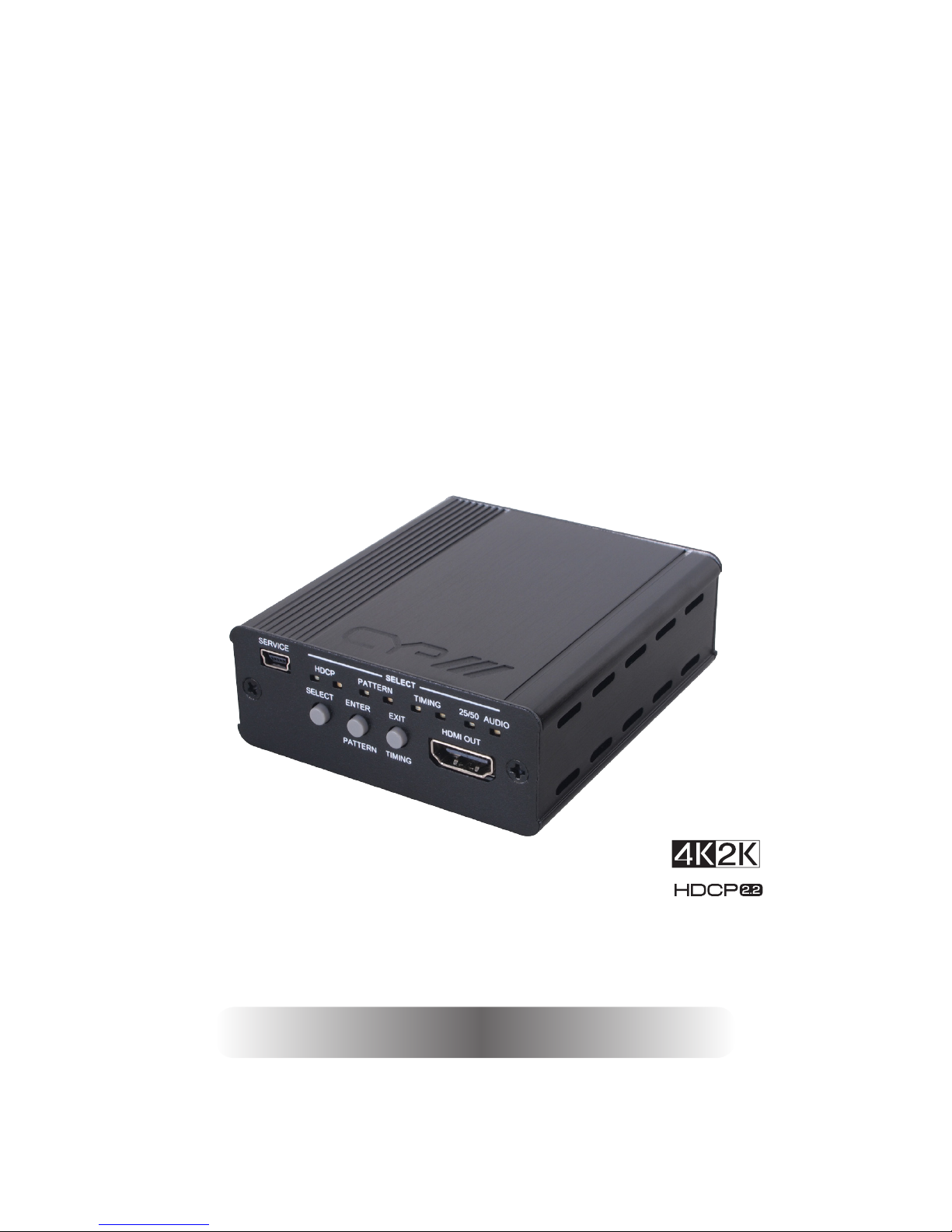

4K2K HDMI 6G Pattern Generator with Audio Bridge
Operation Manual
Operation Manual
XA-2

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suffi cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 14/03/16 Preliminary Release

CONTENTS
1. Introduction...............................................1
2. Applications..............................................1
3. Package Contents ...................................1
4. System Requirements...............................1
5. Features.....................................................1
6. Operation Controls and Functions..........2
6.1 Front Panel ...........................................2
6.2 Rear Panel............................................3
7. Connection Diagram ...............................5
8. Specifi cations ...........................................6
8.1 Technical Specifi cations ....................6
8.2 Supported Resolutions........................6

1
1
1. INTRODUCTION
The 4K2K HDMI 6G Pattern Generator with Audio Bridge is an
advanced and convenient tool for generating HDMI 6G signals for
testing HDMI devices. With 6 built-in settings covering Ultra HD and
Full HD resolutions, 4 test patterns, HDCP (1.4, 2.2 and non-HDCP)
and 2 audio types each providing a large array of test patterns, and
incorporates both digital and analog audio inputs for embedding into
an HDMI output. The colorful LED design allows fast and easy selection
of patterns and quick viewing of the current status.
2. APPLICATIONS
• Production testing
• R&D design and testing
3. PACKAGE CONTENTS
• 1 x 4K2K HDMI 6G Pattern Generator
• 1 x Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Input audio source signals with output HDMI display/monitor and
connection cables.
5. FEATURES
• HDMI with 4K2K 6G supported and HDCP 2.2 compliant
• Generate HDMI timings up to 6Gbps 4K2K@60
• Generate HDCP v1.4/v2.2 and non-HDCP signal
• Supports external analog stereo and optical digital audio inputs

2
2
6. OPERATION CONTROLS AND FUNCTIONS

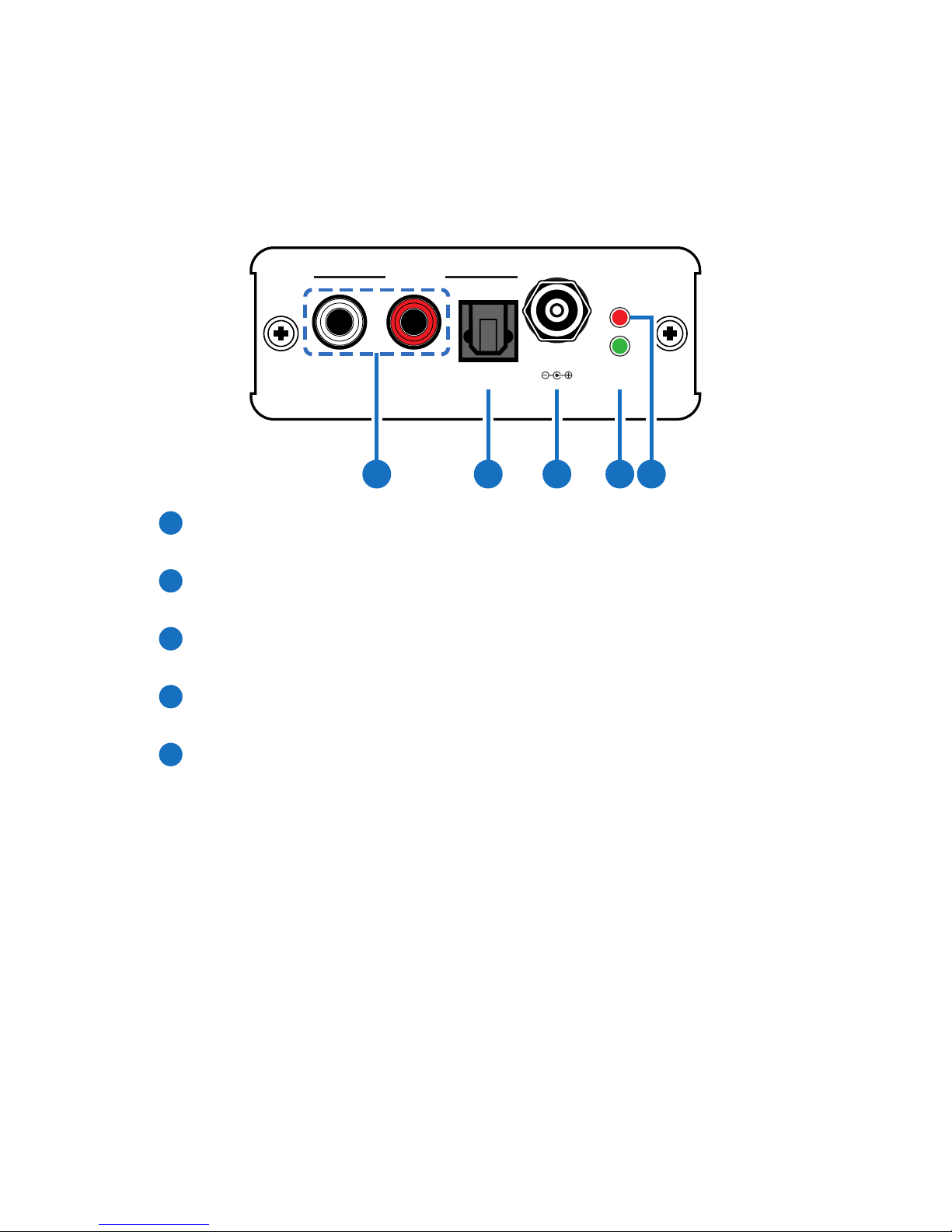

6.1 Front Panel
RL
AUDIO IN
OPTICAL
DC 5V
POWER
O.V.P
21 3 4 5
1AUDIO IN L/R: Connect from audio source equipment with L/R
cables.
2AUDIO IN OPTICAL: Connect from audio source equipment with
optical cable.
3POWER: Plug the 5V DC power supply into the unit and connect
the adaptor to an AC outlet.
4POWER: This LED will illuminate when the device is connected with
power supply.
5O.V.P.(Over Voltage Protection): This LED will illuminate when the
input power supply exceed from 5V to 28V and the device will be
terminated.

3
2
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
RL
AUDIO IN
OPTICAL
DC 5V
POWER
O.V.P
21 3 4 5
1AUDIO IN L/R: Connect from audio source equipment with L/R
cables.
2AUDIO IN OPTICAL: Connect from audio source equipment with
optical cable.
3POWER: Plug the 5V DC power supply into the unit and connect
the adaptor to an AC outlet.
4POWER: This LED will illuminate when the device is connected with
power supply.
5O.V.P.(Over Voltage Protection): This LED will illuminate when the
input power supply exceed from 5V to 28V and the device will be
terminated.
3
6.2 Rear Panel
HDCP PATTERNTIMING
SERVICE
HDMI OUTEXITENTERSELECT
SELECT
TIMINGPATTERN
AUDIO25/50
1 3 4 5 62
1SERVICE: This slot is reserved for factory use only.
2SELECT LED: These LEDs will illuminate according to the selection.
Each selection with 2 LEDs of 3 colors, left LED is blue and right LED
are red or green. Each LED color represent a pattern/timing as
below:
Blue Red Green None 25/50
HDCP LED HDCP2.2 HDCP1.4* OFF
PATTERN LED Blue Scale Red Scale Green Scale Gray Scale *
TIMING LED 4K2K60 4K2K30 1080P60 720P60*
4K2K50 4K2K25 1080P50 720P50 ˅
AUDIO LED Optical LR*
*are default setting.
3SELECT Button: Press this button to enter into selection mode and
both LEDs will be fl ashing in blue and green. Press again to enter
into another selection.
4ENTER/PATTERN Button: Press this button to enter into the selection
then press the SELECT button to select and the LED will illuminate
in sequence from the default setting, press ENTER again to confi rm
the selection. When exit selection mode press this button to select
pattern directly.
For example, to select HDCP 2.2 with blue scale and 4K2K60 timing
from the default setting, press SELECT (to enter into selection)→

4
4
press ENTER (to select HDCP) → press SELECT 2 times (to select
HDCP2.2/Blue LED) → press ENTER (to confi rm HDCP selection) →
press SELECT again (to enter into PATTERN selection)→ press ENTER
(to select Patter) → press SELECT twice (to select Blue Scale/Blue
LED) → press ENTER (to confi rm Pattern selection) →
press SELECT again(to enter into Timing selection) → press ENTER(to
select Timing) → press SELECT 5 times(to select 4K2k60/Blue LED)) →
and press ENTER (to confi rm Timing selection).
Press ENTER together with EXIT to reset the setting back to default.
Note: If the ENTER button is not pressed after the selection is made
the setting will not be established and will remain under the
selection mode.
5EXIT/TIMING Button: Press this button to exit/cancel the selection.
When exit selection mode press this button to select timing directly.
6HDMI OUT: Connect with display/monitor with HDMI cable.

5
5

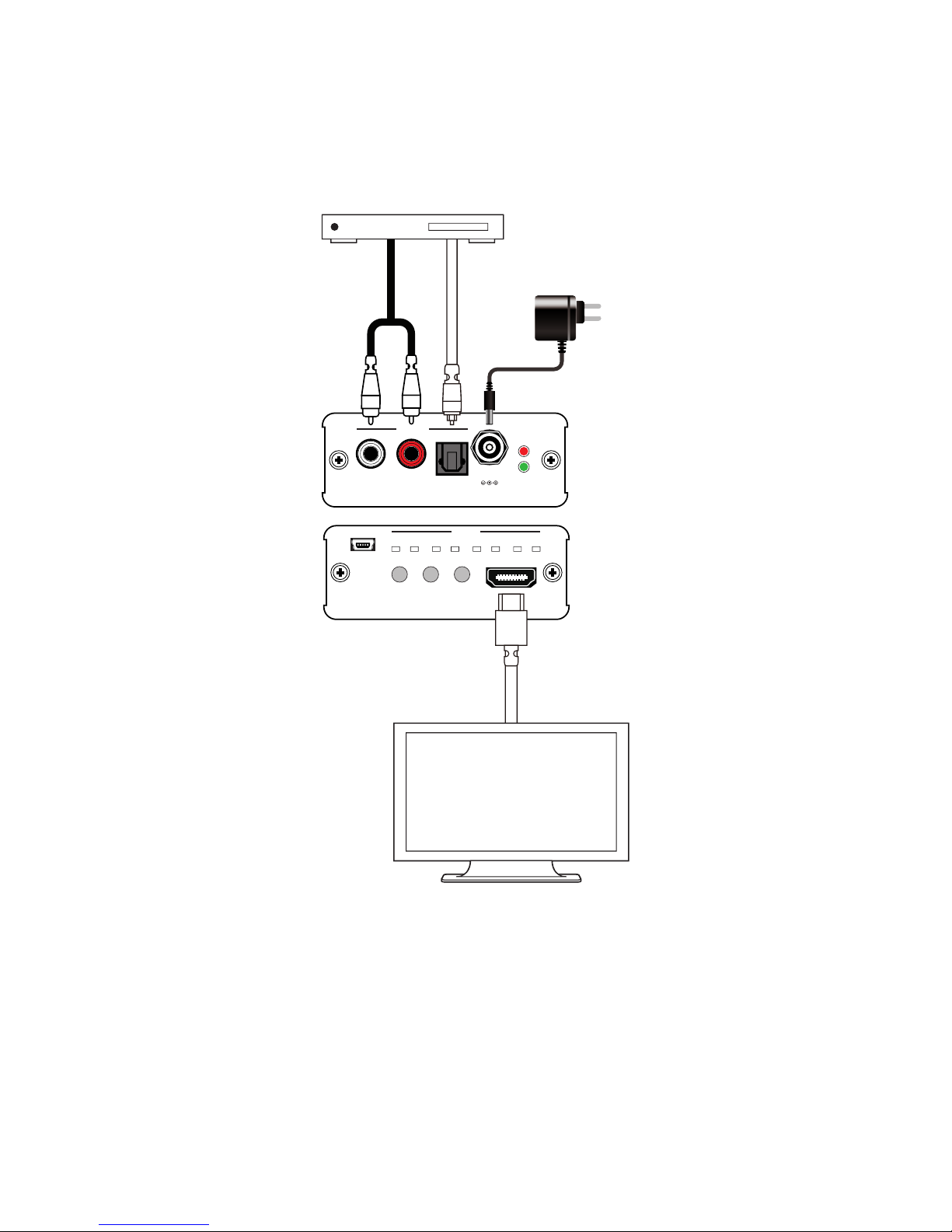

7. CONNECTION DIAGRAM
Amplifi er or HD TV
DVD or Blu-ray Player
RL
AUDIO IN
OPTICAL
DC 5V
POWER
O.V.P
HDCP PATTERN TIMING
SERVICE
HDMI OUTEXITENTERSELECT
SELECT
TIMINGPATTERN
AUDIO25/50

6
6
8. SPECIFICATIONS
8.1 Technical Specifi cations
Video Bandwidth 600MHz/18Gbps
Input Port 1 x L/R (RCA)
1 x Optical
1 x USB(Service)
Output Ports 1 x HDMI
Supported Resolutions 720p@50/60, 1080p@50/60,
4K2K@25/30/50/60
HDMI Cable Length 5M/4K2K@25/30/50/60
5M/1080p@50/60
Support Digital Audio 48kHz
Output Sampling Rate
Support Analog Audio 2Vrms
Power Supply 5V/2.6A DC (US/EU standards,
CE/FCC/UL certifi ed)
Chassis Material Aluminum
Chassis color Black
Weight 202g
Dimensions 78.5mm(W) x 87.1mm(D) x 30mm(H)/Jacks
Excluded
78.5mm(W) x 95.25mm(D) x 30mm(H)/Jacks
Included
Power Consumption 2.5 W
8.2 Supported Resolutions
RESOLUTION EMBEDDED OUTPUT
1280×720p@50/60 √ √
1920×1080p@50/60 √ √
3840×2160@25/30/50/60 √ √
