STANDARD FEATURES
• Three pump injection system
– Injector system allows the use of separate
sanitizer and rinse aid resulting in real savings.
– Precisely calibrated pumps inject just the
right amount of chemical each time – no
guesswork – no waste.
• Upper and lower wash and rinse arms produce
sparkling clean glasses every time.
• One or two door models available.
• Ultra high efficiency wash pump for
superior cleaning.
• Thermostatically controlled wash tank heater
maintains required wash water temperature.
• Heavy-duty stainless steel construction.
• 30 racks per hour.
• Pumped drain permits use of drain connections
above the floor.
• Two 16" [406mm] square racks provided.
• One year parts and labor warranty.
OPTIONS & ACCESSORIES
RS18-24: 18" [457] rack stand
w/24" [610] high drain board P/N 180368
RS18-30: 18" [457] rack stand
w/30" [762] high drain board P/N 180380
RS24-24: 24" [610] rack stand
w/24" [610] high drain board top
for rack and chemical storage P/N 180369
Cycle counter P/N 0709242
Remote cycle switch P/N 0709241
Peg rack P/N 110352
Flat rack P/N 110353
GR-1 glass rack P/N 112360
GR-2 glass rack P/N 112362
GR-3 glass rack P/N 112361
MD18-1
MD18-2

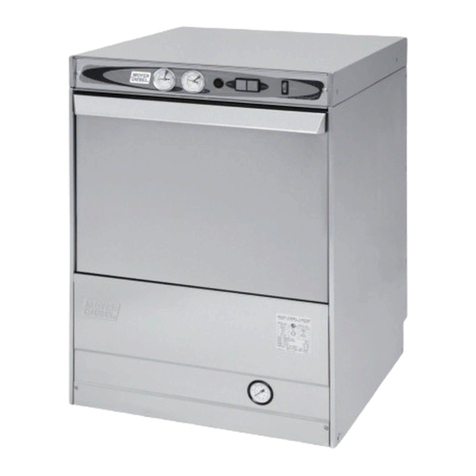

Automatic Glasswashing Machine
MD18-1/MD18-2 GLASSWASHER
MD002 Printed in U.S.A.
Moyer Diebel – USA
P.O. Box 4183, Winston-Salem, NC 27115 Tel: [phone] Fax: [phone] www.moyerdiebel.com
Moyer Diebel Ltd. – Canada
2674 North Service Rd., Jordan Station, Ontario, Canada L0R 1S0 Tel: [phone] Fax: [phone]
[email protected]
SPECIFIER STATEMENT
Specified unit will be Moyer Diebel MD18-1 or
MD18-2 glasswasher.
Features include 30 racks per hour, upper and
lower wash/rinse arms, maximum 10" door opening
clearance, sanitizer and rinse aid dispensing
pumps, pumped drain and wash tank heater.
Project
Item No.
Quantity

Dimensions shown in inches
SPECIFICATIONS
Capacity
Racks per hr. 30
Water consumption
Gal. per hr., US gal. (imp. gal.) 45 (34)
Gal. per rack, US gal. (imp. gal.) 1.5 (1.25)
*Temperature
Wash 140°F
Rinse 140°F
Heating
Tank heat, electric (kW) .75
* Supply water temperature 140°F
Utilities
1 Electrical*
115/60/1 - 15 amp, 9 amp draw
2 Hot Water Connection
1/2" NPT hot water. Flow pressure 25-95 psi
3 Drain Connection
5/8" flexible hose. Max flow rate 18 US gpm (15 imp.gpm)
Due to an ongoing value analysis program at Moyer Diebel, specifications in this catalog are subject to change without notice.
MD18-1/MD18-2
Automatic Glasswashing
Machine
42-1/2"
10" Clear
24"
18"
26" Load
Height
7"
4-1/4"
18-1/2" 1/2"
9"
13
2
7-1/4"
38-3/4"
30-3/4"
1-1/2"
Wall
Clearance
10" Clear
24"
18" 18"
26" Load
Height
7"
4-1/4"
18-1/2"
9"
13
212
7-1/4"
38-3/4"
5-1/4" 7-1/2"
6"
3
10" Clear
24"
18" 18"
26" Load
Height
7"
4-1/4"
18-1/2"
9"
13
212
7-1/4"
38-3/4"
5-1/4" 7-1/2"
1/2"
6"
3
MD18-HH is available with 13" door
clearance overall height 41-3/4"
MD18-1
Plan View Plan View
Side View
MD18-2
Side – Side Door
Front View *NOTE: Models MD18-1 and MD18-2 are supplied
with 5 ft. cord and plug
STANDARD
Plan View
Warning: Plumbing and electrical connections should be made
by qualified workmen who will observe all the applicable
plumbing, sanitary and safety codes.
Side View Side ViewFront View
MD18-2
Front – Rear Door

Dimensions shown in millimeters
SPECIFICATIONS
Capacity
Racks per hr. 30
Water consumption
Liters per hour 171
Liters per rack 5.7
*Temperature
Wash 60°C
Rinse 60°C
Heating
Tank heat, electric (kW) .75
* Supply water temperature 60°C
Utilities
1 Electrical*
115/60/1 - 15 amp, 9 amp draw
2 Hot Water Connection
1/2" NPT hot water. Flow pressure 25-95 psi
3 Drain Connection
5/8" flexible hose. Max flow rate 18 US gpm (15 imp.gpm)
MD18-1/MD18-2
Automatic Glasswashing
Machine
METRIC
Warning: Plumbing and electrical connections should be made
by qualified workmen who will observe all the applicable
plumbing, sanitary and safety codes.
1080
254 Clear
610
457
660 Load
Height
178
108
470 13
229
13
2
184
984
781
39
Wall
Clearance
254 Clear
610
457 457
660 Load
Height
178
108
470
229
13
212
184
984
13 3 191
152
3
254 Clear
610
457 457
660 Load
Height
178
108
470
229
13
212
184
984
133 191
13 152
3
MD18-HH is available with 330mm door
clearance overall height 1061mm
MD18-1
Plan View Plan View
Side View
Plan View
Front View
MD18-2
Front – Rear Door
*NOTE: Models MD18-1 and MD18-2 are supplied with
1524mm cord and plug
MD18-2
Side – Side Door
Side View Front View Side View

MD18-1/MD18-2
Automatic Glasswashing
Machine
24" [610]
18"
[457]
24" [610]
24" [610]
30"
[762]
24"
[610]
18"
[457]
24"
[610]
24" [610]
24" [610]
18" [457]
RS24-24
24" [610] rack stand with
24" [610] high drain board top
for rack and chemical storage
RS18-30
18" [457] rack stand with
30" [762] high drain board
top for rack storage
RS18-24
18" [457] rack stand with
24" [610] high drain board
top for rack storage
RS24-24
RS18-30
RS18-24
18" [457]
(2M) 6/04
Due to an ongoing value analysis program at Moyer Diebel, specifications in this catalog are subject to change without notice.
Dimensions shown in inches and [millimeters]
