Bartscher 110644 Quick start guide

RK401 LPWR
110644

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 2.0
Date of preparation: 2023-03-17
Original operation manual

Beschreibung

EN
4

110644 1 / 32
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................5
1.4 Unintended Use.......................................................................................5
2General information.......................................................................................6
2.1 Liability and Warranty ..............................................................................6
2.2 Copyright Protection ................................................................................6
2.3 Declaration of Conformity ........................................................................6
3Transport, Packaging and Storage................................................................7
3.1 Delivery Check.........................................................................................7
3.2 Packaging................................................................................................7
3.3 Storage....................................................................................................7
4Technical Data...............................................................................................8
4.1 Technical Specifications ..........................................................................8
4.2 Functions of the Appliance.......................................................................9

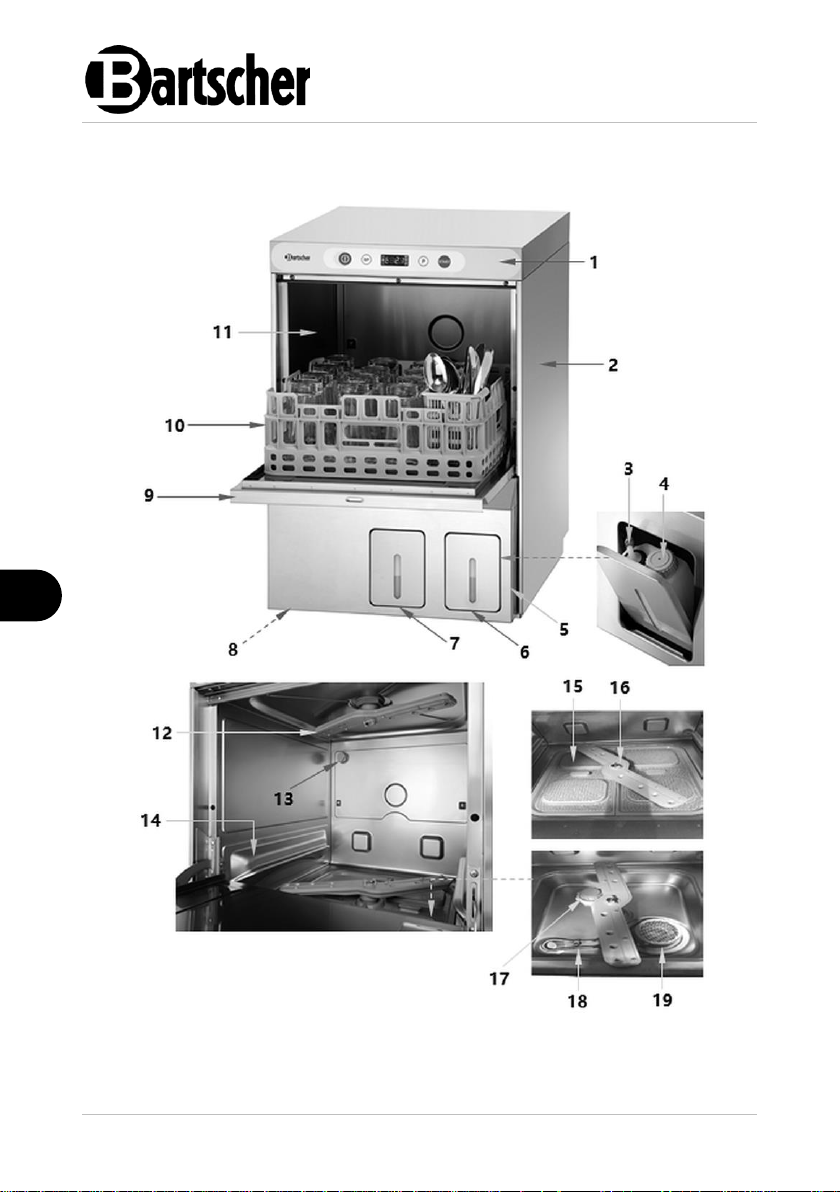

4.3 List of Components of the Appliance .....................................................10
5Installation Instructions................................................................................11
5.1 Unpacking..............................................................................................11
5.2 Positioning.............................................................................................12
5.3 Electrical Connection.............................................................................13
5.4 Water Connection..................................................................................15
5.5 Drain Connection...................................................................................16
5.6 Rinsing Agent Dosing Pump and Cleaning Agent Dosing Pump ...........17
6Operation and Maintenance Instructions.....................................................19
6.1 Operation...............................................................................................19
6.2 Cleaning and Maintenance....................................................................26
6.3 Indications and Tips...............................................................................28
7Possible Malfunctions..................................................................................30
8Disposal....................................................................................................... 32

Safety
2 / 32 110644
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des Geräts u ndg ilt als wichtige Infor mationsquelle un dN achschlagewer k.Di e Kenntnis aller enthalt enenSic herheitshinw eiseu nd Handlungs anweisungen schaf ft die Voraussetzung f ürd as sichere und sachger echte Arbeiten mit d emG erät.D arüber hinaus müssen die für de nEi nsatzbereich des G erätsg eltenden örtlich enUn fallverhütungsvorsc hriften und allgemein en Sicherheitsb estimmungen eing ehalten werden. Dies e Bedienungsanleit ungis t Bestandteil des Pro dukts und muss in u nmittelbarer Nähe des Ger äts für das In¬stall ations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn das Ger ät an eine dritte Pers on
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
110644 3 / 32
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 32 110644
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Operating Personnel
•The appliance may only be operated by a qualified personnel and trained
specialist personnel.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.

Safety
110644 5 / 32
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Washing dishes, glasses, pots, pans, etc.
The appliance is intended for professional use only.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Washing other unsuitable objects.

General information
6 / 32 110644
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
110644 7 / 32
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
8 / 32 110644
EN
4 Technical Data
4.1 Technical Specifications
FEHLER - F ehlende V ariable
Name:
Dishwasher RK401 LPWR
Art. No.:
110644
Material:
stainless steel
Basket dimensions (W x D x H), in mm:
400 x 400
Max. glass height, in mm:
300
Run time, in seconds:
90 / 120 / 150
Max. output / hour, baskets:
45
Number of wash programs:
3
Tank volume, in litres:
8
Water consumption, litres / wash cycle at
2 bars:
1,6
Water pressure, in bar:
2 - 4
Water supply:
G 3/4“ M
Water outlet, øin mm:
18
Tank heating, in kW:
0,6
Boiler heating, in kW:
2,6
Connected load:
3,4 kW | 230 V | 50 Hz
Dimensions (W x D x H), in mm:
465 x 620 x 677
Weight, in kg:
36,6
We reserve the right to implement technical modifications.
Version / Design
•Appliance connection: ready to plug in
•Discharge pump
•Cleaning agent dosing pump
•Rinsing agent dosing pump
•Water softener
•Double-walled door
•Double-walled housing

Technical Data
110644 9 / 32
EN
•Cold rinse
•Automatic cleaning
•Door contact switch
•Dry-run protection
•Safety thermostat
•Can be fitted below the counter
•ON/OFF switch
•Indicator lights: ON/OFF, temperature
•Water supply temperature: 15 °C to 60 °C
•Cleaning set consisting of:
–1 canister for rinse aid
–1 canister for cleaner
•Delivery condition: permanently mounted
•Properties: surface strainer
•The set includes:
–1 glasses basket
–1 universal basket
–1 cutlery basket
–1 supply hose
–1 drainage hose
–1 filling funnel for salt
•Display:
–Boiler temperature
–Fault messages
–Programme code
–Tank temperature
–Maintenance display
4.2 Functions of the Appliance
The dishwasher that can be fitted below the counter is designed for washing
glasses and cutlery. The appliance makes it possible to wash with an output of up
to 45 baskets (400x400 mm) per hour, offering the selection of 3 wash programs.
This dishwasher is a space-saving solution for small kitchens and sculleries.
Thanks to the pre-installed cleaning kit with integrated tanks for detergent and
rinsing agent, no further space for dishwasher accessories such as tanks and hoses
is required in the kitchen.

Technical Data
10 / 32 110644
EN
4.3 List of Components of the Appliance
Fig. 12

Installation Instructions
110644 11 / 32
EN
Description for Fig. 12
1. Control panel
2. Housing
3. Connection hose
4. Canister with a washing agent or
rinsing agent
5. Cleaning set
6. Rinsing agent tank flap
7. Washing agent tank flap
8. Feet (4x)
9. Appliance door with flush handle
10.Wash basket (without tableware)
11.Wash-tank
12.Upper wash arm
13.Reverse flow protection
14.Wash basket guide rails (2 pcs)
15.Bottom sieves (2 pcs)
16.Lower wash arm
17.Salt dispenser
18.Chamber heater
19.Drain hose
5 Installation Instructions
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs or fitting may be performed
by authorised technical service only and in compliance with the applicable
national law.
NOTE!
The manufacturer disclaims all liability and provides no warranty for
damages, which may be attributed to non-observance of regulations or
incorrect installation.
5.1 Unpacking
•The appliance may be moved with the use of a fork lift or similar equipment only
to avoid damaging the appliance's structure. First, deliver the appliance to the
final installation location and unpack it there.
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.

Installation Instructions
12 / 32 110644
EN
CAUTION!
Choking hazard!
Prevent children from accessing packaging materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels affixed to the
appliance.
5.2 Positioning
ATTENTION!
Before installation check if there are no objects nor materials in the
installation area that might get damaged by steam, which could get
out of the appliance during operation or, alternatively, make sure
that they are properly secured.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on a surface that is:
–even, with sufficient load-bearing capacity, resistant to water, dry and
resistant to high temperatures;
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•The appliance should be installed only in a room, in which ambient temperature
falls in the range of 4–40°C.
•The relative humidity may not exceed the following values: max. 30% at 40°C /
max. 90% at 20°C.
•Do not install the appliance in an immediate vicinity of heat sources exceeding
50°C.
•Never subject the appliance to adverse weather conditions (rain, sunshine, etc.).

Installation Instructions
110644 13 / 32
EN
•To provide for stability, level the appliance
by screwing the feet in or out.
•Correct levelling is indispensable in
ensuring optimum performance of the
appliance.
Fig. 13
5.3 Electrical Connection
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•In normal operation or maintenance, the power cord cannot be stretched out nor
crushed.
•A universal main disconnecter must be used
that would disconnect all contacts, including
the zero distributor. The disconnected contact
must feature at least a 3 mm gap. The switch
must be activated by a thermo-magnetic
safety device or be coupled to fuses. The
fuses and the switch must be designed for the
power provided on the rating plate.
•The main switch must be located in the power
line near the installation place. Only one
appliance may be permanently connected to
the main switch.
•Verify if the technical specification of the
appliance (see the rating plate) corresponds
to the characteristics of the local electric
mains grid.
Fig. 14
•For the safety of the operator and the appliance, provide for proper grounding
pursuant to the safety regulations in force.
•The appliance complies with the EN/IEC 61000-3-11 standard, on condition that
the system impedance Zsys is lower or equals Zmax at the interface between the

Installation Instructions
14 / 32 110644
EN
user's port and the public grid. The installer or the user of the appliance is
responsible for providing that the appliance is connected to the mains supply
with system impedance Zsys is lower or equals Zmax.
Zmax
Dishwasher
0,21 Ω
Pass-through dishwasher
0,24 Ω
Dishwasher for fitting
0,41 Ω
•Only connection cables, type H07RN-F, may be used; current-carrying capacity
at continuous operation and 60°C at a cord:
Three-phase appliances
o- 5x2.5 mm^2 up to 20 A
o- 5x4 mm^2 up to 30 A
o- 5x6 mm^2 up to 38 A
o- 5x10 mm^2 up to 54 A
Single-phase appliances
o- 3x1.5 mm^2 up to 16 A
o- 3x2.5 mm^2 up to 25 A
•The appliance must be integrated with the potential safety equalization system.
Connection is executed via the screw with 5021 symbol, pursuant to IEC 60417
.
Potential equalization cord cross-section must be 10 mm².

Installation Instructions
110644 15 / 32
EN

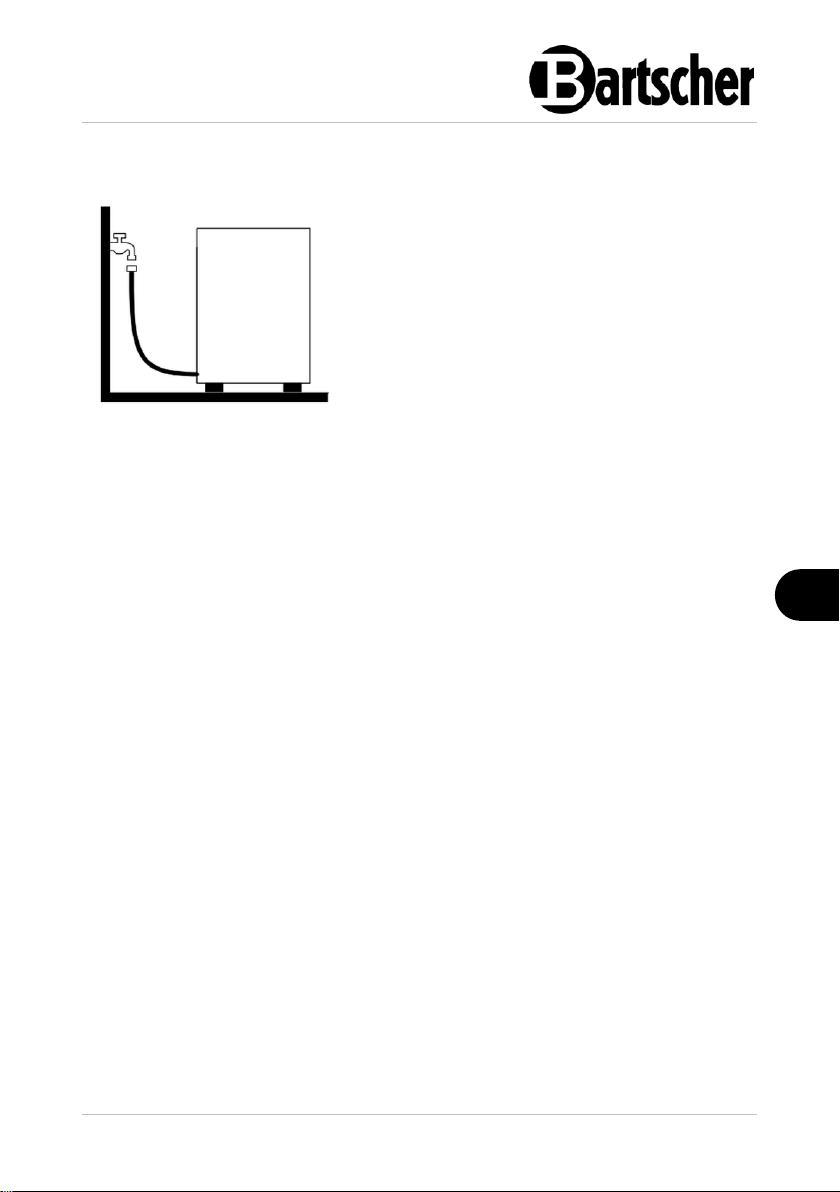

5.4 Water Connection
•The appliance is connected with a hose to
a water supply system.
•Between the water connection and the
appliance's solenoid valve, a cut-off valve
must be installed. The cut-off valve must
be positioned in the vicinity of the
appliance.
•The water supply system, temperature and
pressure must comply with data on the
appliance's rating plate.
Fig. 15
•A water flow in the water supply system may not be lower than 20 litres/minute.
•With water hardness exceeding 14 °fH (8 °dH), it is recommended to use an
appliance with a built-in water softener. With water hardness exceeding 35 °dH
(19.5 °dH), it is recommended to install an external water softener before the
solenoid valve.
High electric conduction of water indicates a very high concentration of minerals
dissolved in water; in such a case, demineralization device should be installed.
•Appliances intended for operation with desalted water or water with high
concentration of sodium chloride should be ordered separately, as special
minerals are required for their construction.
•Appliances equipped with a heat recovery installation with copper tubing may
not be operated with de-mineralized water. In such cases, a version with heat
exchanger with stainless steel tubing should be ordered.
•Furthermore, when checking the water quality, the pressure of water supply
system must be taken into account. This parameter determines the correct
operation of the appliance.

Installation Instructions
16 / 32 110644
EN
The required water pressure is 2–4 bar.
Water
pressure
MIN
MAX
bar
kPa
kg/cm2
psi
bar
kPa
kg/cm2
psi
2
200
2,03
29
4
400
4,07
58,01
•If the water pressure exceeds the recommended value, it is required to install a
pressure controller between the water supply system and the water connection
of the appliance.
•If the water pressure is below the recommended value, it is required to install
the booster pump at the water supply system connection.
•The appliance is intended to be connected to a permanent water mains
connection. When using warm water, the water temperature may not exceed the
values of 50°C/122°F.

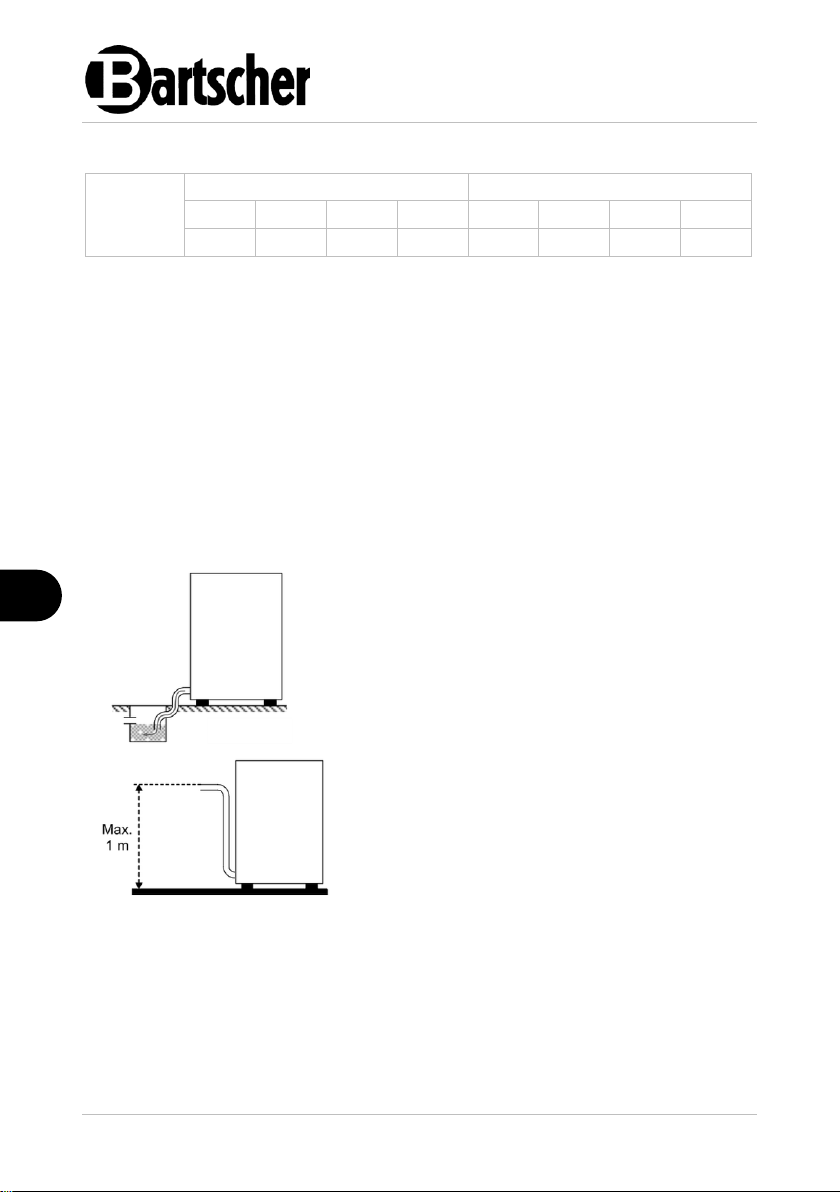

5.5 Drain Connection
•Water drain tube must consist of a sump
with free drain trap. Dimensions must be
suitable for the flow rate of the drain hose
delivered with the appliance. The drain
hose must be introduced into the sump
without pulling, bending, clenching, kinking
and any other obstacles.
•Emptying the sump is executed by means
of gravitation, i.e. the drain must be located
below the bottom of the appliance.
•If the drain is not below the bottom of the
appliance (as in a model with drain pump),
the maximum allowable drain height is 1
metre.
•Check regularly if the drain works correctly
and for possible clogging.
•Any other solutions must be consulted with
and approved of by the manufacturer
beforehand.
Fig. 16
