MRMC 2143-00 User manual
ii
Universal Camera Sync Adapter Quick Start Guide
QSG Product Code: MRMC-2143-00
Product Covered: MRMC-2140-00, MRMC-2141-00
Modification date: 5 July 2021
© 2021 Mark Roberts Motion Control Ltd. All rights reserved.
No part of this publication may be reproduced, transmitted, or translated
by any means — graphical, electronic, or mechanical — including
photocopying, recording, taping, or storage in an information retrieval
system, without the express written permission of Mark Roberts Motion
Control.
Although every care has been taken to ensure that the information in this
document is accurate and up to date, Mark Roberts Motion Control
continuously strives to improve their products and may make changes to
the hardware, firmware, and software described in this document. Mark
Roberts Motion Control therefore cannot be held responsible for any
error or omission in this document.
All product names mentioned herein are the trademarks or registered
trademarks of their respective owners.
Contact information
Mark Roberts Motion Control Ltd.
Unit 3, South East Studios
Blindley Heath
Surrey
RH7 6JP
United Kingdom
Telephone: +44 (0) 1342 838000
Web: www.mrmoco.com
www.mrmocorentals.com
Universal Camera Sync Adapter Quick Start Guide
iii
Universal Camera Sync Adapter Quick Start GuideUniversal Camera Sync AdapterQuick Start Guide
Contents
Chapter 1 Universal Camera Sync Adapter Panel.......................... 1
Connecting the Cables ..........................................................2
Alexa - Universal Camera Sync - Ulti
connection .....................................................................2
Alexa - Universal Camera Sync - Guinness
head/RT-14 connection ...............................................3
Red Epic/Phantom- Universal Camera Sync -
Ulti connection .............................................................4
Red Epic/Phantom- Universal Camera Sync -
Guinness head/RT-14 connection..............................5
Switch Positions......................................................................6
Universal Camera Sync LEDs .....................................6
Universal Camera Sync Adapter Quick Start Guide
iv
Universal Camera Sync Adapter Quick Start Guide
1
Universal Camera Sync AdapterQuick Start GuideUniversal Camera Sync AdapterQuick Start Guide
Chapter 1 Universal Camera Sync Adapter
Panel
Overvi ew
MRMC’s Universal Camera Sync Adapter allows either an ARRI Alexa, or
RED Epic/Phantom Camera to output a sync pulse to the camera head.
Epic has a directly coupled sync, and separate trigger input. Both camera
syncs are opto-isolated.
The Universal Camera Sync Adapter:
Uses an edge triggered pulse stretcher, so even at low shutter
angles, when the width of the sync pulse gets very narrow –
there is a fixed pulse width generated for the Head box.
Slide switch allows the polarity of the sync output to the head
to be inverted.
Operational over a wide range of frame rates - up to 1000fps
for high speed filming.
Needs to work over a wide range of camera voltages, 12-24V as
modern cameras often run on a 14V battery supply. Camera
needs to supply power to the opto-isolator input stage.
Provides opto-isolation of trigger signal between the camera
and the head.
Protected against the most obvious of reverse polarity faults.
Universal Camera Sync Adapter Quick Start Guide
2
Connecting the Cables
Alexa - Universal Camera Sync - Ulti connection
Arri Alexa Sync
Connector
Fischer3Way
Alexa Cable
[22118]
Ulti box
Ulti Cable
[21755]
Universal Camera Sync Adapter Quick Start Guide
3

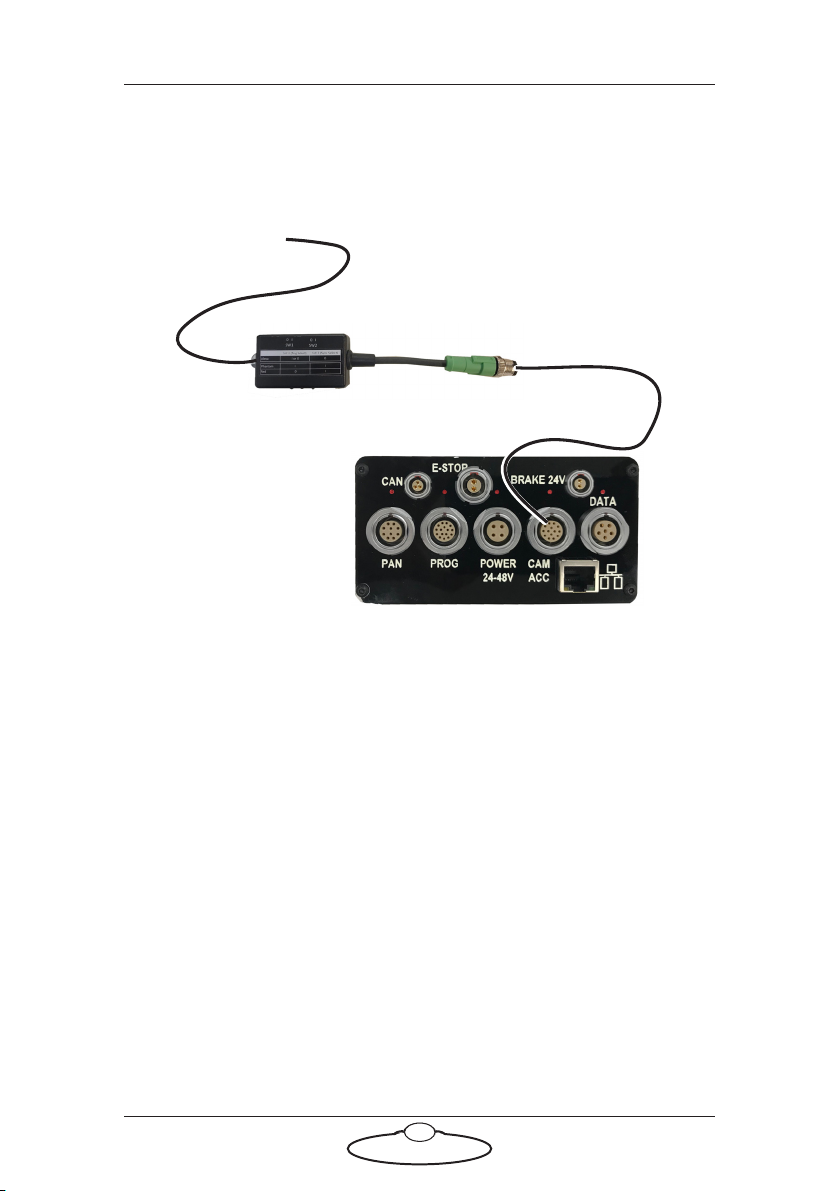

Alexa - Universal Camera Sync - Guinness head/RT-14
connection
Arri Alexa Sync
Connector
Fischer3Way
Alexa Cable
[22118]
Guinness Head
Panel
Guinness
head / RT-14
Cable
[21758]
Universal Camera Sync Adapter Quick Start Guide
4
Red Epic/Phantom- Universal Camera Sync - Ulti
connection
BNC Cable
for Epic/
Phantom
[22119]
Ulti box
Ulti Cable
[21755]
Typical Red Epic
Connector Panel
2
1
To connect
the Sync cable
to the camera,
you will need
3BNC to 00
cable, or
equivalent, for
each signal.
Yellow- Sync
(plugged into (1)
CTRL socket)
White- Sync
(plugged into (2)
SYNC socket)
Universal camera Sync box
3BNC to 00 Sync
cable (Not supplied)
Universal Camera Sync Adapter Quick Start Guide
5
Red Epic/Phantom- Universal Camera Sync - Guinness
head/RT-14 connection
BNC Cable
for Epic/
Phantom
[22119]
Typical Red Epic
Connector Panel
2
1
To connect
the Sync cable
to the camera,
you will need
3BNC to 00
cable, or
equivalent, for
each signal.
Yellow- Sync
(plugged into (1)
CTRL socket)
White- Sync
(plugged into (2)
SYNC socket)
Universal camera Sync box
3BNC to 00 Sync
cable (Not supplied)
Guinness Head
Panel
Guinness
head / RT-14
Cable
[21758]
Universal Camera Sync Adapter Quick Start Guide
6

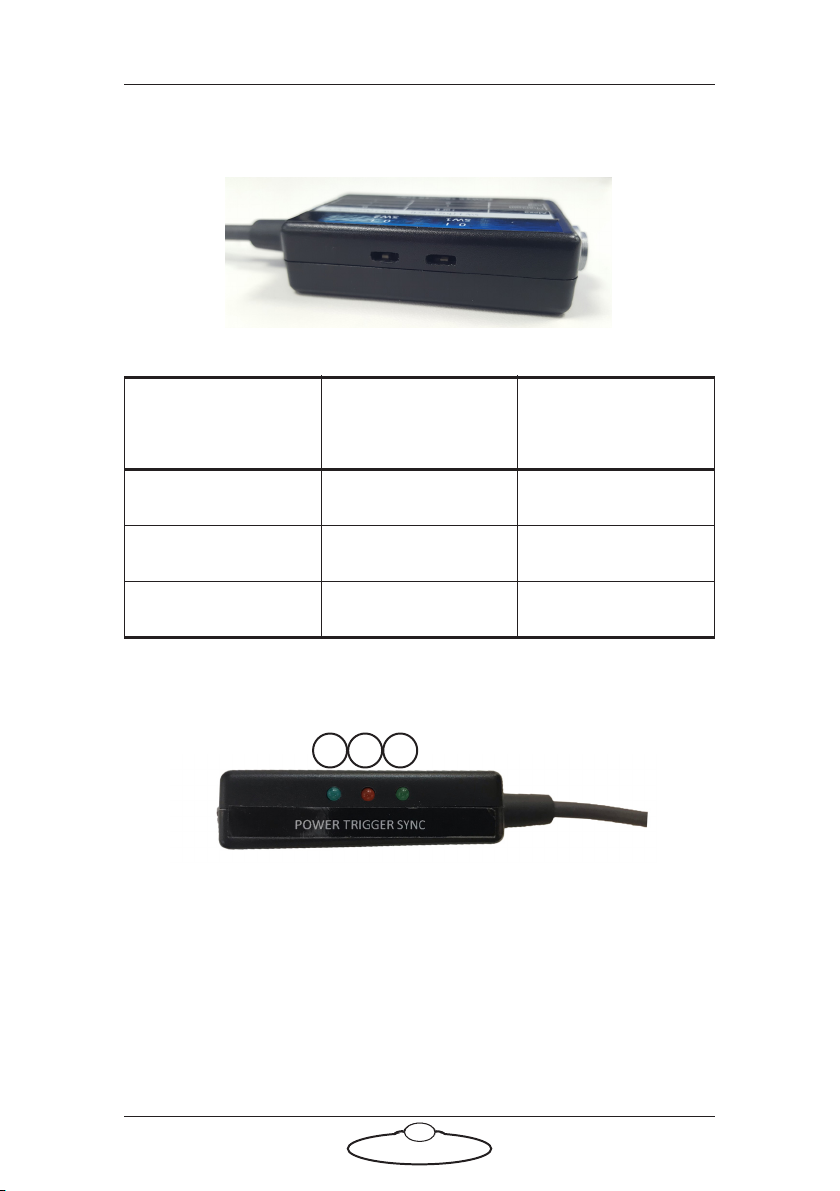

Switch Positions
321
Universal Camera Sync LEDs
1. POWER LED illuminates when the camera is connected to
Universal Camera Sync box and is powered.
2. TRIGGER LED illuminates when the Sync box is receiving Trigger
signal from the camera.
3. SYNC LED illuminates when the Sync box is receiving Sync signal
from the Ulti box or Guinness head/RT-14.
Switch 1
(Trigger Select)
Switch 2
(Sync Select)
Arri Alexa I or O O
Red Phantom II
Red Epic OI
Universal Camera Sync Adapter Quick Start Guide
