MSI MAG X570S TOMAHAWK MAX WIFI User manual
I
MAG X570S TOMAHAWK MAX WIFI
MAG X570S TORPEDO MAX
Motherboard
User Guide
Benutzerhandbuch
Manuel d’utilisation
III
Quick Start
Thank you for purchasing the MSI® motherboard. This Quick Start section provides
demonstration diagrams about how to install your computer. Some of the installations
also provide video demonstrations. Please link to the URL to watch it with the web
browser on your phone or tablet. You may have even link to the URL by scanning the
QR code.
Kurzanleitung
Danke, dass Sie das MSI® Motherboard gewählt haben. Dieser Abschnitt der
Kurzanleitung bietet eine Demo zur Installation Ihres Computers. Manche
Installationen bieten auch die Videodemonstrationen. Klicken Sie auf die URL, um
diese Videoanleitung mit Ihrem Browser auf Ihrem Handy oder Table anzusehen. Oder
scannen Sie auch den QR Code mit Ihrem Handy, um die URL zu öffnen.
Présentation rapide
Merci d’avoir choisi la carte mère MSI®. Ce manuel fournit une rapide présentation
avec des illustrations explicatives qui vous aideront à assembler votre ordinateur.
Des tutoriels vidéo sont disponibles pour certaines étapes. Cliquez sur le lien fourni
pour regarder la vidéo sur votre téléphone ou votre tablette. Vous pouvez également
accéder au lien en scannant le QR code qui lui est associé.
IV
Installing a Processor/ Installation des Prozessors/ Installer un
1
2
3
6
4
5
7
8
9
Youtube
http://v.youku.com/v_show/id_
XMTg2MjMwOTE2NA==.html
https://youtu.be/Xv89nhFk1vc
CPU_FAN1
V
Important
remove the retention module first and then install the heatsink.
1
23
VII
HDD LED
RESET SW
JFP1
HDD LED
HDD LED +
POWER LED +
POWER LED
1
2 10
9
+
+
+
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 4
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
http://youtu.be/DPELIdVNZUI
Youtube
http://v.youku.com/v_show/id_XNjcyMTczMzM2.html
XII
MAG X570S TOMAHAWK MAX WIFI
Processor with integrated graphics
XIII
MAG X570S TORPEDO MAX
Processor with integrated graphics
XIV
4
3
12
1
Safety Information................................................................................................. 3
..................................................................................... 4
Avoid collision notification...................................................................................... 4
Specifications......................................................................................................... 5
Package contents ................................................................................................ 12
Rear I/O Panel ..................................................................................................... 13
LAN Port LED Status Table .................................................................................. 14
Audio Ports Configuration.................................................................................... 14
Realtek Audio Console ......................................................................................... 15
.................................................................................... 18
CPU Socket ........................................................................................................... 19
DIMM Slots............................................................................................................ 20
PCI_E1~4: PCIe Expansion Slots.......................................................................... 21
M2_1~2: M.2 Slots (Key M) ................................................................................... 22
SATA1~6: SATA 6Gb/s Connectors....................................................................... 24
JFP1, JFP2: Front Panel Connectors................................................................... 24
CPU_PWR1~2, ATX_PWR1: Power Connectors................................................... 25
CPU_FAN1, PUMP_FAN1, SYS_FAN1~4: Fan Connectors.................................. 26
JUSB1~2: USB 2.0 Connectors............................................................................. 27
JUSB3~4: USB 3.2 Gen 1 5Gbps Connectors ....................................................... 27
............................................... 28
JAUD1: Front Audio Connector ............................................................................ 28
JCI1: Chassis Intrusion Connector....................................................................... 29
JTPM1: TPM Module Connector........................................................................... 29
JCOM1: Serial Port Connector ............................................................................. 30
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 30
JPWRLED1: LED power input............................................................................... 31
EZ Debug LED....................................................................................................... 31
JRGB1~2: RGB LED connectors........................................................................... 32
JRAINBOW1~2: Addressable RGB LED connectors ............................................ 33
English
2
.................................................................... 34
Installing Windows® 10......................................................................................... 34
Installing Drivers .................................................................................................. 34
MSI Center............................................................................................................ 34
............................................................................................................. 35
........................................................................................................... 36
Entering BIOS Setup............................................................................................. 36
BIOS User Guide ................................................................................................... 36
Resetting BIOS...................................................................................................... 37
Updating BIOS....................................................................................................... 37
3
Safety Information
Safety Information
The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
Hold the motherboard by the edges to avoid touching sensitive components.
It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
pad whenever the motherboard is not installed.
Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
If you need help during any installation step, please consult a certified computer
technician.
Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
Keep this user guide for future reference.
Keep this motherboard away from humidity.
Make sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
All cautions and warnings on the motherboard should be noted.
If any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
Do not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.
4
the motherboard circuits and the computer case is prohibited. The Case standoff keep
out zone signs will be marked on the backside of motherboard (as shown below) to
serve as a warning to user.
Avoid collision notification
Protective paint is printed around each screw hole to prevent parts from being
scratched.
5
Specifications
Specifications
Supports Socket AM4
* Please go to msi.com to get the newest support status as new processors are
released.
AMD X570 Chipset
Memory
4x DDR4 memory slots, support up to 128GB
Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/
3200 MHz by JEDEC*
processors
1DPC 1R Max speed up to 5100 MHz
1DPC 2R Max speed up to 4000 MHz
2DPC 1R Max speed up to 4266 MHz
2DPC 2R Max speed up to 3600 MHz
1DPC 1R Max speed up to 5100 MHz
1DPC 2R Max speed up to 3866 MHz
2DPC 1R Max speed up to 4000 MHz
2DPC 2R Max speed up to 3600 MHz
*Please refer to msi.com for more information on compatible memory.
Expansion Slot
Supports PCIe 4.0 / PCIe 3.0
PCIe 4.0 is available only on AMD Ryzen™ 5000 Series
and 3000 Series desktop processors
1x PCIe x16 slot (From processor)
PCI_E1 supports PCIe 4.0/ 3.0 x16
PCI_E1 supports PCIe 3.0 x8 on AMD Ryzen™ 3000 G-
and 2000 G- series desktop processors
1x PCIe x16 slot (From X570 chipset)
PCI_E3 supports PCIe 4.0/ 3.0 x4
2x PCIe 3.0 x1 slots (From X570 chipset)
Continued on next page
6Specifications
Continued from previous page
Onboard Graphics
1x HDMI 2.1 port, supports a maximum resolution of 4K
60Hz*/**
* Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
Supports AMD CrossFire™ Technology
LAN
1x Realtek® 8125B 2.5Gbps LAN Controller
1x Realtek® RTL8111H 1Gbps LAN Controller (For MAG
X570S TORPEDO MAX)
(For MAG X570S
TOMAHAWK MAX
WIFI)
slot
(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2**, FIPS, FISMA
WIN10 21H1.
** Bluetooth 5.2 will be ready in WIN10 21H1.
Storage
6x SATA 6Gb/s ports (from AMD X570 Chipset)
2x M.2 slots (Key M)
Supports PCIe 4.0 / PCIe 3.0
PCIe 4.0 is available only on AMD Ryzen™ 5000 Series
and 3000 Series desktop processors
Supports up to SATA 6Gb/s
M2_1 slot (from Processor)
Support 2280/22110 storage devices
M2_2 slot (from AMD X570 Chipset)
Supports 2242/ 2260/ 2280 storage devices
RAID Supports RAID 0, RAID 1 and RAID 10
Audio
Realtek® ALC4080 Codec
Supports S/PDIF output
NUVOTON NCT6797D Controller Chip
Continued on next page
This manual suits for next models
1
Table of contents
Languages:
Other MSI Motherboard manuals
MSI
MSI A55M-P25 Series User manual
MSI
MSI P45 NEO3-FR - Motherboard - ATX User manual
MSI
MSI MS-6380 User manual
MSI
MSI 890FXA-GD70 series User manual
MSI
MSI MPG B550I GAMING EDGE WIFI User manual
MSI
MSI Z87-G43 GAMING User manual
MSI
MSI K8N Master2-FAR User manual
MSI
MSI MAG Z690 TOMAHAWK User manual
MSI
MSI A320M PRO-VD/S V2 User manual
MSI

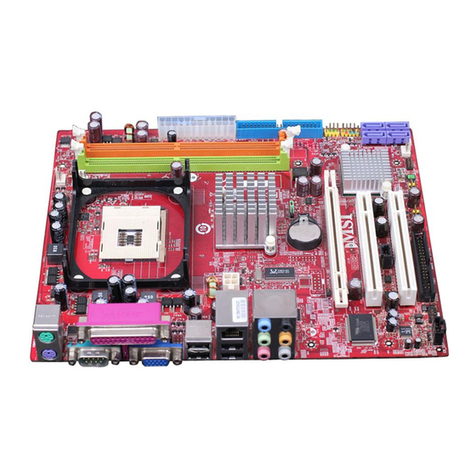

MSI 945GCM478 Series User manual
