Op e r a t O r ’sMa n u a l
21-Blade Dethatcher — Model 16CG5AMQ
Form No. 769-06844
(January 12, 2011)

Customer Support
Please do NOT return the machine to the retailer or dealer without first contacting the Customer Support Department.
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
Visit us on the web at www.mtdproducts.com◊
Call a Customer Support Representative at [phone] or [phone]◊
Write to MTD LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019◊
Thank you for purchasing an MTD Dethatcher. It was carefully
engineered to provide excellent performance when properly
operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. We reserve
the right to change product specifications, designs and
equipment without notice and without incurring obligation.
If you have any problems or questions concerning the machine,
phone your local authorized MTD service dealer or contact us
directly. MTD’s Customer Support telephone numbers, website
address and mailing address can be found on this page. We want
to ensure your complete satisfaction at all times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position
Thank You
Record Product Information
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate
the model plate by standing at the operator’s position and
looking down at the rear of the machine. This information will be
necessary, should you seek technical support via our web site,
Customer Support Department, or with a local authorized service
dealer.
MO d e l nu M b e r
se r i a l nu M b e r
To The Owner 1
2
Safe Operation Practices ........................................ 3
Assembly & Set-Up .................................................. 8
Controls and Features............................................. 9
Operation................................................................10
Service .....................................................................11
Troubleshooting .....................................................13
Illustrated Parts List ...............................................14
Warranty..................................................Back Cover
Table of Contents

Important Safe Operation Practices 2
3
WARNING: This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
DANGER: This machine was built to be operated according to the safe operation practices in
this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating fingers, hands,
toes and feet and throwing objects. Failure to observe the following safety instructions could
result in serious injury or death.
CALIFORNIA PROPOSITION 65
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.
WARNING: Battery posts, terminals, and related accessories contain lead and lead
compounds, chemicals known to the State of California to cause cancer and reproductive
harm. Wash hands after handling.
General Operation
Read this operator’s manual carefully in its entirety before 1.
attempting to assemble this machine. Read, understand,
and follow all instructions on the machine and in the
manual(s) before operation. Be completely familiar with
the controls and the proper use of this machine before
operating it. Keep this manual in a safe place for future and
regular reference and for ordering replacement parts.
Be familiar with all controls and their proper operation. 2.
Know how to stop the machine and disengage them
quickly.
Do not start engine with blades engaged.3.
This machine is a precision piece of power equipment,4.
not a plaything. Therefore, exercise extreme caution at all
times. Your unit has been designed to perform one job: to
dethatch grass. Do not use it for any other purpose.
Never allow children under 14 years old to operate this5.
machine. Children 14 years old and over should read and
understand the instructions in this manual and should be
trained and supervised by a parent.
Only responsible individuals who are familiar with these 6.
rules of safe operation should be allowed to use this
machine.
Thoroughly inspect the area where the equipment is to be7.
used. Remove all stones, sticks, wire, bones, toys and other
foreign objects which could be tripped over or picked up
and thrown by the dethatcher’s blades. Thrown objects can
cause serious personal injury.
To help avoid blade contact injury, stay in operator zone8.
behind bail and keep children, bystanders, helpers, and
pets at least 75 feet from dethatcher while it is in operation.
Stop machine if anyone enters area.
Always wear safety glasses or safety goggles during9.
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
Wear sturdy, rough-soled work shoes and close-fitting10.
slacks and shirts. Shirts and pants that cover the arms
and legs and steel-toed shoes are recommended. Never
operate this machine in shorts, bare feet, sandals, slippery
or light weight (e.g. canvas) shoes.
Do not put hands or feet near or under blade housing as11.
blades protrude below bottom of housing. Contact with
blade can amputate hands and feet. Keep hands and feet
way from all rotating parts.
Injury can occur if the dethatcher is pulled over the foot12.
during a fall caused by slipping or tripping. Do not hold
on to the dethatcher if you are falling; release the bail
immediately.

4se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Never pull the dethatcher back toward you while you are13.
walking. If you must back the dethatcher away from a wall
or obstruction first look down and behind to avoid tripping
and then follow these steps:
Step back from dethatcher to fully extend your arms.a.
Be sure you are well balanced with sure footing. b.
Pull back slowly, no more than half way towards you. c.
Repeat these steps as needed.d.
Do not operate dethatcher while under the influence of14.
alcohol or drugs.
Raise dethatcher to highest cut position before starting15.
engine.
Do not engage the blades while starting engine.16.
The blade control bail is a safety device. Never attempt17.
to bypass its operation. Doing so makes the safety device
inoperative and may result in personal injury through
contact with the rotating blade. The blade control bail
must operate easily in both directions and automatically
return to the disengaged position when released.
Never operate the dethatcher in wet grass. Always be sure18.
of your footing. A slip and fall can cause serious personal
injury. If you feel you are losing your footing, release the
blade control bail immediately and the blades will stop
rotating.
Dethatch only in daylight or good artificial light. Walk,19.
never run.
Stop the blades when crossing gravel drives, walks or20.
roads.
If the equipment should start to vibrate abnormally, stop21.
the engine and check immediately for the cause. Vibration
is generally a warning of trouble.
Shut the engine off and wait until the blades comes to a22.
complete stop before removing or unclogging debris from
under the blade housing. The cutting blades may continue
to rotate for a few seconds after the engine is shut off.
Never place any part of the body in the blade area until you
are sure the blades has stopped rotating.
Never operate dethatcher without the proper blade control23.
bail, guards and other safety protective devices in place
and working. Never operate dethatcher with damaged
safety devices. Failure to do so can result in personal injury.
Muffler and engine become hot and can cause a burn. Do24.
not touch.
Only use parts and accessories made for this machine by 25.
the manufacturer. Failure to do so can result in personal
injury.
When starting engine, pull cord slowly until resistance26.
is felt, then pull rapidly. Rapid retraction of starter cord
(kickback) will pull hand and arm toward engine faster than
you can let go. Broken bones, fractures, bruises or sprains
could result.
If situations occur which are not covered in this manual, use27.
care and good judgment. Contact your Authorized Service
Center for assistance.
Slope Operation
Slopes are a major factor related to slip and fall accidents which
can result in severe injury. Operation on slopes requires extra
caution. If you feel uneasy on a slope, do not dethatch it. For
your safety, use the slope gauge included as part of this manual
to measure slopes before operating this unit on a sloped or hilly
area. If the slope is greater than 15 degrees, do not dethatch it.
Do:
Dethatch across the face of slopes; never up and down.1.
Exercise extreme caution when changing direction on
slopes.
Watch for holes, ruts, rocks, hidden objects, or bumps2.
which can cause you to slip or trip. Tall grass can hide
obstacles.
Always be sure of your footing. A slip and fall can cause3.
serious personal injury. If you feel you are losing your
balance, release the blade control bail immediately, and the
blade will stop rotating within several seconds
Do Not:
Do not dethatch near drop-offs, ditches or embankments,1.
where you could lose your footing or balance.
Do not dethatch slopes greater than 15 degrees as shown2.
on the slope gauge.
Do not dethatch wet grass. Unstable footing could cause3.
slipping.
Children
Tragic accidents can occur if operator is not alert to1.
presence of children. Children are often attracted to
outdoor power equipment. They do not understand the
dangers. Never assume that children will remain where you
last saw them.
Keep children out of the work area and under watchful care2.
of a responsible adult other than the operator.
Be alert and turn dethatcher off if a child enters the area. 3.
Before and while moving backwards, look behind and 4.
down for small children.
Use extreme care when approaching blind corners,5.
doorways, shrubs, trees, or other objects that may obscure
your vision of a child who may run into the dethatcher.
Keep children away from hot or running engines. They can6.
suffer burns from a hot muffler.
Never allow children under 14 years old to operate the7.
dethatcher. Children 14 years old and over should read and
understand operation instructions and safety rules in this
manual and should be trained and supervised by an adult.
Service
Safe Handling Of Gasoline:
To avoid personal injury or property damage use extreme1.
care in handling gasoline. Gasoline is extremely flammable
and the vapors are explosive. Serious personal injury can
occur when gasoline is spilled on yourself or your clothes
which can ignite. Wash your skin and change clothes
immediately.

5se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Use only an approved gasoline container.2.
Never fill containers inside a vehicle or on a truck or trailer3.
bed with a plastic liner. Always place containers on the
ground away from your vehicle before filling.
Remove gas-powered equipment from the truck or4.
trailer and refuel it on the ground. If this is not possible,
then refuel such equipment on a trailer with a portable
container, rather than from a gasoline dispenser nozzle.
Keep the nozzle in contact with the rim of the fuel tank or5.
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.
Extinguish all cigarettes, cigars, pipes and other sources of6.
ignition.
Never fuel machine indoors because flammable vapors will7.
accumulate in the area.
Never remove gas cap or add fuel while engine is hot or8.
running. Allow engine to cool at least two minutes before
refueling.
Never over fill fuel tank. Fill tank to red indicator bar inside9.
tank.
Replace gasoline cap and tighten securely.10.
If gasoline is spilled, wipe it off the engine and equipment.11.
Move unit to another area. Wait 5 minutes before starting
engine.
Never store the machine or fuel container near an open12.
flame, spark or pilot light as on a water heater, space
heater, furnace, clothes dryer, or other gas appliances.
To reduce fire hazard, keep dethatcher free of grass, leaves,13.
or other debris build-up. Clean up oil or fuel spillage and
remove any fuel soaked debris.
Allow dethatcher to cool at least 5 minutes before storing.14.
General Service:
Never run an engine indoors or in a poorly ventilated area.1.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
Before cleaning, repairing, or inspecting, make certain the 2.
blades and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.
Check the blade and engine mounting fasteners at3.
frequent intervals for proper tightness. Also, visually
inspect blades for damage (e.g., bent, cracked, worn)
Replace blades with the original equipment manufacture’s
(O.E.M.) blade only. Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!
Dethatcher blades may be sharp and can cut. Wrap the4.
blade or wear gloves, and use extra caution when servicing
them.
Keep all nuts, bolts, and screws tight to be sure the5.
equipment is in safe working condition.
Never tamper with safety devices. Check their proper6.
operation regularly.
After striking a foreign object, stop the engine, disconnect7.
the spark plug wire and ground against the engine.
Thoroughly inspect the dethatcher for any damage. Repair
the damage before starting and operating the dethatcher.
For safety protection, frequently check components8.
and replace immediately with original equipment
manufacturer’s (O.E.M.) parts only. Use of parts which do
not meet the original equipment specifications may lead to
improper performance and compromise safety!
Do not change the engine governor setting or overspeed9.
the engine. The governor controls the maximum safe
operating speed of the engine. Do not crank engine with
spark plug removed.
Check fuel line, tank, cap, and fittings frequently for cracks10.
or leaks. Replace if necessary.
Maintain or replace safety and instruction labels, as11.
necessary.
Observe proper disposal laws and regulations. Improper 12.
disposal of fluids and materials can harm the environment.
Do not modify engine
To avoid serious injury or death, do not modify engine in any
way. Tampering with the governor setting can lead to a runaway
engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.
Notice Regarding Emissions
Engines which are certified to comply with California and federal
EPA emission regulations for SORE (Small Off Road Equipment)
are certified to operate on regular unleaded gasoline, and
may include the following emission control systems: Engine
Modification (EM), Oxidizing Catalyst (OC), Secondary Air
Injection (SAI) and Three Way Catalyst (TWC) if so equipped.
Spark Arrestor
WARNING: This machine is equipped with an
internal combustion engine and should not be used
on or near any unimproved forest-covered, brush
covered or grass-covered land unless the engine’s
exhaust system is equipped with a spark arrestor
meeting applicable local or state laws (if any).
If a spark arrestor is used, it should be maintained in effective
working order by the operator. In the State of California the
above is required by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws. Federal laws
apply on federal lands.
A spark arrestor for the muffler is available through your
nearest engine authorized service dealer or contact the service
department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

6se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
WARNING: Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!
Safety Symbols
This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.
Symbol Description
READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate
BYSTANDERS
Keep bystanders, pets, and children at least 75 feet from the machine while it is in operation.
Stop machine if anyone enters the area
DANGER — HAND/ FOOT CUT
Keep hands and feet away from rotating parts.
WARNING — THROWN DEBRIS
Remove debris (i.e. rocks, sticks, wire) and other objects which can be thrown by the blades.
EYE PROTECTION
Always wear safety glasses or safety goggles when operating this machine.
WARNING—GASOLINE IS FLAMMABLE
Allow the engine to cool at least two minutes before refueling.
WARNING— CARBON MONOXIDE
Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon
monoxide, an odorless and deadly gas.
WARNING— HOT SURFACE
Engine parts, especially the muffler, become extremely hot during operation. Allow engine
and muffler to cool before touching.

7se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
15°
Sight and hold this level with a vertical tree...
or a corner of a building...
or a fence post
Fold along dotted line (representing a 15° slope)
Use this page as a guide to determine slopes where you may not operate safely.
WARNING: Do not operate your lawn mower on such slopes. Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower could overturn and cause serious injury. Operate riding mowers up and down slopes, never across the face of slopes. Operate walk-behind mowers across the face of slopes, never up and down slopes.

Assembly & Set-Up 3
8
NOTE: References to right or left side of the dethatcher are
determined from behind the unit in the operating position
(standing directly behind the dethatcher, facing the handle
panel).
Assembly

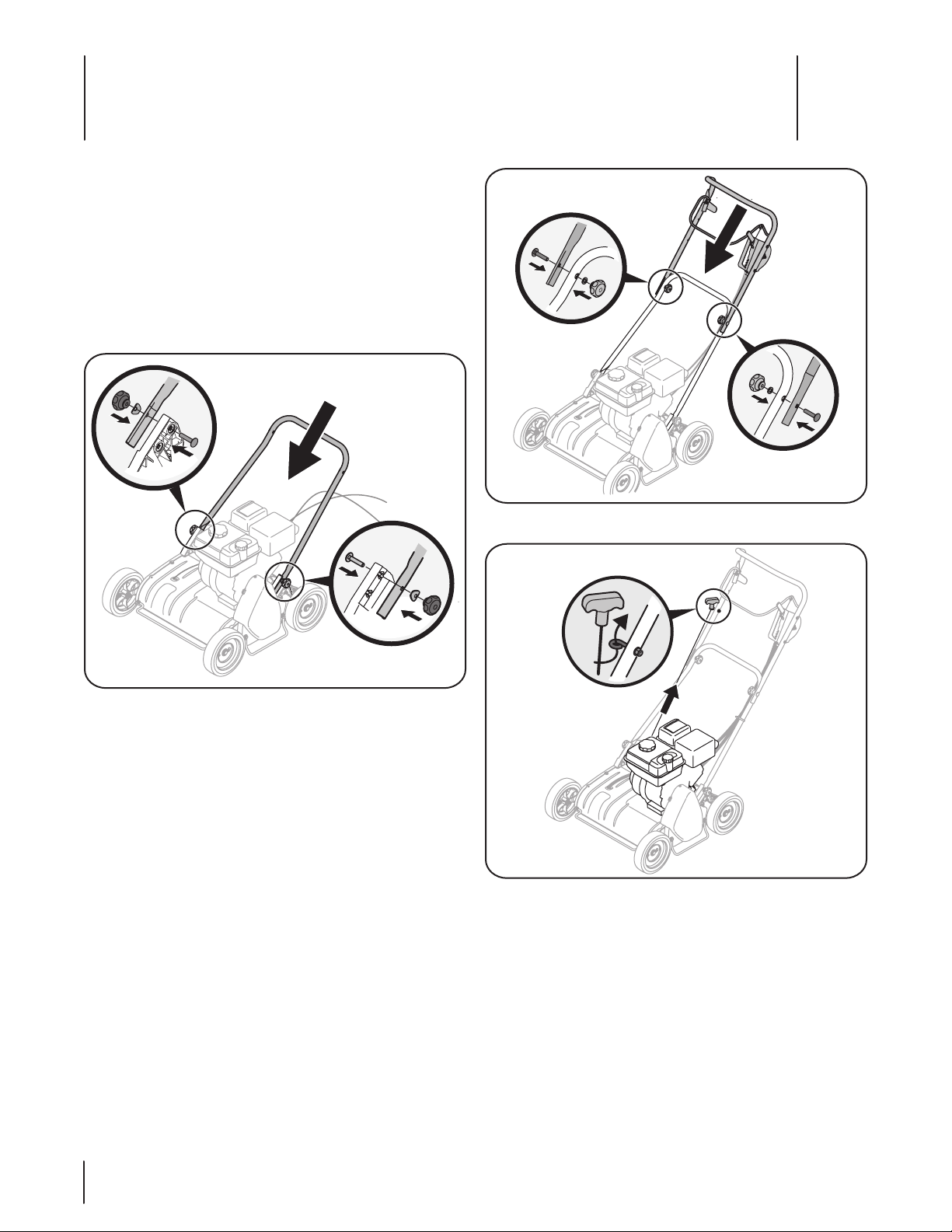

Positioning the Handle
Remove knobs from handles.1.
Place lower handle as shown. See Fig. 3-1.2.
Insert knobs into the top notch of the base of the3.
dethatcher and bottom hole of the handle and tighten.
Place upper handle on lower handle.4.
Insert knobs into top hole of the lower handle and bottom5.
hole of the upper handle and tighten. See Fig. 3-2.
Attaching Remote Pulley Starter
The rope guide is attached to the right side of the upper handle.
Loosen the nut which secures it to the upper handle.
See Figure 3-3.
Hold the blade control bail against the upper handle.a.
Slowly pull starter rope out of engine.b.
Slip starter rope into the rope guide.c.
Tighten rope guide nut.d.
Figure 3-1
Securing Cables
Cables are attached to their respective controls, but are left
unattached to the handle to ease assembly; however, they will
need to be secured to the lower handle by the provided cable tie.
Figure 3-3
Figure 3-2

Controls & Features 4
9

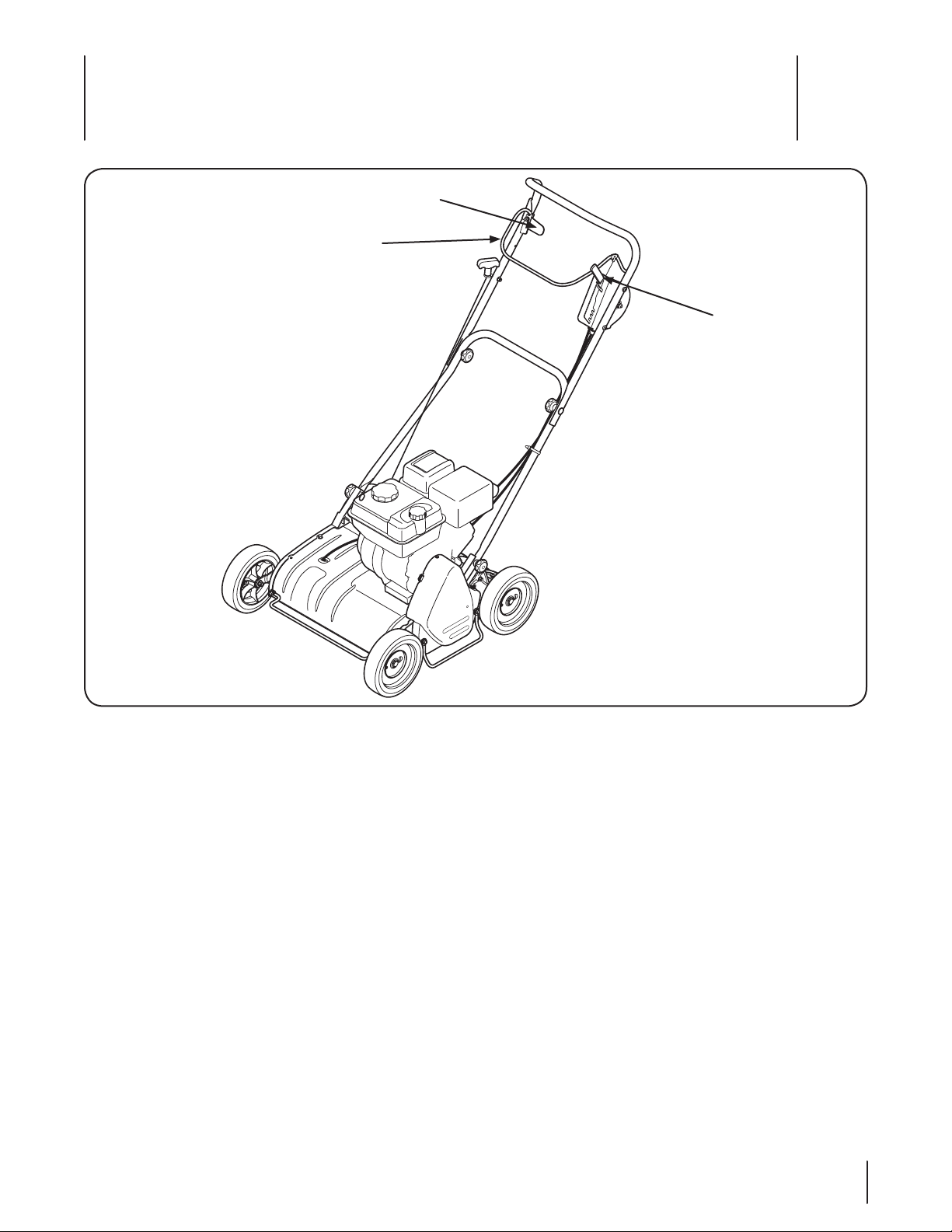

Bail Interlock
Blade Control
Bail
Depth Control
Lever
Engine
Please refer to the separate engine manual for information
regarding all engine-related controls.
Blade Control Bail
Located on the upper handle, the blade control handle is used to
engage and disengage drive to the cutting blades. Squeeze the
control handle against the upper handle to engage the blades;
release it to disengage.
Depth Control Lever
The depth control lever raises and lowers the cutting blades.
Use the 1-setting for transportation, settings 2 through 5 for
dethatching. Settings 3, 4, and 5 are not needed until the blades
are too worn to be effective on setting 2. Optimum cutting depth
is ¹⁄8of an inch.
Bail Interlock
The bail interlock locks the blade control handle in place to
prevent unwanted engaging of the cutting blades.

Operation 5
10
NOTE: The blade control bail does not need to be engaged in
order to start the engine.
Using the Dethatcher
Dethatch the lawn once in the spring and once in the fall to clear
dead and/or dying grass from the lawn, and to allow more air to
flow through the ground. Grass should be 2 ½ inches high when
dethatched. After dethatching, fertilize and water the lawn to
encourage quicker growth.
Be sure lawn is clear of stones, sticks, wire, or other objects which
could damage dethatcher or engine. Such objects could be
accidently thrown by the dethatcher in any direction and cause
serious personal injury to the operator and others.
Release bail interlock and engage blade control bail to start1.
blades. See Fig. 5-1.
Set the height adjustment lever to the appropriate slot; 22.
being the highest setting, 5 being the lowest. Settings 3, 4,
and 5 are not needed until the blades are too worn to be
effective on setting 2. Optimum cutting depth is ¹⁄8of an
inch. See Fig. 5-2.
CAUTION: Do not set the cutting blades too deep;
doing so will shorten the life of the blade drive belt.
If dethatcher becomes stuck during use, gently push•
downward on handle to raise front wheels
Do not drive over discarded thatch as this creates an•
uneven cutting height
When dethatching, leave approximately eight inches of•
soil between the first and second dethatching paths; rake
dethatched grass from first and second path then dethatch
between the two paths.
When turning, pivot dethatcher on back two wheels with•
blades disengaged.
CAUTION: Do not make sharp turns with cutting
blades engaged. Doing so may damage the blades.
Transporting the Dethatcher
Set the height adjustment lever to the 1-setting.1.
Push to new location.2.
Figure 5-1
Figure 5-2

Engine
Please refer to the separate engine manual for information
regarding all engine-related maintenance
Belt Replacement
Remove the belt cover by removing the three hex screws1.
that secure it to the frame and pressing the top two
notches in. See Fig. 6-1.
Remove the upper left pulley. See Fig. 6-2.2.
Remove the belt by pulling over and out from the top3.
pulley. Swing the belt keeper downwards to release belt
from lower pulley. See Fig. 6-3.
To replace the belt follow these instructions:
Route the belt around the top and bottom pulleys. See1.
Fig. 6-4.
Reinstall the pulley removed earlier, fitting the belt into the2.
pulley as the pulley slides into the belt keeper. See Fig. 6-2.
Reinstall the belt cover removed earlier.3.
Service 6
11

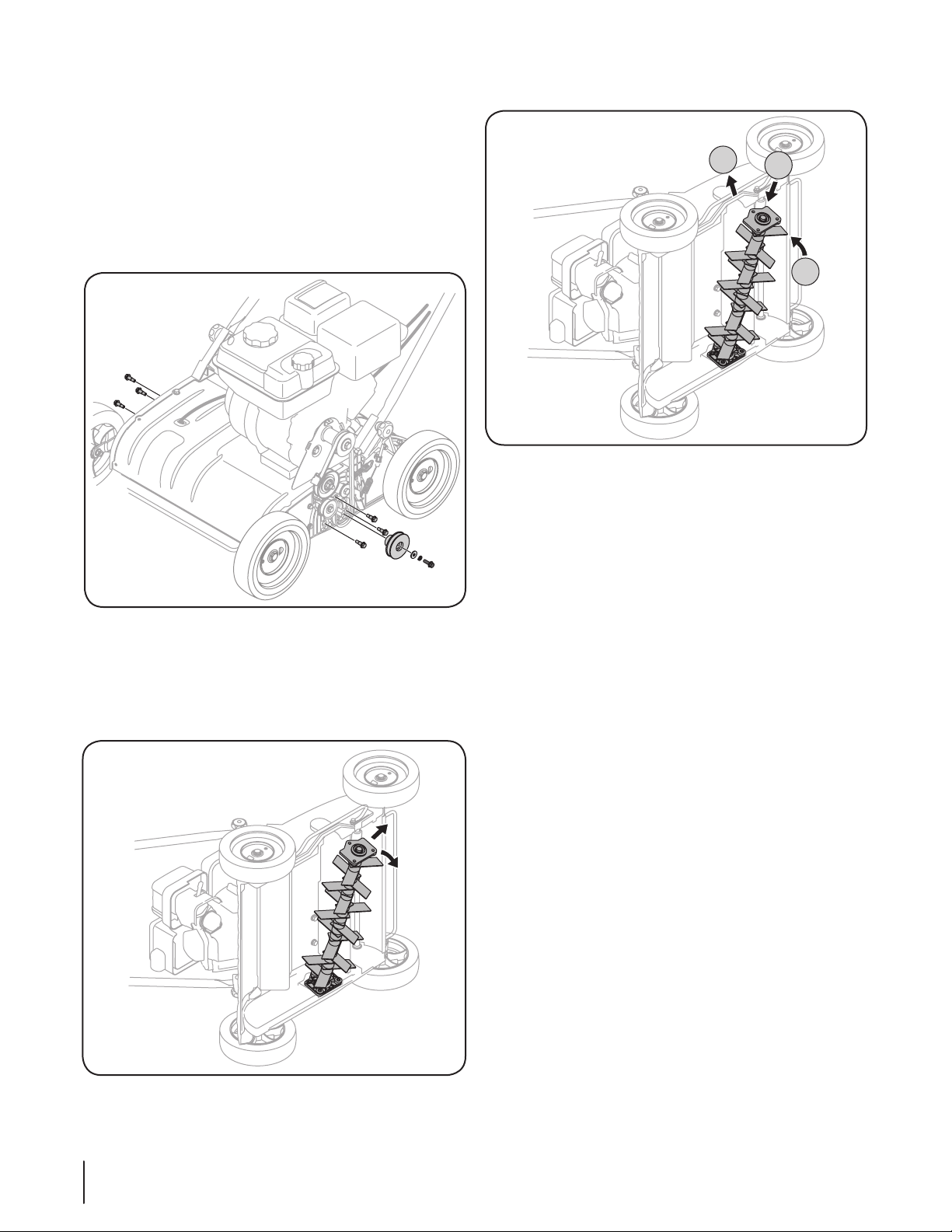

Figure 6-1
Figure 6-3
Figure 6-4
Figure 6-2
Belt Keeper

Blade Replacement
When the blades become too dull to dethatch on the 5-setting,
or if any of the blades break, follow these steps to replace the
blade assembly.
Remove the belt cover as described in the Belt 1.
Replacement section.
Remove the bottom pulley. See Fig. 6-6.2.
Remove the six screws on the left and right side.3.
See Fig. 6-6.
Turn the dethatcher on its left side, with the engine closest4.
to the ground.
Slide the blade assembly out from the right side (opposite5.
the engine) and lift up once the blade assembly is clear of
the housing. See Fig. 6-7.
To replace the blade assembly refer to Fig. 6-8.
Insert the blade assembly left side first.1.
Pull the right side of the housing frame out.2.
Slide the right side of the blade assembly into position.3.
Replace the screws removed earlier.4.
Reinstall the pulley and belt cover removed earlier.5.
Off-Season Storage
If the dethatcher will not be used for 30 days or longer, follow the
instructions below.
Store the equipment in a clean, dry area.1.
If storing the dethatcher in an unventilated area, rustproof2.
the metal parts of the machine with a light oil or silicone
coating.
Clean the exterior of the engine and the dethatcher.3.
Lubricate the pivot points on the blade control bail and the4.
extension spring at the end of the control cable with a light
oil.
Figure 6-6
Figure 6-8
Figure 6-7
3
1
2
12 se c t i O n 6— se r v i c e

Troubleshooting 7
13
Problem Cause Remedy
Engine fails to start Fuel tank empty, or stale fuel.1.
Blocked fuel line.2.
Spark plug wire disconnected.3.
Faulty spark plug.4.
Fill tank with clean fresh gasoline.5.
Clean fuel line.6.
Connect wire to spark plug.7.
Clean spark plug, readjust gap, or replace.8.
Engine runs erratically Engine running on choke.1.
Fuel line blocked, or stale fuel.2.
Water or dirt in fuel system.3.
Carburetor out of adjustment.4.
Move choke lever to OFF position.1.
Clean fuel line and fill tank with fresh, clean2.
gasoline.
Drain fuel tank. Refill with fresh fuel.3.
Contact a Sears Service Center.4.
Engine overheats Carburetor out of adjustment.1. Contact a Sears Service Center.1.
Loss of power Spark plug wire loose.1.
Vent in gas cap plugged.2.
Firmly connect spark plug wire.1.
Clear vent.2.
Excessive vibration Loose parts or damaged blades1. Stop engine immediately and disconnect1.
spark plug wire. Check for possible damage.
Tighten all bolts and nuts. Repair as needed.
If problem persists, take dethatcher to a
Authorized MTD Service Dealer.

14
6
26
23 7
39
49
11
42
52
54
43
40
45
23
38 37
23
4
23
44
4
13 19 17
3
18
10
21 20 4
51
23 48
34
4
914
25
31
32
22
2
16
116 24
15 33
29
36
28
36 5
53
8
4
35
27
12
30
47
41
46
50

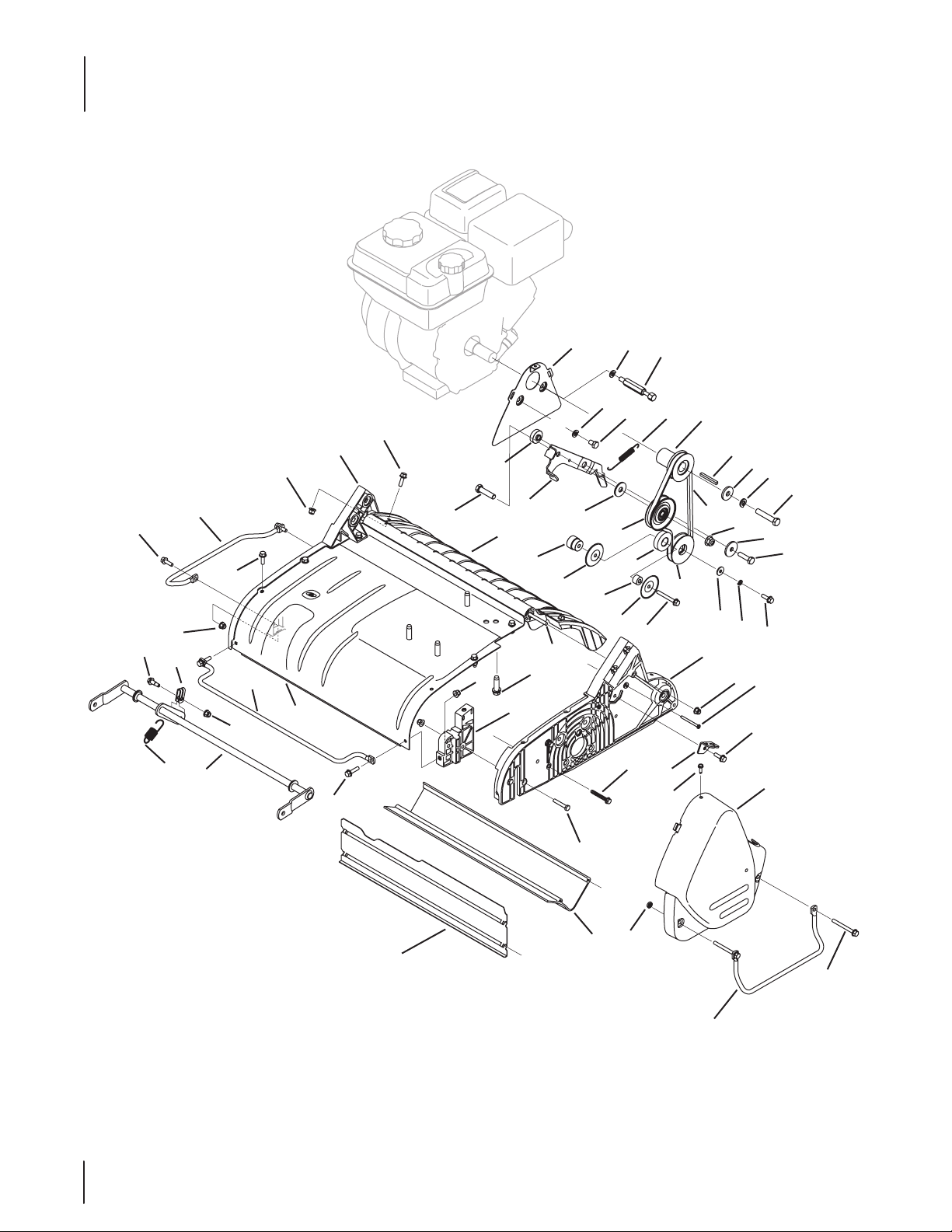

Model 16CG5AMQ

15
Ref. Part Number Description
1681-04035-0637 Pulley Guard Assembly
2710-0107 Hex Screw, 5/16 - 24
3710-0151 Hex Screw, 3/8 - 24
4710-04189 Screw, M6 - 1 x 20.0
5710-04192 Screw, M6 - 1
6710-04866 Screw, M6 - 1
7710-0502A Sems Screw, 3/8 - 16
8710-0520 Hex Screw, 3/8 - 16
9710-1237 Screw, .625
10 710-1683 Hex Screw, M8 - 1.25
11 912-0298 Jam Nut, 1/4 - 20
12 712-04065 Flange Lock Nut, 3/8 - 16
13 914-04029 Square Key, 3/16 x 1.75
14 731-05123 Pulley Cover
15 732-04224 External Spring
16 936 - 0119 Lock Washer, 5/16
17 936-0169 Lock Washer, 3/8
18 736-0343 Flat Washer, .330 x 1.25 x .120
19 736-04005 Flat Washer, .395 x 1.12 x .14
20 736-0648 Lock Washer
21 736-0685 Flat Washer, 6.4 ID
22 736-0702 Flat Washer, 10.5 ID
23 712-0713 Flange Lock Nut
24 738- 0 4114A Belt Retainer Screw
25 941- 0124 Ball Bearing
26 747-05100 Bumper Side
27 750-04233A Idler Spacer
Ref. Part Number Description
28 750-04391 Bearing Spacer, 6.6 x 16.7 x 11.6
29 750-04394 Idler Spacer, 6.5 x 22.3 x 23
30 954-04028 V Belt
31 75 6 - 04112 A Pulley
32 756-04133 Pulley, 2 x 2.75 x .625
33 756-04275 Pulley, .75 ID x 2.14
34 781-04053 Cable Bracket Mount
35 781-04089 Idler Arm
36 781-04096 Washer Bearing
37 781-04064 Cable Retainer Bracket
38 738-04079 Shoulder Spacer, 7.13 x 11.50
39 681-04014A Wheel Cradle Bracket Assembly
40 981-04105 Height Adj. Bracket Assembly
41 781-04263-0721 Frame
42 710-04197 Screw, M6-1 x 35.0
43 710-04865 Screw, M6 - 1 x 25.0
44 747-05098-0637 Right Hand Bumper Side
45 732-04518 Spring, 17.6mm x 54.0mm
46 747-05097-0637 Front Bumper
47 681-04162 Right Hand Frame Assembly
48 710-04384 Tap Screw
49 710-1026 Screw, 1/4 - 20
50 711- 0420 4A Deector Mounted Rod
51 681-04161 Left Hand Frame Assembly
52 731-05049 Rear Bae
53 731-06907 Deector
54 781-04051A-0637 Bae
Model 16CG5AMQ

16
14
15
13
16
8
30 16
25
31
17
13
13
28
33 32
29
20
23
14
21
24
16
10
2
35
1
10
8
12
4
8
9
11
34
34
22 20
3
37
1
5
3
4
6
36
7
27
26
18 19
Model 16CG5AMQ

17
Ref. Part Number Description
1712-04053A Nut, M18 x 1.5
2750-04201 Bearing Spacer
3681-04018A Bearing Assembly
4738-04079 Should Screw, 7.13 x 11.5
5736 - 04114 Safety Washer
6750-04196 Hex Spacer Shaft
7681-04164 Blade Assembly
8712-0714 Flange Lock Nut, M8 - 1.25
9736-04176 Flat Washer, 8.20 x 20.93 x 4.00
10 734-2004A Wheel, 8 x 2.125
11 738-04384 Shoulder Screw, 12.63 x 37.98
12 738-04385 Shoulder Screw, 12.63 x 37.98
13 710-04283 Spacer, M6 - 1.30
14 710-1700 Carrier Spacer, M8 - 1.25
15 712-04064 Flange Lock Nut, 1/4 - 20
16 712-0713 Flange Lock Nut, M6 - 1
17 747-04861-0637 Bail
18 720-0270A Handle Grip
19 781-04258-0637 Height Adjustment Lift Handle
20 720-04041 Turning Knob, M8 x 1.25
21 732-04190A Compression Spacer, .087 x .715 x .688
22 936-0451 Saddle Washer, .320 x .93 x .060
23 736-0700 Flat Washer, 8.4 x 16 x 1.60
24 738-04092 Shoulder Spacer, 11.87 x 15.5
25 938-0952A Shoulder Bolt, .375 x .125
26 749-04464-0637 Upper Handle
27 749-04117B-0637 Lower Handle
28 782-7627A Eye Bolt
29 781-04261-0637 Height Adjustment Bracket Mount
30 781-04267-0637 Bail Interlock Bracket Mount
31 781-04268-0637 Bail Interlock Pivot Bracket
32 946-04444 Clutch Cable
33 946-04443 Height Cable Adjustment
34 736-0504 Wave Washer
35 911- 0414 6 40 CM Shaft
36 750-04190 Fixed Blade Spacer
37 781-04016B Fixed Blade
Model 16CG5AMQ

18

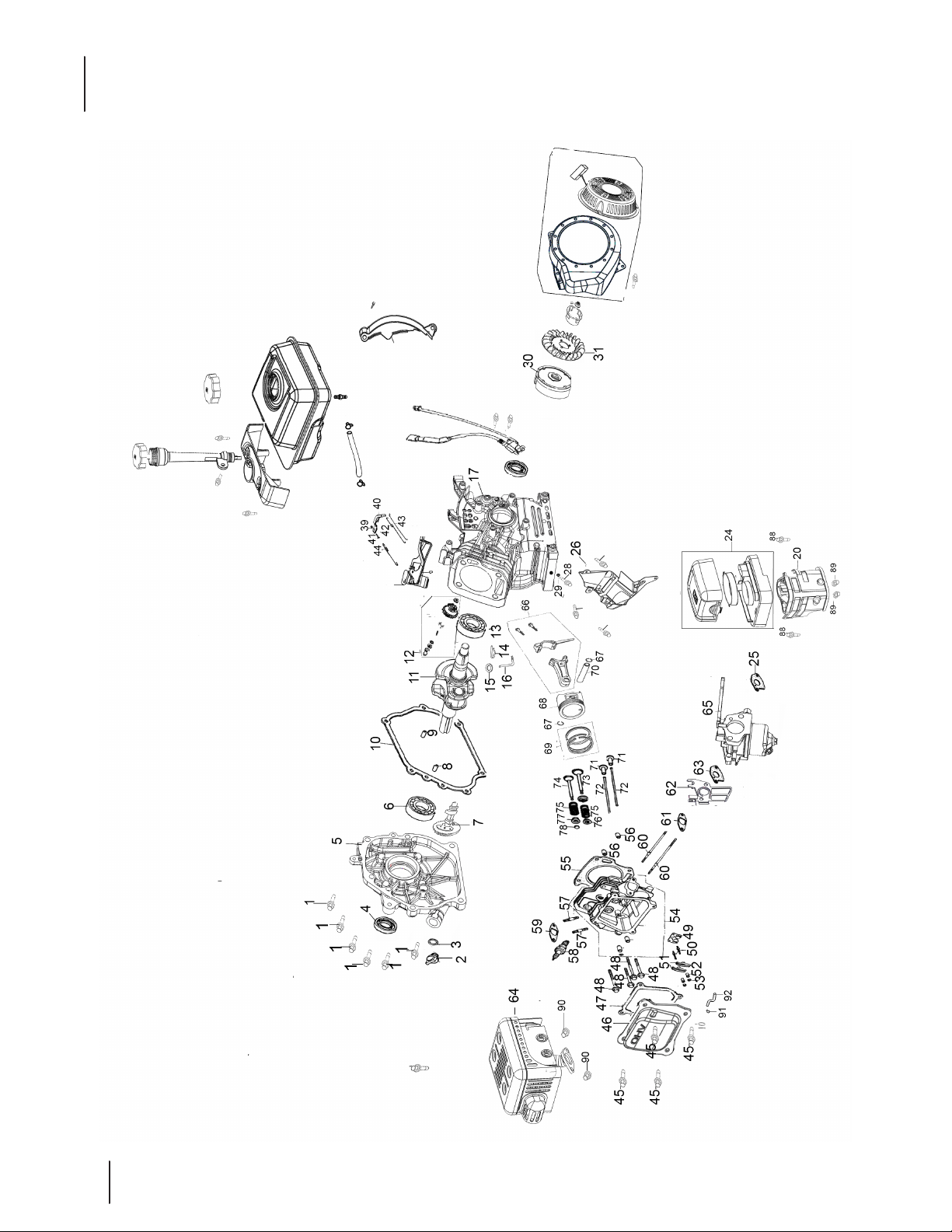

Model 161-VH

19
Part Number Description Ref.
951-10902 Bolt Flange ×28 1
Short Block Dipstick Comp 2
O-Ring 3
Oil Seal 25×41.25×6 4
Cover Comp Left Crankcase 5
Bearing 6205 6
Camshaft Assy. 7
Pin Dowel 7×14 8
Pin Dowel 9×14 9
Gasket Case Cover 10
Crankshaft Comp 11
Governor Gear Kit 12
Radial Ball Bearing(6205) 13
Pin Lock 14
O-Ring 15
Governor Arm 16
Crankcase Comp. 17
Oil Seal 22×35×7 21
Packing 25
Bolt Drain Plug 28
Washer.10×16×1.5 29
Gasket Cover Head 47
Gasket, Cylinder Head 55
Packing 59
Packing,Insulator 61
Packing,Insulator 62
Connecting Rod Comp 66
Clip Piston Pin 18mm 67
Piston 68
Ring Set Comp Piston 69
Pin Piston 70
Lifter Valve 71
951-10922 O-Ring 3
Gasket Kit
External
Bolt Flange 6×14 45
Cover Comp Head 46
Gasket Cover Head 47
Bolt Flange 8×50 48
Gasket Cylinder Head 55
Packing,Insulator 61
Packing 63
951-10923 O-Ring 3
Part Number Description Ref.
Gasket Kit
Complete
Oil Seal 25×41.25×6 4
Gasket Case Cover 10
O-Ring 15
Oil Seal 22×35×7 21
Packing 25
Washer.10×16×1.5 29
Gasket Cover Head 47
Gasket Cylinder Head 55
Packing 59
Packing,Insulator 61
Packing,Insulator 62
Packing 63
951-10903 Gasket, Cover Head 47
Cylinder Head
Assembly
Plate Push Rod Guide 49
Bolt Pivot 50
Arm Valve Rocker 51
Adjusting Nut ,Valve 52
Nutt Pivot Locking 53
Gasket Cylinder Head 55
Packing 59
Packing,Insulator 61
Packing,Insulator 62
Packing 63
Valve Inlet 73
Valve Exhaust 74
Spring Valve 75
Intake Valve Spring Seat 76
Exhaust Valve Spring Seat 77
Adjuster Ex. Valve 78
951-10918 Clip,Tube 80
Fuel Line Kit Tube,Fuel 81
951-10912 Valve Inlet 73
Valve Kit Valve Exhaust 74
951-11157 Radial Ball Bearing(6205) 13
Crankcase Kit O-Ring 15
Crankcase Comp. 17
Oil Seal 22×35×7 21
951-11158 Dipstick Comp 2
Oil Plug
Assembly O-Ring 3
Model 161-VH

20
Part Number Description Ref.
951-11155 Bolt Flange ×28 1
Crankcase
Cover Kit
Dipstick Comp 2
O-Ring 3
Oil Seal 25×41.25×6 4
Cover Comp Left Crankcase 5
Bearing 6205 6
Gasket Case Cover 10
Radial Ball Bearing(6205) 13
Oil Seal 22×35×7 21
951-11156 Oil Seal 25×41.25×6 4
Crankshaft Kit Bearing 6205 6
Crankshaft Comp 11
Radial Ball Bearing(6205) 13
Oil Seal 22×35×7 21
951-10925 Gasket, Cover Head 47
Cylinder Head
Kit Bolt 48
Gasket, Cylinder Head 55
710-04920 Bolt 1
710-04092 Dowel Pin 8
715-04089 Dowel Pin 9
714-04074 Locking Pin 14
951-11102 Flywheel Bae 18
710-04918 Flange Bolt 19
951-10806 Intake Heatening Pipe Seat 20
951-10916 Ignition Coil 22
710-04919 Flange Bolt 23
951-10818 Air Cleaner Housing Assembly 24
951-11151 Air Bae 26
710-04906 Drain Plug 28
736-04440 Washer 29
951-10908 Flywheel 30
951-10910 Cooling Fan 31
951-10911 Starter Cup 32
712-04209 Flywheel Nut 33
951-11107 Fan Housing Cover 36
951-10914 Recoil Starter Assembly 37
710-04914 Bolt 38
712- 04211 Nut 39
951-11106 Governor Arm 40
Part Number Description Ref.
710-04908 Bolt 41
951-10954 Throttle Return Spring 42
951-11152 Governor Rod 43
951-10915 Governor Return Spring 44
710-04916 Bolt 45
710-04922 Bolt 48
710-04902 Pivot Bolt 50
751-11123 Valve Adjusting Nut 52
751-11124 Pivot Locking Nut 53
715-04090 Dowel Pin 56
951-10657 Muer Stud Assembly 57
951-10292 Spark Plug 58
710-04909 Stud Bolt 60
951-10901 Muer Complete 64
951-10921 Carburetor Assembly 65
951-10913 Push Rod Kit 72
951-10651 Fuel Tank Filter 79
951-10920 Fuel Tank 82
951-11128 Engine Cover 83
710-04928 Bolt 84
951-10917 Cap Comp,Fuel 85
951-10656 Dipstick Tube 86
951-10655 Dipstick Assembly 87
710-04948 Bolt 88
710-04949 Bolt 89
712-04214 Flange Nut 90
726-04101 Hose Clamp 91
731-07059 Breather Hose 92
710-04950 Panel Bolt 93
712-04212 Nut 95
710-04927 Bolt 96
951-11071 Throttle Control Assembly 97
951-11067 Throttle Control Knob 98
951-10829 Spark Arrestor 99
951-10794 Air Cleaner 100
951-10307 Flywheel Key 101
951-11048 Carburetor Kit
951-10826 Recoil Spring and Pulley
Model 161-VH
