MTD RZT Series User manual
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
Op e r a t O r ’sMa n u a l
RZT Series Tractor
Form No. 769-04542
(March 17, 2009)
Customer Support
Please do NOT return the machine to the retailer or dealer without first contacting our Customer Support Department.
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
Visit us on the web at www.mtdproducts.com◊
Call a Customer Support Representative at (800) 800-7310 or (330) 220-4683◊
◊
Thank you for purchasing an RZT series tractor manufactured
by MTD LLC. It was carefully engineered to provide excellent
performance when properly operated and maintained.
It instructs you how to safely and easily set up, operate and
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. MTD LLC
reserves the right to change product specifications, designs and
equipment without notice and without incurring obligation.
If you have any problems or questions concerning the machine,
phone your local authorized MTD service dealer or contact us
address and mailing address can be found on this page. We want
to ensure your complete satisfaction at all times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position
The engine manufacturer is responsible for all engine-related
issues with regards to performance, power-rating, specifications,
machine, for more information.
Thank You
Record Product Information
locate the model plate on the equipment and record the
assembly forward to locate the model plate on the underside of
the seat pivot bracket. This information will be necessary, should
you seek technical support via our web site, Customer Support
Department, or with a local authorized service dealer.
MO d e l nu M b e r
se r i a l nu M b e r
To The Owner 1
2
Safe Operation Practices ........................................ 3
Assembly & Set-Up .................................................. 9
Controls & Features................................................12
Operation................................................................15
Maintenance & Adjustment................................. 22
Service .................................................................... 29
Troubleshooting .................................................... 35
Replacement Parts ................................................ 37
Attachments & Accessories .................................. 39
Warranty..................................................Back Cover
Table of Contents
Important Safe Operation Practices 2
3
General Operation
Read, understand, and follow all instructions on the1.
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
2.
Know how to stop the machine and disengage them
quickly.
Never allow children under 14 years of age to operate this3.
machine. Children 14 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and should be trained and supervised
by an adult.
Never allow adults to operate this machine without proper4.
instruction.
To help avoid blade contact or a thrown object injury,5.
keep bystanders, helpers, children and pets at least 75 feet
from the machine while it is in operation. Stop machine if
anyone enters the area.
Thoroughly inspect the area where the equipment is to be6.
used. Remove all stones, sticks, wire, bones, toys, and other
foreign objects which could be picked up and thrown by
the blade(s). Thrown objects can cause serious personal
injury.
7.
toward roads, sidewalks, bystanders and the like. Also,
avoid discharging material against a wall or obstruction
which may cause discharged material to ricochet back
toward the operator.
Always wear safety glasses or safety goggles during8.
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
Wear sturdy, rough-soled work shoes and close-fitting
slacks and shirts. Loose fitting clothes and jewelry can be
caught in movable parts. Never operate this machine in
bare feet or sandals.
10.
and do not point it at anyone. Do not operate the mower
without the discharge cover or entire grass catcher in its
proper place.
Do not put hands or feet near rotating parts or under the11.
cutting deck. Contact with the blade(s) can amputate
hands and feet.
WARNING! This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
DANGER! This machine was built to be operated according to the safe operation practices in
this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating hands and feet
and throwing objects. Failure to observe the following safety instructions could result in
serious injury or death.
CALIFORNIA PROPOSITION 65
WARNING! Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.
WARNING!
compounds, chemicals known to the State of California to cause cancer and reproductive
harm. Wash hands after handling
4se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
A missing or damaged discharge cover can cause blade12.
contact or thrown object injuries.
Stop the blade(s) when crossing gravel drives, walks, or13.
roads and while not cutting grass.
Watch for traffic when operating near or crossing14.
roadways. This machine is not intended for use on any
public roadway.
Do not operate the machine while under the influence of15.
alcohol or drugs.
Mow only in daylight or good artificial light.16.
Never carry passengers.17.
18.
and pay attention to the safety system function that
stops power to the blades when driving in reverse. If not
fuctioning properly, contact an authorized dealer for safety
system inspection and repair.
Avoid erratic operation and excessive speed.
Disengage blade(s), set parking brake, stop engine and wait20.
until the blade(s) come to a complete stop before removing
grass catcher, emptying grass, unclogging chute, removing
any grass or debris, or making any adjustments.
Never leave a running machine unattended. Always turn off21.
blade(s), place drive control levers in neutral, set parking
brake, stop engine and remove key before dismounting.
Use extra care when loading or unloading the machine into22.
a trailer or truck. This machine should not be driven up or
down ramp(s), because the machine could tip over, causing
serious personal injury. The machine must be pushed
manually on ramp(s) to load or unload properly.
Muffler and engine become hot and can cause a burn. Do23.
not touch.
Check overhead clearances carefully before driving under24.
low hanging tree branches, wires, door openings etc.,
where the operator may be struck or pulled from the
machine, which could result in serious injury.
Disengage all attachment clutches, set the parking brake25.
to the ‘
control levers fully outward to the neutral position before
attempting to start the engine.
Your machine is designed to cut normal residential grass of26.
a height no more than 10”. Do not attempt to mow through
unusually tall, dry grass (e.g., pasture) or piles of dry leaves.
Dry grass or leaves may contact the engine exhaust and/
or build up on the mower deck presenting a potential fire
hazard.
Use only accessories and attachments approved for this27.
machine by the machine manufacturer. Read, understand
and follow all instructions provided with the approved
accessory or attachment.
Data indicates that operators, age 60 years and above, are28.
involved in a large percentage of riding mower-related
injuries. These operators should evaluate their ability
to operate the riding mower safely enough to protect
themselves and others from serious injury.
If situations occur which are not covered in this manual, use
care and good judgment. Contact your customer service
representative for assistance.
Slope Operation
Slopes are a major factor related to loss of control and tip-over
accidents which can result in severe injury or death. All slopes
require extra caution. If you cannot back up the slope or if you
feel uneasy on it, do not mow it.
For your safety, use the slope gauge included as part of this
manual to measure slopes before operating this machine on
a sloped or hilly area. If the slope is greater than 15 degrees as
shown on the slope gauge, do not operate this machine on that
area or serious injury could result.
Do:
Mow across slopes, not up and down. Exercise extreme1.
caution when changing direction on slopes.
Watch for holes, ruts, bumps, rocks, or other hidden2.
objects. Uneven terrain could overturn the machine. Tall
grass can hide obstacles.
Use slow speed. Choose a low enough speed so that you3.
will not have to stop while on the slope. Avoid starting
or stopping on a slope. If the tires are unable to maintain
traction, disengage the blades and proceed slowly and
carefully straight down the slope.
4.
weights or counterweights to improve stability.
Use extra care with grass catchers or other attachments.5.
These can change the stability of the machine.
Keep all movement on the slopes slow and gradual. Do6.
not make sudden changes in speed or direction. Rapid
acceleration or deceleration could cause the front of the
machine to lift and rapidly flip over backwards, which
could cause serious injury.
Do Not:
Do not turn on slopes unless necessary; then turn slowly1.
uphill and use extra care while turning.
Do not mow near drop-offs, ditches or embankments. The2.
mower could suddenly turn over if a wheel is over the edge
of a cliff, ditch, or if an edge caves in.
Do not try to stabilize the machine by putting your foot on3.
the ground.
Do not use a grass catcher on steep slopes.4.
Do not mow on wet grass. Reduced traction could cause5.
sliding.
Do not tow heavy pull behind attachments (e.g. loaded6.
dump cart, lawn roller, etc.) on slopes greater than 5
degrees. When going down hill, the extra weight tends
to push the tractor and may cause you to loose control
(e.g. tractor may speed up, braking and steering ability are
reduced, attachment may jack-knife and cause tractor to
overturn).
5se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Children
Tragic accidents can occur if the operator is not alert to the1.
presence of children. Children are often attracted to the
machine and the mowing activity. They do not understand
the dangers. Never assume that children will remain where
you last saw them.
Keep children out of the mowing area and ina.
watchful care of a responsible adult other than the
operator.
b.
area.
To avoid back-over accidents, always look behindc.
and down for small children.
Never carry children, even with the blade(s) shut off.d.
They may fall off and be seriously injured or interfere
with safe machine operation.
Use extreme care when approaching blind corners,e.
doorways, shrubs, trees or other objects that may
block your vision of a child who may run into the
path of the machine.
Keep children away from hot or running engines.f.
They can suffer burns from a hot muffler.
Remove key when machine is unattended tog.
prevent unauthorized operation.
Never allow children under 14 years of age to operate this2.
machine. Children 14 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and should be trained and supervised
by an adult.
Towing
Tow only with a machine that has a hitch designed for1.
towing. Do not attach towed equipment except at the
hitch point.
Follow the manufacturers recommendation for weight2.
limits for towed equipment and towing on slopes.
Never allow children or others in or on towed equipment.3.
4.
loss of traction and loss of control.
Travel slowly and allow extra distance to stop.5.
Do not shift to neutral and coast downhill.6.
Service
Safe Handling of Gasoline:
To avoid personal injury or property damage use extreme1.
care in handling gasoline. Gasoline is extremely
flammable and the vapors are explosive. Serious
personal injury can occur when gasoline is spilled on
yourself or your clothes which can ignite. Wash your skin
and change clothes immediately.
Use only an approved gasoline container.a.
Never fill containers inside a vehicle or on a truckb.
or trailer bed with a plastic liner. Always place
containers on the ground away from your vehicle
before filling.
When practical, remove gas-powered equipmentc.
from the truck or trailer and refuel it on the ground.
If this is not possible, then refuel such equipment on
a trailer with a portable container, rather than from a
gasoline dispenser nozzle.
Keep the nozzle in contact with the rim of the fueld.
tank or container opening at all times until fueling is
complete. Do not use a nozzle lock-open device.
Extinguish all cigarettes, cigars, pipes and othere.
sources of ignition.
Never fuel machine indoors.f.
Never remove gas cap or add fuel while the engineg.
is hot or running. Allow engine to cool at least two
minutes before refueling.
Never over fill fuel tank. Fill tank to no more than ½h.
inch below bottom of filler neck to allow space for
fuel expansion.
Replace gasoline cap and tighten securely.i.
If gasoline is spilled, wipe it off the engine andj.
equipment. Move machine to another area. Wait 5
minutes before starting the engine.
To reduce fire hazards, keep machine free of grass,k.
leaves, or other debris build-up. Clean up oil or fuel
spillage and remove any fuel soaked debris.
Never store the machine or fuel container insidel.
where there is an open flame, spark or pilot light
as on a water heater, space heater, furnace, clothes
dryer or other gas appliances.
Allow a machine to cool at least five minutes beforem.
storing.
General Service
Never run an engine indoors or in a poorly ventilated area.1.
Engine exhaust contains carbon monoxide, an odorless,
and deadly gas.
2.
blade(s) and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.
3.
complete stop within approximately (5) five seconds after
operating the blade disengagement control. If the blades
do not stop within the this time frame, your machine
should be serviced professionally by an authorized dealer.
Regularly check the safety interlock system for proper4.
function, as described later in this manual. If the safety
interlock system does not function properly, have your
machine serviced professionally by an authorized dealer.
6se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
Check the blade(s) and engine mounting bolts at frequent5.
intervals for proper tightness. Also, visually inspect blade(s)
for damage (e.g., excessive wear, bent, cracked). Replace
which do not meet the original equipment specifications
may lead to improper performance and compromise
safety!”
Mower blades are sharp. Wrap the blade or wear gloves,6.
and use extra caution when servicing them.
Keep all nuts, bolts, and screws tight to be sure the7.
equipment is in safe working condition.
Never tamper with the safety interlock system or other8.
safety devices. Check their proper operation regularly.
After striking a foreign object, stop the engine, disconnect
the spark plug wire(s) and ground against the engine.
Thoroughly inspect the machine for any damage. Repair
the damage before starting and operating.
Never attempt to make adjustments or repairs to the10.
machine while the engine is running.
Grass catcher components and the discharge cover are11.
subject to wear and damage which could expose moving
parts or allow objects to be thrown. For safety protection,
frequently check components and replace immediately
original equipment specifications may lead to improper
performance and compromise safety!”
Do not change the engine governor settings or over-speed12.
the engine. The governor controls the maximum safe
operating speed of the engine.
Maintain or replace safety and instruction labels, as13.
necessary.
14.
etc. to protect the environment.
15.
this product has an Average Useful Life of seven (7) years,
or 270 hours of operation. At the end of the Average Useful
Life have the machine inspected annually by an authorized
service dealer to ensure that all mechanical and safety
systems are working properly and not worn excessively.
Failure to do so can result in accidents, injuries or death.
Do not modify engine
To avoid serious injury or death, do not modify engine in any
way. Tampering with the governor setting can lead to a runaway
engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.
Notice Regarding Emissions
Engines which are certified to comply with California and federal
are certified to operate on regular unleaded gasoline, and
may include the following emission control systems: Engine
Modification (EM) and Three Way Catalyst (TWC) if so equipped.
Spark Arrestor
WARNING! This machine is equipped with an
internal combustion engine and should not be used
on or near any unimproved forest-covered, brush-
exhaust system is equipped with a spark arrester
meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in
effective working order by the operator. In the State of California
the above is required by law (Section 4442 of the California
Federal laws apply on federal lands.
A spark arrester for the muffler is available through your
nearest engine authorized service dealer or contact the service
7se c t i O n 2 — iM p O r t a n t sa f e Op e r a t i O n pr a c t i c e s
WARNING! Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!
Safety Symbols
This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.
Symbol Description
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate
Do not put hands or feet near rotating parts or under the cutting deck. Contact with the
blade(s) can amputate hands and feet.
This machine may pick up and throw and objects which can cause serious personal injury.
This machine may pick up and throw and objects which can cause serious personal injury.
Keep bystanders, helpers, children and pets at least 75 feet from the machine while it is in
operation.
Do not operate this machine on a slope greater than 15 degrees.
To reduce the risk of injury, keep hands and feet away. Do not operate unless discharge cover
or grass catcher is in its proper place. If damaged, replace immediately.
8se c t i O n 2 — sa f e Op e r a t i O n pr a c t i c e s
Sight and hold this level with a vertical tree...
or a corner of a building...
or a fence post
Fold along dotted line (represents a 15° slope)
15°
Use this page as a guide to determine slopes where you may not operate safely.
WARNING! Do not operate your lawn mower on such slopes. Do not mow on inclines with a slope in excess of 15 degrees
mowers up and down slopes, never across the face of slopes.
bottom of the slope and turn uphill at the end of each pass whenever possible.
Contents of Crate
Manual
NOTE:
features may vary by model. Not all features in this manual are
applicable to all snow thrower models and the snow thrower
depicted may differ from yours.
Tractor Preparation
Remove the upper crating material from the shipping pallet, and
cut any bands or tie straps securing the tractor to the pallet.
Use the lift handle to raise the deck to its highest position.
Engage the transmission bypass rods on each side of the
tractor; then carefully roll the tractor off the shipping pallet.
transmission) are located beneath the frame platform, just inside
each rear wheel. Disengage the bypass rods. See Fig. 3-1.
Remove the deck wash system nozzle adapter and oil drain tube
from the manual bag and store for future use.
Install Operator’s Seat
To install the seat proceed as follows:
NOTE: The seat is shipped with the seat switch and seat pan
attached.
Cut any straps securing the seat assembly and the drive1.
control levers to the tractor. Remove any packing material.
NOTE:
seat and the seat switch in the bottom of the seat.
Pull Out Bypass
Rod Then Lower
Into Slot
Keyhole Slot
RH Transmission
Bypass Rod
Figure 3-1
Remove the two shoulder bolts and lock nuts in the seat2.
pan as shown in Fig. 3-2.
Rotate the seat into position and secure the seat into place3.
with the previously removed shoulder bolts and lock nuts.
installing the seat. See Fig. 3-3.
Wire Harness
Seat Pan
Shoulder
Bolt
Lock
Nuts
Shoulder
Bolt
Figure 3-2
Wire Harness
Seat Bracket
Shoulder
Bolts
Lock
Nuts
Figure 3-3
Assembly & Set-Up 3
9

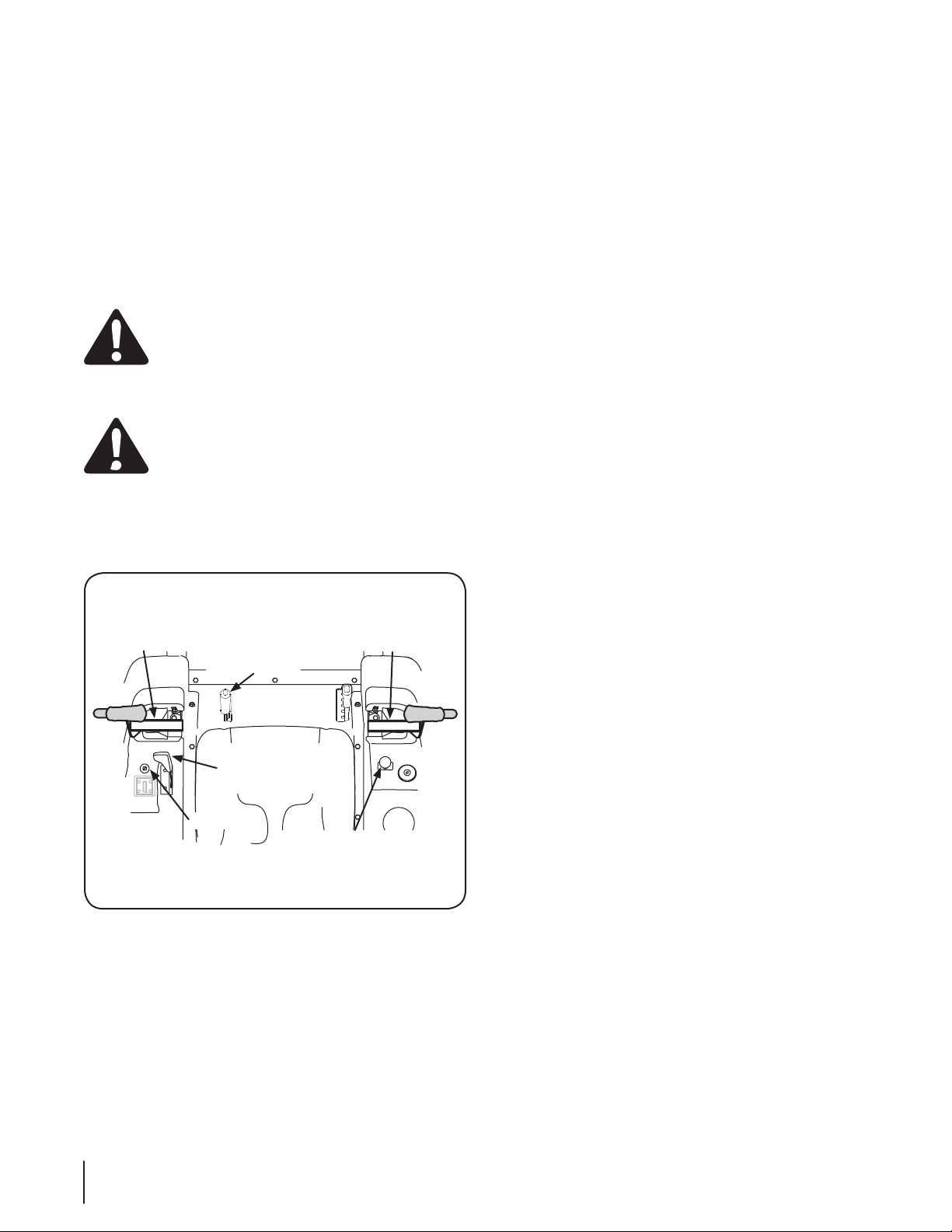

Position Drive Control levers
The drive control levers of the tractor are lowered for shipping
purposes. The flange lock nuts, hex screws, and flat washers that
normally secure the control levers in their operating position
are unfastened and installed in the slotted holes of the control
levers for shipment. The control levers must be repositioned to
operate the tractor. To reposition the control levers for operation,
proceed as follows:
Remove the hex screw, flat washer, and flange lock nut1.
from the slot of one of the drive control levers.
Lift and swing that control lever upward until the slotted2.
hole in the lever bracket aligns with one of the holes in the
pivot bracket. See Fig. 3-4.
Slide the flat washer onto the hex screw. From the outside,3.
insert the hex screw with washer through the control lever
slot and the hole of the pivot bracket. Secure with the
flange lock nut. See Fig. 3-4.
Note the relative position of the control lever to the pivot4.
bracket, then repeat the previous steps to reposition the
other control lever in approximately the same position.
5.
Maintenance & Adjustments section for instructions on the
final adjustment of the levers.
Control Lever Flange
Lock Nut
Slotted Hole
Washer
Hex Screw
Lift Control
Lever Upward
Pivot
Bracket
Figure 3-4
Connecting the Battery Cables
CALIFORNIA PROPOSITION 65 WARNING:
contain lead and lead compounds, chemicals known
to the State of California to cause cancer and
reproductive harm. Wash hands after handling.
CAUTION: When attaching battery cables, always
For shipping reasons, both battery cables on your equipment
may have been left disconnected from the terminals at the
factory. To connect the battery cables, proceed as follows:
NOTE:
negative battery terminal is marked Neg. (–).
NOTE: If the positive battery cable is already attached, skip
ahead to step 2.
Remove the plastic cover, if present, from the positive1.
battery terminal and attach the red cable to the positive
Remove the plastic cover, if present, from the negative2.
battery terminal and attach the black cable to the negative
battery terminal (–) with the bolt and hex nut. See Fig. 3-5.
3.
terminal to help protect it from corrosion.
NOTE: If the battery is put into service after the date shown
on top/side of battery, charge the battery as instructed in the
the tractor.
Figure 3-5
10 se c t i O n 2— as s e M b l y & se t -up
Lower Deck Discharge Chute Deflector
WARNING! Never operate the mower deck without
the chute deflector installed and in the down
position.
Check the mower deck for a shipping brace (with tag) that may
be holding the chute deflector upward for shipment. If a brace
is present, it must be removed before operating the tractor.
brace by grasping it and rotating it clockwise. Lower the chute
deflector. See Fig. 3-6.
Shipping
Brace
Figure 3-6
11se c t i O n 2 — as s e M b l y & se t -up
Figure 4-1
Parking Brake
Deck Height
Index
Deck Lift
Handle
RH Drive
Control Lever
LH Drive
Control Lever
Seat Adjustment Lever
Hour Meter/
Indicator Panel
Fuel Tank Cap
Ignition Switch
PTO Switch
Throttle/Choke Control
or Throttle Control
Cup Holder
Storage Tray
Choke Control
NOTE:
features may vary by model. Not all features in this manual are
applicable to all tractor models and the tractor depicted may
differ from yours.
NOTE:
position on the tractor when facing forward while seated in the

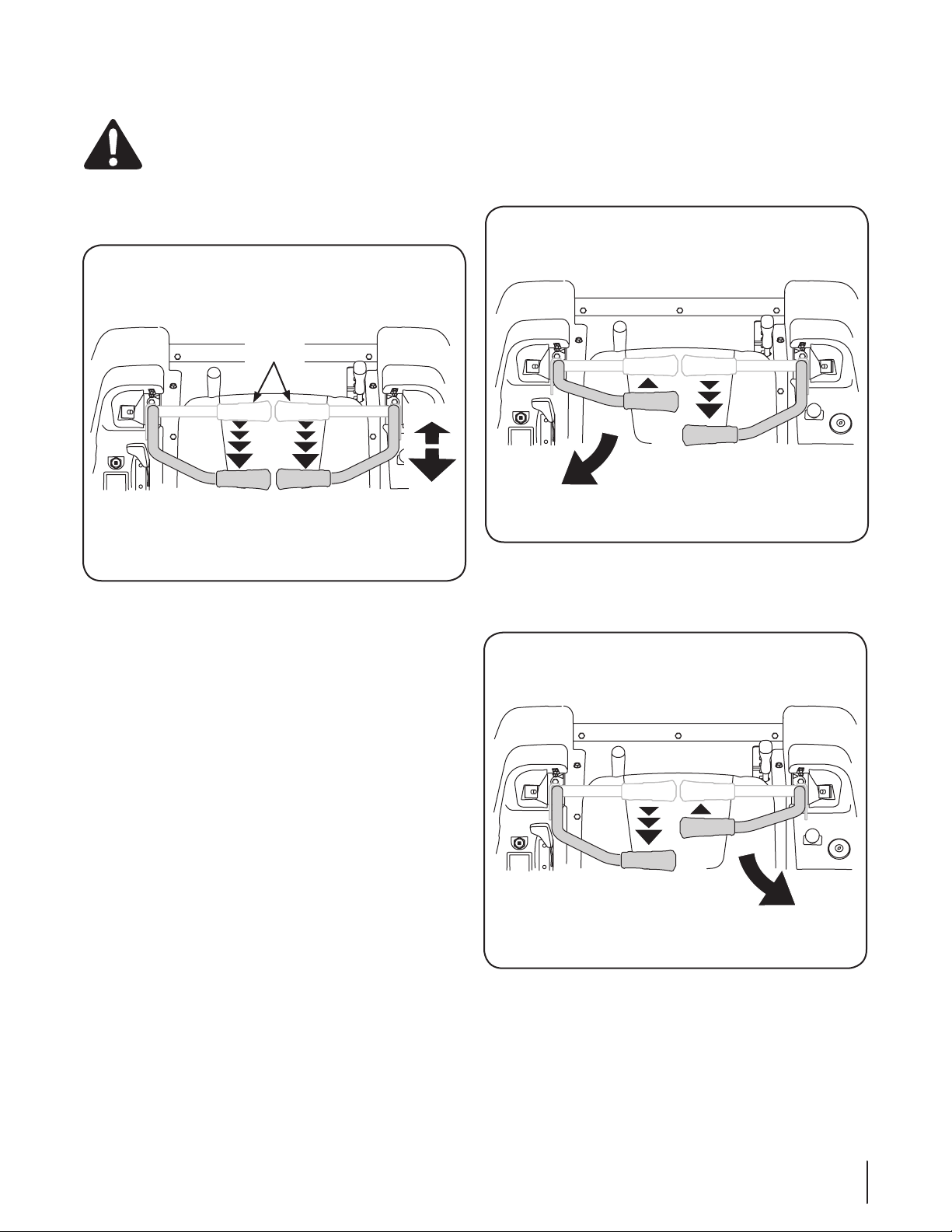

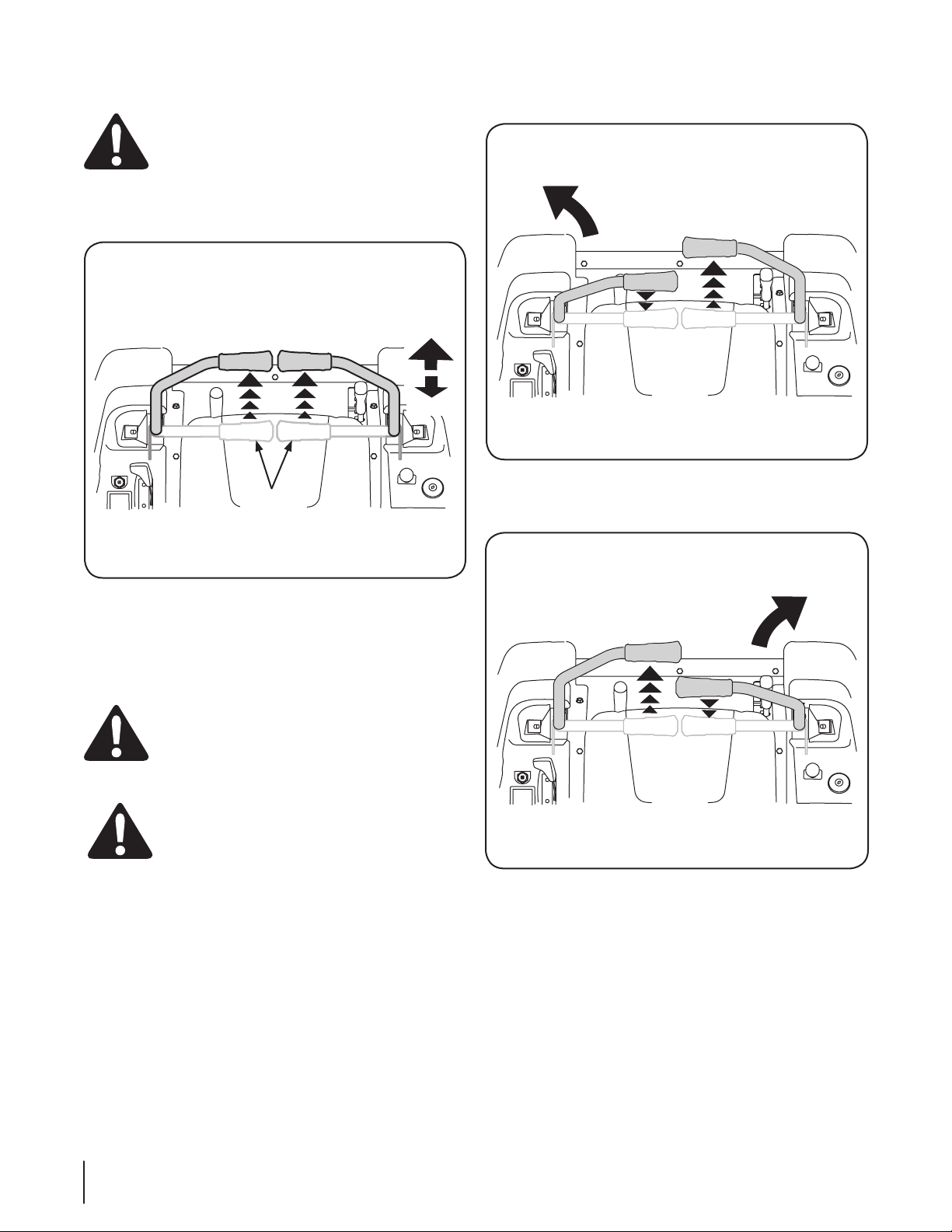

RH and LH Drive Control Levers
space to permit the operator to either sit in the tractor seat, or to
dismount the tractor. The levers must be fully opened out and in
the neutral position to start the tractor engine.
Consequently, these levers control all of the movements of the
tractor. Driving and steering utilizing these control levers is
quite different from conventional tractors, and will take some
the control levers.
Deck Height Index
The deck height index consists of six index notches
located on the front/right of the seat box frame. Each
notch corresponds to a ⁄” change in the deck height
position ranging from 1-⁄” at the lowest notch to 4” at
the highest notch.
Deck Lift Handle
The deck lift handle is located on the front/right of
the seat box frame, and is used to raise and lower the
mower deck.
push downward to lower the deck, or pull upward to
raise the deck. When the desired height is attained,
move the lift handle to the right until fully in the index
notch.
CUTTING
HEIGHT
Controls and Features 4
12
Fuel Tank Cap
Turn the fill cap approximately ⁄ turn and pull upward to
remove. The fuel cap is tethered to the tractor to prevent its loss.
Do not attempt to remove the cap from the tractor.
approximately ⁄ turn clockwise to tighten Always re-install the
fuel cap tightly onto the fuel tank after removing.
WARNING! Never fill the fuel tank when the engine
is running. If the engine is hot from recently running,
allow to cool for several minutes before refueling.
engine and cause a fire.
Hour Meter / Indicator Panel
The hour meter/indicator panel is
Hour Meter Features
The hour meter records the hours that
the tractor has been operated in the
digital display (tenths of an hour - right
most digit).
NOTE: The hour meter is activated whenever the ignition switch
of operation to assure all maintenance procedures are completed
according to the instructions in this manual and the engine
manual.
light briefly illuminates and the battery voltage is briefly
displayed. The display then changes to the accumulated hours.
The Indicator Monitor will also remind the operator of
maintenance intervals for changing the engine oil. The LCD
five minutes after every 50 hours of recorded operation. The
maintenance interval lasts for two hours (from 50-52, 100-102,
150-152, etc.). The LCD will flash as described for five minutes
interval. Follow the oil change intervals provided in the engine
manual.
HOURS 1/10
PTO
/
BLADE
PARK
BRAKE
OIL
BATT.

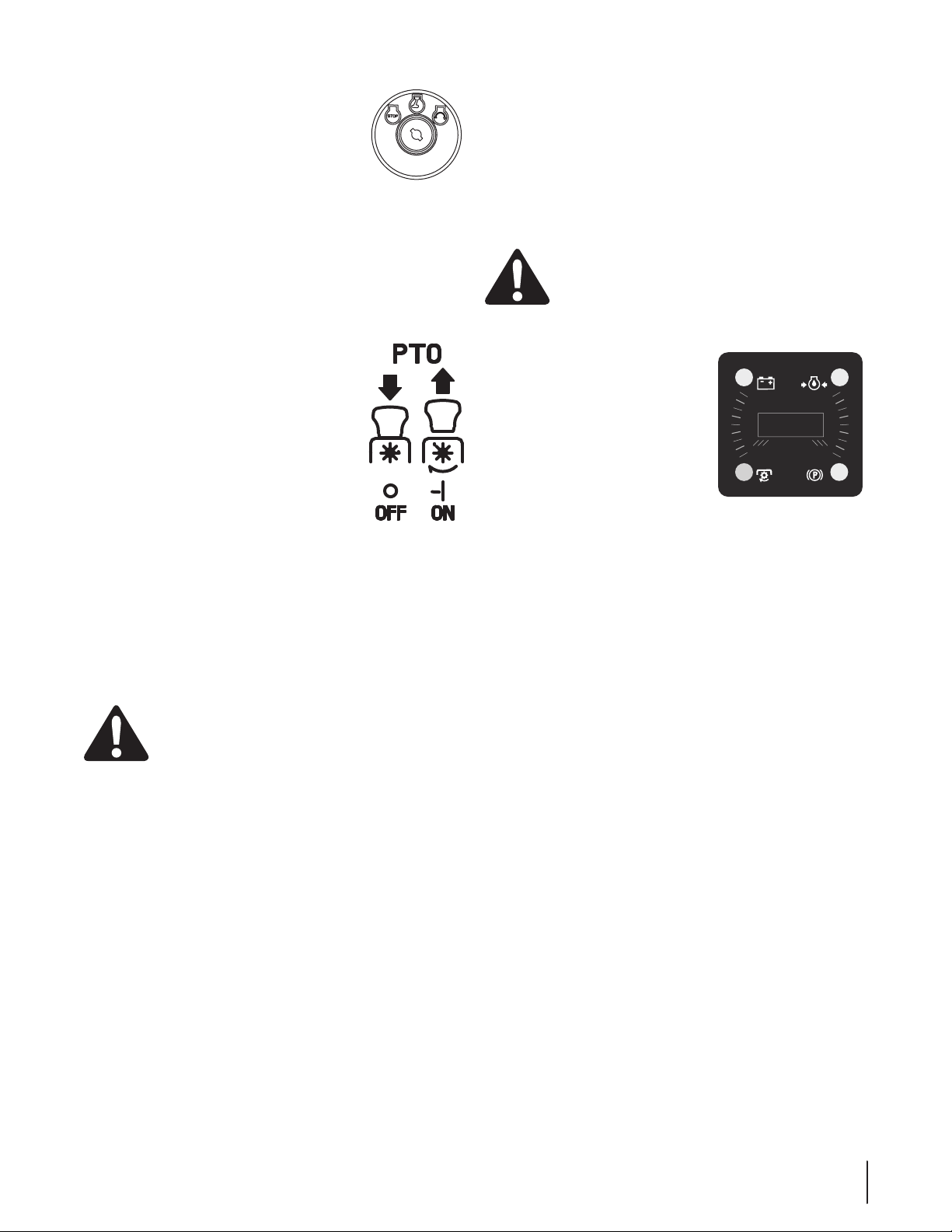

Ignition Switch
switch has three positions as follows:
turned off.
START - The starter motor will turn over the engine. Release the
key immediately when the engine starts
NOTE: To prevent accidental starting and/or battery discharge,
remove the key from the ignition switch when the tractor is not
in use.
Power Take-Off (PTO) Switch
clutch mounted on the bottom of the engine
downward to disengage the clutch.
position when starting the engine.
Transmission Bypass Rods (Not Visible)
transmission) are located beneath the frame platform, just inside
each rear wheel.
When engaged, the two rods open a bypass within the
hydrostatic transmissions, which allows the tractor to be pushed
short distances by hand. Refer to the Maintenance & Adjustments
section for instructions on using the bypass feature.
CAUTION: Never tow your tractor. Towing the
tractor with the rear wheels on the ground may
cause severe damage to the transmissions.
Cup Holder
Storage Tray
Seat Adjustment Lever (Not Seen)
The seat adjustment lever is located below the front/left of the
seat. The lever allows for adjustment of the fore to aft position
section for instructions on adjusting the seat position.
13se c t i O n 4 — cO n t r O l s a n d fe a t u r e s
Indicator Panel Features
Battery Indicator
Illuminates and the battery voltage is displayed briefly when the
Illuminates to indicate the battery voltage has dropped below
the hour meter. If this indicator and display come on during
operation, check the battery and charging system for possible
causes and/or contact your Cub Cadet dealer.
Oil Pressure Indicator (If Engine So Equipped)
This warning lamp indicates low engine oil pressure. If the
indicator comes on while the engine is running, stop the engine
immediately and check for possible causes. Do not run the
engine while this indicator is illuminated. Contact your Cub
Cadet dealer to have the tractor and engine inspected.
NOTE: The oil pressure indicator may illuminate when the
the engine is started.
PTO Engaged Indicator
Parking Brake Engaged Indicator
This indicator illuminates when the parking brake is in the
DISENGAGED position and the ignition switch is turned to the
move the parking brake to the ENGAGED position.
This indicator also illuminates when the ignition switch is turned
are in a position other than the fully out in neutral position. Move
the control levers fully outward.
Throttle Control (If Equipped)
uniform engine speed will be maintained.
engine speed. The tractor is designed to operate with the
throttle control in the fast position (full throttle) when the
tractor is being driven and the mower deck is engaged.
engine speed.
Choke Control (If Equipped)
The choke knob controls the position of the
engine; push the knob in to open the choke.
FAST
SLOW
Throttle/Choke Control
(If Equipped)
a uniform engine speed will be maintained.
increase the engine speed. The tractor is designed
to operate with the throttle/choke control in the
fast position (full throttle) when the tractor is being
driven and the mower deck is engaged.
the engine speed.
When starting the engine, push the control handle fully
After starting and warming the engine, move the control
handle rearward until you feel it move past the choke
detent.
Parking Brake Engagement Lever
The parking brake engagement lever is located on the
front/left of the seat box frame, and is used to engage
the parking brake.
lower completely to disengage the parking brake.
NOTE:
opened out in the neutral position when engaging the
parking brake, the engine will stop. The parking brake
must be placed in the engaged position when starting
the tractor engine.
Transmission Oil Expansion Reservoir
The transmission oil expansion reservoir is connected by hoses to
the seat box. The function of the reservoir is to hold the natural
expansion of transmission oil that occurs as the transmission
Under normal operating conditions, no oil should be added
approximately ⁄
reservoir.
NOTE:
the reservoir may be slightly higher than the maximum due to air
air from the lines and the oil level will settle to the maximum.
FAST
SLOW
14 se c t i O n 4— cO n t r O l s a n d fe a t u r e s
General Safety
manual. Learn to operate this machine SAFELY. Do not risk
competent in its usage to operate this tractor.
familiar with the controls. The operator should be in the
drive control levers moved fully outward in the neutral
position.
Keep all shields in place. Keep away from moving parts.
Look behind and down to both sides of the tractor before
and while backing up.
Avoid slopes where possible. Never operate on slopes
greater than 15°. Slopes with a greater incline present
dangerous operating conditions. Tractors can be rolled
over.
neutral position, engage the parking brake, shut off the
engine and remove the ignition key. Wait for all movement
to stop before servicing or cleaning.
any sudden movements of the levers when starting and
stopping. Keep a firm grip on the control levers.
motion and wait for vehicles to pass before operating
along the road.
Do not operate the tractor with the mower deck removed.
Removal of the deck will change the balance of the tractor,
and could contribute to a tractor rollover.
Avoid operation on traction surfaces that are unstable; use
extreme caution if the surface is slippery.
Slow down before turning and come to a complete stop
before any zero turn maneuver.
Do not stop the tractor or park the tractor over
combustible materials such as dry grass, leaves, debris, etc.
Do not fill the fuel tank when the engine is running or
while the engine is hot. Allow the engine several minutes
to cool before refueling. Tighten the fuel cap securely.
Before Operating Your Tractor
to familiarize yourself with the operation of all the
instruments and controls. It has been prepared to help you
operate and maintain your tractor efficiently.
This engine is certified to operate only on clean, fresh,
unleaded regular gasoline. For best results, fill the fuel
tank with only clean, fresh, unleaded gasoline with a pump
sticker octane rating of 87 or higher.
Unleaded gasoline is recommended because it leaves
less combustion chamber deposits and reduces harmful
exhaust emissions. Leaded gasoline is not recommended
and must not be used where exhaust emissions are
regulated.
NOTE:
gasoline left over from the previous season, to minimize
gum deposits in the fuel system.
blends are not approved.
approved.
Check the engine oil level.
Clean the air cleaner element if necessary.
Check the tire inflation pressures.
and for maintaining complete control of the tractor.
Safety Interlock System
This tractor is equipped with a safety interlock system for the
protection of the operator. If the interlock system should ever
malfunction, do not operate the tractor. Contact your authorized
Cub Cadet Dealer.
The safety interlock system prevents the engine from
levers are moved fully outward in the neutral position, the
To avoid sudden movement when disengaging the parking
brake, the safety interlock system will shut off the engine
position other than the fully out in the neutral position
when the parking brake is engaged.
The safety interlock system will shut off the engine if the
operator leaves the seat before engaging the parking
brake.
Operation 5
15
The safety interlock system will shut off the engine if the
of whether the parking brake is engaged.
NOTE:
position to restart the engine.
mower blades will stop if both drive control levers are
when one or both of the levers are moved back to the
neutral or forward position.
Starting the Engine
WARNING! This tractor is equipped with a safety
interlock system designed for the protection of the
operator. Do not operate the tractor if any part of
check the functions of the interlock system for
proper operation.
WARNING! For personal safety, the operator must
be sitting in the tractor seat when starting the
engine.
Separate Throttle and Choke
1.
Engage the parking brake. Refer to Fig. 5-1.2.
3.
position. Refer to Fig. 5-1.
4.
NOTE: If the engine is warmed up, it may not be necessary
to place the throttle control in the choke position.
5.
FAST positions.
6.
and release it as soon as the engine starts; however, do not
crank the engine continuously for more than 5 seconds at
a time. If the engine does not start within this time, turn
after a few attempts the engine fails to start, do not keep
trying to start it with the choke closed as this will cause
flooding and make starting more difficult.
As the engine warms up, gradually push the choke control7.
into the off position. Do not use the choke to enrich the
fuel mixture, except as necessary to start the engine.
Allow the engine to run for a few minutes at mid throttle8.
before putting the engine under load.
indicator light or oil pressure light come on, immediately
Cadet dealer.
Throttle/Choke Control Lever Set-Up
1.
Engage the parking brake. Refer to Fig. 5-1.2.
3.
position. Refer to Fig. 5-1.
Insert the tractor key into the ignition switch module.4.
5.
and release it as soon as the engine starts; however, do not
crank the engine continuously for more than 5 seconds at
a time. If the engine does not start within this time, turn
after a few attempts the engine fails to start, do not keep
trying to start it with the choke closed as this will cause
flooding and make starting more difficult.
As the engine warms up, gradually pull the throttle control6.
lever rearward past the choke detent position. Do not use
the choke position to enrich the fuel mixture, except as
necessary to start the engine.
Allow the engine to run for a few minutes at mid throttle7.
before putting the engine under load.
8.
indicator light or oil pressure light come on, immediately
Cadet dealer.
Cold Weather Starting
When starting the engine at temperatures near or below
freezing, ensure the correct viscosity motor oil is used in the
engine and the battery is fully charged. Start the engine as
follows:
1.
has much more starting capacity than a cold battery.
Use fresh winter grade fuel. Winter grade gasoline has2.
higher volatility to improve starting. Do not use gasoline
left over from summer.
Follow the previous instruction for Starting the Engine.3.
LH Control Lever
Out in Neutral
RH Control Lever
Out in Neutral
Parking Brake
Engaged
Throttle/Choke
Control or Throttle
Control
Choke
PTO Switch in Down
(Disengaged) Position
Figure 5-1
16 se c t i O n 5— Op e r a t i O n
Using Jumper Cables To Start Engine
WARNING!
produce explosive gasses. Make certain the area is
well ventilated, wear gloves and eye protection, and
avoid sparks or flames near the battery.
If the battery charge is not sufficient to crank the engine,
recharge the battery. If a battery charger is unavailable and
the tractor must be started, the aid of a booster battery will be
necessary. Connect the booster battery as follows:
Connect the end of one cable to the disabled tractor1.
Connect one end of the other cable to the booster2.
that cable to the frame of the disabled tractor, as far from
the battery as possible.
Start the disabled tractor following the normal starting3.
instructions previously provided; then disconnect
the jumper cables in the exact reverse order of their
connection.
4.
as soon as possible to eliminate the need for jump starting.
Stopping the Engine
1.
2.
the neutral position.
Engage the parking brake.3.
4.
the engine to idle for about one minute.
5.
key from the ignition switch.
NOTE: Always remove the key from the ignition switch to prevent
accidental starting or battery discharge if the equipment is left
unattended.
Practice Operation (Initial Use)
type riding tractor. Although and because a zero turn tractor is
more maneuverable, getting used to operating the control levers
takes some practice.
We strongly recommend that you locate a reasonably large,
pedestrians, or animals. You should practice operating the
tractor for a minimum of 30 minutes.
Carefully move (or have moved) the tractor to the practice area.
engaged. While practicing, operate the tractor at approximately
⁄-⁄ throttle and at less than full speed in both forward and
reverse.
Carefully practice maneuvering the tractor using the instructions
are confident that you can safely operate the tractor.
Driving the Tractor
WARNING! Avoid sudden starts, excessive speed
and sudden stops.
1.
position that allows you to operate the controls. See seat
adjustment in the Maintenance & Adjustments section.
Release the parking brake.2.
3.
neutral position. Refer to Figure 5-2.
NOTE: If the control levers are not even in the neutral position,
refer to Maintenance & Adjustments for instructions to adjust the
levers so that they are even.
Move the throttle control lever forward to the full throttle4.
NOTE:
full throttle, when performing a practice session the tractor
must be operated at less than full throttle (approximately
WARNING! Always maintain a firm grip on the
slow or stop the tractor; move levers to neutral
position using your hands.
To drive the tractor, firmly grasp the respective drive5.
control levers with your right and left hands and continue
with Driving the Tractor Forward on the following page.
Control Lever Moved
Inward and in Neutral
Figure 5-2
17se c t i O n 5 — Op e r a t i O n
Driving the Tractor Forward
WARNING! Keep all movement of the drive control
levers slow and smooth. Abrupt movement of the
control levers can affect the stability of the tractor
and could cause the tractor to flip over, which may
result in serious injury or death to the operator.
Slowly and evenly move both drive control levers forward.1.
The tractor will start to move forward. See Fig. 5-3.
As the control levers are pushed farther forward the speed2.
of the tractor will increase.
To slow the tractor move the controls lever rearward to3.
attain the desired speed, or move the levers to the neutral
position to stop the tractor.
WARNING! Always maintain your grasp on the
drive control levers. Do not release the levers to slow
the tractor or to return to neutral.
Turning the Tractor While Driving Forward
WARNING! When reversing the direction of travel,
possible. Sharper turns increase the possibility of
turf defacement, and could affect control of the
tractor. ALWAYS slow the tractor before making
sharp turns.
To turn the tractor while driving forward, move the control
levers as necessary so that one lever is rearward of the other. The
tractor will turn in the direction of the rearward control lever.
To turn to the left, move the left drive control lever1.
rearward of the right lever. See Fig. 5-4.
To turn to the right, move the right drive control lever2.
rearward of the left lever. See Fig. 5-5.
The greater the fore-to-aft distance between the two3.
levers, the sharper the tractor will turn.
4.
lever to the neutral position, while moving the other
control lever forward.
NOTE:
the potential for defacement of the turf.
Driving Forward
Neutral
Position
Faster
Slower
Figure 5-3
Forward Left Turn
Figure 5-4
Forward Right Turn
Figure 5-5
18 se c t i O n 5— Op e r a t i O n
Driving the Tractor In Reverse
WARNING! Always look behind and down on both
sides of the tractor before backing up. Always look
behind while traveling in the reverse direction.
Slowly and evenly move both drive control levers rearward.1.
The tractor will start to move in the reverse direction. See
Fig. 5-6.
As the control levers are pushed farther rearward the speed2.
of the tractor will increase.
To slow the tractor move the controls lever forward to3.
attain the desired speed, or move the levers to the neutral
position to stop the tractor.
Turning While Driving Rearward
To turn the tractor while driving rearward, move the control
levers as necessary so that one lever is forward of the other. The
tractor will turn in the direction of the forward control lever.
To turn to the left while traveling in reverse, move the left1.
drive control lever forward of the right lever. See Fig. 5-7.
To turn to the right while traveling in reverse, move the2.
right drive control lever forward of the left lever. See Fig.
5-8.
The greater the fore-to-aft distance between the two3.
levers, the sharper the tractor will turn.
4.
lever to the neutral position, while moving the other
control lever rearward.
NOTE:
the potential for defacement of the turf.
Neutral
Position
Slower
Faster
Figure 5-6
Rearward Left Turn
Figure 5-7
Rearward Right Turn
Figure 5-8
19se c t i O n 5 — Op e r a t i O n
Executing a Zero Turn
WARNING! When executing a zero turn, the tractor
tractor is moving can significantly reduce your
control of the tractor and will cause severe turf
defacement to occur.
Stop the forward or reverse motion of the tractor by1.
moving the two drive control levers to neutral.
To turn clockwise, move the left control lever forward while2.
simultaneously moving the right control lever rearward.
To turn counterclockwise, move the right control lever3.
forward while simultaneously moving the left control lever
rearward. See Fig. 5-10.
Stopping the Tractor
Move both drive control levers to the neutral position to1.
stop the motion of the tractor.
2.
position.
Use the deck lift handle to raise the deck to its highest3.
position.
If dismounting the tractor, move the drive control handles4.
fully outward in the neutral position, engage the parking
brake, move the throttle control lever to the fast position,
the switch.
WARNING! Do not leave the seat of the tractor
levers fully outward in the neutral position, and
engaging the parking brake. If leaving the tractor
unattended, turn the ignition key off and remove
the key.
Driving On Slopes
determine slopes where you may not operate safely.
WARNING! Do not operate on inclines with a slope
in excess of 15 degrees (a rise of approximately 2-⁄
feet every 10 feet). The tractor could overturn and
cause serious injury.
Always drive across slopes, never up and down. Control1.
the speed and direction of the tractor using primarily the
control lever on the downhill side of the tractor, with the
uphill control lever remaining essentially in a fixed position.
Avoid turning downhill if possible. Start at the bottom of a2.
slope and work upward. Always slow down before turning.
Use extra care and go slowly when turning downhill.3.
Operating The PTO
Move the throttle control lever to approximately the mid1.
throttle position.
2.
Advance the throttle lever to the operating speed (full3.
engine speed).
The operator must remain in the tractor seat at all times. If4.
the operator should leave the seat without turning off the
5.
when both drive control levers are moved to the reverse
position, and will re-engage when one (or both) control
lever(s) is moved to the neutral or forward position.
Clockwise Zero Turn
Figure 5-9
Counterclockwise
Zero Turn
Figure 5-10
20 se c t i O n 5— Op e r a t i O n
Other manuals for RZT Series
3
Table of contents
Other MTD Lawn Mower manuals
