MTD Series 410 User manual

Safety oAssembly oOperation oTips &Techniques oMaintenance *Troubleshooting oParts Lists oWarranty
21" Rotary Mower -- Model Series 410
READ SAFETY RULES AND mNSTRUCTmONS CAREFULLY BEFORE OPERATION
Warning: This unitisequippedwithan internalcombustionengineandshouldnotbeusedon or nearanyunimprovedforest-covered,brush=
coveredor grass=coveredlandunlesstheengine'sexhaustsystemis equippedwitha sparkarrestermeetingapplicablelocalorstatelaws(ifany),
If a sparkarresterisused,itshouldbemaintainedineffectiveworkingorderbytheoperator,Inthe StateofCaliforniatheaboveisrequiredbylaw
(Section4442oftheCaliforniaPublicResourcesCode),Otherstatesmayhavesimilarlaws,Federallawsapplyonfederallands,A sparkarrester
forthemufflerisavailablethroughyournearestengineauthorizedservicedealeror contacttheservicedepartment,RO,Box361131Cleveland,
Ohio44136=0019,
FORMNO,770=10124F
PRINTEDiN U,S,A, MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136-0019 09/23/2004

This Operator's Manua_ is an important part of your new lawn mower, mtwH_ he_p you assemble,
prepare and maintain the unit for best performance. Please read and understand what it says.
Table of Contents
Slope Gauge ....................................................... 3
Safe Operation Practices ................................... 4

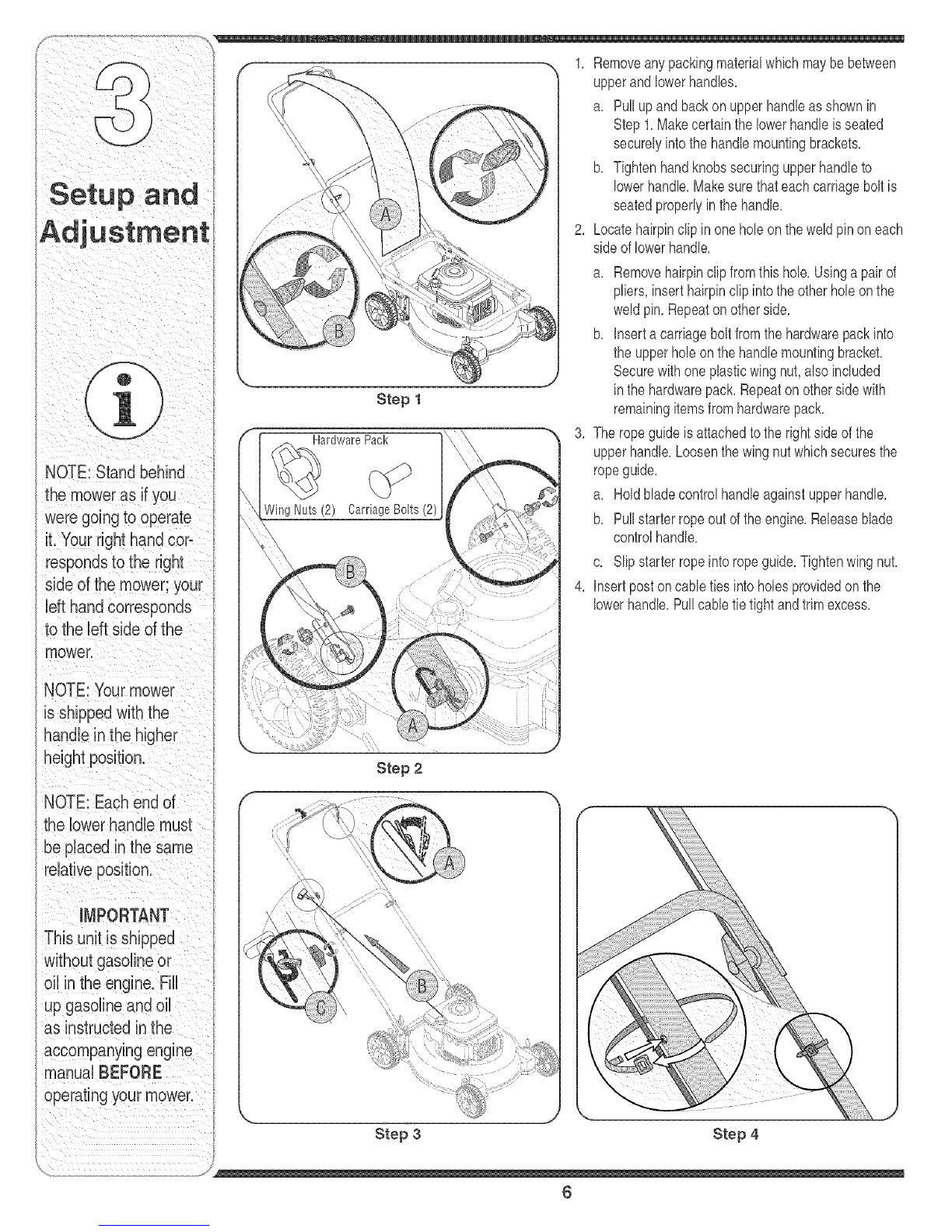

Setup and Adjustment ....................................... 6

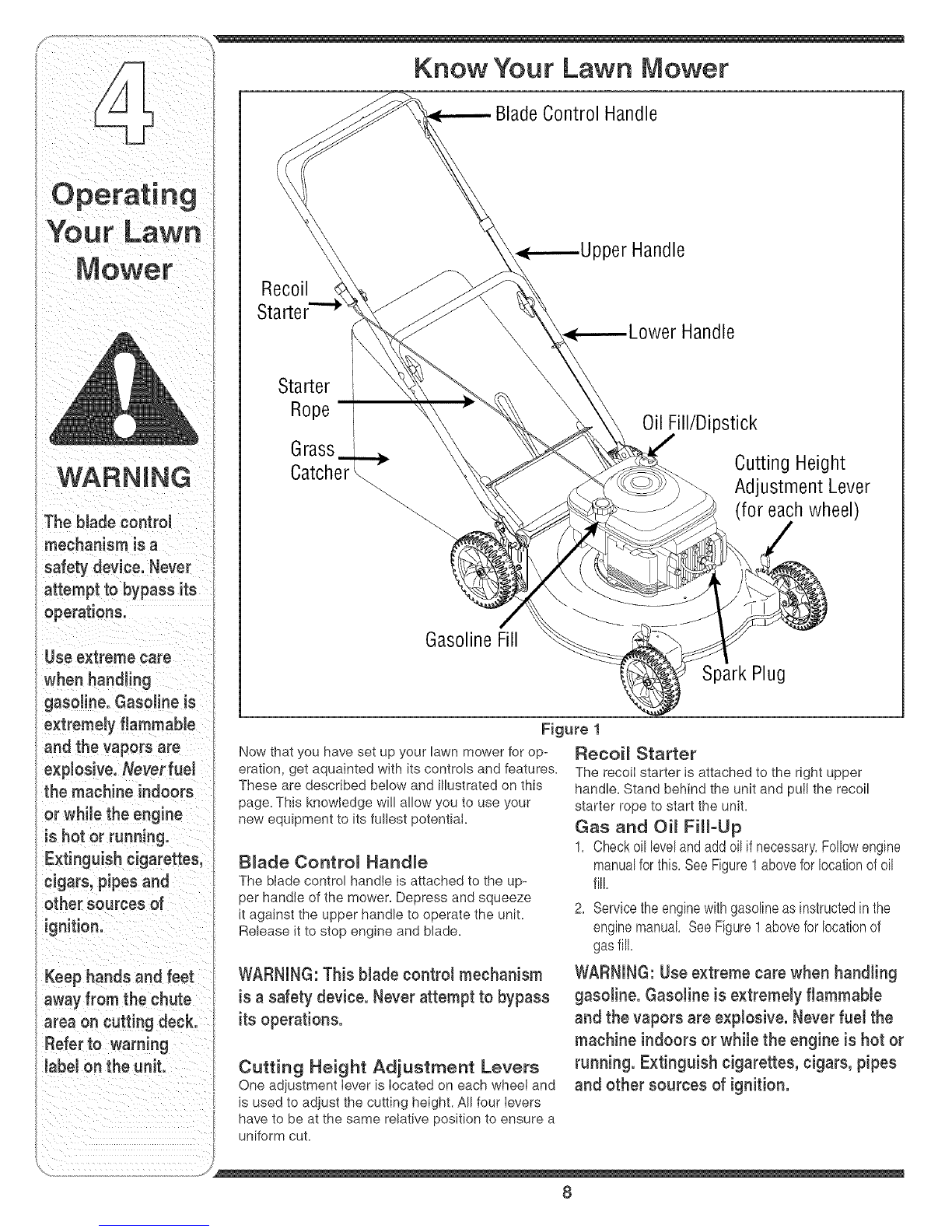

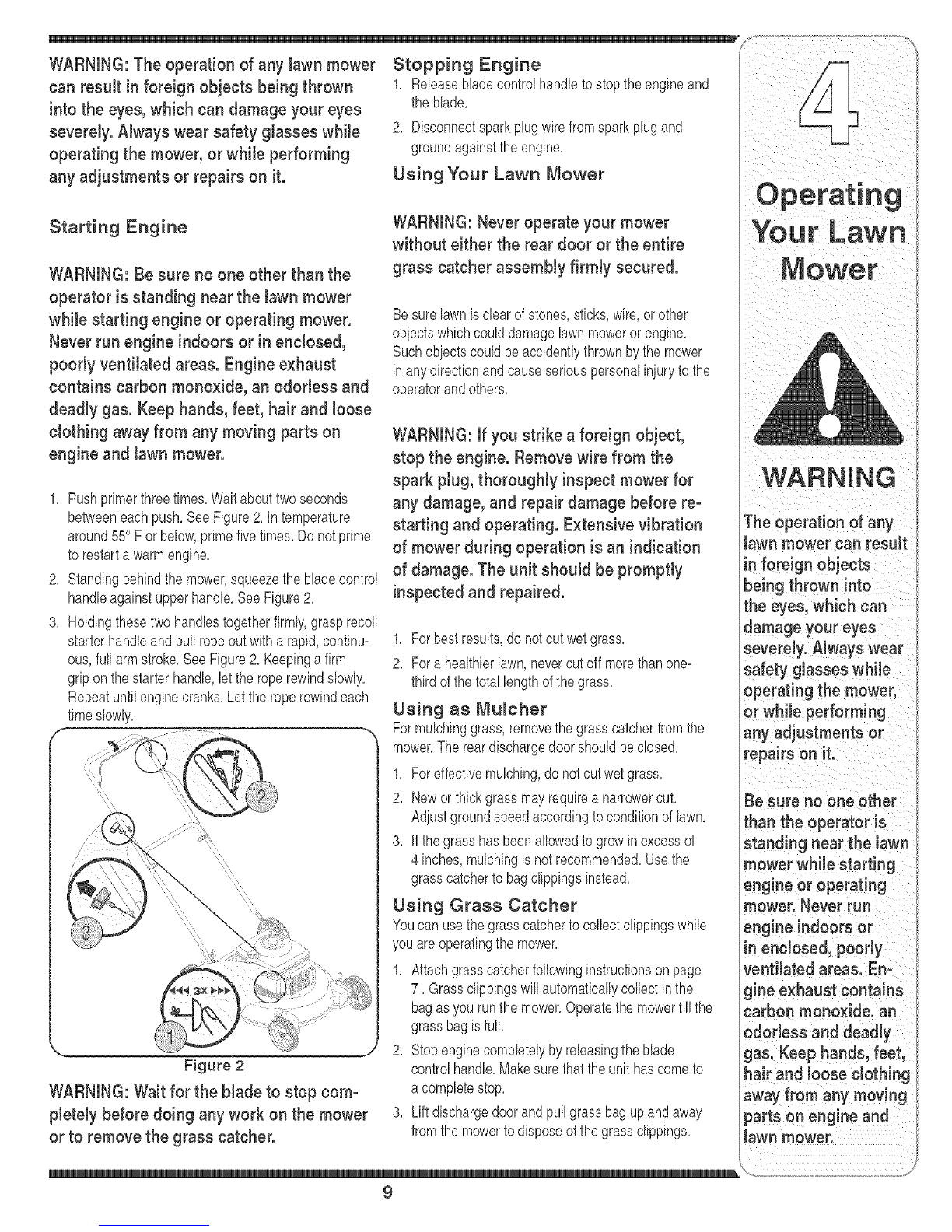

Operating Your Lawn Mower .............................. 8

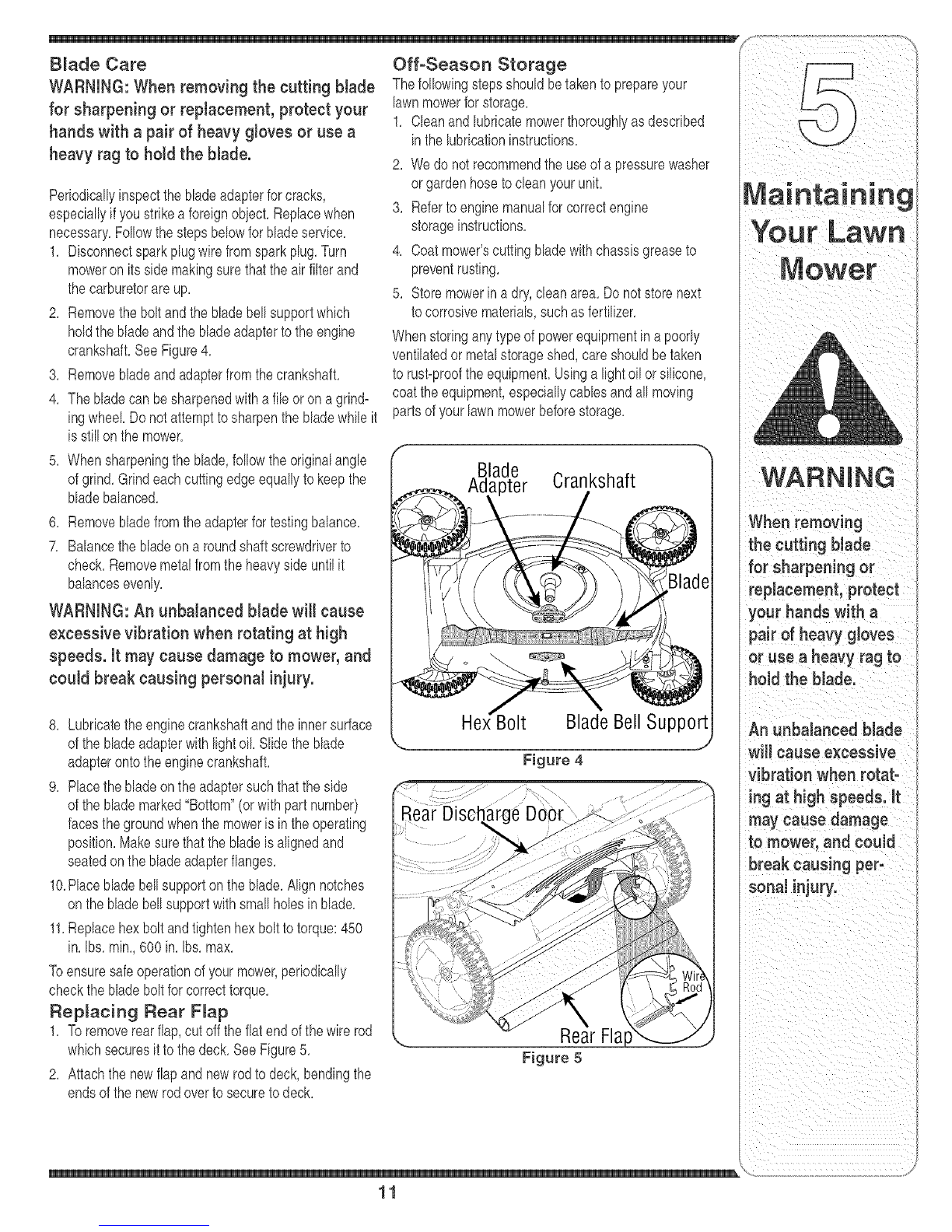

Maintaining Your Lawn Mower ......................... 10
Trouble Shooting .............................................. 12
Safety Labels .................................................... 13

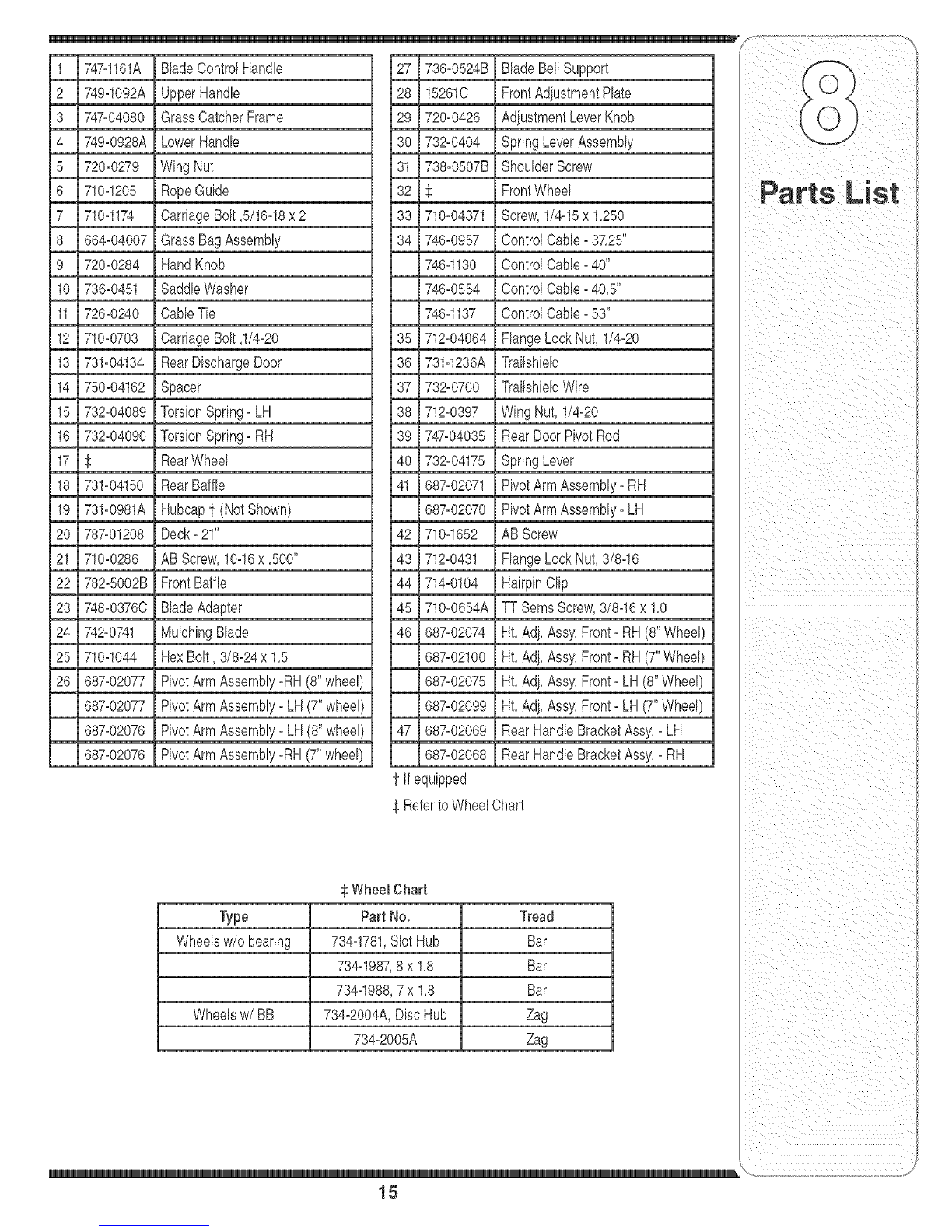

Parts List ........................................................... 14
Finding and Recording Model Number
BEFOREYOU STARTASSEMBLING
YOURNEW EQUIPMENT,
please locatethe modelplate onthe equipmentand copythe
informationtothe samplemodel plate providedto the righL
Youcan locatethe modelplate by standing atthe operating
positionand lookingdown at the rearof the deck. This
informationwill be necessaryto use the manufacturer'sweb
site and/or obtainassistancefrom the CustomerSupport
Departmentor an authorizedservice dealer.
f
Modem Number
www, mtdproducts,cem
Serial Number
MTD LLC
P.O. BOX 361131
CLEVELAND, OH 44136
330-220-4683
800-800-7310
Customer Support
Please do NOTreturn the unit to the retai_er from which it was
purchased, without first contacting Customer Support.
ifyou havedifficulty assemblingthis productor have any
questions regardingthecontrols, operationor maintenanceof
this unit,you can seekhelp fromthe experts.Choose fromthe
options below:
Click here to search our knowledge base.
Search by product, keyword, or phrase.
1. Visit mtdproducts.com for many useful suggestions.
Clickon CustomerSupportbutton and you will get the four
options reproducedin this sampletothe right. Click on the
appropriate buttonand help is immediatelyavailable.
2. Phonea Customer Support Representative
at 1(800)800-7310.
3. The engine manufacturer is responsiblefor all engine°
relatedissueswith regardsto performance,power-rating,
Login to check the status of your questions, modify
your inquiries, or update your personal profile.
Need local assistance? Click here to find authorized
service centers in your area.
specifications,warrantyand service. Pleasereferto the
eng Need a manual and/or parts list? Download
separatelywith your unit, for more information, literaturefrom recentmodelyears.
2

03 x= S
£
O
_5
o
(D
_5
03
(D
(D
Cz_
O
_5
E
o>.
(D
03
(D
Cz_
o03
(D
@ CZ.
"7C_ O
o_
"_ o3
Ob
_50
(D O
Ob E
£3-
03
D ;>.
Sight andhold this levelwith a verticaltree...
_,_ or a corner of a building...
I__ or afencepost
15°
0_

manuakAs with any type of powerequipment,carelessnessor erroronthe partof the operatorcan
resultin seriousinjury.This machineis capable of amputatinghandsand feet and throwing objects.
! Failureto observethe following safetyinstructionscould resultin seriousinjury or death.
endangerthe personal
safetyand/or property
Children
Tragicaccidentscan occurifoperatorisnotalerttopresence
ofchildren.Childrenareoftenattractedto mowerandmowing
activity.Theydonot understandthe dangers.Neverassume
thatchildrenwill remainwhereyoulastsawthem.
1. Keepchildrenoutofthe mowingareaandunderwatchful
careof a responsibleadultotherthanthe operator.
2. Bealertandturnmoweroffifachildentersthearea.
3. Beforeandwhilemovingbackwards,lookbehindanddown
forsmallchildren.
4. Useextremecarewhenapproachingblindcorners,
doorways,shrubs,trees,orotherobjectsthat mayobscure
yourvisionofachildwhomayrunintothemower.
5. Keepchildrenawayfromhot orrunningengines.Theycan
sufferburnsfroma hotmuffler.
6. Neverallowchildrenunder14yearsoldto operateapower
mower.Children14yearsold andovershouldreadand
understandoperationinstructionsandsafetyrulesinthis
manualandshouldbetrainedandsupervisedbyaparent.
Operation
Safe HandlingOf Gasoline:
1. Toavoidpersonalinjuryor propertydamageuse
extremecare in handlinggasoline.Gasolineisextremely
flammableandthevaporsareexplosive.Seriouspersonal
injurycanoccurwhengasolineisspilledonyourselfor
yourclotheswhichcan ignite.
2. Washyourskin andchangeclothesimmediately.
3. Useonlyanapprovedgasolinecontainer.
4. Neverfill containersinsidea vehicleor ona truckortrailer
bedwith a plasticliner.Alwaysplacecontainersonthe
groundawayfromyourvehiclebeforefilling.
5. Removegas-poweredequipmentfromthetruck or
trailerandrefuelitonthe ground.Ifthisisnotpossible,
thenrefuelsuchequipmenton a trailerwitha portable
container,ratherthanfromagasolinedispensernozzle.
6. Keepthe nozzlein contactwith the rimofthefuel tankor
containeropeningatalltimesuntilfuelingiscomplete.Do
notusea nozzlelock-opendevice.
7. Extinguishallcigarettes,cigars,pipesandothersources
ofignition.
8. Neverfuel machineindoorsbecauseflammablevapors
willaccumulateinthe area.
9. Neverremovegascap oraddfuel whileengineishot or
running. Allowengineto coolatleasttwominutesbefore
refueling.
10.Neveroverfillfueltank. Filltankto nomorethan_Jzinch
13.Neverstorethe machineorfuel containernearanopen
flame,sparkorpilotlightas onawaterheater,space heater,
furnace,clothesdryeror othergasappliances.
14.Toreducefire hazard,keepmowerfreeofgrass,leaves,
orother debrisbuild-up.Cleanupoil orfuel spillageand
removeanyfuel soakeddebris.
15.Allowamowertocoolat least5 minutesbeforestoring.
GeneralOperation:
1. Readthis operator'smanual carefullyin its entiretybefore
attemptingtoassemblethismachine.Read,understand,
andfollow allinstructionsonthe machineandin the
manual(s) beforeoperation.Becompletelyfamiliarwith
thecontrolsandthe properuseofthismachinebefore
operatingit.Keepthis manualin asafeplaceforfutureand
regularreferenceandfororderingreplacementparts.
2. Thismachineisa precisionpieceof powerequipment,not a
plaything.Therefore,exerciseextremecautionatalltimes.
Yourunithas beendesignedto performonejob: tomow
grass.Donotuse itforanyotherpurpose.
3. Neverallowchildrenunder14yearsoldto operatethis
machine.Children14yearsoldand overshouldreadand
understandthe instructionsinthismanualandshould
betrainedand supervisedbya parent.Onlyresponsible
individualswhoarefamiliarwiththeserulesofsafe opera-
tionshouldbeallowedtousethismachine.
4. Thoroughlyinspectthe areawherethe equipmentisto
beused.Removeall stones,sticks,wire,bones,toysand
otherforeignobjectswhichcould betripped overor picked
upand thrownbythe blade.Thrownobjectscancause
seriouspersonalinjury.Planyourmowingpatternto avoid
dischargeofmaterialtowardroads,sidewalks,bystanders
andthe like.Also,avoiddischargingmaterialagainstawall
orobstructionwhichmaycausedischargedmaterialto
ricochetbacktowardthe operator.
5. Tohelpavoidbladecontactorathrownobjectinjury,stayin
operatorzonebehindhandlesandkeepchildren,bystand-
ers,helpersandpetsatleast75feetfrom mowerwhileit is
in operation.Stopmachineif anyoneentersarea.
6. Alwayswear safetyglassesor safetygogglesduringopera-
tionandwhile performinganadjustmentor repairtoprotect
youreyes.Thrownobjectswhichricochetcancauseserious
injurytothe eyes.
7. Wearsturdy,rough-soledworkshoesandclose-fitting
slacksandshirts.Shirtsand pantsthatcoverthe armsand
legsandsteel-toedshoesarerecommended.Neveroperate
this machinein barefeet sandals slipperyor hghtweight
and foHowthe warnings belowbottornof fillerneckto provideforfuelexpansion. ' ' ' , , ' ' '
(eg canvas)shoes
and instructions 11.Replacegasolinecap andtightensecurely. • " " . .
8 Do notputhandsorfeetnearrotatingpartsor undercuttmng
p,thi,,manu_t 12 fgaso ne ssp ed wpe tofftheengneandequpment •
_u o _ .... deck Contactwithbladecanamputatehandsandfeet
adonthe machine Moveunittoanotherarea.Walt5 minutesbeforestarting "
n , engine.
, J 4

9. Amissingor damageddischargecovercancauseblade
contactor thrownobjectinjuries.
10.Manyinjuriesoccurasa resultofthe mowerbeingpulled
overthefootduringa fall causedby slippingor tripping.
Do notholdontothe mowerif youarefalling;releasethe
handleimmediately.
11.Neverpullthe mowerbacktowardyouwhileyouare
walking.If youmustbackthe mowerawayfromawallor
obstructionfirstlookdownandbehindtoavoidtrippingand
thenfollowthesesteps:
a. Stepbackfrommowertofully extendyour arms.
b. Besureyouarewellbalancedwith surefooting.
c. Pullthe mowerbackslowly,nomorethanhalfway
towardyou.
d. Repeatthesestepsasneeded.
12.Do notoperatethe mowerwhileunderthe influenceof
alcoholordrugs.
13.Do notengagethe self-propelledmechanismon unitsso
equippedwhilestartingengine.
14.The bladecontrolhandleis asafetydevice.Neverattempt
to bypassitsoperation.Doingsomakesthe safetydevice
inoperativeandmayresultinpersonalinjurythrough
contactwiththe rotatingblade.The bladecontrolhandle
mustoperateeasily in bothdirectionsandautomatically
returntothe disengagedpositionwhenreleased.
15.Neveroperatethemowerinwetgrass.Alwaysbesureof
yourfooting. Aslipandfall cancauseseriouspersonal
injury.If youfeel youare losingyourfooting, releasethe
bladecontrolhandleimmediatelyand the bladewillstop
rotatingwithinthreeseconds.
16.Mowonlyindaylightor goodartificial light.Walk,neverrun.
17.Stopthe bladewhencrossinggraveldrives,walksor roads.
18.Ifthe equipmentshouldstartto vibrateabnormally,stopthe
engineand checkimmediatelyfor the cause.Vibrationis
generallyawarningoftrouble.
19.Shutthe engineoff andwaituntilthe bladecomesto
acompletestop beforeremovingthe grasscatcheror
uncloggingthe chute.Thecuttingbladecontinuesto rotate
for afewsecondsafterthe engineisshutoff. Neverplace
anypartofthe bodyinthe bladeareauntilyou aresurethe
bladehasstoppedrotating.
20.Neveroperatemowerwithoutpropertrail shield,discharge
cover,grasscatcher,bladecontrolhandleor othersafety
protectivedevicesin placeandworking.Neveroperate
mowerwithdamagedsafetydevices.Failuretodo so,can
resultin personalinjury.
21.Mufflerandenginebecomehotandcancauseaburn.Do
nottouch.
22.Onlyusepartsandaccessoriesmadefor thismachineby
manufacturer.Failureto dosocanresultinpersonalinjury.
23.Ifsituationsoccurwhichare not coveredin this manual,use
careandgoodjudgment.Telephone[phone]for
CustomerSupportandthe nameofyournearestdealer.
Slope Operation:
Slopesareamajorfactorrelatedto slipandfallaccidentswhich
canresultinsevereinjury.Operationonslopesrequiresextra
caution.Ifyoufeeluneasyonaslope,donotmowit.Foryour
safety,usethe slopegaugeincludedas partofthismanualto
measureslopesbeforeoperatingthisunitonaslopedor hilly
area.Iftheslopeis greaterthan15degrees,do notmowit.
Do:
1. Mowacrossthefaceof slopes;neverup anddown.
Exerciseextremecautionwhenchangingdirectionon
slopes.
2. Watchfor holes,ruts,rocks,hiddenobjects,or bumps
whichcancauseyouto sliportrip.Tallgrasscan hide
obstacles.
3. Alwaysbesureofyourfooting. Aslip andfall cancause
seriouspersonalinjury.If youfeelyouarelosingyour
balance,releasethe bladecontrolhandleimmediately,and
the bladewillstop rotatingwithin three(3) seconds.
Do Not:
1. Do notmowneardrop-offs,ditchesorembankments,you
couldloseyour footingor balance.
2. Do notmowslopesgreaterthan15degreesas shownon
theslopegauge.
3. Do notmowonwetgrass.Unstablefootingcouldcause
slipping. Service
1. Neverrun anengineindoorsor inapoorlyventilatedarea.
Engineexhaustcontainscarbonmonoxide,an odorlessand
deadlygas.
2. Beforecleaning,repairing,or inspecting,makecertainthe
bladeandall movingpartshavestopped.Disconnectthe
sparkplugwireandgroundagainsttheengineto prevent
unintendedstarting.
3. Checkthe bladeandenginemountingboltsatfrequent
intervalsfor propertightness.Also,visuallyinspectbladefor
damage(e.g.,bent,cracked,worn)Replacebladewiththe
originalequipmentmanufacture's(O.E.M.)bladeonly',listed
inthismanual.Use ofpartswhichdo notmeettheoriginal
equipmentspecificationsmayleadto improperperformance
andcompromisesafety!"
4. Mowerbladesaresharpandcancut.Wrapthebladeorwear
gloves,anduseextracautionwhenservicingthem.
5. Keepallnuts,bolts,andscrewstight tobesurethe equip-
mentisin safeworkingcondition.
6. Nevertamperwithsafetydevices.Checktheirproperopera-
tionregularly.
7. Afterstrikinga foreignobject,stopthe engine,discon-
nectthe sparkplugwireandgroundagainsttheengine.
Thoroughlyinspectthe mowerfor anydamage.Repairthe
damagebeforestartingandoperatingthe mower.
8. Neverattempttomakeawheelorcuttingheightadjustment
whilethe engineis running.
9. Grasscatchercomponents,dischargecover,andtrail
shieldaresubjecttowear anddamagewhichcould expose
movingpartsorallow objectsto bethrown.Forsafety
protection,frequentlycheckcomponentsand replaceim-
mediatelywithoriginalequipmentmanufacturer's(O.EM.)
partsonly,listedin this manual.'Use of partswhich do
not meettheoriginalequipmentspecificationsmayleadto
improperperformanceandcompromisesafety!"
10.Donot changetheenginegovernorsettingor overspeedthe
engine.Thegovernorcontrolsthe maximumsafeoperating
speedofthe engine.
11.Maintainor replacesafetylabels,asnecessary'.
12.Observeproperdisposallawsand regulations.Improper
disposaloffluidsandmaterialscanharmtheenvironment.
WARNING
ThisSymbQUpoints
ua! beforeattempting to
result in personalinJury_
5

1, Removeanypackingmaterialwhichmaybebetween
NOTE:Stand behind
the mower as ifyou
weregoing to operate
it. Yourrighthandcor-
respondsto the right
sideof the mower;your
left handcorresponds
tothe left sidedthe
mower,
NOTE:Yourmower
is shippedwith the
handle in the higher
NOTE: Eachend of
the lowerhandlemust
be placedin the same
relativeposition,
IMPORTANT
This Jnit is shipped
without gasolineon
oil in the engine.
up gasolineand oil
as instructedinthe
accompanyingengine
manual BEFORE
operatingyour mower.
Step 1
HardwarePack
Wing Nuts (2) Carriage Bolts
upperand lowerhandles,
a, Pullupand backon upperhandleasshownin
Step1,Makecertainthelowerhandleisseated
securelyintothe handlemountingbrackets,
b, Tightenhandknobssecuringupperhandleto
lowerhandle,Makesurethateachcarriageboltis
seatedproperlyin thehandle,
2, Locatehairpinclipin oneholeontheweldpinon each
sideof lowerhandle,
a, Removehairpinclipfromthis hole,Usinga pairof
pliers,inserthairpinclipintotheotherholeon the
weldpin,Repeaton otherside,
b, inserta carriageboltfromthehardwarepackinto
theupperholeon thehandlemountingbracket,
Securewithoneplasticwingnut,alsoincluded
inthe hardwarepack,Repeatonothersidewith
remainingitemsfromhardwarepack,
3, Theropeguideisattachedtotherightsideofthe
upperhandle,Loosenthewingnutwhichsecuresthe
ropeguide,
a, Holdbladecontrolhandleagainstupperhandle,
b, Pullstarterropeoutoftheengine,Releaseblade
controlhandle,
c, Slipstarterropeintoropeguide,Tightenwingnut,
4, insertpostoncableties intoholesprovidedon the
lowerhandle,Pullcabletietightandtrimexcess,
Step 2
Step 3 Step 4
6

5, An adiustingplateandthumbleverat eachwheel
positionprovidescuttingheightadiustment,
a, Depresslevertowardswheel,
b, Moveittoanyoftheninepositionsfordesired
cuttingheight,SeeStep5,
c, Releaselevertowardsmowerdeck,
6, Followstepsbelowtoassemblethegrasscatcher:
a, Placebagoverframesothatitsblackplasticside
isatthebottom,
b, Slipplasticchannelofgrassbagoverhooksonthe
frame,SeeStep6,All theplasticchannelsexcept
centertopof bagattachfromoutsideof bag,
c, Attachcentertopof bagfrominsideofbag,
7, Followstepsbelowtoattachgrasscatcher:
a, Liftreardischargedoor,
b, Placegrasscatcheron thepivotrod,Letgo
ofdischargedoorsothat itrestson thegrass
catcher,SeeStep7,
Toremovegrasscatcherorconverttoa mulcher,lift rear
dischargedooron themowerasshownin Step8, Lift
grasscatcherupandoutof thepivotrod,Releaserear
dischargedoorto allowittocloserearopeningofmower,
WARNING: Never operate mower unJess
the hooks on the grass catcher are firmJy
seated in the slots on the handle bracket as-
semblies, and the rear discharge door rests
firmly against top of the grass catcher.
Step 5
Step a
Step 5
_Make certain bagis
Never operate mower
unless the hooks on
the grasa Catcherare
firm!yseated in the
slots on the handle
_ibracket assemblies,
and the rear dis_
Step 7
i ill i _n i _ii
7

WARNING
The blade control
mechanism is a
safety device. Never
attempt to bypassits
operations.
Use extreme care
when handling
gasoline. Gasoline is
extremely flammable
and the vapors are
explosive. Neverfuel
the machine indoors
or while the engine
is hot or running.
Extinguish cigarettes,
cigars, pipes and
other sources of
ignition.
Keep handsand feet
_way from the chute
tea on cutting deck.
Refer to warning
label on the unit.
Recoil
pper Handle
0werHandle
Starter
Rope
Grass
Catcher
Oil Fill/Dipstick
Cutting Height
Adjustment Lever
(for eachwheel)
Gasoline Fill
Spark Plug
Figure !
Now that you have set up your lawn mower for op-
eration, get aquainted with its controls and features.
These are described below and illustrated on this
page. This knowledge will allow you to use your
new equipment to its fullest potential.
Blade Control Handle
The blade control handle is attached to the up-
per handle of the mower. Depress and squeeze
it against the upper handle to operate the unit=
Release it to stop engine and blade=
Recoi_ Starter
The recoil starter is attached to the right upper
handle= Stand behind the unit and pulI the recoil
starter rope to start the unit=
Gas and Oi_ FiIFUp
1, Check oil level and add oil if necessary, Follow engine
manual for this, See Figure 1 above for location of oil
fill
2. Service the engine with gasoline as instructed in the
engine manual See Figure 1above for location of
gas fill
WARNING: This blade control mechanism
is a safety device. Never attempt to bypass
its operations.
Cutting Height Adjustment Levers
One adjustment lever is located on each wheel and
is used to adjust the cutting height. All four levers
have to be at the same relative position to ensure a
uniform cut.
WARNING: Use extreme care when handling
gasoline. Gasoline is extremely flammable
and the vapors are explosive. Never fuel the
machine indoorsor while the engine is hot or
running. Extinguish cigarettes, cigars, pipes
and other sources of ignition.
8

, i,_ _ .........
WARNING:The operation of any lawn mower Stopping Engine
can result in foreign ob'ectsbeinj g thrown 1, Reeasebadecontrohande tostoptheengneand /,4 I
into the eyes which can damage your eyes theblade. (/ZJ LM
severely. Always wear safety glasses while 2, Disconnectsparkplug_,irefromsparkplugand
operating the mower, or while performing groundagainsttheengne,
any adjustments or repairs on it. UsingYour Lawn Mower
Starting Engine
WARNING: Be sure no one other than the
operator is standing near the tawn mower
while starting engine or operating mower.
Never run engine indoors or in enclosed,
poorly ventilated areas. Engine exhaust
contains carbon monoxide, an odorless and
deadly gas. Keep hands, feet, hair and loose
clothing away from any moving parts on
engine and lawn mower.
1, Pushprimerthreetimes,Waitabouttwoseconds
betweeneachpush,SeeFigure2,Intemperature
around55° For below,primefivetimes,Donotprime
to restarta warmengine,
2, Standingbehindthe mower,squeezethebladecontrol
handleagainstupperhandle,SeeFigure2,
3, Holdingthesetwo handlestogetherfirmly,grasprecoil
starterhandleand pullropeoutwitha rapid,continu-
ous,fullarmstroke,SeeFigure2,Keepinga firm
gripon thestarterhandle,lettheroperewindslowly,
Repeatuntilenginecranks,Lettheroperewindeach
timeslowly,
Figure 2
WARNING: Wait for the blade to stop com-
pletely before doing any work on the mower
or to removethe grass catcher.
WARNING: Never operate your mower
without either the rear door or the entire
grass catcher assembly firmly secured.
Besurelawnisclearofstones,sticks,wire,or other
obiectswhichcoulddamagelawnmoweror engine,
Suchobiectscouldbeaccidentlythrownbythe mower
inanydirectionandcauseseriouspersonaliniurytothe
operatorandothers,
WARNING: ifyou strike a foreign object,
stop the engine. Remove wire from the
spark plug, thoroughly inspect mower for
any damage, and repair damage before re-
starting and operating. Extensive vibration
of mower during operation isan indication
of damage. The unit should be promptly
inspectedand repaired.
1, Forbestresults,do notcut wetgrass,
2, Fora healthierlawn,nevercutoff morethanone-
thirdofthetotallengthofthegrass,
Using as Muncher
Formulchinggrass,removethegrasscatcherfromthe
mower,Thereardischargedoorshouldbeclosed,
1, Foreffectivemulching,do notcut wetgrass,
2, Neworthickgrassmayrequirea narrowercut,
Adiustgroundspeedaccordingtoconditionoflawn,
3, ifthegrasshasbeenallowedto growinexcessof
4 inches,mulchingisnotrecommended,Usethe
grasscatchertobagclippingsinstead,
Using Grass Catcher
Youcanusethegrasscatchertocollectclippingswhile
youareoperatingthemower,
1, Attachgrasscatcherfollowinginstructionsonpage
7, Grassclippingswillautomaticallycollectinthe
bagasyourunthemower,Operatethemowerfillthe
grassbagis full,
2, Stopenginecompletelybyreleasingtheblade
controlhandle,Makesurethattheunithascometo
a completestop,
3, Liftdischargedoorand pullgrassbagup andaway
fromthemowertodisposeofthegrassclippings,
,Lawn
The operation of any
awn mower can result
in fore gn objects
being thrown into
the eyes, which can
damage your eyes
severely. Nways wear
safety glasses while
operating the mower,
or while performing
any adjustments or
repairs on it.
Be sure no one other
than the operator is
standing r_earthe lawn
mower while starting
_ngine or operating
_oweK Never run
engine indoors or
in enclosed, poorly
ventilated areas. En-
gine exhaust contains
carbon monoxide, an
odorless and deadly
gas. Keep hands, feet,
hair and loose clothing
away from any moving
parts on engine and
lawn moweK
\
9

Lubricatethese
pointsbefore
reassembly.
Figure 3
General Recommendations
1, Alwaysobservesafetyruleswhenperforming
anymaintenance,
2, Thewarrantyon thislawnmowerdoesnotcover
itemsthathavebeensubiectedtooperatorabuse
or negligence,Toreceivefullvaluefromwarranty,
operatormustmaintainthe lawnmoweras
instructedhere,
3, Changingofengine-governedspeedwillvoid
enginewarranty,
4, Alladjustmentsshouldbecheckedat leastonce
eachseason,
5, Periodicallycheckall fastenersand makesurethese
aretight,
WARNING: Always stop engine, disconnect
spark plug, and ground against engine
before cleaning, lubricating or doing any
kind of maintenance on your machine.
Lubrication
1, Lubricatepivotpointson thebladecontrolhandleat
leastoncea seasonwithlightoil,Thebladecontrol
mustoperatefreelyin bothdirections,SeeFigure3,
2, Lubricatethewheelsatleastoncea seasonwith
lightoil (or motoroil), If wheelsareremovedforany
reason,lubricatesurfaceofthepivotarmandinner
surfaceofthewheelwithlightoil SeeFigure3,
3, Lubricatethetorsionspringandpivotpointonthe
reardischargedoorperiodicallywithlightoil to
preventrust,SeeFigure3,
4, Followtheaccompanyingenginemanualforlubrica-
tionscheduleandinstructionforenginelubrication,
Deck Care
Clean underside of the mower deck after each use
to prevent build-up of grass clippings or otherdebris.
FolIowsteps below forthis job.
1, Disconnectsparkplugwire,Draingasolinefromlawn
mower,or placea pieceof plasticunderthegascap,
2, Tipmowersothat itrestson thehousing,Keepthe
sidewiththeaircleanerfacingup,Holdmowerfirmly,
WARNING: Never tip the mower more than
90 degrees in any directions and do not
leave the mower tipped for any length of
time. Oil can drain into the upper part of the
engine causing a starting problem.
3, Scrapeandcleantheundersideofthedeckwitha
suitabletool Donotspraywithwater,
4, Putthemowerbackonits wheelsontheground,If
youhadputplasticunderthegascapearlier,make
suretoremoveitnow,
Engine Care
A listofkeyenginemaintenanceiobs requiredforgood
performancebythemowerisgivenbelow,Followthe
accompanyingenginemanualforadetailedlistand
instructions,
1, Maintainoil levelasinstructedin enginemanual,
2, Serviceaircleanerevery25 hoursundernormal
conditions,Cleaneveryfewhoursunderextremely
dustyconditions,Poorengineperformanceand
floodingusuallyindicatesthattheaircleanershould
beserviced,Toservicetheaircleaner,refertothe
enginemanual
3, Cleansparkplugandresetthegap oncea season,
Sparkplugreplacementisrecommendedatthestart
ofeachmowingseason,Checkenginemanualfor
correctplugtypeand gapspecifications,
4, Cleanengineregularlywitha clothorbrush,Keepthe
coolingsystem(blowerhousingarea)dean topermit
properaircirculation,Removeallgrass,dirtand
combustibledebrisfrom mufflerarea,
10
