MTM SDS10-AAT-TATS-02 User manual

Index
INSTALLATION AND CONFIGURATION............................................................................................................2
NOTICE OF OPERATION...................................................................................................................................3
NOTICE OF MAINTENANCE.............................................................................................................................3
CHECK REGULARLY..........................................................................................................................................4
DIMENSIONS & PART LIST –SDS10-AAT-TATS-02...........................................................................................5

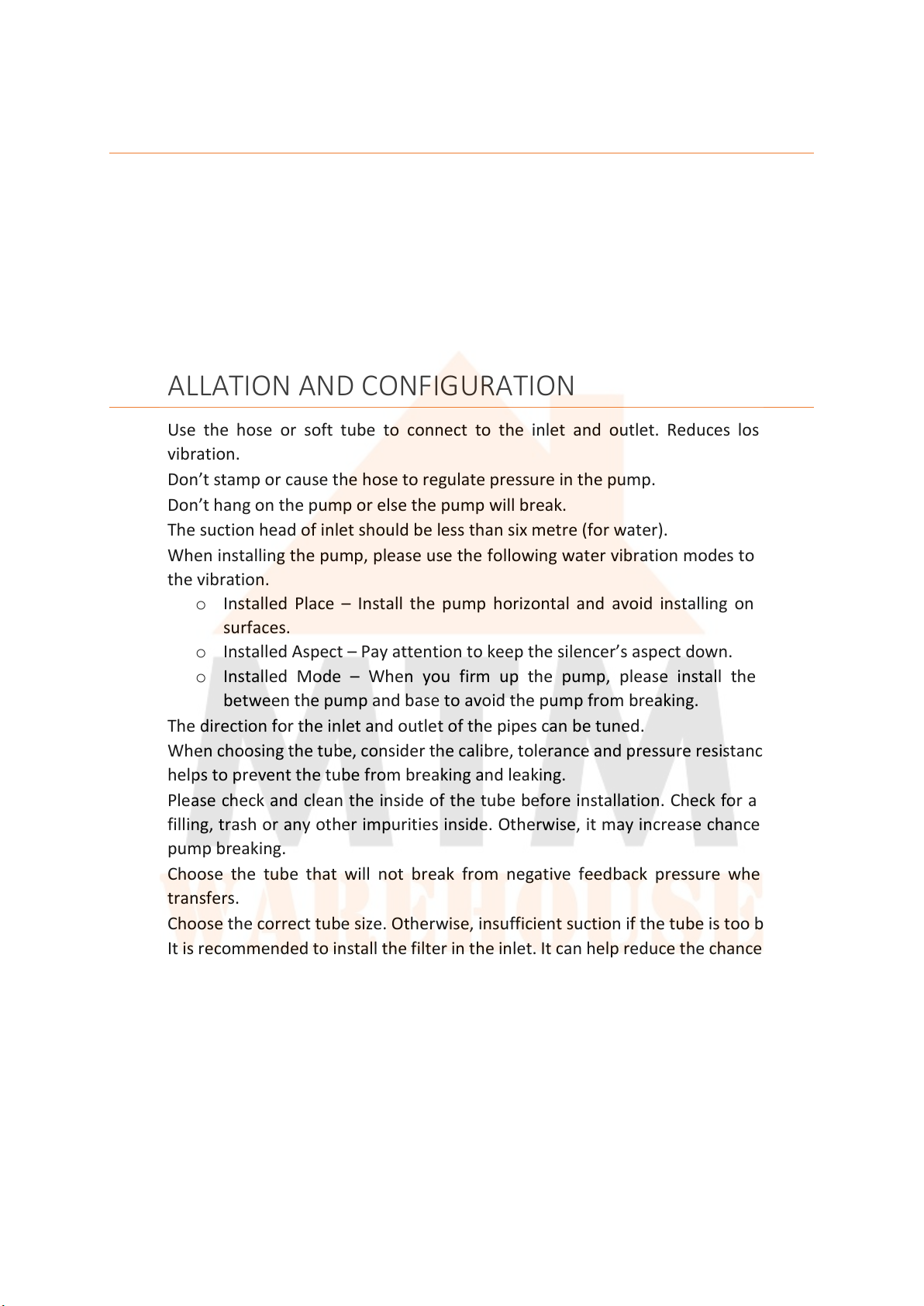

INSTALLATION AND CONFIGURATION
•Use the hose or soft tube to connect to the inlet and outlet. Reduces loss from
vibration.
•Don’t stamp or cause the hose to regulate pressure in the pump.
•Don’t hang on the pump or else the pump will break.
•The suction head of inlet should be less than six metre (for water).
•When installing the pump, please use the following water vibration modes to absorb
the vibration.
oInstalled Place –Install the pump horizontal and avoid installing on sloped
surfaces.
oInstalled Aspect –Pay attention to keep the silencer’s aspect down.
oInstalled Mode –When you firm up the pump, please install the buffer
between the pump and base to avoid the pump from breaking.
•The direction for the inlet and outlet of the pipes can be tuned.
•When choosing the tube, consider the calibre, tolerance and pressure resistance. This
helps to prevent the tube from breaking and leaking.
•Please check and clean the inside of the tube before installation. Check for any iron
filling, trash or any other impurities inside. Otherwise, it may increase chance of the
pump breaking.
•Choose the tube that will not break from negative feedback pressure when fluid
transfers.
•Choose the correct tube size. Otherwise, insufficient suction if the tube is too big.
•It is recommended to install the filter in the inlet. It can help reduce the chance of the
pump breaking and extends the life of the pump.
•For the high air pressure connection:
oDon’t use a tube too small in the air inlet.
oAir pressure of inlet does not exceed 8.3kgf/cm2 (bar).
oUse the lubricant oil for cold-resistance and high-pressure resistance.
oIt is recommended to install the air filter regulator and lubricator (FRL) for the
air inlet. It helps to supply clean air and lubricant oil.

NOTICE OF OPERATION
•Check the installation if they are correct before starting the pump. If the pump
operates while there are any loose fasteners, it will cause damage to surrounding
people and equipment.
•If the fluid is a flammable, it is recommended to link the ground wire to avoid chances
of a fire or explosion from happening.
•Check the tightness of the inlet and outlet tube to ensure a stable link between the
pump and tube. The fasteners should be tightened down to the correct torsion to be
certain.

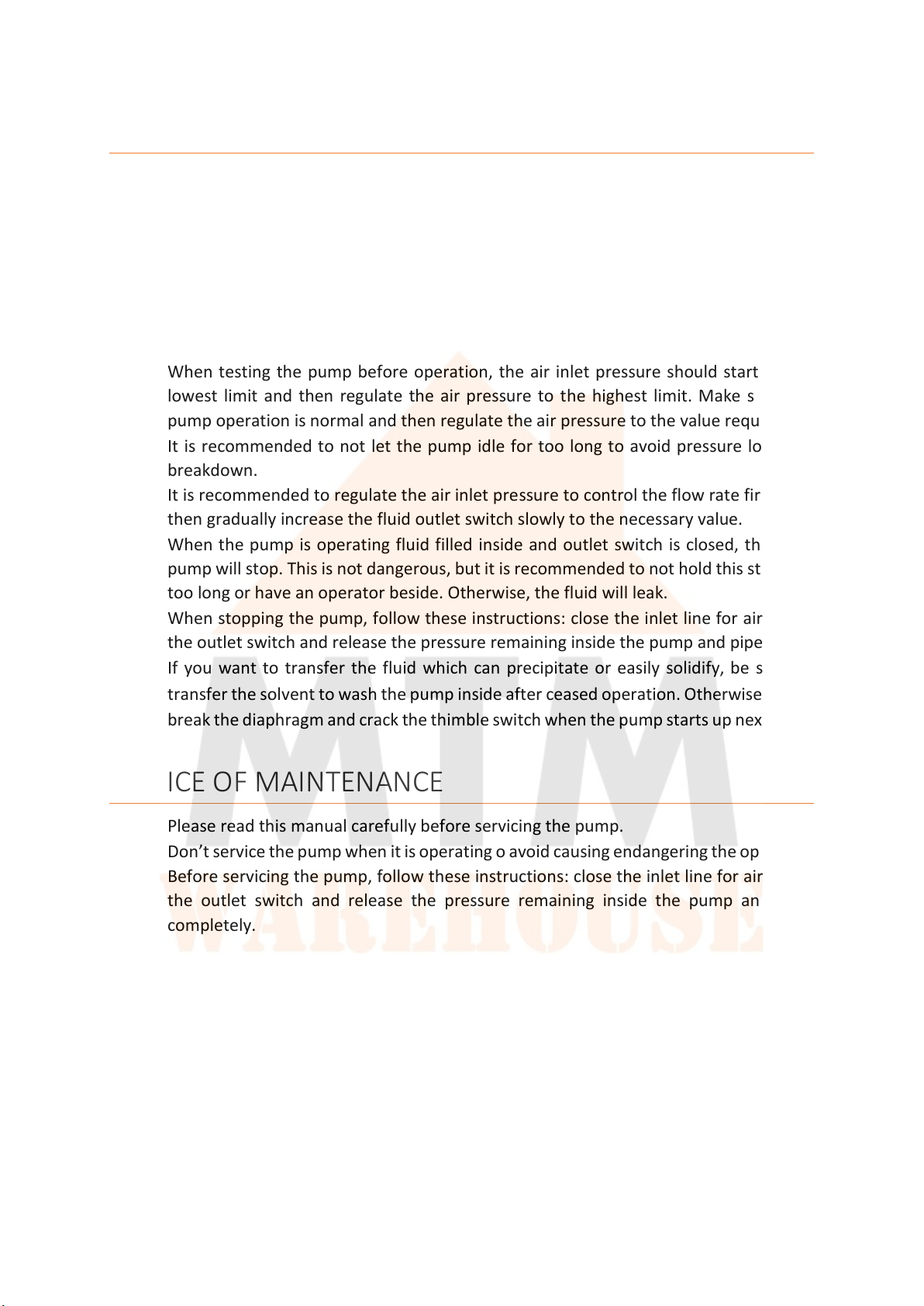

•When testing the pump before operation, the air inlet pressure should start at the
lowest limit and then regulate the air pressure to the highest limit. Make sure the
pump operation is normal and then regulate the air pressure to the value required.
•It is recommended to not let the pump idle for too long to avoid pressure loss and
breakdown.
•It is recommended to regulate the air inlet pressure to control the flow rate first, and
then gradually increase the fluid outlet switch slowly to the necessary value.
•When the pump is operating fluid filled inside and outlet switch is closed, then the
pump will stop. This is not dangerous, but it is recommended to not hold this state for
too long or have an operator beside. Otherwise, the fluid will leak.
•When stopping the pump, follow these instructions: close the inlet line for air, open
the outlet switch and release the pressure remaining inside the pump and pipe.
•If you want to transfer the fluid which can precipitate or easily solidify, be sure to
transfer the solvent to wash the pump inside after ceased operation. Otherwise, it can
break the diaphragm and crack the thimble switch when the pump starts up next time.
NOTICE OF MAINTENANCE
•Please read this manual carefully before servicing the pump.
•Don’t service the pump when it is operating o avoid causing endangering the operator.
•Before servicing the pump, follow these instructions: close the inlet line for air, open
the outlet switch and release the pressure remaining inside the pump and pipe
completely.
•Please use components produced from TONSON to service. Otherwise, it may cause
breakdown or reduced in efficiency.
•It is recommended to be preserved and do yearly inspections.
•When tightening the fasteners, ensure the correct torsion. If the fastener is tightened
greater or lesser than the necessary torque, it may cause the component to break or
an accident.
•If any breakage, accident or breakdown because of what was stated above, the
warranty is void.

CHECK REGULARLY
•Clean any impurities in the air-inlet filter regularly. Otherwise the impurities will
reduce the efficiency or breakdown the pump.
•If regular checks on the pump are neglected, the pernicious fluid will invade the
stratochamber of the pump when the diaphragm breaks, and the pump will
breakdown. Even cause an accident to surrounding people.
•The diaphragm, ball valve, ball set and O-ring are all expendables. It is recommended
to change them when the pump operates in stipulation number of times.
•The life expectancy of diaphragm is almost ten million operations. (This is just an
estimate. The life will cut down when the fluid has dust of metal, iron filings, wear-
resisting particles or other foreign matter).
•The O.D. of ball valve is shown below:
oSDS03: 12.0mm SDS04: 15.9mm SDS06: 25.4mm
oSDS10: 28.0mm SDS14: 45.0mm SDS20: 55mm
If the O.D. of the ball is less than 95% or changes shape, then the check valve will
reduce efficiency or stop working. It is then highly recommended to change the ball
valve immediately.
•The ball seat and ball cover should be changed if there are signs of wear or changes
shape. It is suggested for the ball valve to also be change simultaneously.

No.
Component
Name
Component
No.
Amount
No,
Component
Name
Component
No.
Amount
1
Hexagon Screw
PC000003SW
16
28
O-Ring
PD000025
3
2
O-Ring
PB000002
2
29
O-Ring
PD000002
1
3
Hexagon Screw
PC000002SW
3
30
Thimble
PA000201
1
4
Down Ball Seat
PA000010
2
31
Thimble Cap
PB000361
1
5
O-Ring
PB000084
4
32
Hexagon Screw
PC000101SW
4
6
Up Ball Seat
PA000022
2
33
Abnormal O-
Ring
PD000138
1
7
Up Ball Cover
PA000311
2
34
Abnormal O-
Ring
PD000131
1
8
Down Ball
Cover
PA000312
2
35
Body of
Sequential
PA000104N
1
9
Ball
PB000043
4
36
Piston of Air
Valve
PA000080
1
10
Teflon Pad
PB000415
2
37
U-Type O-Ring
PDD00025
1
11
Housing of
Pump
PA0000410
2
38
U-Type O-Ring
PDR00018
2
12
Steel Hexagon
Screw
PC00173
2
39
Starting
Copper Latch
PA000112
2
13
Steel Washer
PC00058
2
40
Cover of
Sequential
PB000064
1
14
Pad of
Diaphragm
PA000224
2
41
Cover Of
Sequential
PB000065
1
15
Outside
Diaphragm
(PE)
PB000033N
2
42
O-Ring
PD000002
2
-
Outside
Diaphragm
(Teflon)
PB000028N
2
43
Housing of
Sequential
PB000020
2
16
Inside
Diaphragm
PD000085
2
44
Body of
Cylinder Base
PA000097
1
-
Diaphragm
PD000086
2
45
Hexagon Screw
PC000013SW
4
17
Pad of
Diaphragm
PA000225
2
46
Pipe
PA000213N
2
18
O-Ring
PD000010
2
47
Hexagon Screw
PC000118SW
8
19
Shaft Cover
PB000176
2
50
Silencer
PB005331
1
20
O-Ring
PD000009
2
51
Air Pressure
Room of Pump
PA0001950
2
21
O-Ring
PD000007
2
52
Hexagon Bung
PC000416
6
22
Shaft of
Diaphragm
PA000084
1
53
Slithery Mass
Valve
PB000067N
1
23
Body of
Thimble Valve
PA000189
1
54
Include Ply
PA000037
1
24
O-Ring
PD000017
1
55
O-Ring
PD000024
2
25
O-Ring
PD000006
1
56
O-Ring
PD000038
1
26
O-Ring
Pd000004
1
57
O-Ring
PD000018
1
27
O-Ring
PB000088
3
