MTX Thunder TA High TA2301 Instruction Manual

OR

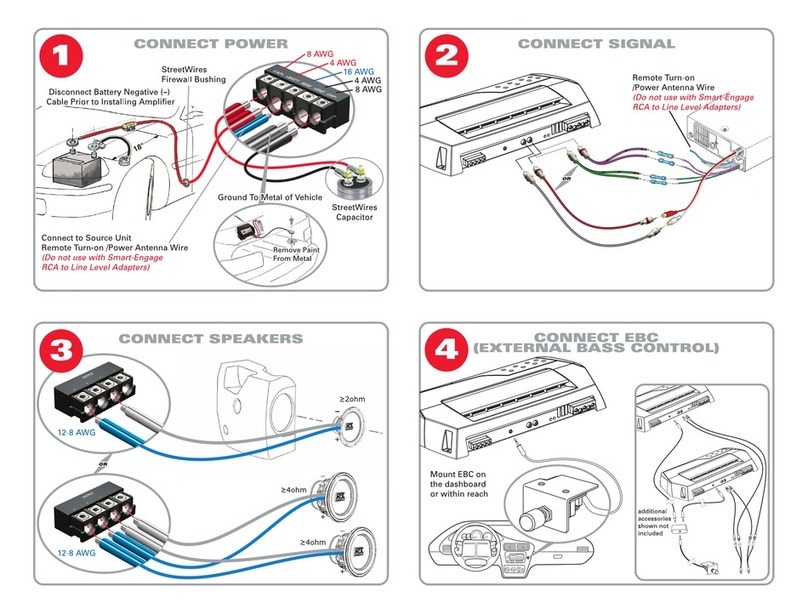

Remote Turn-on
/Power Antenna Wire
(Do not use with Smart-Engage
RCA to Line Level Adapters)
OR
+BATT REM -GND
8-4 AWG
8-4 AWG
16 AWG
Grommet
Grommet
Disconnect Battery Negative (–) Cable
Prior to Installing Amplifier
Connect to Source Unit
Remote Turn-on
/Power Antenna Wire
Remove Paint
Remove Paint
From Metal
From Metal
Remove Paint
From Metal
Ground To Metal of Vehicle
Ground To Metal of Vehicle
Ground To Metal of Vehicle
StreetWires
Firewall Bushing
Mount EBC on
the dashboard
or within reach
CONNECT SPEAKERS
CONNECT POWER CONNECT SIGNAL
CONNECT EBC
(EXTERNAL BASS CONTROL)
1 2
4
3
additional
accessories
shown not
included
+
–
+
–
+
–
≥2ohm
≥4ohm
≥4ohm
12-8 AWG
12-8 AWG
