Mueller HCF-36 User manual

Pro Range Hood HCF-36
USA
USER MANUAL

Dear Customer,
In order to keep appliance in best performance and extend the life to your appliance, we
suggest you to read the user manual carefully before using. This manual provides all instrucons
you may require which ensure safe installaon, using and maintenance. Please keep this manual
close to your hand and you may need it as reference in future. Thanks!
Contents
Contents………………………………………………………………………………………………………………………………………1
Aenons…………………………………………………………………………………………………………………………………….2
Know Your Hood……………………………………………………………………………………………………….………………….3
Installaon……………………………..……………………………………………………………………………………………………4
Use of the Hood……..……………………………………….…………………………………………………………….…………….6
Cleaning and Maintenance………………………………………………………………………………………………..……….. 8
Something wrong? ……………………………………………………………………………………………………………….……. 9
1

Aenons
1. The Package of a new Müeller Range Hood
The package of a new Müeller Range Hood should be dealt with cauon in an environmentally way.
Please keep the children away from the package because it might lead the children suffocated.
2. Disposal of an old cooker hood
It is suggested that the cooker hood should be replaced when it is beyond repair. And please deal
properly with some recyclable parts of the hood, which will contribute to our environment.
3. Before using a new Müeller Range Hood
Please don’t install the hood and contact the local service centre when you find the
Müeller Range Hood is out of shape severely.
Children not in the company of guardian should not operate the appliance.
Please disconnect the plug if the appliance won’t be used for a long me.
4. Addional statement
Installaon of the appliance, including the exhausng pipe and other spare parts, must be taken
by special technicians appointed by our company to make sure the safe and correct used of it.
Any breakdown caused by wrongly installaon and repair by people who are not appointed by
our company is not in guarantee, even if the appliance is within warranty period.
2

Know Your Müeller Range Hood
1. Suitable models
The User Manual is suitable for those models below. And please check the model of your hood.
(The size annotated in the following picture is only for your reference. And the MAX is the maxim
height of your hood which can be selected.)
2. Technical parameters
Model
HCF-36
Pro Series
Power Rang of
the Hood
253W
Power Rang of the
Main Motor
250W
Current Source AC 120V/60Hz
Standard Wind
Pressure
230Pa
Maxim Wind
Pressure
330Pa
Power of Lamp 2*1.5W Oil Resoluon 90%
Temporary Smell
Decrease
80%
Air Quanty 17m3/min Noise 70dB（A）Outline Dimension
As the above
3

Installaon
1. Before installaon

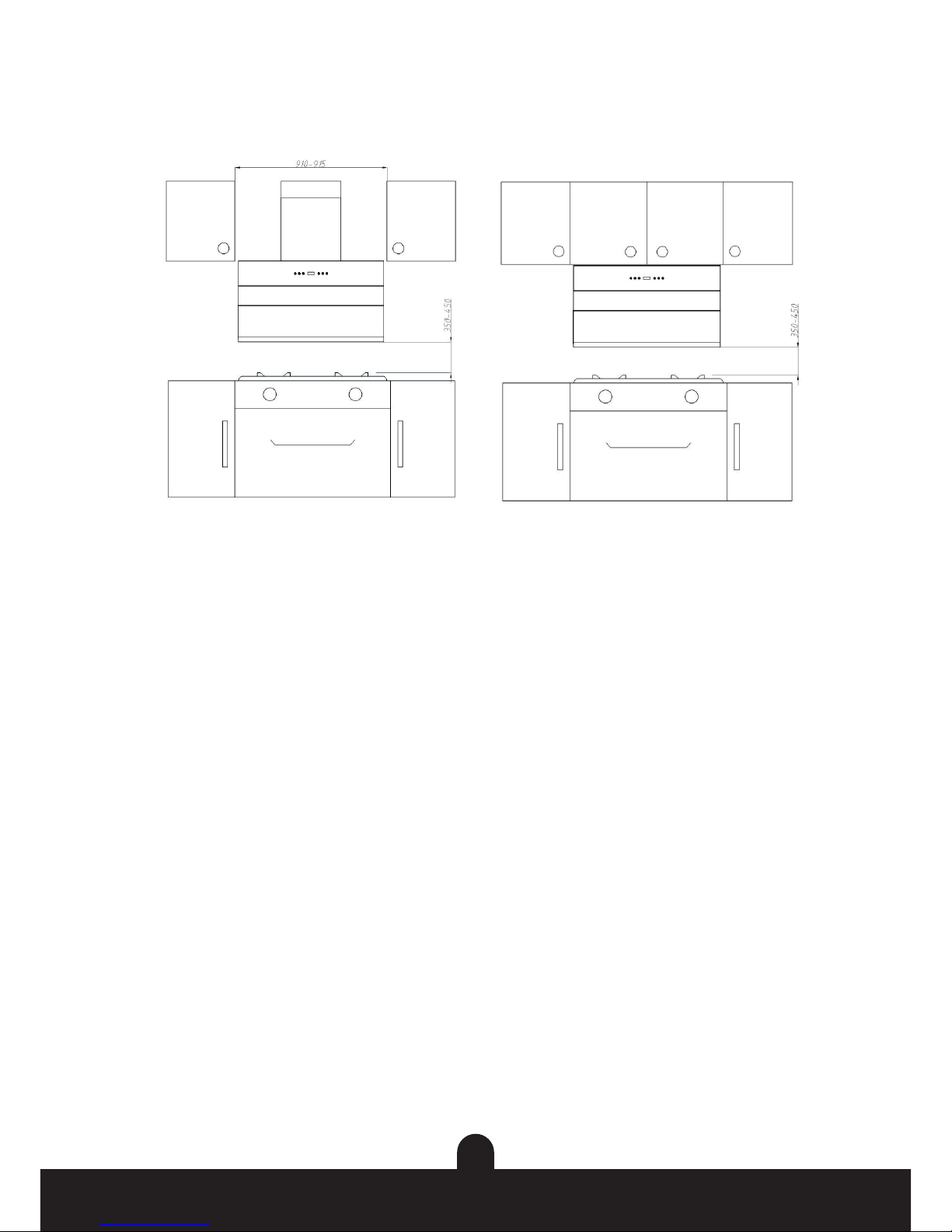

( Pic. 1-A Installaon Type- Stand alone Pic. 1-B Installaon Type- Embeded)
1) When the Range Hood is installed as pic. 1-A, it is above and to the side of the hob with a
distance of 35cm to 45cm between the pan support and the boom of the hood. The most
pleasant installaon height is when the control panel of the hood is parallel to your eyes. It
can be adjusted according to the height of people who cook to meet with the need of
sucking in smoke and cooking pleasure.
2) The flue gas should not be exhausted into hot flue which is used for combuson gas or other
smoke fuel.
3) If the exhaust pipe is too long or there are too many bends, Please select suitable posion to
install the Range Hood to make the appliance reach its perfect sucking-in smoke mode
2. Installaon
1) These tools are needed to install the Range Hood: 1. an impact electric drill, a Φ8boring
crown; 2. a cross head screw-driver; 3. a pencil; 4. a straightedge
2) Place an electric outlet with liable ground connecon aside of the installaon place of the
Range Hood. And don ’t broke the electric wires embedded in the wall when drilling holes in
the wall. Please make sure the power line is offwhen install the appliance.
3)
Please ensure the wall where the appliance is going to be installed could bear the Range Hood.
4

4) Packing list
NO. Part name Qty NO. Part Name Qty
1Range Hood 1PC 8 Wooden Screw ST4.2*38 5 PCS
2Exhaust Pipe 1 PC 9 Pad Φ（5-16）*1mm 5PCS
3Exhaust Cover 1 PC 10 Grease Cup 1 PC
4Decorative Cover- Inner and Outer 1 SET 11
Aluminium Foil Adhersive Tape
600*50mm
2 PCS
5 Fixed Mount 1 PC 12 Cross Large Panhead Screw M4*8 6 PCS
6 Mounting Rack for the Hood 1 PC 13 User Manual 1 PC
7 Plastic Expand Tube Φ8*35 5 PCS
3. Fixing the Range Hood
When the Range Hood is set to be installed at certain height,
please drill three holes with a depth of 40mm on the wall,
parallel to the ground and with a distance of 163mm between
each other of the three. Then, use the
Φ8 drill to drill two holes
with a depth of 40mm, with a distance of 160mm between each
other. (Please ensure the five perpendicular bisector of the line
of every two holes are crossed in one point.) And insert the
plasc expand tube into hole as shown in Pic. 2.
Step 1: Use the wooden screw ST4.2*38 to fix the fixed
mount on the wall and make the mount parallel to the ground.
Step 2: The hood should be taken out by two people and
please Always Keep it parallel to the ground unl it was hanging
on the fixed mount.
Step 3: Take out the cover for exhausng pipe, rubber pad
and Four screws from the packaging box and use the screws to
make the former two fixed on the opening of the exhausng pipe.
Step 4: Take out the exhausng pipe and insert one side of it
into theslot of the cover. Then, use aluminium foil adhersive tape
to cement together. At last, fix the other side of the exhausng
pipe to the common flue or outside of your house.
4. Fixing the decorave cover
Step 5: When the Range Hood is fixed, insert the plasc expand pipe into the No.7 hole
first. And make the fixed mount fixed on the wall by screws.
Step 6: Put the inner and outer decorave cover onto the Range Hood. Then pull the inner
decorave cover up to the two holes side of the fixed mount in alignment.
Step 7: Use the screws to fix the outer decorave cover with the main body of the Range Hood.
( If you are planned to insert the hood, please ignore step 7.)
Pic. 2
5

If the model of your Range Hood is belong to HCF-36 Pro Series, please refer to the following
instrucons:

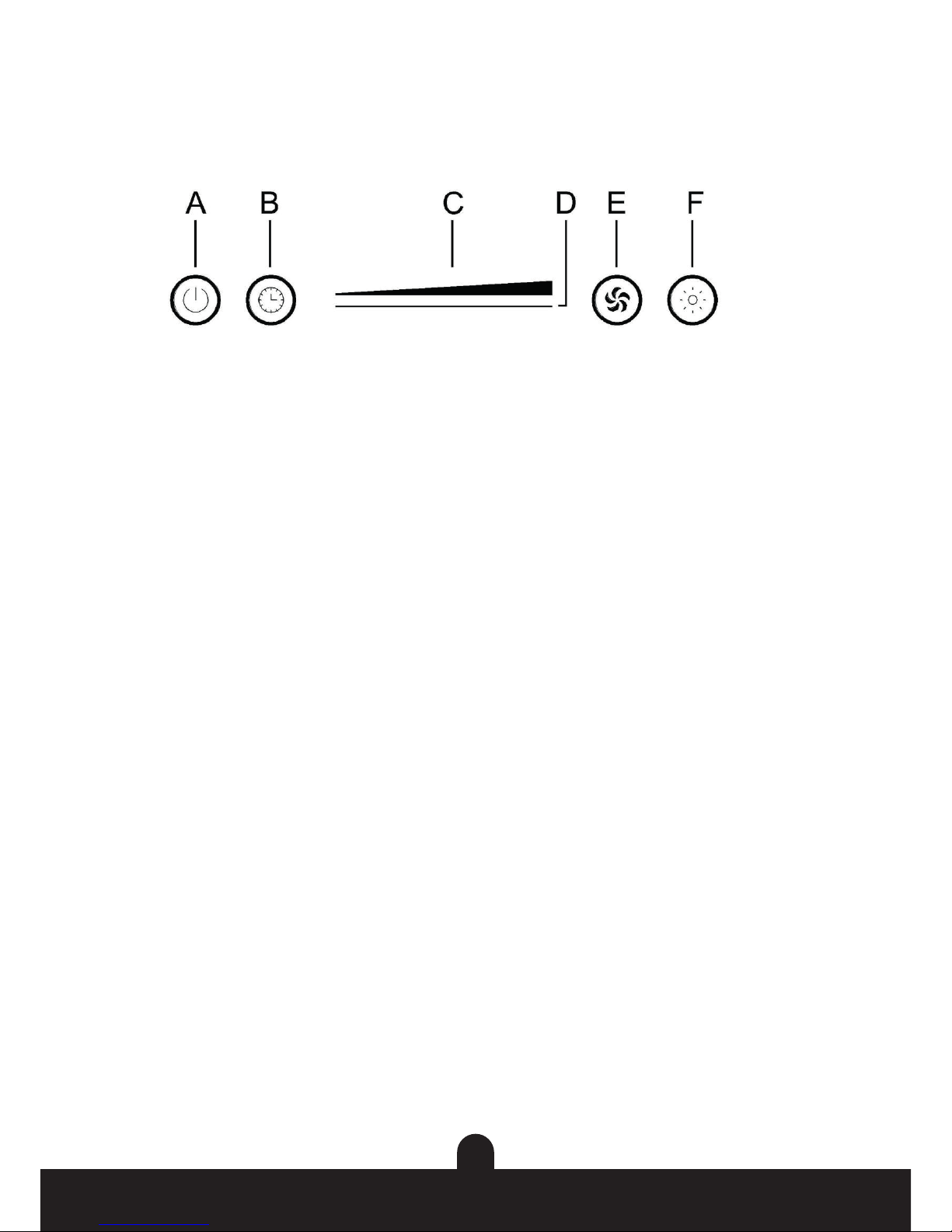

1. Operaonal Key Instrucon
A ---- On/Offand controlling the opening and close of front cover
B ---- Stop the mer automacally
C ---- Display of gear of air flow and counng me
D ---- Touch control sensor slider
E ---- Motor start-up key (automacally)
F ---- Light On/Off
When provided with electricity, key A will be lighted on when touched, and at the same me, the
front cover will open and all the keys will be effecve.
1) Key B will be lighted on when touched and the motor will work at lowest wafor 5 minutes if
there are no other instrucons. During this period, the screen blinks, and the 5 minutes
working me can be changed by sliding slider D with change of the length of indicator C
(every secon of indicator C has a connuous working me- 5min.) Aer 3 min, , key B blinks
with motor working in the mode of stop working when me is counted down to zero. And we
can slide D to change the gear of motor with respondent display of Indicator C. The maxim of
Indicator C is quick fry gear. When the motor is working at its maxim gear, the last two
secons of Indicator C blinks.
2) Sliding D to change the gear of motor with correspondent display of Indicator C when the
motor is working at lowest gear as a result of touching key E. The maxim of Indicator C is
quick fry gear. When the motor is working at its maxim gear, the last two secons of Indicator
C blinks.
(Note: The maxim gear for quick fry of the hood can only last for 150 seconds and will drop
to second maxim gear automacally.)
When the motor is working, key B will be lighted on and indicator C blinks when key B is
touched. At this period, sliding slider D to change me counng down and indicator C will
display correspondent gear. Then, key B blinks aer 3 seconds and the motor will stop
working when the me is counted down to zero. And once more touch of key B will cancel
the funcon.
3) The light will be on and offin turn when key F is touched and once again.
*Touching keyA to turn offthe hood with all funcons and the front down shung off at any
situaon.
Use Of The Range Hood
6

If the model of your Range Hood is belong to HCF-36 Pro Series, please refer to the following
instrucons:
2. Operaonal Key Instrucon
A ---- Lamp
B ---- Funcon /gear deducng/off
C ---- Display board
D ---- Funcon /gear increasing/off
E ---- Auto door opening
1- Key E will be lighted on when touched and the auto door will connue to open to the
extreme. And at the same me, all the keys is ready to be operated. The light and key
indicator will be on if key A is touched and once again touched, the light will be off.
2- The display board C will display “01” as key B is touched. And the hood will run at the 1st gear.
If you want the hood stop running, just touch key Band then the board C will display “00”.
3- The display board C will display “01” as key D is touched. And the hood will run at the 1st gear.
It will run at 1st, 2nd, 3rd, 4th ,5th gear in turn if you touch key D again and again. When it is at
5th gear, the appliance will connue running for 150 seconds with the display board C blinks
and it will automacally drop to 4th gear aer 150 seconds.
Note 1: The 1st gear on the board C displays “01”, and 2nd gear “02”, 3rd gear “03”, 4th gear “04”.
5th gear “05” You can choose the gear by touch key B and key D.)
Note 2: Only when the indicator of Key E is on and the auto door is open, the hood can be on and
all other funcons, for example, funcon, me delay, lamp, are effecve.
*Touching keyE for 3 seconds under anyother situaons, all the funcons will be
ineffecve with indicators off. And when the front door is completed closed automacally, the
appliance is off.
7

3. Warnings:
In some cases, electric appliances can be very dangerous.
A) Please do not remove the filter while the Range Hood is running.
B) Please do not touch the bulb and adjacent area when using for a long me.
C) No flame on directly under the Range Hood.
D) No access of movable flame to avoid damage to the filter and avoid fire.
E）Remember to check the temperature of the frying pan in order to avoid the
fire caused by oil overheang.
F) Please unplug the power socket before repair.
G) Children and the weak are prohibited from using this appliance.
H) Children should be supervised not to play around.
I）Please keep the room venlated when using the Range Hood and hob.
J) Please wear protecve gloves when cleaning the appliance for some sharp edges.
K) Allow to use 6 furnaces at most under the Range Hood.
L) No stove fire on directly under the Range Hood.
M) If damaged, only our company's special power lines can be used for exchange.
N) Only professionals can disassembly or assembly the appliance.
O) Clean according to the instrucon, or the Range Hoodis a fire risk.
We, manufacturer, disclaim refusing to take responsibility for any consequences caused by
violang the above operaon instrucons.
Cleaning and Maintenance
It is suggested that tuning up the hood for 15min before cooking meals to evaporate all the
steam and unfavorable smells.
Regular cleaning of filters and the surface of hood by moisture cloth with industrial alcohol or
clean is recommended.
Tips: Cleaning the surface of the hood every me when the
Range Hood is used.
Filter posioned at the air inlet flue is recommended to
clean for every three days.
The fan blade needs to be clean annually and needs to
be clean by qualified people.
Clean up the grease collector according to the status of
the grease collecng.
It is forbid to take offthe grease collector when the hood is running. And please use your hands
pulling out the collector slowly and parallel to the ground to avoid the grease spilling over the top
of hob or some accidents.
The light on hood is designed to use when cooking, not for lighng. Long me use of the light will
deduct its life
8

Something wrong?
Something Wrong Possible Reasons Soluons
The hood doesn’t work Without power supply Check whether the plug is well
inserted or not.
Check whether the power base is
effecve or not
The hood doesn’t suck in
smoke while the motor is
working
The air outlet pipe or cover is
blocked up
Contact technicians
The motor stop running
aer several minutes
Thermostat is on The kitchen is not well venlated
The hood is too close from
the hob
A minimum distance of 35cm is
needed between the hob and
hood
The sucking-in power is
not enough
The hood is too far from the
hob or the exhausng pipe is
too long
Contact technicians to re-install
the hood
The grease dropped onto
the top of hob
The hood is biased Contact technicians to re-install
the hood
Any unexpected sound Something influenced the fan
blade.
Contact technicians
If you want to desert the appliance, please send it to qualified people to deal with it. Please do
not desert it at random considering the damage of environment or other risks of danger.
Innovaon is part of ARDA’s DNA and the constant pursuit of innovaon extends across product
design and technologies, producon processes, markeng efforts and aer-sales service. This
user manual is suitable for specified products and models before it is printed and you can ask the
sales for confirmaon.
9
Our products are patent registered. We will and have taken legal action against any infringement or
unauthorized reproduction, or any portion of it. Copyright Müeller USA. All rights reserved.
USA
30 Gould, Suite C, Sheridan, WY 82801 888 632-9981 x203 www.muellerdirect.com
