Munro kitchenplus SLCH60A User manual

SLCH60A & SLCH90 KPCH60A
SLCH60A, SLCH90 & KPCH60A Universal Manual 23/05/2023 14:43

SLCH60A, SLCH90 & KPCH60A Universal Manual 2 23/05/2023 14:43

To use this appliance correctly and prevent any
potential risk, you MUST read these instructions
before using the appliance.
Thank you for purchasing this KitchenPlus Cooker Hood.
The manufacturer shall not be responsible for any
damages to persons or property caused by incorrect
installation or use of the appliance.
The manufacturer also reserves the right to make any
modifications to the products as may be considered
necessary or useful, also in the interests of the user,
without jeopardising the main functional and safety
features of the products themselves.
The appliance is designed for a domestic environment
and not a commercial one.
We recommend that you spend some time to read this manual in order to fully
understand how to install and operate the product correctly. Read all the safety
warnings carefully before use and keep this manual for future reference.
Tel: [phone]
SLCH60A, SLCH90 & KPCH60A Universal Manual 3 23/05/2023 14:43

SLCH60A, SLCH90 & KPCH60A Universal Manual 4 23/05/2023 14:43

SLCH60A & SLCH90/KPCH60A
67W
65W
220-240V
50Hz
5 Layer Filter
Push Button
LED 1 x 2W
150mm Diameter
310m3/h
65dB
Rated Power
Three Speed Motor
Voltage
Frequency
Filter
Control
Lamp Type
Outlet
Air Flow
Noise
SLCH60A, SLCH90 & KPCH60A Universal Manual 5 23/05/2023 14:43

This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
Ensure there is adequate ventilation of the room when
the hood is used at the same time as appliances
burning gas or other fuels. This is not applicable when
the hood extracts air outside of the house.
Do not flambé under the cooker hood.
The minimum distance between the supporting surface
for the cooking vessels on the hob and the lowest
parts of the hood when the hood is located above a
gas appliance, this distance shall be at least 65cm. If
the instructions for installation for the gas hob specify a
greater distance, this has to be taken into account.
Regulations concerning the discharge of air have to
be fulfilled.
This hood must be installed in accordance with this
instruction manual and all measurements must be
adhered to.
If the installation of the cooker hood is to be above a
gas appliance then the provision of ventilation must
be in accordance with the Building Regulations, the
latest edition of the Gas Safety Codes of Practice and
the Gas Safety (Installation & Use) Regulations, the
SLCH60A, SLCH90 and KPCH60A Universal Manual 6 23/05/2023 14:43

Building Standards (Scotland) (Consolidated) Regulations.
When drilling into walls to mount the hood ensure you do not
drill through any electrical wires or pipe work.
If the supply cord is damaged it must be replaced by
a qualified person in order to avoid a hazard.
We are sure that the purchase of this cooker hood will
fully satisfy all of your needs. Please read this instruction
manual carefully in order to obtain the best results from
the use of the curved cooker hood.
Before installing and using the hood, be sure that the
voltage (V) and the frequency (Hz) indicated on the
feature plate match the voltage and frequency at the
installation site. The feature plate and technical data
are shown on the inside of the product.
The hood is equipped with an extendable duct which
allows it to be adjusted to the height of the stove.
SLCH60A, SLCH90 and KPCH60A Universal Manual 7 23/05/2023 14:43

SLCH60A, SLCH90 and KPCH60A Universal Manual 8 23/05/2023 14:43

SLCH60A, SLCH90 and KPCH60A Universal Manual 9 23/05/2023 14:43

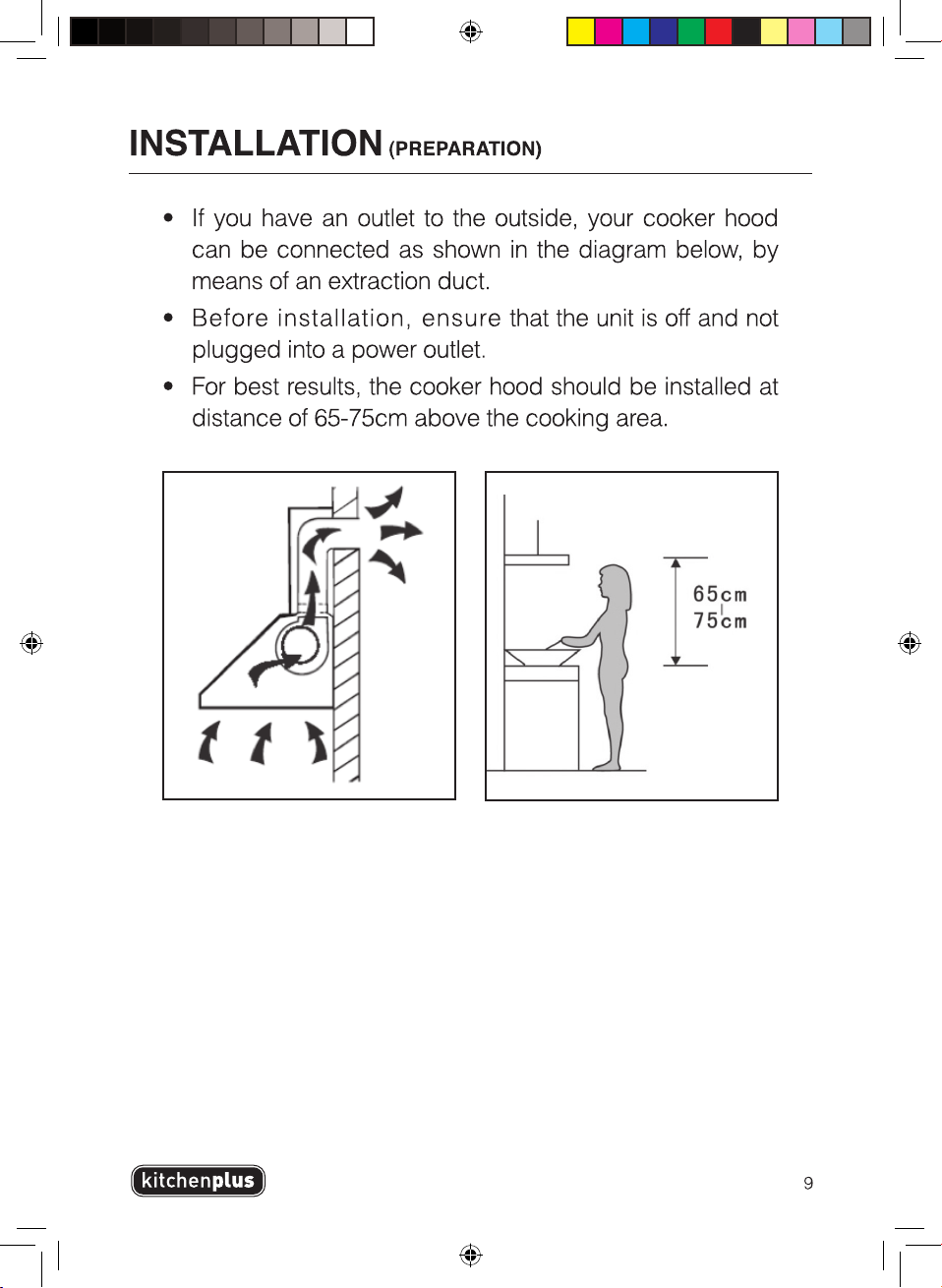

SLCH60A, SLCH90 and KPCH60A Universal Manual 10 23/05/2023 14:43

SLCH60A, SLCH90 and KPCH60A Universal Manual 11
23/05/2023 14:43

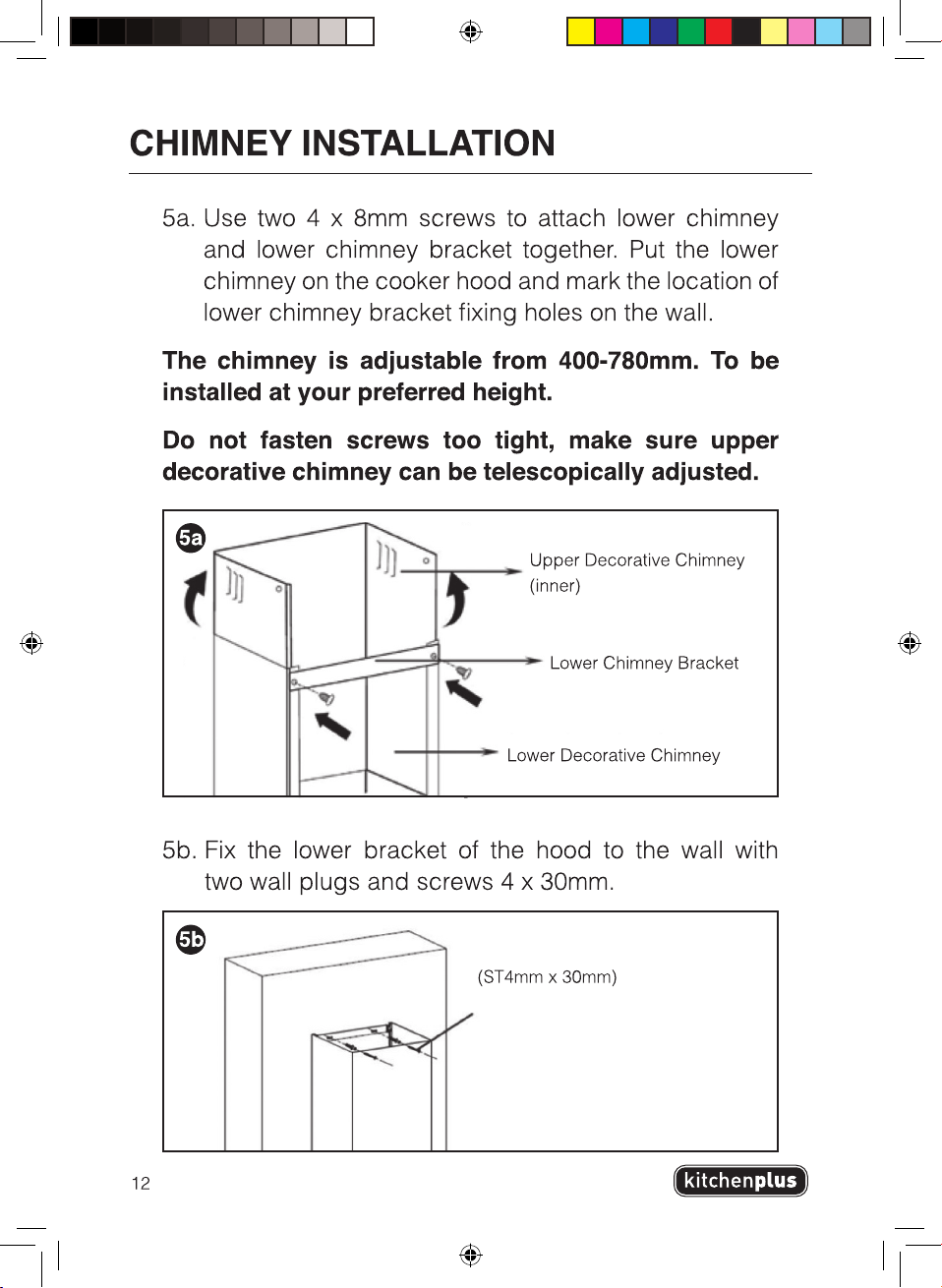

SLCH60A, SLCH90 and KPCH60A Universal Manual 12 23/05/2023 14:43

SLCH60A, SLCH90 and KPCH60A Universal Manual 13 23/05/2023 14:43

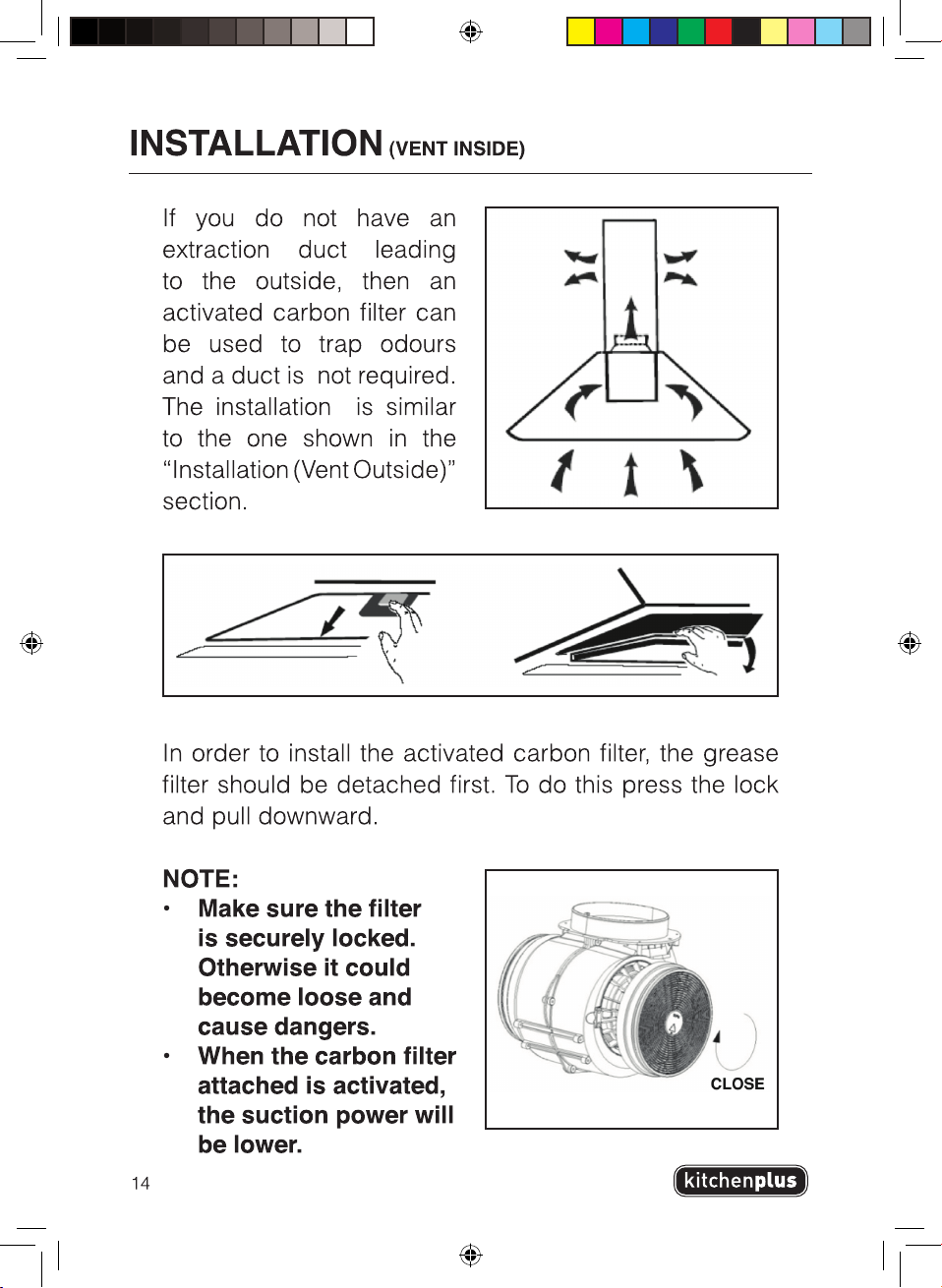

SLCH60A, SLCH90 and KPCH60A Universal Manual 14 23/05/2023 14:43

SLCH60A, SLCH90 and KPCH60A Universal Manual 15 23/05/2023 14:43

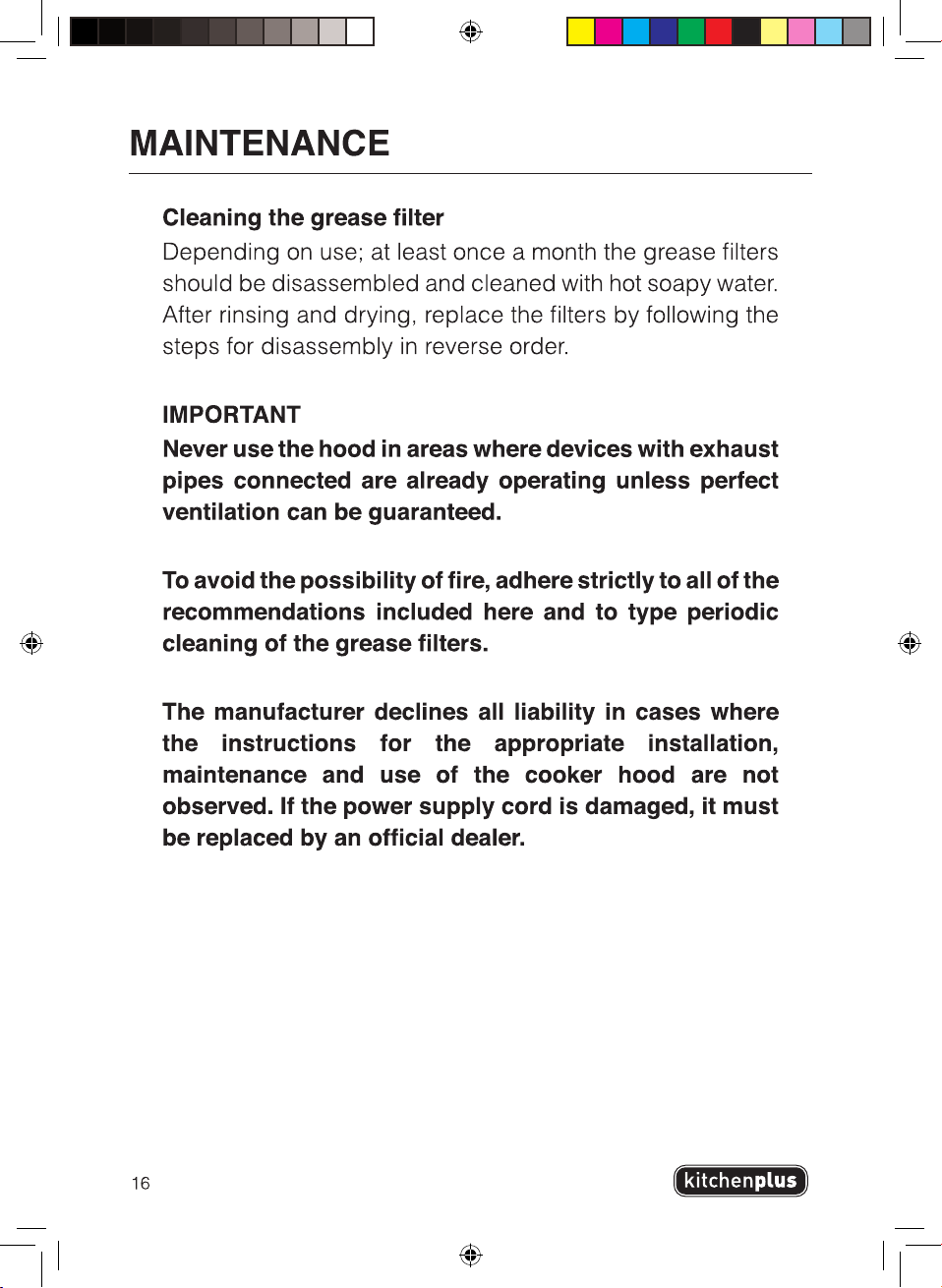

SLCH60A, SLCH90 and KPCH60A Universal Manual 16 23/05/2023 14:43

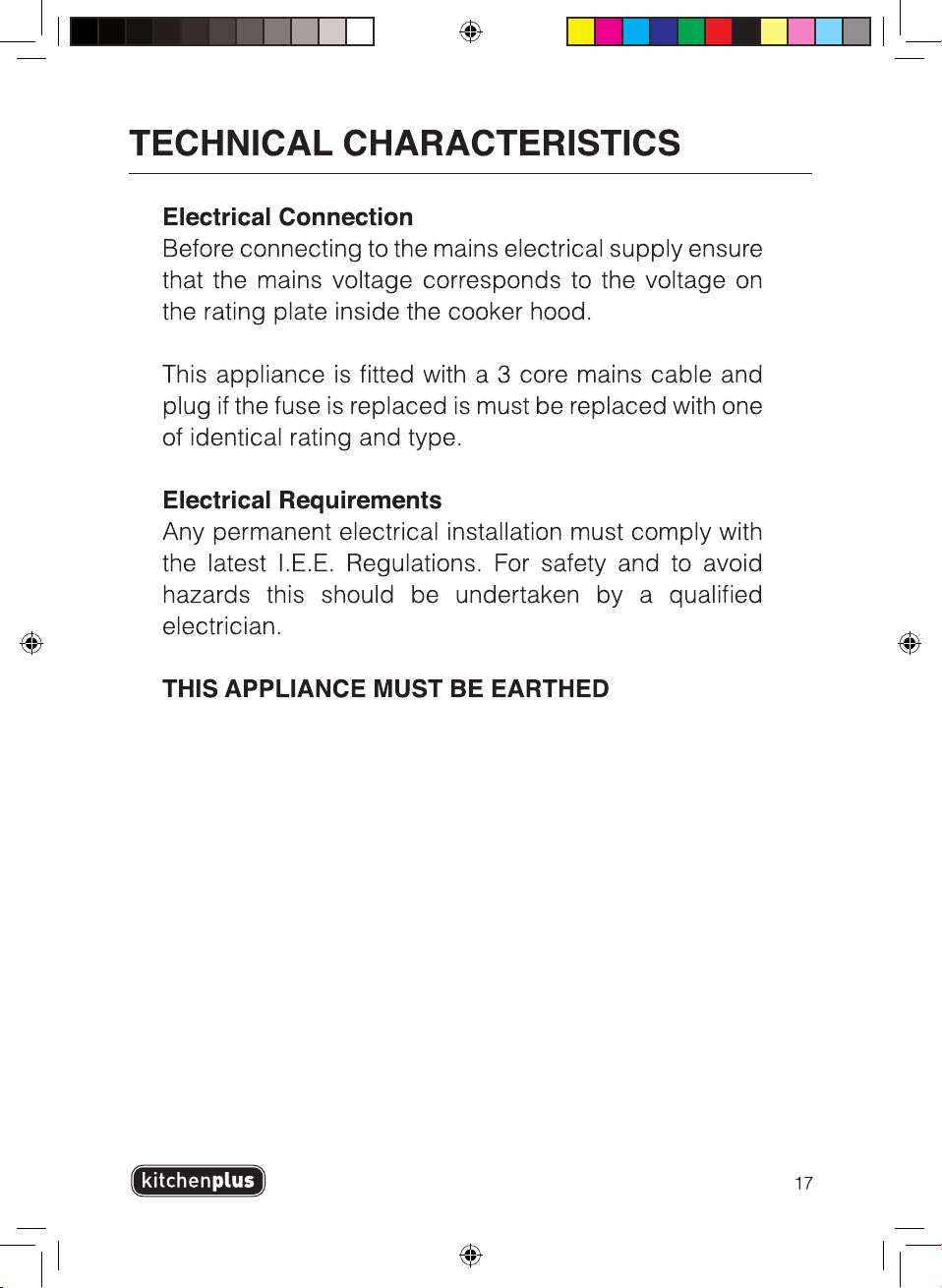

SLCH60A, SLCH90 and KPCH60A Universal Manual 17 23/05/2023 14:43

SLCH60A, SLCH90 and KPCH60A Universal Manual 18 23/05/2023 14:43
18

Technical Data Sheet
For domestic range hoods according to (EU) No 65/2014 and (EU) No 66/2014:
A(highest efficiency) to F (lowest effciency)
A(highest efficiency) to F (lowest effciency)
The above values have been measured in accordance with standards under specified
operating conditions.
The above is based on the European Union's standards and rules.
Note:
1
2
Supplier's name or trade mark
Type/Description
Energy efficiency class
Annual energy consumption
Fluid Dynamic Efficiency class
Lighting efficiency class
Grease Filtering Efficiency class
Maximum air flow
Measured air flow rate at best efficiency point
Measured air pressure at best efficiency point
Measured electric power input at best efficiency point
Average illumination of the lighting system
on the cooking surface
Measured power consumption in standby mode
Measured power consumption off mode
Sound power level
Size
Rated Power
Rated volatge/frequency
1
2
KitchenPlus
SLCH60A & SLCH90/KPCH60A
C
kWh/a
E
D
7m3/h
7m3/h
Pa
W
7lux
/
0W
60
6 5 dB
0mm
7W
220-240V 50Hz
SLCH60A, SLCH90 and KPCH60A Universal Manual 19 23/05/2023 14:43

SLCH60A, SLCH90 & KPCH60A Universal Manual 20
23/05/2023 14:43
20
MUNRO IMPORTERS LTD
Declara�on of Conformity
In accordance with Government Guidance
Product:
Model:
Voltage:
Ratedinput frequency:
Rated power:
Year of Manufacture:
STAINLESS STEEL/BLACK COATED STEEL COOKER HOOD
SLCH60A & SLCH90/KPCH60A
220-240V
50Hz
67W
2023
This declara�on is issuedunder the sole responsibility of the productmanufacturer.
The products of the declara�on describedabove are in conformity with the relevant StatutoryInstruments and their amendments:
We, MunroImporters Ltd, herebydeclare thatthe products describedabove, to whichthis declara�on of conformity refers to, are in
conformity with the essen�al requirements of the following standards:
All documentation is held on file and is available, on request from:
Company:
Country:
Name:
Email Address:
Posi�on in Company:
Signature:
Munro Importers Ltd
United Kingdom
Dominic Richardson
[email protected]
Product Coordinator
Date of Issue (dd/mm/yyyy): 23.05.2023
EMC Direc�ve 2014/30/EU and the Electromagne�c Compa�bility Regula�ons 2016
Low Voltage Direc�ve 2014/35/EU and the Electrical Equipment (Safety) Regula�ons 2016
COMMISSION DELEGATED REGULATION (EU) No 65/2014 of 1 October 2013 supplemen�ng Direc�ve 2010/30/EU of the
European Parliament and of the Council with regard to the energy labelling of domes�c ovens and range hoods
COMMISSION REGULATION (EU) No 66/2014 of 14 January 2014 implemen�ng Direc�ve 2009/125/EC of the European
Parliament and of the Council with regard to Ecodesign requirements for domes�c ovens, hobs and range hoods
Direc�ve 2011/65/EU on the Restric�on of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment (RoHS) with its Amendments (EU) 2015/863
Regula�on (EC) No. 1907/2006 concerning the Registra�on, Evalua�on, Authorisa�on and Restric�on of Chemicals (REACH)
EN IEC 55014-1.2021, EN IEC 61000-3-2:2019 + A1.2021, BS EN IEC 55014-1:2021, BS EN IEC 61000-3-2:2019 + A1;2021,
BS EN 61000-3-3:2013 + A2:2021, EN IEC 55014-2:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, BS EN IEC 55014-2:2021
BS EN 61000-3-3.2013 + A1:2019
EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019 + A15:2021, EN 60335-2-31:2014, EN 62233:2008,
BS EN 60335-1:2012 + A15:2021, BS EN 60335-2-31:2014, BS EN 62233:2008
EN 61591:1997 + A1:2006 + A2:2011 + A11:2014 + A12:2015, EN 60704-1:2010+A11:2012, EN 60704-2-13:2017,
EN 50564:2011
IEC 62321-7-1:2015, IEC 62321-3-1:2013, IEC 62321-5:2013, IEC 62321-4:2013 AMD 1:2017, IEC 62321-7-2:2017,
IEC 62321-6:2015, IEC 62321-8:2017,
