Instruction Manual
VX Fans Direct Drive
Models: VX14F1 • VX16F1 • VX18F1 • VX24F1 • VX24F3 •
VX26F1 • VX26F3
Aerotech
VX Fan
Direct Drive
14” - 26” Fans
VX26
VX14 - VX24

© Munters Corporation, January 2020
2QM1105r3
VX Fan Direct Drive 14”, 16”, 18”, 24” & 26” Fans
Instructions for Use and Maintenance
Thank You:
Thank you for purchasing a Munters VX Fan Direct Drive. Munters equipment is designed to be the highest
performing, highest quality equipment you can buy. With the proper installation and maintenance it will provide
many years of service.
Please Note:
To achieve maximum performance and insure long life from your Munters product it is essential that it be installed
and maintained properly. Please read all instructions carefully before beginning installation.
Warranty:
For Warranty claims information see the “Warranty Claims and Return Policy” form QM1021 available from the
Munters Corporation office at 1-800-227-2376 or by e-mail at [email protected].
Conditions and Limitations:
• Products and Systems involved in a warranty claim under the “Warranty Claims and Return Policy” shall have
been properly installed, maintained and operated under competent supervision, according to the instructions
provided by Munters Corporation.
• Malfunction or failure resulting from misuse, abuse, negligence, alteration, accident or lack of proper installation
or maintenance shall not be considered a defect under the Warranty.

3 Munters Corporation, July 2020 QM1105r3
Index
Chapters Page
1. Unpacking the Equipment 4
1.1 Parts List 4
1.2 Fan Dimensions 5
2. Installation Instructions 6-8
2.1 Install 6
2.2 PT Style Shutter 7
2.3 PZ Style Shutter 8
3. Electrical Wiring 9
4. Operation 11
5. Maintenance 13
6. Winterizing 14
6.1 Winterizing 14
6.2 Winter Weather Protection 14
7. Troubleshooting 15
8. Exploded View and Parts List 16-17

© Munters Corporation, January 2020
4QM1105r3
1.1 Parts List
Unpacking the Equipment 1.
[A]
Each Fan includes:
1 – Direct Drive Fan
1 – Hardware Package as follows:
HP1145 – VX Direct Drive Fans
ID Qty. Cat. No. Description
[A] 12 KS2105 #14 x 1.5” Lag Screw, SS
Before beginning installation, check the overall condition of the equipment. Remove packing materials, and examine all
components for signs of shipping damage. Any shipping damage is the customer’s responsibility and should be reported
immediately to your freight carrier. Fan is shipped complete with all accessories.

5© Munters Corporation, July 2020 QM1105r3
1.2 Fan Dimensions
Unpacking the EquipmentChapter 1
FRONT VIEWSIDE VIEW
E
F
G - Dia.
A
A
D
B
B
C
C
Fan Specifications:
Hertz: 60 50-60
Voltage: 115/230VAC or 190-230/380-460VAC
Phase: 1 or 3
3 Phase fans only available for VX24 & VX26
FAN
DIA.
NO. OF
BLADES A B C D E F G-Dia.
(O.D.)
WALL OPENING
(I.D., framed)
14” 7 45⁄16” 12” 205⁄8” 173⁄8” 165⁄8” 7” 145⁄8” 171⁄2”W 171⁄2”H
16” 4 43⁄4” 16” 251⁄2” 221⁄4” 183⁄4” 51⁄2” 1611⁄16” 221⁄2”W 221⁄2”H
18” 5 43⁄4” 16” 251⁄2” 221⁄4” 183⁄4” 51⁄2” 1811⁄16” 221⁄2”W 221⁄2”H
24” 4 53⁄4” 20” 311⁄2” 281⁄4” 193⁄4” 51⁄2” 2411⁄16” 281⁄2”W 281⁄2”H
26” 3 51⁄2” 22” 33” 293⁄4” 181⁄8” 107⁄16” 27” 301⁄4”W 301⁄4”H

© Munters Corporation, January 2020
6QM1105r3
Installation Instructions 2.
2.1 Install

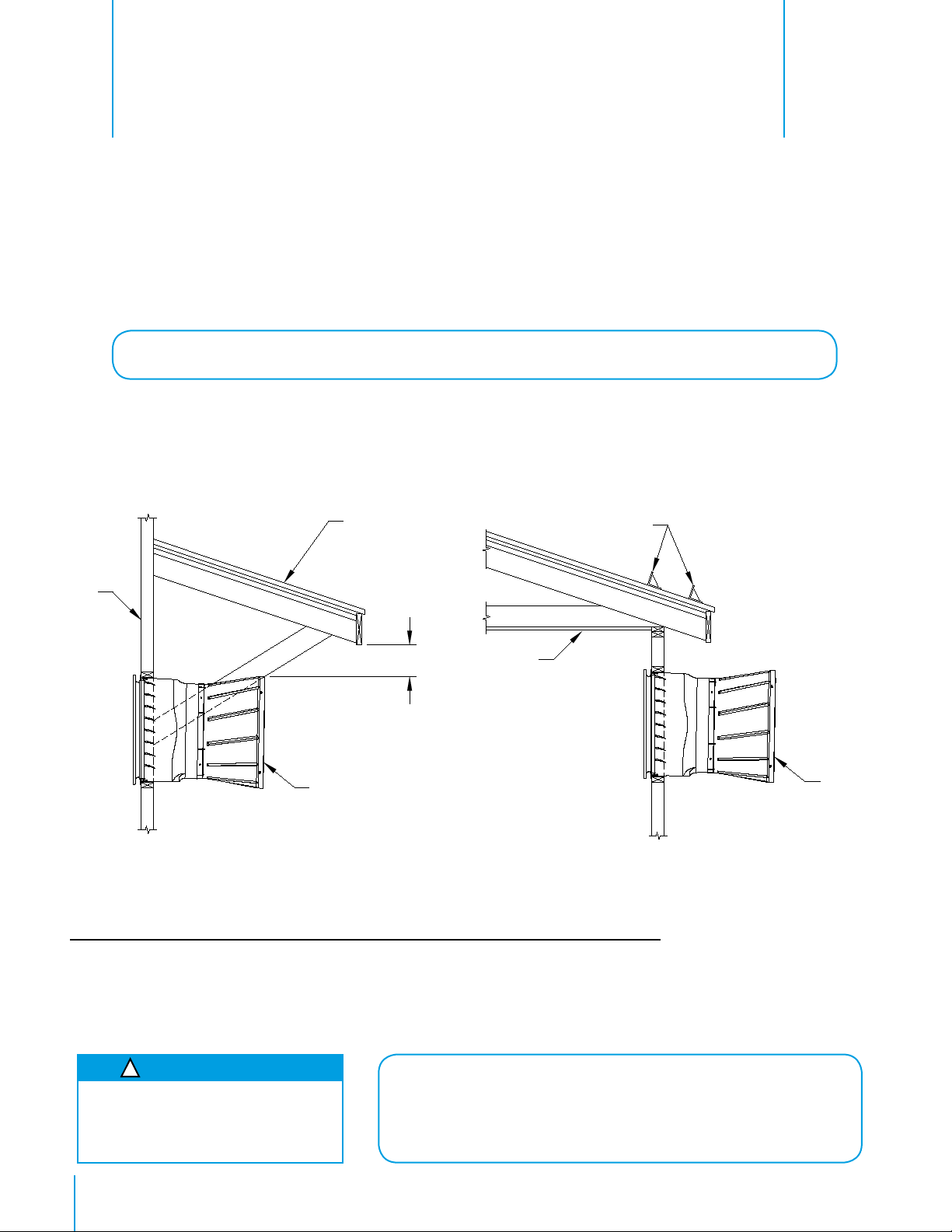

Figure 1
Ceiling
Framing
12"
Wall
Opening
(See Chart on
previous page)
8”
Min.
Step 1
Construct the framed opening to correct size according to the Chart on the previous page. See Figure 1.
Wall
Opening
(See Chart on
previous page)
Step 2
Insert fan into framed opening from inside and fasten in place using (8) Lag Screws [A]. Flash and caulk
around opening. See Figure 2.
2x4 Framing
Lag Screw [A}
VX Fan
Figure 2
OUTSIDE INSIDE
Note:
Outlet of fan comes unguarded, it is recommended
that a Munters Discharge Cone with Guard, a Fan
Hood with Guard or a guard by others is installed
on outlet of fan at this time.

7 Munters Corporation, July 2020 QM1105r3
Installation InstructionsChapter 2
2.2 PZ/PV Style Shutter
Step 3
Insert PZ/PV shutter into back of fan. See Figure 3A . Fasten shutter in place by rotating the side and
top shutter clips over the shutter flanges. See Figure 3B.
Installation is now complete, proceed to electrical wiring section.
PZ/PV Shutter
Figure 3A
Figure 3B

© Munters Corporation, January 2020
8QM1105r3
Installation InstructionsChapter 2
2.3 PT Style Shutter
Step 4
If fan needs to be mounted, so that shutter does not stick into building then frame fan as shown in Figure 4.
Top and sides require 4” minimum and bottom requires 2” minimum.
Step 5
Insert PT shutter into back of fan. See Figure 5A .Fasten shutter in place by rotating the side and top
shutter clips over the shutter flanges. See Figure 5B.
Installation is now complete, proceed to electrical wiring section.
2” Minimum Framing for fan, Bottom
Wall Opening (See Chart on Page 5)
Wall Framing
4” Minimum Framing for Fan,
Top and Sides
Wall Framing
Figure 4
PT Shutter
Figure 5A
Figure 5B

9 Munters Corporation, July 2020 QM1105r3
Electrical Wiring 3.
All wiring should be installed in accordance with National, State, and Local electrical codes. Fans used to ventilate
livestock buildings or other rooms where continuous air movement is essential should be connected to individual
electrical circuits, with a minimum of two circuits per room. For electrical connection requirements, refer to diagram
on motor nameplate and to information enclosed with the Munters environmental control to be used. After wiring
check for proper motor rotation.
Single Phase Fans: motor overload protection should be provided for each fan. A Circuit Breaker Switch or slow
blow motor type fuses must be used, See Figure 6A. See form QM1400 for proper size.
Three Phase Fans: motor overload protection should be provided for each fan. A three-pole motor starter or slow
blow motor fuses must be used. See Figure 6B.
If a frequency drive (inverter) is used, confirm that motors are rated for inverter duty at the voltage used. Shielded
power cable between frequency drive and each motor is highly recommended. Installation of line reactors is
recommended to reduce voltage spikes and harmonic distortion. Supplemental motor overload protection is also
recommended.
NOTE: A safety cut-off switch should be located adjacent to each fan.
Figure 6A
Single Phase - Motor Overload Protection with Disconnect
(SY2000 or Equivalent)
          
             
  
    
    

    
    

          
       
    
    
    
    
    
KEY:
L1=Line 1
L2=Line 2
L3=Line 3
H=Hot
N=Neutral
G=Ground
NOTE: Information in parenthesis refers to 120 VAC control.
         
             
  
 
 

 
 

         
       
        
 
 
 
 
 !
 !
 !
 !
Figure 6B
Three Phase - Motor Overload Protection with Disconnect
      "   #   
  $  " 
          
 $  "  $  %    &     $  " 

© Munters Corporation, January 2020
10 QM1105r3
Electrical WiringChapter 3
Three Phase Fans:
1) The use of a quality frequency drive and the installation of line reactors is recommended to
reduce voltage spikes and harmonic distortion.
2) Minimum operating frequency of 30 Hz.
3) Will require three pole contractors with overload protection (by others).
As the power cable exits the back of motor form a drip loop and then run power cable down along leg
of motor mount and "Zip" tie the cable to leg to prevent cable from getting tangled. See Figure 7. Then
run the cable out the drain hole to the circuit breaker or control panel. (Continued on next page).
Figure 7
3.1 Recommended Wire Routing:

11© Munters Corporation, July 2020 QM1105r3
Operation 4.
INITIAL START-UP: With electrical power off, verify that the fan propeller turns freely
and that all fasteners are secure. Turn on electrical power and confirm that the fan
operates smoothly.
ADJUSTMENTS: Set the fan control to the temperature shown on your ventilations system
drawing, or to a value which will provide the desired environmental conditions.
Single Phase Fans: When variable speed controls are used, the fan's idle speed will need
to be set to the recommended minimum airflow rate. Refer to the procedures included with
each control. The table below provides airflow rates at various propeller speeds for fans
wired for 240 VAC.
A = Fan with cone & shutter B = Fan with hood & shutter
CFM 0.025” Static Pressure 0.05” Static Pressure
14” Fans
A B A B
RPM VOLTS RPM VOLTS RPM VOLTS RPM VOLTS
100 620 141 620 141 740 150 740 150
120 630 142 630 142 750 151 750 151
150 640 142 640 142 760 152 760 152
200 660 143 670 144 780 153 790 153
300 710 145 720 146 820 154 820 154
400 760 148 780 149 860 156 870 156
500 810 151 840 153 910 158 930 160
600 840 153 880 155 950 161 980 162
800 940 158 980 160 1030 164 1070 166
1000 1030 163 1070 165 1120 168 1180 170
1200 1130 168 1210 173 1210 173 1280 177
1600 1370 182 1480 197 1400 186 1500 205
1950 1640 218 — — 1630 230 — —
16” Fans
150 590 96 600 96 700 103 720 104
175 600 96 610 97 710 103 730 104
200 610 97 620 98 720 104 740 105
300 640 98 660 99 740 105 760 106
400 670 100 700 102 770 106 780 107
500 700 102 740 104 800 108 810 108
600 730 103 780 106 830 109 840 110
800 790 107 860 111 880 112 920 114
1000 850 110 940 115 940 115 1000 117
1250 930 114 1020 119 1020 118 1100 124
1500 1020 119 1110 124 1090 123 1200 128
1750 1100 123 1220 129 1180 127 1350 136
2000 1190 127 1330 134 1260 131 1460 142
2500 1380 136 1600 160 1430 140 1630 172
3000 1600 160 — — 1640 173 — —
3170 1680 190 — — 1720 230 — —
WARNING
!
Disconnect Power
before servicing
WARNING
!
Moving parts, disconnect
power before servicing.
4.1 Operation

© Munters Corporation, January 2020
12 QM1105r3
A = Fan with cone & shutter B = Fan with hood & shutter
CFM 0.025” Static Pressure 0.05” Static Pressure
18” Fans
A B A B
RPM VOLTS RPM VOLTS RPM VOLTS RPM VOLTS
300 520 128 530 128 660 134 670 135
400 550 129 560 129 670 135 680 136
500 570 130 590 132 680 136 700 137
600 590 132 610 133 710 137 740 139
700 620 133 640 134 730 138 770 140
800 640 134 660 135 740 139 780 141
1000 700 136 730 138 780 141 830 143
1250 760 139 800 141 840 144 890 147
1500 820 143 860 144 890 147 950 150
1750 880 145 950 149 940 149 1000 153
2000 940 148 1020 152 990 152 1060 155
2500 1070 154 1170 161 1110 157 1220 164
3000 1210 162 1360 171 1240 165 1380 172
3500 1380 172 1530 188 1420 175 1570 190
4000 1570 190 — — 1610 200 — —
4200 1650 207 — — 1680 230 — —
24” Fans
1000 — — — — 490 144 510 145
1250 — — — — 520 146 530 147
1500 480 141 490 142 540 148 560 150
1750 500 143 520 144 560 150 600 153
2000 530 145 550 147 580 152 630 157
2250 560 148 590 151 610 154 670 160
2500 580 150 620 153 630 157 690 163
2750 610 152 660 156 660 159 720 166
3000 640 155 690 160 680 162 740 168
3500 690 160 760 167 730 167 790 172
4000 750 166 820 172 790 172 860 179
4500 820 172 900 183 850 178 940 191
5000 890 181 990 202 920 187 1020 210
5500 970 195 1060 230 1000 204 — —
6000 1060 227 — — — — — —
26” Fans
1250 — — — — 510 147 520 148
1500 — — 480 142 530 149 550 152
1750 480 142 500 144 540 151 580 154
2000 500 144 520 146 560 153 610 158
2250 520 146 550 149 580 154 640 161
2500 540 148 580 152 590 156 650 162
2750 560 150 610 155 610 158 670 164
3000 580 152 630 157 630 160 690 166
3500 620 156 680 163 670 164 730 171
4000 660 161 730 169 710 168 780 177
4500 700 165 780 176 740 172 830 182
5000 740 170 840 183 780 177 880 189
5500 780 176 880 188 830 182 930 199
6000 830 181 930 194 870 188 970 205
6500 880 188 980 206 920 194 1030 225
7000 940 196 1040 225 970 205 — —
7500 990 208 — — 1020 222 — —
8000 1050 229 — — — — — —
OperationChapter 4

13© Munters Corporation, July 2020 QM1105r3
Maintenance 5.
5.1 Maintenance
The following inspection and cleaning procedures should be performed monthly:
1) INSPECT PROPELLER: Check that propeller is secure on motor shaft and that
there are no signs of damage. The blades are of a self-cleaning design and should
not require maintenance.
2) CLEAN regularly for best results:
• FAN MOTOR: Remove any dust accumulation from motor using a brush or
cloth. (DO NOT use a pressure washer). A clean motor will run cooler and last
longer. At the same time, verify that the motor is secure in its mount.
• SHUTTER: Carefully clean dust from shutter blades and frame so that shutter
opens and closes freely. A brush or cloth should be used.
• GUARD: Clean any dust or feathers from fan guards using a brush. Dirty
guards can reduce airflow.
3) CHECK FASTENERS: For safety, all fasteners should be inspected 1 month after
initial operation and yearly thereafter. Tighten any loose connections.
4) INSPECT FAN CONTROL: With power disconnected, inspect all electrical
connections. Wiring should be secure and in good condition. Remove any dust
build-up from control case and sensor using a soft brush or cloth. NEVER CLEAN
ELECTRICAL EQUIPMENT WITH A PRESSURE WASHER!
WARNING
!
Disconnect Power
Before Servicing
WARNING
!
Moving Parts, Disconnect
Power Before Servicing.
WARNING
!
Do Not Power Wash
Electrical Devices.

© Munters Corporation, January 2020
14 QM1105r3
Winterizing 6.
In most climates, it is probable that the ventilation system will never need to operate at a total capacity during
the colder winter months. Consequently, it is advisable to “winterize” those fans which will not be used in cold
weather to avoid unnecessary heat loss and condensation.
To winterize, turn fan control “off”. Install the insulated closure panel over the fan intake. If you don’t have an
insulated closure panel, a piece of rigid insulation material can be used. Remember the insulation panel must
be removed before warmer weather returns.
NOTE: At least one single speed fan should be left uncovered and with power available to provide air
movement in the event of variable speed control difficulties.
6.1 Winterizing
6.2 Winter Weather Protection
To prevent cone or fan damage from snow or ice sliding off building roof, weather protection must be
provided. A weather shelter may be constructed to cover the entire fan, See Figure 8, or snow guards may be
placed on the roof, See Figure 9.
Building
Wall
Provide Weather
Shelter Over Fans
6" Min.
Fan with
Discharge Cone
Figure 8
Note: Snow guards are designed to prevent sudden, dangerous snow
and ice slides when attached to the building roof according to
manufacturers recommendations. The supplier listing above is given
as a reference only. Munters does not endorse any specific snow
guard product and no performance warranty is implied.
Munters Product and System
Warranties do not cover cone or fan
damage from external sources.
IMPORTANT
!
Snojax, Inc. 800-766-5291 717-697-2452 www.snojax.com
Polar Blox 800-298-4328 814 629-9090 www.polarblox.com
LM Curbs 800-284-1412 903 759-3598 www.lmcurbs.com
Alpine Snow Guards 888-766-4273 888-766-9994 www.alpinesnowguards.com
*Snow Guard Suppliers
Company Name Phone No. Fax No. Web Site
Snow Guards located
per manufacturers
recommendations*
Ceiling
Figure 9
Fan with
Discharge
Cone

15© Munters Corporation, July 2020 QM1105r3
Troubleshooting 7.
7.1 Troubleshooting
WARNING
!
High Voltage, disconnect
power before servicing.
WARNING
!
Moving parts, disconnect
power before servicing.
' ( ) * + , - ( . / ) 0 1
2 ) 3 4 5 6 7 / , ) .
8 / - 9 : ;
< = 7 , 3 3 / > ,
? / @ - ( . / : )
< = 7 , 3 3 / > , A : / 3 ,
1. Fan control set above room
temperature
2. Blown fuse or open circuit breaker
3. Propeller blade contacting fan housing
4. Fan control defective
1. Variable speed control improperly
adjusted
2. Shutter jammed or dirty
3. Guard dirty
1. Propeller blade contacting fan housing
2. Motor bearing or shaft bearing defective
3. Frequency drive improperly adjusted
1. Motor loose on mount
2. Propeller damaged
3. Motor shaft bent
1. Set to a lower temperature
2. Replace fuse or reset breaker
3. Realign motor in fan housing
4. Repair or replace control
5. Repair or replace motor
1. See Operation, Step 2 for adjustment guidelines
2. Unjam and clean shutter
3. Clean guard
1. Sand fan housing to remove high spot
2. Repair or replace motor or shaft bearings
3. See operation, Step 2 for adjustments guidelines
1. Tighten fasteners
2. Replace propeller
3. Repair or replace motor
' ( ) A : . * + , - ( . / ) 0
B C D E F *D
E*B B 2 G H < I 8 J B<B
I* KK<IF2 ? < 8 I F2 * A
' ( ) ) , > , - . 4 - ) 3 : 5 5
1. Override thermostat set incorrectly
2. Control set for continuous operation
1. Set to the correct temperature
2. Set speed control correctly

© Munters Corporation, January 2020
16 QM1105r3
Exploded View 8.

17© Munters Corporation, July 2020 QM1105r3
Parts ListChapter 8
Item Catalog No
.
Description Qty.
1 FH3414 Housing, 14” VX Fan with Clips & Labels, FG 1
FH3416 Housing, 16” VX Fan with Clips & Labels, FG 1
FH3418 Housing, 18” VX Fan with Clips & Labels, FG 1
FH3424 Housing, 24” VX Fan with Clips & Labels, FG 1
FH3127 Housing, 26” VX Fan with Clips & Labels, FG 1
2 FH1968 Pivoting Shutter Clip, PL 3
3 FP1031SS Propeller, 14”DD, 7-Blade, Set Screws, AL 1
FP1038SS Propeller, 16”DD, 4-Blade, Set Screws, AL 1
FP1008SS Propeller, 18”DD, 5-Blade, Set Screws, AL 1
FP1033SS Propeller, 24”DD, 4-Blade, Set Screws, AL
1
FP1126SS Propeller, 26”DD, 3-Blade, Set Screws, AL 1
4 FH1008 14” Fan, Motor Mount, PVC Coated 1
FH1009 16”/18” Fan, Motor Mount, PVC Coated 1
FH1010 24” Fan, Motor Mount, PVC Coated 1
FH2526 26” Fan, Motor Mount, PVC Coated 1
5 FM1010 14” DD, Motor, ¹⁄₈ HP, 1625 RPM, 48 Fr., 1 ph., 115/230V 1
FM1043 16” DD, Motor, ¹⁄₄ HP, 1625 RPM, 48 Fr., 1 ph., 115/230V 1
FM1009 18” DD, Motor, ¹⁄₃ HP, 1625 RPM, 48 Fr., 1 ph., 115/230V 1
FM1108 24”/26” DD, Motor, ¹⁄₃ HP, 1075 RPM, 48 Fr., 1 ph., 115/230V 1
FM1074 24”/26” DD, Motor, ¹⁄₃ HP, 1140 RPM, 48 Fr., 3 ph., 230/460V 1
6 PT0914 Shutter for 14” Fan, 16³⁄₄”SQ., Belled Inlet, White Plastic 1
PT1618 Shutter for 16”/18” Fan, 21⁵⁄₈” SQ., Belled Inlet, White Plastic 1
PT24 Shutter for 24” Fan, 27⁵⁄₈” SQ., Belled Inlet, White Plastic 1
PT26 Shutter for 26” Fan, 29.4” SQ., Belled Inlet, White Plastic 1
7 PZ0914 Shutter for 14” Fan, 16³⁄₄”SQ., White Plastic 1
PZ1618 Shutter for 16”/18” Fan, 21⁵⁄₈” SQ., White Plastic 1
PZ24 Shutter for 24” Fan, 27⁵⁄₈” SQ., White Plastic 1
PV26 Shutter for 26” Fan, 29.4” SQ., White Plastic 1

© Munters Corporation, January 2020
18 QM1105r3
Munters Europe AB, Isafjordsgatan 1, P.O. Box 1150, SE-164 26 Kista, Sweden. Phone [phone], Fax [phone].
Munters Corporation 2691 Ena Drive Lansing, MI 48917 U.S.A. Phone [phone], Fax [phone]
www.munters.us
Australia Munters Pty Limited, Phone [phone], Brazil Munters Brasil Industria e Comercio Ltda, Phone [phone], Canada/US Munters
Corporation Lansing, MI Phone [phone], China Munters Air Treatment Equipment (Beijing) Co. Ltd, Phone [phone], Denmark Munters A/S,
Phone [phone], India Munters India, Phone [phone], Indonesia Munters, Phone [phone], Italy Munters Italy S.p.A., Chiusavecchia,
Phone [phone], Japan Munters K.K., Phone [phone], Korea Munters Korea Co. Ltd., Phone [phone], Mexico Munters Mexico, Phone
[phone], Russia Munters AB, Phone [phone], Singapore Munters Pte Ltd., Phone [phone], South Africa and Sub-Sahara Countries
Munters (Pty) Ltd., Phone [phone], Spain Munters Spain S.A., Phone [phone], Sweden Munters AB, Phone [phone], Thailand
Munters Co. Ltd., Phone [phone], Turkey Munters Form Endüstri Sistemleri A.Ş, Phone [phone], USA Munters Corporation Lansing, MI Phone
[phone], Vietnam Munters Vietnam, Phone [phone], Export & Other countries Munters Italy S.p.A., Chiusavecchia Phone [phone]
VX Fan 14”, 16”, 18”, 24”, 26” with ”RC” Cone is developed and produced by Munters Corporation, Lansing, Michigan U.S.A. 1-800-227-2376
