Instruction Manual
WF54 Tilt Wall Fan with Munters Drive
54” Tilt Wall Exhaust Fan
Models: WF54DTxxCXP-Hx • WF54DTxxCXJ-Hx
WF54
54” Tilt Fan with
Munters Drive*

© Munters Corporation , March 2017
2
QM1224r3
WF54 Tilt Fan with Munters Drive
Manual for use and Maintenance
Thank You:
Thank you for purchasing a Munters WF54 tilt fan with Munters Drive. Munters equipment is designed to be the
highest performing, highest quality equipment you can buy. With the proper installation and maintenance it will
provide many years of service.
Please Note:
To achieve maximum performance and insure long life from your Munters product it is essential that it be installed
and maintained properly. Please read all instructions carefully before beginning installation.
Warranty:
For Warranty claims information see the “Warranty Claims and Return Policy” form QM1021 available from the
Munters Corporation office at 1-800-227-2376 or by e-mail at [email protected].
Conditions and Limitations:
• Products and Systems involved in a warranty claim under the “Warranty Claims and Return Policy” shall have
been properly installed, maintained and operated under competent supervision, according to the instructions
provided by Munters Corporation.
• Malfunction or failure resulting from misuse, abuse, negligence, alteration, accident or lack of proper installation
or maintenance shall not be considered a defect under the Warranty.

3
© Munters Corporation, March 2017 QM1224r3
Index
Chapters Page
1. Unpacking the Equipment 3
1.1 Parts List 3
1.2 Fan Dimensions 5
2. Installation Instructions 6
2.1 Fan Installation 6
2.2 Shutter Installation 8
3. Electrical Wiring
9
3.1 Recommended Wire Routing 9
3.2 Electrical Wiring 10
4. Operation and Maintenance 16
4.1 Operation 16
4.2 Maintenenace 16
5. Troubleshooting 17
6. Winterizing 18
6.1 Winterizing 18
6.2 Winter Weather Protection 18
7. Exploded View and Parts List 19

© Munters Corporation , March 2017
4
QM1224r3
1.1 Parts List
Unpacking the Equipment
[A]
[B]
[C]
[D]
[E]
[F]
[G]
Each Crate includes:
1 – 54" Belt Drive Fan
4 – Cone Sections ( 2 side, 2 top/bottom)
4 – Support Brackets, galvanized
1 – Cone Guard
1 – Shutter
1 – Hardware Package HP1116 for GCX
HP1116 for 54GCX
[A]…..16 - ¼” x 1½” Lag Screws, ZP
[B]…..26 - ¼” x ½” Flange Head Bolts, ZP
[C]…..4 - ¼” x ¾” Flange Head Bolts, ZP
[D]…..10 - ¼” x 1¾” Flange Head Bolts, ZP
[E]…..40 - ¼” Flange Nuts, ZP
[F]…..8 - ¼” x ¾” TEK Screws, ZP
[G].....10 - ¾” O.D. x 1”L. Spacers
1.
Discharge cone is designed to mount on fan outlet for increased airow and to support the
exhaust guard. A shutter or guard must be mounted on the fan inlet.
NOTE:
Before beginning installation, check the overall condition of the equipment. Remove packing materials, and examine all
components for signs of shipping damage. Any shipping damage is the customer’s responsibility and should be reported
immediately to your freight carrier. Fan is shipped complete with all accessories. Remove shutter, guard and cone sections
before proceeding with installation.

5
© Munters Corporation, March 2017 QM1224r3
Cat. No. Cone Type A B C
Below F.O.
D E F G
Cone Height
H
Cone Width
Wall Openings
(W.O.)
WF54 54GCX 651⁄4” 631⁄4” 125⁄8” 56” 58” 225⁄8” 66” 59” 561⁄2”W. x 621⁄2”H.
Dimensions:
Unpacking the EquipmentChapter 1
A
Wall Opening (W.O.)
C
Wall Opening (W.O.)
A
1.2 Fan Dimentions E
Wall Opening (W.O)
D
H - Cone Width
B
F
Shutter
C
G - Cone Height
Fan Specifications: 60Hz shown (50Hz available)
Power: 230VAC or 230/460 VAC
Phase: 1 or 3

© Munters Corporation , March 2017
6
QM1224r3
2.1 Fan Installation
Step 1
Construct framed opening to correct size according to the Wall Opening
listed in chart below. See Figure 1A, 1B,1C and 1D.
Installation Instructions 2.
Figure 1A
Ceiling
Framing
H
(see chart A)
12"
W
(see chart A)
See minimum spac-
ing notes in Chart A Z
NOTE:
Chart A
A
2 x 4 framing
56½"W. x 62½"H.
Catalog No.
WF54
B
Concrete framing
56½"W. x 64"H.
Figure 1B
2 x 4 Framing
Figure 1C
Concrete Framing
Figure 1D
Greater than 4” Wall Thickness
B - Concrete Wall Opening
A - 2 x 4 Wall Opening
2 x 4
Framing cut
at 12° to
match fan
housing
3½"
Fan with Discharge Cone:
a minimum clearance
of 12” on all sides is
recommended, but fans
may be installed with less
clearance if required. The
minimum center-to-center
distance is 60”.

7
© Munters Corporation, March 2017 QM1224r3
Step 2
Slide fan assembly into framed wall opening from outside
of the building. Insert top of fan into opening and hold fan
against top frame. Midpoint of top panel must be aligned
with frameing for bottom flange of fan to pass through
opening. See Figure 2. Secure top and bottom flanges to
wall using (6) Screws [A]. See Figure 3A.
Step 3
Left and right flanges must be bent outward over framing.
This can be done by hand or with a rubber mallet. Be
careful to bend along perforation and not to distort the
housing. See Figure 3B.
Step 4
Confirm that housing inside dimensions match those shown
in Figure 4A. Then secure left and right flanges to wall
using (10) Screws [A] (provided). See Figure 4B & 4C.
Step 5
Outlet of fan comes unguarded, install discharge cone
with guard on outlet of fan at this time. Refer to QM1049
for flat sided cone installation instructions.
Figure 2
Installation InstructionsChapter 2
Figure 3A
Figure 3B
601⁄2”
Figure 4A
¼" x 1½ " Lag
screws [A]
Step 6
Make electrical connections to fan motor per instructions provided with fan or as shown on motor.
See Wiring Section on page 9.
NOTE:
This is NOT the Wall
Opening size.
56”

© Munters Corporation , March 2017
8
QM1224r3
Figure 4B Figure 4C
¼" x 1½" Lag
screws [A]
Installation InstructionsChapter 2
Figure 5A Figure 5B
Bottom
Shutter Clip
Step 1
Insert shutter into fan by sliding the bottom flange of shutter into bottom shutter clips and pressing shutter
inward, See Figure 5A. Fasten shutter in place by rotating the side and top shutter clips over the shutter
flanges, See Figure 5B.
Top
Shutter
Clip
Side Shutter Clip
2.2 Shutter Installation

9
© Munters Corporation, March 2017 QM1224r3
3.1 Recommended Wire Routing
Electrical Wiring 3.
Option 1 -
Step 1
The Munters Drive fan comes with a coil of electrical
cables that is pre-wired to the motor. Find the end of
the cable and form a drip loop and then run the cable
through the side of the fan housing, through flexible
conduit and into building. See Figure 6A & 6B.
Step 2
Add flashing and/or caulk around completed housing
on exterior side of building wall.
Option 2 -
Step 1
The Munters Drive fan comes with a coil of electrical
cables that is pre-wired to the motor. Find the end of the cable and form a drip loop and then run the cable
through housing and frame into wall cavity and into the building. See Figure 7A & 7B.
Step 2
Add flashing and/or caulk around completed housing on exterior side of building wall.
Drip
Loop
Figure 6B
Figure 7A
Figure 7B
Drip
Loop
Drip
Loop
2”

© Munters Corporation , March 2017
10
QM1224r3
Electrical WiringChapter 3

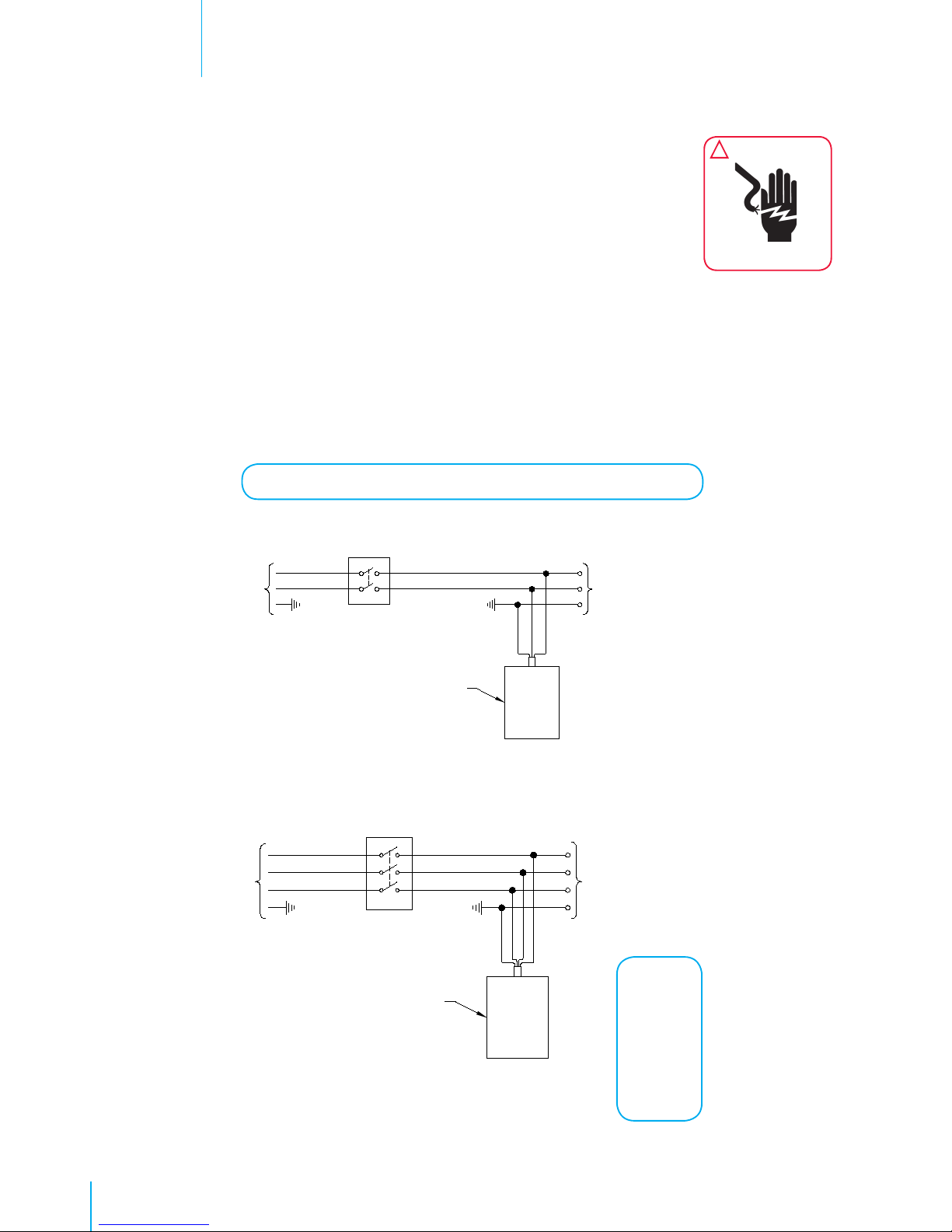

Recommended Lightning Protection
FC2003, 230V, 1 Phase
240 VAC
Power Supply for Fan
L1
L2
G
T1
T2
G
240 VAC
Power Out to Fan
Single Phase
Figure 8A
Safety Cut-Off Switch
T1
T2
T3
G
Three Phase
Power Out to Fan Motor
Three Phase
Power Supply for Fan
L1
L2
L3
G
Safety Cut-Off Switch
Three Phase
Figure 8B
Recommended Lightning Protection
FC2006, 230V, 3 Phase
FC2009, 460V, 3 Phase
All wiring should be installed in accordance with National, State, and Local electrical codes.
Fans used to ventilate livestock buildings or other rooms where continuous air movement is
essential should be connected to individual electrical circuits, with a minimum of two circuits per
room.
Single Phase and Three Phase Munters Drives: Power supply for fans to have Circuit Breaker
or Fuse Protection. The installer must refer to NEC and local codes to ensure safety and
compliance. See Figure 8A & 8B.
If recommended lightning protection was purchased, wire it to the fan power supply as shown and secure the
lightning protection unit near the disconnect or the bus panel. See Figure 8B & 8C (page 8).
NOTE: A safety cut-off switch should be located adjacent to each fan.
KEY:
L1=Line 1
L2=Line 2
L3=Line 3
H=Hot
N=Neutral
G=Ground
WARNING
!
High Voltage, disconnect power
before servicing.

11
© Munters Corporation, March 2017 QM1224r3
Electrical WiringChapter 3
3.2 Electrical Wiring
The Munters Drive fan ships configured for simple ON/OFF control. When electrical power is applied to
the main cable the fan will start and run at full speed. See Figure 9A .
To operate the Munters Drive On/Off with a control, Slide the ‘ON’ switch, located on the circuit board in
the junction box, away from the ON position. Now wire an ‘ON’ command from the ‘COMMON’ terminal
to the input relay in the control and from the output of the control relay to the ‘RUN’ terminal in the junction
box. See Figure 9A & 9B.
When making connections to junction box, be sure to use the supplied watertight fittings with only 1 cable
per fitting. If watertight fittings are not used or if 2 cables or more are in 1 watertight fitting, equipment
failure from water damage will not be covered under warranty. If 2 or more cables are used in 1
watertight fitting, they must be sealed on both sides of junction box wall to prevent water infiltration.
‘ON’ Switch
Figure 9A
Default Operation Full Speed
Junction Box
‘ON’ Switch

© Munters Corporation , March 2017
12
QM1224r3
Electrical WiringChapter 3
Junction Box
Junction Box
10-0V
Output
In Control
‘ON’ Switch
Figure 9B
Off/Low/High Remotely

13
© Munters Corporation, March 2017 QM1224r3
Electrical WiringChapter 3

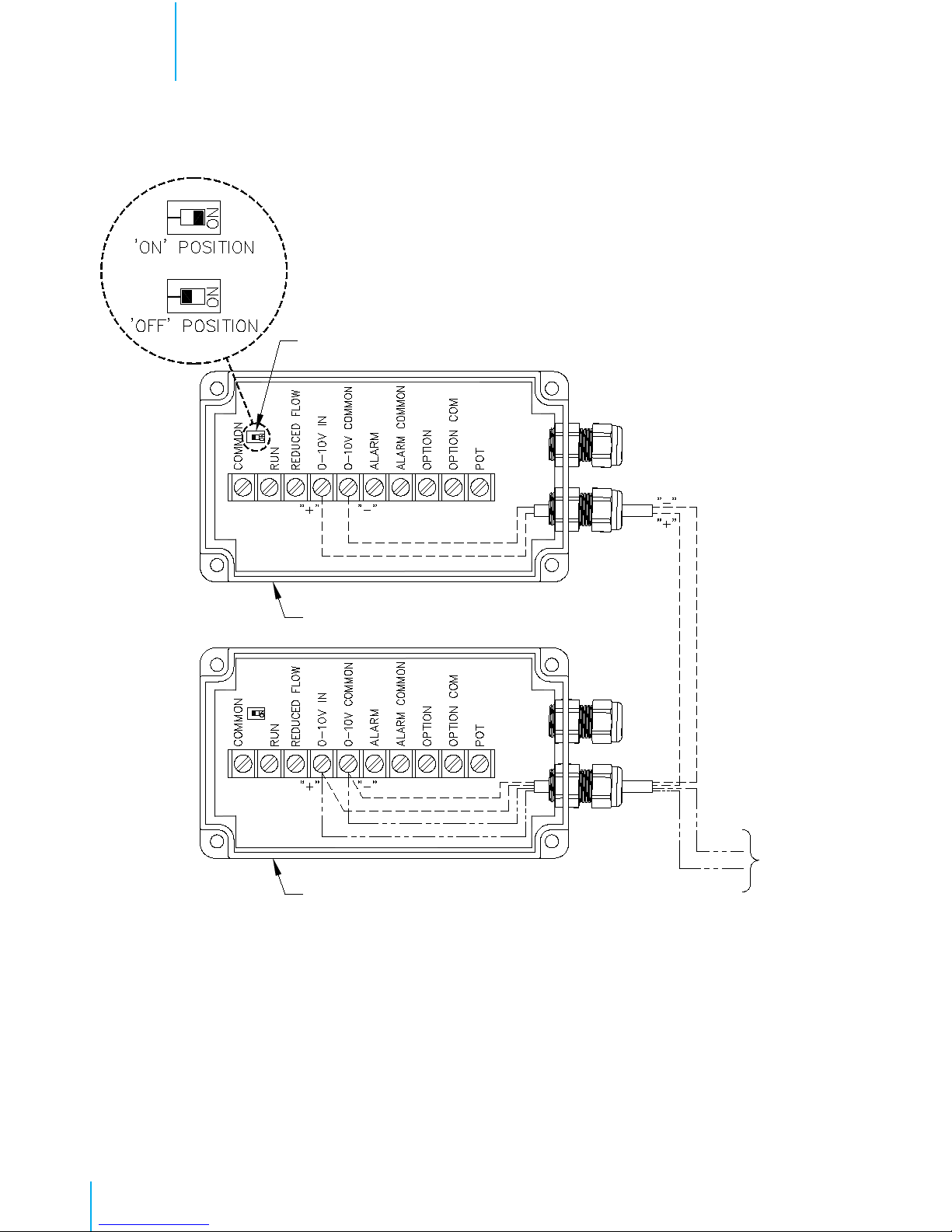

To operate the Munters Drive Off/Low/High with a control, slide the ‘ON’ switch, located on the circuit board
in the junction box, away from the ON position. Now wire an ‘ON’ command from the “COMMOM” terminal
to the input relay in the control and from the output of the relay to the ‘RUN’ terminal in the junction box. Then
connect the output of the control relay for ‘LOW’ to the ‘REDUCED FLOW’ in the junction box. See Figure 9C.
To Operate the Munters Drive variable with a 10-0V Signal. connect wires from the ‘0-10V IN’ and ‘0-10V
COMMON’ terminals in the Junction box to the 10-0V output in the control. See Figure 9D.
‘ON’ Switch
Junction Box Control
Relay Box
Figure 9C
Off/Low/High Remotely

© Munters Corporation , March 2017
14
QM1224r3
Figure 9D
Variable Speed Operation
Junction Box
Junction Box
10-0V
Output
In Control
‘ON’ Switch
Electrical WiringChapter 3

15
© Munters Corporation, March 2017 QM1224r3
To operate the Munters Drive Off/Variable with a 10-0V Signel, slide the ‘ON’ switch, located on the circuit
board in the junction box, away from the ON position. Now wire an ‘ON’ command from the ‘COMMON’
terminal to the input relay in the control and from the output of the control relay to the ‘RUN’ terminal in the
juction box. Also, connect wires from the ‘0-10V IN’ and ‘0-10V COMMON’ terminals in the junction box to
the 10-0V output in the control. See Figure 9E.
Figure 9E
Off/Variable Speed Operation
Junction Box
Control
Relay
Box
10-0V
Output
In Control
‘ON’ Switch
WARNING: Fan is designed to be operated with shutter in place. Do not apply power to fan without
shutter being installed.
Electrical WiringChapter 3

© Munters Corporation , March 2017
16
QM1224r3
Operation and Maintenance 4.
1) INITIAL START-UP: With electrical power off, verify that the fan propeller
turns freely and that all fasteners are secure. Turn on electrical power and
confirm that the fan operates smoothly.
2) ADJUSTMENTS: Set the fan control to the temperature shown on your
Aerotech ventilation system drawing, or to a value which will provide the
desired environmental conditions.
4.1 Operation
WARNING
!
Moving parts, disconnect power
before servicing.
4.2 Maintenance
WARNING
!
Moving parts, disconnect power
before servicing.
WARNING
!
High Voltage, disconnect power
before servicing.
The following inspection and cleaning procedures should be performed monthly:
1) INSPECT PROPELLER: Check that propeller is secure on drive hub and that
there are no signs of damage. The blades are of a self-cleaning design and should
not require maintenance.
2) CLEAN regularly for best results:
• FAN MOTOR: Remove any dust accumulation from motor using a brush or
cloth. (DO NOT use a pressure washer). A clean motor will run cooler and last
longer. At the same time, verify that the motor is secure in its mount.
• DAMPER: Carefully clean dust from damper door and frame so that damper
door opens and closes freely. A brush or cloth should be used.
• GUARD: Clean any dust or feathers from fan guards using a brush. Dirty
guards can reduce airflow.
3) CHECK FASTENERS: For safety, all fasteners should be inspected. Tighten any
loose connections.
4) INSPECT FAN CONTROL: With power disconnected, inspect all electrical connec-
tions. Wiring should be secure and in good condition. Remove any dust build-up
from control case and sensor using a soft brush or cloth. NEVER CLEAN
ELECTRICAL EQUIPMENT WITH A PRESSURE WASHER!

17
© Munters Corporation, March 2017 QM1224r3
Troubleshooting 5.
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
• Fan Not Operating • Fan control set above room
temperature
• Blown Fuse or open circuit breaker
• Propeller blade contacting fan
housing
• Fan control defective (i.e. Farm
Premium, etc.)
• Set to a lower temperature
• Replace fuse or reset breaker
• Realign motor in fan housing
• Repair or replace control
• Fan Does Not Start
Caution: There is a 10 second
delay for the fan to start when
an 'On' command is present.
• Munters Drive motor/controller
issue
1. Verify AC voltage is present at fan.
2. Turn AC power off to fan for 1 minute
3. Verify Prop turns freely
a. If not contact Munters Product Support
b. If it turns freely go to next step
4. Turn AC power back on to fan
a. If starts up and runs, fan OK
•Periodically observe fan to verify it is still running
•If it continues to run, fan is OK
•If fan stops, remove drive assembly cover to
check what drive display reads.
Contact Munters Product Support
b. If fan tries to start but stops, remove drive
assembly cover to check what drive display
reads. Contact Munters Product Support
c. If fan doesn't try to start, verify 'On' command
signal is present at circuit board. Also, slide the
switch on the circuit board to the 'On' position.
• Fan Operating - Insufficient
Airflow
• Excessive Noise
• Excessive Vibration
• Shutter or Damper door jammed
• Guard dirty/clogged
• 10-0V signal set incorrectly
• Propeller blade contacting fan
housing
• Motor loose on mount
• Propeller damaged
• Clean shutter or damper door
• Clean guard
• Check and adjust 10-0V signal
• Sand fan housing to remove high spot
• Tighten fasteners
• Replace propeller
WARNING
!
High Voltage, disconnect power
before servicing.
WARNING
!
Moving parts, disconnect power
before servicing.
WARNING
!
Moving parts, disconnect
power before servicing.
5.1 Troubleshooting

© Munters Corporation , March 2017
18
QM1224r3
In most climates, it is probable that the ventilation system will never need to operate at a total capacity during the
colder winter months. Consequently, it is advisable to "winterize" those fans which will not be used in cold weather to
avoid unnecessary heat loss and condensation.
To winterize, turn fan control "off" and install an insulated closure panel over the fan intake. If you don't have an
insulated closure panel, a piece of rigid insulation material can be used. Remember the insulation panel must be
removed before warmer weather returns.
6.1 Winterizing
NOTE:
At least one single speed fan should be left uncovered and with power available to provide air
movement in the event of variable speed control difficulties.
Winterizing 6.
6.2 Winter Weather Protection
To prevent cone or fan damage from snow or ice sliding off building roof, weather protection must be
provided. A weather shelter may be constructed to cover the entire fan, See Figure 10, or snow guards
may be placed on the roof, See Figure 11
Building
Wall
Provide Weather
Shelter Over Fans
6" Min.
Fan with
Discharge Cone
Figure 10
Snow Guards located per manufacturers
recommendations*
Ceiling
Figure 11
Note: Snow guards are designed to prevent sudden, dangerous snow
and ice slides when attached to the building roof according to
manufacturers recommendations. The supplier listing above is given
as a reference only. Aerotech does not endorse any specific snow
guard product and no performance warranty is implied.
Munters Product and System
Warranties do not cover cone or fan
damage from external sources.
IMPORTANT
!
Snojax, Inc. 800-766-5291 717-697-2452 www.snojax.com
Polar Blox 800-298-4328 814 629-9090 www.polarblox.com
LM Curbs 800-284-1412 903 759-3598 www.lmcurbs.com
Alpine Snow Guards 888-766-4273 888-766-9994 www.alpinesnowguards.com
*Snow Guard Suppliers
Company Name Phone No. Fax No. Web Site
Fan with
Discharge
Cone

19
© Munters Corporation, March 2017 QM1224r3
In most climates, it is probable that the ventilation system will never need to operate at a total capacity during the
colder winter months. Consequently, it is advisable to "winterize" those fans which will not be used in cold weather to
avoid unnecessary heat loss and condensation.
To winterize, turn fan control "off" and install an insulated closure panel over the fan intake. If you don't have an
insulated closure panel, a piece of rigid insulation material can be used. Remember the insulation panel must be
removed before warmer weather returns.
NOTE: At least one single speed fan should be left uncovered and with power available to provide air
movement in the event of variable speed control difficulties.
Snojax, Inc. 800-766-5291 717-697-2452 www.snojax.com
Polar Blox 800-298-4328 814 629-9090 www.polarblox.com
LM Curbs 800-284-1412 903 759-3598 www.lmcurbs.com
Alpine Snow Guards 888-766-4273 888-766-9994 www.alpinesnowguards.com
Company Name Phone No. Fax No. Web Site
Exploded View 7.

© Munters Corporation , March 2017
20
QM1224r3
Munters Europe AB, Isafjordsgatan 1, P.O. Box 1150, SE-164 26 Kista, Sweden. Phone [phone], Fax [phone].
Munters Corporation 2691 Ena Drive Lansing, MI 48917 U.S.A. Phone [phone], Fax [phone]
www.munters.us
Australia Munters Pty Limited, Phone [phone], Brazil Munters Brasil Industria e Comercio Ltda, Phone [phone], Canada/US Munters
Corporation Lansing, MI Phone [phone], China Munters Air Treatment Equipment (Beijing) Co. Ltd, Phone [phone], Denmark Munters A/S,
Phone [phone], India Munters India, Phone [phone], Indonesia Munters, Phone [phone], Italy Munters Italy S.p.A., Chiusavecchia,
Phone [phone], Japan Munters K.K., Phone [phone], Korea Munters Korea Co. Ltd., Phone [phone], Mexico Munters Mexico, Phone
[phone], Russia Munters AB, Phone [phone], Singapore Munters Pte Ltd., Phone [phone], South Africa and Sub-Sahara Countries
Munters (Pty) Ltd., Phone [phone], Spain Munters Spain S.A., Phone [phone], Sweden Munters AB, Phone [phone], Thailand
Munters Co. Ltd., Phone [phone], Turkey Munters Form Endüstri Sistemleri A.Ş, Phone [phone], USA Munters Corporation Lansing, MI Phone
[phone], Vietnam Munters Vietnam, Phone [phone], Export & Other countries Munters Italy S.p.A., Chiusavecchia Phone [phone]
WF54 Tilt Fan with Munters Drive is developed and produced by Munters Corporation, Lansing, Michigan U.S.A. 1-800-227-2376
Parts ListChapter 7
Catalog No.
Item WF54 Part Name/Description Qty.
1 FH1255 Orifice panel, galvanized 1
2 FH2972 Top housing panel, galvanized, with shutter clips 1
3 FH2970 Right side housing panel, galvanized, with shutter clip 1
4 FH2973 Bottom housing panel, galvanized, with shutter clips 1
5 FH2971 Left side panel of housing, galvanized, with shutter clip 1
6 FP1454 Propeller assembly, 3-blade, galvanized 1
7 AC1212-MD Control signal junction box, Munters Drive, w/cable 1
8 various* Cable, Power, Munters Drive 1
9 various* Controller, WF Munters Drive 1
10 various* Cable, Control signal, Munters Drive, w/fittings 1
11 various* Motor, for Munters Drive, Less Controller 1
12 FH1302 Reinforcement bracket for strut, galvanized 2
13 FH1954 Strut, Munters Drive, galvanized 1
14 FH1932 Spacer plate, black plastic 2
15 PZ54 or GS54 Shutter, 555⁄8"W. x 601⁄8"H., all plastic or aluminum blade/galvanized frame 1
16 FH2130 Cone support bracket, galvanized 4
17 FH4354 Top/Bottom cone section, galvanized 2
18 FH4454 Side cone section, galvanized 2
19 KX1256 1"L, spacer, black plastic 10
20 FH2654 Guard, Flat sided cone, 1⁄2 circle PVC coated 1
* Contact office for replacement part numbers for your fan configuration.
