WM36F Fiberglass Wall Mount Fan with Damper
Instructions for Use and Maintenance

3© Munters Corporation, August 2019 QM1077r13
Index
Chapters Page
1. Unpacking the Equipment 4
1.1 Parts List 4
1.2 Fan Dimensions 6
1.3 Tools for Installation 6
2. Installation Instructions 7
2.1 Wall Framing 7
2.2 Fan Assembly 8
2.3 Damper Door Installation 11
2.4 Cone Installation 17
2.5 Motor Mounting 21
3. Electrical Wiring 26
3.1 Recommended Wiring 27
4. Operation 28
5. Maintenance 29
6. Winterizing 31
6.1 Winterizing 31
6.2 Winter Weather Protection 31
7. Troubleshooting 32
8. Exploded View and Parts List 33-35

© Munters Corporation, August 2019
4QM1077r13
1.1 Parts List
Unpacking the Equipment 1.
Each Crate Includes Parts to build 6 fans:
Each WM36F Fan Requires:
1 – Orifice Panel, Fiberglass
1 – Propeller
1 – Tube Strut, Galvanized
1 – Motor
1 – Drip Shield, AL
1 – Main Frame Assembly, AL
1 – Door Assembly, PL
4 – Cone Sections, PL
1 – Cone Guard
1 – Inlet Guard
½ – Bulk Parts Package (BK1050) For 2 Fans
BK1050 – ½ of Bulk Parts Package needed for 1 – WM36F
1 – Motor Base Bracket, Galvanized
1 – Belt Tensioner Bracket, Galvanized
4 – Cone Support Brackets, PC Type, Galvanized
4 – Cone/Strut Mounting Brackets, Galvanized
1 – V-Belt, A-Section
1 – Hub with Bearings and Shaft
1 – Motor Sheave, CI
1 – Prop Sheave, CI
1 – Prop Adapter, ZP STL
1 – 3” Idler Pulley, A-Section C.I., Blue
1 – Rotary Tensioner Arm, AL
1 - Motor Mount Stiffener Bracket, Galvanized
2 – Tension Springs, 11.0”L./10.8”L., SS
1 – Hardware Package (HP1381)
1 – Coated Cable with ferrule, 100”L.
2 – Wing for Damper Door, HDPE, BLK

5© Munters Corporation, August 2019 QM1077r13
[A]
[B]
[C]
[D]
[E]
[F]
[G]
[H]
[J]
[K]
[L]
[M]
[N]
[P]
[R]
[T]
[W]
[X]
[Y]
[Z]
Unpacking the EquipmentChapter 1
[AA]
[BB]
[CC]
[DD]
[EE]
HP1381 – Hardware Package for 1 – WM36F
ID Qty. Cat. No. Description
[A] 10 KW4908 M8 x 32mm Flat Washer, ZP
[B] 1 KS1901 6.3mm x 19mm Tapping Screw, ZP
[C1] 4 KS1950 M8-1.25 x 30mm Hex Bolt, ZP (HP1381 only)
[C2] 4 KS1928 M8-1.25 x 25mm Hex Bolt, ZP (HP1382 only)
[D] 4 KW4906 M8 Star Lock Washer, BLK
[E] 4 KN1849 M8-1.25 x 8mm Hex Nut, ZP
[F] 4 KS1926 M6-1.0 x 30mm Hex Bolt, ZP
[G] 4 KW4901 M6 x 12mm Flat Washer, ZP
[H] 4 KN1855 M6-1.0 x 6mm Hex Nut, ZP
[J] 1 KS1931 M10-1.5 x 25mm Hex Bolt, ZP
[K] 1 KW3509 10mm Splitlock Washer, ZP
[L] 1 KN1860 M25-2.0 x 10mm Hex Nut, ZP
[M] 1 KX1130 Shaft Shield for Prop Sheave, AL
[N] 1 KX1208 40mm Cover Cap, Black PL
[P] 1 KS2463 1⁄4” x 1.5” HEX Lag Screw,ZP
[R] 8 FH1968 1-Hole Pivoting Shutter Clip, PL
[T] 1 AC0211 & AC0212 Azuma Bolt & Nut, Blue PL
[W] 2 AC1381 1⁄8” Dia. Cable Clamp, ZP
[X] 1 KS1046 M10-1.5 x 50mm Hex bolt, ZP
[Y] 7 KS1400 #10-12 x 3⁄4”, SLTDHX, Seal-Washer Screw, ZP
[Z] 1 KW3012 ¹⁄₄” x 1”O.D. Flat Washer, SS
1 HK1000 Hardware Kit WM36 Assembly
1 LB2639 Specification Label for WM36F
HK1000 – Hardware Kit for 1 – WM36F Fan
ID Qty. Cat. No. Description
[AA] 18 KS1167 5⁄16” x 1¼” SRTD Flange Head Bolts, ZP
[BB] 4 KS1169 5⁄16” x 1¾” SRTD Flange Head Bolts, ZP
[CC] 7 KS1173 5⁄16” x 2¾” SRTD Flange Head Bolts, ZP
[DD] 37 KN0706 5⁄16” SRTD Flange Nuts, ZP
[EE] 4 KS2250 #10 x ½” TEK Screw, SS

© Munters Corporation, August 2019
6QM1077r13
1.2 Fan dimensions
Fan Specifications: 60Hz shown (50Hz available)
Power: 115/230 VAC* or 208-230/460 VAC
Phase: 1 or 3
*Available voltages vary depending on HP
Unpacking the EquipmentChapter 1
Dimensions:
Size A B C* D - Dia. E F Wall Openings
36” 48”W. x 48”H. 40” 61⁄2”48
3⁄8”1 3⁄4”1 3⁄4”44 1⁄2”W. x 441⁄2”H.
Wall Opening (W.O.)
D - Dia.
F
A
AB
Guard
E
C
1.3 Tools required for installation
10mm [3⁄8”] Socket
13mm [ ½”] Socket
17mm [11⁄16”] Socket or Wrench
27mm [11⁄16”] Wrench
36mm Socket or Wrench
5⁄16” Socket or Wrench
3⁄8” Socket
Phillips Screwdriver, #3 Size
1⁄8” Drill Bit
5⁄32” Hex Wrench
Wire Cutting Pliers
*Dimension varies depending on wall construction and motor configuration.

7© Munters Corporation, August 2019 QM1077r13
Installation Instructions 2.
2.1 Wall framing
Step 1
Construct framed opening to correct size according to the Wall Opening listed in chart A below.
See Figure 1A and 1B. When installing exterior sheet metal before fan, leave 2” of the framing
exposed on all sides so the orifice can mount flush to the frame.
Minimum Spacing
'Z'
Chart A
Wall Opening
(W. x H.)
Fan Dia.
36” 44½” W. x 44½” H.
Figure 1B 4 x 4 Post Construction - Elevation View
Ceiling
Framing
H
(see chart A)
12"
W
(see chart A)
See minimum
spacing notes in
Chart A
Z
2 x 8 Header boards
4 x 4 or
4 x 6 Posts
2 x 4
Framing
2 x 8 Banner boards
Ceiling
4 x 4 or 4 x 6 Posts
W
(see chart A)
H
(see chart A)
Note:
Damper doors should
be carefully set aside
out of direct sunlight
until needed.
Center To Center
Dimension
48” Minimum
Figure 1A Frame Construction
441»2” W.
Top View
48” W. O.C.
W x H Wall Opening
Sheet Metal Opening
Stud Wall
12” recommended; 3½” minimum

© Munters Corporation, August 2019
8QM1077r13
2.2 Fan assembly
Step 2

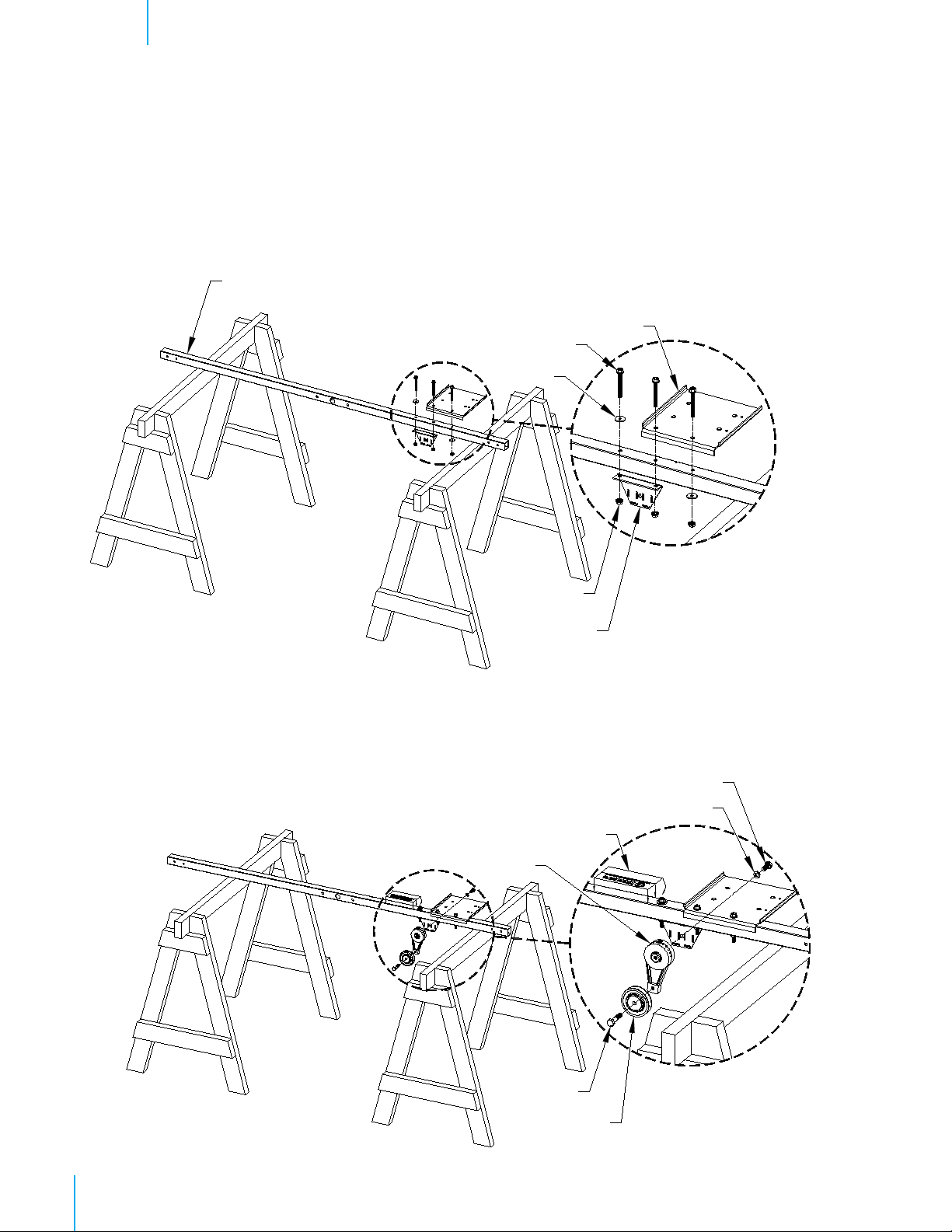

Place tube strut on saw horses or a flat work surface. The large center hole should be pointing horizontally.
Attach the Motor Base Bracket and the Belt Tensioner Bracket to the Tube Strut using (3) Long Bolts [CC],
(2) Washers [A] and (3) Nuts [DD]. The Motor Bracket and the Tensioner Bracket share the middle hole.
See Figure 2A.
Figure 2A
Installation InstructionsChapter 2
Step 2B
Attach the 3” Idler Pulley to the Tensioner Arm using Bolt [X]. Then attach the Tensioner Arm assembly to the
Tensioner Bracket using Bolt [J] and Washer [K]. Finger tighten only at this time.
See Figure 2B. Next attach
the Specification Label to the Tube Strut as shown, and then mark the box for the appropriate model fan.
Figure 2B
Tube Strut
Motor Bracket
Tensioner Bracket
Washer [A]
Long Bolts [CC]
Idler Pulley
Tensioner Arm
Bolt [X]
Washer [K]
Bolt [J]
Nuts [DD]
Label

9© Munters Corporation, August 2019 QM1077r13
Step 3

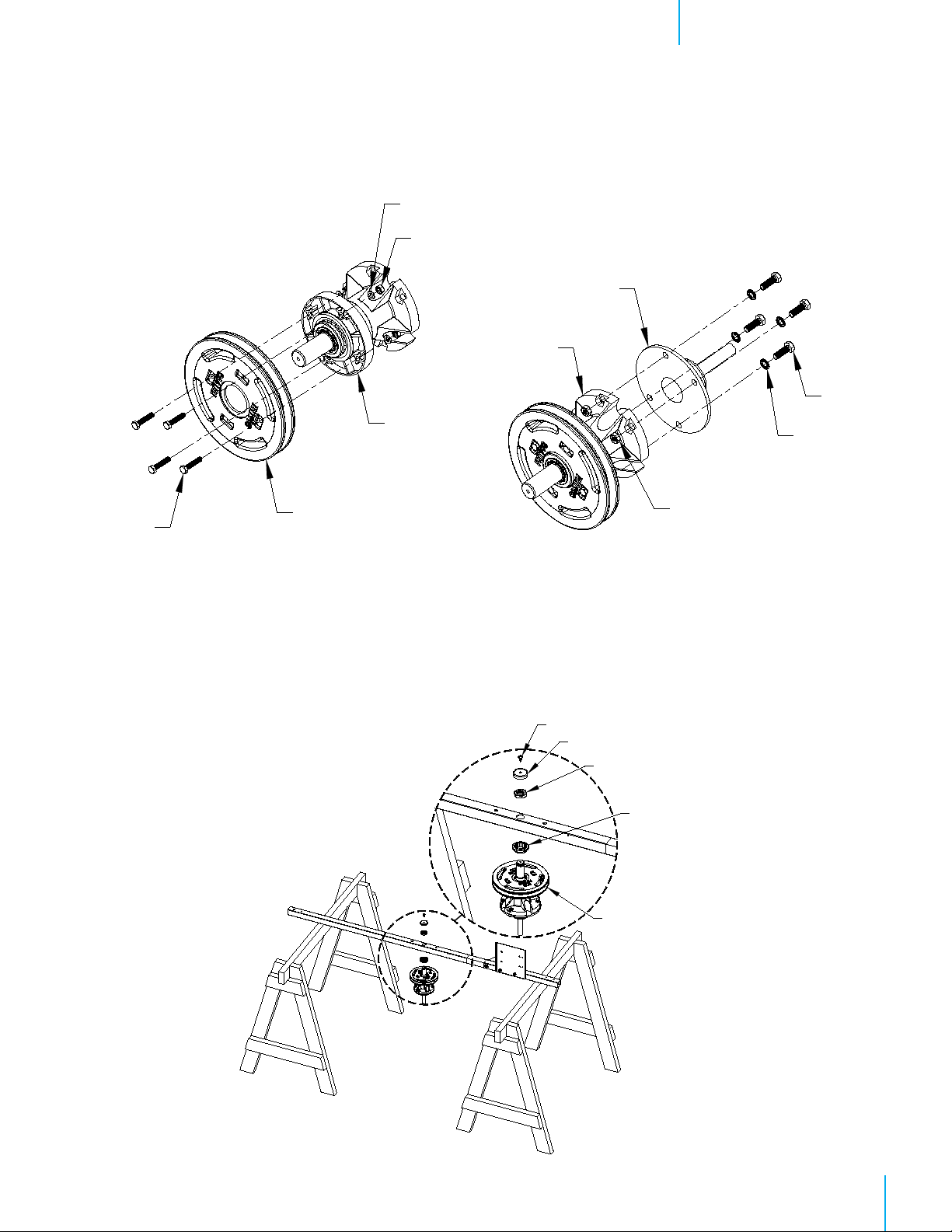

Attach Prop Sheave to Hub using (4) Bolt [F], Washer [G] and Nut [H]. See Figure 3A. Attach Prop Adapter
to Prop Sheave/Hup Assembly using (4) Bolt [C], Washer [D] and Nut [E]. See Figure 3B.
Step 4
Rotate Tube Strut on saw horses so Motor Bracket is pointing up. Slide Shaft Shield [M] over hub shaft
as shown in Figure 4. Attach Sheave/Hub Assembly to Tube Strut using (1) Hex Nut [L] and tighten to
52 ft-lbs [70 N-m] torque. See Figure 4. Place Plastic Cover Cap [N] over Hex Nut and fasten in place
with (1) Tapping Screw [B]. See Figure 4. Set aside the Strut Assembly for use in a later step.
Shaft Shield [M]
Hex Nut [L]
Cap Cover [N]
Tapping screw [B]
Figure 4
Installation InstructionsChapter 2
Hub Assembly
Prop Sheave
Hub
Bolt [F]
Washer [G]
Nut [H]
Prop Sheave
with Hub
Nut [E]
Bolt [C]
Washer [D]
Prop Adapter
Figure 3A Figure 3B

© Munters Corporation, August 2019
10 QM1077r13
Step 5
Place Orifice Panel on saw horses with the round orifice pointing up and place (1) Cone/Strut Mounting
Bracket in each corner of the Orifice Panel. See Figure 5.
Mounting Bracket
2UL¿FH3DQHO
Step 6
Corners of Orifice Panel with 2 holes are corners where Strut Assembly attaches. Secure Strut Assembly using
(4) Long Bolts [CC], (6) Washers [A] and (4) Nuts [DD]. In the opposite corners attach Cone/Strut Mounting
Bracket to the orifice using (1) Short Bolt [AA], Washer [A] and Nut [DD]. See Figure 6.
Figure 5
Figure 6
Long Bolt [CC]
Washer [A]
Washer [A]
Nuts [DD]
Drain Hole
Washer [A]
Short Bolt [AA]
Nuts [DD]
Installation InstructionsChapter 2

11© Munters Corporation, August 2019 QM1077r13
Step 7
Place Propeller on Prop Adapter Shaft so the Set Screw is lined up with the flat side of shaft. Adjust Propeller
so that 3/4” of the shaft is showing above the Propeller and fasten Propeller in place by tightening Set Screw
to 140 in-lbs [16 N-m] of torque. See Figure 7.
Figure 7
Propeller
Installation InstructionsChapter 2
Set Screw
Step 8
Slide Main Frame Assembly onto Orifice Panel with pin on Main Frame opposite the drain hole.
See Figure 8A.Line up 4 holes in Main Frame with holes in the Orifice and fasten using (4) TEK Screws [EE].
See Figure 8B.
Figure 8A Figure 8B
Prop Adapter Shaft
Flat Side of Shaft
+ROHLQRUL¿FHSDQHO
TEK Screw [EE]
2.3 Damper Door Installation
Pin
Main Frame
2UL¿FH3DQHO
Drain Hole

© Munters Corporation, August 2019
12 QM1077r13
Installation InstructionsChapter 2
Step 9
Attach Drip Shield to bottom of framed opening using (3) Barn Screws (Not Provided). See Figure 9A and 9B.
If a 4” wall is used a support board must be installed as shown in Figure 9B. Be sure not to deform Drip Shield
when installing screws.
Figure 9A Figure 9B
Drip Shield
Barn Screw
(not provided)
4” Wall
6” Wall
Drip plate
Drip plate
Support board
Barn Screw Barn Screw
Step 10
Locate Drain Hole in Orifice Panel. This is the bottom of the Panel. Set bottom edge of panel on Drip Shield
ledge and center panel on opening. Secure Panel to wall using (16) Barn Screws (Not Provided).
See Figure10A and 10B.
Figure 10A Figure 10B
Drain Hole
Drip Shield ledge
2UL¿FH3DQHO
Barn Screws
(Not Provided)

13© Munters Corporation, August 2019 QM1077r13
Installation InstructionsChapter 2
Step 11
Carefully remove folded door assembly from box. Open doors and lay them flat on solid surface with the
Munters Logo down. The Bottom of the doors has the Hinge Pin with the Nylon Washers. For the WM36 and
WM54 the Wing sits down in the Groove of the upper right and lower left doors. For the WM36 the Wing
will be in the groove centered on the half-circle shape. For the WM54 the Wing will start just after the last
spring mounting dimple and follow the Groove. Make sure Wing is seated in bottom of Groove and fasten in
place using (3) Seal-Washer Screws [Y] per wing. Make sure Hinge Pins do not fall out. See Figure 11.
Figure 11
Seal-Washer Screw [Y]
Wing
Wing
Groove in Door

© Munters Corporation, August 2019
14 QM1077r13
Installation InstructionsChapter 2
Step 12

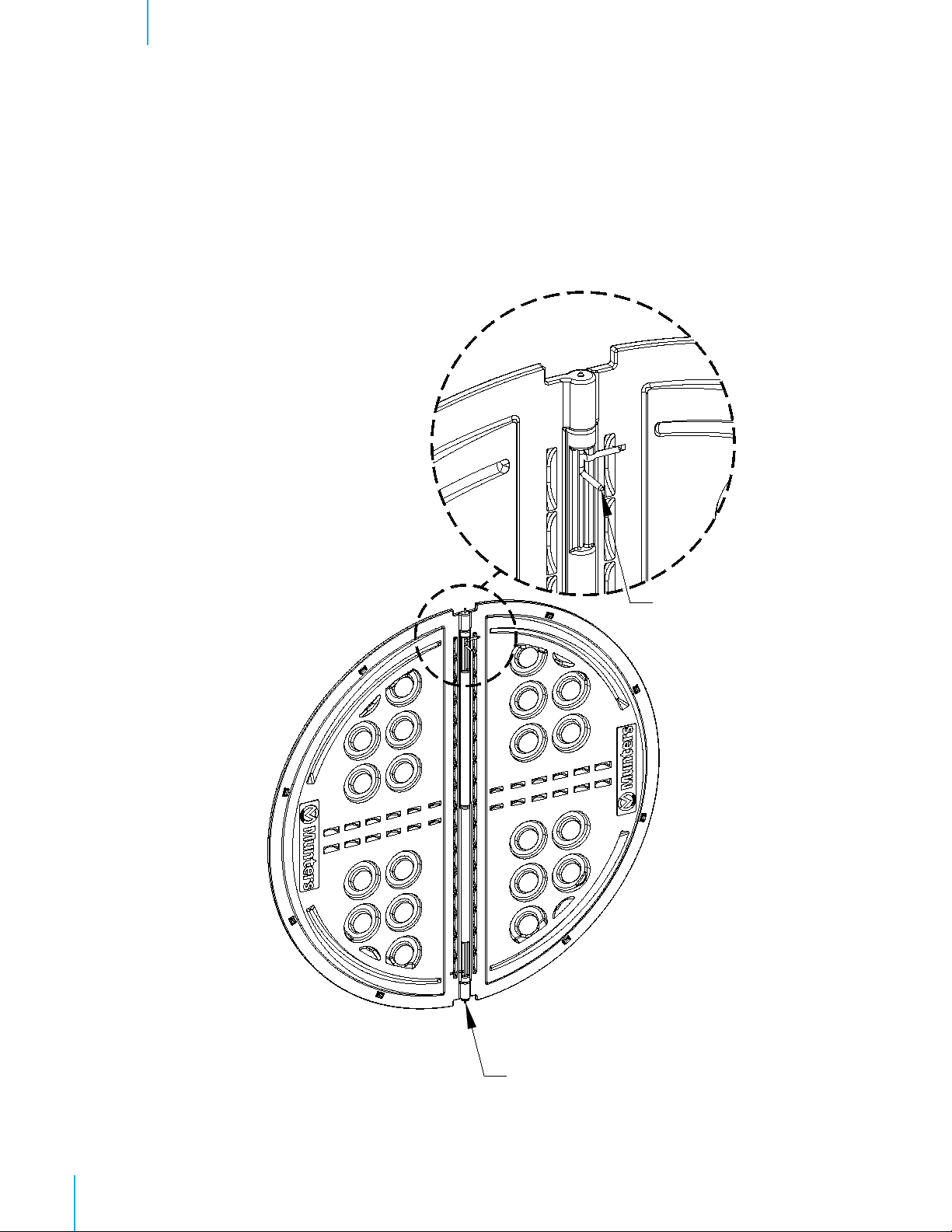

Carefully turn doors over and pull upper Latch Pin down until the end is flush with top of doors. Make sure
Long Hinge Pin (bottom) does not fall out. See Figure 12.
Figure 12
Latch Pin
Long Hinge Pin

15© Munters Corporation, August 2019 QM1077r13
Step 13
Being careful not to let pin fall out, set Doors into Main Frame with Hinge Pin in hole at bottom plate of
Main Frame and push top of Doors into place. See Figure 13.
Installation InstructionsChapter 2
Figure 13
Hinge Pin
Door
Step 14

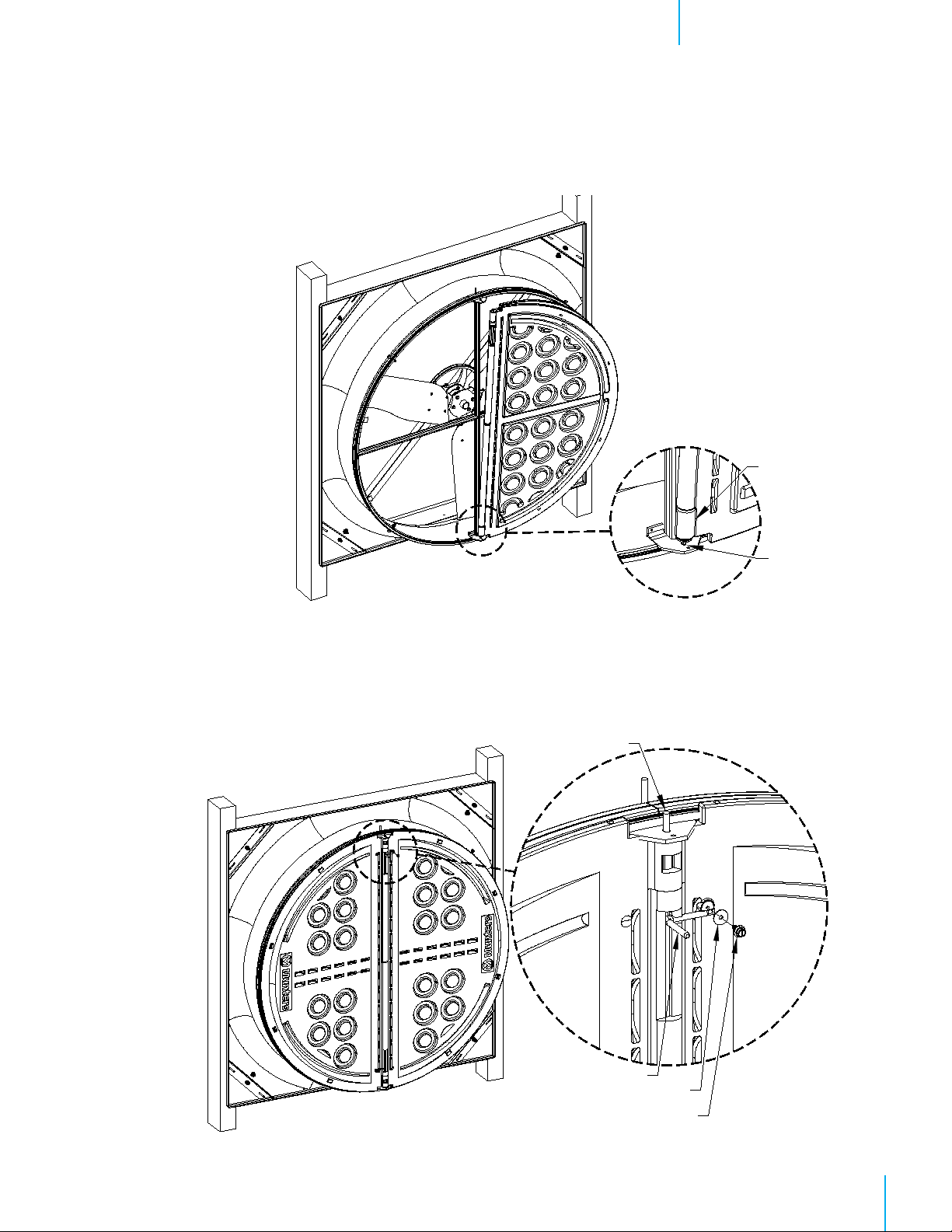

Separate doors and push them into closed position. Push Latch Pin up into place, then turn short leg of
Latch Pin into recess of door. Secure in place using Seal-Washer Screw [Y] and Flat Washer [Z]. Latch Pin
should extend up through upper plate in Main Frame. See Figure 14.
Figure 14
Latch Pin
Latch Pin Leg
Flat Washer [Z]
Seal-Washer Screw [Y]

© Munters Corporation, August 2019
16 QM1077r13
Step 15
Find Coated Cable and insert end opposite ferrule into small hole in upper plate of Main Frame. Pull it
through until ferrule stops at the plate. See Figure 15.
Installation InstructionsChapter 2
Hole in Main frame
Ferrule End
Step 16
On room side of each door drill a 1⁄8” dia. hole in each door through the 5th (middle) dimple in upper left and
lower right quadrats (not in the same quadrant as the Wings). See Figure 16.
Figure 15
Figure 16
Drill 5th Dimple
Drill 5th Dimple

17© Munters Corporation, August 2019 QM1077r13
Step 17
From the inside attach each Tension Spring to hole in upper or lower plate of Main Frame using end of spring
with loop. Loop should hook through hole from the door side. Stretch spring and insert opposite end into hole
drilled in door previously. See Figure 17.
Figure 17
Installation InstructionsChapter 2
Step 18
Place all 4 cone sections on a flat surface with tabs from one facing slots of the next. See Figure 18A.
Curl up tab end of first cone section and insert tabs up into slots in the next cone section. A mallet may be
needed to seat slots over tabs completely. See Figure 18B. Repeat this step until all 4 cone sections are
connected and laying flat.
2.4 Cone Installation
Figure 18A
Figure 18B
Hole in upper plate
Drilled Hole in
Damper Door
Tension Spring
Tension Spring
Drilled Hole in Damper Door

© Munters Corporation, August 2019
18 QM1077r13
Installation InstructionsChapter 2

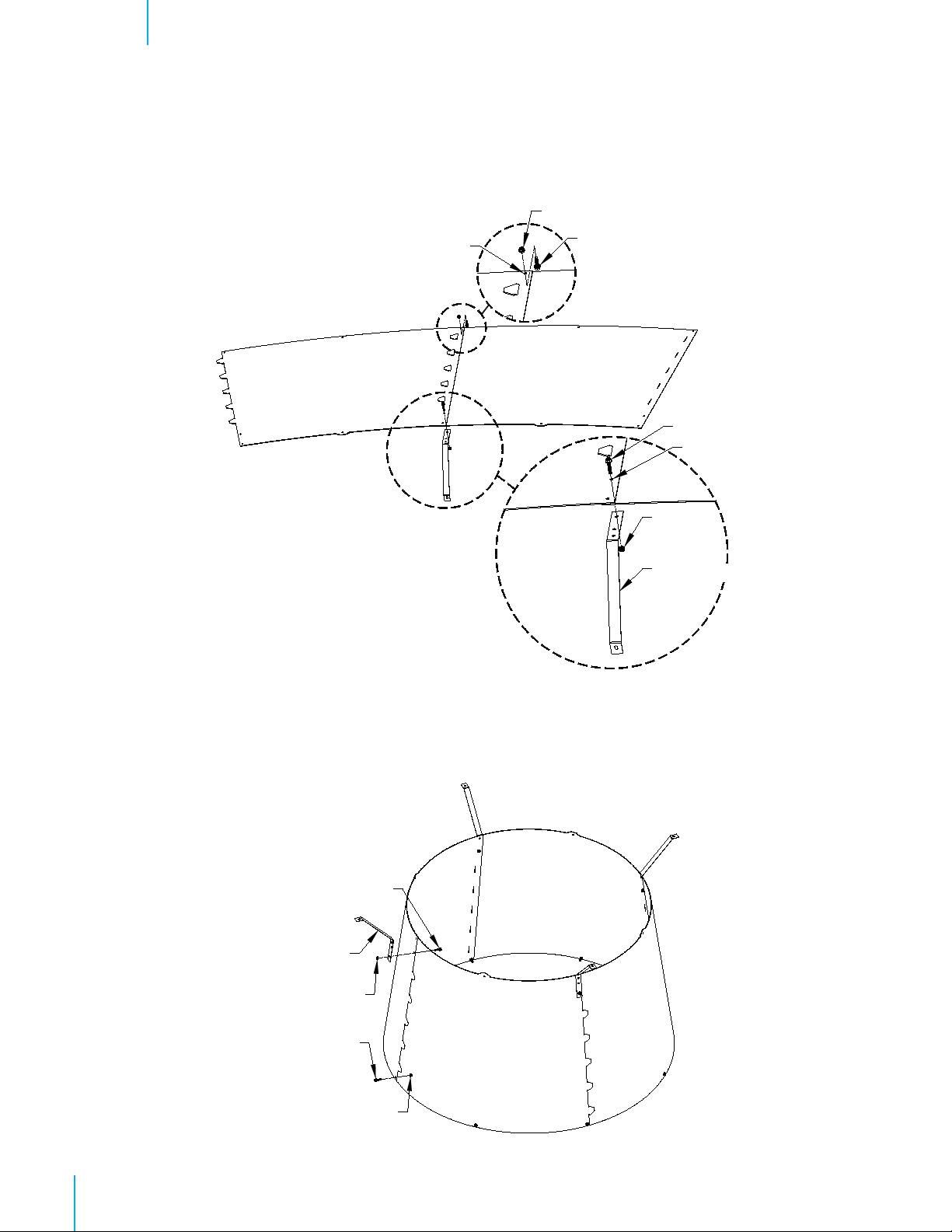

Step 19A
Fasten each of the joints in the single outer hole using (1) Short Bolt [AA] and Nut [DD], with the nut on
the side with the tabs. At the inner pair of holes of each joint attach (1) Cone Support Bracket to the inner
hole using (1) Bolt [AA] and Nut [DD] with the bolt head on the side with the tabs. See Figure 19A.
Nut [DD]
Short Bolt [AA]
Outer hole
Nut [DD]
Short Bolt [AA]
Inner hole
Figure 19A
Step 19B
Stand cone sections on end and curl ends around to form cone with Cone Support Bracket on outside and tabs
on inside. Insert remaining tabs into slots so tabs are inside cone and fasten final joint using (1) Short Bolt [AA]
and Nut [DD], with nut on inside of cone. At the inner pair of holes attach (1) Cone Support Bracket to the
inner hole using (1) Short Bolt [AA] and Nut [DD] with bolt head on inside of cone. See Figure 19B.
Figure 19B
Cone Support Bracket
Short Bolt [AA]
Short Bolt [AA]
Nut [DD]
Nut [DD]
Cone Support Bracket

19© Munters Corporation, August 2019 QM1077r13
Figure 20A

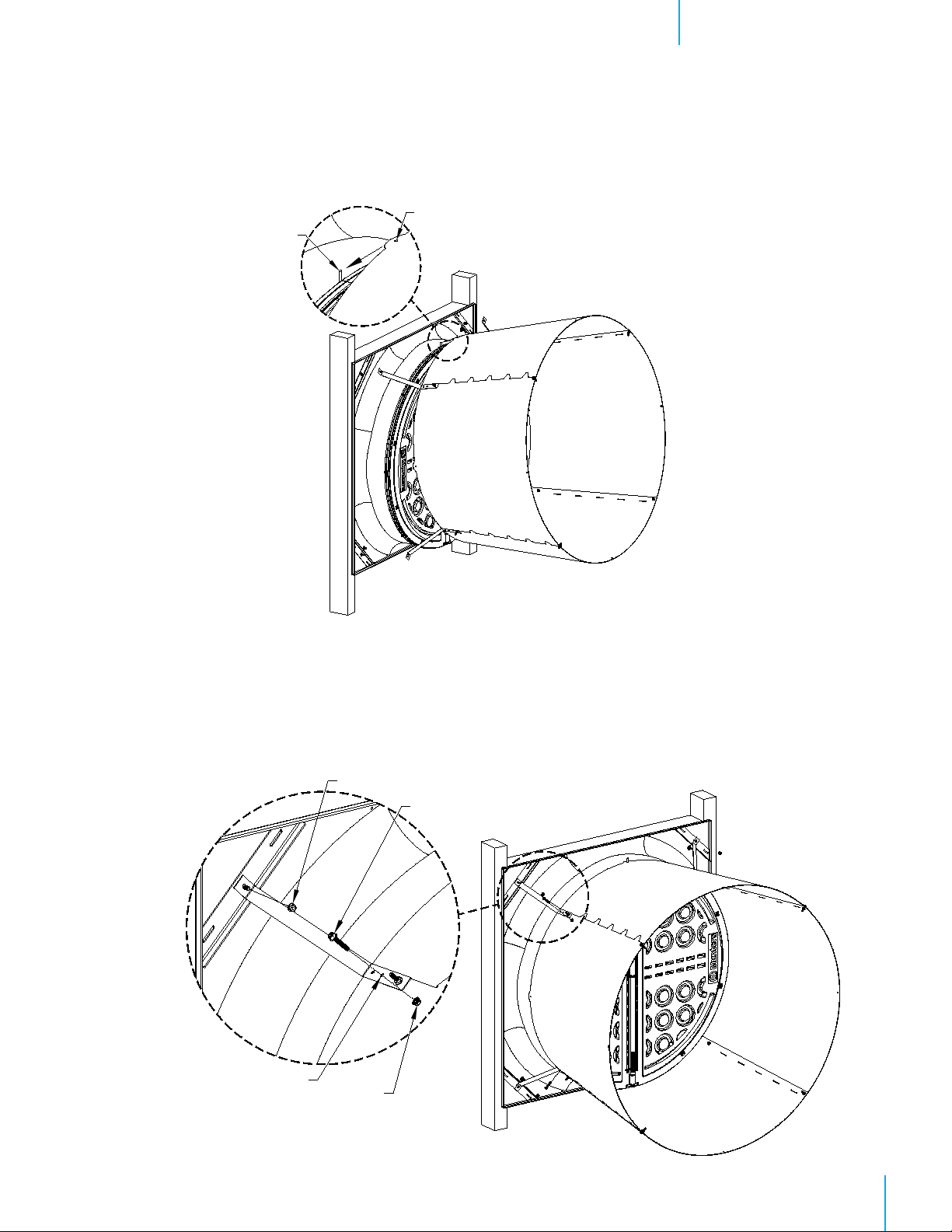

Step 20A
Install cone onto fan by putting top of cone over top of fan. The hole in tab of one cone section should slide
down over the Frame Pin in the Main Frame assembly. Allow remainder of cone to slide over orifice panel
making sure cone support brackets remain on outside of cone. See Figure 20A.
Frame Pin
Installation InstructionsChapter 2
Hole in Tab of Cone Section
Step 20B
Place end of Cone Support Bracket with slot over bolt holding Cone/Strut Mounting Bracket to the orifice and
secure with Nut [DD]. See Figure 20B.Secure Cone to Fan installing Medium Bolt [BB] through the remaining
hole in the Cone Support Bracket and fasten with Nut [DD]. A long screwdriver may be needed to help align
the holes through Cone Support Bracket, Cone, Main Frame and Orifice. Repeat process for all 4 Cone
Support Brackets. See Figure 20B.
Figure 20B
Nut [DD]
Medium Bolt [BB]
Nut [DD]
Use this hole for WM36F

© Munters Corporation, August 2019
20 QM1077r13
Installation InstructionsChapter 2
Step 21

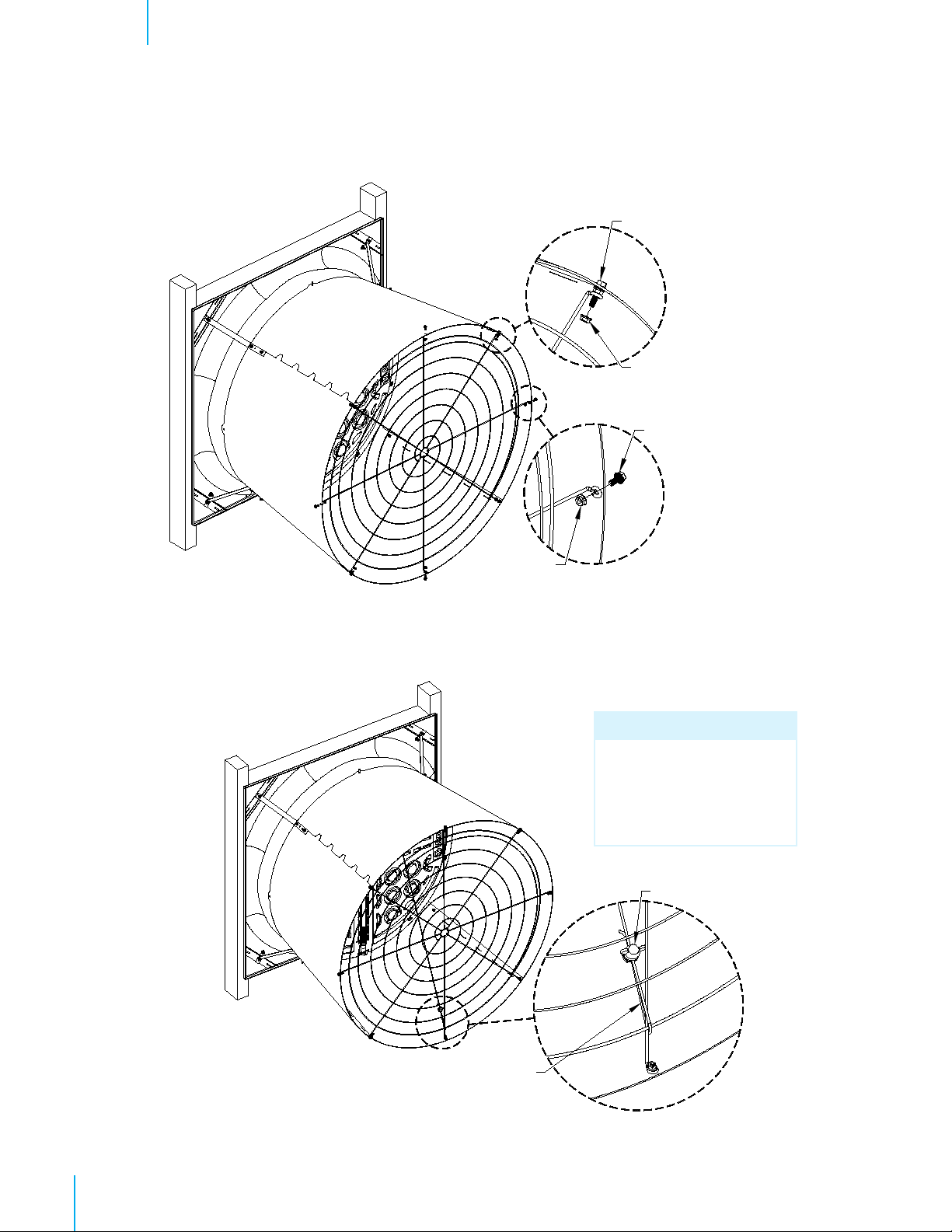

Insert guard into cone with the eyelets facing you. Install eyelets over bolts already installed in cone and fasten
with Nut [DD]. Secure remaining eyelets using Short Bolt [AA] and Nut [DD]. See Figure 21.
Nut [DD]
Nut [DD]
Previously installed - Bolt and Nut
Step 22
Loop Coated Cable that was installed in a previous step, around the lower, middle joint in guard and fasten to
itself with Azuma Bolt and Nut [T]. Make sure cable is pulled snug. See Figure 22.
Figure 21
Figure 22
Azuma [T]
Short Bolt [AA]
Coated Cable
Note:
When installing cable in
temperatures BELOW 60°F,
leave cable slightly slack
(do not overtighten).
