2Green Expansion Box
CAUTION This unit must be installed inside, in a location protected from solar radiation and direct rain
The Green Expansion box acts as remote I/O terminals; it is connected to the main CPU through a
network connection and cannot function independently.
A maximum of three Expansion Boxes can be connected to an Green House or Green Climate upper port
network.
2.1 Wiring
The Green Expansion boxes can be connected as follows:
•RS-485 using an RCLP 485 X 2 (long range – see Figure 1):
oController side: Connect the upper port of the controller communication card (RCLP 485
X 2) to the Expansion box.
oExpansion box side: Connect the wires to the RS485 communication port located on the
Expansion box CPU (do not invert Rx and Tx wires).
Green Expansion boxes can be daisy chained or parallel.
Green Expansion boxes can only be daisy chained. In this case invert Rx and Tx only in the first
connection between the Controller and the first Expansion Box. In the connections between the Expansion
Boxes do not invert.

© Munters AB, 2020 6
Figure 1: Expansion card layout
Figure 2: Box # set to '1' for Expansion box #1
Figure 3: Box # set to '2' for Expansion box #2

© Munters AB, 2020 7
Figure 4: Box # set to '3' for Expansion box #3
Figure 5: Baud rate switches in 9600 mode
Table 1 presents all available states of switches '4' and '5' (see Figure 5).
Figure 5 presents a Baud rate of 9600 (see table below for further explanations)
'4' switch position
'5' switch position
Baud Rate
Low Low 2400
High Low 4800
Low High 9600
High High 19200
Table 1: Baud rate values
NOTE Note that Figures 1-4 apply to Figures 6-8.

© Munters AB, 2020 8

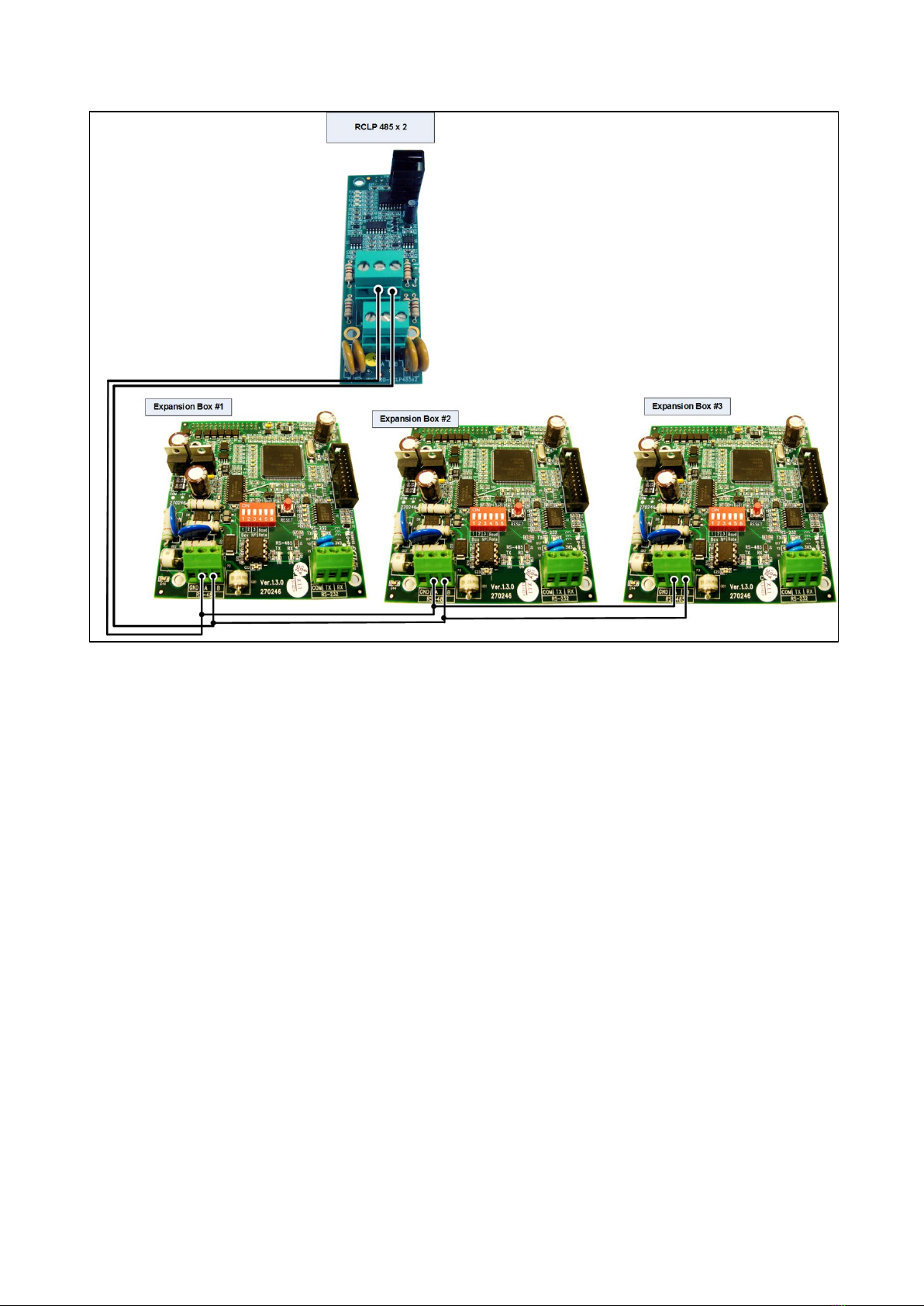

Figure 6: Expansion box wiring diagram - RS-485 connection (using an RCLP 485X2)
2.2 Distances
oFor one box:
2000 meter 9600 baud
2500 meter 4800 baud
3000 meter 2400 baud
oFor three boxes:
1200 meter 9600 baud
1800 meter 4800 baud
2400 meter 2400 baud

© Munters AB, 2020 9
3Relay Connection
o2400 Meter 2400 Baud
Figure 7: Relay connection

© Munters AB, 2020 10
Figure 8: Wrong relay connection
CAUTION Attention: Do not connect 24VAC transformer Common.
