MURO FDVL41 User manual
VILRO
AUTO
FEED
SCREWDRIVING
TOOL
[J]
INSTRUCTION
MANUAL
FOR
MODELS
FDVL41
&
FLVL41
Read
through
carefully
and
understand
these
instructions
before
use.
M
URO
MURO
NORTH
AMERICA
INC.
Brampton,
Ontario,
Canada,
LOT
3T4
INSTRUCTION
MANUAL
Congratulations
on
the
purchase
of
your
Muro
Auto
Feed
Screwdriving
Tool.
The
Muro
FD/FLVL41
is
an
all-in-one,
high
performance
tool,
designed
with
the
professional
in
mind.
This
MURO
model
drives
collated
screws
(VISROPE)
from
1"
to
3"
in
length.
Be
sure
to
ask
for
Muro
VISROPE
screw
coils
to
ensure
trouble
free
operation
of
your
Muro
Auto
Feed
Screwdriving
Tool.
General
Safety
Rules
WARNING!
Read
and
understand
all
instructions.
Failure
to
follow
all
instructions
listed
below,
may
result
in
electric
shock,
fire
and/or
serious
personal
injury.
SAVE
THESE
INSTRUCTIONS
A.
Work
Area
1.
Keep
your
work
area
clean
and
well
fit.
Cluttered
benches
and
dark
areas
invite
accidents.
2.
Do
not
operate
power
tools
in
explosive
atmospheres,
such
as
in
the
presence
of
flammable
liquids,
gases,
or
dust.
Power
tools
create
sparks
which
may
ignite
the
dust
or
fumes.
3.
Keep
bystanders,
children,
and
visitors
away
while
operating
a
power
too!.
Distractions
can
cause
you
to
lose
control.
B.
Electrical
Safety
1.
Double
insulated
tools
are
equipped
with
a
polarized
piug
(one
blade
is
wider
than
the
other.)
This
plug
will
fit
in
a
polarized
outlet
only
one
way.
If
the
plug
does
not
fit
fully
in
the
outlet,
reverse
the
plug.
If it
still
does
not
fit,
contact
a
qualified
electrician
to
install
a
polarized
outlet.
Do
not
change
the
plug
in
any
way.
Double
insulation
[E]
eliminates
the
need
for
the
three
wire
grounded
power
cord
and
grounded
power
supply
system.
2.
Avoid
body
contact
with
grounded
surfaces
such
as
pipes,
radiators,
ranges
and
refrigerators.
There
is
an
increased
risk
of
electric
shock
if
your
body
is
grounded.
3.
Don't
expose
power
tools
to
rain
or
wet
conditions.
Water
entering
a
power
tool
will
increase
the
risk
of
electric
shock.
4.
Do
not
abuse
the
cord.
Never
use
the
cord
to
carry
the
tools
or
pull
the
plug
from
an
outlet.
Keep
cord
away
from
heat,
oil,
sharp
edges
or
moving
parts.
Replace
damaged
cords
immediately.
Damaged
cords
increase
the
risk
of
electric
shock.
5.
When
operating
a
power
tool
outside,
use
an
outdoor
extension
cord
marked
“W-A"
or
“W”
These
cords
are
rated
for
outdoor
use
and
reduce
the
risk
of
electric
shock.
Be
sure
to
use
an
extension
cord
of
sufficient
size
to
prevent
overheating
and
loss
of
power
to
the
tool.
The
table
below
shows
the
correct
size
extension
cord
to
use.
Cord
Length
Required
Wire
Size
25
feet
18
ga
50
feet
16
ga
75
feet
14
ga
100
feet
12
9a
C.
Personal
Safety
1.
Stay
alert,
watch
what
you
are
doing
and
use
common
sense
when
operating
a
power
tool.
Do
not
use
tool
while
tired
or
under
the
influence
of
drugs,
alcohol,
or
medication.
A
moment
of
inattention
while
operating
power
tools
may
result
in
serious
personal
injury.
2.
Dress
properly.
Do
not
wear
loose
clothing
or
jewellery.
Contain
long
hair.
Keep
your
hair,
clothing,
and
gloves
away
from
moving
parts.
Loose
ciothes,
jewellery,
or
long
hair
can
be
caught
in
moving
parts.
3.
Avoid
accidental
starting.
Be
sure
switch
is
off
before
plugging
in.
Carrying
tools
with
your
finger
on
the
switch
or
plugging
in
tools,
that
have
the
switch
on
invites
accidents.
4.
Remove
adjusting
keys
or
wrenches
before
turning
the
tool
on.
A
wrench
or
a
key
that
is
left
attached
to
a
rotating
part
of
the
tool
may
result
in
personal
injury.
5.
Do
not
over
reach.
Keep
proper
footing
and
balance
at
all
times.
Proper
footing
and
balance enables
better
control
of
the
tool
in
unexpected
situations.
6.
Use
safety
equipment.
Always
wear
eye
protection.
Dust
mask,
non-skid
safety
shoes,
hard
hat,
or
hearing
protection
must
be
used
for
appropriate
conditions.
D.
Tool
Use
and
Care
1.
Use
clamps
or
other
practical
way
to
secure
and
support
the
workpiece
to
a
stable
platform.
Holding
the
work
by
hand
or
against
your
body
is
unstable
and
may
lead
to
loss
of
control.
2.
Do
not
force
tool.
Use
the
correct
tool
for
your
application.
The
correct
tool
will
do
the
job
better
and
safer
at
the
rate
for
which
it
is
designed.
3.
Do
not
use
tool
if
switch
does
not
turn
it
on
or
off.
Any
toot
that
cannot
be
controlled
with
the
switch
is
dangerous
and
must
be
repaired.
4.
Disconnect
the
plug
from
the
power
source
before
making
any
adjustments,
changing
accessories,
or
storing
the
tool.
Such
preventive
safety
measures
reduce
the
risk
of
starting
the
tool
accidentally.
5.
Store
idle
tools
out
of
reach
of
children
and
other
untrained
persons.
Tools
are
dangerous
in
the
hands
of
untrained
users.
6.
Maintain
tools
with
care.
Keep
cutting
tools
sharp
and
clean.
Properly
maintained
tools,
with
sharp
cutting
edges
are
less
likely
to
bind
and
are
easier
to
control.
7.
Check
for
misalignment
or
binding
of
moving
parts,
breakage
of
parts,
and
any
other
condition
that
may
affect
the
tools
operation.
If
damaged,
have
the
tool
serviced
before
using.
Many
accidents
are
caused
by
poorly
maintained
toolis.
8.
Use
only
accessories
that
are
recommended
by
the
manufacturer
for
your
model.
Accessories
that
may
be
suitable
for
one
tool,
may
become
hazardous
when
used
on
another
tool.
E.
Service
1.
Tool
service
must
be
performed
only
by
qualified
repair
personnel.
Service
or
maintenance
performed
by
unqualified
personnel
could
result
in
a
risk
of
injury.
2.
When
servicing
a
tool,
use
only
the
identical
replacement
parts.
Follow
instructions
in
the
Maintenance
section
of
this
manual.
Use
of
unauthorized
parts
or
failure
to
follow
Maintenance
Instructions
may
create
a
risk
of
electric
shock
or
injury.
SAVE
THESE
INSTRUCTIONS.
SYMBOLS
AND
DEFINITIONS
[o]
Class
II
Construction
(Double
Insulation)
V
-
Volts
~
-
Alternating
Current
A
-Amperes
W
-Watt
Hz
-Hertz
Nng
-
No
Load
Speed
GUIDE
COVER
FEEDER
BLOCK
SCREW
GUIDE
GUIDE
POLE
VISROPE
MAGAZINE
Figure
1
FUNCTIONAL
DESCRIPTION
The
MURO
FDIFLVL41
Automatic
Screw
Driving
tool
has
been
designed
to
provide
a
convenient
and
efficient
way
to
drive
screws
at
a
much
faster
rate
than
with
conventional
screw
driving
methods.
With
the
tool
properly
assembled
and
loaded
with
VISROPE
(the
collated
fasteners
designed
specifically
for
Muro
tools)
the
tool
can
be
used
for
non-stop
driving
of
screws
on
a
variety
of
applications.
TOOL
SPECIFICATIONS
STANDARD
ACCESSORIES:
Model
FDVL41
1
Double
ended
Phillips
Bit
FLVL41
Speed
FDVL41
2900rpm
1
Double
ended
Square
Bit
Speed
FLVL41
2400rpm
Voltage
115V
AC
1
Allen
key
3.0mm
Current
5.0A
1
Allen
key
4.0mm
Cord
Length
9
feet
1
M4
Wrench
Screw
Range
1'"-3"
Weight
8.8
Ibs
A
holder
for
the
allen
keys
is
provided
on
the
side
of
the
magazine.
NOTE:
Due
to
Muro’s
continuing
program
of
research
and
development,
the
specifications
herein
are
subject
to
change
without
notice.
Figure
1
shows
the
major
components
and
controls
of
your
tool.
Familiarizing
yourself
with
these
major
components
will
make
it
easy
to
understand
the
instructions
which
follow.
SWITCHES
AND
CONTROLS
—
.
Trigger
Switch
Operation
-
Holding
the
trigger
switch
fuliy
depressed
will
cause
the
motor
to
start,
releasing
the
switch
will
cause
the
motor
to
stop.
This
switch
is
also
equipped
with
a
locking
mechanism
which
allows
continuous
motor
operation.
To
use
this
feature,
press
the
switch
lock
button
with
the
trigger
in
the
"on"
position.
Press
the
trigger
switch
again
to
release
the
switch
lock.
See
figure
2.
2.
Reversing
Switch
-
The
rocker
switch
on
the
top
side
of
the
tool
allows
selection
of
the
direction
of
bit
rotation.
Screws
may
be
driven
and
withdrawn
easily
from
the
work
material.
Always
check
the
direction
of
bit
rotation
before
operating
the
tool.
Set
the
switch
to
"F"
(forward)
for
driving
screws
and
"R”
(reverse)
for
removing
screws.
See
figure
3.

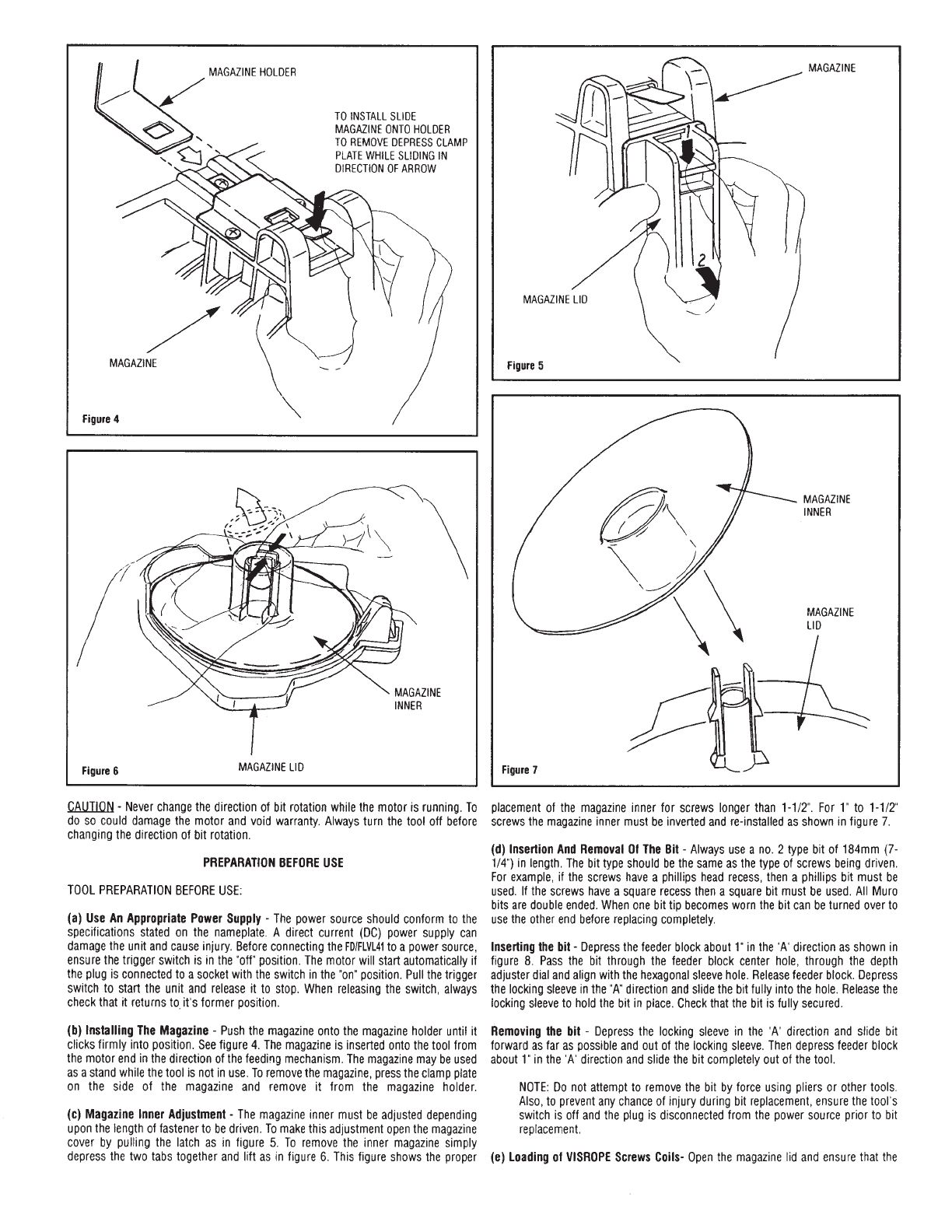

DEPTH
ADJUSTMENT
TRIGGER
SWITCH
Figure
2
Figure
3
TRIGGER
SWITCH
LOCK
BUTTON
REVERSING
SWITCH
REVERSING
SWITCH
EXTENSION
HANDLE
HANDLE
BRACKET
MAGAZINE
HOLDER
TO
INSTALL
SLIDE
MAGAZINE
ONTO
HOLDER
TO
REMOVE
DEPRESS
CLAMP
PLATE
WHILE
SLIDING
IN
DIRECTION
OF
ARROW
MAGAZINE
Figure
4
MAGAZINE
INNER
Figure
6
MAGAZINE
LID
CAUTION
-
Never
change
the
direction
of
bit
rotation
while
the
motor
is
running.
To
do
so
could
damage
the
motor
and
void
warranty.
Always
turn
the
tool
off
before
changing
the
direction
of
bit
rotation.
PREPARATION
BEFORE
USE
TOOL
PREPARATION
BEFORE
USE:
(a)
Use
An
Appropriate
Power
Supply
-
The
power
source
should
conform
to
the
specifications
stated
on
the
nameplate.
A
direct
current
(DC)
power
supply
can
damage
the
unit
and
cause
injury.
Before
connecting
the
FD/FLVL41
to
a
power
source,
ensure
the
trigger
switch
is
in
the
"off"
position.
The
motor
will
start
automatically
if
the
plug
is
connected
to
a
socket
with
the
switch
in
the
"on"
position.
Pull
the
trigger
switch
to
start
the
unit
and
release
it
to
stop.
When
releasing
the
switch,
always
check
that
it
returns
to
it's
former
position.
(b)
Installing
The
Magazine
-
Push
the
magazine
onto
the
magazine
holder
unti!
it
clicks
firmly
into
position.
See
figure
4.
The
magazine
is
inserted
onto
the
tool
from
the
motor
end
in
the
direction
of
the
feeding
mechanism.
The
magazine
may
be
used
as
a
stand
while
the
tool
is
not
in
use.
To
remove
the
magazine,
press
the
clamp
plate
on
the
side
of
the
magazine
and
remove
it
from
the
magazine
holder.
(c)
Magazine
Inner
Adjustment
-
The
magazine
inner
must
be
adjusted
depending
upon
the
length
of
fastener
to
be
driven.
To
make
this
adjustment
open
the
magazine
cover
by
pulling
the
latch
as
in
figure
5.
To
remove
the
inner
magazine
simply
depress
the
two
tabs
together
and
lift
as
in
figure
6.
This
figure
shows
the
proper
MAGAZINE
MAGAZINE
INNER
MAGAZINE
LID
i
placement
of
the
magazine
inner
for
screws
longer
than
1-1/2".
For
1"
to
1-1/2"
screws
the
magazine
inner
must
be
inverted
and
re-installed
as
shown
in
figure
7.
Figure
7
(d)
Insertion
And
Removat
Of
The
Bit
-
Always
use
a
no.
2
type
bit
of
184mm
(7-
1/4")
in
length.
The
bit
type
should
be
the
same
as
the
type
of
screws
being
driven.
For
example,
if
the
screws
have
a
phillips
head
recess,
then
a
phillips
bit
must
be
used.
If
the
screws
have
a
square
recess
then
a
square
bit
must
be
used.
All
Muro
bits
are
double
ended.
When
one
bit
tip
becomes
worn
the
bit
can
be
turned
over
to
use
the
other
end
before
replacing
completely.
Inserting
the
bit
-
Depress
the
feeder
block
about
1° in
the
'A'
direction
as
shown
in
figure
8.
Pass
the
bit
through
the
feeder
block
center
hole,
through
the
depth
adjuster
dial
and
align
with
the
hexagonal
sleeve
hole.
Release
feeder
block.
Depress
the
locking
sleeve
in
the
‘A’
direction
and
slide
the
bit
fully
into
the
hole.
Release
the
locking
sleeve
to
hold
the
bit
in
place.
Check
that
the
bit
is
fully
secured.
Removing
the
bit
-
Depress
the
locking
sleeve
in
the
'A'
direction
and
slide
bit
forward
as
far
as
possible
and
out
of
the
locking
sleeve.
Then
depress
feeder
block
about
1"
in
the
‘A’
direction
and
slide
the
bit
completely
out
of
the
tool.
NOTE:
Do
not
attempt
to
remove
the
bit
by
force
using
pliers
or
other
tools.
Also,
to
prevent
any
chance
of
injury
during
bit
replacement,
ensure
the
tool's
switch
is
off
and
the
plug
is
disconnected
from
the
power
source
prior
to
bit
replacement.
(e)
Loading
of
VISROPE
Screws
Coils-
Open
the
magazine
lid
and
ensure
that
the
magazine
inner
is
adjusted
as
described
previously
corresponding
to
the
fastener
length
to
be
driven.
Place
the
VISROPE
into
the
magazine
with
the
screw
heads
facing
upwards.
Pull
the
forward
end
of
the
VISROPE
coil
out
of
the
magazine
outlet
and
close
the
magazine
tid.
Insert
the
VISROPE
into
the
slot
between
the
feeder
block
and
guide
cover
(see
fig.
9)
as
far
as
possible.
Then
activate
the
feeding
mechanism
by
depressing
the
feeder
block
about
1"
in
the
"A"
direction,
as
illustrated
and
release.
The
tool's
feed
mechanism
will
pull
the
first
screw
into
place,
which
should
look
like
figure
10.
(f)
Unloading
Visrope
-
To
remove
the
VISROPE,
shift
the
guide
cover
to
the
left
and
tilt
it
upwards
(see
fig.
11)
Push
the
feeder
block
in
the
‘A’
direction,
press
the
grip
finger
downwards
and
pull
the
VISROPE
to
the
left
to
remove
the
screws.
(g)
Screws
of
Different
Lengths
-
Screws
ranging
from
1"
to
3"
can
be
driven
with
your
tool.
The
piastic
tape
location
of
collated
Muro
VISROPE
is
either
22mm
or
30mm
down
from
the
head
of
the
screw.
The
respective
position
depends
upon
the
length
of
the
screws
being
driven.
Screws
ranging
from
1"
to
1-3/4"
are
collated
at
22mm,
while
the
longer
screws
from
1-3/4"
to
3"
are
collated
at
30mm.
The
tool
is
designed
so
that
the
plastic
will
always
be
in
the
same
position
on
the
feeder
block.
When
loading
your
VISROPE
be
sure
to
feed
the
screw
head
into
the
appropriate
slot
as
in
figure
12.
(h)
Stopper
Block
Adjustment
-
Depending
upon
whether
22mm
or
30mm
collated
screws
are
being
driven,
the
stopper
block
needs
to
be
adjusted
accordingly.
To
adjust
the
stopper
block,
loosen
the
cap
screw
under
the
extension
block
on
the
right
hand
side
of
the
tool.
Slide
the
stopper
block
fully
forward
for
30mm
collation
or
fully
backward
for
22mm
collation.
See
figure
13.
CAUTION:
Removing
the
cap
screw
completely
will
allow
the
head
of
the
tool
to
eject
from
the
motor.
Take
care
not
to
remove
this
screw
fully
when
making
the
stopper
block
adjustment.
(i)

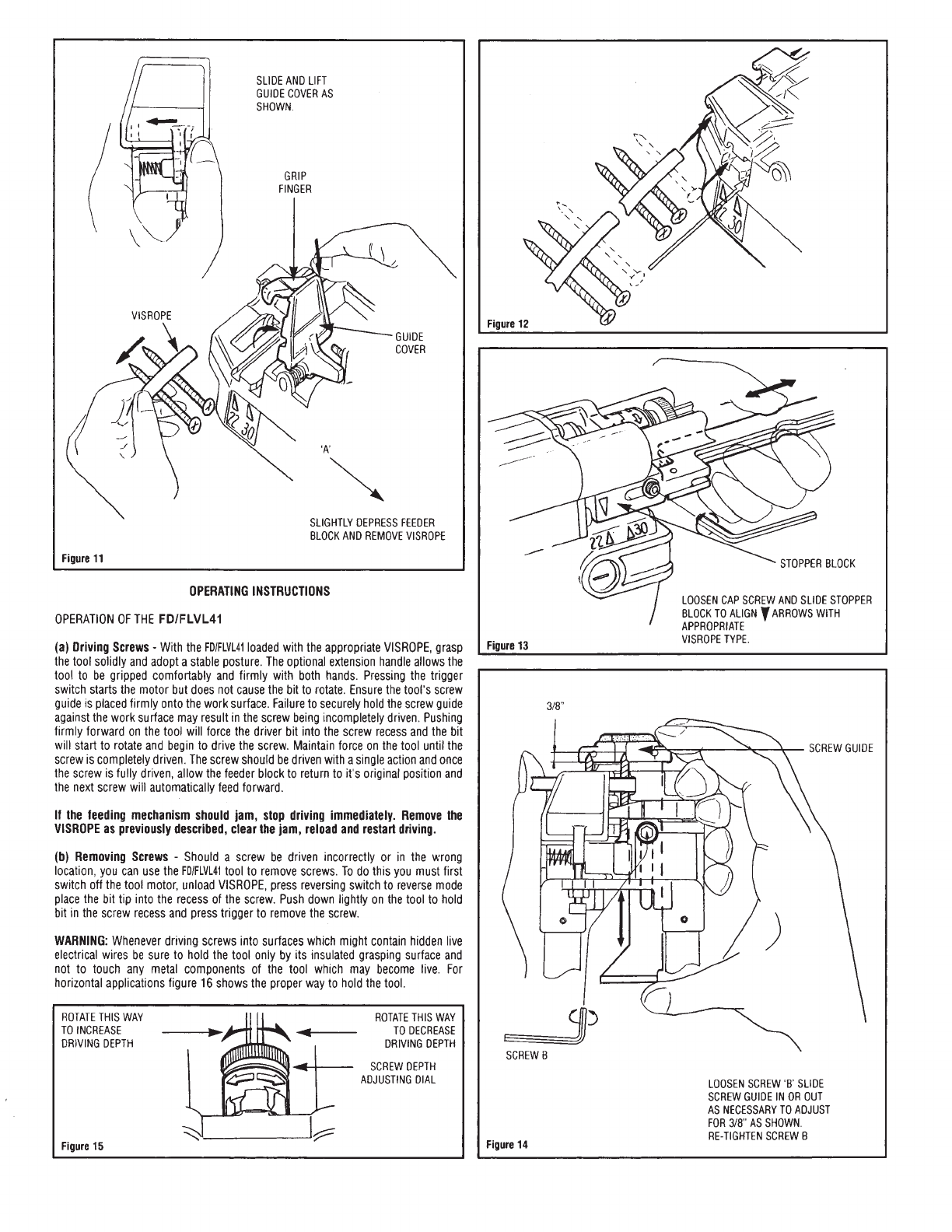

Screw
Guide
Adjustment
-
the
distance
that
the
screw
extends
onto
the
screw
guide
should
be
kept
at
approximately
3/8".
See
figure
14.
The
screw
guide
is
adjusted
by
loosening
screw
'B'
on
the
top
side
of
the
feeder
block
and
by
stiding
the
screw
guide
in
and
out
to
achieve
the
appropriate
setting.
The
magazine
will
move
with
the
size
piece
so
that
the
screws
may
be
fed
easily
into
the
feeder
bluck.
Be
sure
to
retighten
screw
'B'
when
the
adjustment
is
complete.
(j)
Countersink
Depth
Adjustment
-
By
turning
the
depth
adjusting
dial
left
or
right,
the
depth
to
which
screws
may
be
driven
can
be
adjusted.
See
figure
15.
Rotating
the
adjusting
dial
to
the
right
reduces
driving
depth,
rotating
to
the
teft
increases
driving
depth.
(k)
Extension
Handle
(optional
accessory)
Installation
-
The
FDJ/FLVL41
tool
is
designed
primarily
to
be
used
as
a
flooring
and
decking
tool.
For
maximum
operat-
ing
comfort
the
too!
may
be
fitted
with
the
optional
extension
handie
which
allows
the
operator
to
stand
up
while
driving
screws.
The
length
of
this
handle
may
be
adjusted
to
suit
the
operator's
height
and
most
comfortable
driving
posture.
To
attach
the
handle
to
the
tool
,
place
the
handle
into
the
handle
bracket,
as
shown
in
figure
1,
and
secure
it
in
position
by
tightening
the
knob.
FIRST
SCREW
FED
INTO
PLACE
Figure
10
Figure
8
LOAD
VISROPE
IN
THIS
DIRECTION
AS
SHOWN
AM
m:
GUIDE
COVER
Figure
9
N
FEEDER
BLOCK
HEXAGONAL
LOCKING
SLEEVE
SLIDE
AND
LIFT
GUIDE
COVER
AS
SHOWN.
GRIP
FINGER
SLIGHTLY
DEPRESS
FEEDER
BLOCK
AND
REMOVE
VISROPE
Figure
11
OPERATING
INSTRUCTIONS
OPERATION
OF
THE
FD/FLVL41
(a)
Driving
Screws
-
With
the
FD/FLVL41
loaded
with
the
appropriate
VISROPE,
grasp
the
tool
solidly
and
adopt
a
stable
posture.
The
optional
extension
handle
allows
the
tool
to
be
gripped
comfortably
and
firmly
with
both
hands.
Pressing
the
trigger
switch
starts
the
motor
but
does
not
cause
the
bit
to
rotate.
Ensure
the
tool's
screw
guide
is
placed
firmly
onto
the
work
surface.
Failure
to
securely
hold
the
screw
guide
against
the
work
surface
may
result
in
the
screw
being
incompletely
driven.
Pushing
firmly
forward
on
the
tool
will
force
the
driver
bit
into
the
screw
recess
and
the
bit
will
start
to
rotate
and
begin
to
drive
the
screw.
Maintain
force
on
the
tool
until
the
screw
is
completely
driven.
The
screw
should
be
driven
with
a
single
action
and
once
the
screw
is
fully
driven,
allow
the
feeder
block
to
return
to
it's
original
position
and
the
next
screw
will
automatically
feed
forward.
If
the
feeding
mechanism
should
jam,
stop
driving
immediately.
Remove
the
VISROPE
as
previously
described,
clear
the
jam,
reload
and
restart
driving.
(b)
Removing
Screws
-
Should
a
screw
be
driven
incorrectly
or
in
the
wrong
location,
you
can use
the
FD/FLVL41
tool
to
remove
screws.
To
do
this
you
must
first
switch
off
the
tool
motor,
unload
VISROPE,
press
reversing
switch
to
reverse
mode
place
the
bit
tip
into
the
recess
of
the
screw.
Push
down
lightly
on
the
tool
to
hold
bit
in
the
screw
recess
and
press
trigger
to
remove
the
screw.
WARNING:
Whenever
driving
screws
into
surfaces
which
might
contain
hidden
live
electrical
wires
be
sure
to
hold
the
tool
only
by
its
insulated
grasping
surface
and
not
to
touch
any
metal
components
of
the
tool
which
may
become
live.
For
horizontal
applications
figure
16
shows
the
proper
way
to
hold
the
tool.
ROTATE
THIS
WAY
TO
INCREASE
DRIVING
DEPTH
ROTATE
THIS
WAY
TO
DECREASE
DRIVING
DEPTH
SCREW
DEPTH
ADJUSTING
DIAL
Figure
15
Figure
12
STOPPER
BLOCK
LOOSEN
CAP
SCREW
AND
SLIDE
STOPPER
BLOCK
TO
ALIGN
Y
ARROWS
WITH
APPROPRIATE
Figure
13
VISROPE
TYPE.
SCREW
GUIDE
aT
i
Dí
i
L
SCREW
B
LOOSEN
SCREW
'B'
SLIDE
SCREW
GUIDE
IN
OR
OUT
AS
NECESSARY
TO
ADJUST
FOR
3/8"
AS
SHOWN.
.
RE-TIGHTEN
SCREW
B
Figure
14
‘
SS
AEM
WARNING:
HOLD
TOOL
AS
SHOWN
WHEN
USING
HORIZONTALLY
Figure
16
MAINTENANCE
AND
INSPECTION
To
ensure
trouble-free
operation
of
your
FD/FLVL4/
tool,
please
note
the
following:
(1)
Inspect
the
driver
bit
and
replace
with
a
new
one
whenever
excessive
wear
or
damage
is
noticed.
(2)
To
ensure
that
the
grip
finger,
guide
cover
and
guide
poles
slide
smoothly,
reguiarly
apply
2
-
3
drops
of
a
high
grade
lubricating
oil.
(3)
The
gap
between
the
guide
cover
and
the
feeder
block
should
be
sufficient
to
allow
free
movement
of
the
VISROPE.
If
this
gap
size
is
incorrect,
it
may
result
in
feeding
problems.
To
adjust
this
gap,
loosen
the
lock
nut
on
the
adjusting
screw
using
the
M4
nut
wrench
supplied.
See
figure
17.
The
width
of
the
nut
wrench's
handle
is
.210"
(5.4mm)
and
may
be
used
as
a
guide
for
adjusting
the
gap
by
sliding
it
on
edge
between
the
guide
cover
and
feeder
block.
Using
the
3mm
allen
key,
turn
the
adjusting
screw
to
widen
or
narrow
the
gap.
When
the
gap
is
set,
tighten
the
lock
|
Figure
17
nut
while
holding
the
adjusting
screw
in
position
with
the
allen
key.
(4)
As
vibration
through
use can
cause
screws
to
loosen,
periodically
tighten
screws
on
the
feeder
block.
(5)
The
motor
uses
carbon
brushes.
These
should
be
inspected
regularly
and
REPLACE
BRUSH
WHEN
replaced
as
necessary.
See
figure
18.
To
replace
carbon
brushes,
remove
WORN
TO
3/16"
brush
cap,
then
remove
spring
and
brush
assembly.
Carbon
brushes
should
always
be
replaced
in
pairs.
Install
new
brushes
and
replace
brush
cap.
(6)
The
tool
should
be
maintained
in
good
condition.
For
optimum
performance,
Clean
and
adjust
the
unit
regularly.
Wood
chips
or
other
materials
will
affect
the
tool's
performance
and
consequently
it's
efficiency.
Remove
such
materials
from
the
feeder
block
before
and
after
use.
(7)
Dust
in
the
motor
should
be
discharged
every
50
hours
of
operation.
A
method
of
discharging
the
dust
is
to
run
the
motor
in
a
no-load
situation
and
blow
compressed
air
into
the
housing
through
the
front
air
vents
causing
the
dust
and
air
to
exhaust
together
through
the
rear
air
vents.
(8)
When
tool
service
is
required
be
sure
to
use
only
genuine
replacement
parts.
Figure
18
BRUSH
CAP
IMPORTANT
Muro
North
America
Inc.
guarantees
its
product
for
6
months
after
the
date
of
purchase
by
the
end-user
against
defective
workmanship
or
material.
This
guarantee,
of
course,
does
not
cover
defects
or
damage
due
to
misuse,
abuse,
or
normal
wear
and
tear.
The
product
is
not
guaranteed
if
any
screws
other
than
VISROPE
(
MRO
collated
screws)
are
used.
In
the
event
that
service
is
necessary
the
product
should
be
returned
to
the
place
of
purchase.
Made
in
Canada
MURO
is
a
registered
trademark
of
MURO
CORPORATION
and
MURO
NORTH
AMERICA
INC.
MURO
MURO
NORTH
AMERICA
INC.
7
Tilbury
Court,
Brampton,
Ontario
Canada
L6T
3T4
Tel:
(905)
451-7667
Fax:
(905)
451-7936
Head
Office:
MURO
CORPORATION
4-10
Kaminoge
1-chome,
Setagaya-ku
Tokyo
152,
Japan.
International
Marketing
Section:
Adachi
Kousan
Bldg.,
4-3-2,
Minato-ku
Tokyo
105,
Japan.
Tel:
03-3431-5651
Fax:
03-343
1-0888
Manufacturing
section:
Kiyohara
Factory,
Tochigi-ken,
Japan.
